  • Whirlpool RH8930XLS

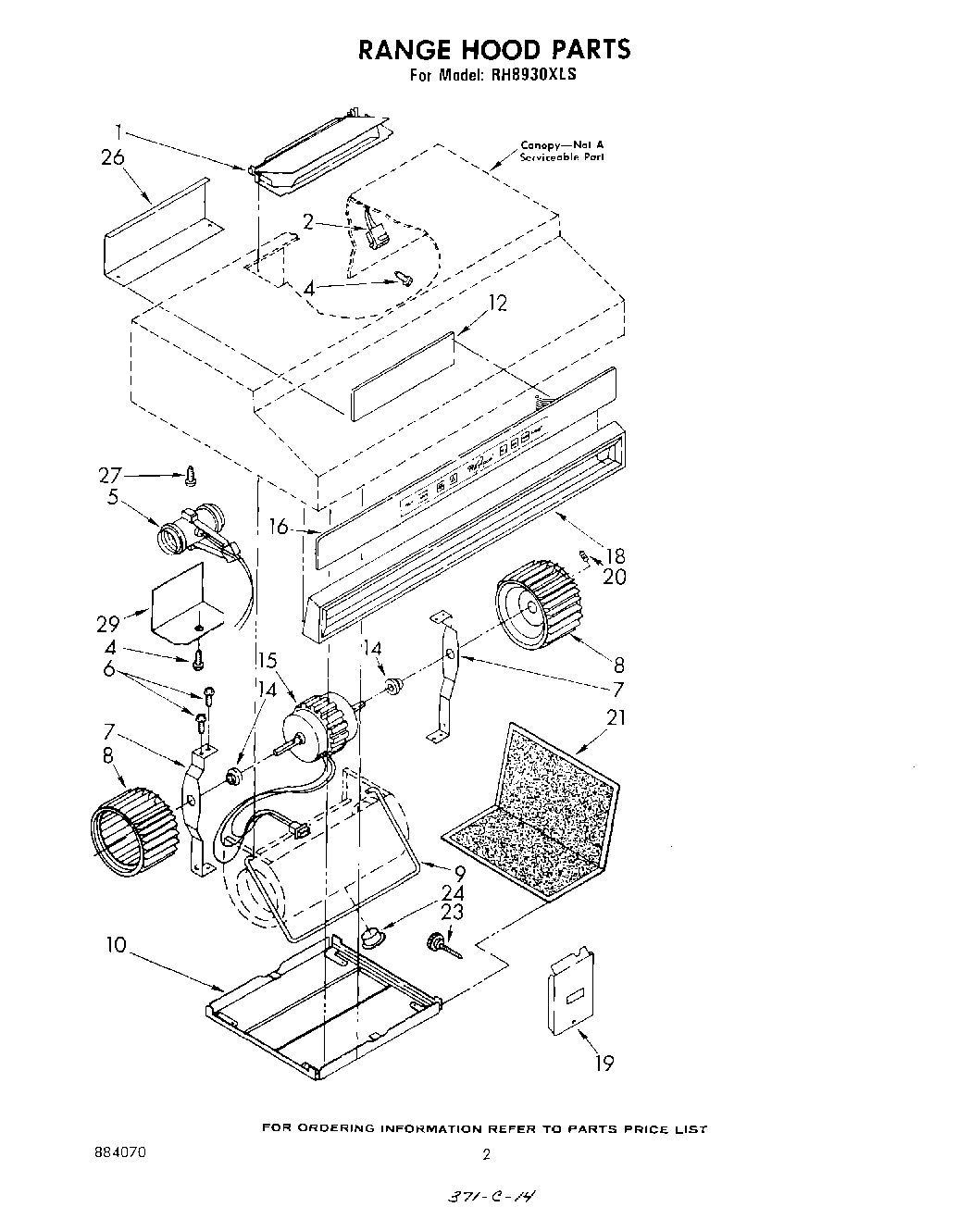

Model Whirlpool RH8930XLS – Common Parts & Diagrams

1
Damper, Complete
Damper, Complete WPL 830753 Contact Us For Availability
View on Model
2
Receptacle, Snap-In
Receptacle, Snap-In WPL 830173 Contact Us For Availability
View on Model
5
Lampholder, Snap-In
Lampholder, Snap-In WPL 830755 Contact Us For Availability
View on Model
7
Motor Bracket (2)
Motor Bracket (2) WPL 830742 Contact Us For Availability
View on Model
8
Blower Wheel, R.S. (Includes Illus. 20)
Blower Wheel, R.S. (Includes Illus. 20) WPL 830745 Contact Us For Availability
View on Model
8
Blower Wheel, L.S. (Includes Illus. 20)
Blower Wheel, L.S. (Includes Illus. 20) WPL 830746 Contact Us For Availability
View on Model
9
Rod, Retaining
Rod, Retaining WPL 830748 Contact Us For Availability
View on Model
10
Cover, Blower (2) (Includes Illus. 23)
Cover, Blower (2) (Includes Illus. 23) WPL 830889 Contact Us For Availability
View on Model
12
P.C. Board
P.C. Board WPL 883020 Contact Us For Availability
View on Model
14
Motor Mount, Rubber (2)
Motor Mount, Rubber (2) WPL 830743 Contact Us For Availability
View on Model
15
Motor, Blower
Motor, Blower WPL 830744 Contact Us For Availability
View on Model
16
Switch, Membrane
Switch, Membrane WPL 883018 Contact Us For Availability
View on Model
18
Trim, Switch Membrane
Trim, Switch Membrane WPL 883021 Contact Us For Availability
View on Model
19
Cover, Wiring Box
Cover, Wiring Box WPL 830752 Contact Us For Availability
View on Model
20
Setscrew
Setscrew WPL 90196 Contact Us For Availability
View on Model
23
Screw, Thumb (2)
Screw, Thumb (2) WPL 830892 Contact Us For Availability
View on Model
24
Bushing, Split
Bushing, Split WPL 830271 Contact Us For Availability
View on Model
26
Cover, P.C. Board
Cover, P.C. Board WPL 883019 Contact Us For Availability
View on Model
27
Screw, 10-32 x 3/8 Green (Ground)
Screw, 10-32 x 3/8 Green (Ground) WPL 830841 Contact Us For Availability
View on Model
29
Order Blank, Filter
Order Blank, Filter WPL 830735 Contact Us For Availability
View on Model
29
Cover, Switch Box
Cover, Switch Box WPL 830888 Contact Us For Availability
View on Model
29
Instructions, Installation & Operating
Instructions, Installation & Operating WPL 883029 Contact Us For Availability
View on Model
29
List, Repair Parts
List, Repair Parts WPL 884070 Contact Us For Availability
View on Model
