  • Whirlpool RH2330XLW0

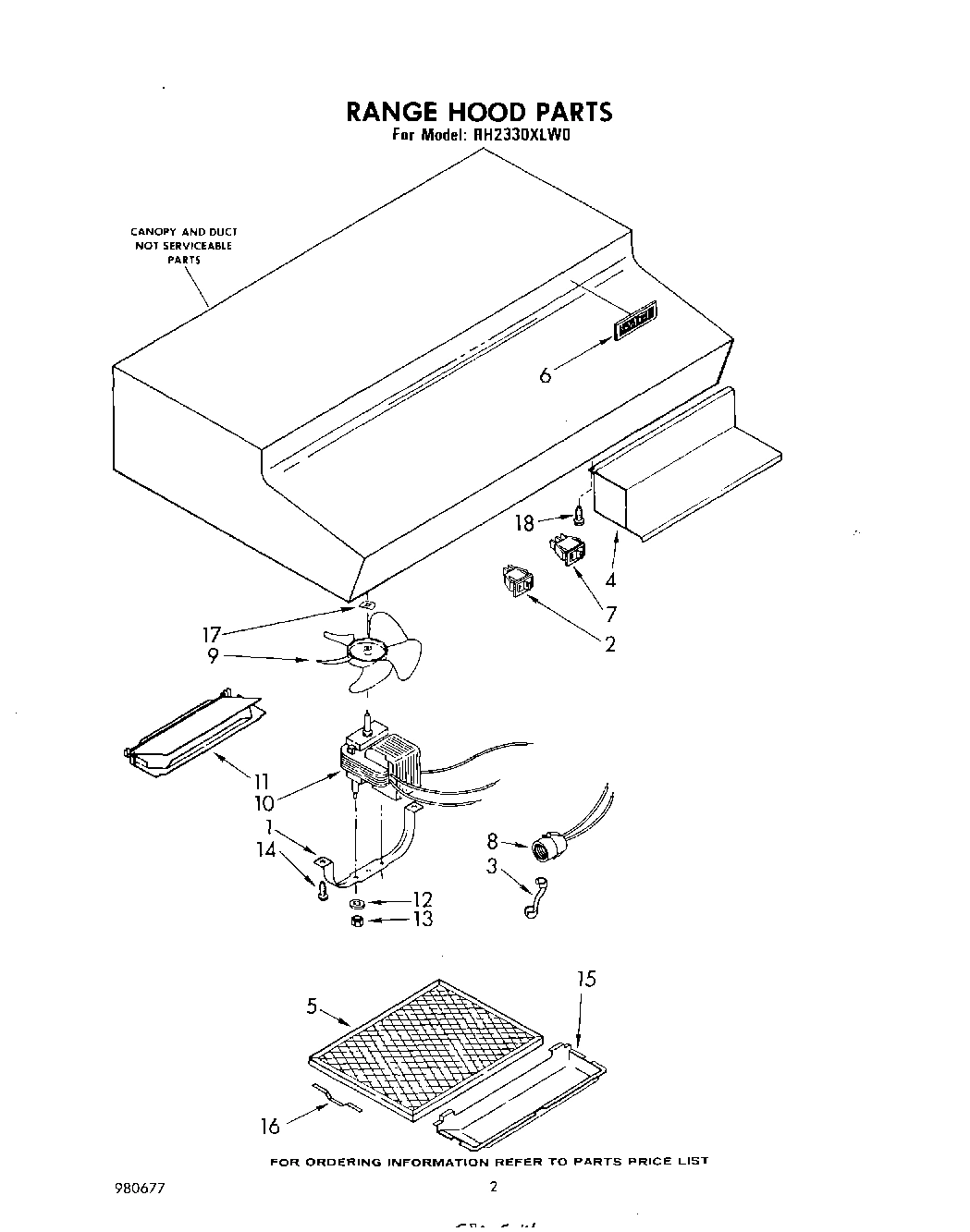

Model Whirlpool RH2330XLW0 – Common Parts & Diagrams

Instructions, Installation & Operating
Instructions, Installation & Operating WPL LIT830877 Contact Us For Availability
View on Model
List, Repair Parts
List, Repair Parts WPL LIT980677 Contact Us For Availability
View on Model
1
Bracket, Motor
Bracket, Motor WPL 830764 Contact Us For Availability
View on Model
3
Bushing, Strain Relief
Bushing, Strain Relief WPL 830327 Contact Us For Availability
View on Model
4
Cover, Wiring (White)
Cover, Wiring (White) WPL 830758 Contact Us For Availability
View on Model
4
Cover, Wiring (Almond)
Cover, Wiring (Almond) WPL 830760 Contact Us For Availability
View on Model
4
Cover, wiring (Coffee)
Cover, wiring (Coffee) WPL 830761 Contact Us For Availability
View on Model
4
Cover, wiring (New Avocado)
Cover, wiring (New Avocado) WPL 830762 Contact Us For Availability
View on Model
4
Cover, wiring (Golden Harvest)
Cover, wiring (Golden Harvest) WPL 830763 Contact Us For Availability
View on Model
4
Cover, Wiring (Toast)
Cover, Wiring (Toast) WPL 883027 Contact Us For Availability
View on Model
4
Cover, Wiring (Platinum)
Cover, Wiring (Platinum) WPL 883028 Contact Us For Availability
View on Model
5
Filter, Grease
Filter, Grease WPL 830731 Contact Us For Availability
View on Model
6
Nameplate
Nameplate WPL 830886 Contact Us For Availability
View on Model
7
Switch, Fan
Switch, Fan WPL 830769 Contact Us For Availability
View on Model
8
Receptacle, Light
Receptacle, Light WPL 830755 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 830428 Contact Us For Availability
View on Model
10
Motor, 2-Speed
Motor, 2-Speed WPL 830770 Contact Us For Availability
View on Model
11
Damper Assembly
Damper Assembly WPL 830368 Contact Us For Availability
View on Model
12
Washer, No. 8 (2)
Washer, No. 8 (2) WPL 830462 Contact Us For Availability
View on Model
14
Screw, 8 x 1/4 (2)
Screw, 8 x 1/4 (2) WPL 830767 Contact Us For Availability
View on Model
15
Lens, Light
Lens, Light WPL 830759 Contact Us For Availability
View on Model
16
Spring, Filter (1)
Spring, Filter (1) WPL 830885 Contact Us For Availability
View on Model
17
Retainer, 3/16
Retainer, 3/16 WPL 830411 Contact Us For Availability
View on Model
