Model Whirlpool RH2024XLW1 – Common Parts & Diagrams

Common parts from model Whirlpool RH2024XLW1

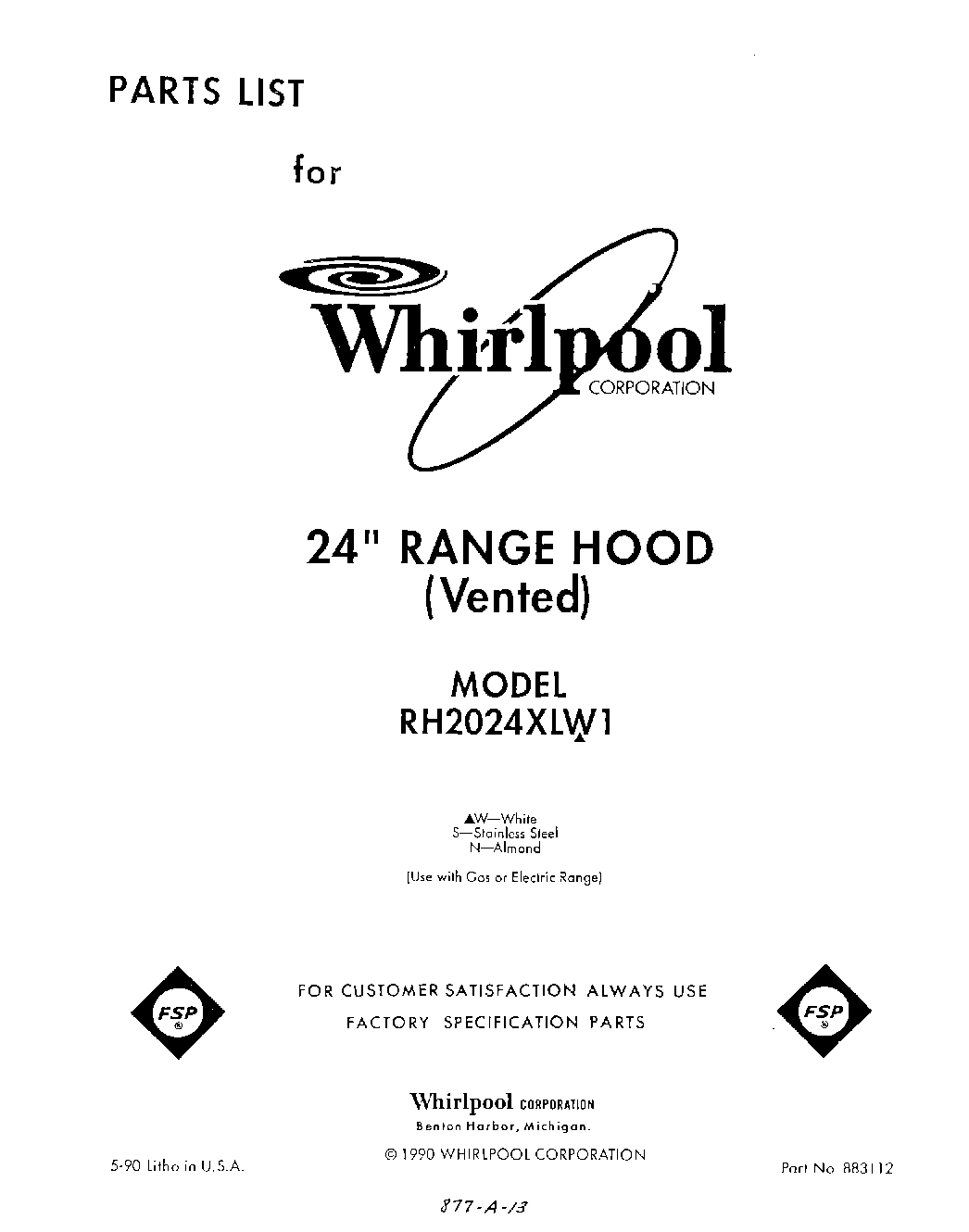

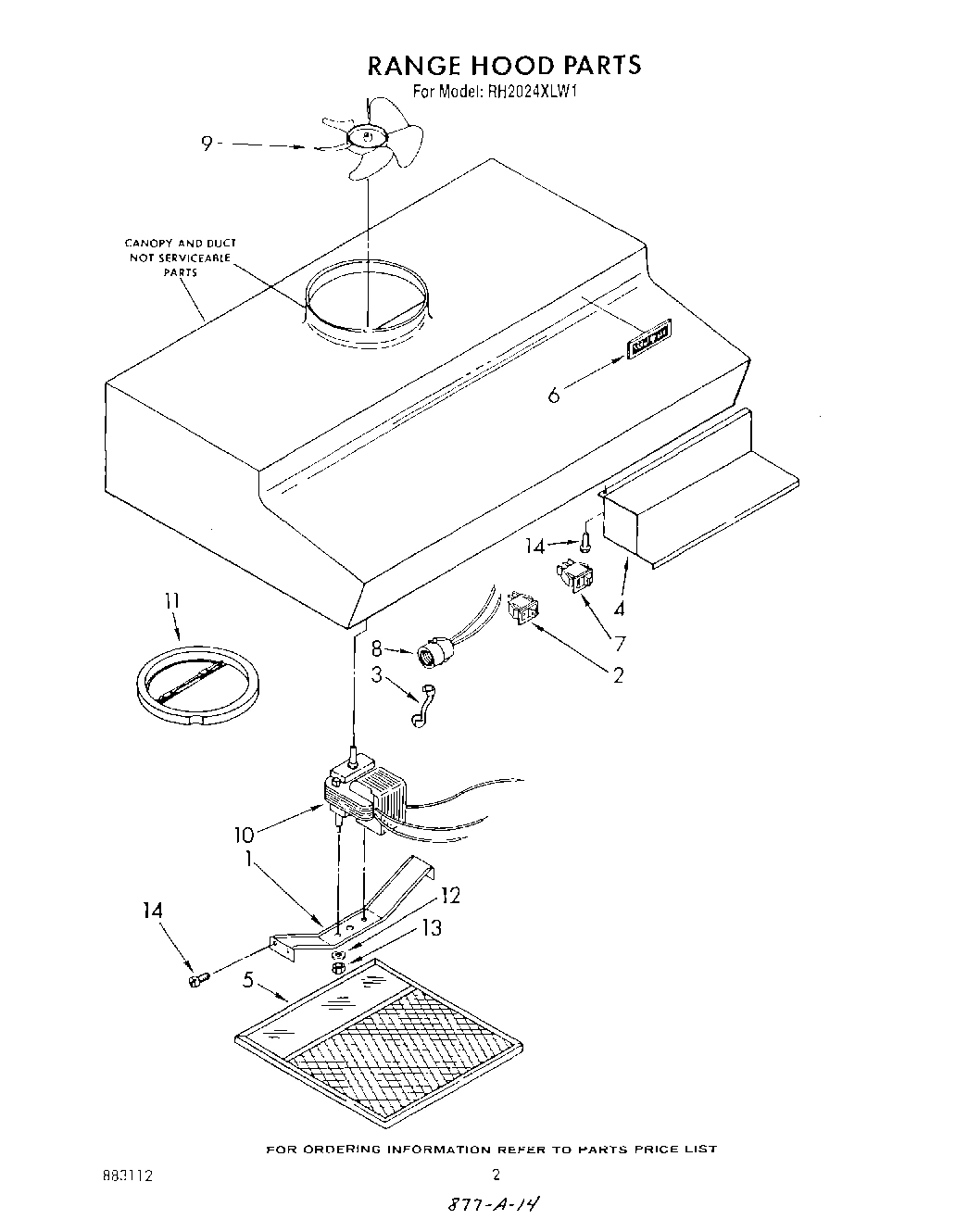

02 - SECTION

Print

• This Diagram
• All Diagrams

Instructions, Installation & Operating WPL LIT883104 Contact Us For Availability

View on Model

List, Repair Parts WPL LIT883112 Contact Us For Availability

View on Model

1

Bracket, Motor WPL 830756 Contact Us For Availability

View on Model

2

W10673703 Whirlpool Rocker Switch Backorder WPL W10673703 View Details $90.49

View on Model

3

Bushing, Strain Relief WPL 883024 Contact Us For Availability

View on Model

4

Cover, wiring (White) WPL 883095 Contact Us For Availability

View on Model

4

Cover, Wiring (Almond) WPL 883096 Contact Us For Availability

View on Model

4

Cover, Wiring (Stainless Steel) WPL 883123 Contact Us For Availability

View on Model

5

WP8190232 Whirlpool Range Hood Light Lens and In Stock WPL WP8190232 View Details $84.62

View on Model

6

Nameplate WPL 883101 Contact Us For Availability

View on Model

7

Switch, Fan WPL 830769 Contact Us For Availability

View on Model

8

Receptacle, Light WPL 883094 Contact Us For Availability

View on Model

9

Blade, Fan WPL 830428 Contact Us For Availability

View on Model

10

Motor, 2-Speed WPL 830757 Contact Us For Availability

View on Model

11

Damper Assembly WPL 883026 Contact Us For Availability

View on Model

12

Washer, No. 8 (2) WPL 830462 Contact Us For Availability

View on Model

13

WP486255 Whirlpool Air Conditioner Nut Backorder WPL WP486255 View Details $4.50

View on Model

14

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 View Details $4.77

View on Model

×
