Model Hotpoint RGA720PK2WH Gas Range Or Dual Fuel – Common Parts & Diagrams
GAS & BURNER PARTS

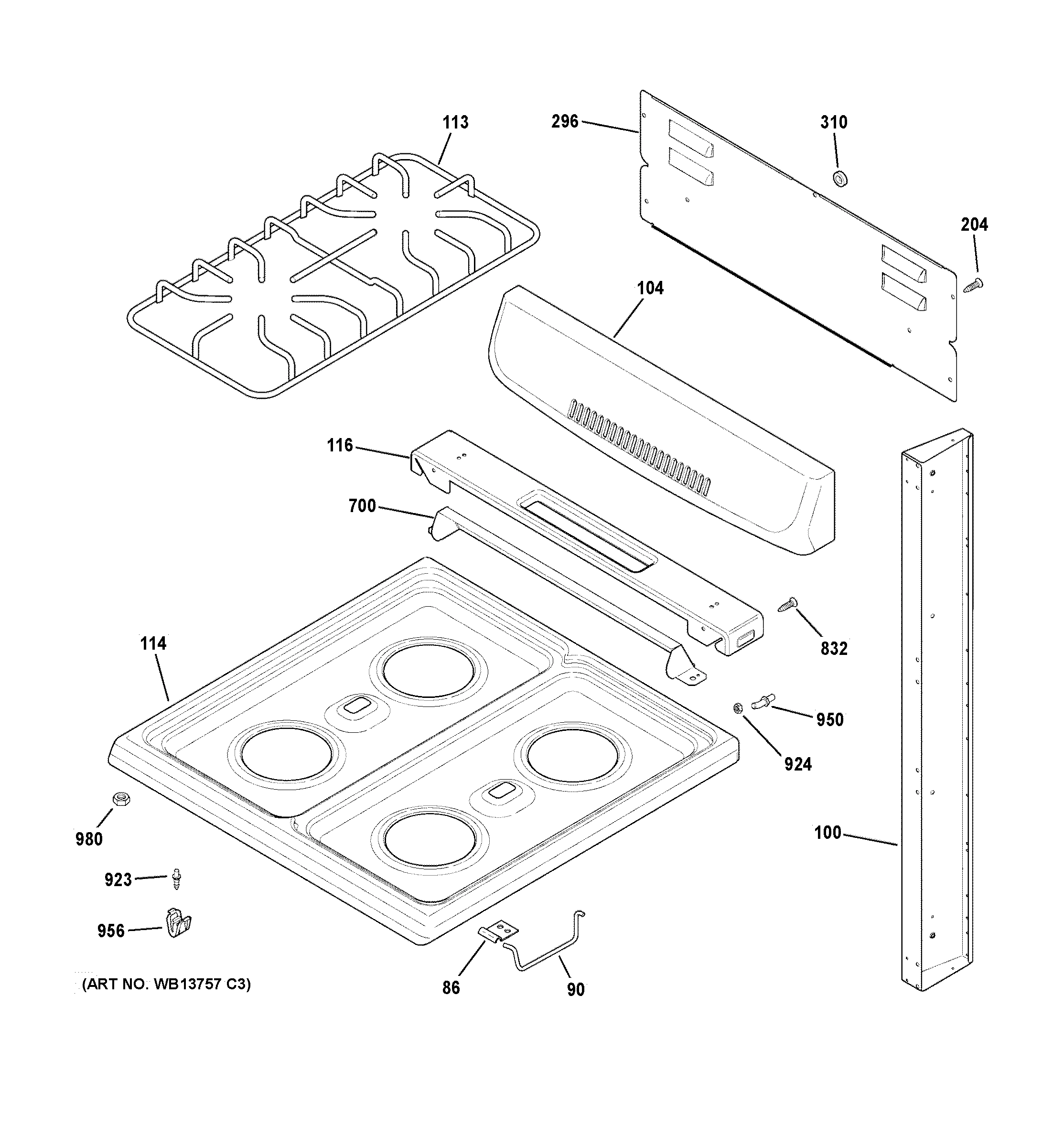

CONTROL PANEL & COOKTOP

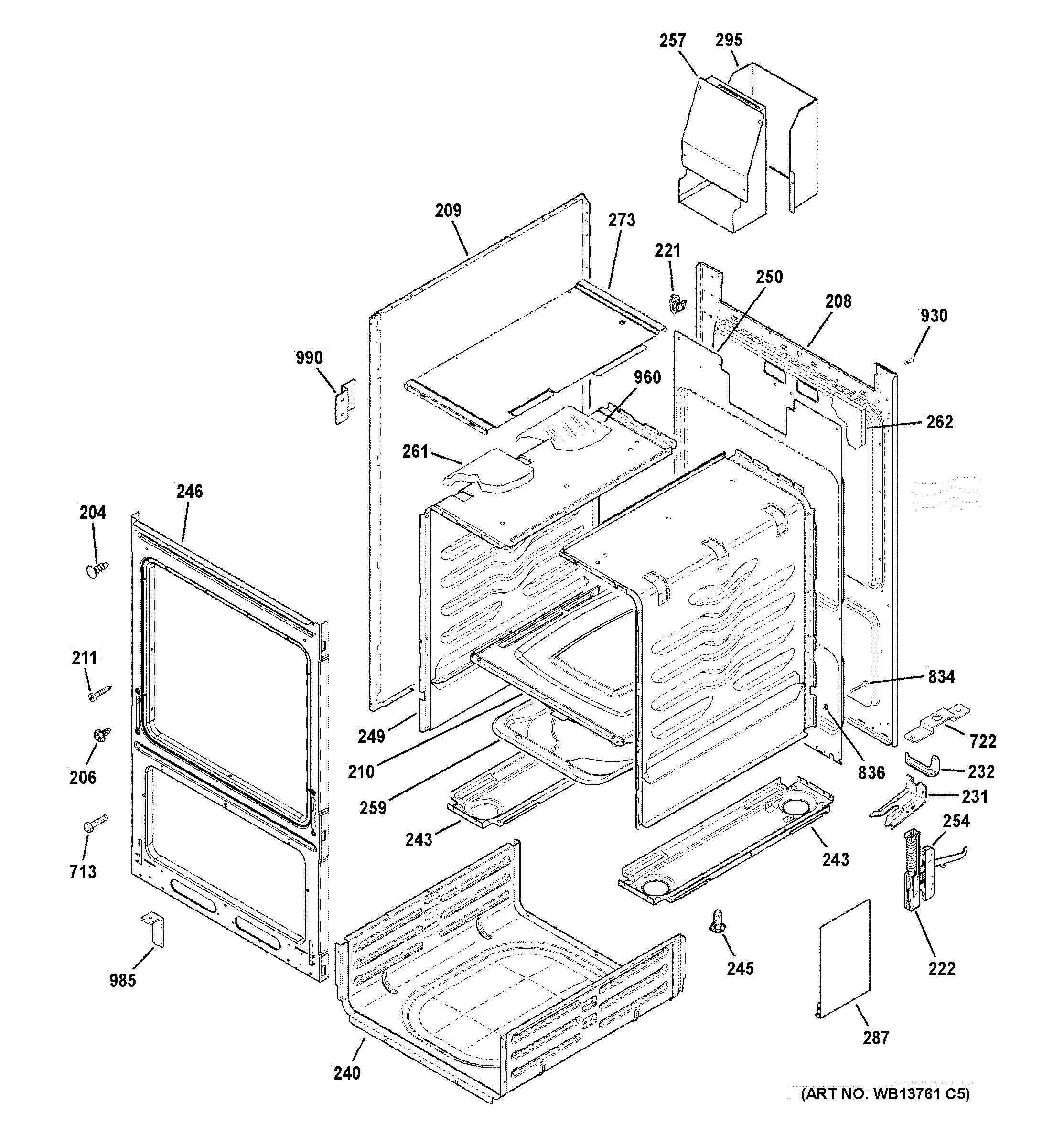

BODY PARTS

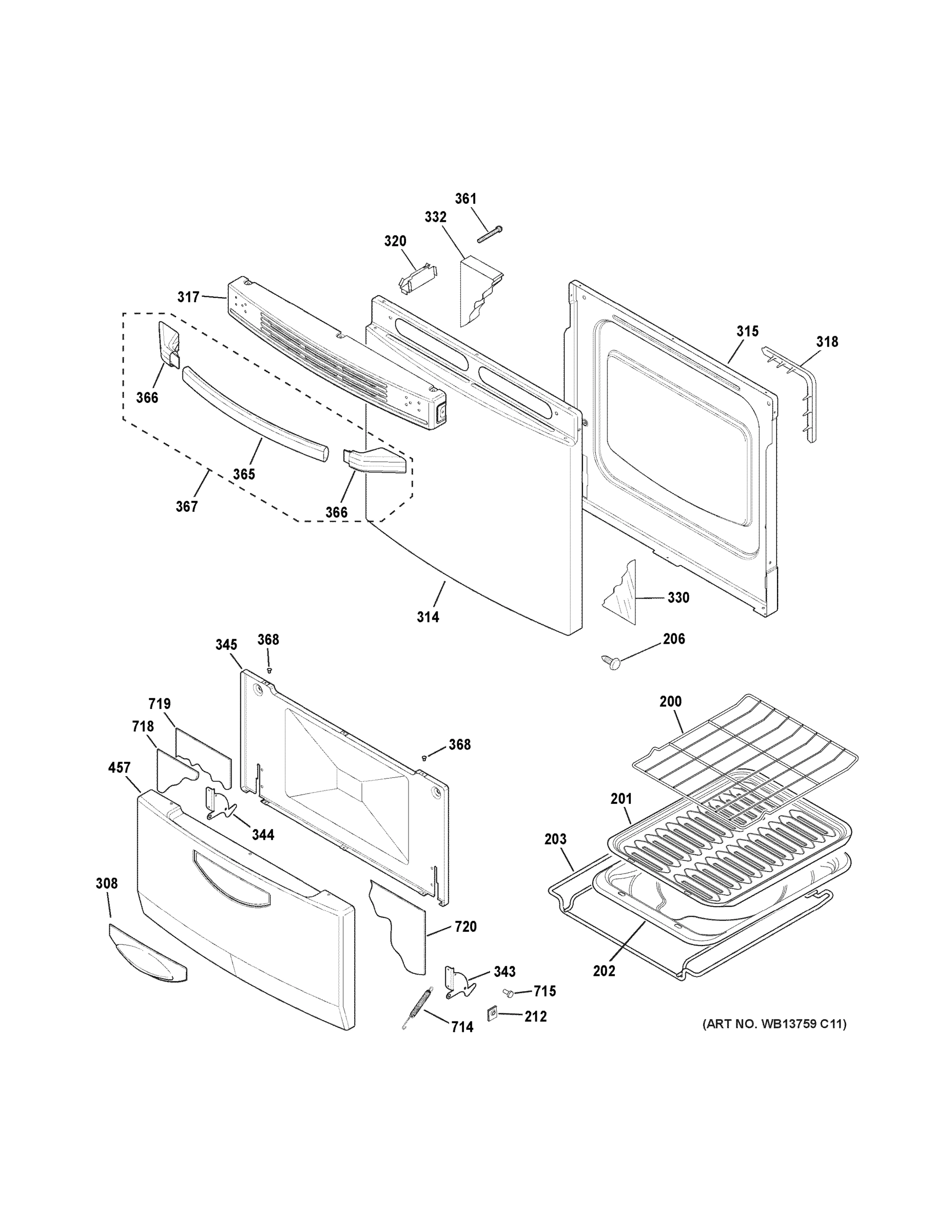

DOOR & DRAWER PARTS
Common parts from model Hotpoint RGA720PK2WH Gas Range Or Dual Fuel
3
ORIFICE SPUD NG GEN WB28K10319 Contact Us For Availability
19
MODULATING THERMOSTAT GEN WB20K10020 Contact Us For Availability
24
LEFT FRONT TUBE ASM GEN WB28K10313 Contact Us For Availability
114
RANGE TOP 20 GEN WB36K10573 Contact Us For Availability
200
RACK OVEN GEN WB48K10011 Contact Us For Availability
203
RACK BROILER PAN GEN WB48K10014 Contact Us For Availability
208
RANGE BACK GEN WB63K10096 Contact Us For Availability
210
BOTTOM OVEN ASM. GEN WB63K10090 Contact Us For Availability
212
SPEEDNUT GEN WB01X5743 Contact Us For Availability
222
HINGE DOOR OVEN ASM GEN WB10K10004 Contact Us For Availability
231
BRACKET ASM ANTI-TIP GEN WB02K0020 Contact Us For Availability
238
OVEN TUBE SUPPLY GEN WB28K10327 Contact Us For Availability
239
PILOT TUBE SUPPLY GEN WB28K10328 Contact Us For Availability
240
BODY BROILER GEN WB63K10089 Contact Us For Availability
243
BASE SUPPORT RIGHT SIDE GEN WB63K10185 Contact Us For Availability
246
FRONT FRAME 20 GEN WB63K10070 Contact Us For Availability
249
OVEN SIDE GEN WB63K10075 Contact Us For Availability
250
OVEN BACK GEN WB63K10100 Contact Us For Availability
257
VENT ASSEMBLY GEN WB38K10015 Contact Us For Availability
259
BASE SUPPORT GEN WB63K10099 Contact Us For Availability
261
INSULATION OVEN WRAP GEN WB35K10061 Contact Us For Availability
262
BACK INSULATION GEN WB35K10066 Contact Us For Availability
273
TOP GUARD INSULATION GEN WB53K10020 Contact Us For Availability
287
HINGE DEFLECTOR GEN WB34K10076 Contact Us For Availability
295
VENT DEFLECTOR GEN WB35K10078 Contact Us For Availability
296
BACKGUARD COVER 20 GEN WB34K10074 Contact Us For Availability
308
POCKET HANDLE GEN WB15K10098 Contact Us For Availability
314
SOLID DOOR 20 GEN WB56K10024 Contact Us For Availability
315
LINER DOOR GEN WB55K10029 Contact Us For Availability
317
HANDLE SUPPORT GEN WB07K10218 Contact Us For Availability
318
GASKET DOOR ASM GEN WB04K10019 Contact Us For Availability
330
OVEN DOOR FOIL GEN WB35K10062 Contact Us For Availability
332
INSULATION OVEN DOOR GEN WB35K10074 Contact Us For Availability
343
BROILER HINGE ASSEMBLY GEN WB10K10005 Contact Us For Availability
344
BROILER HINGE ASSEMBLY GEN WB10K10006 Contact Us For Availability
367
HANDLE & ENDCAP KIT WHITE GEN WB49X21885 Contact Us For Availability
457
KICK PANEL 20 GEN WB56K10028 Contact Us For Availability
700
BACKGUARD DEFLECTOR GEN WB35K10077 Contact Us For Availability
711
KNOB THERMOSTAT ASM GE GEN WB03K10204 Contact Us For Availability
715
PIN BROILER LF GEN WB01K10035 Contact Us For Availability
718
FIBERGLASS PANEL GEN WB35K10080 Contact Us For Availability
719
ALUMINUM FOIL PANEL GEN WB35K10081 Contact Us For Availability
720
DRAWER PANEL INSULATION GEN WB35K10172 Contact Us For Availability
722
OVEN BRACKET CONECTOR GEN WB01K10059 Contact Us For Availability
834
SCREW 1/4-20 X 2 3/16" HEX GEN WB01K10050 Contact Us For Availability
836
HEX NUT 1/4 GEN WB01K10051 Contact Us For Availability
923
STRIKE MAINTOP GEN WB02K10128 Contact Us For Availability
950
COOKTOP GUIDE GEN WB02K10129 Contact Us For Availability
956
CATCH DR STRIKE GEN WB02K10091 Contact Us For Availability
960
FOIL CAVITY WRAP GEN WB35K10067 Contact Us For Availability
980
NUT LOCK HEX GEN WB01K10041 Contact Us For Availability
985
DOOR INSULATION SUPPORT GEN WB02K10130 Contact Us For Availability
999
CONVERTION KIT ASM GEN WB28K10414 Contact Us For Availability
× ![]()
