Model Whirlpool RD24EA-3A REFRIGERATOR – Common Parts & Diagrams
04 - FRESH FOOD DOOR

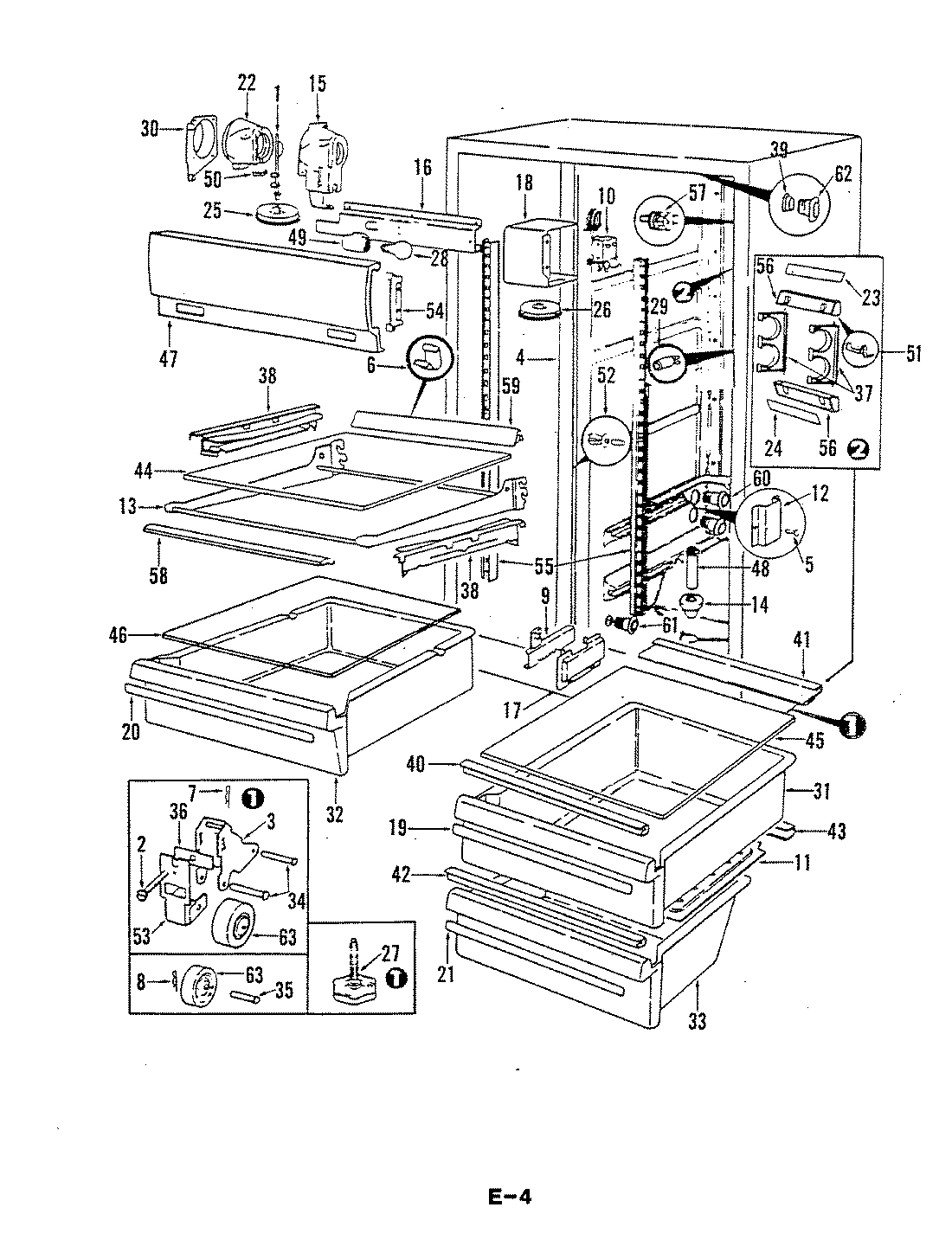

03 - FRESH FOOD COMPARTMENT

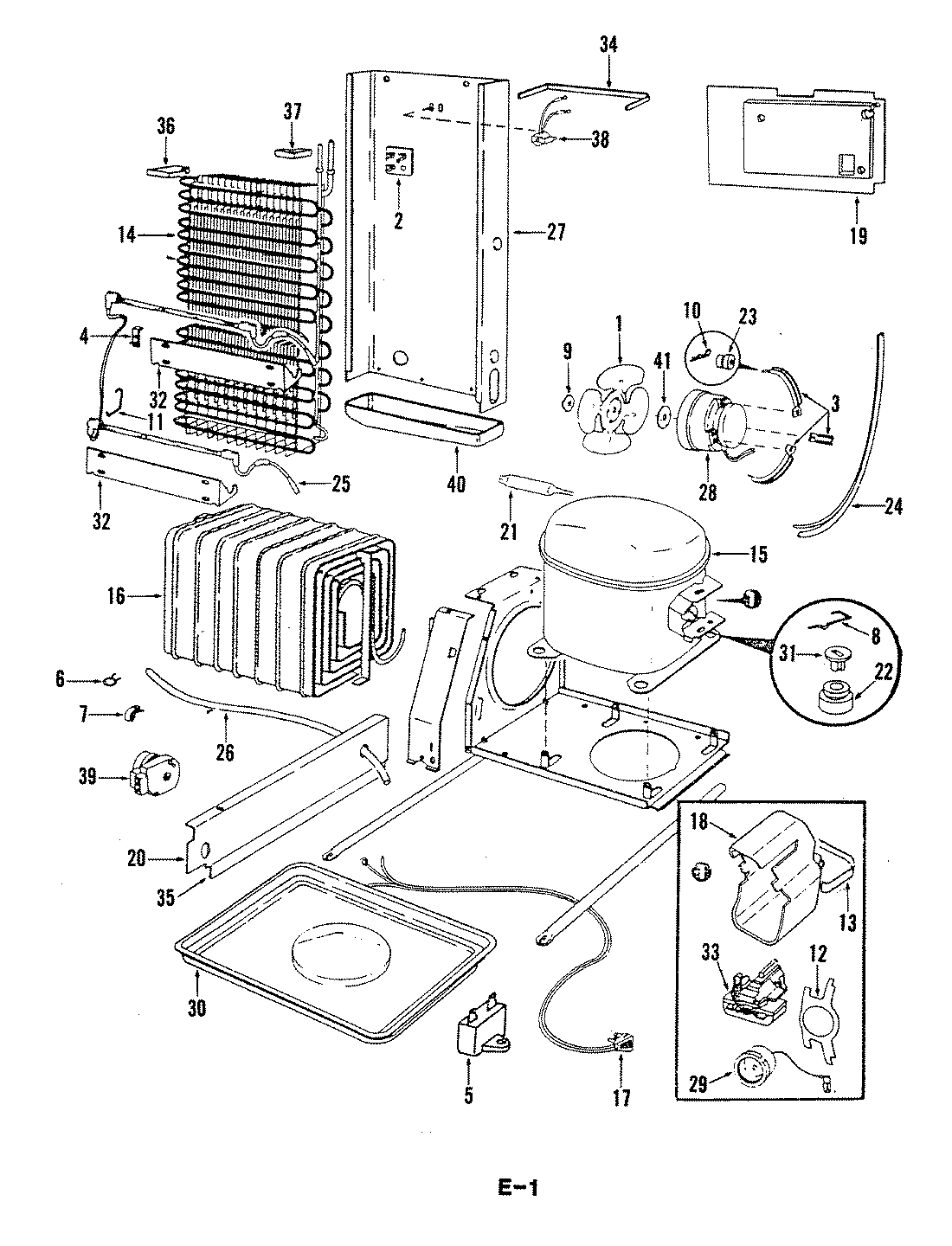

05 - UNIT COMPARTMENT & SYSTEM

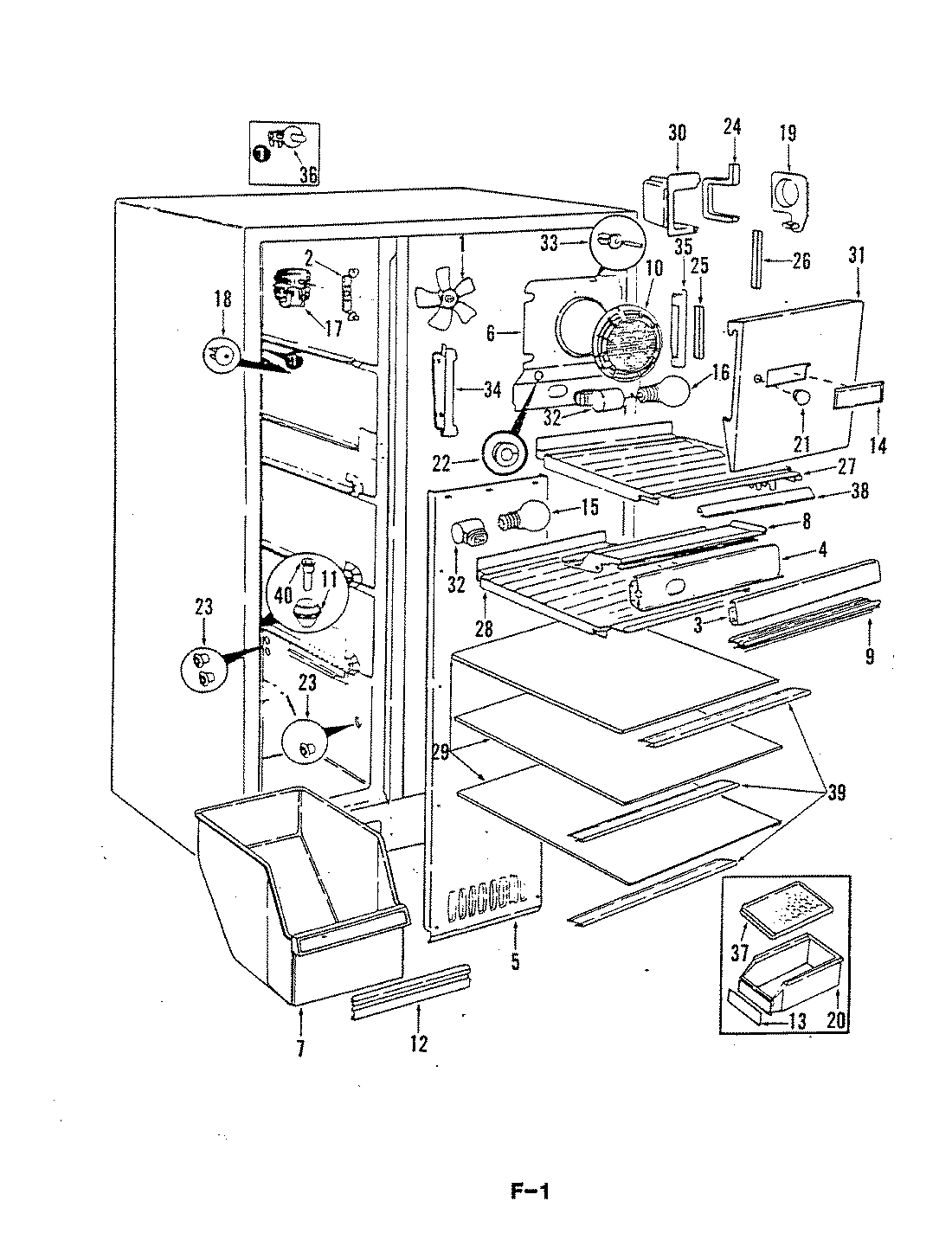

01 - FREEZER COMPARTMENT

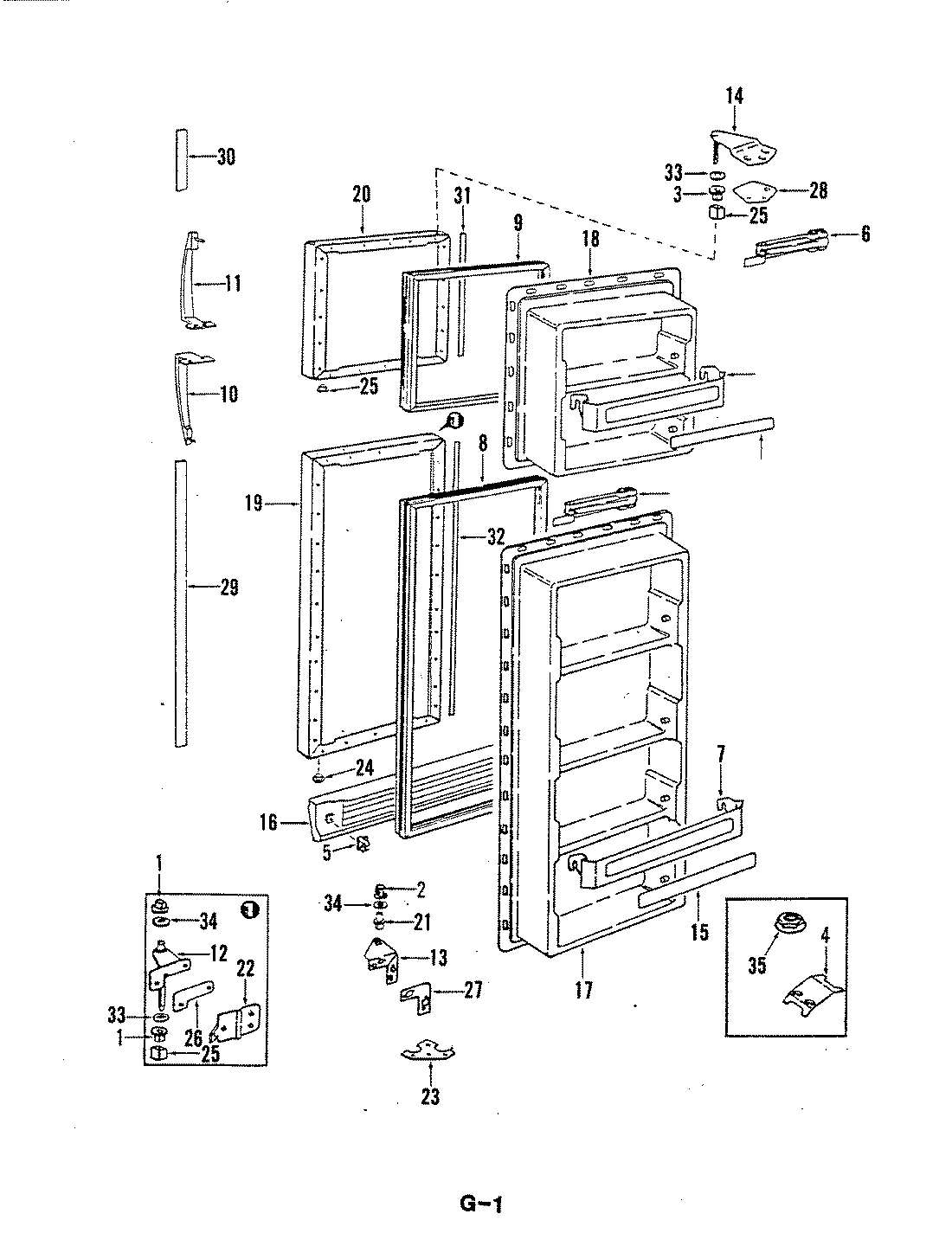

02 - FREEZER DOOR
Common parts from model Whirlpool RD24EA-3A REFRIGERATOR
1
BRACKET, CLOSER WPL 526141 Contact Us For Availability
1
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
1
DAMPER WPL 525872 Contact Us For Availability
1
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
1
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
2
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
2
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
2
BOARD, TERMINAL WPL 558781 Contact Us For Availability
2
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
3
BRACKET, WHEEL WPL 627941 Contact Us For Availability
3
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
3
DIVIDER WPL 574925AM Contact Us For Availability
3
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
4
DOOR, DAIRY WPL 65589204 Contact Us For Availability
4
MULLION WPL 590262AM Contact Us For Availability
4
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
4
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
4
COVER WPL 574026 Contact Us For Availability
4
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
5
END CAP WPL 579472 Contact Us For Availability
5
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
5
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
5
CAPACITOR, RUN WPL 661211 Contact Us For Availability
5
COVER, COIL WPL 652241 Contact Us For Availability
5
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
6
CLOSER, DOOR WPL 544851 Contact Us For Availability
6
END CAP WPL 579471 Contact Us For Availability
6
CLIP WPL 653581 Contact Us For Availability
6
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
6
COVER, COIL WPL 6269034 Contact Us For Availability
7
SHELF FRONT WPL 657814 Contact Us For Availability
7
PIN, WHEEL WPL 649651 Contact Us For Availability
7
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
7
DRAWER, FRZ. WPL 655774 Contact Us For Availability
7
SHELF FRONT WPL 657016 Contact Us For Availability
8
GASKET WPL 537122 Contact Us For Availability
8
CLIP WPL 566864 Contact Us For Availability
8
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
8
CLIP WPL 621651 Contact Us For Availability
8
BREAKER FRAME WPL 540366 Contact Us For Availability
8
GASKET WPL 5371224 Contact Us For Availability
9
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
9
GASKET WPL 573692 Contact Us For Availability
9
GASKET WPL 5371210 Contact Us For Availability
10
HINGE, LOWER WPL 6063012 Contact Us For Availability
10
CONTROL, TEMPERATURE WPL 5288141 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
FAN GRID WPL 626891 Contact Us For Availability
11
COVER, MEAT PAN WPL 656082 Contact Us For Availability
11
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
11
GROMMET WPL 525261 Contact Us For Availability
11
HANDLE WPL 636873 Contact Us For Availability
12
INSERT WPL 655719 Contact Us For Availability
12
AIR DEFLECTOR WPL 621281 Contact Us For Availability
12
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
12
HEATER WPL 571178 Contact Us For Availability
12
INSERT WPL 6558331 Contact Us For Availability
12
HINGE WPL 543906 Contact Us For Availability
13
LINER, DOOR WPL 656403 Contact Us For Availability
13
FRAME, SHELF WPL 656182 Contact Us For Availability
13
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
13
INSERT WPL 606144 Contact Us For Availability
13
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
14
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
14
NAMEPLATE WPL 657911 Contact Us For Availability
14
GROMMET WPL 555121 Contact Us For Availability
14
EVAPORATOR WPL RA4364340 Contact Us For Availability
14
INSERT WPL 657061 Contact Us For Availability
15
INSULATION, CLOSER WPL 526131 Contact Us For Availability
15
PANEL, OUTER DOOR WPL 6239113AM Contact Us For Availability
15
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
15
COMPRESSOR WPL RA990 Contact Us For Availability
15
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
15
INSERT WPL 6557116 Contact Us For Availability
16
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
16
CONDENSER WPL RA436444 Contact Us For Availability
16
KICKPLATE WPL 5843759 Contact Us For Availability
17
CONTROL HOUSING WPL 657371 Contact Us For Availability
17
CORD, POWER WPL 528902 Contact Us For Availability
17
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
17
MOTOR WPL 564884 Contact Us For Availability
17
LINER, DOOR WPL 656984 Contact Us For Availability
18
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
18
SLEEVE WPL 2608823 Contact Us For Availability
18
COVER, TERMINAL WPL 651891 Contact Us For Availability
18
COVER WPL 661501 Contact Us For Availability
18
NUT WPL 538211 Contact Us For Availability
18
LINER, DOOR WPL 656974 Contact Us For Availability
19
INSERT WPL 6558317 Contact Us For Availability
19
COVER WPL 660331 Contact Us For Availability
19
ORIFICE WPL 544231 Contact Us For Availability
19
PANEL, OUTER DOOR WPL 659804AM Contact Us For Availability
20
SHELF FRONT WPL 657825 Contact Us For Availability
20
INSERT WPL 6558319 Contact Us For Availability
20
BAFFLE WPL 298384 Contact Us For Availability
20
PAN, ICE WPL 657181 Contact Us For Availability
20
PANEL, OUTER DOOR WPL 659803AM Contact Us For Availability
21
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
21
INSERT WPL 6558318 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
PLUG WPL 495032900 Contact Us For Availability
22
INSULATION, HOUSING WPL 587671 Contact Us For Availability
22
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
22
PLUG WPL 539331 Contact Us For Availability
22
TAPPING PLATE WPL 540312 Contact Us For Availability
23
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
23
TRAY, BUTTER WPL 299362 Contact Us For Availability
23
INSERT WPL 657533 Contact Us For Availability
23
GROMMET, BRACKET WPL 569331 Contact Us For Availability
23
SCREW WPL 4000151 Contact Us For Availability
23
SCREW WPL 400017103 Contact Us For Availability
23
SCREW WPL 4000221 Contact Us For Availability
23
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
23
SCREW WPL 9986111 Contact Us For Availability
24
SCREW WPL 4030625 Contact Us For Availability
24
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
24
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
24
SCREW WPL 998687 Contact Us For Availability
24
TRAY, EGG WPL 600665 Contact Us For Availability
24
INSERT WPL 657537 Contact Us For Availability
24
HEAT EXCHANGER WPL RA436454 Contact Us For Availability
24
SEAL WPL 5207710 Contact Us For Availability
24
SCREW WPL 9986110 Contact Us For Availability
24
SCREW WPL 9986122 Contact Us For Availability
25
SEAL SLEEVE WPL 559901 Contact Us For Availability
25
HANDLE EXT WPL 657746 Contact Us For Availability
25
KNOB WPL 298936 Contact Us For Availability
25
HEATER, DEFROST WPL 5276414 Contact Us For Availability
25
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
26
KNOB WPL 298935 Contact Us For Availability
26
HOSE, DRAIN WPL 2691118 Contact Us For Availability
26
COIL SEAL WPL 528246 Contact Us For Availability
26
SPACER WPL 543864 Contact Us For Availability
27
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
27
TRIM WPL 6577313 Contact Us For Availability
27
LEG, LEVELING WPL 60128 Contact Us For Availability
27
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
27
SHELF, FRZ. WPL 656516 Contact Us For Availability
28
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
WASHER WPL 542331 Contact Us For Availability
28
FAN MOTOR WPL 280569 Contact Us For Availability
28
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
28
SHELF, FRZ. WPL 656515 Contact Us For Availability
29
WASHER WPL 521851 Contact Us For Availability
29
NYLON NUT WPL 195302 Contact Us For Availability
29
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
29
OVERLOAD WPL 5306772 Contact Us For Availability
29
SHELF, FRZ. No.2,3,4 WPL 656511 Contact Us For Availability
29
DRAWER, FRZ. WPL 657716 Contact Us For Availability
30
HANDLE EXT WPL 657745 Contact Us For Availability
30
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
30
PAN, DRAIN WPL 298394 Contact Us For Availability
30
SHIELD WPL 538371 Contact Us For Availability
31
HANDLE WPL 636863 Contact Us For Availability
31
PAN, CRISPER WPL 655744 Contact Us For Availability
31
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
31
SHIELD, LIGHT WPL 656542 Contact Us For Availability
31
TRIM WPL 6577312 Contact Us For Availability
32
PAN, DELI WPL 655764 Contact Us For Availability
32
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
32
SPACER WPL 655121 Contact Us For Availability
32
REFLECTOR WPL 2991512 Contact Us For Availability
32
TRIM WPL 6577311 Contact Us For Availability
33
PAN, MEAT WPL 655754 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
33
SCREW WPL 641391 Contact Us For Availability
33
RELAY WPL 9286106 Contact Us For Availability
33
SCREW WPL 998645 Contact Us For Availability
33
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
33
WASHER WPL 521852 Contact Us For Availability
34
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
SUPPORT WPL 536872 Contact Us For Availability
34
WASHER WPL 542332 Contact Us For Availability
35
FASTENER WPL 434003506 Contact Us For Availability
35
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
35
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
35
SUPPORT WPL 544242 Contact Us For Availability
36
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
36
SWITCH WPL 564322 Contact Us For Availability
36
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
37
RACK, WINE WPL 565194 Contact Us For Availability
37
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
ICE CUBE TRAY WPL 601121 Contact Us For Availability
38
CLIP WPL 530604 Contact Us For Availability
38
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
38
TRIM WPL 655682 Contact Us For Availability
39
SCREW WPL 4000271 Contact Us For Availability
39
SCREW WPL 40003728 Contact Us For Availability
39
SCREW WPL 402005103 Contact Us For Availability
39
RETAINER WPL 574111 Contact Us For Availability
39
TIMER, DEFROST WPL 657021 Contact Us For Availability
39
TRIM, SHELF WPL 65561407 Contact Us For Availability
40
SEAL WPL 655932 Contact Us For Availability
40
TROUGH, DRAIN WPL 535231 Contact Us For Availability
40
DRAIN TUBE WPL 265275 Contact Us For Availability
41
CRISPER SEAL WPL 660922 Contact Us For Availability
41
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
41
WIRE HARNESS WPL 599401 Contact Us For Availability
41
WIRE HARNESS WPL 661861 Contact Us For Availability
41
FLANGE HEATER WPL RA436841 Contact Us For Availability
42
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
43
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
44
GLASS SHELF WPL 6559814 Contact Us For Availability
45
SHELF, CRISPER WPL 656874 Contact Us For Availability
46
GLASS SHELF WPL 6559816 Contact Us For Availability
47
SHIELD, LIGHT WPL 655784 Contact Us For Availability
48
TUBE WPL 555131 Contact Us For Availability
50
SPRING, BAFFLE WPL 526481 Contact Us For Availability
51
SPRING, WINE RACK WPL 580571 Contact Us For Availability
52
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
52
STUD (ALM) WPL 599206 Contact Us For Availability
52
SUB 19529-19 WPL 599207 Contact Us For Availability
52
RIVET, P.O. HOOK WPL 599208 Contact Us For Availability
52
STUD, (ALM) WPL 599209 Contact Us For Availability
53
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
54
SUPPORT WPL 536862 Contact Us For Availability
55
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
56
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
58
TRIM WPL 656142 Contact Us For Availability
59
TRIM WPL 6527614 Contact Us For Availability
60
AIR TUNNEL WPL 537261 Contact Us For Availability
61
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
62
TU WPL 574101 Contact Us For Availability
63
WPL 298342 WPL 298342 Contact Us For Availability
63
WPL 662011 WPL 662011 Contact Us For Availability
× ![]()
Login and Registration Form
