Model Whirlpool RD22FN-3A REFRIGERATOR – Common Parts & Diagrams

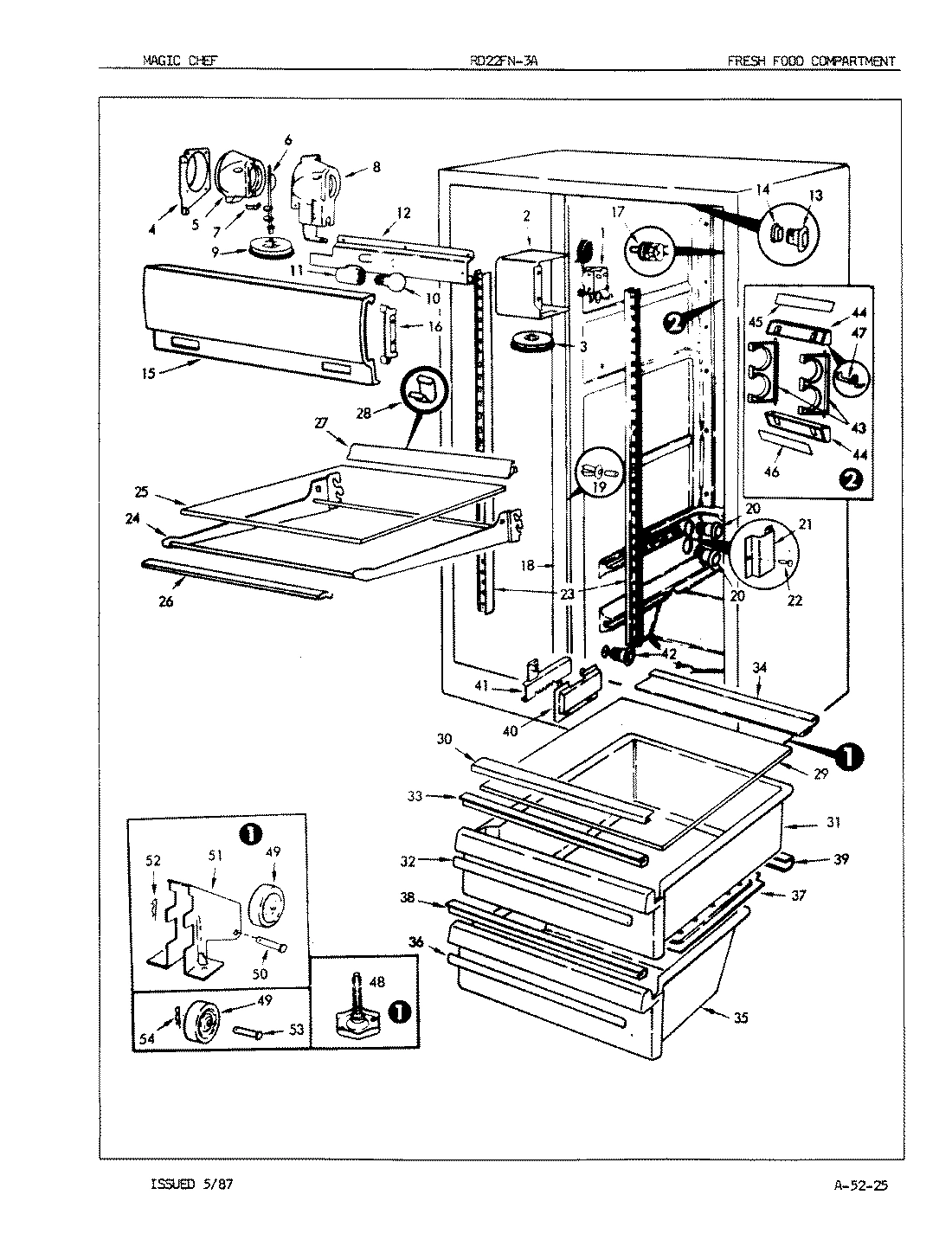

02 - FRESH FOOD COMPARTMENT

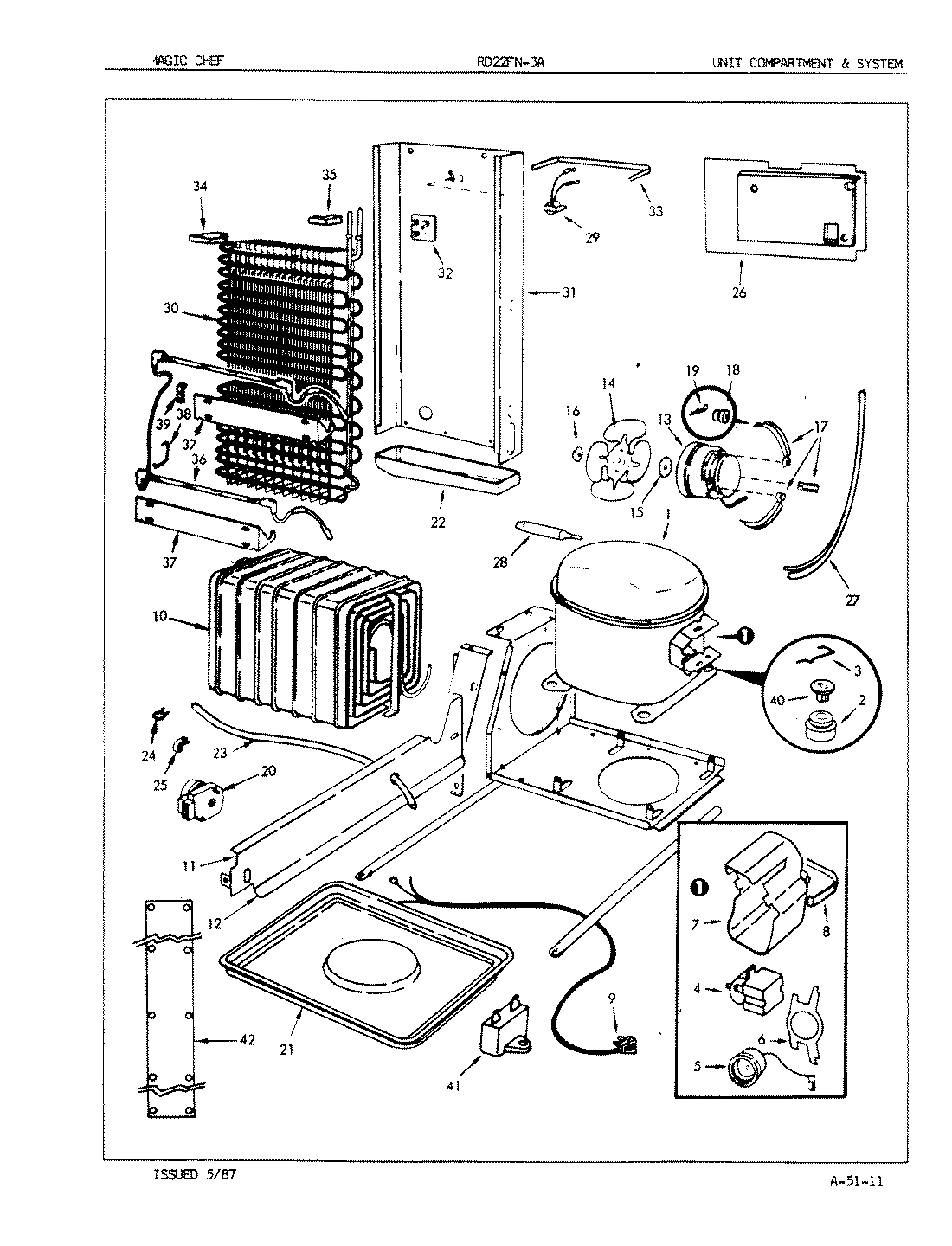

03 - UNIT COMPARTMENT & SYSTEM

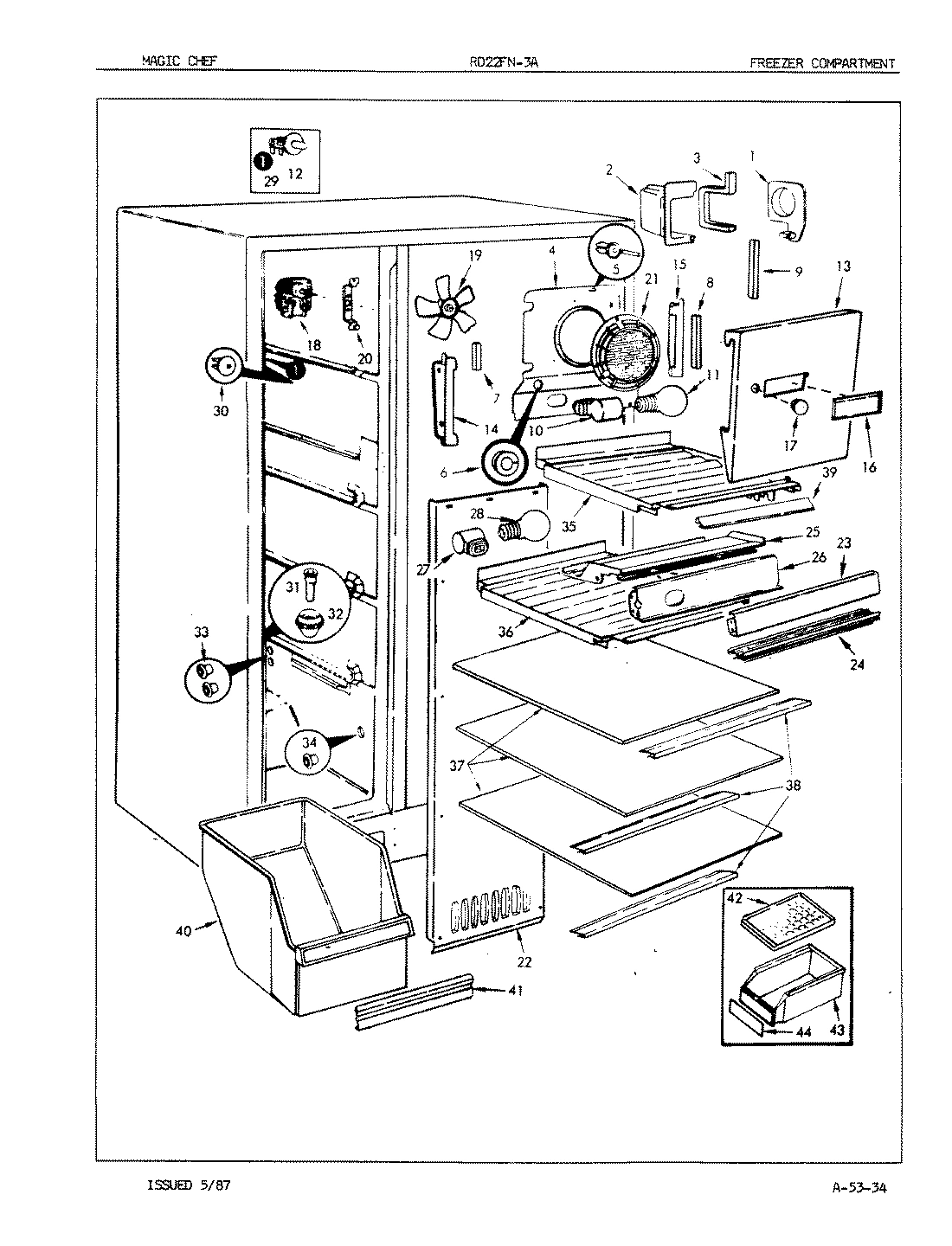

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RD22FN-3A REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
1
COMPRESSOR (NET) WPL RA996 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
3
SUB 62165-1 WPL 527781 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
RELAY, START WPL 655291 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269033 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
OVERLOAD WPL 5306780 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
6
DAMPER WPL 525871 Contact Us For Availability
6
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
6
PLUG WPL 539331 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
COVER, TERMINAL WPL 651891 Contact Us For Availability
7
SEAL WPL 5207717 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
13
SHIELD, LIGHT WPL 656541 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
15
SHIELD, LIGHT WPL 655784 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
INSERT WPL 657061 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
PLUG WPL 495032900 Contact Us For Availability
18
VERT MULLION WPL 590262WW Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
MOTOR WPL 564884 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
19
STUD, (WHITE) WPL 5992013 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 657021 Contact Us For Availability
20
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
MOISTROL PAN WPL 298395 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
SCREW WPL 4000221 Contact Us For Availability
21
FAN GRID WPL 626891 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
COVER, COIL WPL 652243 Contact Us For Availability
23
SCREW WPL 4000371 Contact Us For Availability
23
SUPPORT WPL 583811 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
HEATER WPL 571177 Contact Us For Availability
23
DIVIDER WPL 574924WW Contact Us For Availability
23
SCREW WPL 9986111 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
GASKET WPL 573691 Contact Us For Availability
25
GLASS SHELF WPL 6559814 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
BREAKER FRAME WPL 540365 Contact Us For Availability
25
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
26
TRIM WPL 656142 Contact Us For Availability
26
SCREW WPL 4000171 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
COVER WPL 574025 Contact Us For Availability
27
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
27
TRIM WPL 6527614 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA4364510 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
28
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
29
SWITCH WPL 564322 Contact Us For Availability
29
SHELF, CRISPER WPL 656874 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
30
SEAL WPL 655932 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
NUT WPL 538211 Contact Us For Availability
31
PAN, CRISPER WPL 665192 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
31
DRAIN TUBE WPL 265279 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
GROMMET WPL 525261 Contact Us For Availability
33
CRISPER SEAL WPL 658042 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
CRISPER SEAL WPL 660922 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
35
PAN, MEAT WPL 665211 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
SHELF, FRZ. WPL 656513 Contact Us For Availability
36
INSERT WPL 6558369 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
SHELF, FRZ. WPL 656512 Contact Us For Availability
37
COVER, MEAT PAN WPL 656084 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
GLASS SHELF WPL 6559817 Contact Us For Availability
38
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
TRIM, SHELF WPL 65561414 Contact Us For Availability
39
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
TRIM WPL 663161 Contact Us For Availability
40
CONTROL HOUSING WPL 657371 Contact Us For Availability
40
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
40
WIRE HARNESS WPL 664541 Contact Us For Availability
40
WIRE HARNESS WPL 664951 Contact Us For Availability
40
DRAWER, FRZ. WPL 665127 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
41
SCREW WPL 652751 Contact Us For Availability
41
CAPACITOR, RUN WPL 661211 Contact Us For Availability
41
INSERT WPL 6558320 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
42
COVER WPL 663811 Contact Us For Availability
42
ICE CUBE TRAY WPL 601121 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
43
PAN WPL 665921 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
44
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
44
INSERT WPL 606144 Contact Us For Availability
45
INSERT WPL 657533 Contact Us For Availability
46
INSERT WPL 657537 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
51
SCREW WPL 4000621 Contact Us For Availability
51
BRACKET WPL 528461 Contact Us For Availability
52
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
52
WIRE HARNESS WPL 662011 Contact Us For Availability
53
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
54
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
× ![]()
