Model Accelerated Cooking Products RCS10PBDA-P1330204M Amana Menumaster RCS10PBDA – Common Parts & Diagrams

Common parts from model Accelerated Cooking Products RCS10PBDA-P1330204M Amana Menumaster RCS10PBDA

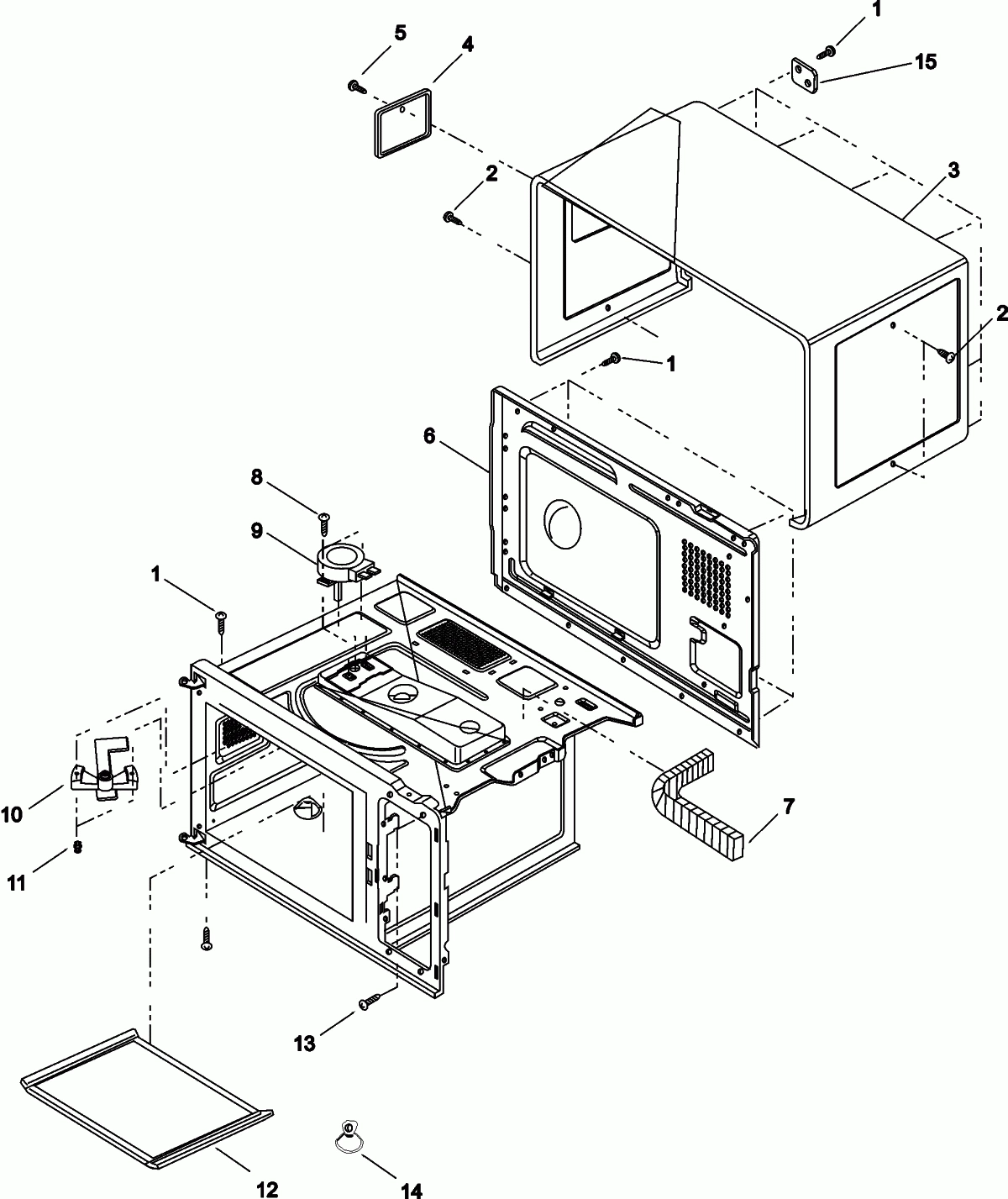

ANTENNA, TRAY, OUTERCASE,

Print

• This Diagram
• All Diagrams

1

HARNESS, MAIN ACP 53001646 Contact Us For Availability

View on Model

1

KNOB ACP 53001719 Contact Us For Availability

View on Model

2

53002003 Amana Antenna Shield In Stock ACP 53002003 View Details $78.21

View on Model

2

CLIP, SPRING ACP 53001720 Contact Us For Availability

View on Model

3

13066801 Amana Inner Window Backorder ACP 13066801 View Details $20.18

View on Model

3

53001610 Amana Gasket Backorder ACP 53001610 View Details $0.03

View on Model

3

TOUCH PANEL ACP 53001762 Contact Us For Availability

View on Model

4

54137074 Amana 40W 130V Lamp Backorder ACP 54137074 View Details $10.11

View on Model

4

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 View Details $41.34

View on Model

4

ESCUTCHEON / TOUCH PANEL ASSY ACP 53001873 Contact Us For Availability

View on Model

5

13004401 Amana Screw - TF/Flat RoHS Backorder ACP 13004401 View Details $4.82

View on Model

5

LAMP RECEPTACLE / BRACKET ASSY ACP 20050601 Contact Us For Availability

View on Model

5

SCREW, SPECIAL D ACP R9800691 Contact Us For Availability

View on Model

6

BOARD, HV/LV ACP 53001763 Contact Us For Availability

View on Model

7

54116015 Amana Air Filter with Thumb Screw In Stock ACP 54116015 View Details $22.02

View on Model

7

THERMAL CUTOUT- CAVITY ACP 53001561 Contact Us For Availability

View on Model

7

SCREW, PAN HEAD ACP 54116044 Contact Us For Availability

View on Model

8

12002453 Amana Handle Kit Backorder ACP 12002453 View Details $74.24

View on Model

8

SCREW, TAPPING TRUSS HEAD ACP R0131246 Contact Us For Availability

View on Model

9

20058101 Amana Top Air Duct Backorder ACP 20058101 View Details $16.80

View on Model

9

56002013 Amana Antenna Motor Backorder ACP 56002013 View Details $45.49

View on Model

10

SCREW, TAPPING,PAN HEAD ACP R0131307 Contact Us For Availability

View on Model

11

BRKT-MAG TCO Backorder ACP 20058401 View Details $4.82

View on Model

11

54116064 Amana Rivet Assembly In Stock ACP 54116064 View Details $11.73

View on Model

12

53002009 Amana Ceramic Tray In Stock ACP 53002009 View Details $166.19

View on Model

12

59194707 Amana Kit - Latch and Choke Cover Backorder ACP 59194707 View Details $71.90

View on Model

12

SCREW, TRUSS HD ACP R0654183 Contact Us For Availability

View on Model

13

20058601 Amana Rear Air Deflector Backorder ACP 20058601 View Details $7.43

View on Model

14

POWER CORD ACP 53001562 Contact Us For Availability

View on Model

15

SCREW,TAP TITE(S)-BINDING HEAD ACP R0131029 Contact Us For Availability

View on Model

16

20058501 Amana Cord Retainer Backorder ACP 20058501 View Details $6.75

View on Model

17

20056501 Amana HVAC Air Duct Backorder ACP 20056501 View Details $31.13

View on Model

19

M0805106 Amana 10 AMP Fuse Backorder ACP M0805106 View Details $3.23

View on Model

20

FUSE BLOCK / FILTER ASSY ACP 53001564 Contact Us For Availability

View on Model

21

SCREW, PAN HD ACP R0654180 Contact Us For Availability

View on Model

22

FILTER ASSEMBLY ACP 53001565 Contact Us For Availability

View on Model

23

53002004 Amana Magnetron Backorder ACP 53002004 View Details $126.84

View on Model

24

BRACKET ACP 53001622 Contact Us For Availability

View on Model

25

BRACKET, CAPACITOR ACP 53001623 Contact Us For Availability

View on Model

26

53002017 Amana Capacitor Backorder ACP 53002017 View Details $45.49

View on Model

27

20057401 Amana Diode In Stock ACP 20057401 View Details $8.42

View on Model

28

HARNESS, TRANSFORMER PRIMARY ACP 53001624 Contact Us For Availability

View on Model

29

TRANSFORMER, HV ACP 53002011 Contact Us For Availability

View on Model

30

BASE, TRANSFORMER ACP 20056301 Contact Us For Availability

View on Model

31

BLOWER MOTOR ASSY ACP 53002005 Contact Us For Availability

View on Model

32

GUIDE, AIR ACP 53001570 Contact Us For Availability

View on Model

33

20241405 Amana Thermal Cutout Backorder ACP 20241405 View Details $8.15

View on Model

34

14164113 Amana Interlock Switch Kit In Stock ACP 14164113 View Details $108.73

View on Model

×
