Model Whirlpool RCM48J-14T MICROWAVE – Common Parts & Diagrams

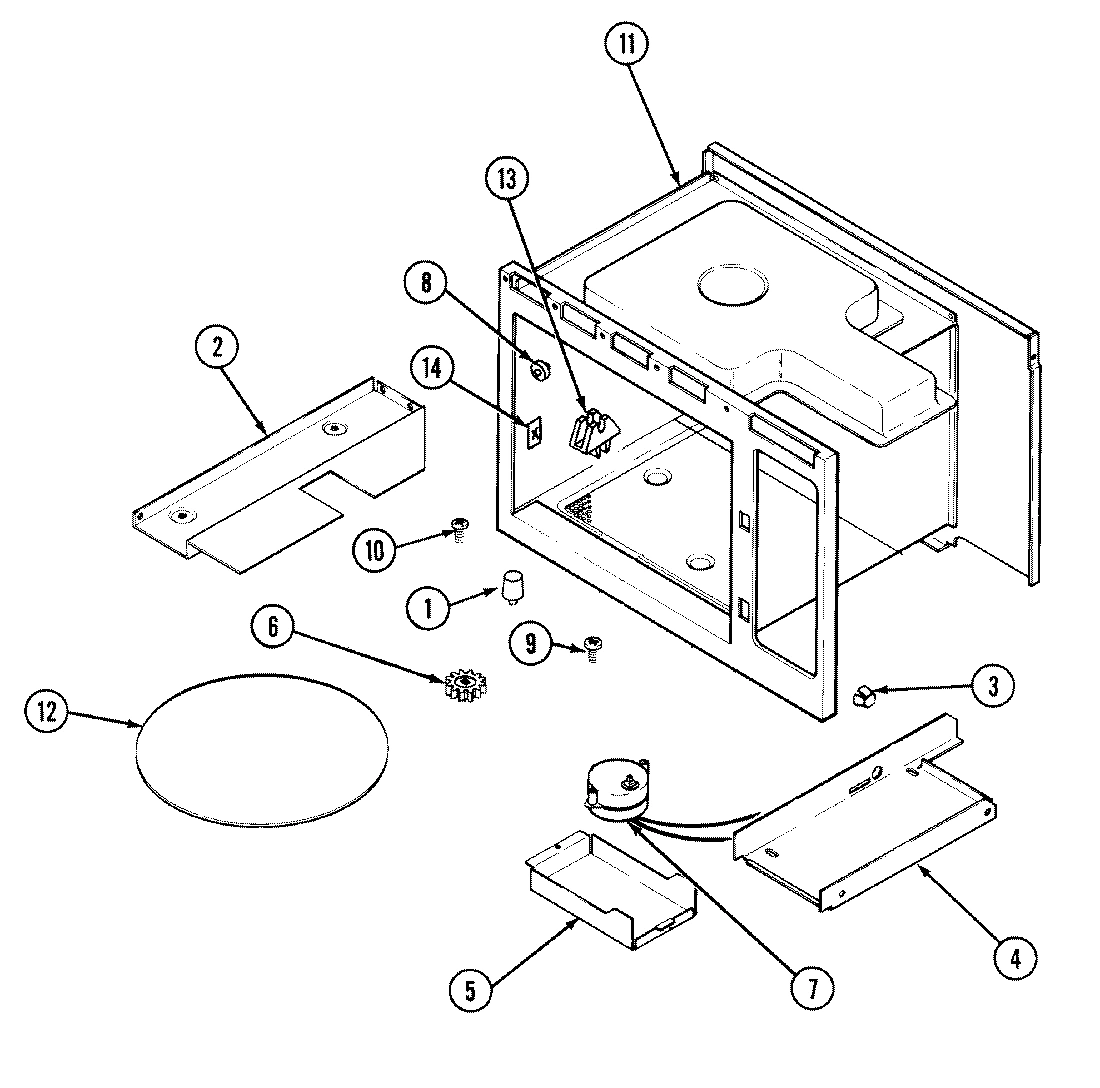

06 - TURNTABLE

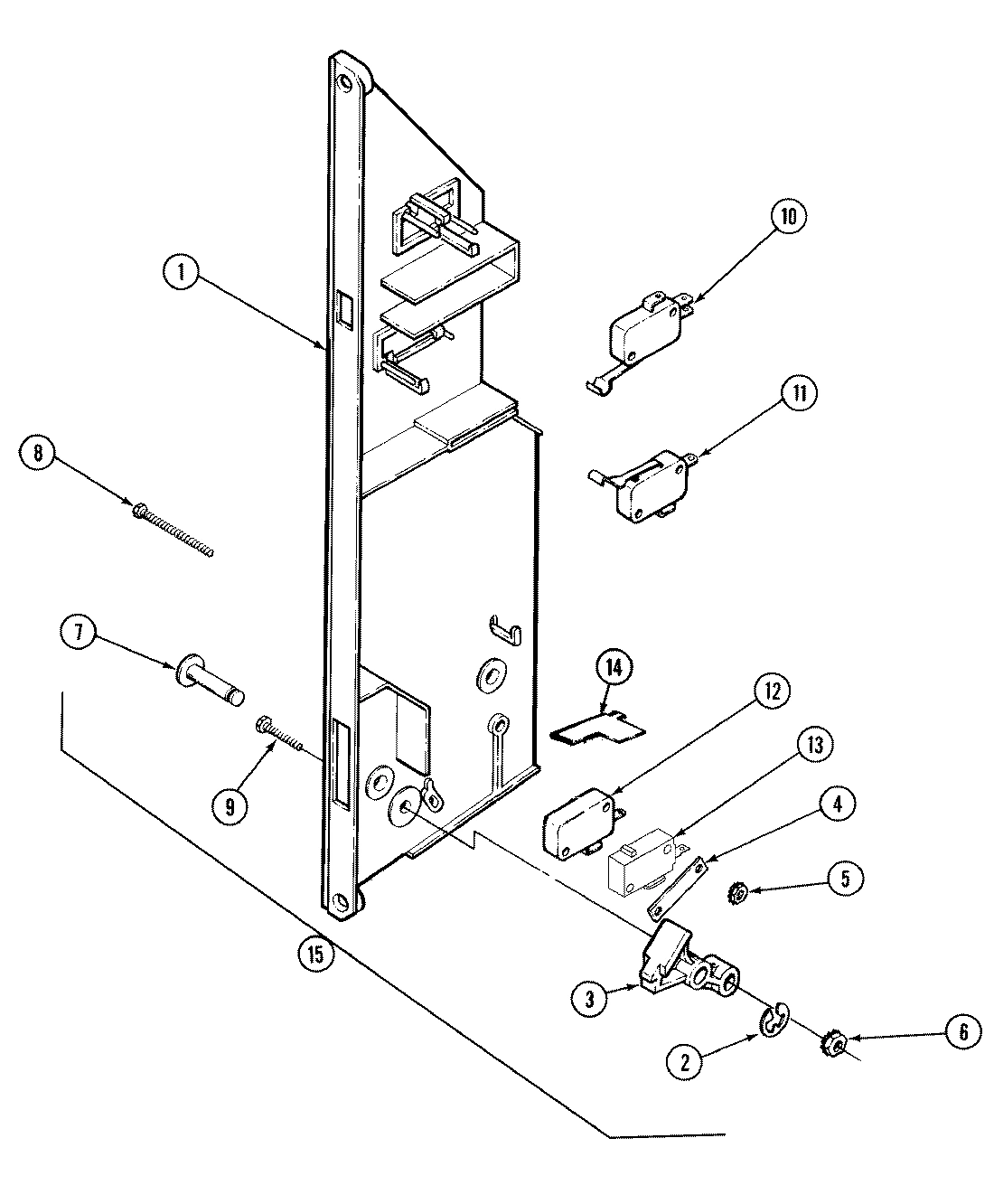

04 - INTERLOCK SWITCH

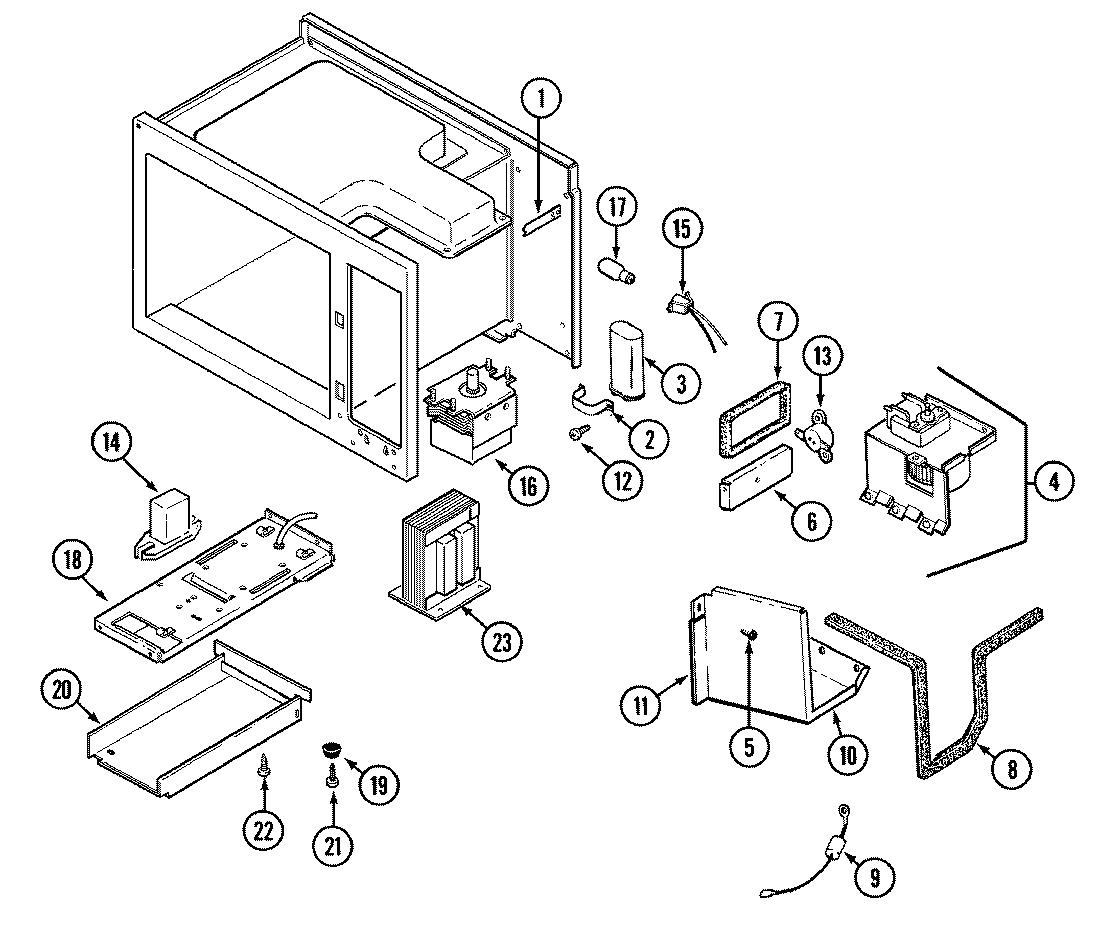

05 - INTERNAL CONTROLS

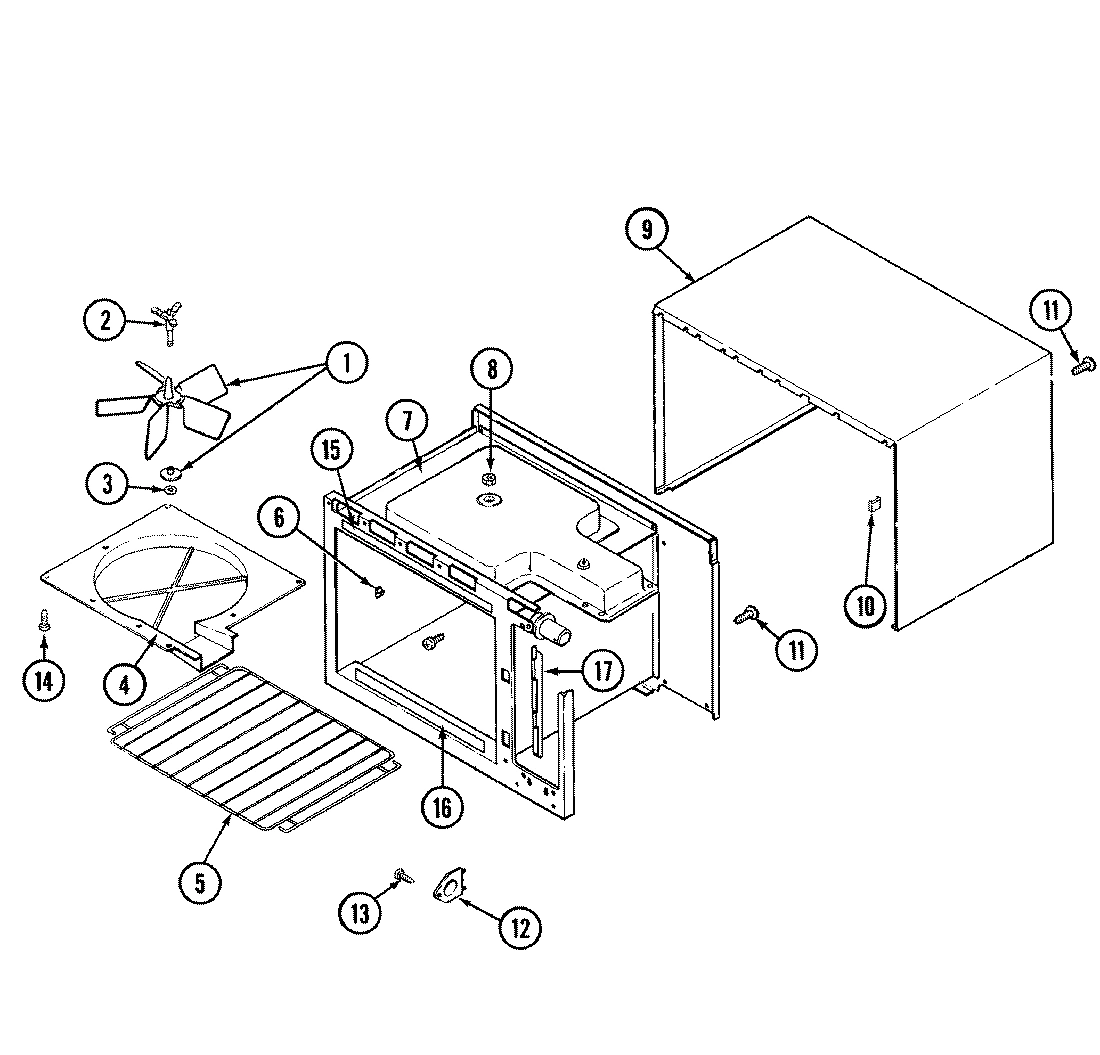

01 - BASE

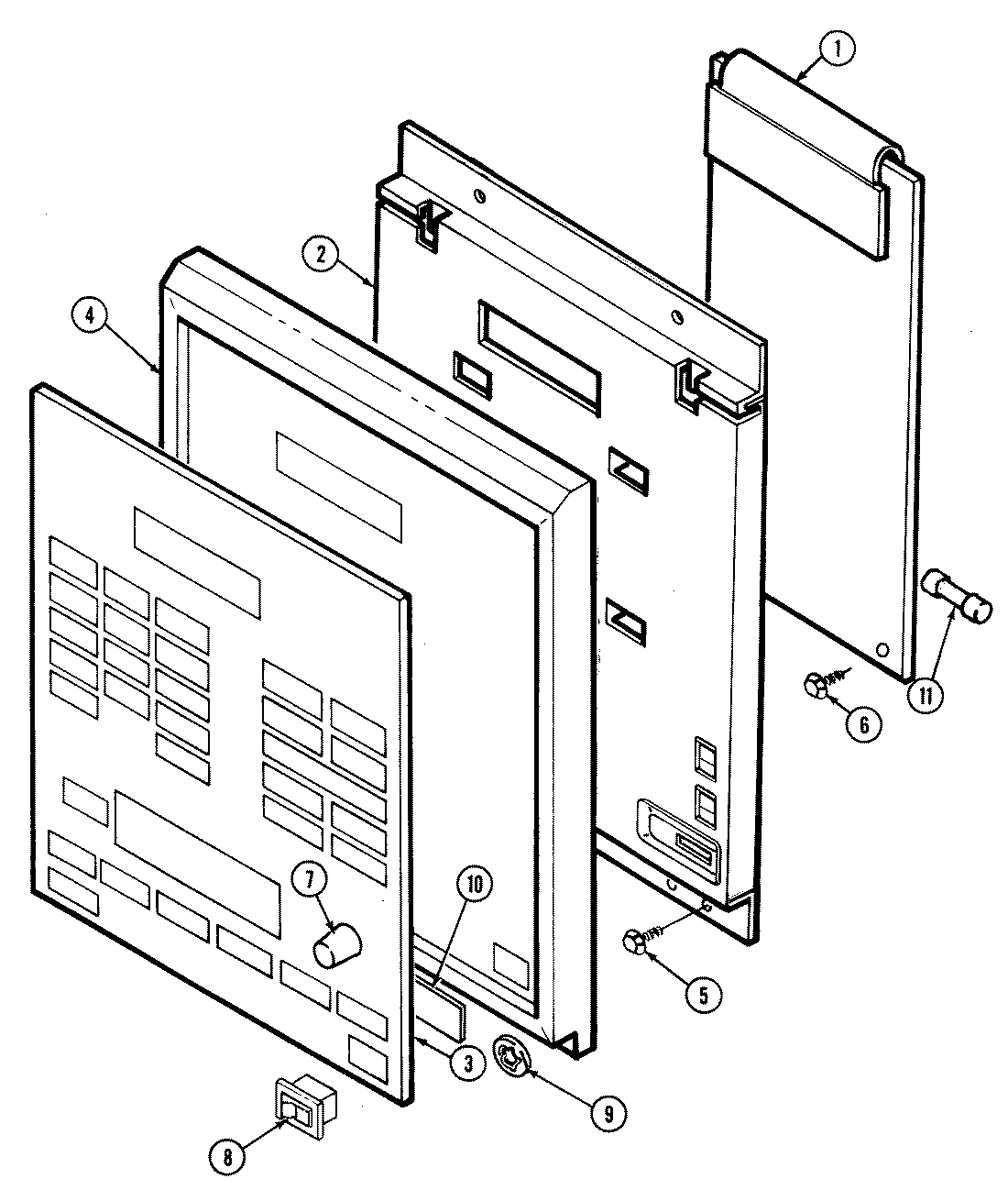

02 - CONTROL PANEL

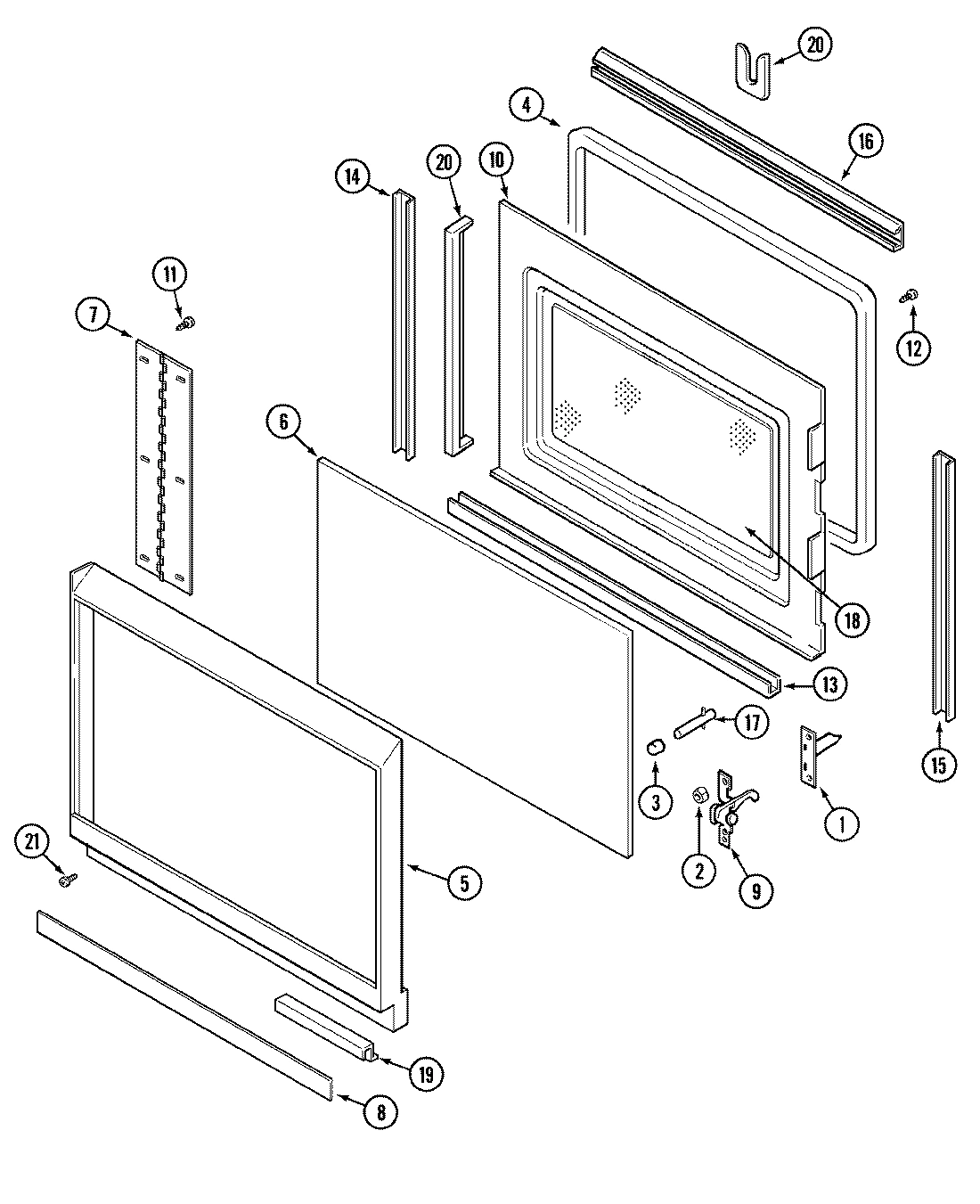

03 - DOOR
Common parts from model Whirlpool RCM48J-14T MICROWAVE
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
BOARD, CONTROL WPL 01210105 Contact Us For Availability
1
BOARD, CONTROL (T-CLOCK) WPL Y01210109 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
BRACE, LOWER LEFT SUPPORT WPL 04021484 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
BRACKET WPL 02030123 Contact Us For Availability
2
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
2
BRACKET, CONTROL MTG. WPL 51001006 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
CAPACITOR WPL Y01020023 Contact Us For Availability
3
CLIP, STIRRER WPL 03110066 Contact Us For Availability
3
SWITCH, CONTROL (BLK) WPL 51001012 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
4
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
4
COVER, BLOWER WPL 51001015 Contact Us For Availability
4
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
4
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
4
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
4
COVER, STIRRER WPL Y02300045 Contact Us For Availability
4
CONTROL PANEL WPL 02100270 Contact Us For Availability
4
CHOKE, FILLER (BLK) WPL Y02100166 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
5
SCREW WPL 03020061 Contact Us For Availability
5
PANEL, (BLACK) WPL 02100249 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
6
SUPPORT, RACK WPL 02010031 Contact Us For Availability
6
WINDOW, DOOR (OUTER) WPL 51001013 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
7
CAVITY WPL 04021615 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
KNOB, CLOCK (BLK) WPL 7711P48660 Contact Us For Availability
7
HINGE WPL 02200021 Contact Us For Availability
8
ROLLER WPL 02210011 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
8
ROCKER SWITCH WPL Y01140066 Contact Us For Availability
8
INSERT DOOR/CONTROL (BLACK) WPL 02100226 Contact Us For Availability
9
SCREW WPL 03010151 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
DIODE WPL Y04010206 Contact Us For Availability
9
CABINET WPL 02140097 Contact Us For Availability
9
CLIP, SWITCH WPL 03110069 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
9
SHIM WPL Y03120064 Contact Us For Availability
9
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
10
SCREW, MOTOR COVER WPL 03020102 Contact Us For Availability
10
SWITCH, LOGIC WPL Y01140085 Contact Us For Availability
10
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
10
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
10
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
10
INSERT, CONTROL PANEL (BTM) WPL 7728P09160 Contact Us For Availability
10
PANEL, INNER DOOR (BLK) WPL 04021377 Contact Us For Availability
11
SWITCH, MONITOR WPL Y01140084 Contact Us For Availability
11
TAPE, FOAM WPL 05140007 Contact Us For Availability
11
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
11
WIRE ASSY WPL 04010275 Contact Us For Availability
11
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
12
TURNTABLE WPL Y02460009 Contact Us For Availability
12
SWITCH, PRIMARY WPL 01140083 Contact Us For Availability
12
SCREW WPL Y03020076 Contact Us For Availability
12
LENS, BULB WPL Y02400007 Contact Us For Availability
12
SCREW WPL Y03010118 Contact Us For Availability
13
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
13
SWITCH, TERTIARY (LOGIC) WPL Y01140086 Contact Us For Availability
13
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
13
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
14
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
14
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
14
RELAY WPL 01120033 Contact Us For Availability
14
CLIP WPL Y03110050 Contact Us For Availability
14
SEAL, LATCH WPL Y02120159 Contact Us For Availability
15
INTERLOCK SWITCH ASSEMBLY WPL Y04021550 Contact Us For Availability
15
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
15
LABEL, COOKING GUIDE WPL 02240781 Contact Us For Availability
15
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
16
MAGNETRON WPL 01040004 Contact Us For Availability
16
COVER, FRONT EDGE WPL 02300057 Contact Us For Availability
16
SEAL, TOP WPL 02120153 Contact Us For Availability
17
BULB, LIGHT WPL Y01060024 Contact Us For Availability
17
SHIELD, INTRUSION WPL 51001010 Contact Us For Availability
17
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
18
COMPONENT MTG. PLATE WPL 02040110 Contact Us For Availability
18
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
19
FOOT, BASE WPL 02230012 Contact Us For Availability
19
EXTRUSION, HANDLE (BLK) WPL 02120151 Contact Us For Availability
20
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
20
TRIM (BLACK) WPL 02100250 Contact Us For Availability
21
SCREW WPL 03010094 Contact Us For Availability
21
SCREW WPL 03020004 Contact Us For Availability
22
SCREW WPL Y03020104 Contact Us For Availability
23
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
23
DUCT, TRANSFORMER WPL 51001014 Contact Us For Availability
23
CLIP CANOE WPL Y03110021 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL 51001008 Contact Us For Availability
NI
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
NI
CLIP WPL Y03110078 Contact Us For Availability
NI
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
NI
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P03860 Contact Us For Availability
× ![]()
