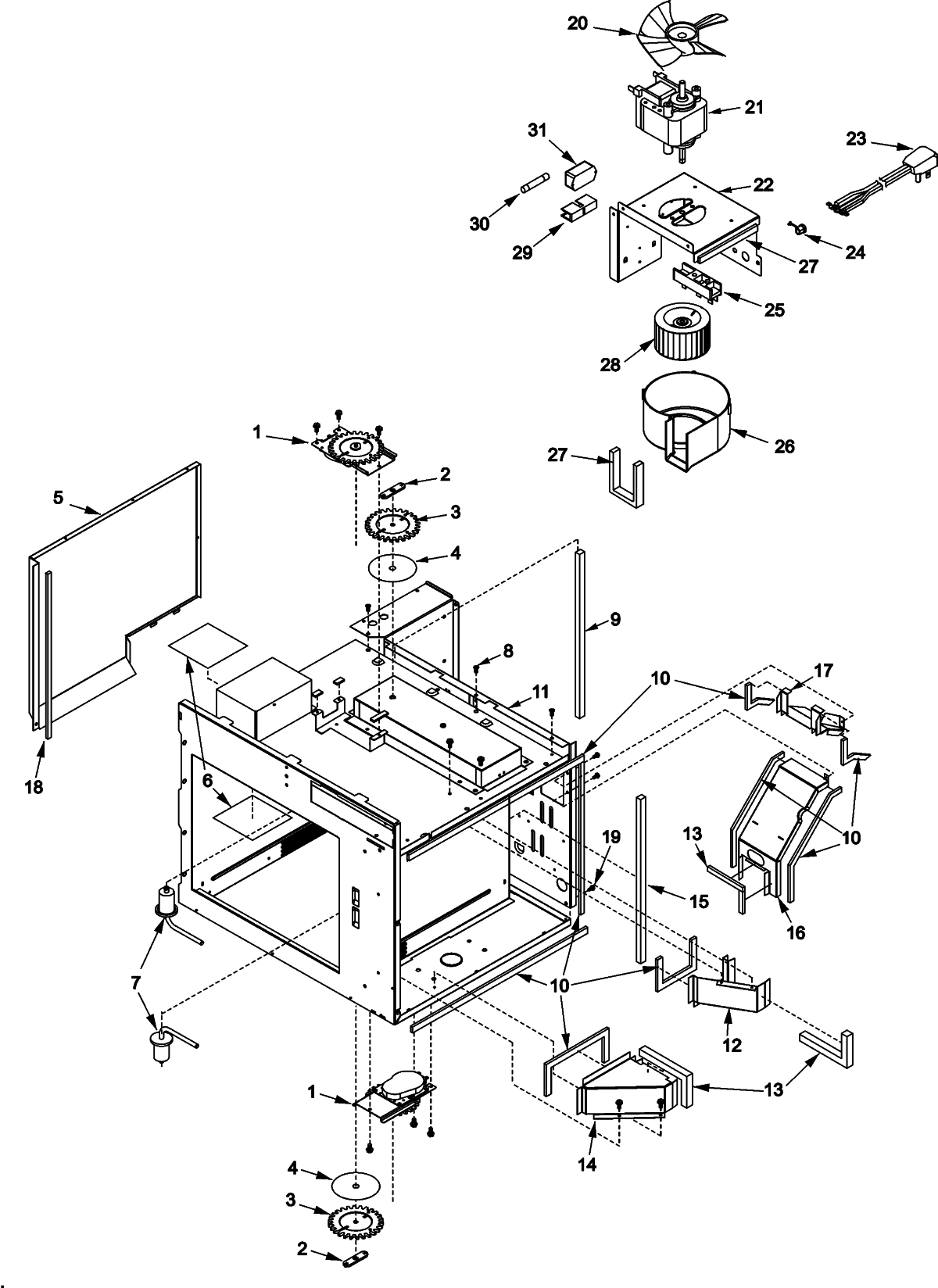

Model Accelerated Cooking Products RC520SC2-P1332827M Amana Menumaster RC520SC2 – Common Parts &amp; Diagrams

1

59104128 Amana Top Touch Panel Assembly Backorder ACP 59104128 $160.44

1

M1260218 Amana Y-Drive HI LO Screw In Stock ACP M1260218 $5.31

1

R0130263 Amana Antenna Motor (230V) In Stock ACP R0130263 $64.28

2

59002015 Amana Inner Door Assembly In Stock ACP 59002015 $57.76

2

PANEL, ACCESS- REAR ACP 10781607 Contact Us For Availability

3

59002013 Amana Door Ring Backorder ACP 59002013 $63.00

3

R0130109 Amana Side Touch Panel Assembly In Stock ACP R0130109 $211.70

4

10903002 Amana Washer Spur Gear Backorder ACP 10903002 $4.82

4

12002636 Amana Interlock Switch Kit In Stock ACP 12002636 $94.04

4

12990525 Amana Screw - Small Head Backorder ACP 12990525 $4.82

4

14179140 Amana Hinge and Door Ring Weld Kit Backorder ACP 14179140 $98.28

4

INSTR-QUICKSTART ACP 12834601 Contact Us For Availability

5

59174559 Amana Light Cover Hardware Backorder ACP 59174559 $27.62

5

MANUAL-PRODUCT SAFETY ACP 13062001 Contact Us For Availability

6

10790306Q Amana Baspn & Gasket Assembly Backorder ACP 10790306Q $212.52

6

20001136 Amana Non-Magnetic Y-Drive Bit Backorder ACP 20001136 $78.79

7

14179133 Amana Antenna & Motor Kit In Stock ACP 14179133 $105.84

7

59004010 Amana Magnetron In Stock ACP 59004010 $162.05

7

KIT, HARNESS- HVB/DISPLAY ACP R0130265 Contact Us For Availability

7

BRKT-HINGE SUPPORT ACP 12189003 Contact Us For Availability

8

13095501 Amana Interlock Harness Backorder ACP 13095501 $9.24

8

20057401 Amana Diode In Stock ACP 20057401 $8.32

8

R0156918 Amana Outer Door Lens Retainer Assem Backorder ACP R0156918 $214.20

9

12360703 Amana Button Plug Backorder ACP 12360703 $4.82

13018801 Amana LW Antenna Motor Harness Backorder ACP 13018801 $11.73

13046901 Amana Cone Screw Set Backorder ACP 13046901 $4.82

13095201 Amana Screw, Oval Backorder ACP 13095201 $4.82

59174560 Amana Trim Assembly & Screws Backorder ACP 59174560 $23.37

11

59004023 Amana Handle and Screw Kit Backorder ACP 59004023 $54.58

11

HARNESS, WIRE ACP 59001865 Contact Us For Availability

13047001 Amana Dog Screw Set Backorder ACP 13047001 $5.39

59174548 Amana Grill Assembly, Air Inlet & Th Backorder ACP 59174548 $81.95

M0274066 Amana Nylon Washer Backorder ACP M0274066 $4.82

HARNESS, HI VOLT ACP 59001656 Contact Us For Availability

13

59004008 Amana Antenna Shield In Stock ACP 59004008 $55.74

13

KIT, CAVITY- 2 TUBE "S" CHASSIS ACP 59214762 Contact Us For Availability

14

C8893502 Amana Door Latch Spring Backorder ACP C8893502 $4.82

14

R0156942 Amana Tray Assembly In Stock ACP R0156942 $143.30

15

12002757 Amana RC Chassis Latch Kit In Stock ACP 12002757 $91.94

16

59002017 Amana Snubber Assembly Backorder ACP 59002017 $36.09

16

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $41.34

17

59004077 Amana Gasket per Foot Backorder ACP 59004077 $1.23

18

SCREW-SM/HEX RoHS ACP 12990527 Contact Us For Availability

18

ACCESS-BOTTOM ACP 10782401 Contact Us For Availability

19

59002167 Amana Sealer In Stock ACP 59002167 $14.95

20

B5706704 Amana Motor Fan Blade Backorder ACP B5706704 $6.65

21

59174555 Amana Blower Motor Assembly - MC, RC In Stock ACP 59174555 $378.55

24

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $4.82

24

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $54.35

25

TOROID ACP 44780P01 Contact Us For Availability

26

M0322202 Amana Tie Wire Backorder ACP M0322202 $4.82

27

59001981 Amana Relay Backorder ACP 59001981 $39.61

28

C3670809 Amana Blower Wheel Backorder ACP C3670809 $33.45

28

M0805102 Amana Ceramic Fuse In Stock ACP M0805102 $3.33

29

59001682 Amana Fuse Block, 3 Pole Backorder ACP 59001682 $18.70

29

A4539637 Amana Pop Rivet Backorder ACP A4539637 $4.82

30

12992302 Amana RoHS Hex Head Screw Backorder ACP 12992302 $4.82

30

M0805205 Amana 30A Fuse In Stock ACP M0805205 $8.29

30

SOCKET-LIGHT ACP B8376801 Contact Us For Availability

31

59002101 Amana Lamp 40W 250V Backorder ACP 59002101 $6.57
