Model Whirlpool RC24HN-3AW REFRIGERATOR – Common Parts & Diagrams

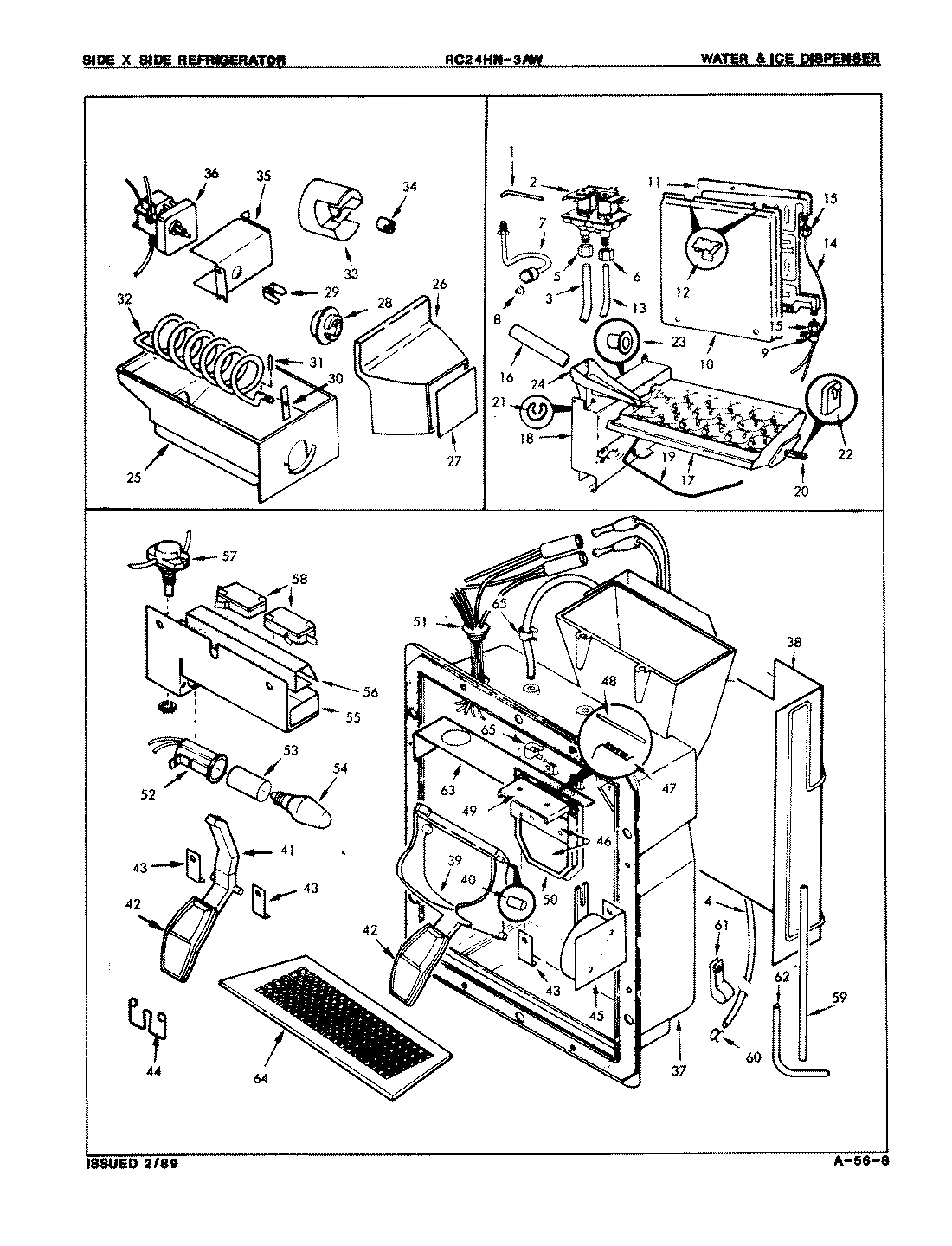

04 - WATER & ICE DISPENSER

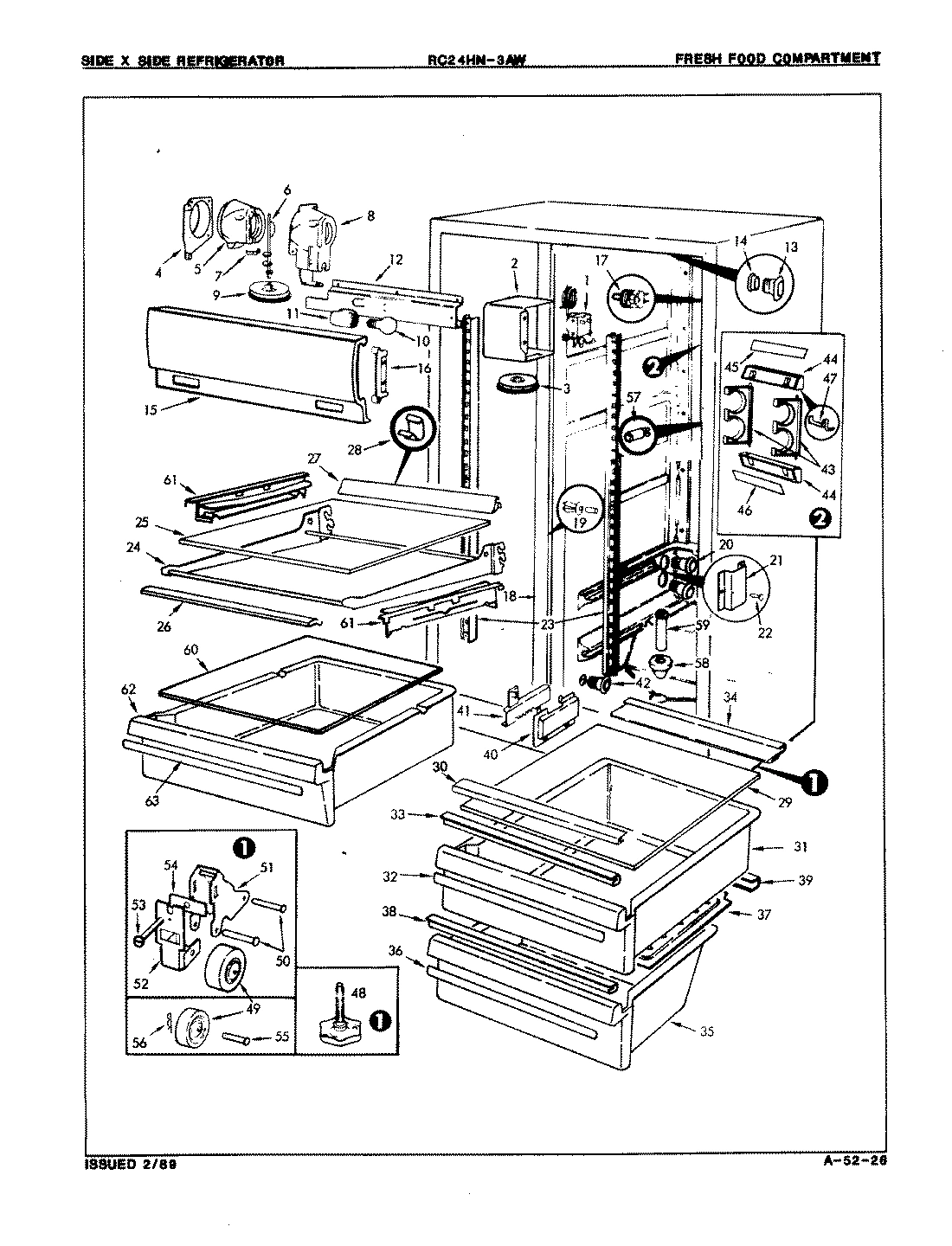

02 - FRESH FOOD COMPARTMENT

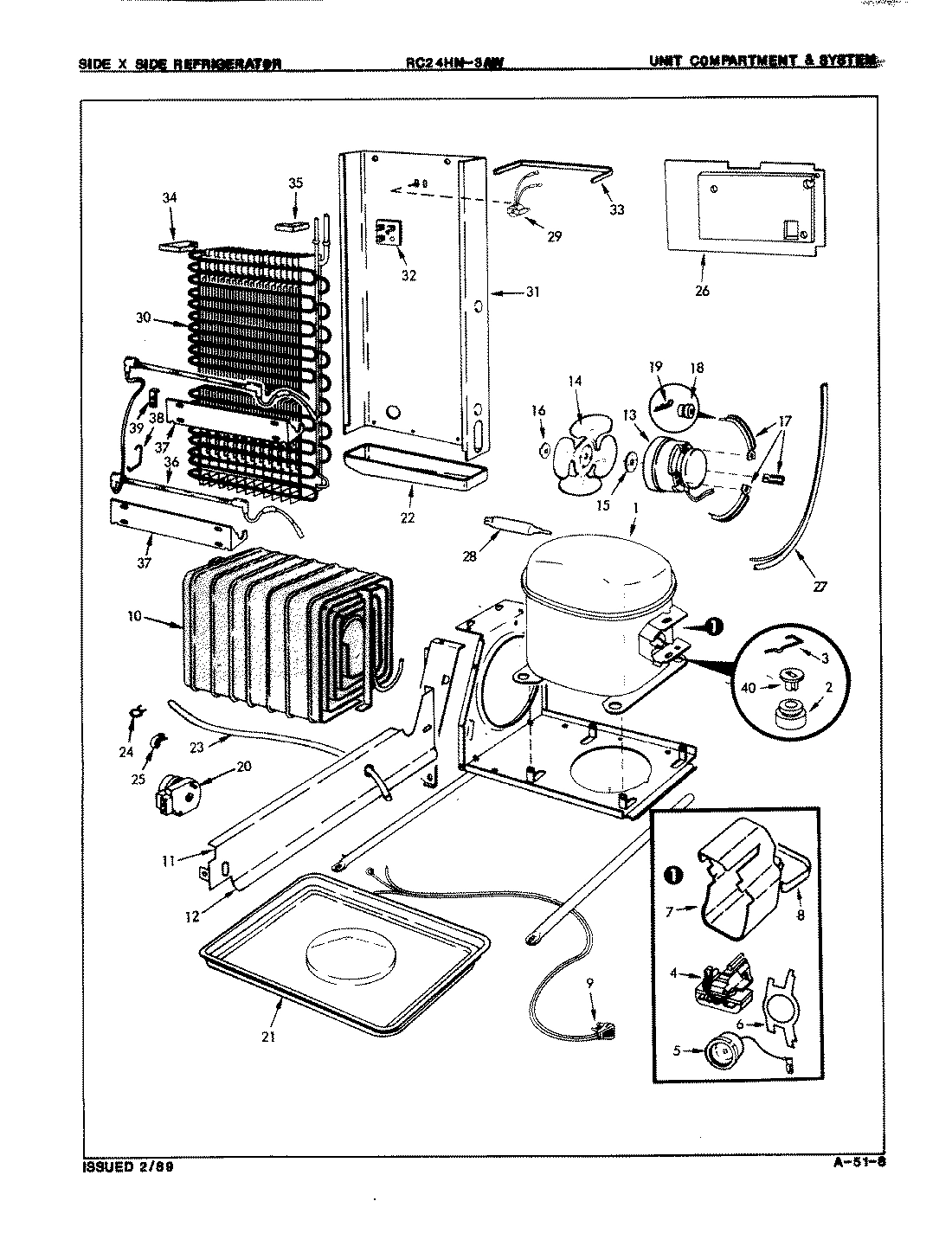

03 - UNIT COMPARTMENT & SYSTEM
01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RC24HN-3AW REFRIGERATOR
1
FEEDER TUBE WPL 667581 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
1
COMPRESSOR (NET) WPL RA996 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
3
TUBING WPL 5560310 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
4
TUBING, FOUNTAIN WPL 556027 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
RELAY, START WPL 655291 Contact Us For Availability
4
SCREW WPL 4000151 Contact Us For Availability
4
COVER, COIL WPL 6269036 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
OVERLOAD WPL 5306780 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
6
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
6
SEAL WPL 5207717 Contact Us For Availability
7
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
COVER, TERMINAL WPL 651891 Contact Us For Availability
7
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
NUT, INLET TUBING WPL 246851 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
8
COIL SEAL WPL 528246 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
9
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
10
TANK COVER WPL 598432 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
10
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
11
TANK, WATER WPL 629201 Contact Us For Availability
11
SWITCH WPL 564322 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
CLIP, WATER TANK MOUNTING WPL 620821 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
SHIELD, LIGHT WPL 656542 Contact Us For Availability
13
TUBE WPL 556029 Contact Us For Availability
13
TUNNEL WPL 574102 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
13
SUPPORT WPL 536872 Contact Us For Availability
14
TUBE WPL 556025 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
SUPPORT WPL 544242 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
SHIELD, LIGHT WPL 655784 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
MOTOR WPL 564884 Contact Us For Availability
16
TUBE, FILL WPL 584614 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
TRAY, ICE WPL 596881 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
SCREW WPL 4000211 Contact Us For Availability
18
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
18
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
SCREW WPL 4000221 Contact Us For Availability
18
FAN GRID WPL 626891 Contact Us For Availability
19
ARM, SENSOR WPL 523072 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
19
STUD, (WHITE) WPL 5992013 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
COVER, COIL WPL 6522410 Contact Us For Availability
20
SHAFT, DRIVE WPL 653191 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 665564 Contact Us For Availability
20
DRAIN TUBE WPL 265279 Contact Us For Availability
21
RING, RETAINER WPL 587061 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
MOISTROL PAN WPL 298395 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
GROMMET WPL 525261 Contact Us For Availability
22
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
SPACER WPL 653171 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
HOSE, DRAIN WPL 2691125 Contact Us For Availability
23
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
24
SCREW WPL 405009103 Contact Us For Availability
24
SPOUT, FILL WPL 537481 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
SHELF, FRZ. WPL 656518 Contact Us For Availability
25
BIN, ICE WPL 664471 Contact Us For Availability
25
GLASS SHELF WPL 681398 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
SHELF, FRZ. WPL 656517 Contact Us For Availability
26
SCREW WPL 405022103 Contact Us For Availability
26
ICE DISP FRONT WPL 662051 Contact Us For Availability
26
TRIM, CANTILEVER SHELF WPL 681712 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
GLASS SHELF, FRZ WPL 6813916 Contact Us For Availability
27
INSERT WPL 681313 Contact Us For Availability
27
TRIM WPL 6527614 Contact Us For Availability
27
SLEEVE WPL 2608823 Contact Us For Availability
27
HEAT EXCHANGER WPL RA4364510 Contact Us For Availability
27
TRIM, SHELF WPL 65561413 Contact Us For Availability
28
RING, DRIVE WPL 630171 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
28
IM DUCT WPL 656521 Contact Us For Availability
29
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
29
GLASS SHELF WPL 6813912 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
IM DOOR WPL 656291 Contact Us For Availability
30
HUB, REINFORCING WPL 630841 Contact Us For Availability
30
TRIM, SHELF WPL 65561401 Contact Us For Availability
30
EVAPORATOR WPL RA4364310 Contact Us For Availability
30
INSERT WPL 681323 Contact Us For Availability
31
PIN, AUGER WPL 630711 Contact Us For Availability
31
PAN, CRISPER WPL 665192 Contact Us For Availability
31
HOUSING WPL 650332 Contact Us For Availability
31
CUP, SHELF WPL 603131 Contact Us For Availability
31
LATCH WPL 661461 Contact Us For Availability
32
AUGER WPL 664351 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
DRAWER, FRZ. WPL 665128 Contact Us For Availability
33
IMPELLER, AUGER WPL 664481 Contact Us For Availability
33
SEAL WPL 655932 Contact Us For Availability
33
SEAL WPL 5207714 Contact Us For Availability
33
INSERT WPL 6812413 Contact Us For Availability
34
NUT, AUGER WPL 660981 Contact Us For Availability
34
CRISPER SEAL WPL 660922 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
NUT WPL 538211 Contact Us For Availability
35
SCREW WPL 40001512 Contact Us For Availability
35
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
35
AUGER BOX WPL 630241 Contact Us For Availability
35
PAN, MEAT WPL 665211 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
BUSHING WPL 590901 Contact Us For Availability
36
SCREW WPL 406026103 Contact Us For Availability
36
IM MOTOR WPL 641433 Contact Us For Availability
36
SPACER WPL 655121 Contact Us For Availability
36
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
36
HEATER, DEFROST WPL 5276415 Contact Us For Availability
36
SWITCH WPL 564321 Contact Us For Availability
37
SCREW WPL 4050221 Contact Us For Availability
37
DISPENSER, WATER WPL 630003 Contact Us For Availability
37
INSULATION KIT WPL RA950591 Contact Us For Availability
37
COVER, MEAT PAN WPL 656084 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
37
GUARD WPL 521971 Contact Us For Availability
38
HEATER, FOUNTAIN WPL 649371 Contact Us For Availability
38
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
WIRE HARNESS WPL 630872 Contact Us For Availability
38
DIVIDER WPL 656232 Contact Us For Availability
39
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
39
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
CONTROL HOUSING WPL 657371 Contact Us For Availability
40
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
40
WIRE HARNESS WPL 659791 Contact Us For Availability
40
CAPACITOR, RUN WPL 661211 Contact Us For Availability
40
WIRE HARNESS WPL 661852 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 663812 Contact Us For Availability
41
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1051311 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
42
COVER WPL 666161 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
43
CLIP WPL 630352 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
44
SPRING WPL 633061 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
MOTOR, INERTIA WPL 652121 Contact Us For Availability
45
INSERT WPL 657533 Contact Us For Availability
46
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
46
INSERT WPL 657537 Contact Us For Availability
47
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
PIN, ICE DOOR WPL 630531 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
INSULATION WPL 630892 Contact Us For Availability
50
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
WIRE HARNESS WPL 630591 Contact Us For Availability
51
WIRE HARNESS WPL 633721 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
SOCKET, LIGHT WPL 630391 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
BULB, LIGHT WPL 631791 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
CLAMP WPL 231977 Contact Us For Availability
55
GROMMET, WATER ENTRY WPL 598081 Contact Us For Availability
55
BRACKET, SWITCH WPL 630132 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
56
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
56
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
56
WIRE HARNESS WPL 662011 Contact Us For Availability
57
SWITCH, WPL 630401 Contact Us For Availability
57
NYLON NUT WPL 195302 Contact Us For Availability
58
WPL 554402 WPL 554402 Contact Us For Availability
58
GROMMET WPL 555121 Contact Us For Availability
59
WPL 6500215 WPL 6500215 Contact Us For Availability
59
TUBE WPL 555131 Contact Us For Availability
60
WPL 96029 WPL 96029 Contact Us For Availability
60
GLASS SHELF DE WPL 681399 Contact Us For Availability
61
WPL 535168 WPL 535168 Contact Us For Availability
61
WPL 668121 WPL 668121 Contact Us For Availability
62
WPL 630382 WPL 630382 Contact Us For Availability
62
WPL 665182 WPL 665182 Contact Us For Availability
63
WPL 630361 WPL 630361 Contact Us For Availability
63
WPL 6812434 WPL 6812434 Contact Us For Availability
64
WPL 630251 WPL 630251 Contact Us For Availability
65
WPL 539142 WPL 539142 Contact Us For Availability
65
WPL 603331 WPL 603331 Contact Us For Availability
65
WPL 603332 WPL 603332 Contact Us For Availability
× ![]()
Login and Registration Form
