Model Whirlpool RC24DN-3AS REFRIGERATOR – Common Parts & Diagrams
04 - FRESH FOOD DOOR

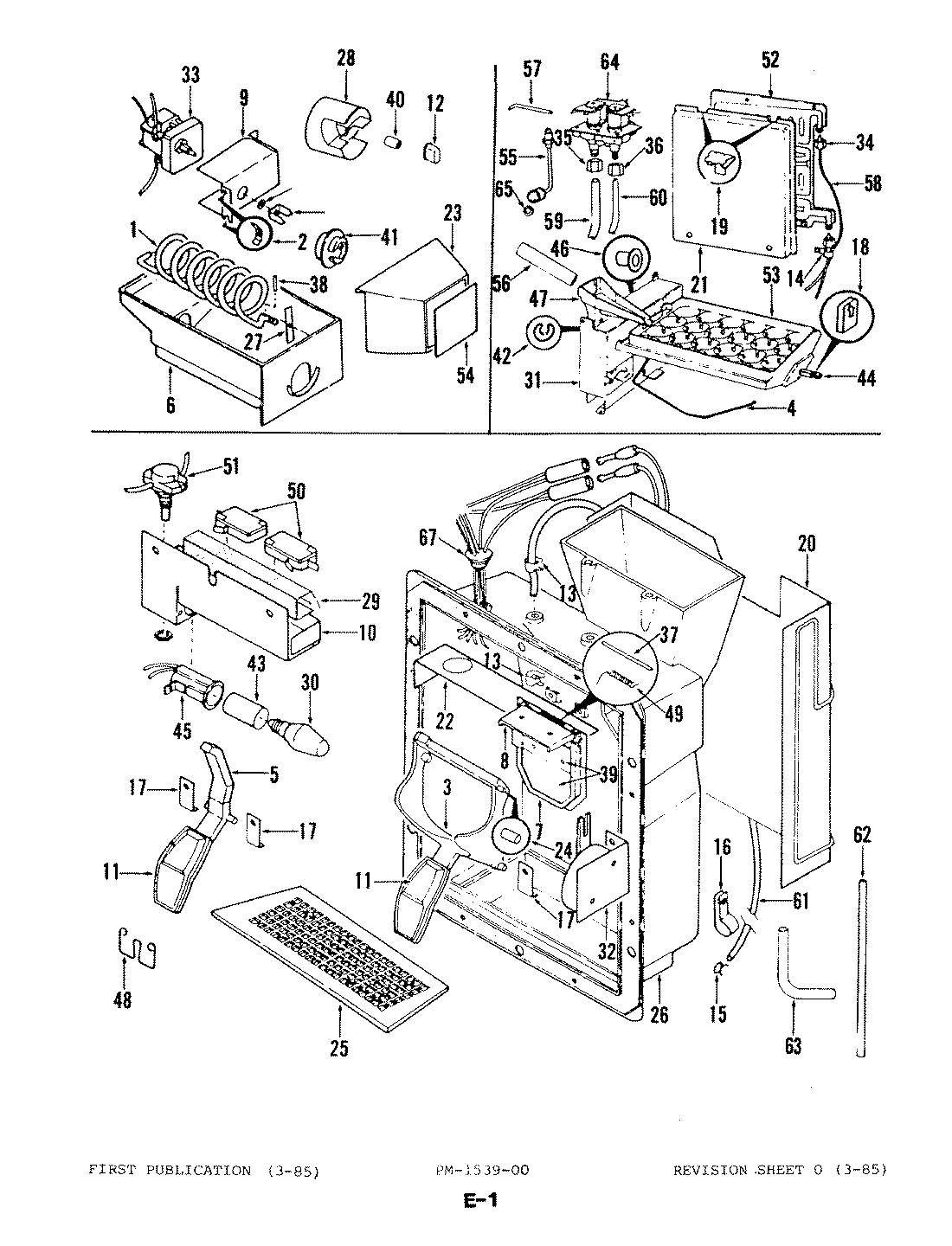

06 - WATER & ICE DISPENSER

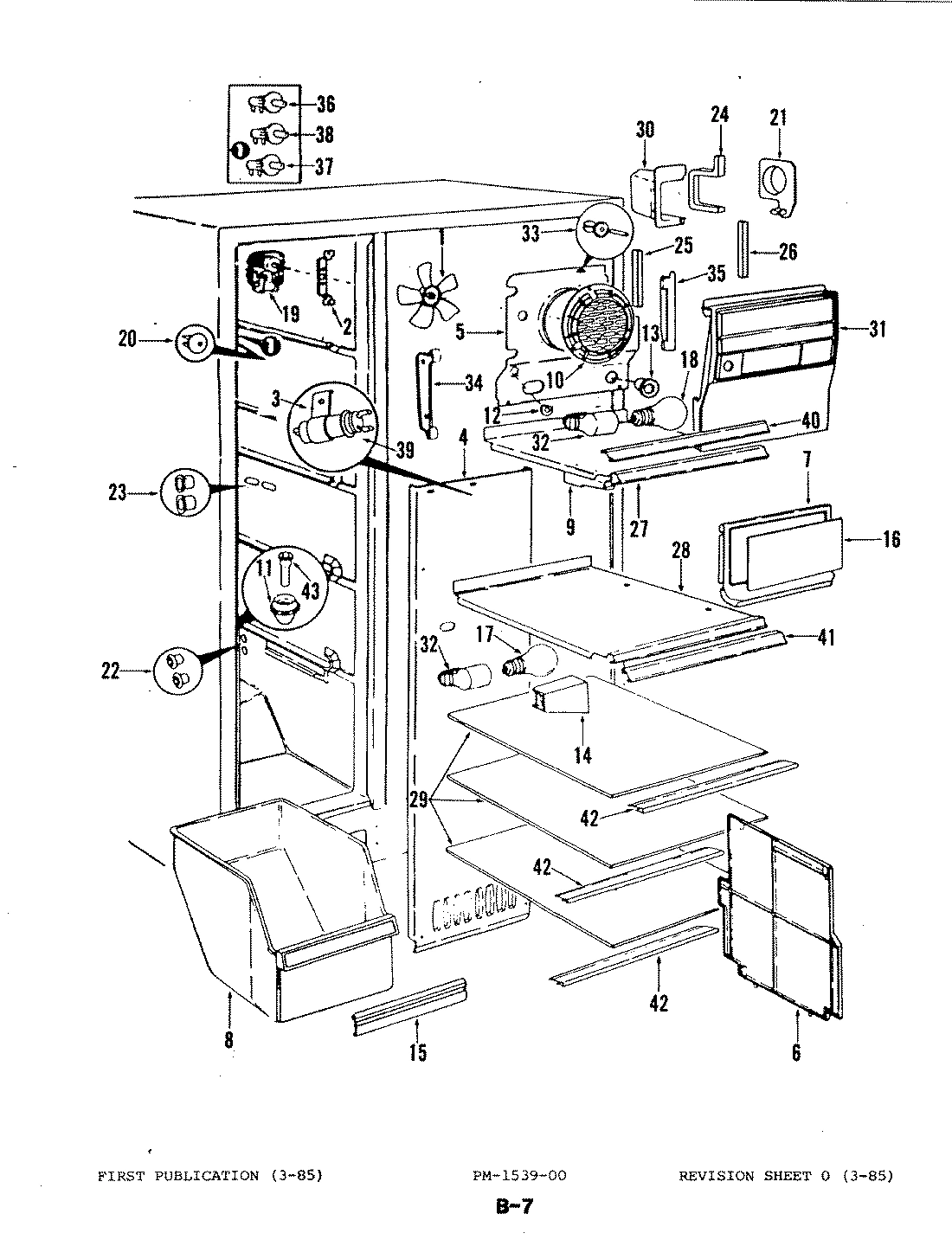

01 - FREEZER COMPARTMENT

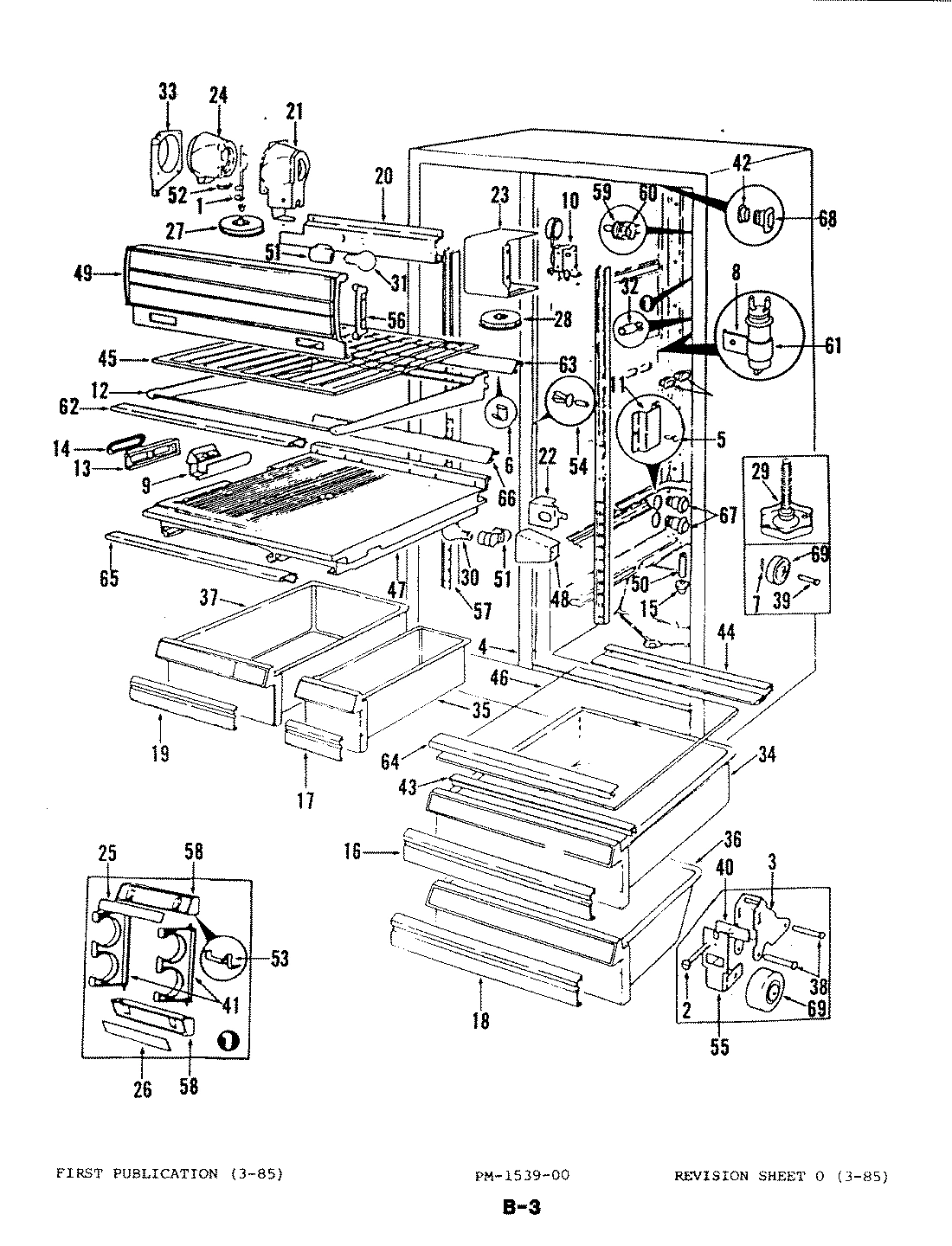

03 - FRESH FOOD COMPARTMENT

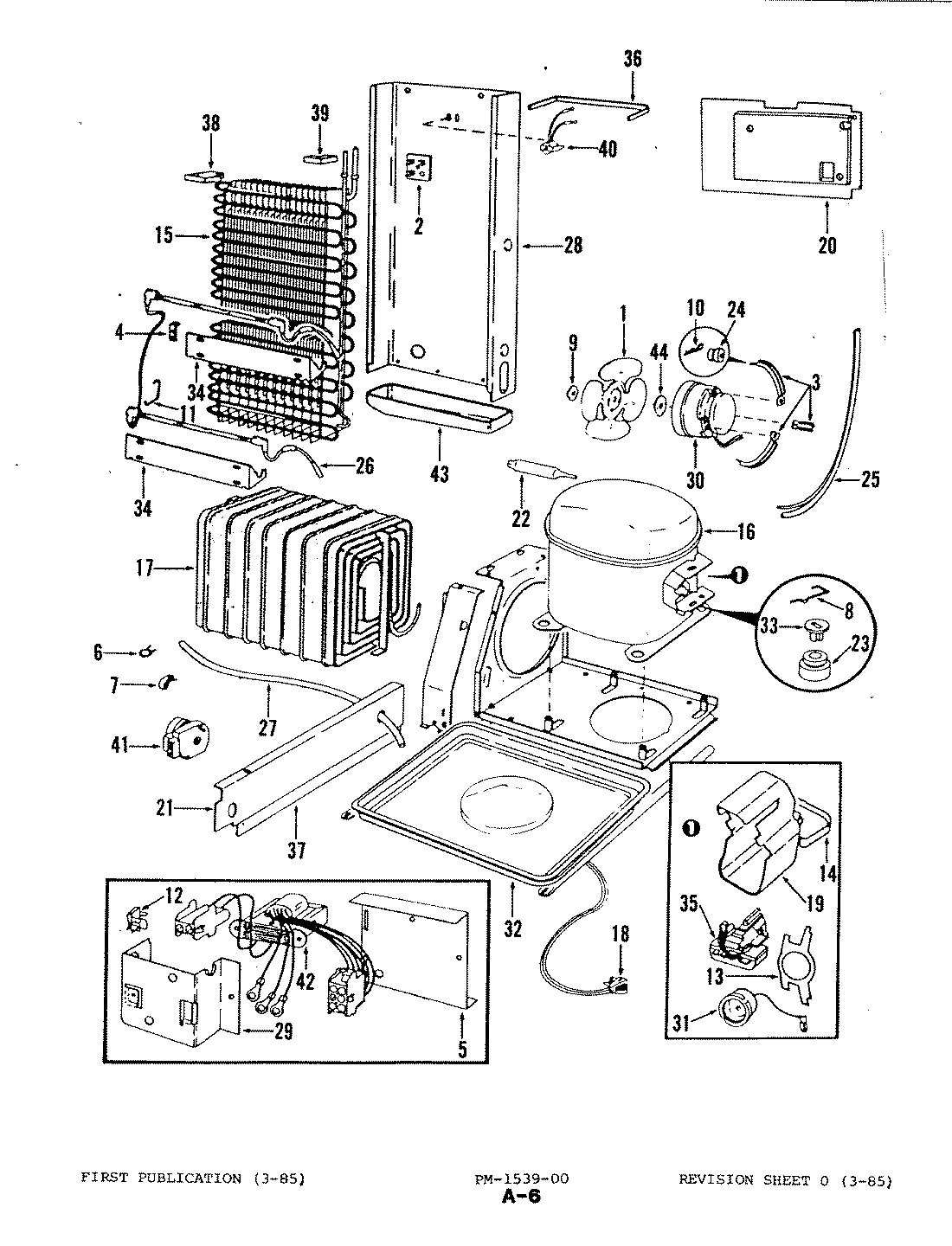

05 - UNIT COMPARTMENT & SYSTEM

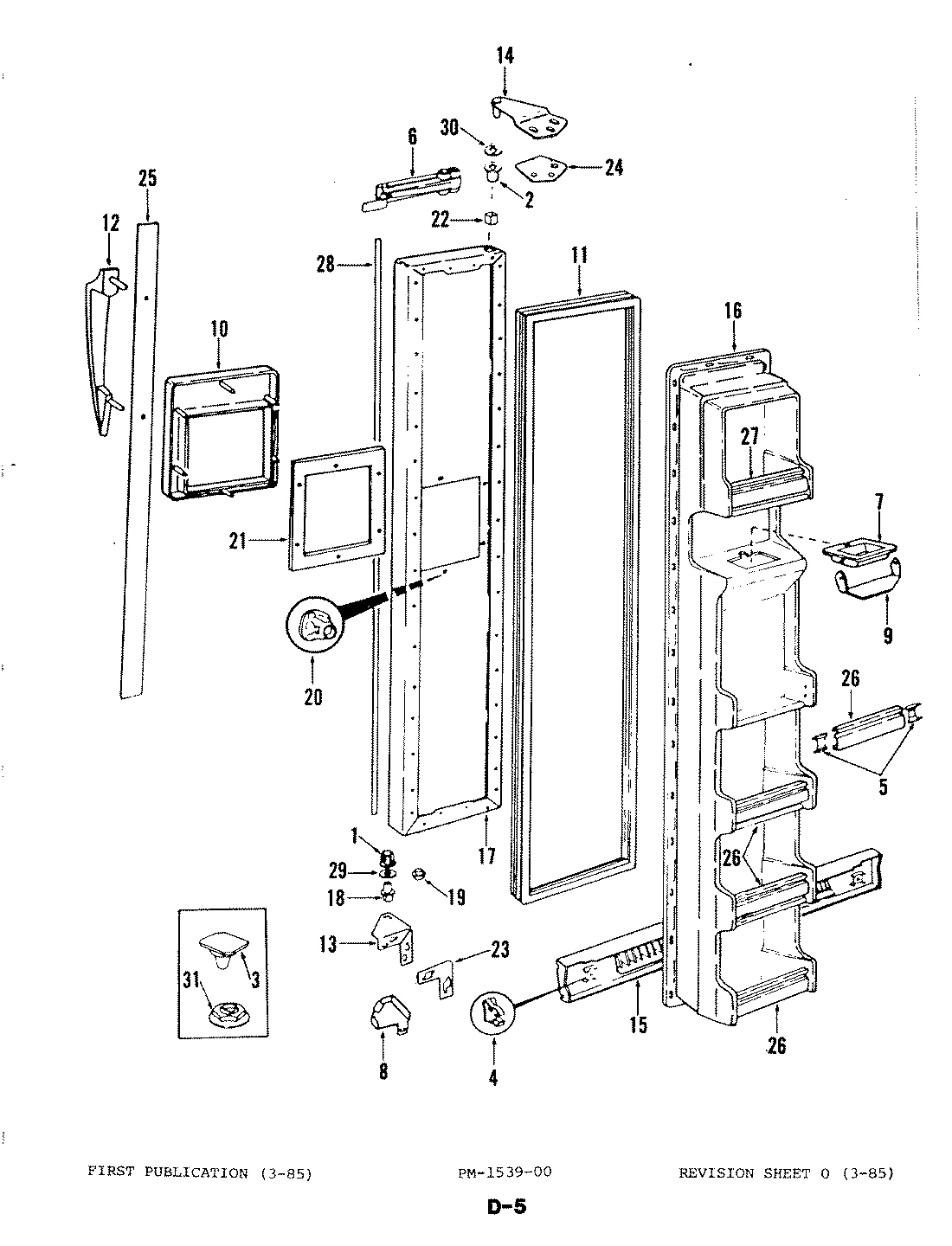

02 - FREEZER DOOR
Common parts from model Whirlpool RC24DN-3AS REFRIGERATOR
1
BRACKET, CLOSER WPL 526141 Contact Us For Availability
1
ESCUTCHEON WPL 652993 Contact Us For Availability
1
AUGER WPL 630991 Contact Us For Availability
1
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
1
DAMPER WPL 525872 Contact Us For Availability
1
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
1
CUP WPL 554241 Contact Us For Availability
2
BUMPER WPL 596152 Contact Us For Availability
2
BUSHING WPL 557812 Contact Us For Availability
2
SCREW ANCHOR WPL 604701 Contact Us For Availability
2
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
2
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
2
BOARD, TERMINAL WPL 558781 Contact Us For Availability
3
BUSHING WPL 554371 Contact Us For Availability
3
CLIP WPL 627032 Contact Us For Availability
3
ARM,ICE WPL 630073 Contact Us For Availability
3
CLAMP WPL 652251 Contact Us For Availability
3
BRACKET, WHEEL WPL 627941 Contact Us For Availability
3
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
4
ARM, SENSOR WPL 523072 Contact Us For Availability
4
COVER, COIL WPL 6522410 Contact Us For Availability
4
WIRE CHANNEL WPL 585321 Contact Us For Availability
4
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
4
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
4
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
4
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
5
RETAINER WPL 652461 Contact Us For Availability
5
ARM, WATER WPL 630083 Contact Us For Availability
5
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
5
COVER, COIL WPL 6269042 Contact Us For Availability
5
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
5
XFMR BRACKET WPL 652161 Contact Us For Availability
6
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
6
CLOSER, DOOR WPL 544851 Contact Us For Availability
6
BIN WPL 654611 Contact Us For Availability
6
DIVIDER WPL 630101 Contact Us For Availability
6
CLIP WPL 653581 Contact Us For Availability
6
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
7
DOOR, ICE CHUTE WPL 630191 Contact Us For Availability
7
DOOR WPL 650662 Contact Us For Availability
7
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
7
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
7
COLLAR WPL 630202 Contact Us For Availability
8
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
8
DRAWER WPL 5933012 Contact Us For Availability
8
SUB 62165-1 WPL 527781 Contact Us For Availability
8
COVER WPL 5381511 Contact Us For Availability
9
CHEESE DOOR WPL 5923436 Contact Us For Availability
9
BOX,AUGER MOTOR WPL 652651 Contact Us For Availability
9
GLIDE WPL 630792 Contact Us For Availability
9
GLIDE WPL 630793 Contact Us For Availability
9
INSERT WPL 638303 Contact Us For Availability
9
DOOR, ICE CHUTE WPL 630751 Contact Us For Availability
10
CHEESE DOOR WPL 5923437 Contact Us For Availability
10
BRACKET, SWITCH WPL 630132 Contact Us For Availability
10
FAN GRID WPL 626891 Contact Us For Availability
10
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
ESCUTCHEON WPL 6048214 Contact Us For Availability
11
END CAP WPL 621386 Contact Us For Availability
11
PAD, ARM WPL 630661 Contact Us For Availability
11
GROMMET WPL 525261 Contact Us For Availability
11
AIR DEFLECTOR WPL 621281 Contact Us For Availability
11
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
11
GASKET WPL 537121 Contact Us For Availability
12
END CAP WPL 621385 Contact Us For Availability
12
BUSHING WPL 630231 Contact Us For Availability
12
BUSHING WPL 590901 Contact Us For Availability
12
SHELF FRAME WPL 652782 Contact Us For Availability
12
CLIP WPL 621681 Contact Us For Availability
12
HANDLE WPL 636495 Contact Us For Availability
13
ESCUTCHEON WPL 654814 Contact Us For Availability
13
CLAMP, SPRING WPL 603332 Contact Us For Availability
13
PLUG BUTTON WPL 2608711 Contact Us For Availability
13
GASKET WPL 638731 Contact Us For Availability
13
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
13
HINGE WPL 5367115 Contact Us For Availability
14
GASKET WPL 537122 Contact Us For Availability
14
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
14
INSULATION, CLOSER WPL 526131 Contact Us For Availability
14
CLAMP WPL 231977 Contact Us For Availability
14
GASKET WPL 638742 Contact Us For Availability
14
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
15
HANDLE WPL 636494 Contact Us For Availability
15
CLAMP, TUBING WPL 96029 Contact Us For Availability
15
HANDLE WPL 6529762 Contact Us For Availability
15
GROMMET WPL 555121 Contact Us For Availability
15
EVAPORATOR WPL RA4364340 Contact Us For Availability
15
KICKPLATE WPL 5647831 Contact Us For Availability
16
HINGE WPL 652842 Contact Us For Availability
16
CLAMP, TUBING WPL 535168 Contact Us For Availability
16
INSERT WPL 6528115 Contact Us For Availability
16
HANDLE WPL 6529758 Contact Us For Availability
16
COMPRESSOR WPL RA990 Contact Us For Availability
16
INNER PANEL WPL 59433111 Contact Us For Availability
17
CLIP WPL 630352 Contact Us For Availability
17
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
17
HANDLE WPL 6529761 Contact Us For Availability
17
CONDENSER WPL RA436441 Contact Us For Availability
17
PANEL, OUTER DOOR WPL 6306912WW Contact Us For Availability
18
LEAD WPL 5465322 Contact Us For Availability
18
LEAD WPL 5465331 Contact Us For Availability
18
HOUSING ASSY. WPL 653642 Contact Us For Availability
18
PIN WPL 554791 Contact Us For Availability
18
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
18
HANDLE WPL 6529760 Contact Us For Availability
18
CORD, POWER WPL 528902 Contact Us For Availability
19
INNER PANEL WPL 59433149 Contact Us For Availability
19
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
19
CLIP, WATER TANK MOUNTING WPL 620821 Contact Us For Availability
19
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
19
HANDLE WPL 6529759 Contact Us For Availability
19
SLEEVE WPL 2608812 Contact Us For Availability
19
COVER, TERMINAL WPL 651891 Contact Us For Availability
20
SCREW WPL 4030625 Contact Us For Availability
20
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
20
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
20
SCREW WPL 998687 Contact Us For Availability
20
HEATER, FOUNTAIN WPL 649371 Contact Us For Availability
20
NUT WPL 538211 Contact Us For Availability
20
COVER WPL 654921 Contact Us For Availability
21
MODULE WPL 652403 Contact Us For Availability
21
COVER, WATER TANK WPL 598431 Contact Us For Availability
21
ORIFICE WPL 544231 Contact Us For Availability
21
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
21
BAFFLE WPL 298384 Contact Us For Availability
21
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
22
PANEL, OUTER DOOR WPL 6239125WW Contact Us For Availability
22
SEAL SLEEVE WPL 559901 Contact Us For Availability
22
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
22
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
22
HOUSING WPL 535641 Contact Us For Availability
23
PIVOT WPL 593251 Contact Us For Availability
23
SPACER WPL 536883 Contact Us For Availability
23
FRONT WPL 650676 Contact Us For Availability
23
SCREW WPL 40001512 Contact Us For Availability
23
RIVET WPL 263979 Contact Us For Availability
23
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
23
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
24
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
24
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
24
SEAL WPL 5207710 Contact Us For Availability
24
INSULATION, HOUSING WPL 587671 Contact Us For Availability
24
GROMMET, BRACKET WPL 569331 Contact Us For Availability
25
TRIM WPL 636501 Contact Us For Availability
25
GROMMET, WATER ENTRY WPL 598081 Contact Us For Availability
25
GRILL WPL 630251 Contact Us For Availability
25
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
25
INSERT WPL 572061 Contact Us For Availability
25
HEAT EXCHANGER WPL RA4364540 Contact Us For Availability
26
SCREW WPL 4050221 Contact Us For Availability
26
DISPENSER, WATER WPL 630003 Contact Us For Availability
26
COIL SEAL WPL 528246 Contact Us For Availability
26
INSERT WPL 592999 Contact Us For Availability
26
HEATER, DEFROST WPL 5276415 Contact Us For Availability
26
TRIM WPL 5925868 Contact Us For Availability
27
HUB, REINFORCING WPL 630841 Contact Us For Availability
27
FRZR SHELF WPL 5374335 Contact Us For Availability
27
KNOB WPL 298936 Contact Us For Availability
27
HOSE, DRAIN WPL 2691118 Contact Us For Availability
27
TRIM WPL 5925869 Contact Us For Availability
28
SEAL WPL 650931 Contact Us For Availability
28
TRIM WPL 5930950 Contact Us For Availability
28
IMPELLER WPL 630831 Contact Us For Availability
28
INSULATION WPL 630892 Contact Us For Availability
28
FRZR SHELF WPL 5374337 Contact Us For Availability
28
KNOB WPL 298935 Contact Us For Availability
28
HOUSING WPL 650332 Contact Us For Availability
29
TRIM WPL 6263413 Contact Us For Availability
29
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
29
SHELF, GLASS WPL 6243832 Contact Us For Availability
29
LEG, LEVELING WPL 60128 Contact Us For Availability
29
XFMR HOUSING WPL 654401 Contact Us For Availability
29
SPACER WPL 542333 Contact Us For Availability
30
BULB, LIGHT WPL 631791 Contact Us For Availability
30
SHIELD WPL 538371 Contact Us For Availability
30
FAN MOTOR WPL 280569 Contact Us For Availability
30
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
30
WASHER WPL 521852 Contact Us For Availability
31
FASTENER WPL 434003506 Contact Us For Availability
31
ICEMAKER MECH WPL 625771 Contact Us For Availability
31
SHIELD WPL 5566434 Contact Us For Availability
31
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
31
OVERLOAD WPL 5306772 Contact Us For Availability
32
RIVET WPL 599202 Contact Us For Availability
32
MOTOR, INERTIA WPL 652121 Contact Us For Availability
32
NYLON NUT WPL 195302 Contact Us For Availability
32
PAN, DRAIN WPL 298394 Contact Us For Availability
33
RACK WPL 599949 Contact Us For Availability
33
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
33
MOTOR, AUGER WPL 651861 Contact Us For Availability
33
STUD WPL 2169714 Contact Us For Availability
33
STUD WPL 539142 Contact Us For Availability
33
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
33
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
33
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
34
SUPPORT WPL 536872 Contact Us For Availability
34
PAN, CRISPER WPL 5939516 Contact Us For Availability
34
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
35
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
35
SCREW WPL 4000171 Contact Us For Availability
35
SUPPORT WPL 544242 Contact Us For Availability
35
EGG PAN WPL 593314 Contact Us For Availability
35
MOUNTING WPL 4010091 Contact Us For Availability
35
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
35
SCREW WPL 4050071 Contact Us For Availability
35
SCREW WPL 4140011 Contact Us For Availability
35
SCREW WPL 641391 Contact Us For Availability
35
RELAY WPL 9286106 Contact Us For Availability
36
TRAY, BUTTER WPL 299362 Contact Us For Availability
36
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
36
PAN, FRUIT WPL 5959224 Contact Us For Availability
36
SEAL WPL 5207714 Contact Us For Availability
37
TRIM WPL 5925867 Contact Us For Availability
37
PIN, ICE DOOR WPL 630531 Contact Us For Availability
37
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
38
TRIM, DOOR SHELF WPL 65151178 Contact Us For Availability
38
PIN, AUGER WPL 630711 Contact Us For Availability
38
PIN, WHEEL WPL 649651 Contact Us For Availability
38
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
39
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
39
THERMISTOR WPL 651547 Contact Us For Availability
39
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
39
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
40
RETAINER WPL 630312 Contact Us For Availability
40
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
40
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
41
WASHER WPL 542331 Contact Us For Availability
41
RING, DRIVE WPL 630171 Contact Us For Availability
41
TRIM WPL 5375233 Contact Us For Availability
41
SUB 56519-2 WPL 565193 Contact Us For Availability
41
TIMER WPL 541134 Contact Us For Availability
42
WASHER WPL 521851 Contact Us For Availability
42
WIRE HARNESS WPL 652931 Contact Us For Availability
42
WIRE HARNESS WPL 653431 Contact Us For Availability
42
WIRE HARNESS WPL 654411 Contact Us For Availability
42
SCREW WPL 4000391 Contact Us For Availability
42
SCREW WPL 4000841 Contact Us For Availability
42
SCREW WPL 405009103 Contact Us For Availability
42
SCREW WPL 4050211 Contact Us For Availability
42
SCREW WPL 405022103 Contact Us For Availability
42
RING, RETAINER WPL 587061 Contact Us For Availability
42
RETAINER WPL 574111 Contact Us For Availability
42
TRIM WPL 5974625 Contact Us For Availability
42
SCREW WPL 4000011 Contact Us For Availability
42
SCREW WPL 4000271 Contact Us For Availability
42
SCREW WPL 4000371 Contact Us For Availability
42
TRANSFORMER WPL 651882 Contact Us For Availability
43
SEAL WPL 630561 Contact Us For Availability
43
DRAIN TUBE WPL 265275 Contact Us For Availability
43
WIRE HARNESS WPL 652641 Contact Us For Availability
43
CRISPER SEAL WPL 655852 Contact Us For Availability
43
TROUGH, DRAIN WPL 535232 Contact Us For Availability
44
SHAFT, DRIVE WPL 653191 Contact Us For Availability
44
SEAL WPL 555712 Contact Us For Availability
44
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
44
WIRE HARNESS WPL 599401 Contact Us For Availability
44
WIRE HARNESS WPL 654423 Contact Us For Availability
44
FLANGE HEATER WPL RA436841 Contact Us For Availability
45
SOCKET, LIGHT WPL 630391 Contact Us For Availability
45
SHELF, GLASS WPL 6243827 Contact Us For Availability
46
SPACER WPL 653171 Contact Us For Availability
46
SHELF, CRISPER WPL 655592 Contact Us For Availability
47
SPOUT, FILL WPL 537481 Contact Us For Availability
47
COVER, MEAT KEEPER WPL 638371 Contact Us For Availability
48
SPRING WPL 633061 Contact Us For Availability
48
GUARD WPL 521971 Contact Us For Availability
49
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
49
SHIELD WPL 5933320 Contact Us For Availability
50
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
50
TUBE WPL 555131 Contact Us For Availability
51
SWITCH, LIGHT WPL 630401 Contact Us For Availability
51
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
51
SPACER WPL 620283 Contact Us For Availability
52
WIRE TIE WPL 575763 Contact Us For Availability
52
TANK, WATER WPL 629201 Contact Us For Availability
52
SPRING, BAFFLE WPL 526481 Contact Us For Availability
53
TRAY, ICE WPL 596881 Contact Us For Availability
53
SPRING, WINE RACK WPL 580571 Contact Us For Availability
54
INSERT WPL 6528015 Contact Us For Availability
54
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
55
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
55
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
56
TUBE, FILL WPL 584614 Contact Us For Availability
56
SUPPORT WPL 536862 Contact Us For Availability
57
TUBE, FEEDER WPL 561251 Contact Us For Availability
57
SUPPORT WPL 583811 Contact Us For Availability
58
TUBE WPL 556025 Contact Us For Availability
58
SUPPORT WPL 572053 Contact Us For Availability
59
TUBING, VALVE TO ICE MAKER WPL 556036 Contact Us For Availability
59
SWITCH WPL 564321 Contact Us For Availability
60
TUBE WPL 556029 Contact Us For Availability
60
SWITCH WPL 564322 Contact Us For Availability
61
TUBING, FOUNTAIN WPL 556027 Contact Us For Availability
61
THERMISTOR WPL 651542 Contact Us For Availability
62
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
62
TRIM WPL 6500514 Contact Us For Availability
63
WATER LINE WPL 630382 Contact Us For Availability
63
TRIM WPL 6527614 Contact Us For Availability
64
VALVE, WATER WPL 565953 Contact Us For Availability
64
TRIM, SHELF WPL 65561401 Contact Us For Availability
65
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
65
TRIM WPL 6273332 Contact Us For Availability
66
TRIM WPL 5201486 Contact Us For Availability
67
WIRE HARNESS WPL 630591 Contact Us For Availability
67
WIRE H WPL 633723 Contact Us For Availability
67
AIR TUNNEL WPL 537261 Contact Us For Availability
68
TUNNEL WPL 574101 Contact Us For Availability
69
WHEEL WPL 298342 Contact Us For Availability
69
WIRE HARNESS WPL 653351 Contact Us For Availability
69
WIRE HARNESS WPL 654391 Contact Us For Availability
NI
WPL 4200711 WPL 4200711 Contact Us For Availability
NI
WPL 630521 WPL 630521 Contact Us For Availability
× ![]()
Login and Registration Form
