Model Whirlpool RC244RDV REFRIGERATOR – Common Parts & Diagrams

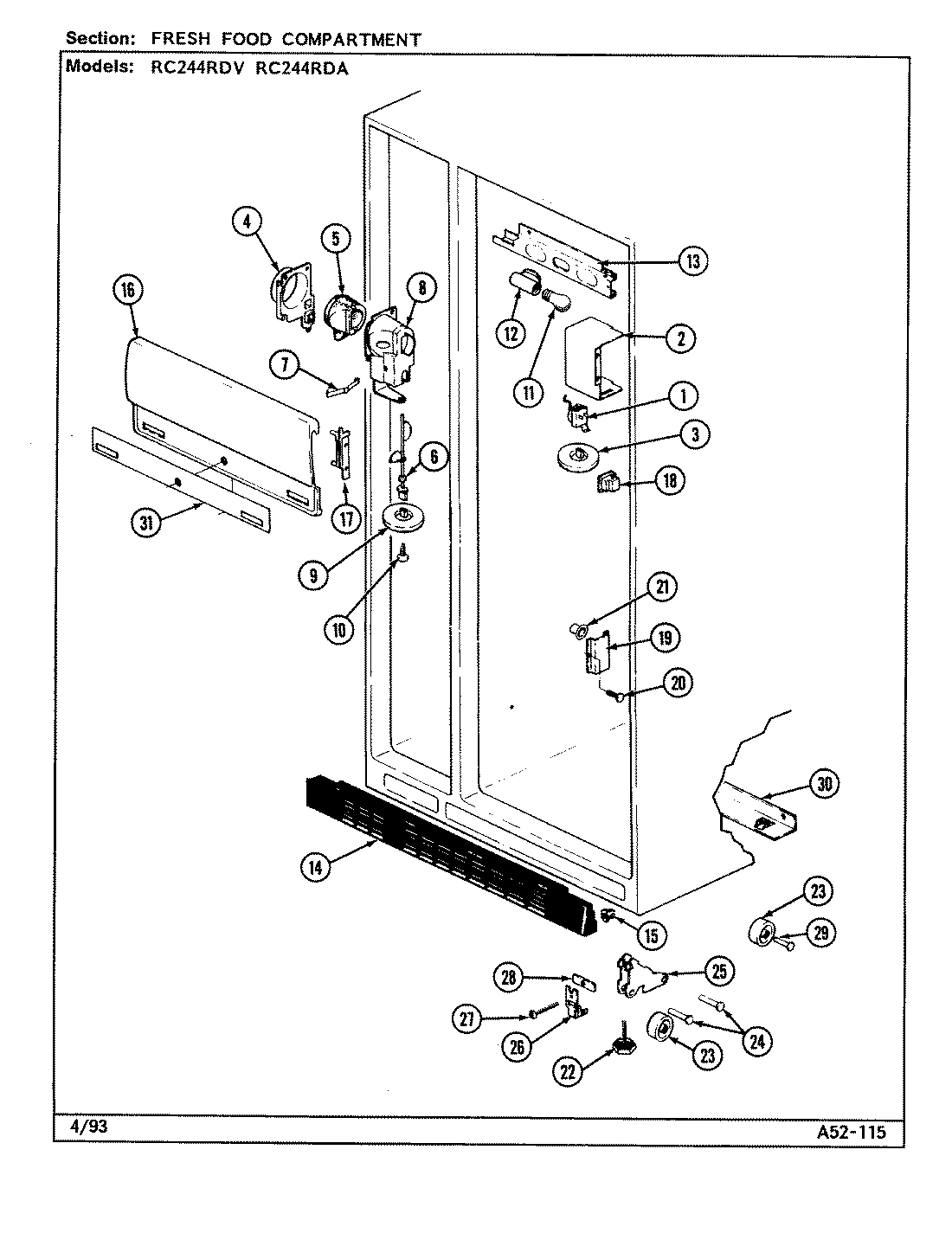

02 - FRESH FOOD COMPARTMENT

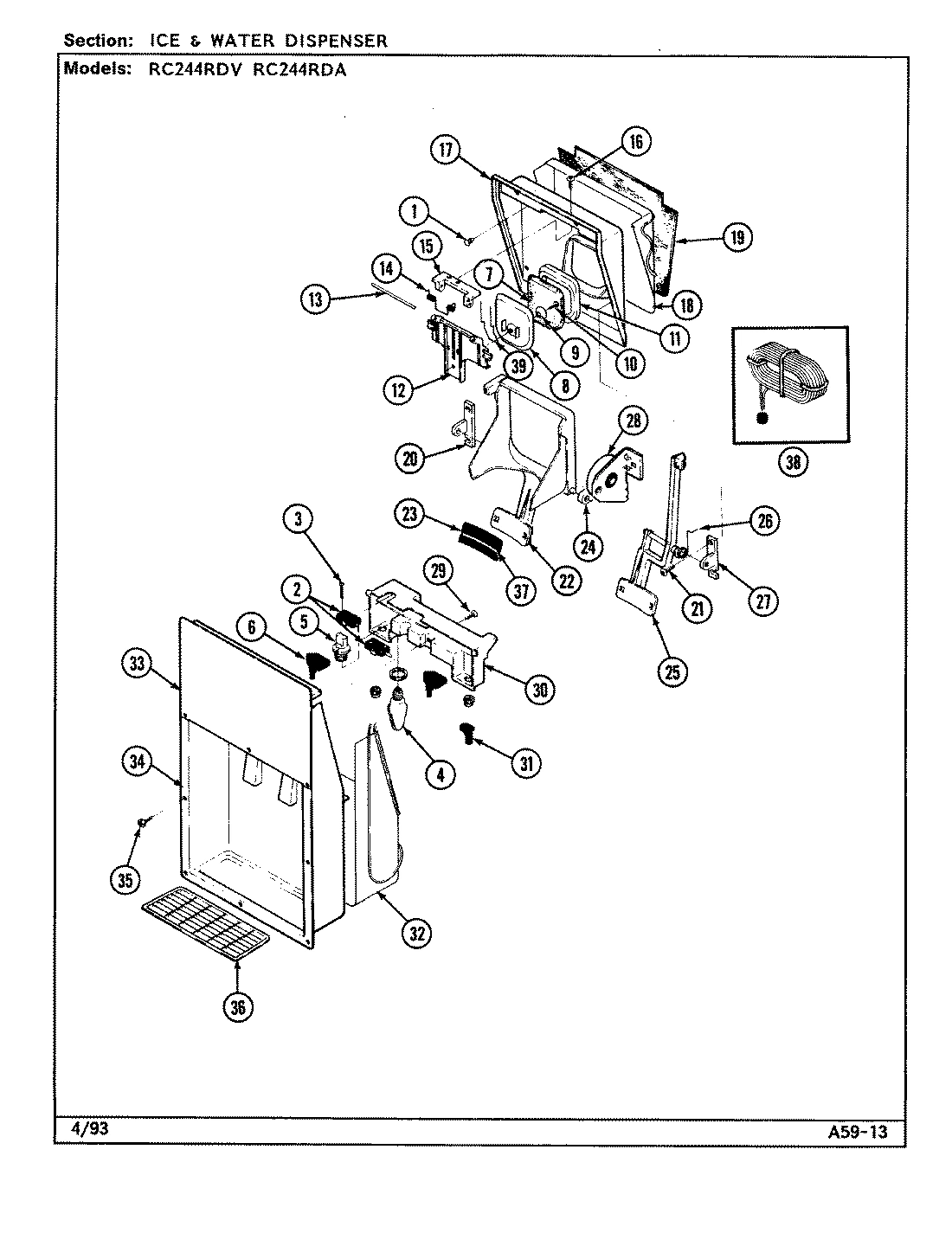

03 - ICE & WATER DISPENSER

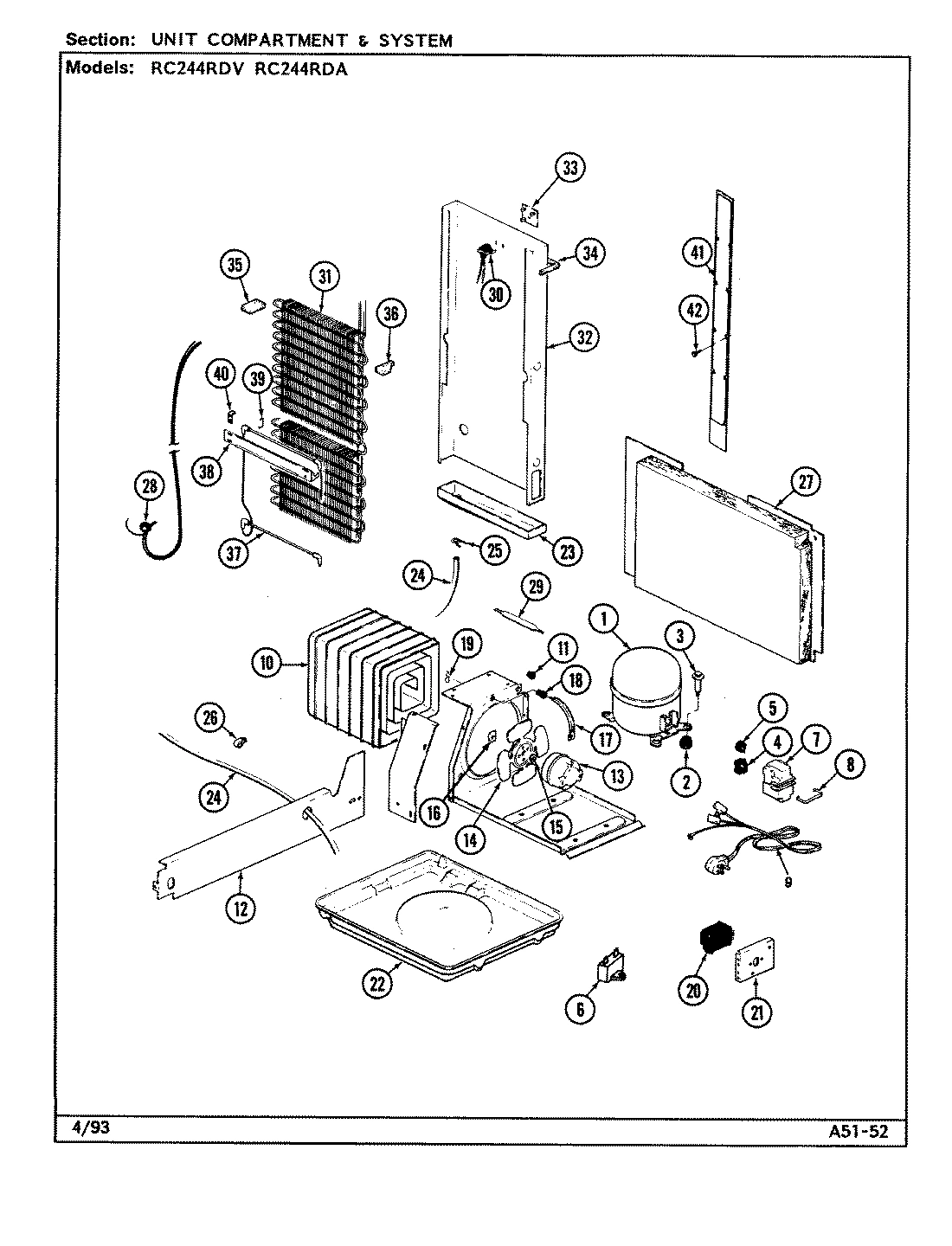

06 - UNIT COMPARTMENT & SYSTEM

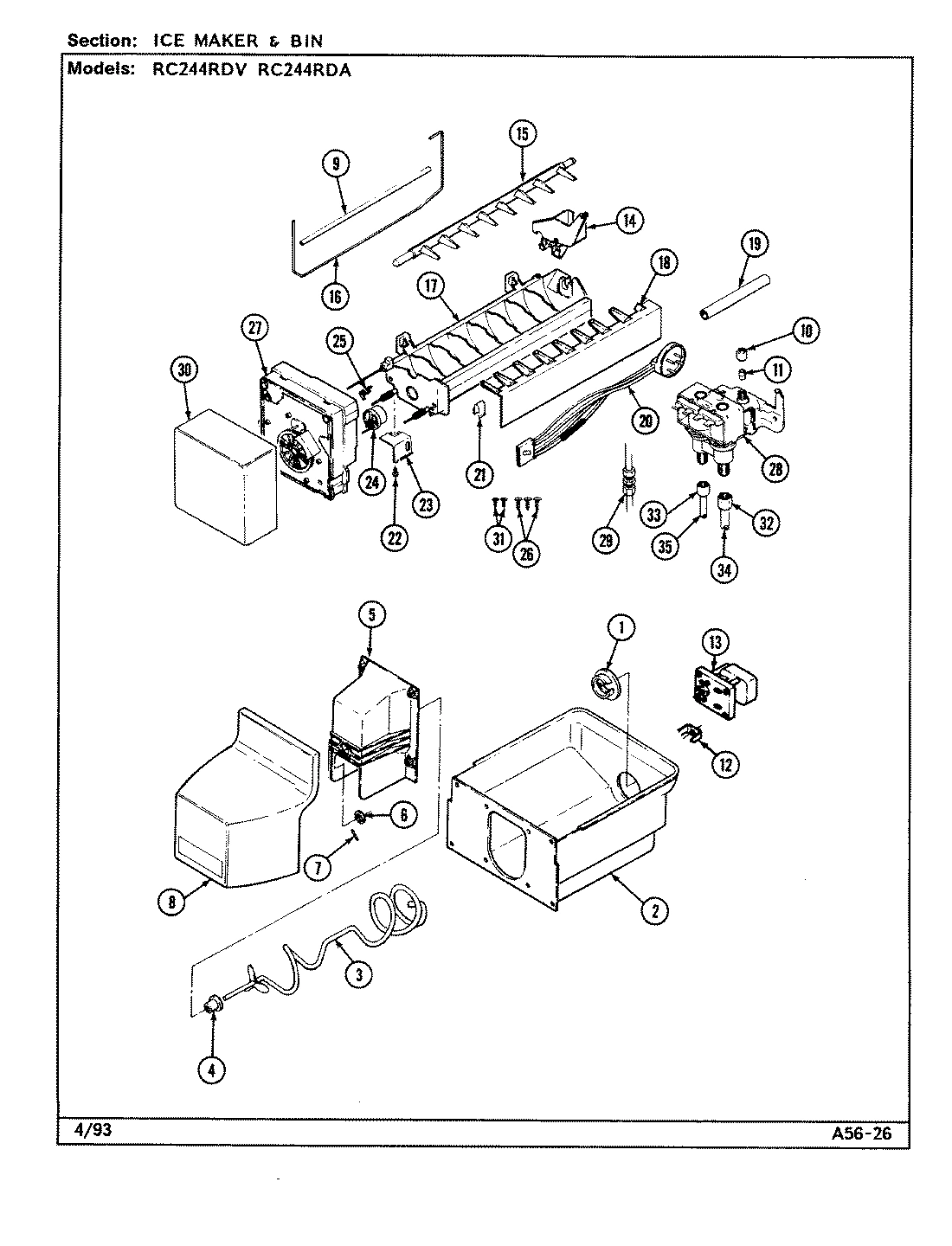

04 - ICE MAKER & BIN

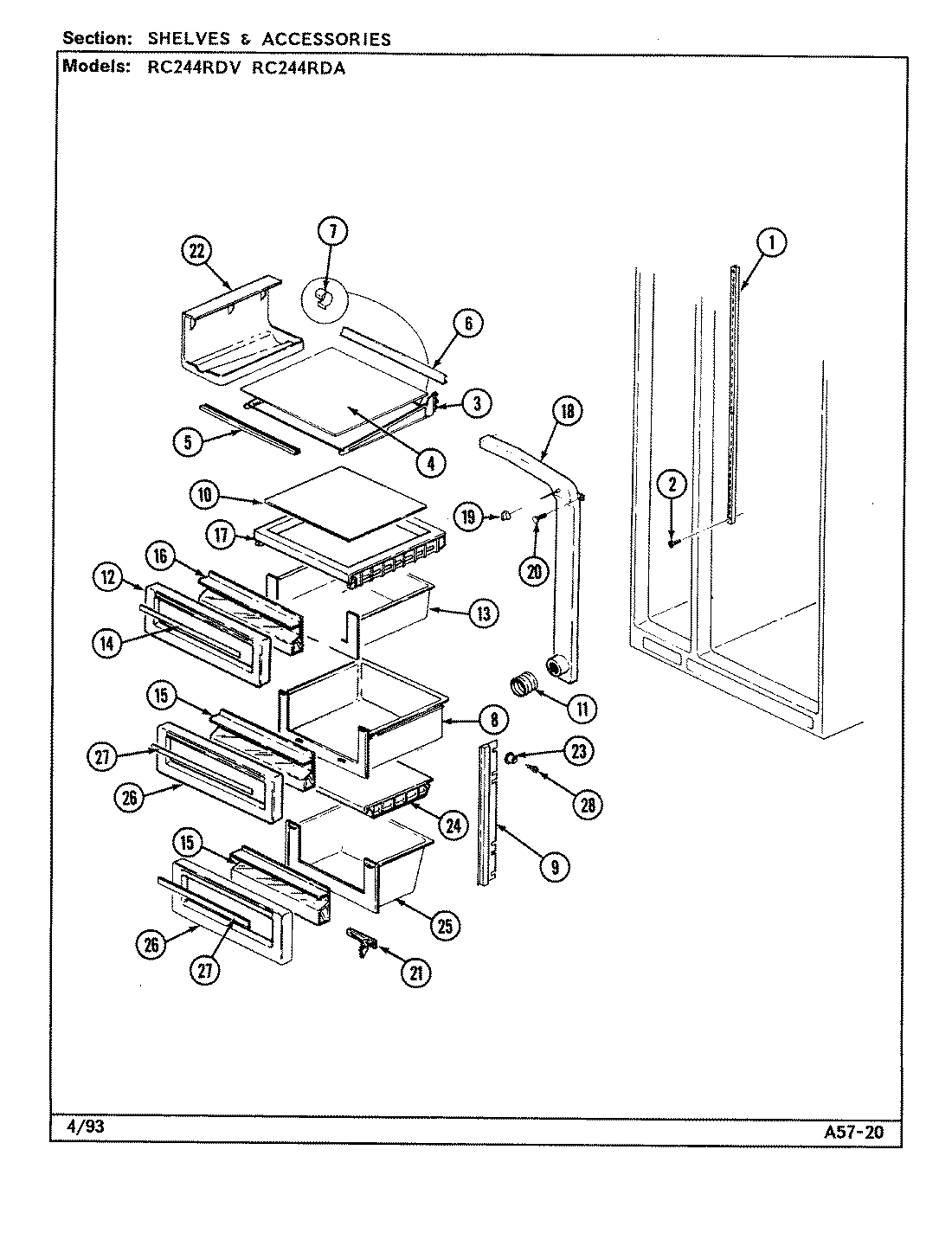

05 - SHELVES & ACCESSORIES

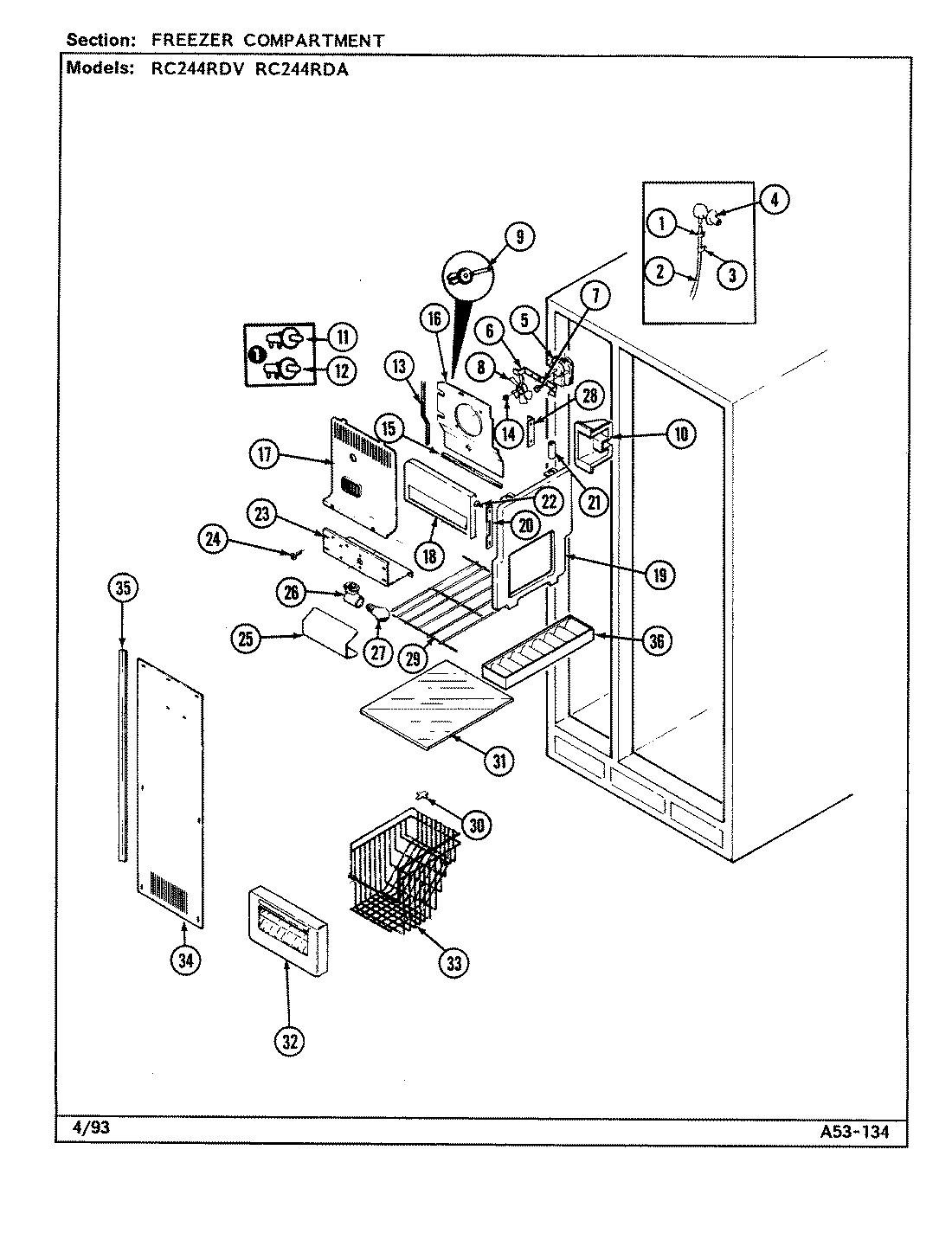

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RC244RDV REFRIGERATOR
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
RING, DRIVE WPL 630171 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
CLAMP, SPRING WPL 603334 Contact Us For Availability
2
FUNNEL-KIT WPL 675792 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
3
KNOB, TEMPERATURE CONTROL WPL 671453 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
FRAME, SHELF WPL 656185 Contact Us For Availability
3
CLIP WPL 655171 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
4
GROMMET WPL 692191 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
5
OVERLOAD WPL 691056 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
TRIM, SHELVES (FRONT) WPL 666492 Contact Us For Availability
5
MOTOR WPL 564884 Contact Us For Availability
6
BAFFLE WPL 686101 Contact Us For Availability
6
NUT, WIRE WPL 271165 Contact Us For Availability
6
SWITCH, PUSH WPL 673401 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
CAPACITOR, RUN WPL 658892 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
6
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
6
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 998645 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 405022103 Contact Us For Availability
8
FRONT WPL 685521 Contact Us For Availability
8
PAN, CRISPER WPL 696521 Contact Us For Availability
8
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
9
GASKET WPL 698501 Contact Us For Availability
9
RIVET WPL 227156 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
SHELF, MEAT PAN WPL 696461 Contact Us For Availability
10
SHIELD WPL 538371 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
11
SWITCH WPL 564321 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
12
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
12
FRONT, MEAT PAN WPL 696482 Contact Us For Availability
12
SWITCH, LIGHT WPL 669871 Contact Us For Availability
13
HOUSING WPL 690812 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 6756010 Contact Us For Availability
13
SCREW WPL 406026103 Contact Us For Availability
13
MOTOR, AUGER WPL 651861 Contact Us For Availability
13
PAN, MEAT WPL 696471 Contact Us For Availability
13
SEAL (44``) WPL 6632521 Contact Us For Availability
14
KICKPLATE (WHT) WPL 689819 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
INSERT, PAN FRONT WPL 696666 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
15
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
HANDLE, CRISPER WPL 696561 Contact Us For Availability
15
SEAL WPL 689466 Contact Us For Availability
16
SHIELD, LIGHT WPL 671137 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
16
HANDLE WPL 696491 Contact Us For Availability
16
COIL COVER WPL 685502 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
SHELF, MEAT PAN WPL 696451 Contact Us For Availability
17
SEAL WPL 6632523 Contact Us For Availability
17
SHIELD, FAN WPL 672253 Contact Us For Availability
18
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689381 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
TUNNEL, AIR WPL 696401 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
DOOR, ACCESS WPL 686201 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
19
KNOB, AIR TUNNEL WPL 687552 Contact Us For Availability
19
DIVIDER WPL 686541 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 695436 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
20
LATCH WPL 685721 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
21
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
SLIDE, CONTROL WPL 696571 Contact Us For Availability
21
SPACER, DIVIDER WPL 688231 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
22
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
SCREW WPL 4000161 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
HOLDER, BEVERAGE WPL 696151 Contact Us For Availability
23
WHEEL WPL 298342 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
23
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
23
BRACKET, MOTOR WPL 685511 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
24
HOSE, DRAIN WPL 2691125 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
SHELF, CRISPER WPL 696511 Contact Us For Availability
24
SHELF, CRISPER WPL 696531 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
25
SCREW WPL 652751 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
SHIELD, LIGHT WPL 672921 Contact Us For Availability
25
SUPPORT, LIGHT SHIELD WPL 673453 Contact Us For Availability
26
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
26
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
SCREW WPL 4000221 Contact Us For Availability
26
FRONT, CRISPER WPL 696552 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
27
COVER WPL 663391 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
INSERT, PAN FRONT WPL 696665 Contact Us For Availability
27
BULB, LIGHT WPL 319561 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
MOTOR, INTERIA----NA WPL 692751 Contact Us For Availability
28
SLEEVE WPL 2608823 Contact Us For Availability
28
HEAT EXCHANGER WPL RA950902 Contact Us For Availability
28
VALVE, WATER WPL 698251 Contact Us For Availability
28
SCREW WPL 40001536 Contact Us For Availability
28
TUBE, DRAIN WPL 2652711 Contact Us For Availability
28
SCREW WPL 40002612 Contact Us For Availability
28
GROMMET WPL 525261 Contact Us For Availability
28
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
29
CUP, SHELF WPL 674661 Contact Us For Availability
29
SHELF, DISPENSER WPL 686306 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
RAIL, HORIZONTAL SUPPORT WPL 672553 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
COVER ICE MAKER WPL 681131 Contact Us For Availability
30
SCREW WPL 951051 Contact Us For Availability
30
SCREW WPL 951061 Contact Us For Availability
30
CLIP, BASKET STOP WPL 674881 Contact Us For Availability
31
INSERT, LIGHT SHEILD WPL 698362 Contact Us For Availability
31
PLUNGER WPL 685682 Contact Us For Availability
31
EVAPORATOR WPL RA4364310 Contact Us For Availability
31
SCREW WPL 4010181 Contact Us For Availability
31
TRIM, SHELF WPL 65561116 Contact Us For Availability
31
SHELF WPL 6813925 Contact Us For Availability
32
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
32
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
32
FRONT, BASKET WPL 696623 Contact Us For Availability
32
INSERT, PAN FRONT WPL 696667 Contact Us For Availability
33
FRONT, FOUNTAIN WPL 689551 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
33
BASKET, FRZ. WIRE WPL 696612 Contact Us For Availability
34
SEAL WPL 6632518 Contact Us For Availability
34
TUBING WPL 6718710 Contact Us For Availability
34
SCREW WPL 40001512 Contact Us For Availability
34
COVER, COIL LOWER WPL 673353 Contact Us For Availability
35
SCREW WPL 405025103 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
35
SCREW WPL 4000211 Contact Us For Availability
35
CLIP WPL 693141 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
DIVIDER SHELF WPL 686291 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
37
HEATER, DEFROST WPL 698482 Contact Us For Availability
38
COIL, WATER WPL 676161 Contact Us For Availability
38
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
39
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
39
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
40
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 698631 Contact Us For Availability
41
COVER WPL 663811 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1084291 Contact Us For Availability
× ![]()
Login and Registration Form
