Model Whirlpool RC22LN-3A REFRIGERATOR – Common Parts & Diagrams

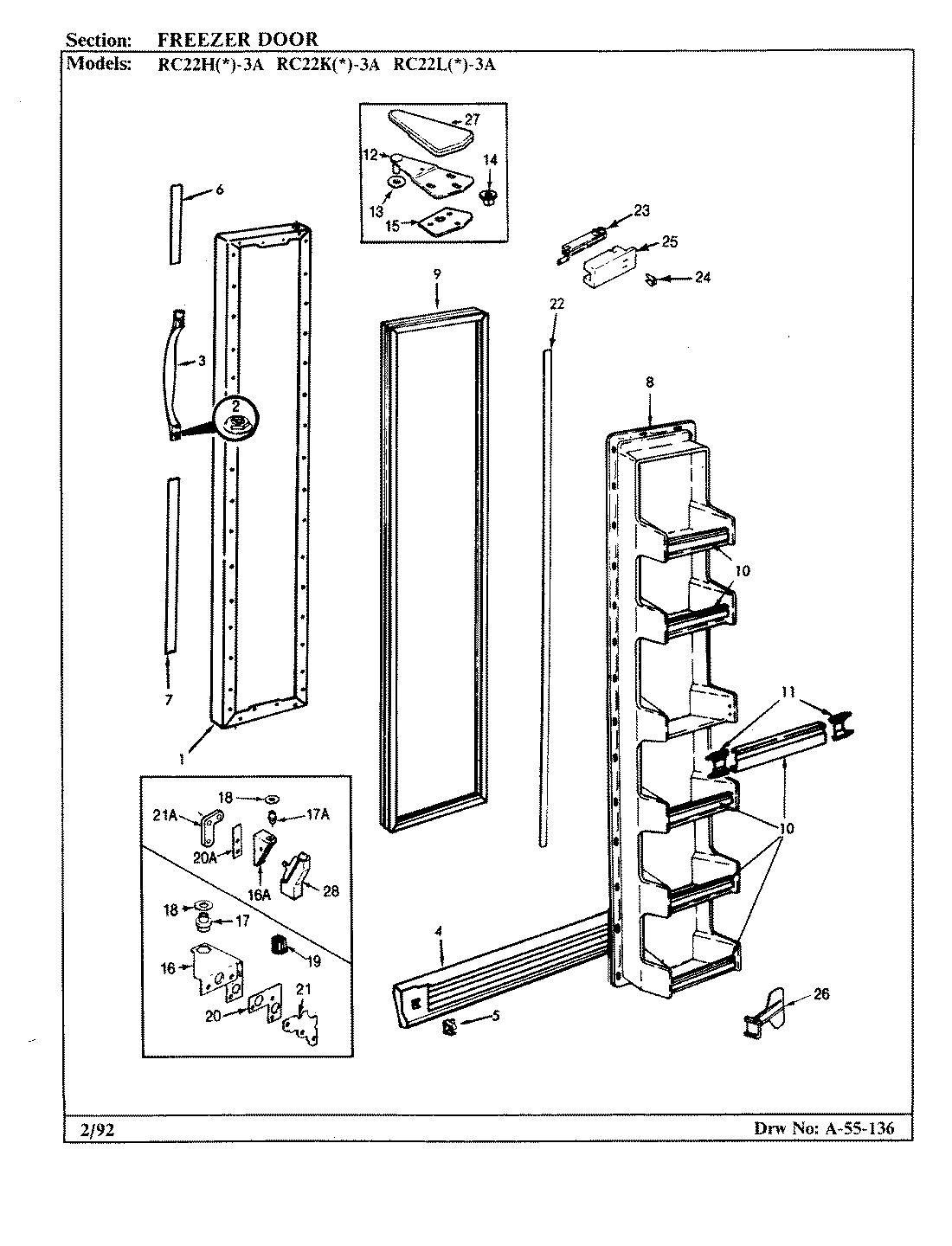

02 - FREEZER DOOR

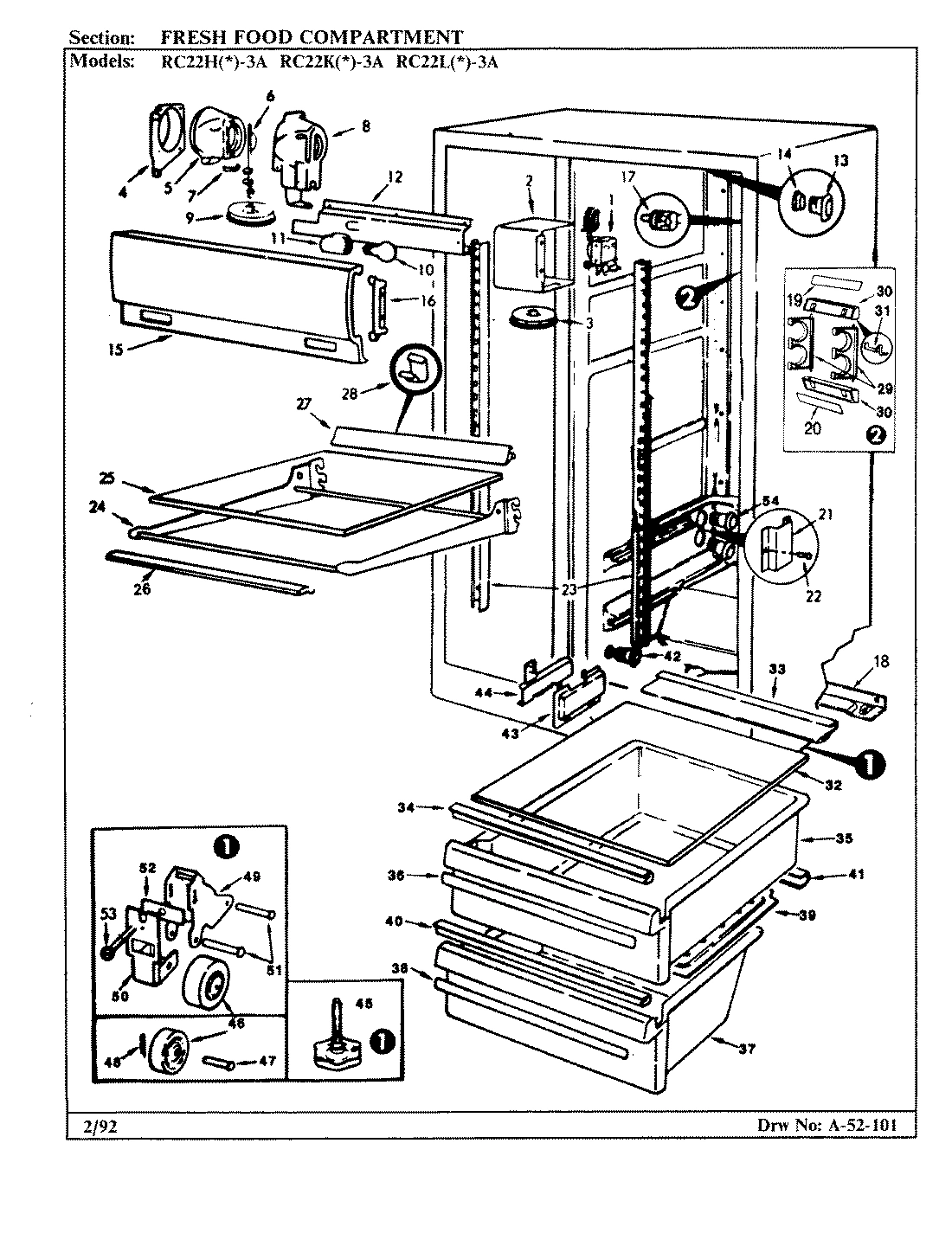

03 - FRESH FOOD COMPARTMENT

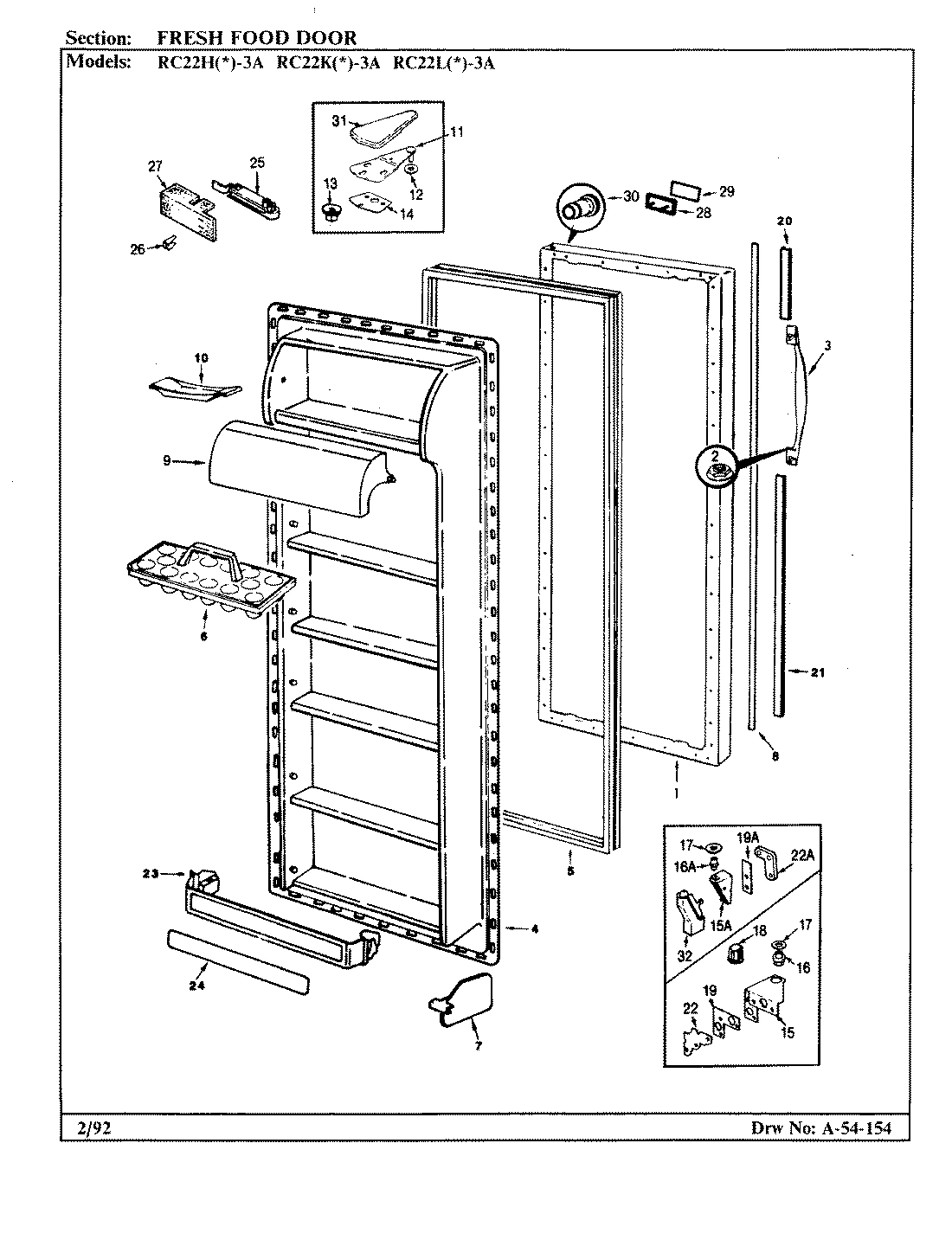

04 - FRESH FOOD DOOR

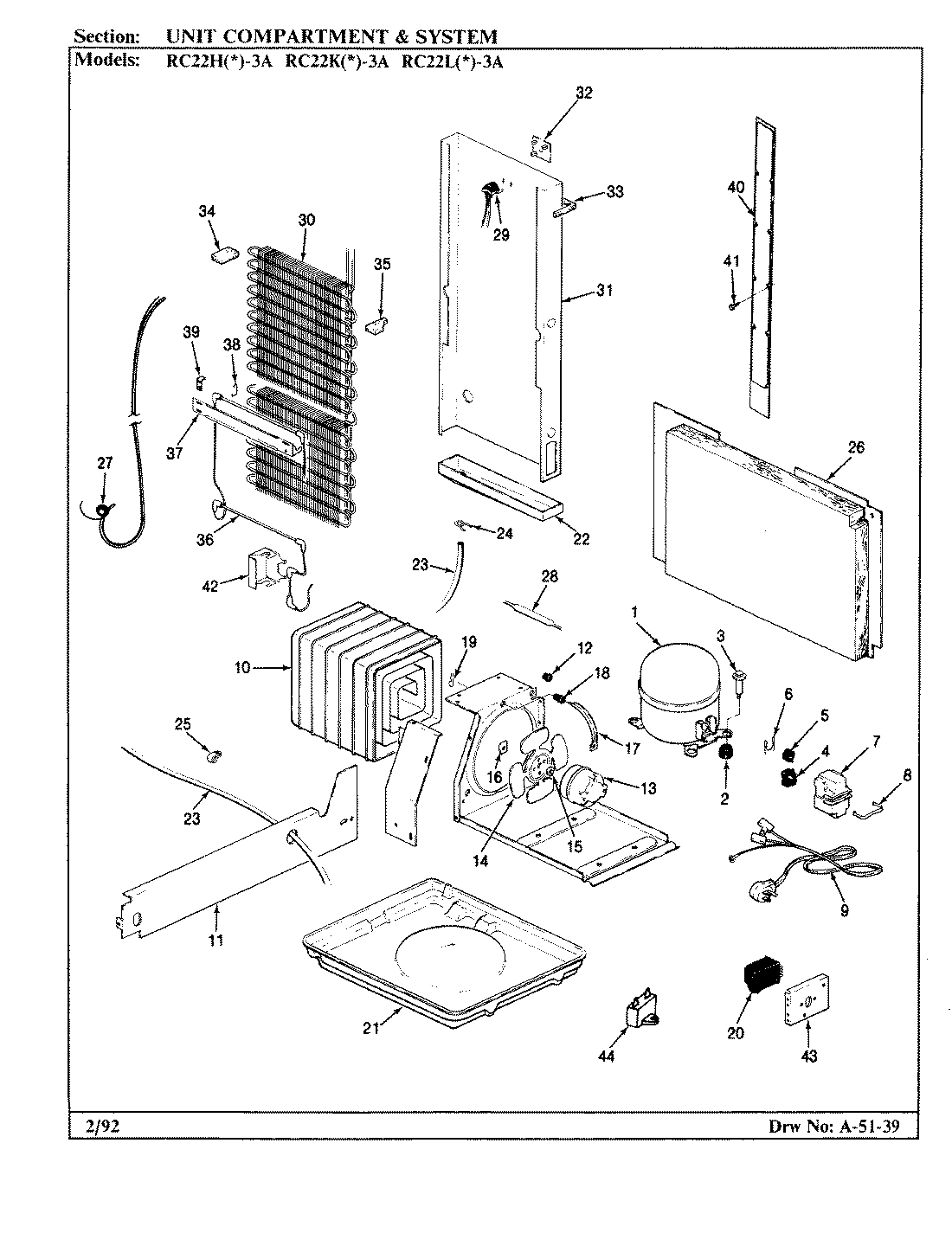

05 - UNIT COMPARTMENT & SYSTEM

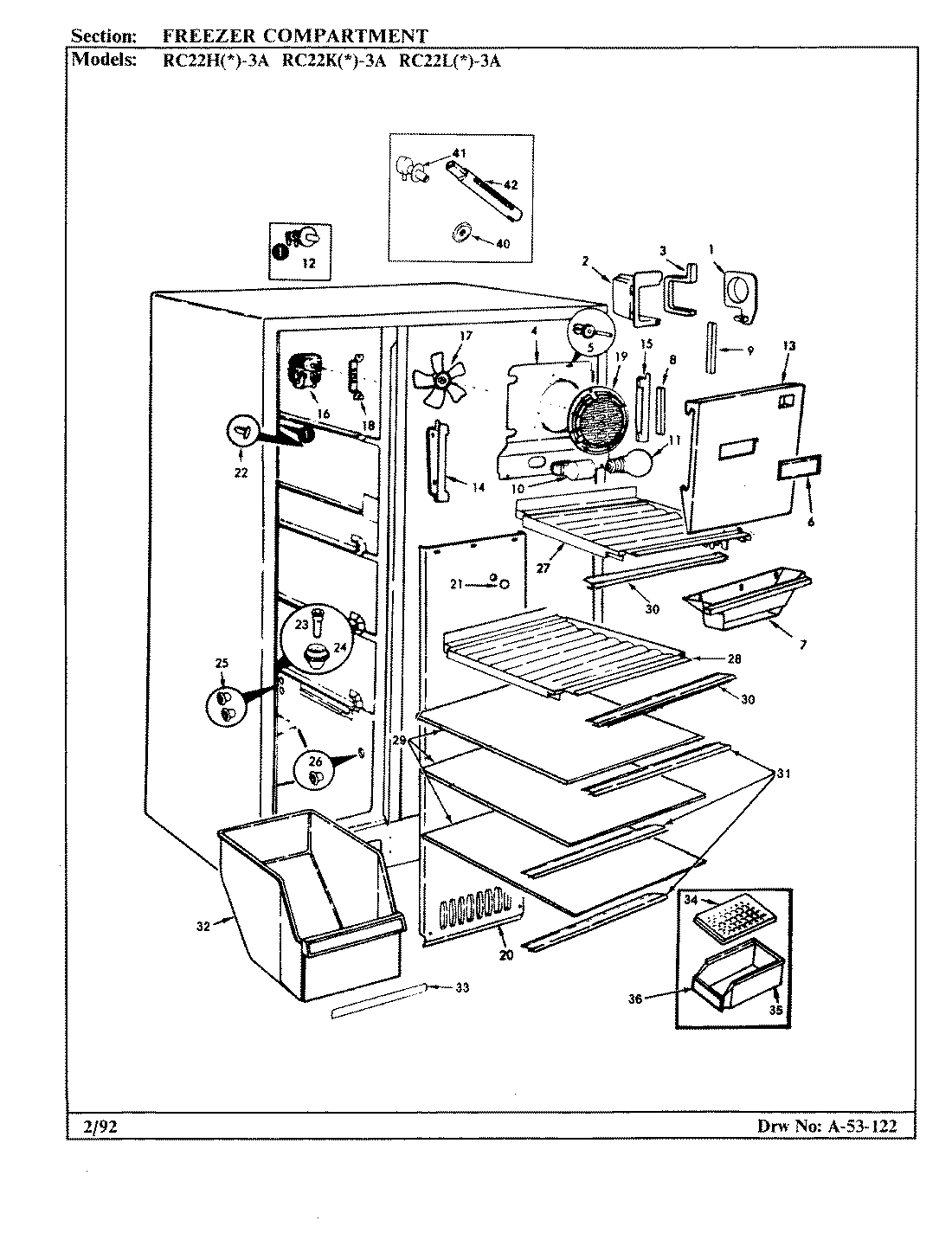

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RC22LN-3A REFRIGERATOR
1
PANEL, FRZ. DOOR (WHT) WPL 7204611WW Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 690303WW Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
TRIM WPL 6817111 Contact Us For Availability
2
FASTENER WPL 434003506 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
3
HANDLE WPL 636863 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
4
KICKPLATE (BLK) WPL 689812 Contact Us For Availability
4
SCREW WPL 652755 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
LINER, DOOR WPL 659427 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
PLUG WPL 539331 Contact Us For Availability
4
COVER WPL 682472 Contact Us For Availability
5
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
GASKET WPL 669292 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
6
HANDLE EXT WPL 657747 Contact Us For Availability
6
BAFFLE WPL 686131 Contact Us For Availability
6
TRAY, EGG WPL 600661 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT WPL 683252 Contact Us For Availability
7
HANDLE EXT WPL 657748 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
ORGANIZER PACKAGE WPL 666456 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
AIR DUCT ASM WPL 656931 Contact Us For Availability
8
INNER PANEL WPL 59433205 Contact Us For Availability
8
TRIM WPL 6577313 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
9
GASKET WPL 6692928 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
DOOR, DAIRY WPL 66184394 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
SEAL WPL 6632533 Contact Us For Availability
10
TRIM WPL 59258100 Contact Us For Availability
10
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
10
TRAY, BUTTER WPL 299362 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
11
RETAINER WPL 652461 Contact Us For Availability
11
HINGE, UPPER WPL 5370922 Contact Us For Availability
11
SCREW WPL 6527552 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 654941 Contact Us For Availability
12
WASHER WPL 521851 Contact Us For Availability
12
HOUSING WPL 597401 Contact Us For Availability
12
LIGHT SWITCH WPL 689161 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675602 Contact Us For Availability
13
SHIELD WPL 686113 Contact Us For Availability
14
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
15
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
15
HINGE, LOWER WPL 689752 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557830 Contact Us For Availability
15
WASHER WPL 604861 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
16
PIN, HINGE WPL 689771 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
17
HINGE PIN WPL 687881 Contact Us For Availability
17
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521203 Contact Us For Availability
18
SCREW WPL 6527542 Contact Us For Availability
18
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
19
SHIM WPL 690311 Contact Us For Availability
19
SCREW WPL 4000171 Contact Us For Availability
19
INSERT WPL 688219 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
GRID, FAN WPL 682531 Contact Us For Availability
20
TRIM WPL 686571 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
SCREW WPL 40001512 Contact Us For Availability
20
COVER, COIL (LOWER) WPL 673357 Contact Us For Availability
20
COIL COVER, GASKET WPL 675621 Contact Us For Availability
21
TRIM WPL 686572 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
22
SCREW, TAPPING PLATE WPL 6527510 Contact Us For Availability
22
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
PLUG BUTTON WPL 675571 Contact Us For Availability
23
CLOSER, DOOR WPL 544851 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
SHELF FRONT WPL 657816 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
DRAIN TUBE WPL 224517 Contact Us For Availability
24
FRAME, SHELF WPL 656185 Contact Us For Availability
24
INSERT, DOOR FRONT WPL 6812167 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
25
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
25
DOOR CLOSURE WPL 544852 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
RETAINER WPL 676851 Contact Us For Availability
26
BRACKET, CLOSER WPL 526141 Contact Us For Availability
26
ORGANIZER, SHELF WPL 665226 Contact Us For Availability
26
TRIM, CANT. SHELVES (FRONT) WPL 6817113 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
27
INSULATION, CLOSER WPL 526131 Contact Us For Availability
27
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950901 Contact Us For Availability
27
SHELF, 1 WPL 6660337 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
29
RACK, WINE WPL 565194 Contact Us For Availability
29
NAMEPLATE (BLK) WPL 6698214 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability
30
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
30
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
31
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
31
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
31
SPRING, WINE RACK WPL 580571 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
TRIM WPL 6817114 Contact Us For Availability
32
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
32
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
INSERT, CRISPER PAN WPL 6812485 Contact Us For Availability
34
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
ICE CUBE TRAY WPL 601121 Contact Us For Availability
35
PAN, CRISPER WPL 6650914 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
PAN WPL 665921 Contact Us For Availability
36
INSERT, CRISPER PAN WPL 6812483 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
INSERT WPL 6813420 Contact Us For Availability
37
PAN, MEAT WPL 6651014 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
INSERT, MEAT PAN WPL 6812484 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
COVER, MEAT PAN WPL 656086 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS WPL 688382 Contact Us For Availability
40
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
CAP, CONNECTOR WPL 681871 Contact Us For Availability
41
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
41
GROMMET WPL 683961 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
42
SEAL AIR RETURN WPL 676931 Contact Us For Availability
42
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
43
CLIP WPL 566864 Contact Us For Availability
43
CONTROL HOUSING WPL 657372 Contact Us For Availability
43
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
43
SHIELD, HEATER WPL 400171 Contact Us For Availability
44
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
44
CAPACITOR, RUN WPL 658892 Contact Us For Availability
45
LEG, LEVELING WPL 686641 Contact Us For Availability
45
MANUAL, USE & CARE WPL 1071002 Contact Us For Availability
46
WHEEL WPL 298342 Contact Us For Availability
47
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
48
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
49
BRACKET, WHEEL WPL 627941 Contact Us For Availability
50
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
51
PIN, WHEEL WPL 649651 Contact Us For Availability
52
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
54
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
× ![]()
Login and Registration Form
