Model Whirlpool RC224RDA REFRIGERATOR – Common Parts & Diagrams

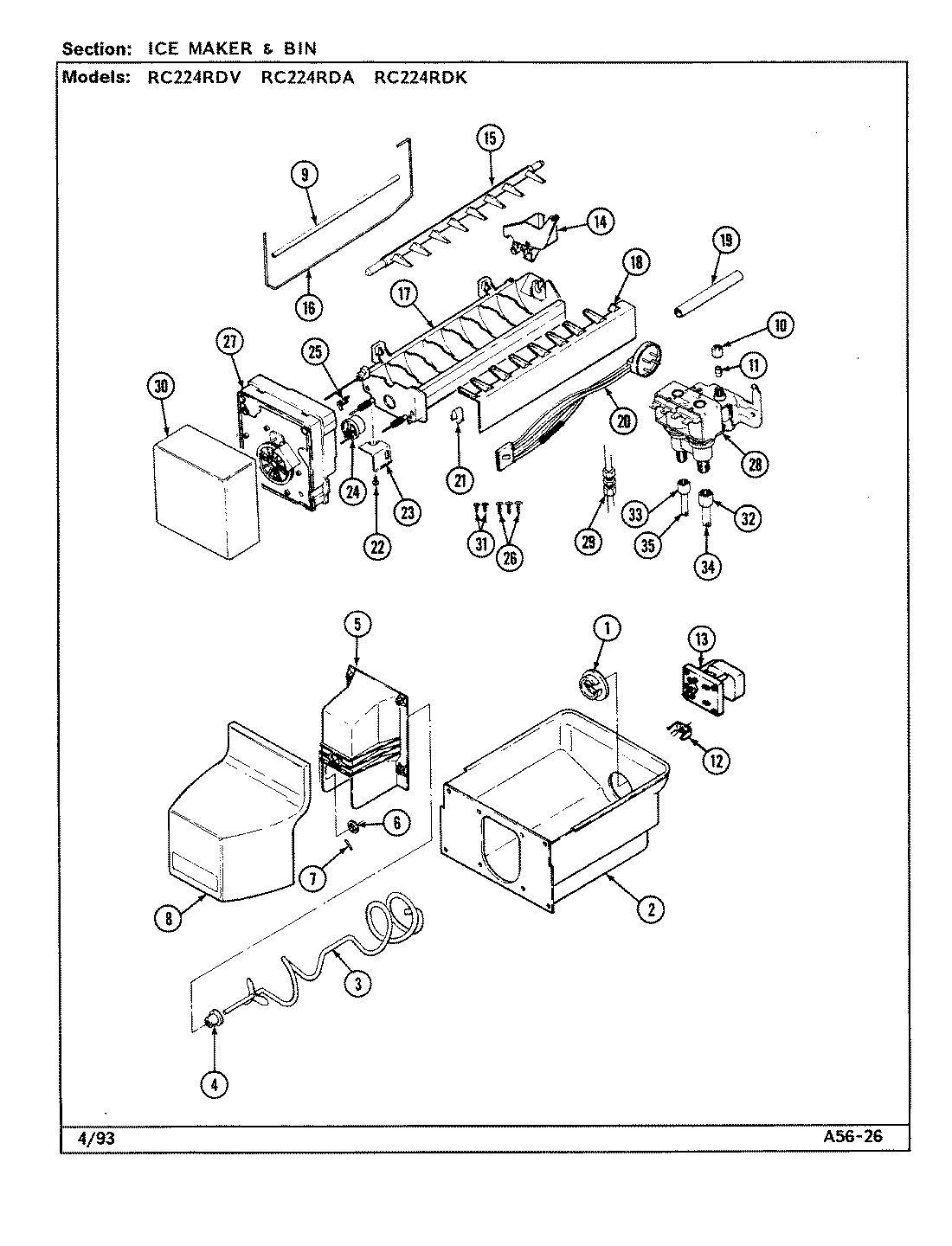

06 - ICE MAKER & BIN
08 - UNIT COMPARTMENT & SYSTEM
02 - FREEZER DOOR
04 - FRESH FOOD DOOR
01 - FREEZER COMPARTMENT
07 - SHELVES & ACCESSORIES
03 - FRESH FOOD COMPARTMENT
05 - ICE & WATER DISPENSER
Common parts from model Whirlpool RC224RDA REFRIGERATOR
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 723464AM Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723412AM Contact Us For Availability
1
CLAMP, SPRING WPL 603334 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
FUNNEL-KIT WPL 675792 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
GASKET, FREEZER WPL 700191 Contact Us For Availability
2
CLIP WPL 694771 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
3
INSERT, FOOD STORAGE WPL 687856 Contact Us For Availability
3
LINER, FRZ. DOOR WPL 692531 Contact Us For Availability
3
KIT, HANDLE ASSY (ALMOND) WPL 12000043 Contact Us For Availability
3
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
3
CLIP WPL 655171 Contact Us For Availability
3
FRAME, SHELF WPL 656185 Contact Us For Availability
3
KNOB, TEMPERATURE CONTROL WPL 671453 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
BEZEL WPL 669811 Contact Us For Availability
4
GROMMET WPL 692191 Contact Us For Availability
4
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
OVERLOAD WPL 691056 Contact Us For Availability
5
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
5
NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability
5
TRIM, SHELVES (FRONT) WPL 666492 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
6
CAPACITOR, RUN WPL 658892 Contact Us For Availability
6
RETAINER, BOTTLE WPL 697951 Contact Us For Availability
6
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
6
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
6
BAFFLE WPL 686131 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, PUSH WPL 673401 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 998645 Contact Us For Availability
7
PIN, HINGE REFRIG. WPL 698441 Contact Us For Availability
7
CLOSER, DOOR WPL 692581 Contact Us For Availability
7
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
8
SCREW WPL 405022103 Contact Us For Availability
8
FRONT ASSY, ICE DISP WPL 6987511 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
8
INSULATION, CLOSER WPL 526131 Contact Us For Availability
8
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
8
PAN, CRISPER WPL 696521 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
DOOR, ICE WPL 685651 Contact Us For Availability
9
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
ESCUTCHEON (ALM) WPL 685946 Contact Us For Availability
9
SCREW WPL 652754 Contact Us For Availability
9
BRACKET, CLOSER WPL 692611 Contact Us For Availability
9
RIVET WPL 227156 Contact Us For Availability
9
GASKET WPL 698501 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 671454 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436443 Contact Us For Availability
10
TAPE, ESCUTCHEON WPL 951211 Contact Us For Availability
10
SCREW WPL 6527559 Contact Us For Availability
10
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
10
SHIELD WPL 538371 Contact Us For Availability
10
GLASS, MEAT SHELF WPL 696463 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
SCREW WPL 652755 Contact Us For Availability
11
SEAL WPL 5207726 Contact Us For Availability
11
LINER, F.F. DOOR----NA WPL 692431 Contact Us For Availability
11
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
11
SEAL WPL 685602 Contact Us For Availability
12
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
CHUTE, ICE WPL 692201 Contact Us For Availability
12
GASKET, REFFIG. WPL 700194 Contact Us For Availability
12
FRONT, MEAT PAN WPL 696482 Contact Us For Availability
12
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
12
STRIKE, DOOR WPL 685631 Contact Us For Availability
13
SCREW WPL 4000161 Contact Us For Availability
13
SCREW WPL 406026103 Contact Us For Availability
13
MOTOR, AUGER WPL 651861 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684456 Contact Us For Availability
13
INSULATION WPL 687681 Contact Us For Availability
13
INSULATION WPL 687721 Contact Us For Availability
13
PANEL, ACCESS WPL 698691 Contact Us For Availability
13
DOOR, DAIRY WPL 6905812 Contact Us For Availability
13
SEAL WPL 6632533 Contact Us For Availability
13
PAN, MEAT WPL 696471 Contact Us For Availability
13
HOUSING WPL 690812 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
STUD WPL 687862 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
INSERT, PAN FRONT WPL 696666 Contact Us For Availability
14
TUNNEL WPL 574101 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SCREW WPL 400021103 Contact Us For Availability
15
FRONT, PICK-OFF WPL 698716 Contact Us For Availability
15
SEAL, FOAM TRAY WPL 6632514 Contact Us For Availability
15
HANDLE, CRISPER WPL 696561 Contact Us For Availability
15
RETAINER WPL 574111 Contact Us For Availability
15
BRACKET WPL 685621 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
16
CLIP, MOUNTING FAN BLADE WPL 550421 Contact Us For Availability
16
SHELF, PICK-OFF WPL 6987226 Contact Us For Availability
16
UPPER COVER WPL 685501 Contact Us For Availability
16
HANDLE WPL 696491 Contact Us For Availability
16
SHIELD, LIGHT WPL 671137 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
17
SEAL,FAN SHIELD WPL 6632522 Contact Us For Availability
17
SHIELD, FAN WPL 672251 Contact Us For Availability
17
SHELF, MEAT PAN WPL 696451 Contact Us For Availability
17
INSERT, LIGHT SHEILD WPL 698362 Contact Us For Availability
17
BACK, FOUNTAIN (ALM) WPL 685673 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
ORGANIZER WPL 697592 Contact Us For Availability
18
SWITCH, LIGHT WPL 669871 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
DOOR, ACCESS WPL 686201 Contact Us For Availability
18
TUNNEL, AIR WPL 696401 Contact Us For Availability
18
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
19
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
SHELF, PICK-OFF WPL 698737 Contact Us For Availability
19
TRAY, EGG WPL 600661 Contact Us For Availability
19
FRONT ASSY, I/M SXS WPL 698745 Contact Us For Availability
19
KNOB, AIR TUNNEL WPL 687552 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 695436 Contact Us For Availability
20
FRONT, PICK-OFF WPL 698707 Contact Us For Availability
20
TRIM, HANDLE WPL 695861 Contact Us For Availability
20
LATCH WPL 685721 Contact Us For Availability
20
SPACER WPL 686211 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
TUBING WPL 6718716 Contact Us For Availability
21
TRIM, HANDLE WPL 695862 Contact Us For Availability
21
BOX, AUGER MOTOR WPL 672962 Contact Us For Availability
21
SLIDE, CONTROL WPL 696572 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
SCREW WPL 6527552 Contact Us For Availability
22
WIRE HARNESS, DOOR WPL 698655 Contact Us For Availability
22
HINGE, UPPER WPL 5370922 Contact Us For Availability
22
HOLDER, BEVERAGE WPL 696151 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
PADDLE, ICE (ALM) WPL 691123 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
WASHER WPL 521851 Contact Us For Availability
23
SHIELD, LIGHT WPL 672921 Contact Us For Availability
23
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
23
WHEEL WPL 298342 Contact Us For Availability
23
PAD, PADDLE (ALM) WPL 691743 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
24
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
24
SHELF, CRISPER WPL 696511 Contact Us For Availability
24
SHELF, CRISPER WPL 696531 Contact Us For Availability
24
BRACKET, WHEEL WPL 627941 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
25
PIN, WHEEL WPL 649651 Contact Us For Availability
25
PADDLE, WATER (ALM) WPL 685583 Contact Us For Availability
26
SCREW WPL 4000221 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
SCREW WPL 4000171 Contact Us For Availability
26
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
26
HINGE, LOWER (ZINC) WPL 695163 Contact Us For Availability
26
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
26
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
26
FRONT, CRISPER PAN WPL 696582 Contact Us For Availability
26
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
SLEEVE WPL 2608823 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
27
TUBE, DRAIN WPL 2652711 Contact Us For Availability
27
INSERT, PAN FRONT WPL 696665 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
28
VALVE, WATER WPL 698251 Contact Us For Availability
28
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
28
GROMMET WPL 525261 Contact Us For Availability
28
SCREW WPL 40001536 Contact Us For Availability
28
SCREW WPL 6527542 Contact Us For Availability
28
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
29
COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability
29
RETAINER WPL 676851 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
30
COVER ICE MAKER WPL 681131 Contact Us For Availability
30
SCREW WPL 951051 Contact Us For Availability
30
SCREW WPL 951061 Contact Us For Availability
30
EVAPORATOR WPL 5255121 Contact Us For Availability
30
END CAP, HANDLE WPL 695901 Contact Us For Availability
30
FRONT, BASKET WPL 696624 Contact Us For Availability
30
KICKPLATE (BLK) WPL 689812 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
31
SCREW WPL 4010181 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
SCREW, HINGE COVER (BLACK) WPL 6527547 Contact Us For Availability
31
TRIM WPL 52014139 Contact Us For Availability
31
CUP, SHELF WPL 674661 Contact Us For Availability
31
SHELF, DISPENSER WPL 686305 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
32
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
SHELF, 2,3 & 4 FREEZER (GLASS) WPL 6813924 Contact Us For Availability
32
HEATER FOUNTAIN WPL 688201 Contact Us For Availability
33
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
TRIM, SHELF WPL 65561117 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
34
TUBING WPL 6718710 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
CLIP, BASKET STOP WPL 674881 Contact Us For Availability
34
BASKET, WIRE WPL 696611 Contact Us For Availability
35
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
SCREW WPL 4000211 Contact Us For Availability
35
SCREW WPL 4000261 Contact Us For Availability
35
COVER, COIL (LOWER) WPL 673354 Contact Us For Availability
35
SCREW WPL 405025103 Contact Us For Availability
36
HEATER, DEFROST WPL 698481 Contact Us For Availability
36
SCREW WPL 40001512 Contact Us For Availability
36
COIL COVER, GASKET WPL 675621 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
COIL, WATER WPL 676161 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 698631 Contact Us For Availability
39
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
43
MANUAL, USE & CARE WPL 1084291 Contact Us For Availability
× ![]()
Login and Registration Form
