Model Whirlpool RC223PW REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

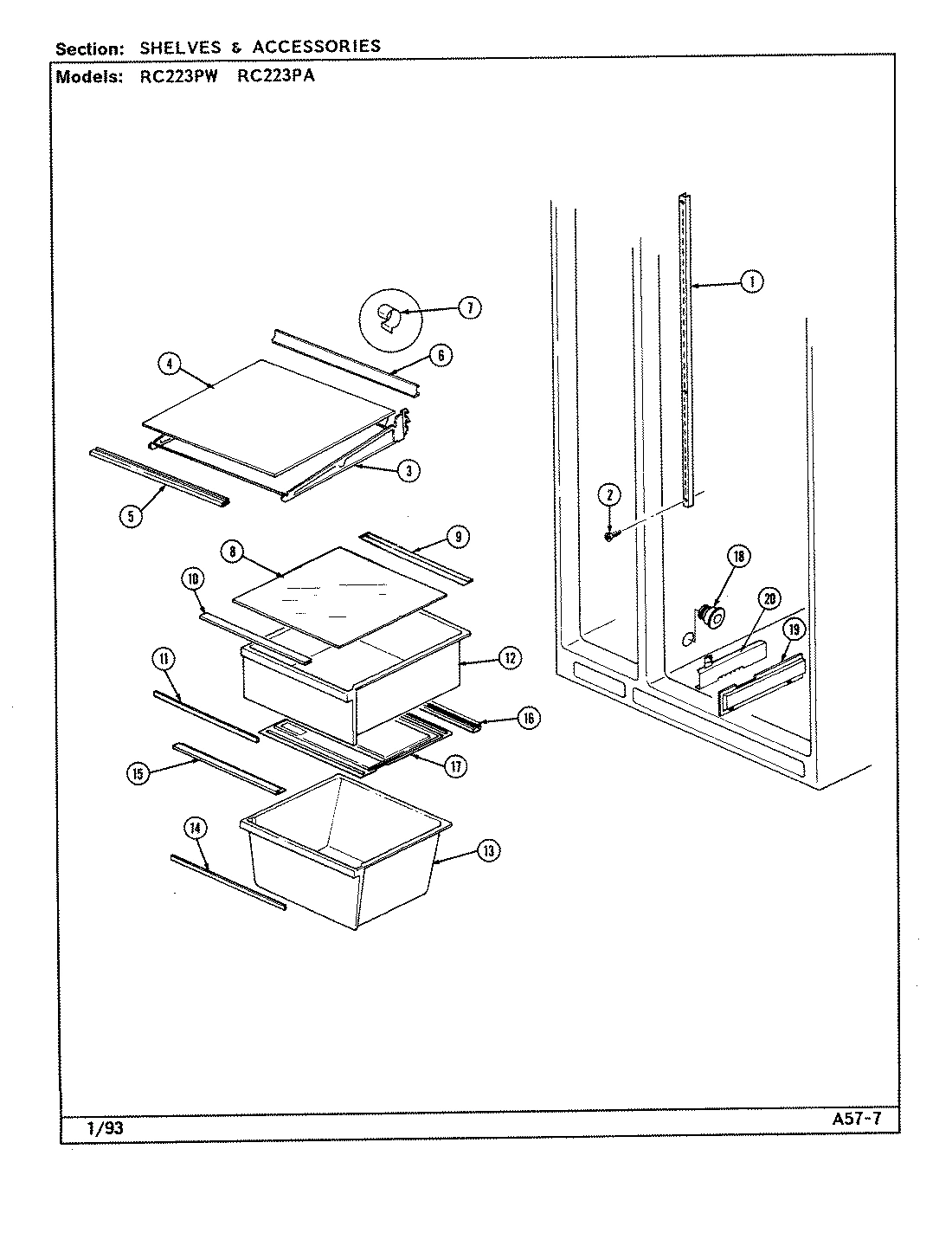

06 - SHELVES & ACCESSORIES

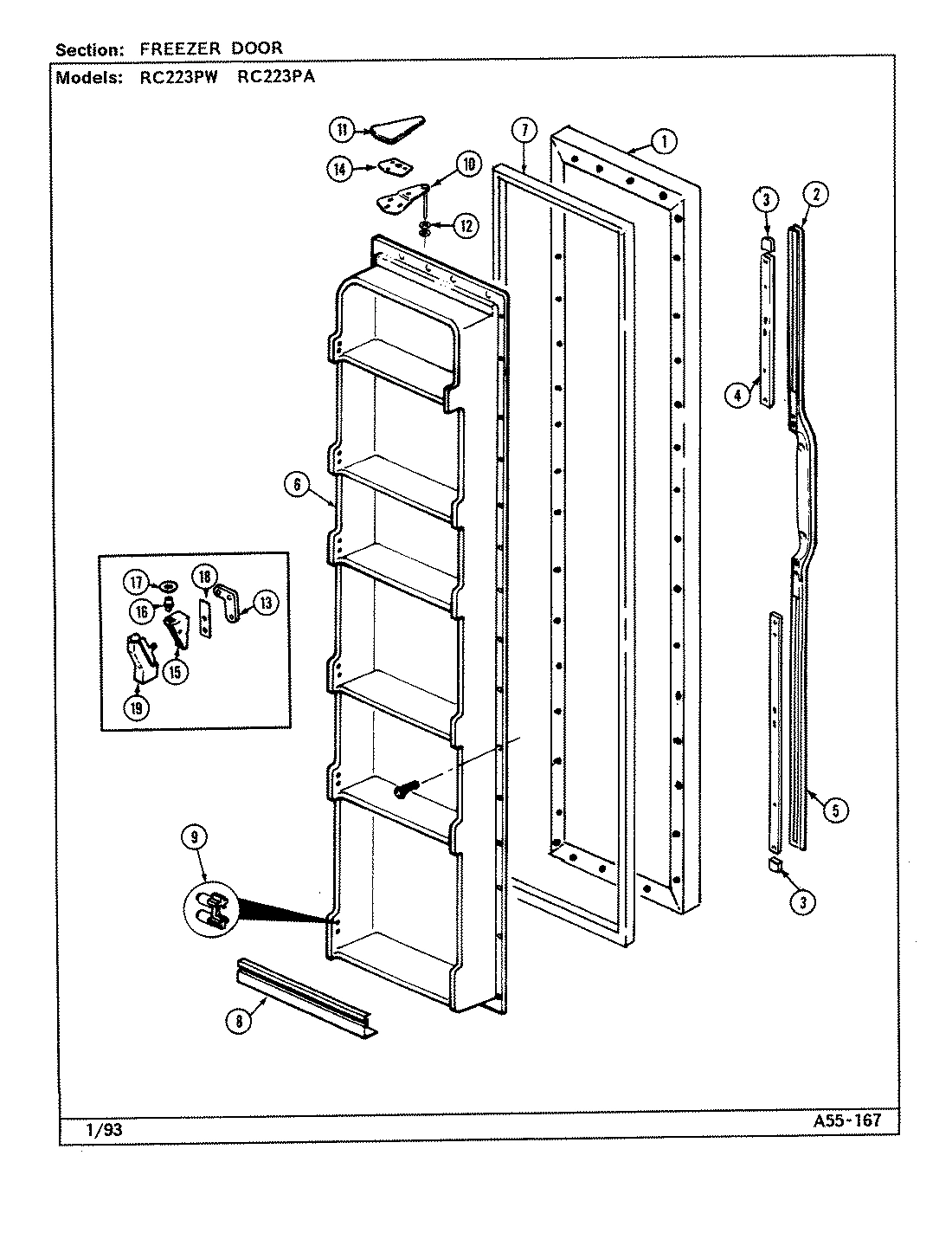

02 - FREEZER DOOR

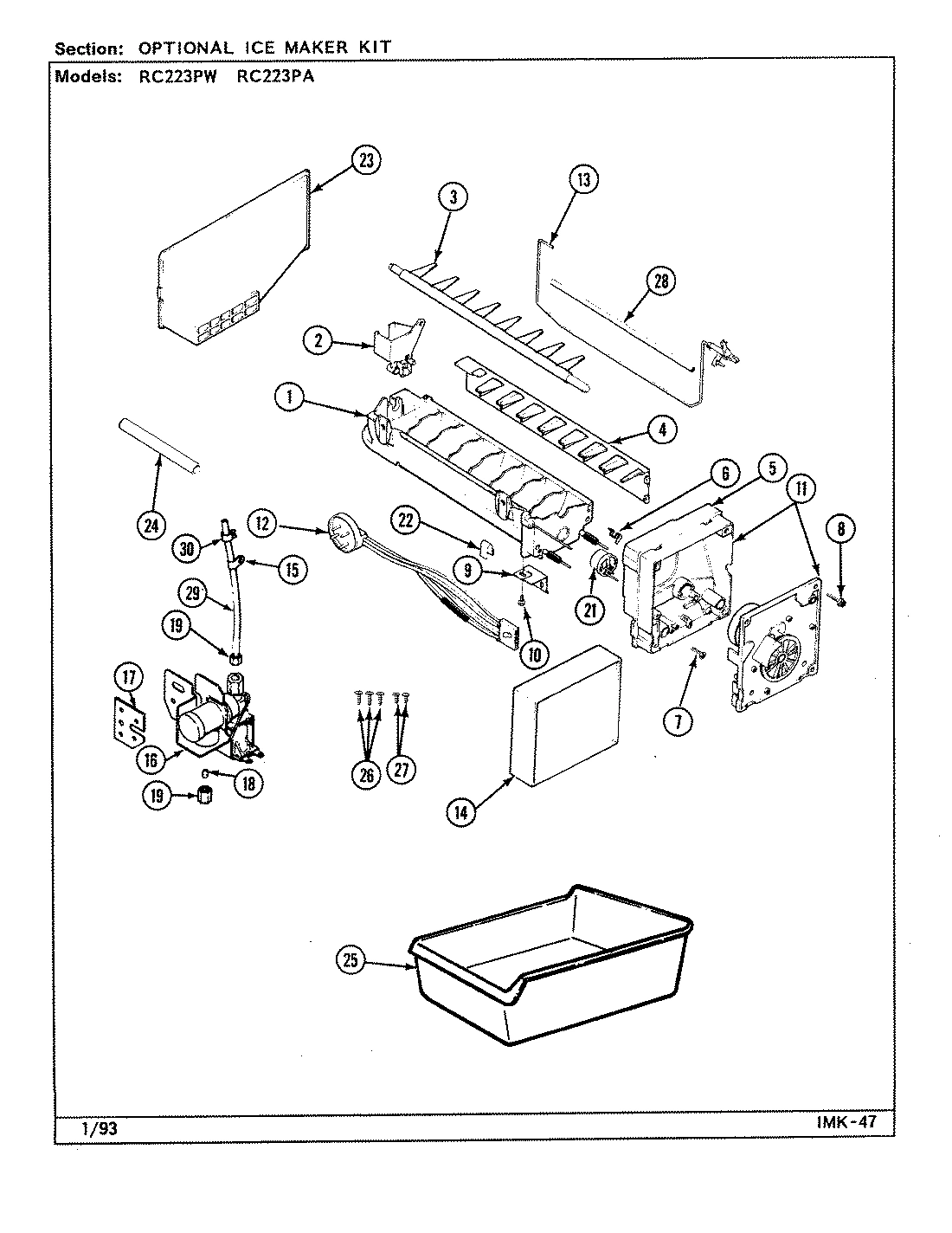

05 - OPTIONAL ICE MAKER KIT

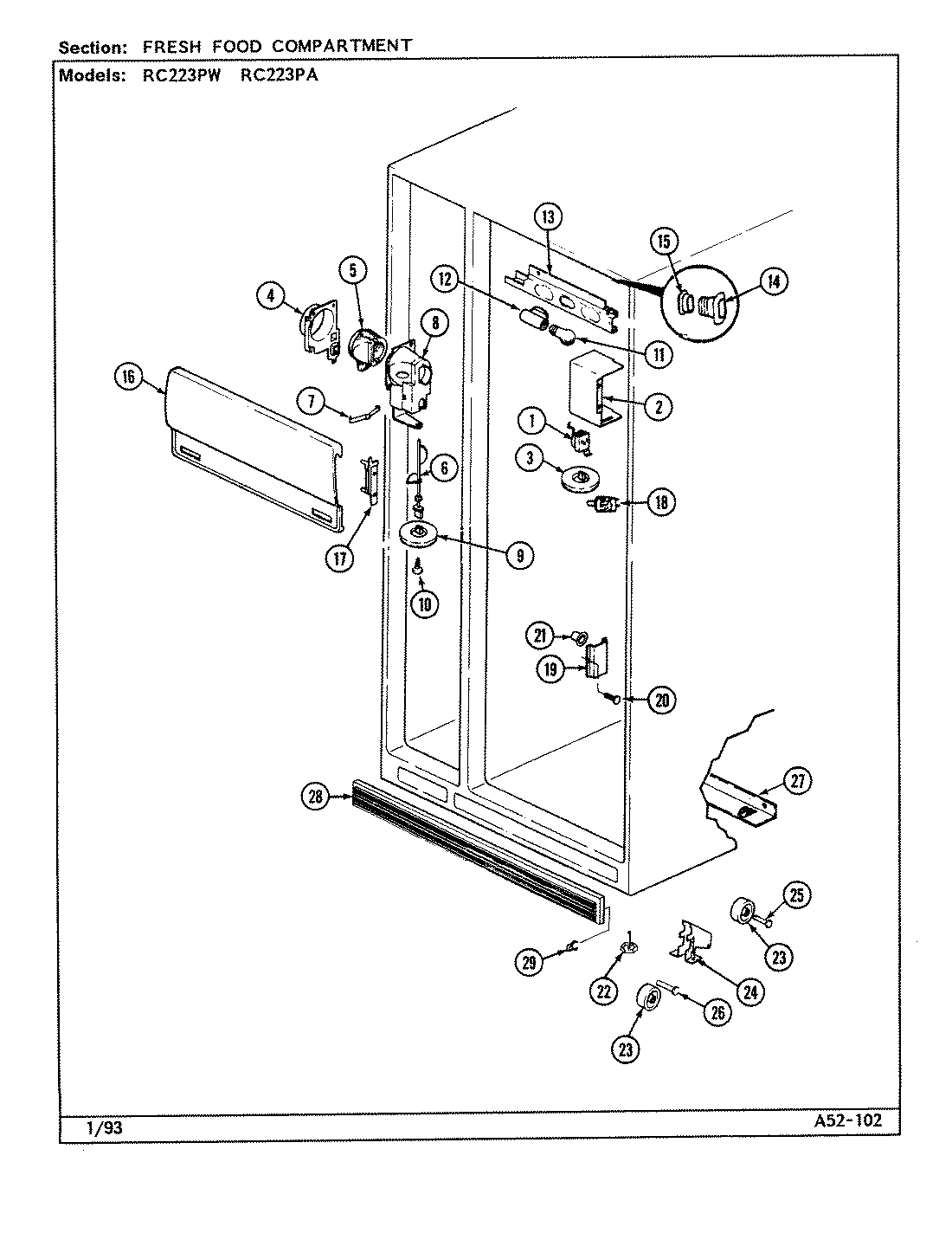

03 - FRESH FOOD COMPARTMENT

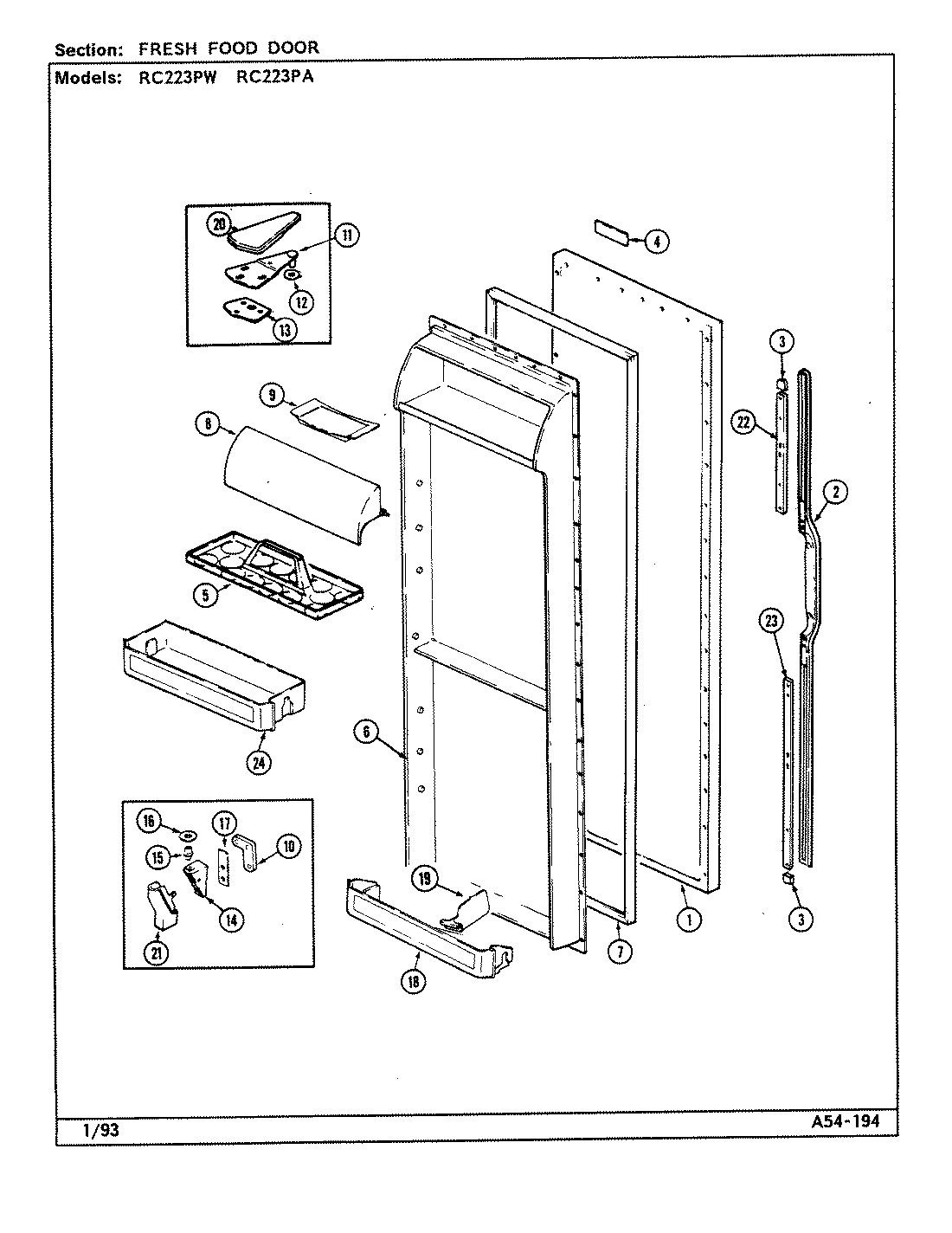

04 - FRESH FOOD DOOR

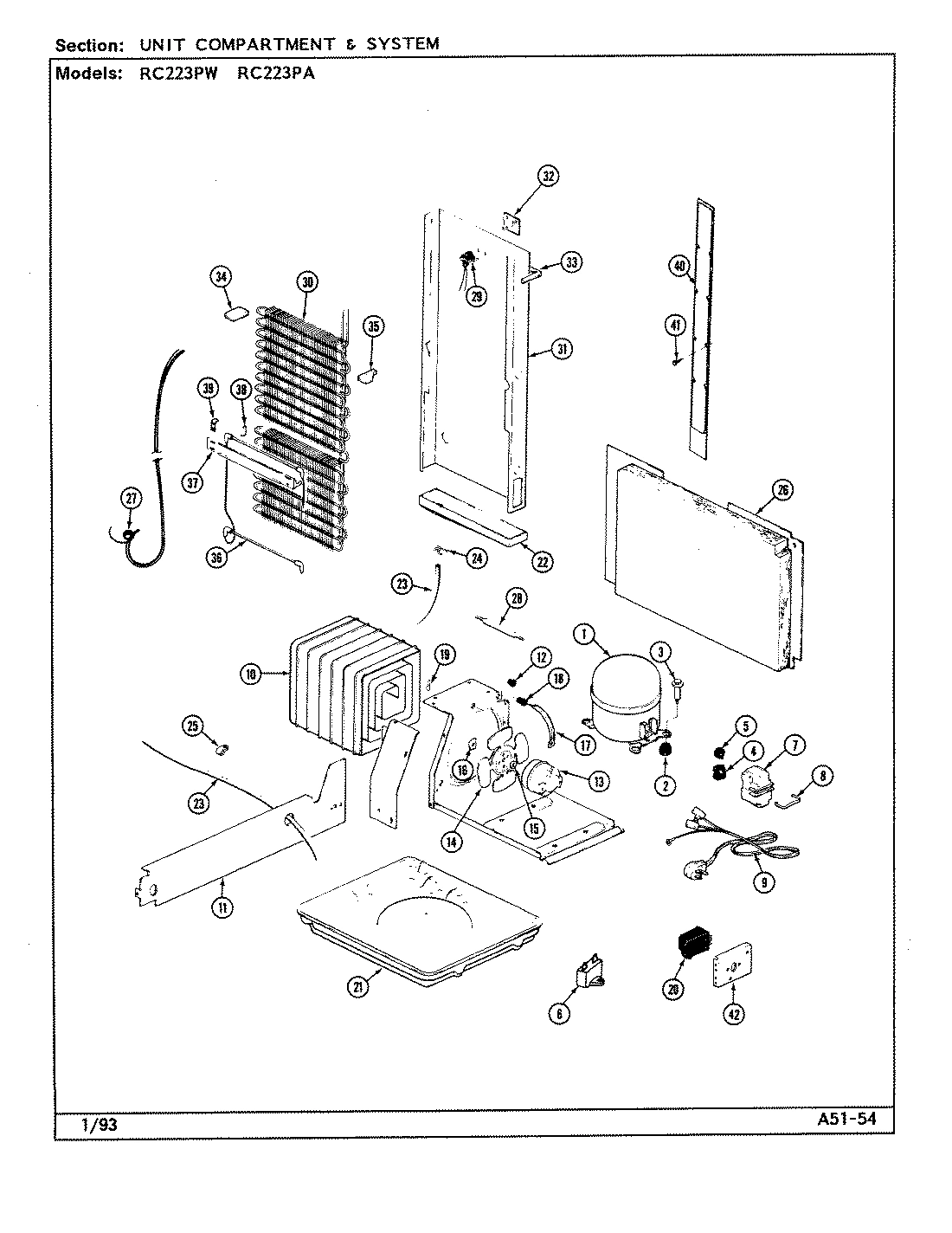

07 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RC223PW REFRIGERATOR
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72341100AM Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 723412WW Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000038 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
KIT, HANDLE ASSY. (WHT) WPL 12000039 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SCREW WPL 4000531 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
2
SCREW WPL 6527565 Contact Us For Availability
2
CLIP WPL 694771 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
FRAME, SHELF WPL 656185 Contact Us For Availability
3
END CAP, HANDLE WPL 695901 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
4
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
TRIM, CANT. SHELVES (FRONT) WPL 6817113 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SPACER AIR INLET WPL 649581 Contact Us For Availability
5
TRAY, EGG WPL 600661 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
6
CAP, CONNECTOR WPL 681871 Contact Us For Availability
6
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
6
SCREW WPL 652755 Contact Us For Availability
6
LINER, FRZ. DOOR WPL 692461 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
BAFFLE, FREEZER CONTROL WPL 686102 Contact Us For Availability
6
LINER, F.F. DOOR WPL 692421 Contact Us For Availability
6
CAPACITOR, RUN WPL 658896 Contact Us For Availability
7
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
7
CAP, FILL TUBE WPL 683261 Contact Us For Availability
7
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
7
GASKET WPL 700241 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
GASKET, REFFIG. WPL 700194 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
8
TRIM, DOOR SHELF WPL 65151355 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
DOOR, DAIRY WPL 66184394 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
9
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
TRAY, BUTTER WPL 299362 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
10
HINGE, UPPER WPL 5370922 Contact Us For Availability
10
SCREW WPL 6527559 Contact Us For Availability
10
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 402005103 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
INSERT, CRISPER PAN WPL 6812483 Contact Us For Availability
11
SCREW WPL 6527552 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
HINGE UPPER WPL 5370926 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
SCREW WPL 998645 Contact Us For Availability
12
PAN, CRISPER WPL 6650919 Contact Us For Availability
12
WASHER WPL 521851 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
12
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
PAN, MEAT WPL 6651019 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
HOUSING, LITE & WIRE WPL 691932 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684456 Contact Us For Availability
14
SUPPORT, LIGHT SHIELD WPL 673443 Contact Us For Availability
14
INSERT, MEAT PAN WPL 6812484 Contact Us For Availability
14
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
TUNNEL WPL 691982 Contact Us For Availability
14
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
15
HINGE, LOWER WPL 689752 Contact Us For Availability
15
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
RETAINER WPL 574111 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
16
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
16
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
SHIELD, LIGHT REF WPL 691942 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
COVER, MEAT PAN WPL 656086 Contact Us For Availability
17
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
17
PLUG WPL 495032900 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
SWITCH, LIGHT WPL 669871 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
SHIM WPL 690311 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
FRONT, PICK-OFF WPL 696071 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 4000221 Contact Us For Availability
19
FAN GRID WPL 626891 Contact Us For Availability
19
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
19
CONTROL HOUSING WPL 657372 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
ORGANIZER PACKAGE WPL 666456 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
COVER, COIL LOWER WPL 673352 Contact Us For Availability
20
COIL COVER, GASKET WPL 675621 Contact Us For Availability
20
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
20
HOLDER, BEVERAGE WPL 696151 Contact Us For Availability
20
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
MOUNTING WPL 4010091 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 695436 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
22
PLUG BUTTON WPL 675571 Contact Us For Availability
22
TRIM, HANDLE WPL 695861 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
CAP, LEVELING LEG WPL 698101 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
TUBE, DRAIN WPL 2652711 Contact Us For Availability
23
TRIM, HANDLE WPL 695862 Contact Us For Availability
23
AIR DUCT WPL 682551 Contact Us For Availability
23
WHEEL WPL 698121 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
CLOSER, DOOR WPL 692581 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
24
TUBE, FILL WPL 683061 Contact Us For Availability
24
SCREW WPL 4000621 Contact Us For Availability
24
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
24
FRONT, PICK-OFF WPL 698711 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
RETAINER WPL 676851 Contact Us For Availability
25
PAN, ICE WPL 683461 Contact Us For Availability
25
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
26
PIN, WHEEL WPL 649651 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
27
SHELF, 1 WPL 6660337 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
27
SCREW WPL 6527542 Contact Us For Availability
27
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950901 Contact Us For Availability
28
SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
28
KICKPLATE (BLK) WPL 689812 Contact Us For Availability
29
TUBE WPL 675796 No Longer Available
29
DRAWER, FRZ. WPL 6651220 Contact Us For Availability
29
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
TRAY, ICE WPL 592812 Contact Us For Availability
30
CLAMP, SPRING WPL 603334 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
32
TRIM WPL 6817114 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
PLUG WPL 539331 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
34
INSERT, CRISPER PAN WPL 6812485 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
GROMMET WPL 692191 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
HEATER, DEFROST WPL 698481 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 692082 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
43
MANUAL, USE & CARE WPL 1084291 Contact Us For Availability
× ![]()
Login and Registration Form
