Model Whirlpool RC20CN-2A REFRIGERATOR – Common Parts & Diagrams

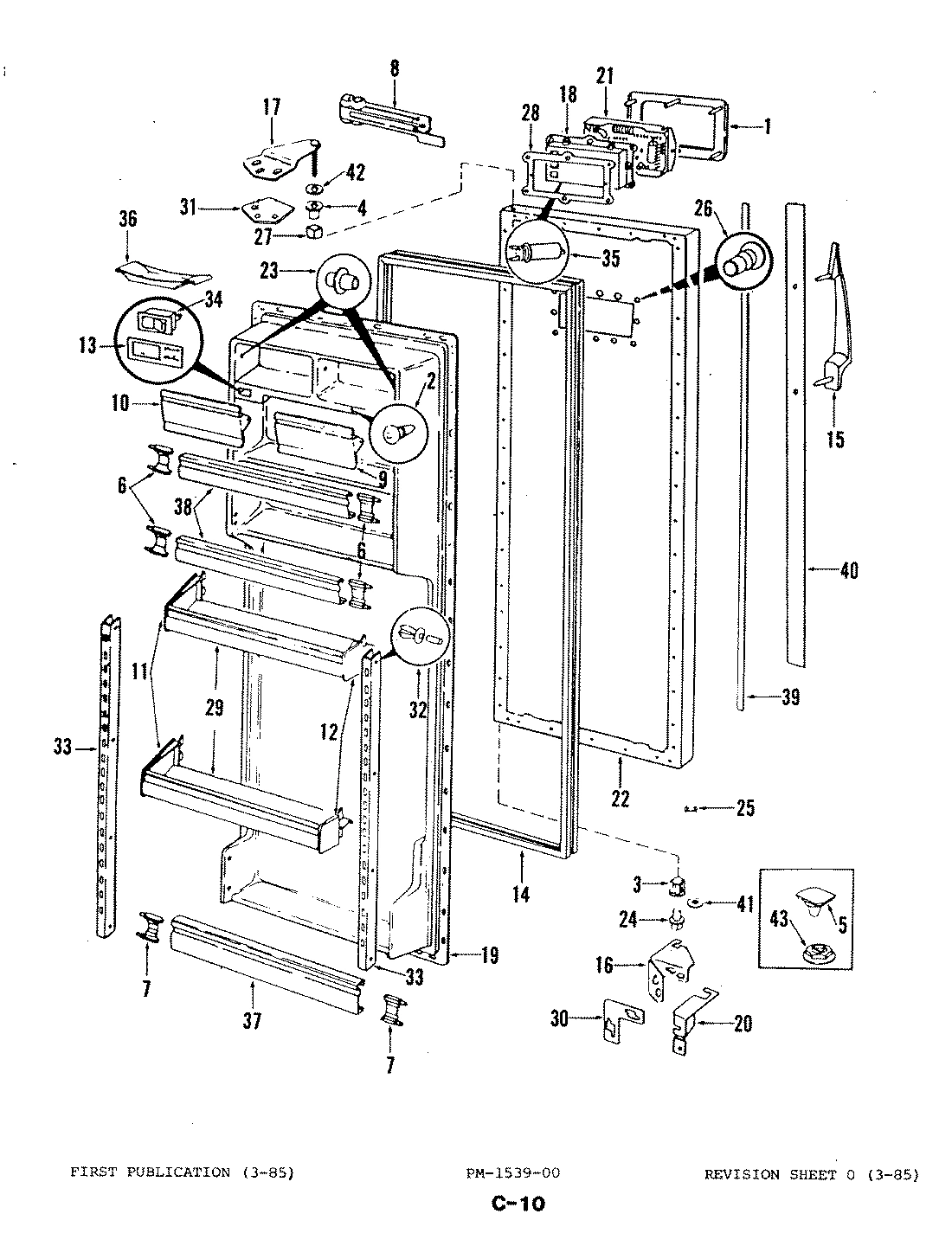

04 - FRESH FOOD DOOR

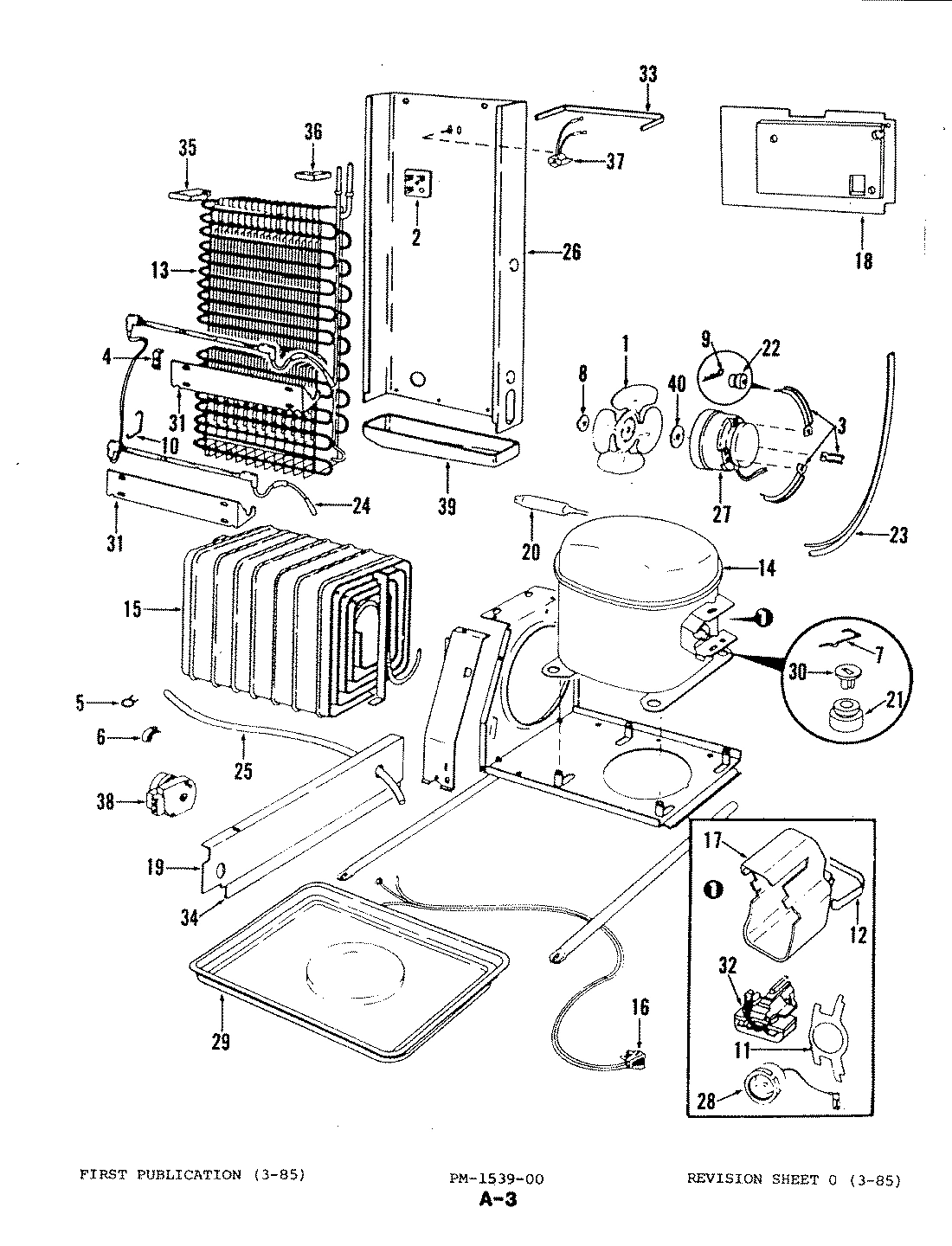

05 - UNIT COMPARTMENT & SYSTEM

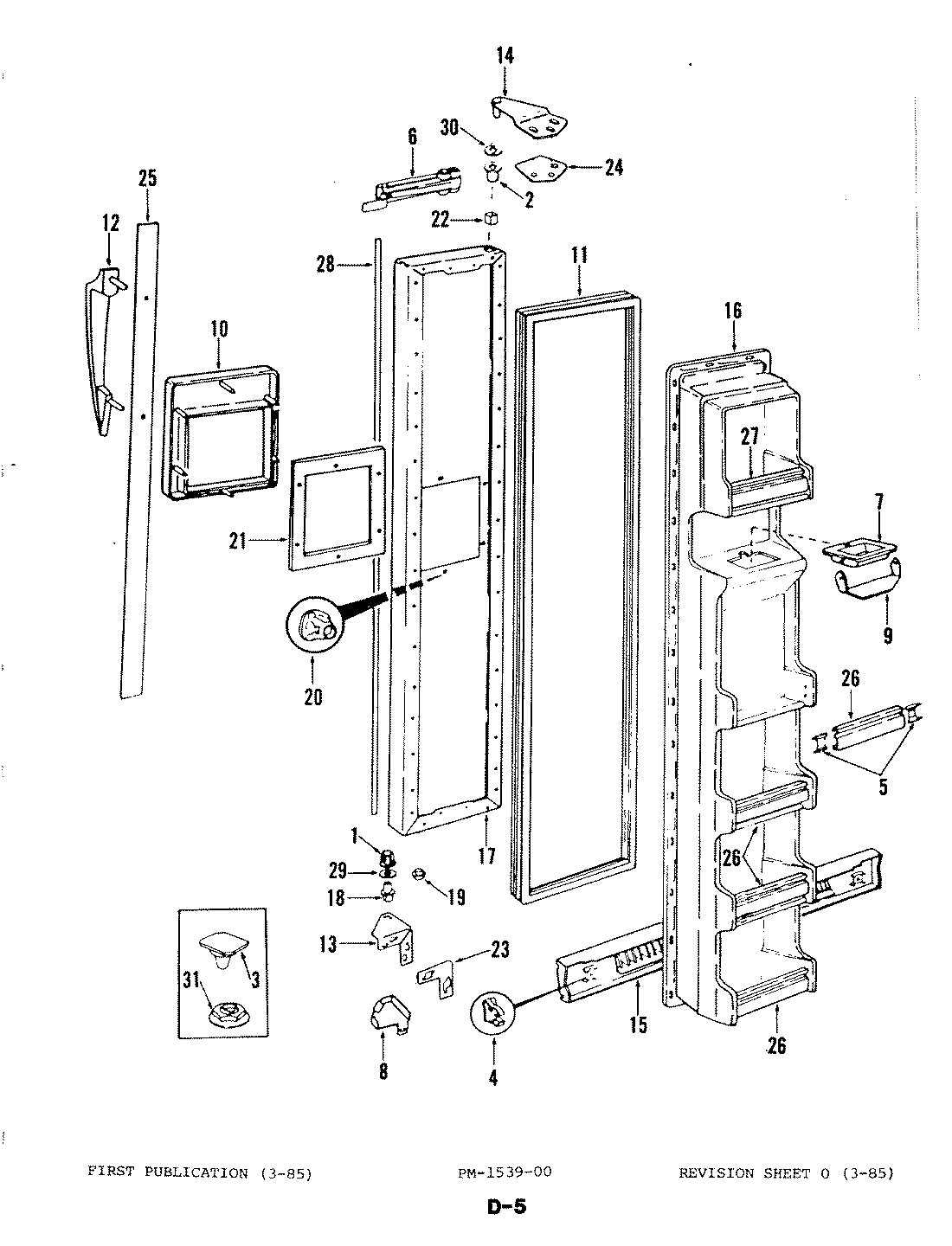

02 - FREEZER DOOR

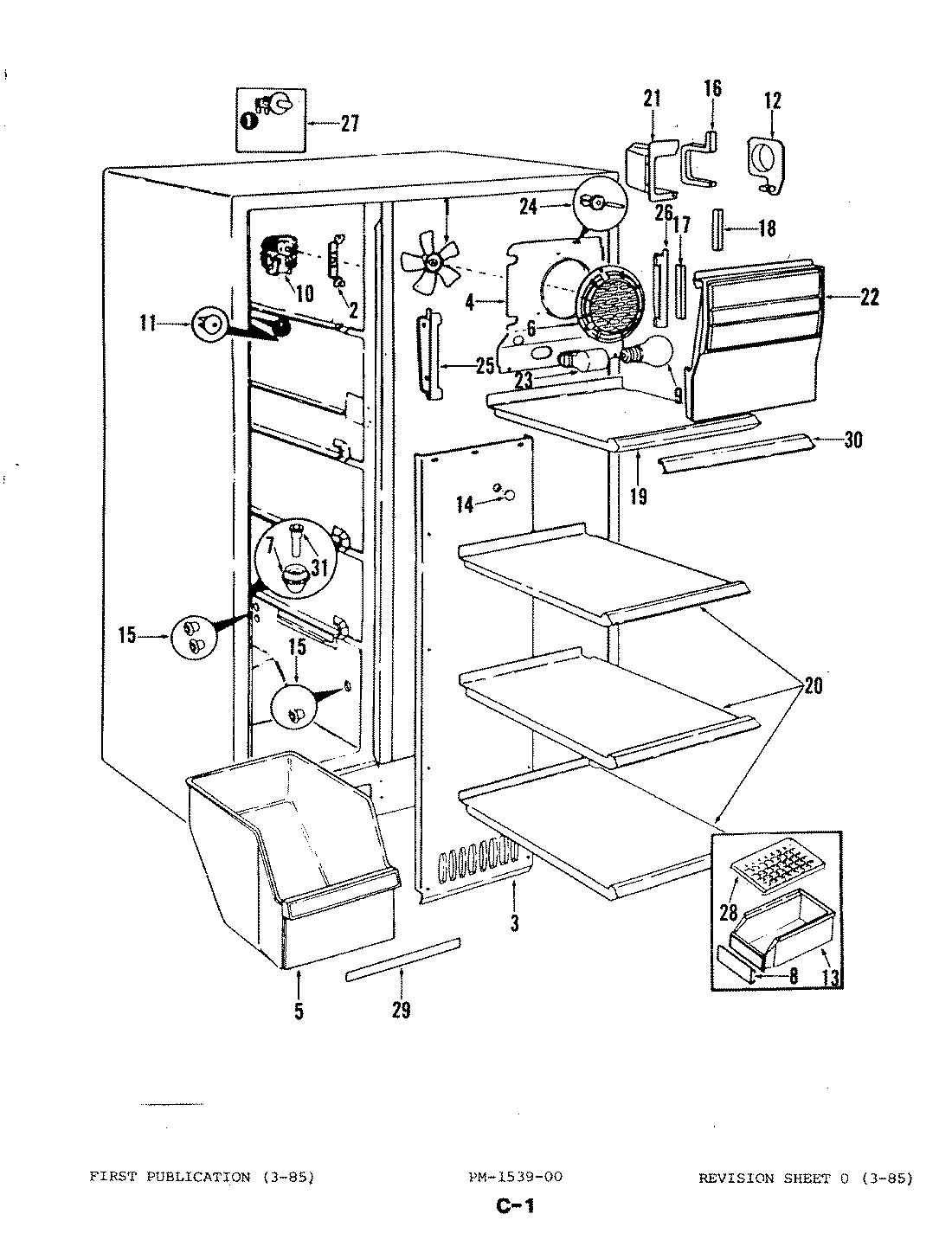

01 - FREEZER COMPARTMENT

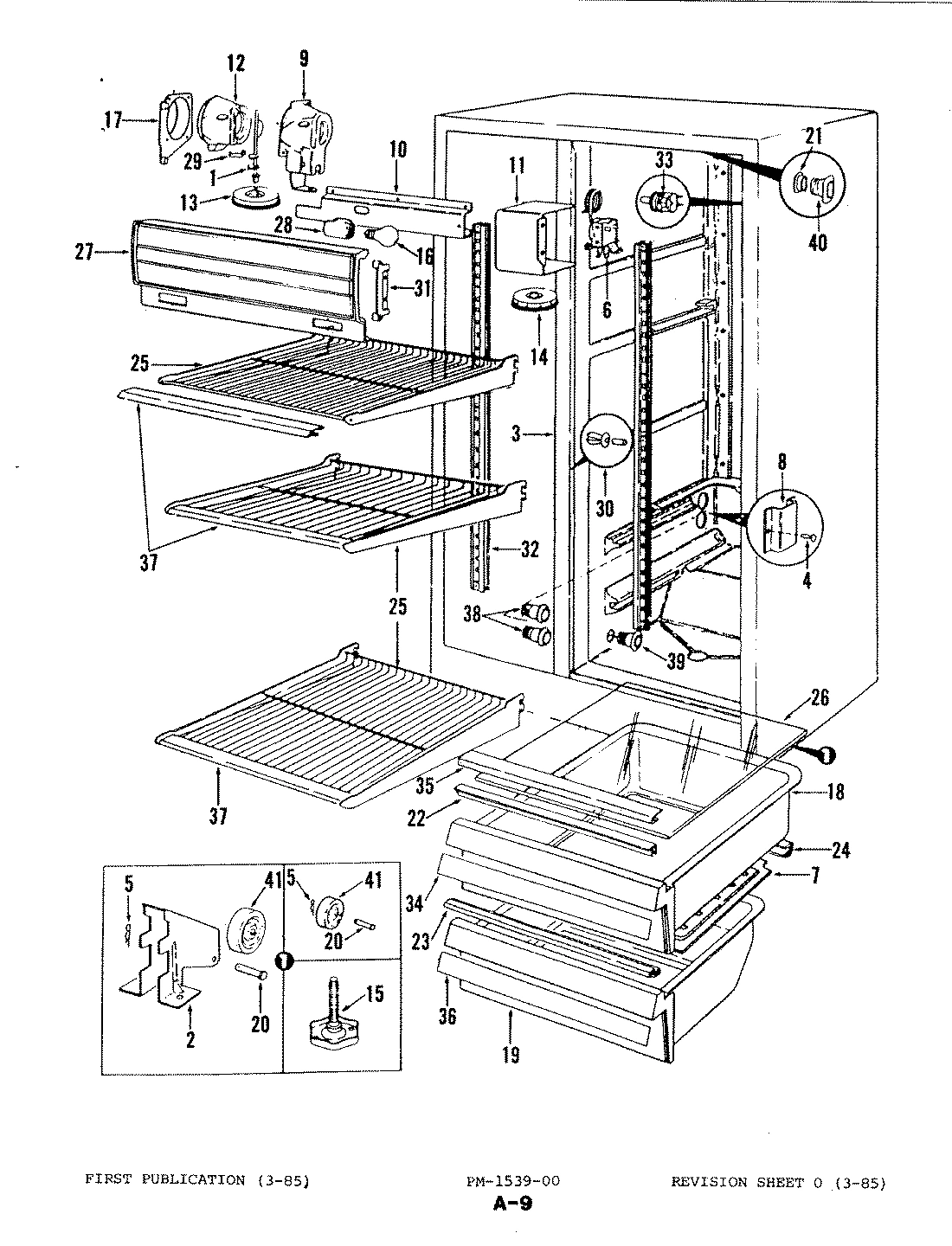

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RC20CN-2A REFRIGERATOR
1
CUP WPL 554241 Contact Us For Availability
1
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
1
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
1
DAMPER WPL 525872 Contact Us For Availability
2
BOARD, TERMINAL WPL 558781 Contact Us For Availability
2
BUSHING WPL 557811 Contact Us For Availability
2
CLAMP WPL 538101 Contact Us For Availability
2
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
2
BRACKET WPL 528461 Contact Us For Availability
3
CLIP WPL 627032 Contact Us For Availability
3
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
3
COVER, COIL WPL 652241 Contact Us For Availability
3
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
4
BUSHING WPL 557812 Contact Us For Availability
4
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
4
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
4
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
4
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
4
COVER, COIL WPL 6269031 Contact Us For Availability
4
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
5
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
5
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
5
DRAWER WPL 5933011 Contact Us For Availability
5
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
6
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
6
FAN GRID WPL 626891 Contact Us For Availability
7
SUB 62165-1 WPL 527781 Contact Us For Availability
7
GROMMET WPL 525261 Contact Us For Availability
7
COVER WPL 539347 Contact Us For Availability
8
HANDLE WPL 6013243 Contact Us For Availability
8
AIR DEFLECTOR WPL 621281 Contact Us For Availability
9
BUTTER DOOR WPL 5923438 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
9
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
10
CHEESE DOOR WPL 5923439 Contact Us For Availability
10
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
10
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
10
HOUSING WPL 597401 Contact Us For Availability
11
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
11
GASKET, DOOR WPL 5371223 Contact Us For Availability
11
NUT WPL 538211 Contact Us For Availability
11
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
12
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
12
HANDLE WPL 636495 Contact Us For Availability
12
ORIFICE WPL 544231 Contact Us For Availability
12
INSULATION, HOUSING WPL 587671 Contact Us For Availability
13
EVAPORATOR WPL RA436434 Contact Us For Availability
13
HINGE WPL 5367111 Contact Us For Availability
13
PAN, STORAGE WPL 605791 Contact Us For Availability
13
KNOB WPL 298936 Contact Us For Availability
14
GASKET WPL 537127 Contact Us For Availability
14
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
14
COMPRESSOR WPL RA990 Contact Us For Availability
14
INSULATION, CLOSER WPL 526131 Contact Us For Availability
14
PLUG BUTTON WPL 495015900 Contact Us For Availability
14
KNOB WPL 298935 Contact Us For Availability
15
HANDLE WPL 636494 Contact Us For Availability
15
CONDENSER WPL RA436444 Contact Us For Availability
15
KICKPLATE WPL 5843750 Contact Us For Availability
15
SCREW WPL 40001512 Contact Us For Availability
15
SCREW WPL 4000221 Contact Us For Availability
15
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
15
LEG, LEVELING WPL 60128 Contact Us For Availability
16
HINGE WPL 5367110 Contact Us For Availability
16
CORD, POWER WPL 528902 Contact Us For Availability
16
INNER PANEL WPL 5943316 Contact Us For Availability
16
SEAL WPL 5207710 Contact Us For Availability
17
SLEEVE WPL 2608811 Contact Us For Availability
17
COVER, TERMINAL WPL 651891 Contact Us For Availability
17
PANEL, OUTER DOOR WPL 6239118WW Contact Us For Availability
17
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
17
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
18
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
18
COVER WPL 654921 Contact Us For Availability
18
COIL SEAL WPL 528246 Contact Us For Availability
18
PAN, CRISPER WPL 5939515 Contact Us For Availability
19
INNER PANEL WPL 59433136 Contact Us For Availability
19
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
19
BAFFLE WPL 298384 Contact Us For Availability
19
SHELF WPL 593141 Contact Us For Availability
19
PAN, MEAT WPL 5959234 Contact Us For Availability
20
SCREW WPL 4030625 Contact Us For Availability
20
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
20
SCREW WPL 998687 Contact Us For Availability
20
SHELF WPL 577062 Contact Us For Availability
20
CLIP WPL 530604 Contact Us For Availability
20
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
21
EGG BUCKET WPL 5836820 Contact Us For Availability
21
GROMMET WPL 172453 Contact Us For Availability
21
SCREW WPL 4000171 Contact Us For Availability
21
SHIELD WPL 538371 Contact Us For Availability
21
SCREW WPL 4000271 Contact Us For Availability
21
SCREW WPL 4000371 Contact Us For Availability
21
SCREW WPL 4000621 Contact Us For Availability
21
SCREW WPL 402005103 Contact Us For Availability
21
RETAINER WPL 574111 Contact Us For Availability
22
PANEL, OUTER DOOR WPL 6239121WW Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
22
SHIELD WPL 5566438 Contact Us For Availability
22
SEAL WPL 557068 Contact Us For Availability
23
PIVOT WPL 593251 Contact Us For Availability
23
HEAT EXCHANGER WPL RA436454 Contact Us For Availability
23
SPACER WPL 536882 Contact Us For Availability
23
GASKET WPL 541021 Contact Us For Availability
24
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
24
HEATER, DEFROST WPL 5276414 Contact Us For Availability
24
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
24
GASKET WPL 541031 Contact Us For Availability
25
TRIM WPL 636501 Contact Us For Availability
25
HOSE, DRAIN WPL 2691118 Contact Us For Availability
25
SUPPORT WPL 536872 Contact Us For Availability
25
SHELF, WIRE WPL 649911 Contact Us For Availability
26
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
26
SUPPORT WPL 544242 Contact Us For Availability
26
SHELF, CRISPER WPL 652543 Contact Us For Availability
27
FAN MOTOR WPL 280569 Contact Us For Availability
27
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
27
TRIM, DOOR SHELF WPL 651511 Contact Us For Availability
27
SHIELD WPL 5933333 Contact Us For Availability
28
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
28
OVERLOAD WPL 5306772 Contact Us For Availability
28
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
28
ICE CUBE TRAY WPL 601121 Contact Us For Availability
29
WASHER WPL 542331 Contact Us For Availability
29
PAN, DRAIN WPL 298394 Contact Us For Availability
29
HANDLE WPL 652975 Contact Us For Availability
29
SPRING, BAFFLE WPL 526481 Contact Us For Availability
30
SPACER WPL 536883 Contact Us For Availability
30
WASHER WPL 521851 Contact Us For Availability
30
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
30
TRIM WPL 5375232 Contact Us For Availability
30
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
31
FASTENER WPL 434003506 Contact Us For Availability
31
REFLECTOR WPL 2991512 Contact Us For Availability
31
DRAIN TUBE WPL 265275 Contact Us For Availability
31
SUPPORT WPL 536862 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
SCREW WPL 641391 Contact Us For Availability
32
RELAY WPL 9286106 Contact Us For Availability
32
SUPPORT WPL 583811 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
33
SWITCH WPL 564322 Contact Us For Availability
34
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
34
HANDLE WPL 6529765 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
TRIM WPL 6525510 Contact Us For Availability
36
TRAY, BUTTER WPL 299362 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
HANDLE WPL 6529766 Contact Us For Availability
37
TRIM, DOOR SHELF WPL 6515149 Contact Us For Availability
37
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
37
TRIM WPL 6273352 Contact Us For Availability
38
TRIM, DOOR SHELF WPL 6515168 Contact Us For Availability
38
TIMER WPL 541134 Contact Us For Availability
38
AIR TUNNEL WPL 537261 Contact Us For Availability
39
TRIM WPL 5930950 Contact Us For Availability
39
TROUGH, DRAIN WPL 535231 Contact Us For Availability
39
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
40
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
40
WIRE HARNESS WPL 599401 Contact Us For Availability
40
FLANGE HEATER WPL RA436841 Contact Us For Availability
40
TUNNEL WPL 574101 Contact Us For Availability
41
WHEEL WPL 298342 Contact Us For Availability
× ![]()
