Model Whirlpool RC202TM REFRIGERATOR – Common Parts & Diagrams

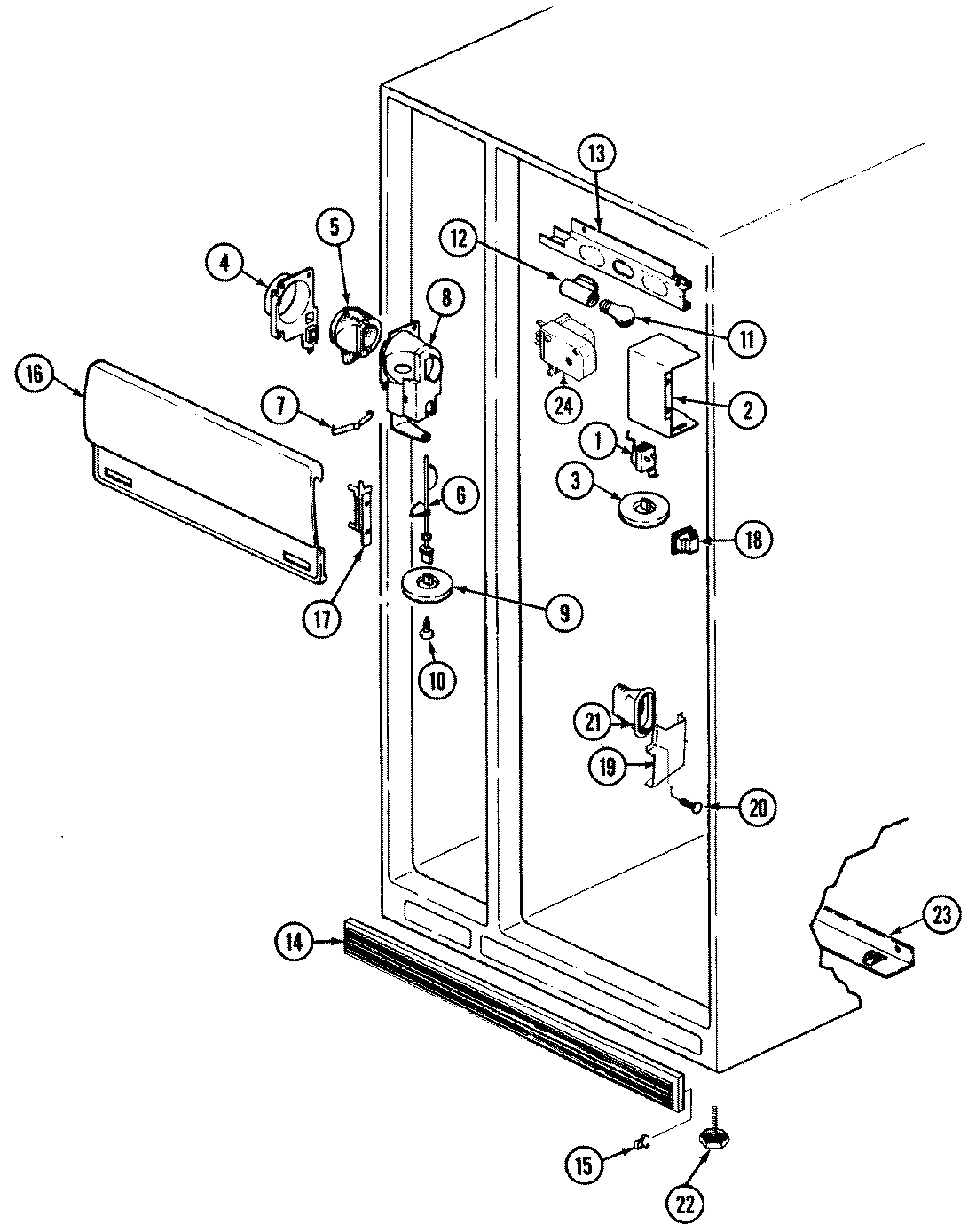

03 - FRESH FOOD COMPARTMENT
04 - FRESH FOOD DOOR
01 - FREEZER COMPARTMENT
08 - WIRING INFORMATION
05 - OPTIONAL ICE MAKER KIT (ICE)
06 - SHELVES & ACCESSORIES
07 - UNIT COMPARTMENT & SYSTEM
02 - FREEZER DOOR
Common parts from model Whirlpool RC202TM REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 696945 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723472AM Contact Us For Availability
1
CAP, CONNECTOR WPL 681871 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000006 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000058 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 723463AM Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
2
KIT, HANDLE ASSY. (ALM) WPL 12000052 Contact Us For Availability
2
SCREW WPL 6527580 Contact Us For Availability
2
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW WPL 652755 Contact Us For Availability
3
TUBE, FILL WPL 676761 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SHELF, WIRE WPL 701058 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
LINER, FRZ. DOOR WPL 692461 Contact Us For Availability
4
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
4
GROMMET WPL 692191 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
TRIM, SHELF WPL 701093 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
GASKET WPL 700241 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
TRIM, SHELF WPL 701118 Contact Us For Availability
5
SCREW WPL 4030671 Contact Us For Availability
5
WIRE HARNESS FREEZER WPL 700391 Contact Us For Availability
5
SLEEVE, BRASS WPL 694311 Contact Us For Availability
5
SHELF, CRISPER WPL 656875 Contact Us For Availability
5
OVERLOAD WPL 61001785 Contact Us For Availability
5
OVERLOAD WPL 691053 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
5
TRIM, SHELF WPL 701111 Contact Us For Availability
6
BAFFLE, FREEZER CONTROL WPL 686102 Contact Us For Availability
6
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
6
TRAY, EGG WPL 600661 Contact Us For Availability
6
LINER, F.F. DOOR WPL 692381 Contact Us For Availability
6
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
CAPACITOR, RUN WPL 658896 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
GASKET WPL 700243 Contact Us For Availability
7
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
7
SCREW WPL 6527552 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
TRIM WPL 666501 Contact Us For Availability
7
COVER, TERMINAL WPL 61002020 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
DOOR, DAIRY WPL 66184393 Contact Us For Availability
8
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
8
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
DUCT, AIR WPL 701983 Contact Us For Availability
8
PAN, CRISPER LOWER WPL 6650925 Contact Us For Availability
8
INSERT, CRISPER PAN HANDLE WPL 68124103 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 61002620 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability
9
SCREW WPL 6527559 Contact Us For Availability
9
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
9
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
PAN, MEAT WPL 6651025 Contact Us For Availability
9
INSERT, MEAT FRONT HANDLE WPL 68124102 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
10
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
COVER, MEAT PAN WPL 656085 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
11
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
11
TRAY, ICE WPL 592812 Contact Us For Availability
11
SCREW WPL 4000211 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
12
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
12
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
13
HOUSING, LITE & WIRE WPL 691931 Contact Us For Availability
13
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
13
SEAL (44``) WPL 6632521 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684457 Contact Us For Availability
14
KICKPLATE (ALM) WPL 689814 Contact Us For Availability
14
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
15
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
15
SEAL WPL 689464 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
CLAMP, TUBING WPL 535168 Contact Us For Availability
15
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
16
SHIELD, LIGHT WPL 691945 Contact Us For Availability
16
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
16
SCREW WPL 4010171 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
SHIELD, FAN WPL 672251 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SWITCH, LIGHT WPL 669871 Contact Us For Availability
18
SUPPORT, LIGHT SHIELD WPL 673443 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
COVER, AIR RETURN WPL 699821 Contact Us For Availability
19
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702671 Contact Us For Availability
20
SHELF, 1 WPL 6660337 Contact Us For Availability
20
SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability
20
HEATER, DEFROST WPL 698481 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
TRIM, SHELF WPL 701371 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
23
RAIL, HORIZONTAL SUPPORT WPL 61001030 Contact Us For Availability
23
SCREW WPL 6527542 Contact Us For Availability
23
TUBE, DRAIN WPL 2652711 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
24
SCREW WPL 4050071 Contact Us For Availability
24
TIMER, DEFROST WPL 682333 Contact Us For Availability
24
WHEEL ASSY. (FRONT) WPL 720191 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
25
SCREW WPL 40001536 Contact Us For Availability
25
COVER, COIL (LOWER) WPL 673357 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
26
CLIP WPL 693141 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
27
WPL 998645 WPL 998645 Contact Us For Availability
27
PAN, ICE WPL 683461 Contact Us For Availability
27
COVE WPL 663393 Contact Us For Availability
28
DRAWER, FRZ. WPL 6651225 Contact Us For Availability
28
INSERT, DRAWER WPL 68124100 Contact Us For Availability
28
WPL 2608822 WPL 2608822 Contact Us For Availability
28
WPL 6501316 WPL 6501316 Contact Us For Availability
28
WPL 6501325 WPL 6501325 Contact Us For Availability
28
WPL 662231 WPL 662231 Contact Us For Availability
29
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
30
WPL 5208529 WPL 5208529 Contact Us For Availability
31
WPL 5255121 WPL 5255121 Contact Us For Availability
32
WPL 688341 WPL 688341 Contact Us For Availability
33
WPL 558781 WPL 558781 Contact Us For Availability
34
WPL 6632517 WPL 6632517 Contact Us For Availability
35
WPL 650631 WPL 650631 Contact Us For Availability
36
WPL 650641 WPL 650641 Contact Us For Availability
37
WPL 4000171 WPL 4000171 Contact Us For Availability
37
WPL 2991512 WPL 2991512 Contact Us For Availability
38
WPL 525611 WPL 525611 Contact Us For Availability
39
WPL 1084293 WPL 1084293 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001154 Contact Us For Availability
× ![]()
Login and Registration Form
