Model Whirlpool RC200TV REFRIGERATOR – Common Parts & Diagrams

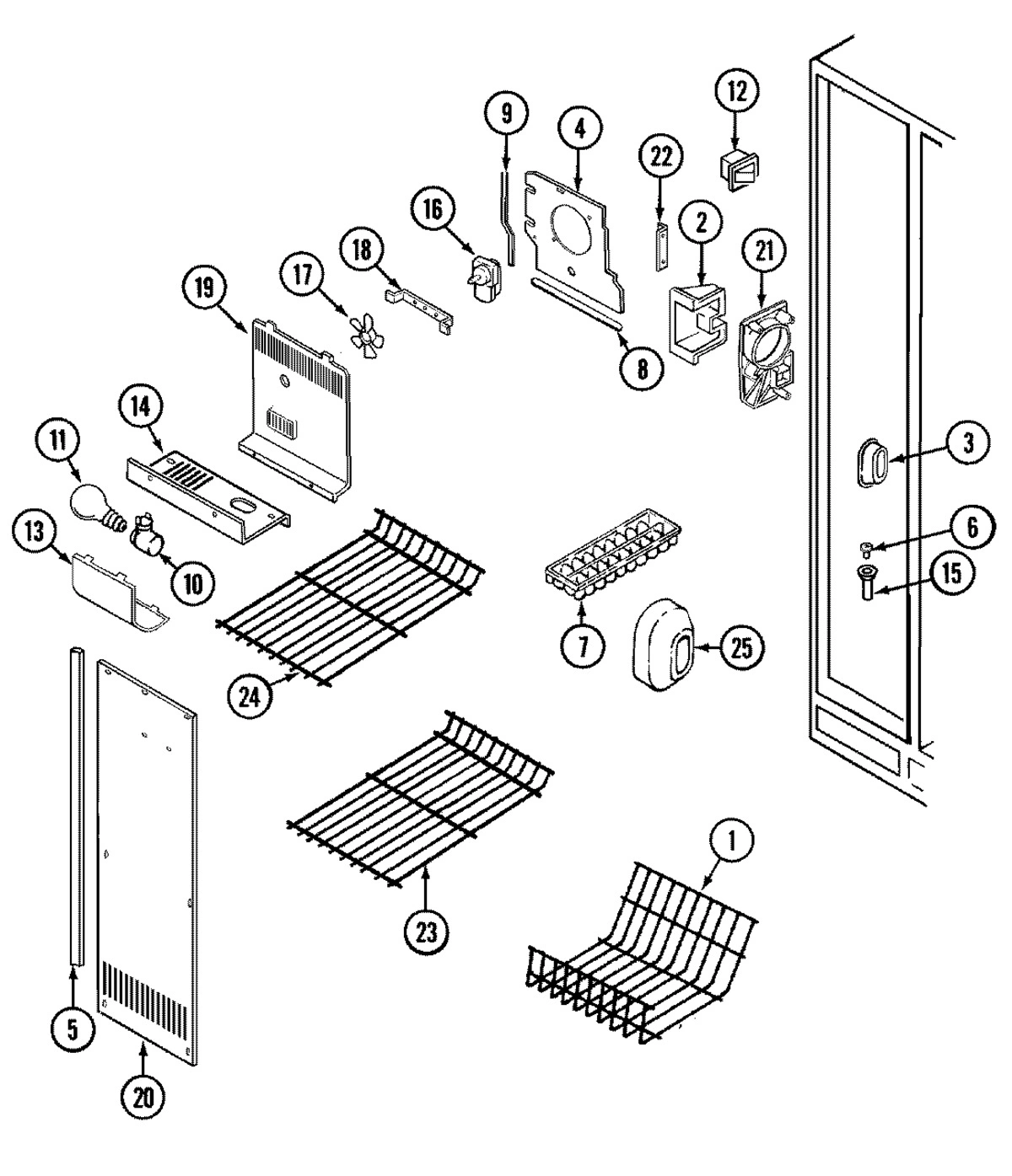

01 - FREEZER COMPARTMENT

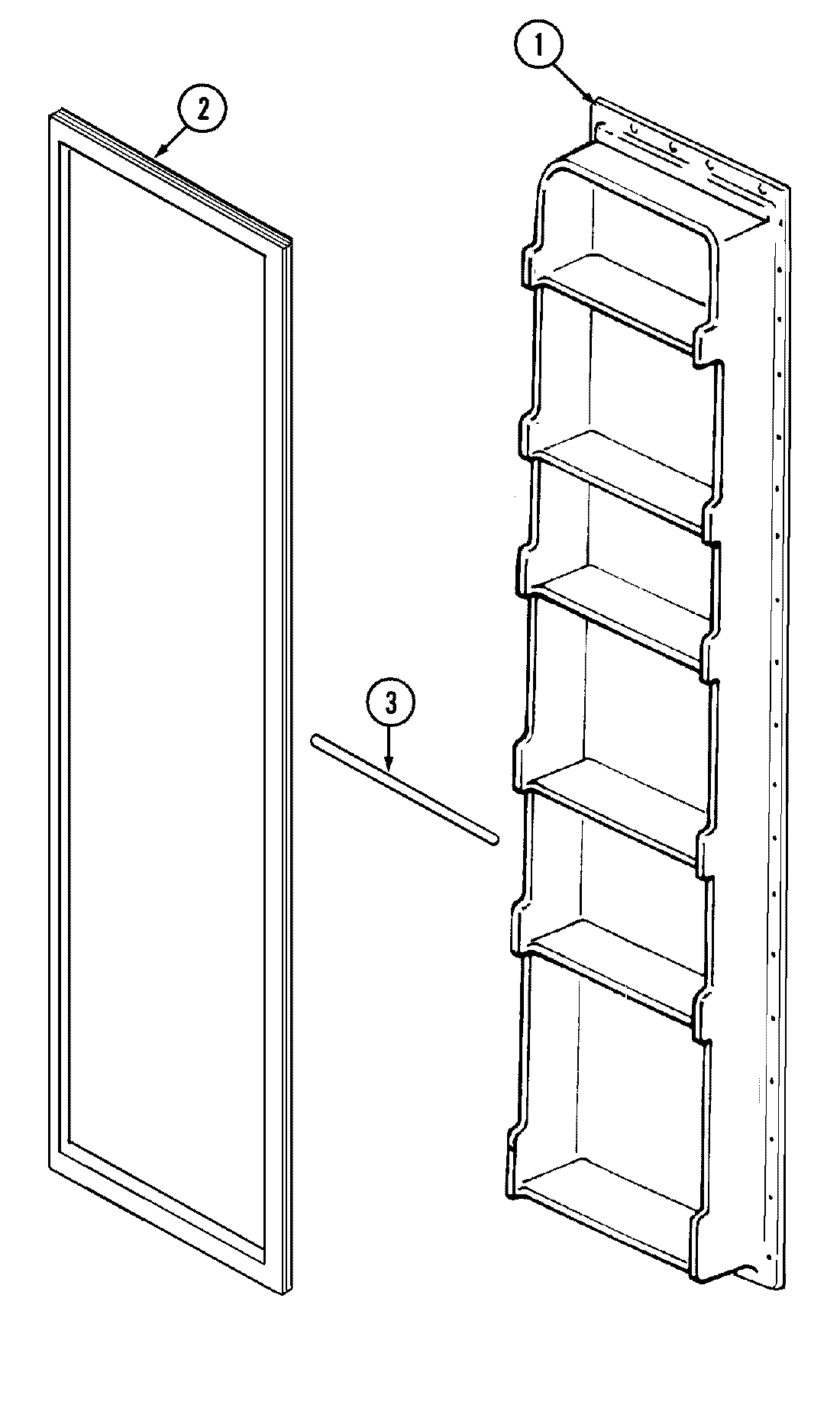

02 - FREEZER INNER DOOR

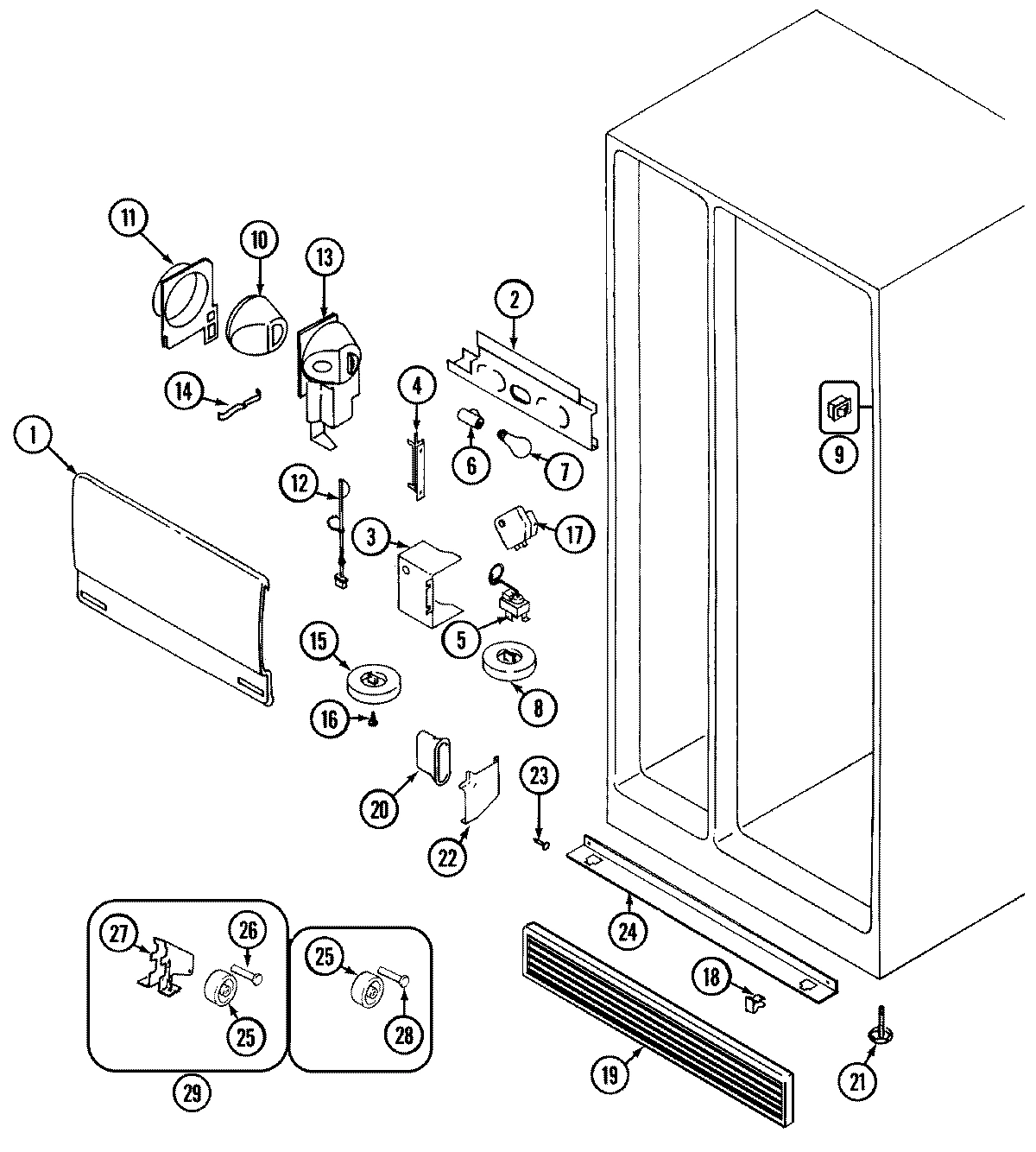

04 - FRESH FOOD COMPARTMENT

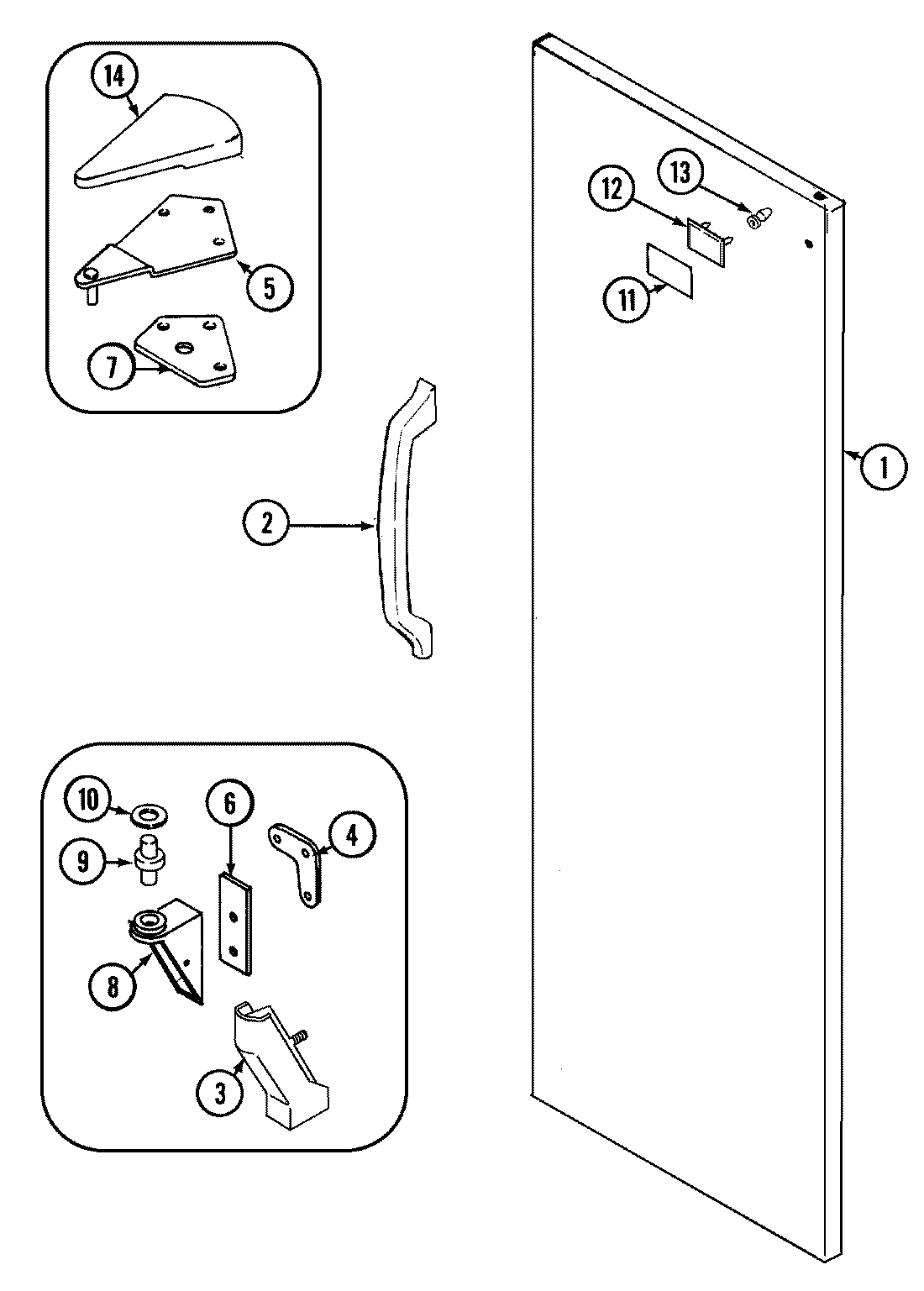

06 - FRESH FOOD OUTER DOOR

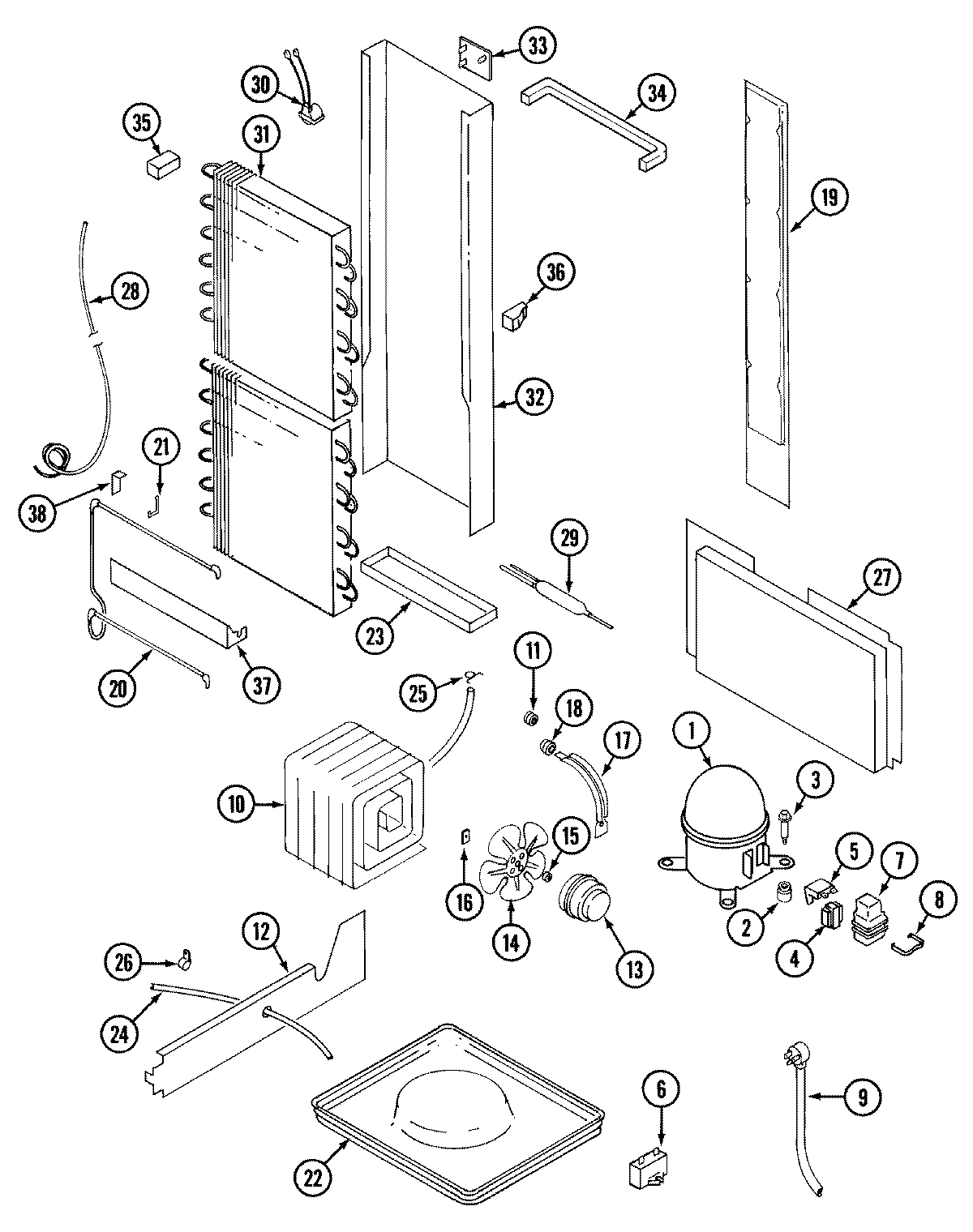

08 - UNIT COMPARTMENT & SYSTEM

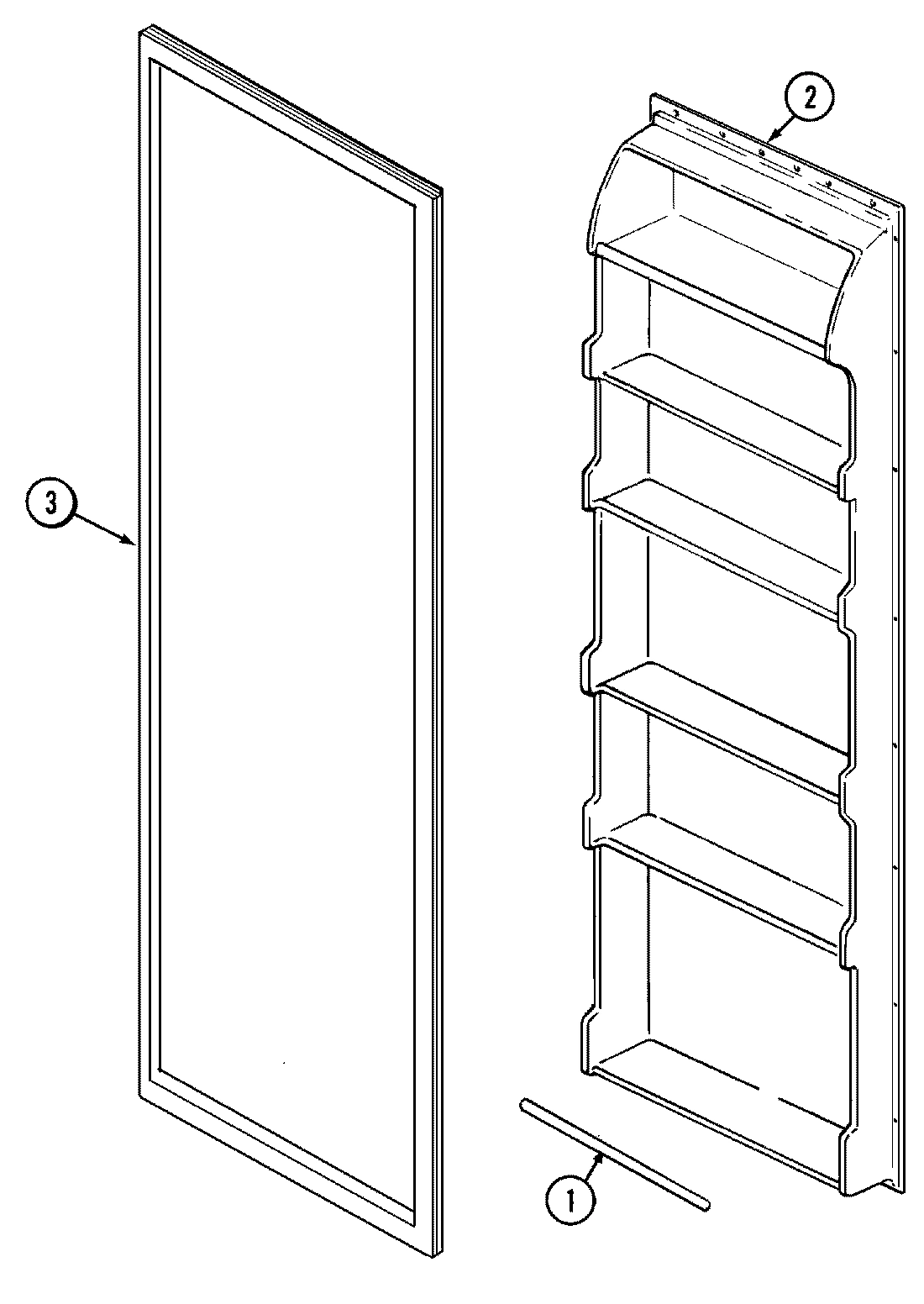

05 - FRESH FOOD INNER DOOR

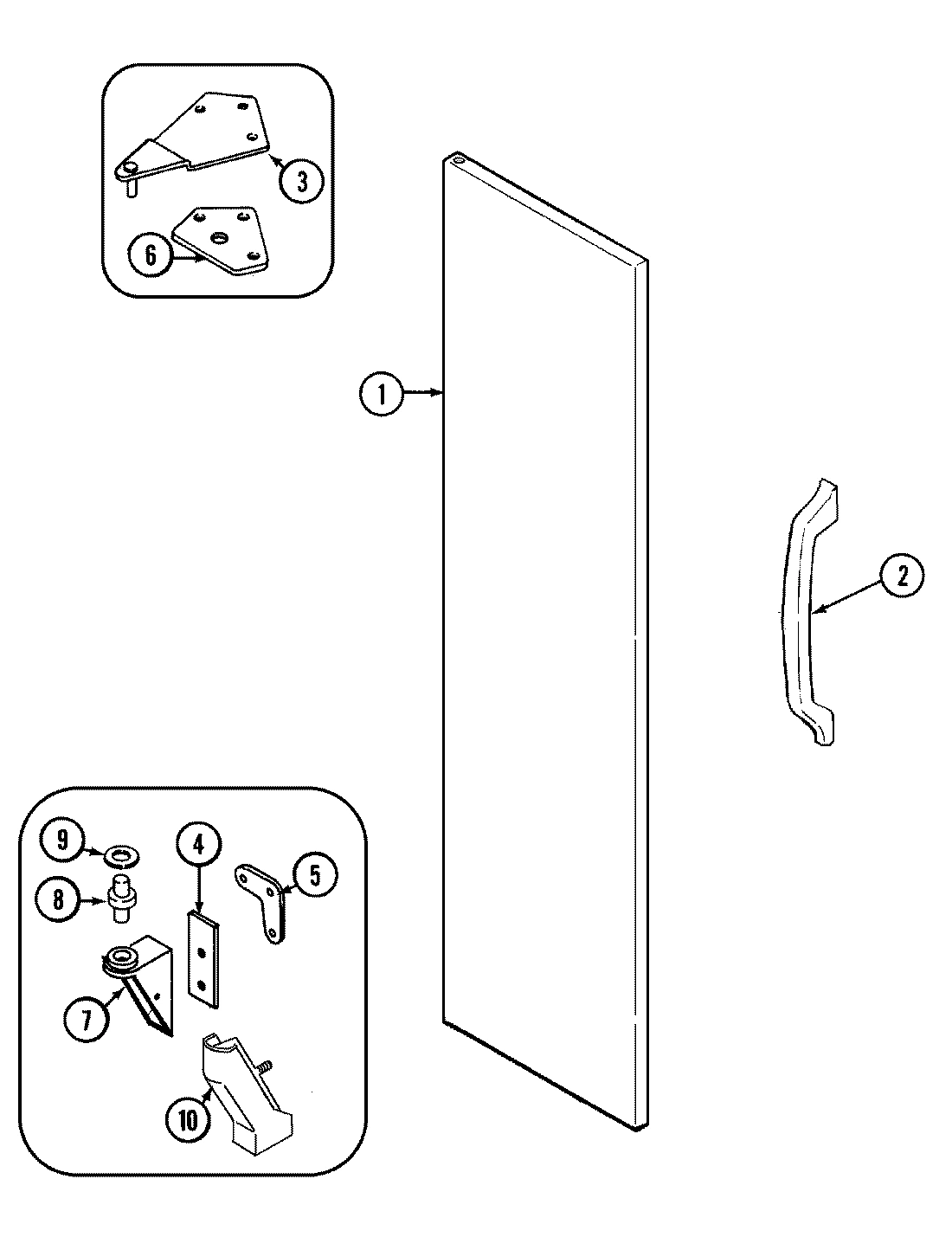

03 - FREEZER OUTER DOOR

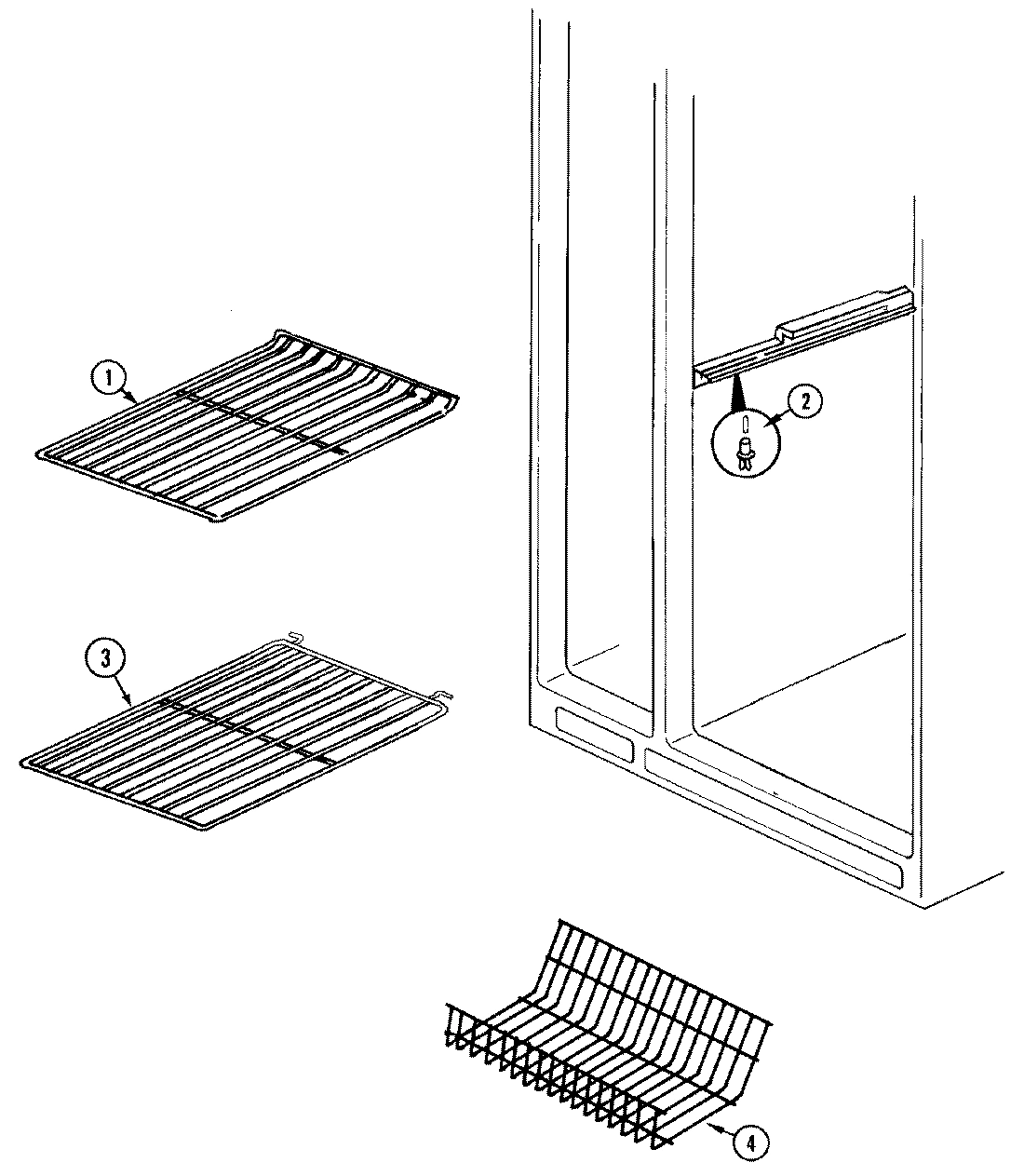

07 - SHELVES & ACCESSORIES
Common parts from model Whirlpool RC200TV REFRIGERATOR
1
TRIVET SHELF WPL 586176 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 692463 Contact Us For Availability
1
SHIELD, LIGHT REF WPL 691941 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 723471WW Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000006 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000058 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
TRIM, SHELF WPL 701118 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 723463WW Contact Us For Availability
1
SHELF, WIRE WPL 2946429 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
HOUSING, LITE & WIRE WPL 691931 Contact Us For Availability
2
KIT, HANDLE ASSY. WPL 12001068 Contact Us For Availability
2
SCREW WPL 6527580 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
LINER, F.F. DOOR----NA WPL 692431 Contact Us For Availability
2
STUD WPL 216979 Contact Us For Availability
3
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
RETAINER WPL 5360529 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
3
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
3
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
GASKET WPL 700243 Contact Us For Availability
3
SHELF, WIRE WPL 2946428 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
TRIVET WPL 586174 Contact Us For Availability
5
CLIP WPL 693141 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 61001481 Contact Us For Availability
5
SCREW WPL 6527559 Contact Us For Availability
5
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
6
GROMMET WPL 525261 Contact Us For Availability
6
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
CAPACITOR, RUN WPL 658896 Contact Us For Availability
7
TRAY, ICE WPL 592812 Contact Us For Availability
7
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
7
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
7
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
8
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
COVER, LOWER HINGE (WHT) WPL 689784 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 61001230 Contact Us For Availability
11
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
BAFFLE WPL 686101 Contact Us For Availability
12
BEZEL, NAMEPLATE WPL 669867 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684457 Contact Us For Availability
14
SUPPORT, LIGHT SHIELD WPL 673443 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
15
TUBE, DRAIN WPL 2652711 Contact Us For Availability
15
KNOB WPL 2989312 Contact Us For Availability
15
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
WIRE HARNESS FREEZER WPL 700391 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
SCREW WPL 4050071 Contact Us For Availability
17
TIMER, DEFROST WPL 682333 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SHIELD, FAN WPL 672251 Contact Us For Availability
19
KICKPLATE WPL 689817 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 61001479 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
20
SCREW WPL 40001536 Contact Us For Availability
20
COVER, COIL LOWER WPL 673352 Contact Us For Availability
20
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
20
HEATER, DEFROST WPL 698481 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
LEG, LEVELING WPL 686642 Contact Us For Availability
21
CAP, LEVELING LEG WPL 698101 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
22
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
22
COVER, AIR RETURN WPL 699821 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
23
SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
24
SHELF, 1 WPL 6660337 Contact Us For Availability
24
RAIL, HORIZONTAL SUPPORT WPL 61001030 Contact Us For Availability
24
SCREW WPL 6527542 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
25
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
25
WHEEL WPL 698121 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
26
PIN, WHEEL WPL 649651 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
27
SCREW WPL 998645 Contact Us For Availability
27
SCREW WPL 4000621 Contact Us For Availability
27
BRACKET WPL 528461 Contact Us For Availability
27
COVER WPL 663393 Contact Us For Availability
28
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501316 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501325 Contact Us For Availability
28
WIRE TIE WPL 662231 Contact Us For Availability
29
WHEEL ASSY. (FRONT) WPL 720191 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
31
EVAPORATOR WPL 5255121 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
SEAL, STYR WPL 650641 Contact Us For Availability
37
WPL 4000171 WPL 4000171 Contact Us For Availability
37
WPL 2991512 WPL 2991512 Contact Us For Availability
38
WPL 525611 WPL 525611 Contact Us For Availability
39
WPL 1084293 WPL 1084293 Contact Us For Availability
× ![]()
