Model Maytag RC14SE COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - Page 1
02 - Page 2

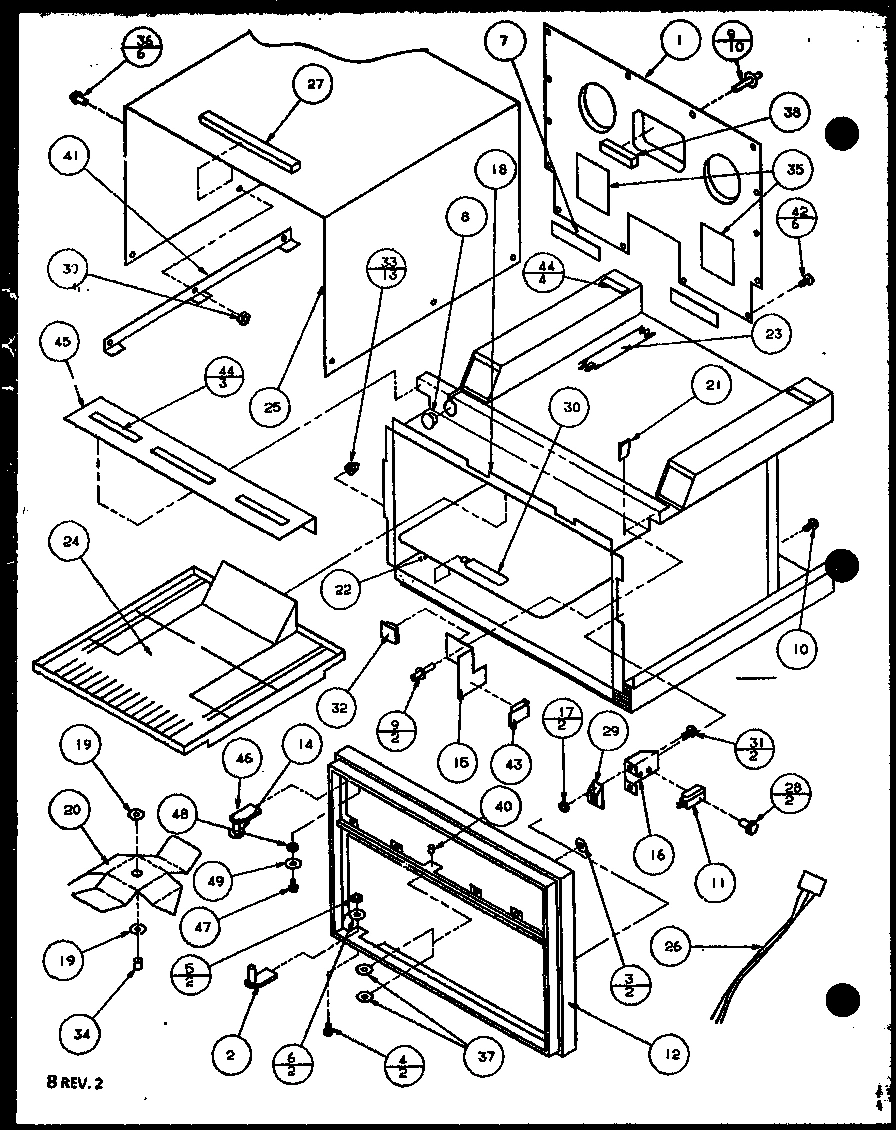

03 - Page 3

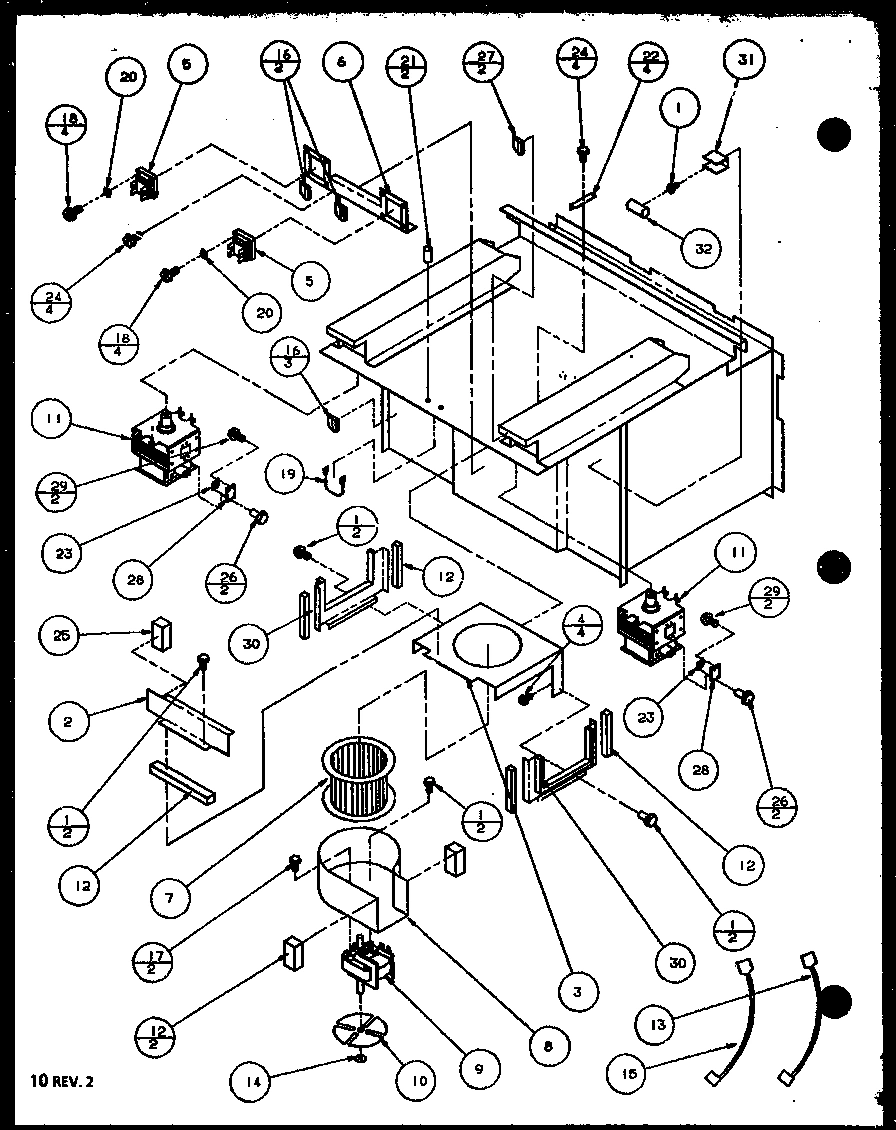

04 - Page 4

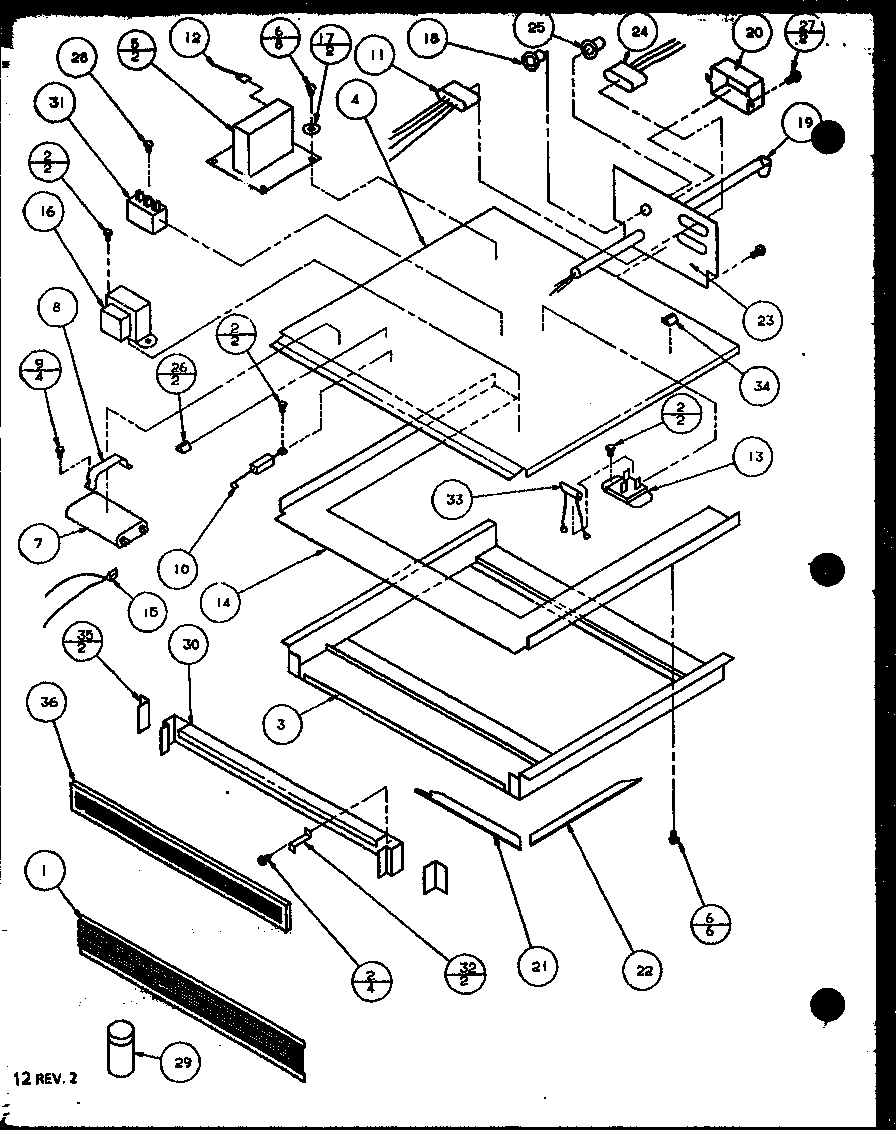

05 - Page 5
Common parts from model Maytag RC14SE COMMERCIAL MICROWAVE
1
MAY A4591135 MAY A4591135 Contact Us For Availability
1
MAY C8801105 MAY C8801105 Contact Us For Availability
1
MAY C8708502 MAY C8708502 Contact Us For Availability
2
MAY D7577803 MAY D7577803 Contact Us For Availability
2
MAY C8937601 MAY C8937601 Contact Us For Availability
2
MAY B5778001 MAY B5778001 Contact Us For Availability
3
MAY C8901202 MAY C8901202 Contact Us For Availability
3
NUT K MAY M0120002 Contact Us For Availability
3
MAY C8707804 MAY C8707804 Contact Us For Availability
3
MAY D7732802 MAY D7732802 Contact Us For Availability
4
MAY D7132503 MAY D7132503 Contact Us For Availability
4
MAY D7292202 MAY D7292202 Contact Us For Availability
4
MAY M0200316 MAY M0200316 Contact Us For Availability
4
MAY M0216529 MAY M0216529 Contact Us For Availability
4
MAY D7573603 MAY D7573603 Contact Us For Availability
5
GASKET MAY A4591128 Contact Us For Availability
5
DIGITAL TIMER MAY D7755101 Contact Us For Availability
5
MAY M0280801 MAY M0280801 Contact Us For Availability
5
MAY C8807807 MAY C8807807 Contact Us For Availability
5
MAY D7569401 MAY D7569401 Contact Us For Availability
6
MAY D7178504 MAY D7178504 Contact Us For Availability
6
MAY A4591136 MAY A4591136 Contact Us For Availability
6
MAY M0272402 MAY M0272402 Contact Us For Availability
6
MAY C8902001 MAY C8902001 Contact Us For Availability
6
MAY M0253543 MAY M0253543 Contact Us For Availability
7
MAY M0234029 MAY M0234029 Contact Us For Availability
7
MAY D7571304 MAY D7571304 Contact Us For Availability
7
MAY A3030335 MAY A3030335 Contact Us For Availability
7
MAY C3670802 MAY C3670802 Contact Us For Availability
7
CAPACITOR MAY D8547920 Contact Us For Availability
8
BEZEL-DOOR HANDLE MAY B5671901 Contact Us For Availability
8
MAY A3293503 MAY A3293503 Contact Us For Availability
8
MAY C8710701 MAY C8710701 Contact Us For Availability
8
MAY A4055405 MAY A4055405 Contact Us For Availability
9
SPEED NUT MAY M0288102 Contact Us For Availability
9
MAY M0253704 MAY M0253704 Contact Us For Availability
9
MAY A4539601 MAY A4539601 Contact Us For Availability
9
MAY M0216517 MAY M0216517 Contact Us For Availability
9
MAY C8811802 MAY C8811802 Contact Us For Availability
10
MAY M0230017 MAY M0230017 Contact Us For Availability
10
SUPPORT P-C BD A MAY M0590602 Contact Us For Availability
10
FAN BLADE-BLOWER MAY B5706702 Contact Us For Availability
10
MAY B8383102 MAY B8383102 Contact Us For Availability
11
MAY D7578101 MAY D7578101 Contact Us For Availability
11
MAY A3030344 MAY A3030344 Contact Us For Availability
11
MAY A3163415 MAY A3163415 Contact Us For Availability
11
MAGNETRON MAY C8835109 Contact Us For Availability
11
MAY B8393101 MAY B8393101 Contact Us For Availability
12
MAY D7667702 MAY D7667702 Contact Us For Availability
12
SCREW MAY M0230820 Contact Us For Availability
12
BEZEL-OUTERCASE MAY D7666402 Contact Us For Availability
12
MAY A3030341 MAY A3030341 Contact Us For Availability
12
JUMPER WIRE MAY D7365136 Contact Us For Availability
12
WIRE JUMPER MAY D7717030 Contact Us For Availability
13
INSERT MEDAL CFC 113 MAY C8904612 Contact Us For Availability
13
MAY A4539605 MAY A4539605 Contact Us For Availability
13
MAY D7292624 MAY D7292624 Contact Us For Availability
13
MAY D7681501 MAY D7681501 Contact Us For Availability
14
ESCUTCHEON MAY C3668803 Contact Us For Availability
14
MAY C8845502 MAY C8845502 Contact Us For Availability
14
MAY M0274046 MAY M0274046 Contact Us For Availability
14
MAY M0118901 MAY M0118901 Contact Us For Availability
14
MAY C8775302 MAY C8775302 Contact Us For Availability
15
ARM, DR STOP K MAY B5748702 Contact Us For Availability
15
MOTOR MAY B5602811 Contact Us For Availability
15
BRACKET, HARNESS MAY B8349201 Contact Us For Availability
15
MAY D7292681 MAY D7292681 Contact Us For Availability
15
WIRE JUMPER MAY D7365139 Contact Us For Availability
16
BUSHING-DOOR ARM MAY A3185001 Contact Us For Availability
16
RIVET A-K MAY M1205109 Contact Us For Availability
16
MAY B5675403 MAY B5675403 Contact Us For Availability
16
TRANSFORMER, AUTO MAY C8901502 Contact Us For Availability
17
SCREW MAY M0253230 Contact Us For Availability
17
MAY M0211025 MAY M0211025 Contact Us For Availability
17
MAY M0270502 MAY M0270502 Contact Us For Availability
17
MAY M0258055 MAY M0258055 Contact Us For Availability
17
MAY M0272805 MAY M0272805 Contact Us For Availability
18
ASSY, DOOR HINGE MAY C8937804 Contact Us For Availability
18
BRACKET INTERLOCK MAY B8332501 Contact Us For Availability
18
MAY D7518606 MAY D7518606 Contact Us For Availability
18
MAY M0216522 MAY M0216522 Contact Us For Availability
18
BUSHING MAY A3293501 Contact Us For Availability
19
ASSY, DOOR HINGE MAY C8937805 Contact Us For Availability
19
SPRING A MAY A3277701 Contact Us For Availability
19
MAY A3109101 MAY A3109101 Contact Us For Availability
19
THERMAL FUSE W/TERMINALS MAY B8353203 Contact Us For Availability
19
MAY B5731701 MAY B5731701 Contact Us For Availability
20
SCREW MAY M0234030 Contact Us For Availability
20
MAY M0288010 MAY M0288010 Contact Us For Availability
20
STIRRER BLADE (ANTENNA) MAY C8708601 Contact Us For Availability
20
MAY M0272802 MAY M0272802 Contact Us For Availability
20
MAY B8334701 MAY B8334701 Contact Us For Availability
21
RIVET, POP (WHT) MAY B5642906 Contact Us For Availability
21
SWITCH-INTERLOCK (LIMIT) MAY C3670014 Contact Us For Availability
21
MAY M0325401 MAY M0325401 Contact Us For Availability
21
GASKET, BASE PAN MAY C8870702 Contact Us For Availability
22
MAY M0282007 MAY M0282007 Contact Us For Availability
22
MAY M0289505 MAY M0289505 Contact Us For Availability
22
MAY B5795002 MAY B5795002 Contact Us For Availability
22
BRKT-MAG TUBE MAY B5774402 Contact Us For Availability
22
GASKET, BASE PAN MAY C8870703 Contact Us For Availability
23
MAY M0270501 MAY M0270501 Contact Us For Availability
23
MAY C8875301 MAY C8875301 Contact Us For Availability
23
TAPE-K MAY M0275036 Contact Us For Availability
23
PROTECTOR, THERMAL MAY B5684109 Contact Us For Availability
23
MAY C8988802 MAY C8988802 Contact Us For Availability
24
NUT K MAY M0288801 Contact Us For Availability
24
INTLK SW-WELD MAY B8324002 Contact Us For Availability
24
SUB D7457103 MAY D7457101 Contact Us For Availability
24
MAY M0216531 MAY M0216531 Contact Us For Availability
24
WIRE ASSY MAY B8393001 Contact Us For Availability
25
MAY A3168101 MAY A3168101 Contact Us For Availability
25
MAY M0213123 MAY M0213123 Contact Us For Availability
25
MAY D7379601 MAY D7379601 Contact Us For Availability
25
STRAIN RELIEF MAY M0370007 Contact Us For Availability
26
CLIP PUSH ON MAY M0118905 Contact Us For Availability
26
MAY B8321802 MAY B8321802 Contact Us For Availability
26
MAY 10091701 MAY 10091701 Contact Us For Availability
27
PIN MTG MAY B8372701 Contact Us For Availability
27
MAY M0118801 MAY M0118801 Contact Us For Availability
27
MAY A3030301 MAY A3030301 Contact Us For Availability
28
MAY M0274032 MAY M0274032 Contact Us For Availability
28
MAY D7695901 MAY D7695901 Contact Us For Availability
28
MAY M0227520 MAY M0227520 Contact Us For Availability
28
MAY M0234117 MAY M0234117 Contact Us For Availability
29
TERMINAL BOARD MAY C8988704 Contact Us For Availability
29
MAY C3680202 MAY C3680202 Contact Us For Availability
29
MAY M0229916 MAY M0229916 Contact Us For Availability
29
MAY A3204901 MAY A3204901 Contact Us For Availability
30
MAY M0275501 MAY M0275501 Contact Us For Availability
30
MAY C8873905 MAY C8873905 Contact Us For Availability
30
MAY D7832201 MAY D7832201 Contact Us For Availability
30
MAY C8890002 MAY C8890002 Contact Us For Availability
31
MAY 10020101 MAY 10020101 Contact Us For Availability
31
FUSE HOLDER MAY 10091101 Contact Us For Availability
31
MAY B5677203 MAY B5677203 Contact Us For Availability
32
MAY M0104102 MAY M0104102 Contact Us For Availability
32
MAY M0308801 MAY M0308801 Contact Us For Availability
32
MAY M0805201 MAY M0805201 Contact Us For Availability
32
SPRING MAY B8364201 Contact Us For Availability
33
WASHER MAY M0272503 Contact Us For Availability
33
MAY M0282901 MAY M0282901 Contact Us For Availability
33
MAY 10172902 MAY 10172902 Contact Us For Availability
34
CLIP MAY M0114002 Contact Us For Availability
34
MAY M0104104 MAY M0104104 Contact Us For Availability
35
MAY A3205602 MAY A3205602 Contact Us For Availability
35
MAY B8392501 MAY B8392501 Contact Us For Availability
36
MAY M0207943 MAY M0207943 Contact Us For Availability
36
FILTER MAY B5714801 Contact Us For Availability
37
BUSHING MAY A3182101 Contact Us For Availability
38
MAY B8343701 MAY B8343701 Contact Us For Availability
39
MAY M0282010 MAY M0282010 Contact Us For Availability
40
MAY A3181801 MAY A3181801 Contact Us For Availability
41
MAY C8812901 MAY C8812901 Contact Us For Availability
44
GASKET K MAY A4591129 Contact Us For Availability
45
MAY C8933801 MAY C8933801 Contact Us For Availability
46
MAY C8937702 MAY C8937702 Contact Us For Availability
47
MAY M0233844 MAY M0233844 Contact Us For Availability
48
MAY M0282015 MAY M0282015 Contact Us For Availability
49
WASHER, STAR MAY M0272405 Contact Us For Availability
NI
TAPE PER ROLL MAY M0275154 Contact Us For Availability
× ![]()
