Model Whirlpool RB770PXBQ2 – Common Parts & Diagrams

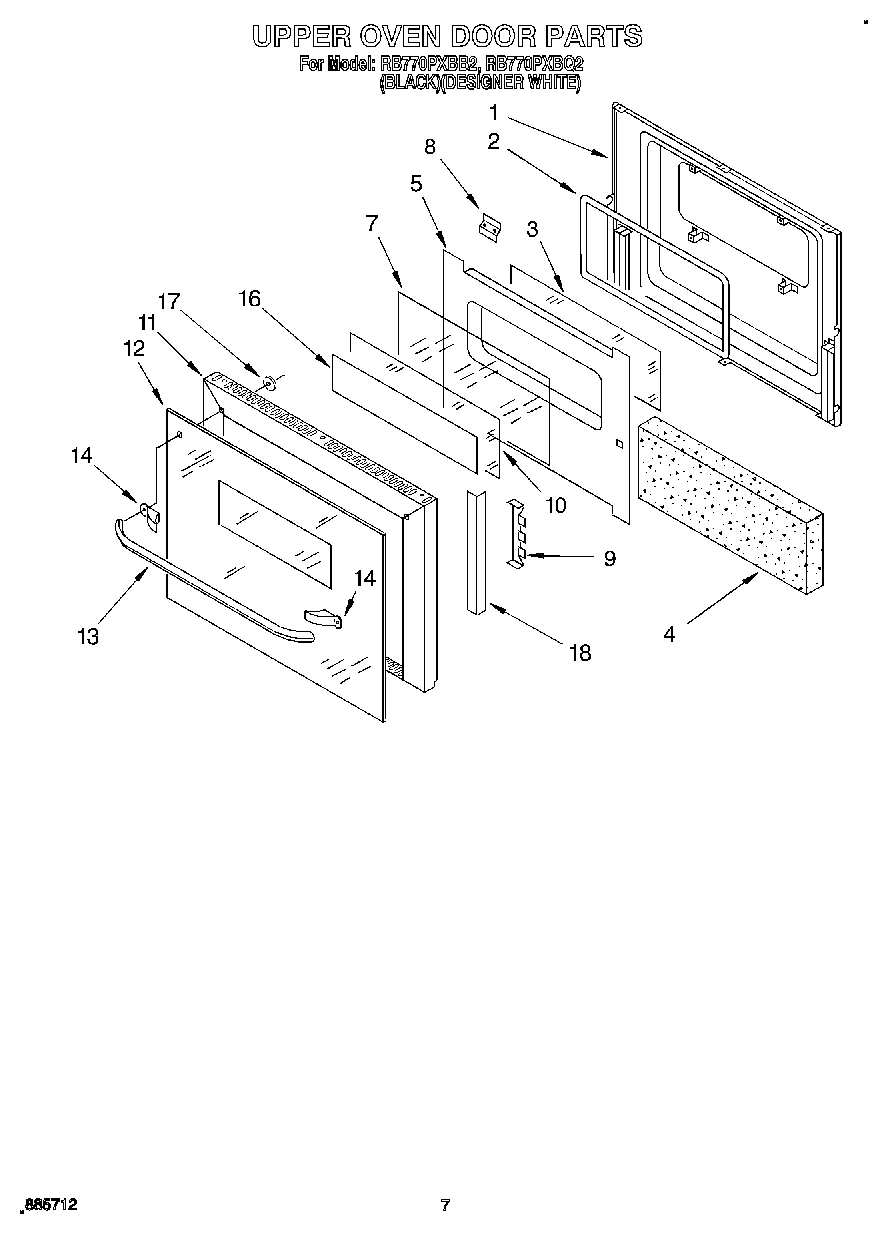

04 - UPPER OVEN DOOR

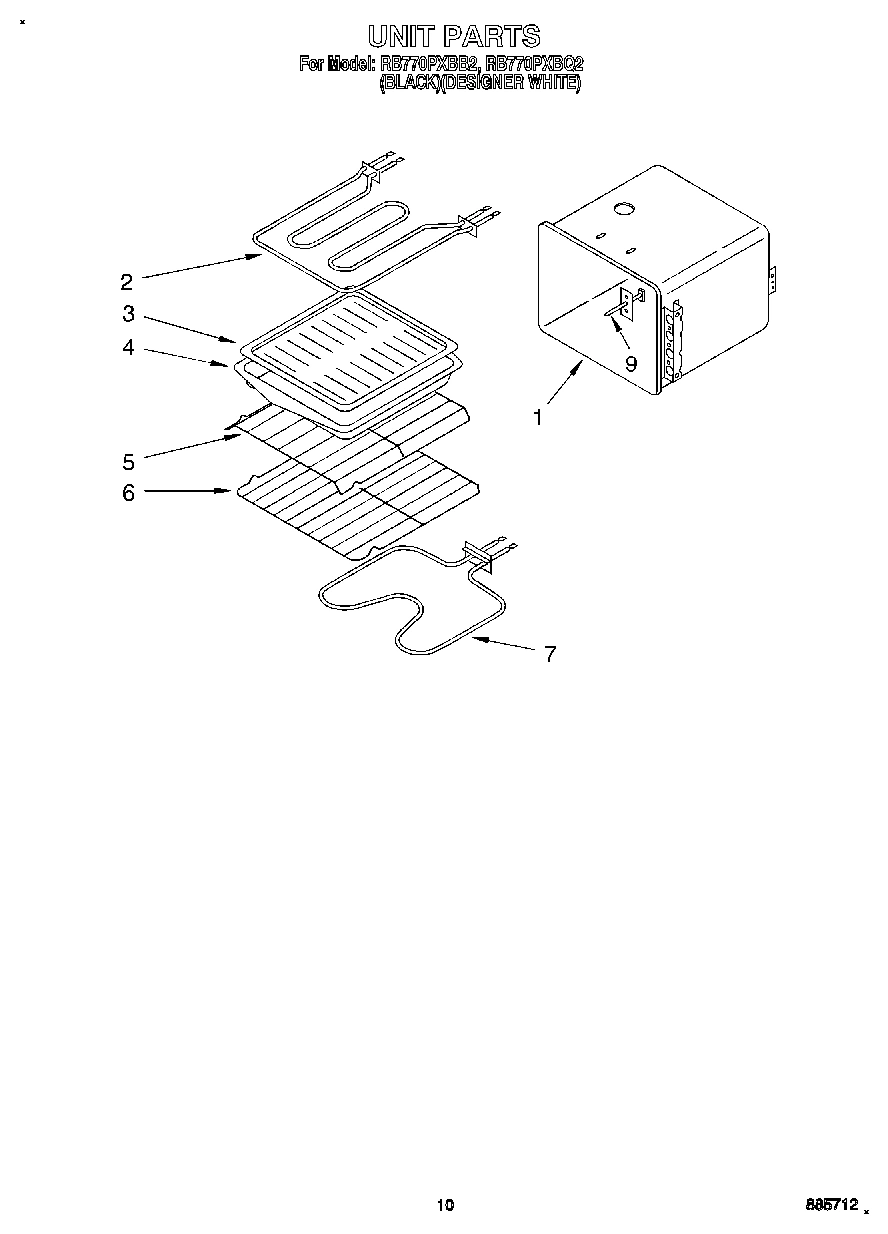

07 - UNIT

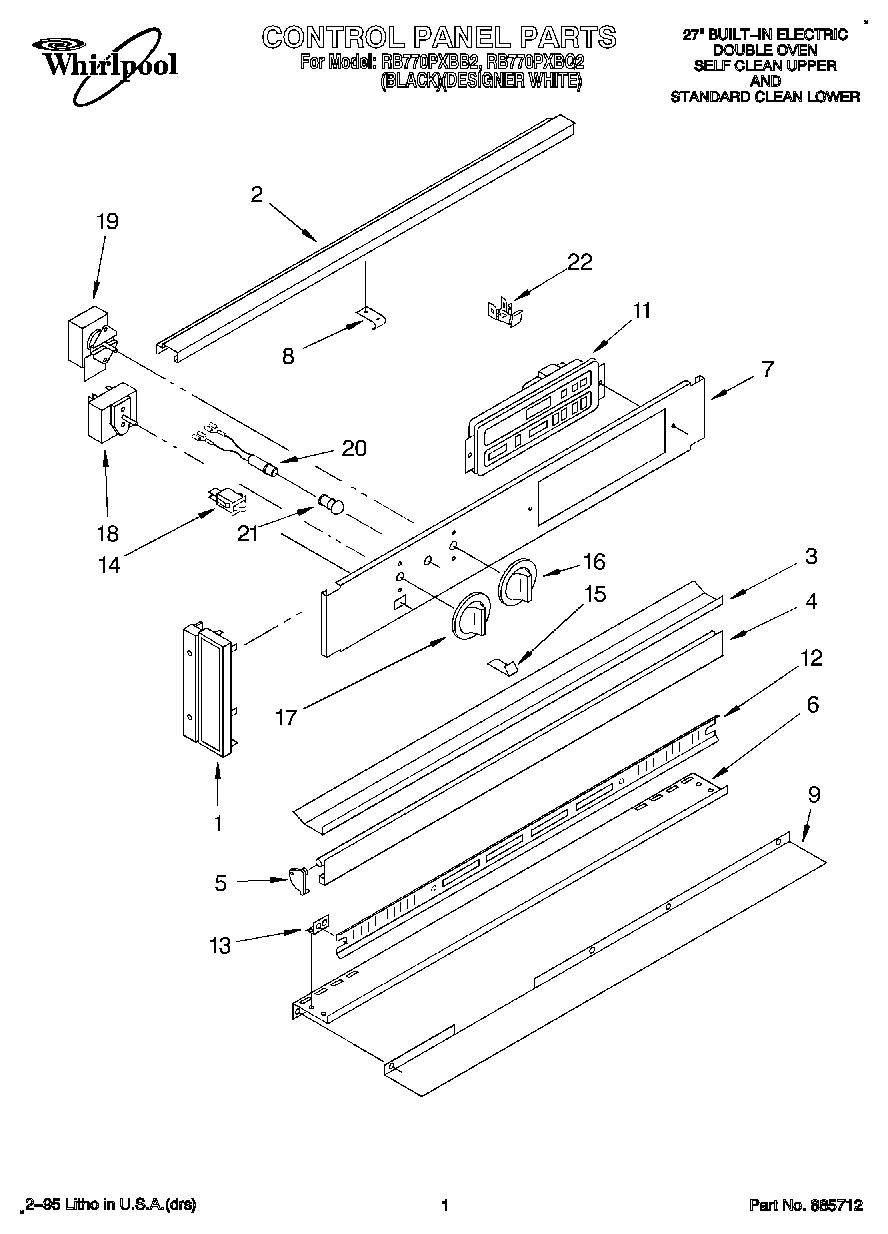

01 - CONTROL PANEL, LITERATURE

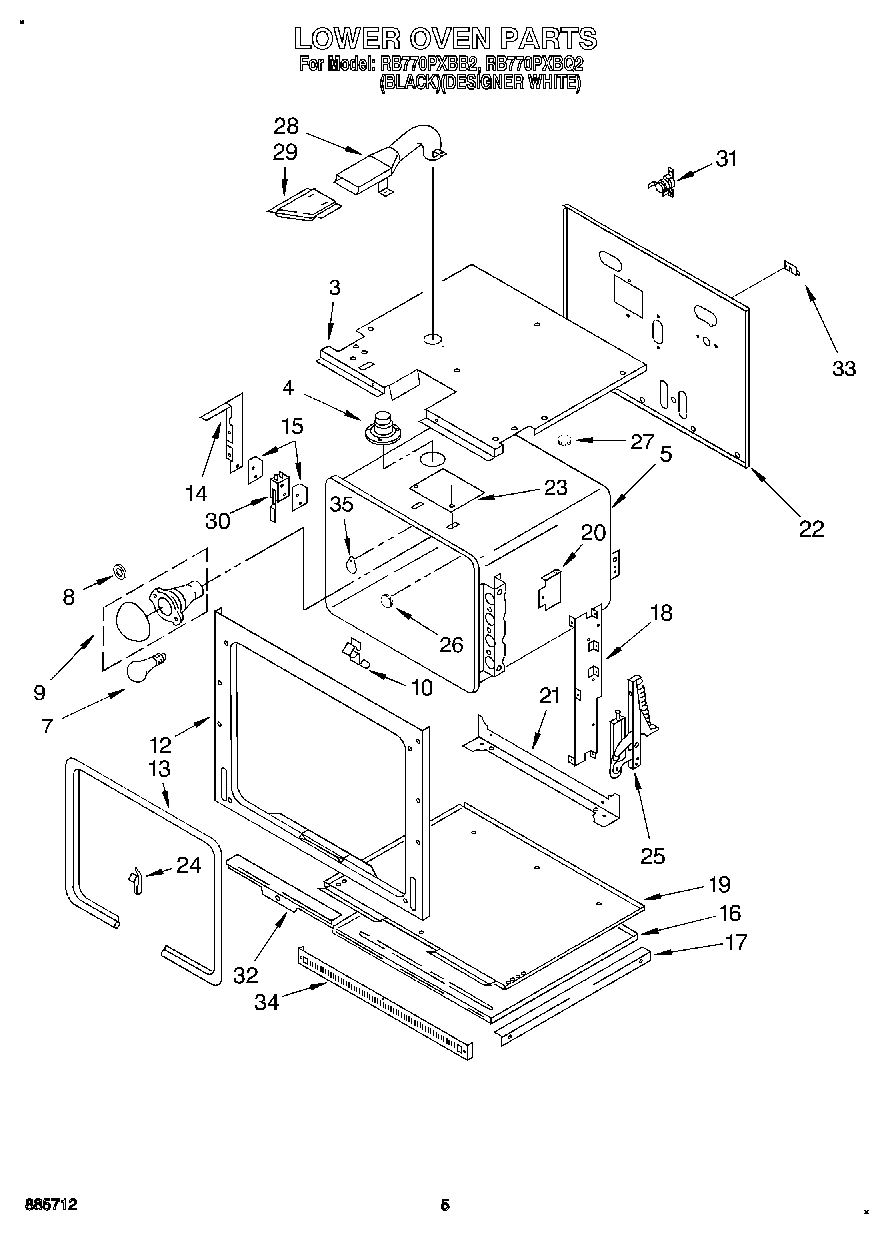

03 - LOWER OVEN

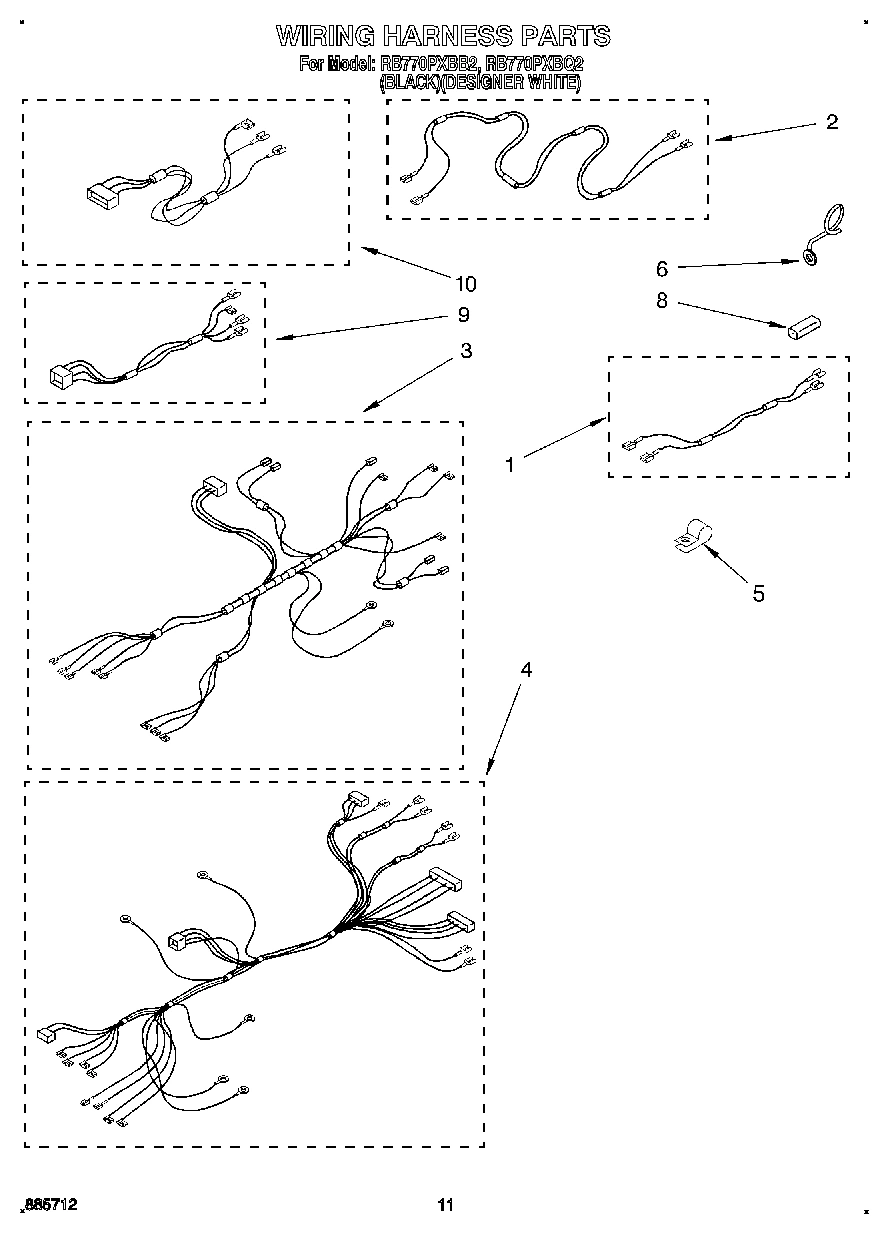

08 - WIRING HARNESS

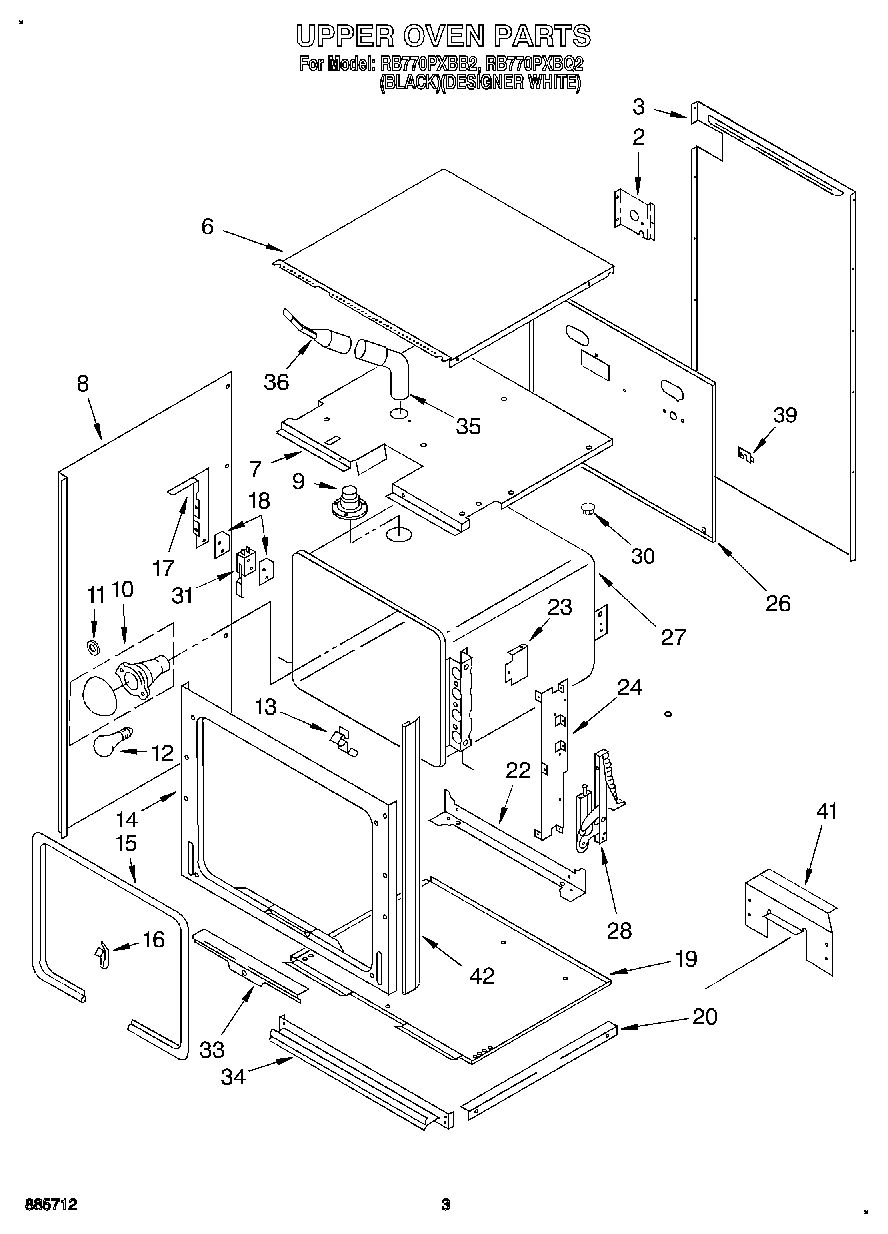

02 - UPPER OVEN

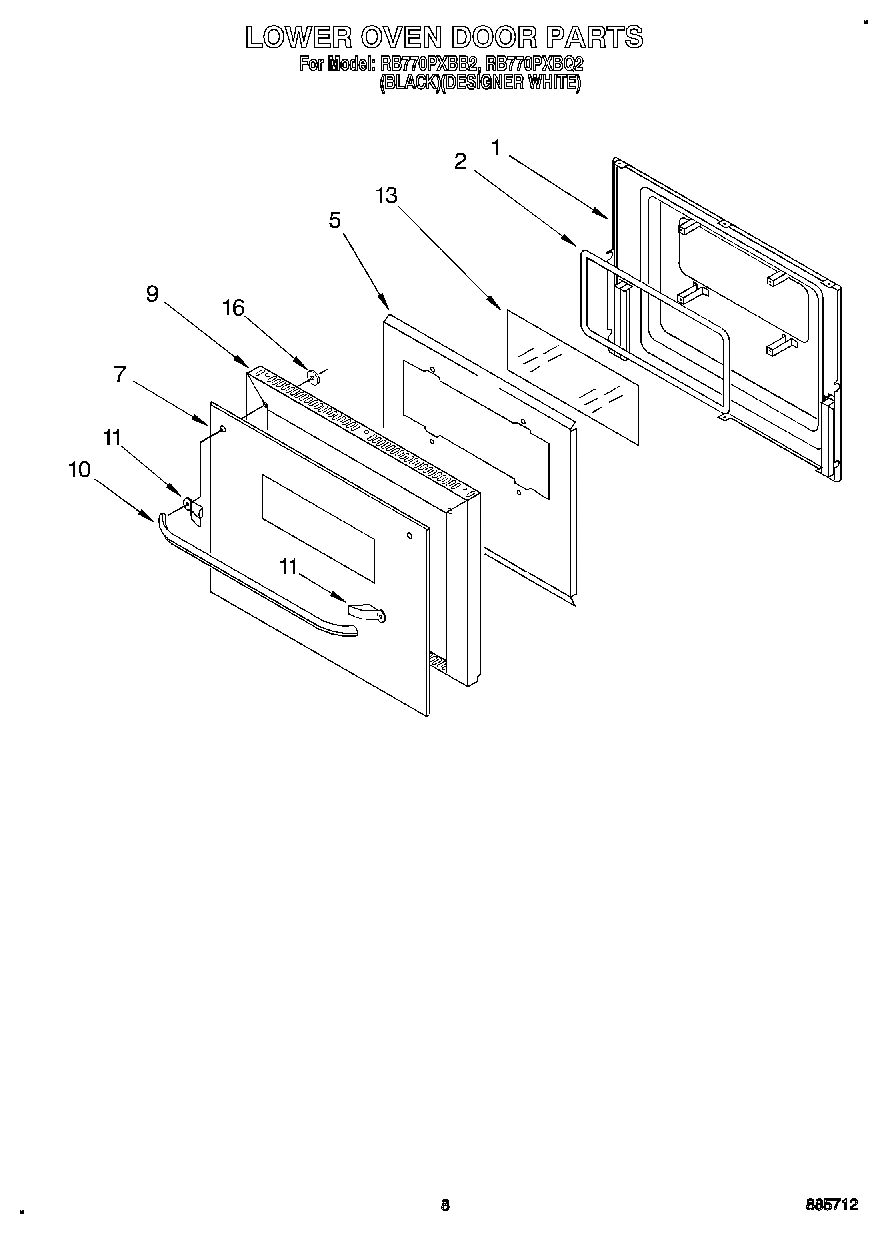

05 - LOWER OVEN DOOR

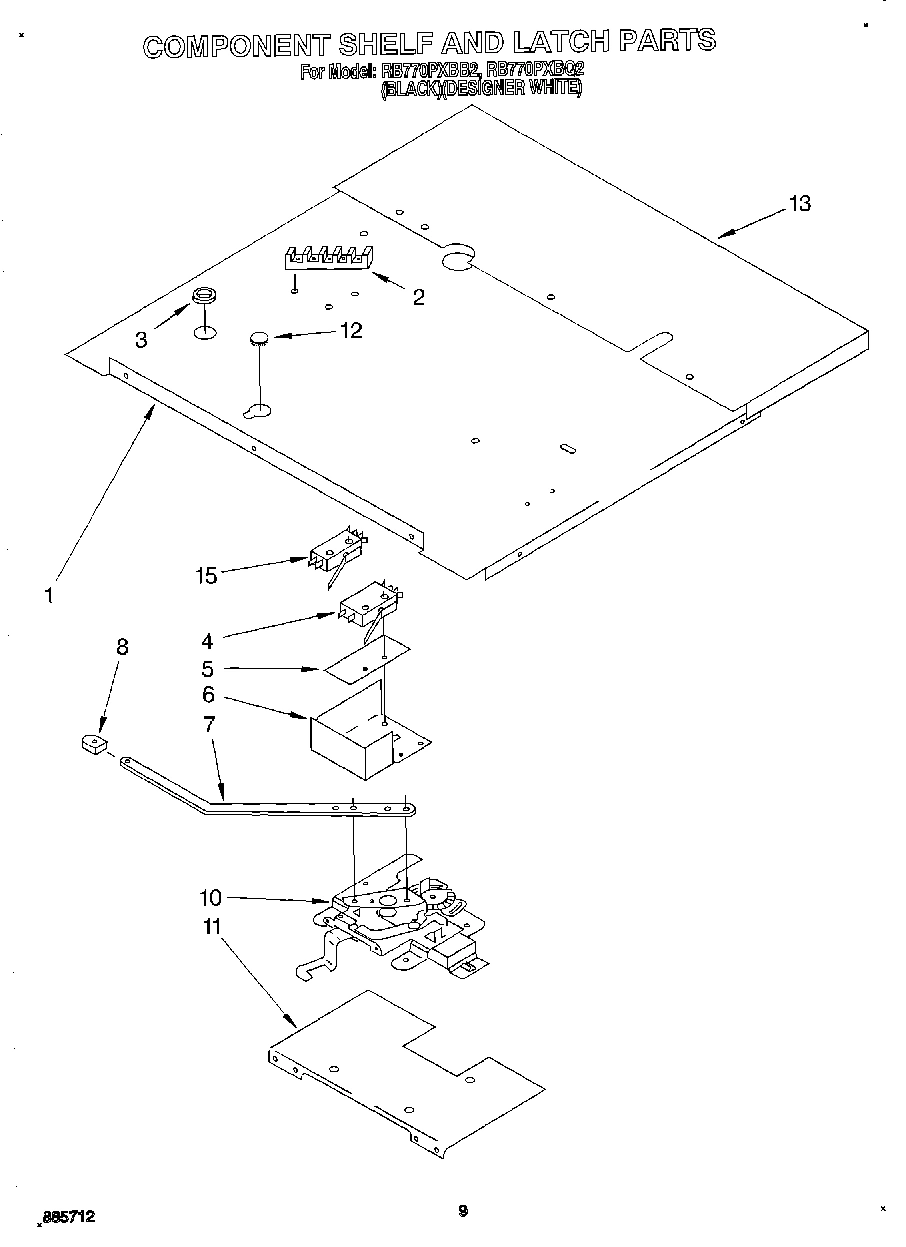

06 - COMPONENT SHELF AND LATCH
Common parts from model Whirlpool RB770PXBQ2
WPL LIT3181454 WPL LIT3181454 Contact Us For Availability
WPL LIT3183636 WPL LIT3183636 Contact Us For Availability
WPL LIT3186642 WPL LIT3186642 Contact Us For Availability
WPL LIT3188184 WPL LIT3188184 Contact Us For Availability
1
End Cap (Black Model, LH) WPL 3188123 Contact Us For Availability
1
End Cap (Black Model, RH) WPL 3188124 Contact Us For Availability
1
End Cap (White Model, LH) WPL 3188125 Contact Us For Availability
1
End Cap (White Model, RH) WPL 3188126 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3187607 Contact Us For Availability
1
Liner, Door WPL 3185498 Contact Us For Availability
1
Shelf, Component WPL 3184592 Contact Us For Availability
2
Retainer (2) WPL 3182950 Contact Us For Availability
2
Trim, Top (White Model) WPL 3187969 Contact Us For Availability
2
Trim, Top (Black Model) WPL 3187971 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3183656 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Gasket, Window WPL 3185462 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183573 Contact Us For Availability
3
Trim, Center (White Model) WPL 3187962 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3186591 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
4
Door, Vent (Black Model) WPL 3183501 Contact Us For Availability
4
Door, Vent (White Model) WPL 3187981 Contact Us For Availability
4
Smoke Eliminator WPL 3186933 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3186590 Contact Us For Availability
4
Switch, Latch WPL 3178671 Contact Us For Availability
5
Rack, Offset WPL 3185367 Contact Us For Availability
5
End Trim (Vent Door) (L.H. White) WPL 3148471 Contact Us For Availability
5
End Trim (Vent Door) (R.H. White) WPL 3148472 Contact Us For Availability
5
End Trim, Vent Door L.H. (Black) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door (R.H.) (Black) WPL 3148698 Contact Us For Availability
5
Clamp (3/4 I.D.) WPL 3184792 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Rack, Oven (2) WPL 3185368 Contact Us For Availability
6
Trim, Bottom (Black Model) WPL 3184408 Contact Us For Availability
6
Trim, Bottom (White Model) WPL 3188153 Contact Us For Availability
6
Trim, Bottom (Screw) WPL 342043 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Cabinet, Top WPL 3178143 Contact Us For Availability
6
Screw, WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
7
Control Panel (Black Model) WPL 3184650 Contact Us For Availability
7
Control Panel (White Model) WPL 3184651 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Glass, Door (Black Model) WPL 3187868 Contact Us For Availability
7
Glass, Door (White Model) WPL 3187870 Contact Us For Availability
7
Screw WPL 3185414 Contact Us For Availability
7
Handle, Latch WPL 3186898 Contact Us For Availability
8
Screw (2) WPL 3184042 Contact Us For Availability
8
Stiffener, Bracket WPL 3183492 Contact Us For Availability
8
Side, Cabinet WPL 3177440 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
9
Screw (3) WPL 3185648 Contact Us For Availability
9
Sensor, Heat WPL 3148440 Contact Us For Availability
9
Trim, Vent Upper (White Model) WPL 3184588 Contact Us For Availability
9
Trim, Vent Upper (Black Model) WPL 3184589 Contact Us For Availability
9
Wiring Harness (Latch Assembly) WPL 3186593 Contact Us For Availability
9
Smoke Eliminator WPL 3186684 Contact Us For Availability
9
Frame, Door (Black Model) WPL 3187850 Contact Us For Availability
9
Frame, Door (White Model) WPL 3187852 Contact Us For Availability
10
Handle, Door (Black Model) WPL 3187946 Contact Us For Availability
10
Handle, Door (Screw) WPL 4173601 Contact Us For Availability
10
Wiring, Harness (Latch Assembly Lower) WPL 3186594 Contact Us For Availability
10
Handle, Door (Screw) WPL 3178001 Contact Us For Availability
10
Handle, Door (White Model) WPL 3187944 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Spacer (Black Model) WPL 9750826FB Contact Us For Availability
11
Spacer (White Model) WPL 9750826FW Contact Us For Availability
11
Electronic Timer (Black Model) WPL 3169256 Contact Us For Availability
11
Electronic Timer (White Model) WPL 3169257 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Screw WPL 3179116 Contact Us For Availability
12
Insert, Vent WPL 3179916 Contact Us For Availability
12
Frame, Front WPL 3177688 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
13
Screw Bottom (2) WPL 3185647 Contact Us For Availability
13
Bracket, Vent Insert WPL 3181279 Contact Us For Availability
13
Extenstion, Shelf WPL 3178132 Contact Us For Availability
14
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
14
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
14
Frame, Front WPL 3186950 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Stiffener Bracket WPL 3183493 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Screw WPL 3177988 Contact Us For Availability
15
Switch, Latch WPL 3178187 Contact Us For Availability
16
Foil, Adhesive WPL 3188633 Contact Us For Availability
16
Bushing WPL 3188599 Contact Us For Availability
16
Knob, Thermostat (Black Model) WPL 3183106 Contact Us For Availability
16
Knob, Thermostat (White Model) WPL 3183107 Contact Us For Availability
16
Bottom, Oven WPL 3177551 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Knob Selector (Black Model) WPL 3183109 Contact Us For Availability
17
Knob Selector (White Model) WPL 3183110 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Foil-Adhesive WPL 3188635 Contact Us For Availability
18
Switch, Selector WPL 3183583 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Thermostat WPL 3169303 Contact Us For Availability
19
Screw WPL 3186941 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Light, Indic WPL 314031 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
WPL 309133 WPL 309133 Contact Us For Availability
21
WPL 313101 WPL 313101 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
26
Button, Plug WPL 3185085 Contact Us For Availability
27
Liner, Oven WPL 3185562 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent Male WPL 3179945 Contact Us For Availability
29
Tube, Vent (Female) (White Model) WPL 3181964 Contact Us For Availability
29
Tube, Vent (Female) (Black Model) WPL 3187388 Contact Us For Availability
30
Button, Plug WPL 3182814 Contact Us For Availability
31
Thermostat WPL 3149653 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Screw WPL 3179776 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw WPL 4168863 Contact Us For Availability
34
Trim, Lower Vent (Black Model) WPL 3177783 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3187957 Contact Us For Availability
34
Vent, Middle Trim (Black Model) WPL 3187889 Contact Us For Availability
34
Vent, Middle Trim (White Model) WPL 3187891 Contact Us For Availability
34
Vent, Middle Trim (Screw (4)) WPL 3188645 Contact Us For Availability
35
Plate, Cover WPL 3184208 Contact Us For Availability
35
Tube, Vent (Upper Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3184652 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
41
Bracket, Control WPL 3183752 Contact Us For Availability
42
Insulation, Back WPL 3177872 Contact Us For Availability
42
Insulation, Wrap WPL 4454418 Contact Us For Availability
42
Trim, Door Side (2) (Black Model) WPL 3187875 Contact Us For Availability
42
Side Trim, Door (2) (White Model) WPL 3187878 Contact Us For Availability
× ![]()
