Model Whirlpool RB23KN-4AF REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER COMPARTMENT

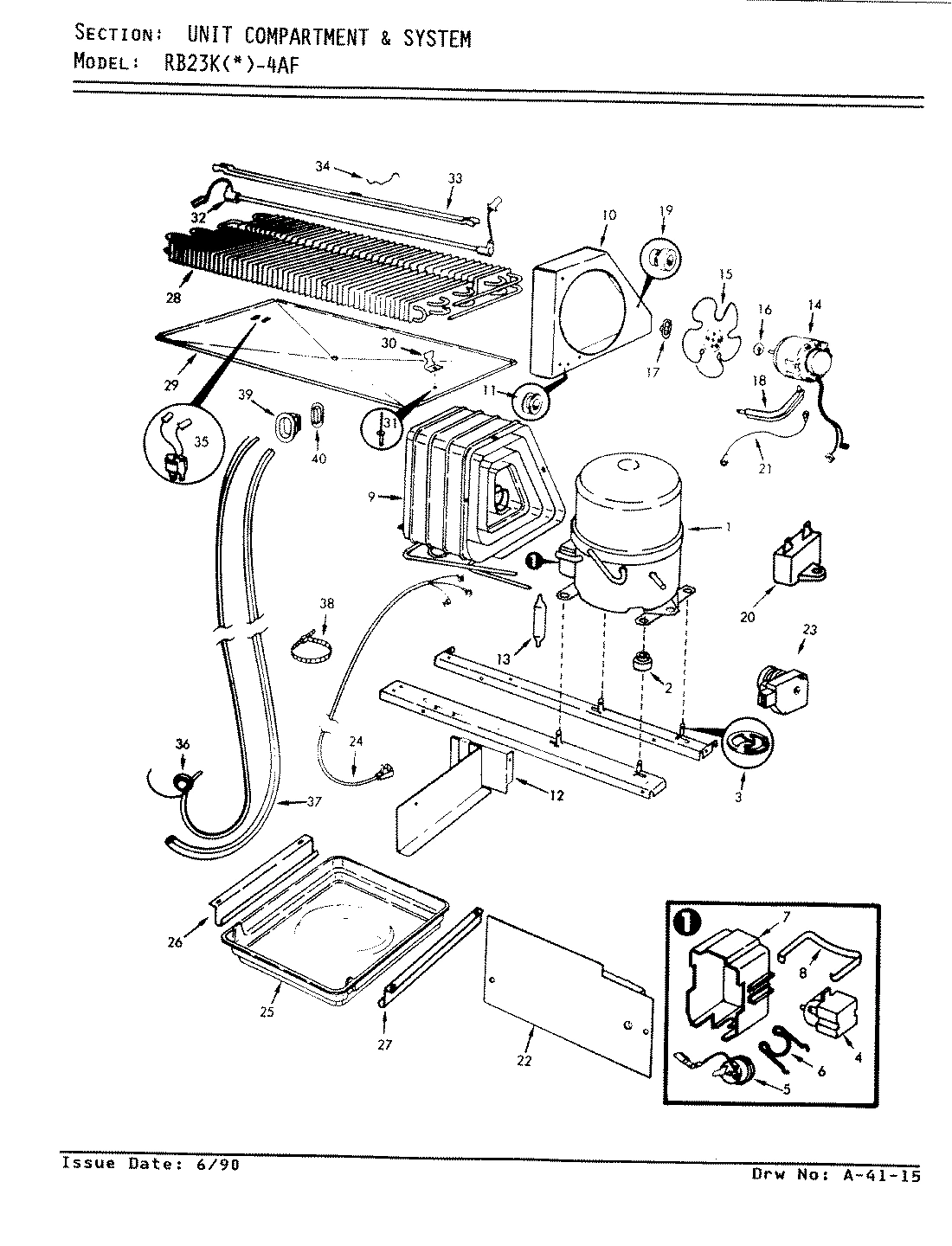

04 - UNIT COMPARTMENT & SYSTEM
01 - CHEST OF DRAWERS

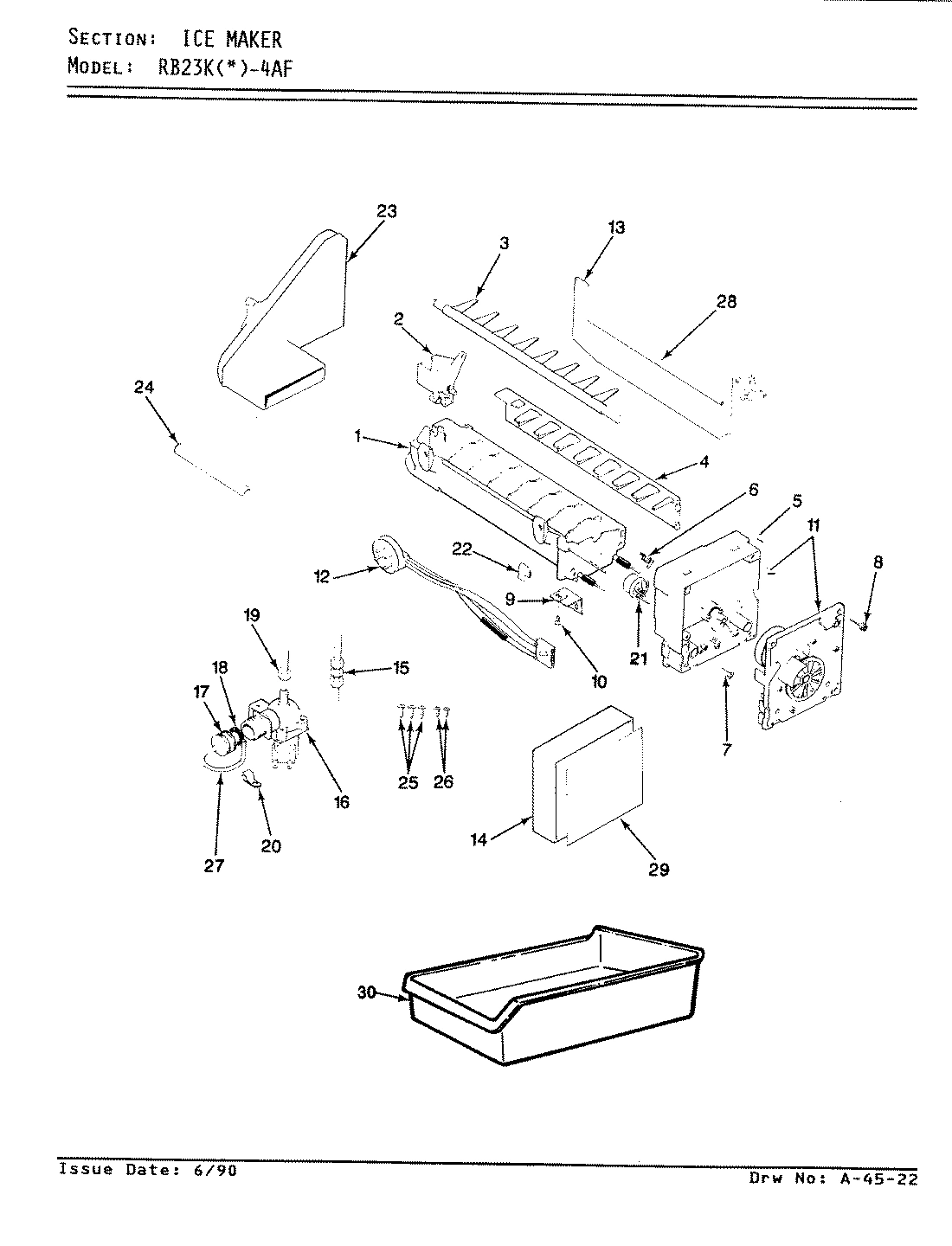

03 - ICE MAKER
Common parts from model Whirlpool RB23KN-4AF REFRIGERATOR
1
TRAY, FOAM MULL WPL 675213 Contact Us For Availability
1
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL 84`` WPL 688664 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687563 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DRAWER, UTILITY WPL 685131 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
PAN, MEAT WPL 685134 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
PAN, CRISPER WPL 685141 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
UPPER RAIL WPL 685153 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
AIR TUNNEL WPL 685924 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664033 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
10
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
11
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664771 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
12
SHELF, FRZ WPL 6043821 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
TRIM WPL 682711 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
COVER, PLENUM WPL 664806 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM WPL 687875 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
16
TRIM, SHELF WPL 6813625 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
FRONT, FOUR DWR WPL 682731 Contact Us For Availability
16
CLIP WPL 550422 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
18
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
SCREW WPL 652751 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682752 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
19
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
SCREW WPL 4000171 Contact Us For Availability
20
PAN COVER WPL 682781 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
BULKHEAD WPL 685821 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661282 Contact Us For Availability
23
TRIM, HANDLE WPL 685831 Contact Us For Availability
23
TRIM, HANDLE WPL 685833 Contact Us For Availability
23
TRIM, HANDLE WPL 685835 Contact Us For Availability
23
SCREW WPL 400018103 Contact Us For Availability
23
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
RETRAINER, CONTROL SLIDE WPL 682881 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
COVER, GLASS WPL 682921 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
SCREW WPL 4010181 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
FRONT ASSY WPL 686391 Contact Us For Availability
27
CODE U WPL 602181 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
28
FRONT, CRISPER WPL 686395 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
FRONT, FRUIT & VEG WPL 686401 Contact Us For Availability
29
INSERT,ICE MAKER COVER WPL 674282 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
SCREW WPL 4000161 Contact Us For Availability
30
RAIL, SUPPORT WPL 687564 Contact Us For Availability
30
PAN, ICE WPL 683271 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 688393 Contact Us For Availability
× ![]()
