Model Whirlpool RB23JN-4A REFRIGERATOR – Common Parts & Diagrams

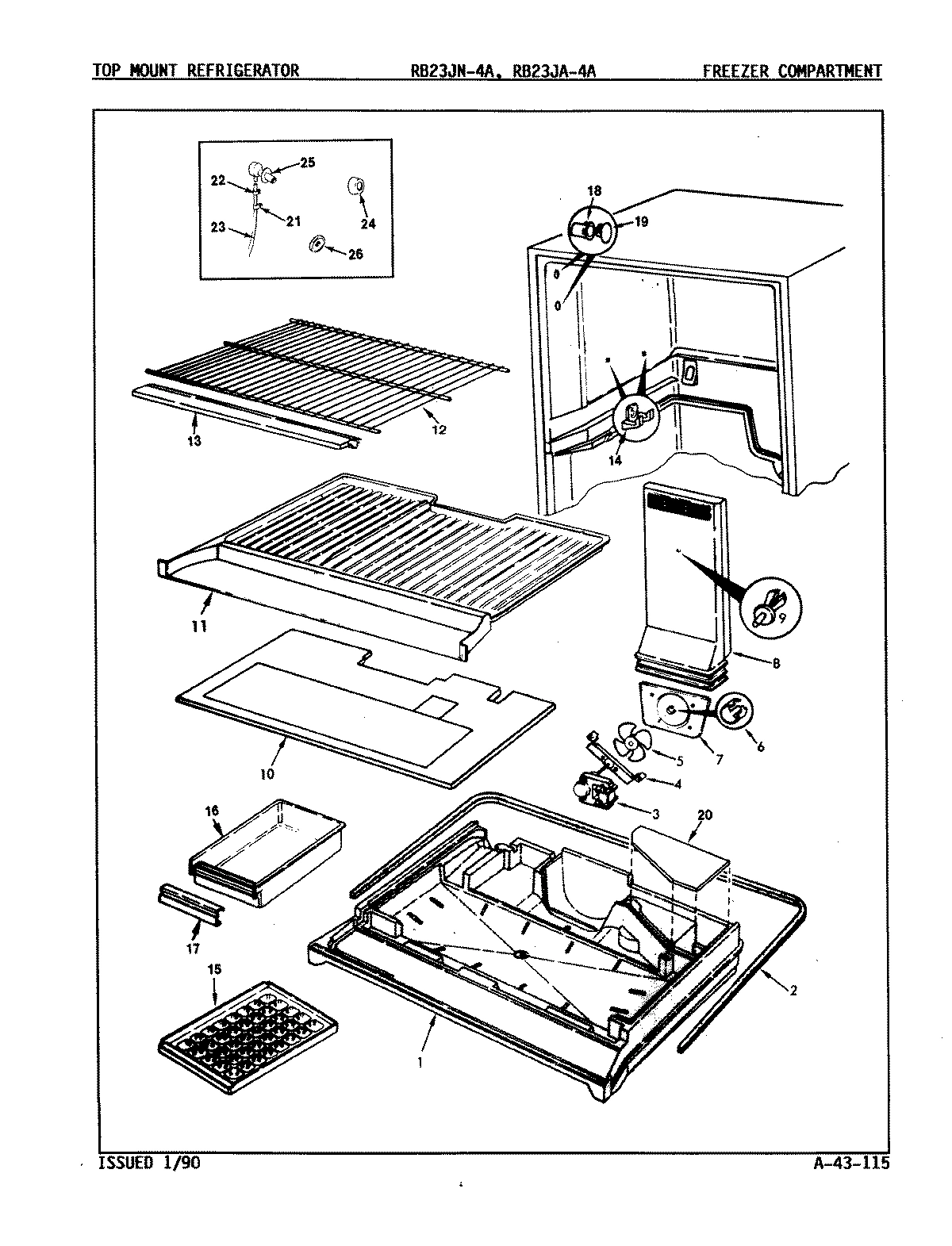

03 - FREEZER COMPARTMENT

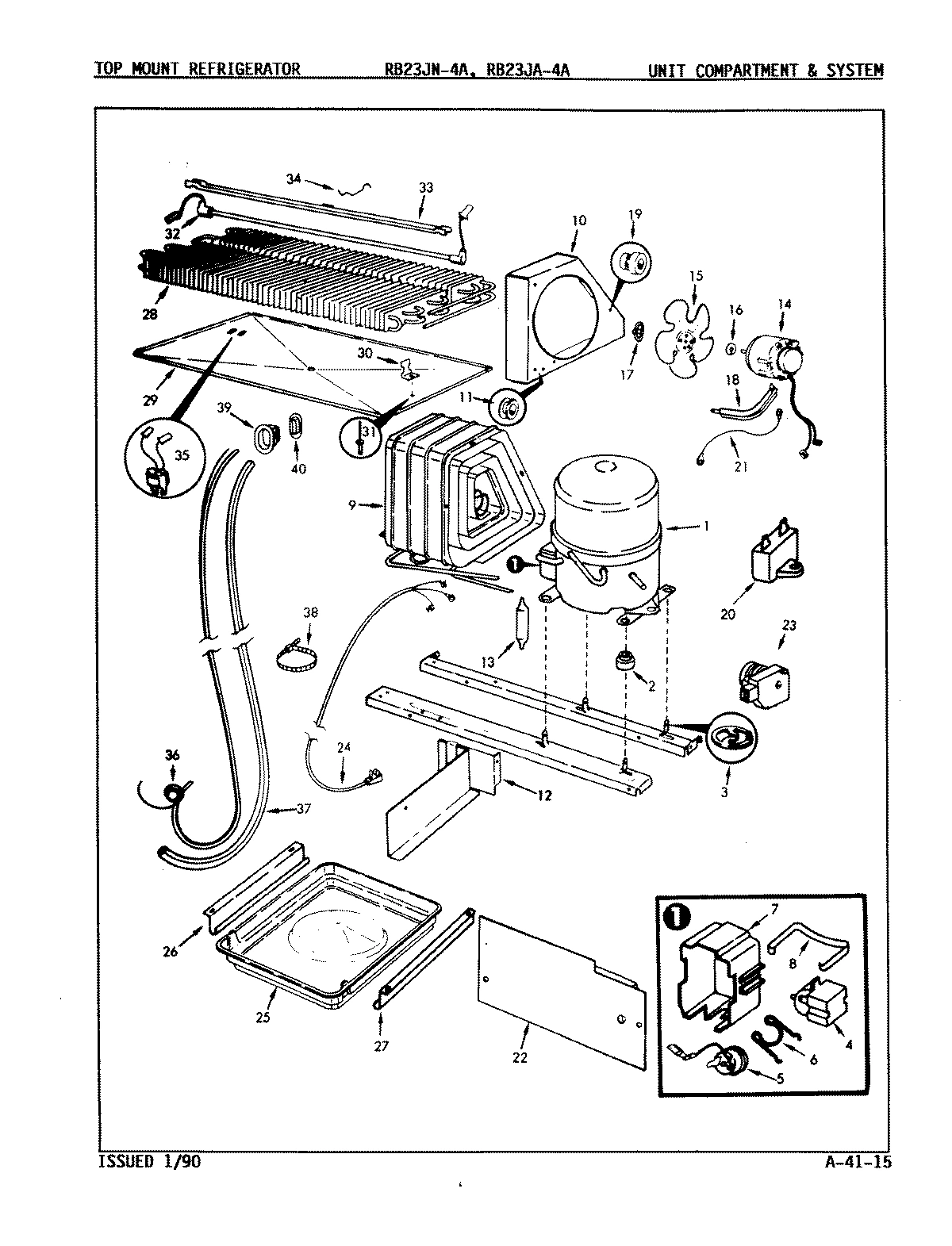

05 - UNIT COMPARTMENT & SYSTEM

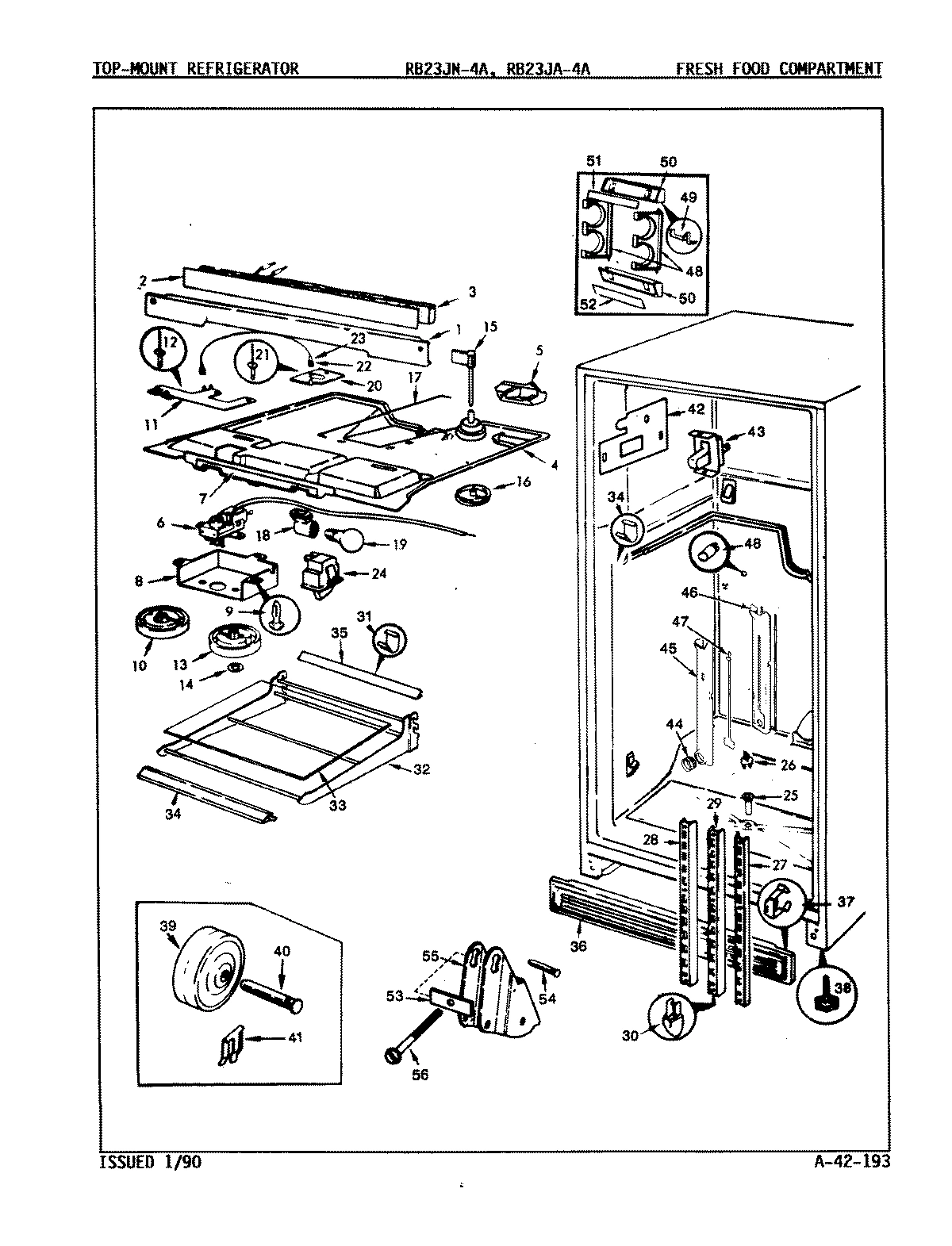

04 - FRESH FOOD COMPARTMENT

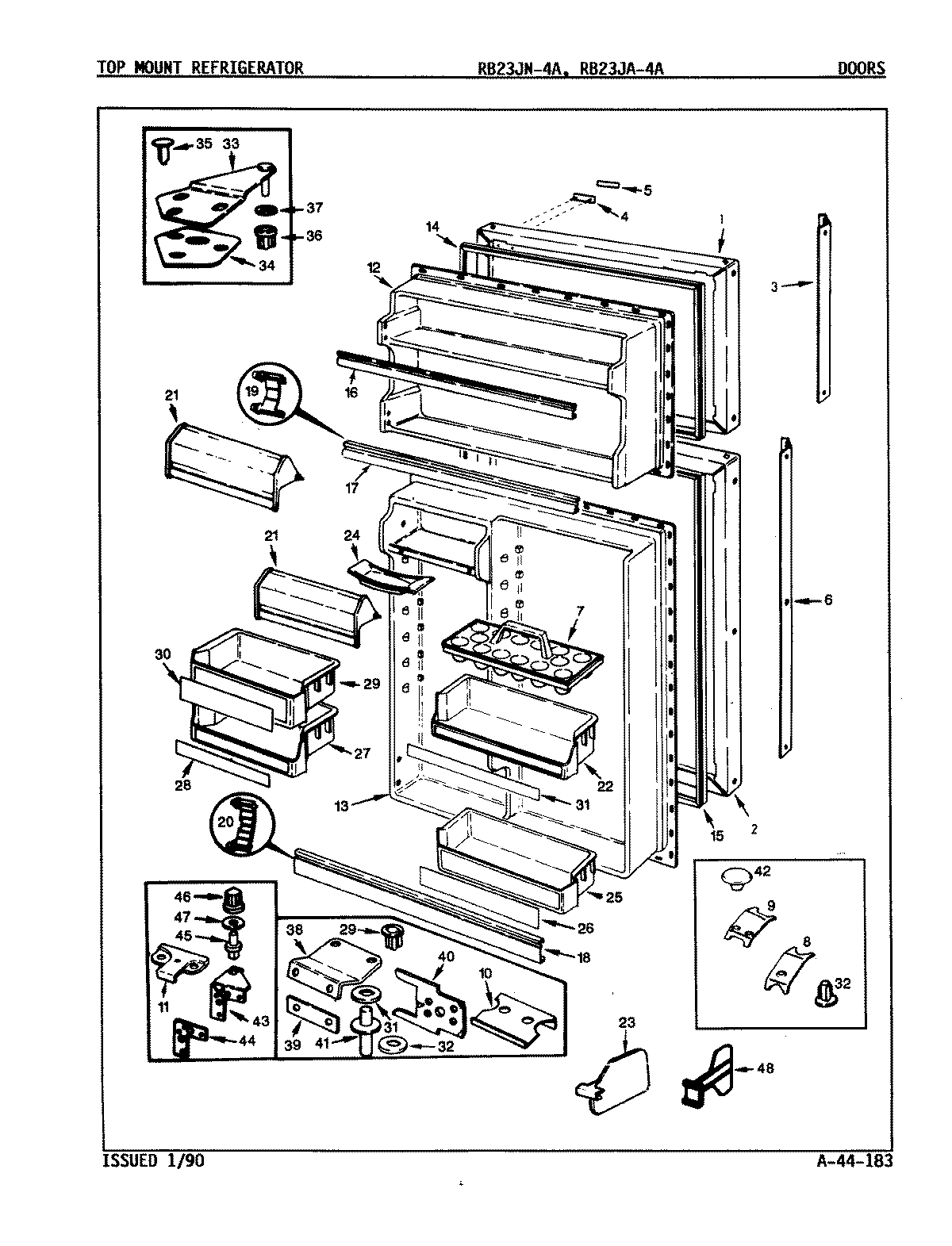

02 - DOORS

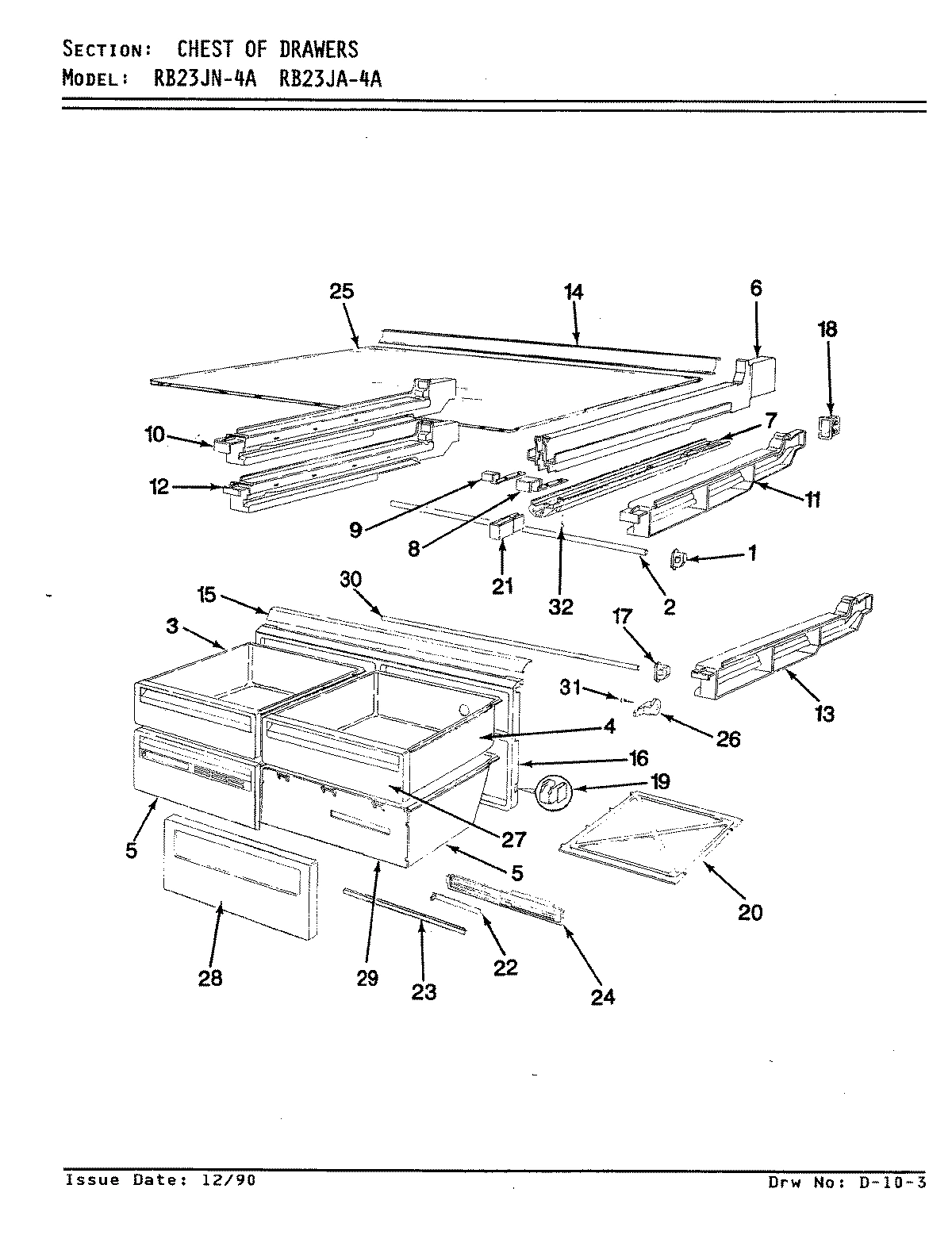

01 - CHEST OF DRAWERS
Common parts from model Whirlpool RB23JN-4A REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 666081 Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 657973WW Contact Us For Availability
1
OUTER PANEL WPL 6003364WW Contact Us For Availability
1
CUP SHELF SUPPORT WPL 672051 Contact Us For Availability
2
SEAL WPL 655184 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HEATER WIRE WPL 601059 Contact Us For Availability
2
OUTER PANEL WPL 6003222WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
ROD, CRISPER SHELF WPL 677824 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
INSULATION WPL 601403 Contact Us For Availability
3
WIRE HARNESS WPL 605602 Contact Us For Availability
3
HANDLE, FRZ. DOOR WPL 684021 Contact Us For Availability
3
DRAWER, UTILITY WPL 685131 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008556 Contact Us For Availability
4
INSERT, NAMEPLATE WPL 669814 Contact Us For Availability
4
PAN, MEAT WPL 685134 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329411 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
ANCHOR WPL 603193 Contact Us For Availability
5
INSERT, NAMEPLATE WPL 6698210 Contact Us For Availability
5
PAN, CRISPER WPL 685141 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
6
SCREW WPL 652754 Contact Us For Availability
6
HANDLE, F.F. DOOR WPL 684022 Contact Us For Availability
6
UPPER RAIL WPL 682671 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
INSERT, TRIM ESCUTCHEON WPL 6057159 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
8
TUNNEL, AIR WPL 660444 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
10
COVER, EVAPORATOR WPL 605573 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
KNOB, CONTROL WPL 685205 Contact Us For Availability
10
DOOR STOP WPL 600301 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664771 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
DOOR STOP WPL 604191 Contact Us For Availability
11
SCREW WPL 9986108 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
12
SHELF, FRZ WPL 6043821 Contact Us For Availability
12
BAFFLE WPL 664933 Contact Us For Availability
12
LINER, DOOR WPL 659364 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
13
TRIM, SHELF WPL 6813625 Contact Us For Availability
13
KNOB, CONTROL WPL 685206 Contact Us For Availability
13
SCREW WPL 652755 Contact Us For Availability
13
INNER PANEL WPL 687212 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
GASKET, DOOR WPL 661997 Contact Us For Availability
14
TRIM WPL 682711 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DAMPER, FRZ CONTROL WPL 684191 Contact Us For Availability
15
GASKET, DOOR WPL 661998 Contact Us For Availability
15
FRONT TRIM WPL 682721 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
FRONT, FOUR DWR WPL 682731 Contact Us For Availability
17
TRIM, HANDLE PAN WPL 60132100 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
17
TRIM, FRZ DR SHELF WPL 6837513 Contact Us For Availability
17
CUP, SUPPORT ROD WPL 682741 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 683769 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682751 Contact Us For Availability
19
PLUG WPL 603211 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
20
COVER, PLENUM WPL 664803 Contact Us For Availability
20
ORIFICE, PLENUM WPL 683302 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
RETAINER WPL 652461 Contact Us For Availability
20
PAN COVER WPL 682781 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
DOOR, DAIRY (LARGE) WPL 66184363 Contact Us For Availability
21
DOOR, DAIRY WPL 66184364 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
GROUND WIRE WPL 2967522 Contact Us For Availability
22
DOOR SHELF WPL 6003740 Contact Us For Availability
22
BULKHEAD WPL 685821 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
23
ORGANIZER PACKAGE WPL 666456 Contact Us For Availability
23
TRIM, HANDLE WPL 682841 Contact Us For Availability
23
TRIM, HANDLE WPL 682843 Contact Us For Availability
23
TRIM HANDLE WPL 682845 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
TRAY, BUTTER WPL 299362 Contact Us For Availability
24
RETRAINER, CONTROL SLIDE WPL 682881 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
DOOR SHELF WPL 6003739 Contact Us For Availability
25
COVER, GLASS WPL 682921 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SCREW WPL 40003728 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
INSERT WPL 6813056 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
27
DOOR SHELF WPL 6003735 Contact Us For Availability
27
FRONT ASSY. WPL 683731 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
28
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
28
INSERT WPL 6813052 Contact Us For Availability
28
FRONT ASSY. WPL 683735 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
29
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
29
SHELF, PICK-OFF WPL 6003737 Contact Us For Availability
29
CRISPER PAN ASSY. WPL 683741 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
30
INSERT WPL 6813055 Contact Us For Availability
30
ROD, FRONT SUPPORT WPL 686032 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
31
INSERT WPL 6813065 Contact Us For Availability
31
SCREW WPL 4000161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
32
FRAME, SHELF WPL 6057020 Contact Us For Availability
32
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
32
SCREW WPL 4050031 Contact Us For Availability
32
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
32
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
33
GLASS CANTILEVER SHELF WPL 6813914 Contact Us For Availability
33
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
33
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TRIM, CANTILEVER SHELF WPL 6813626 Contact Us For Availability
34
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
TRIM, REAR-1/2 SHELF WPL 6527636 Contact Us For Availability
35
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
KICKPLATE WPL 601388 Contact Us For Availability
36
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
37
WASHER WPL 521851 Contact Us For Availability
37
SCREW WPL 998687 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
LEG, LEVELING WPL 60128 Contact Us For Availability
38
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
WHEEL WPL 298342 Contact Us For Availability
39
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 663312 Contact Us For Availability
40
PIN, WHEEL WPL 298352 Contact Us For Availability
40
TAPPING PLATE WPL 606221 Contact Us For Availability
40
SCREW WPL 9986107 Contact Us For Availability
41
PAINT KIT WPL RA438721 Contact Us For Availability
41
CLIP WPL 602161 Contact Us For Availability
41
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
42
MANUAL, USE & CARE WPL 1060501 Contact Us For Availability
42
BRACKET, SWITCH WPL 605831 Contact Us For Availability
42
SCREW WPL 4030625 Contact Us For Availability
42
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
42
PLUG BUTTON WPL 669202 Contact Us For Availability
43
SCREW WPL 9986117 Contact Us For Availability
43
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
43
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
44
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
44
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
45
COVER, AIR TUNNEL WPL 682852 Contact Us For Availability
45
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
46
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
46
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
47
SCREW WPL 40001528 Contact Us For Availability
47
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
47
SEAL, CLOSED CELL WPL 684181 Contact Us For Availability
47
WASHER WPL 542332 Contact Us For Availability
48
RACK, WINE WPL 565194 Contact Us For Availability
48
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
49
SPRING, WINE RACK WPL 580571 Contact Us For Availability
50
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
51
INSERT WPL 6575325 Contact Us For Availability
52
SCREW WPL 4000171 Contact Us For Availability
52
INSERT WPL 6575326 Contact Us For Availability
53
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
54
PIN, WHEEL WPL 649651 Contact Us For Availability
55
BRACKET, WHEEL WPL 675301 Contact Us For Availability
56
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
× ![]()
Login and Registration Form
