Model Whirlpool RB23FN-3A REFRIGERATOR – Common Parts & Diagrams

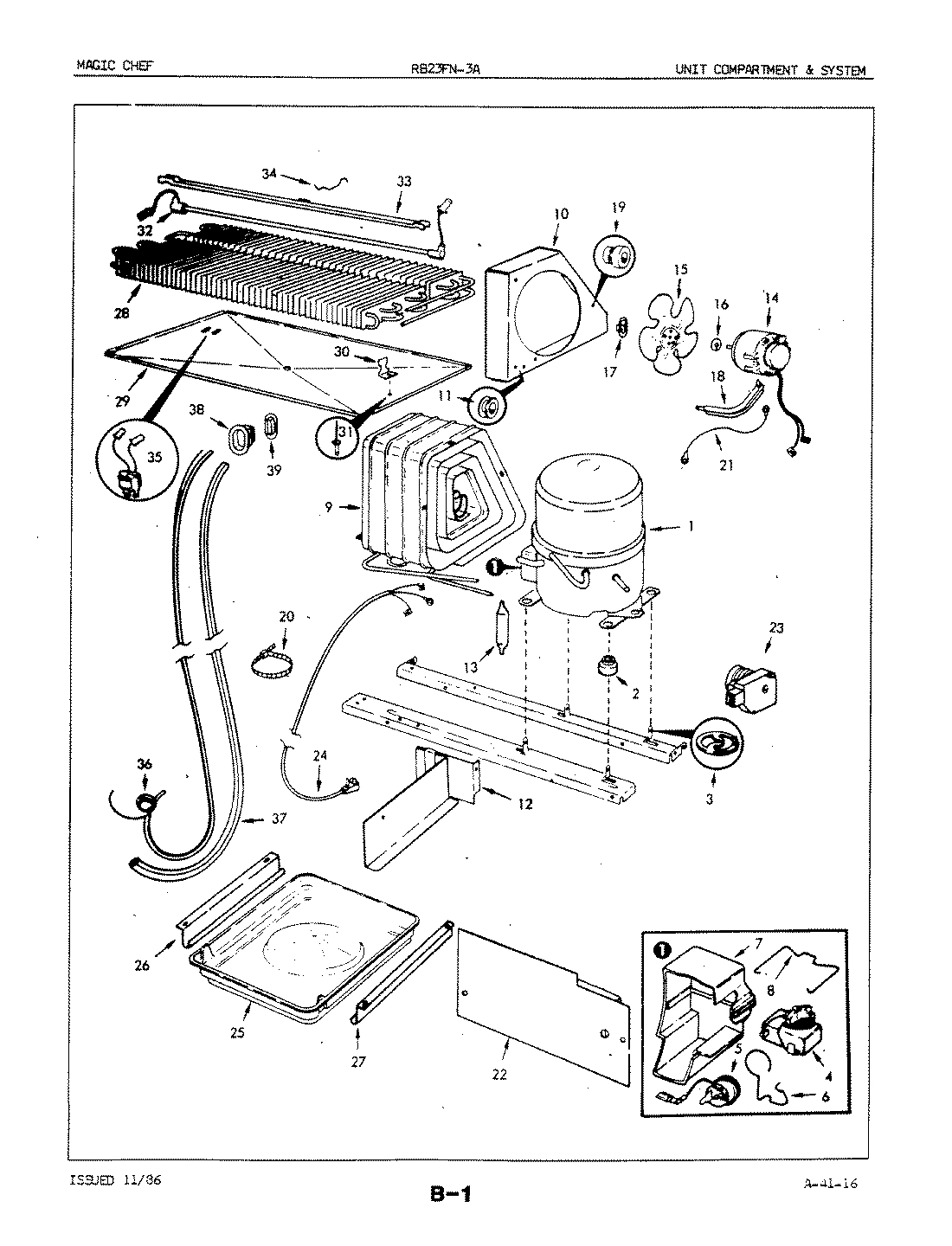

02 - UNIT COMPARTMENT & SYSTEM
01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB23FN-3A REFRIGERATOR
1
TRAY, DIVIDER WPL 605764 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL WPL 663254 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
4
RELAY, START WPL 632932 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 632942 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
CLIP WPL 632951 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
COVER WPL 632962 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP WPL 632971 Contact Us For Availability
8
TUNNEL, AIR WPL 660444 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438714 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664033 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 6047413 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
SHELF WPL 6032329 Contact Us For Availability
13
TRIM WPL 6041418 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
HANDLE WPL 6013269 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
PLUG WPL 603211 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
DIVIDER WPL 601166 Contact Us For Availability
20
WIRE TIE WPL 662231 Contact Us For Availability
20
SHELF WPL 606551 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665561 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
EVAPORATOR WPL RA4362042 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
SCREW WPL 4000171 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS WPL 605667 Contact Us For Availability
× ![]()
