Model Whirlpool RB23EN-3A REFRIGERATOR – Common Parts & Diagrams

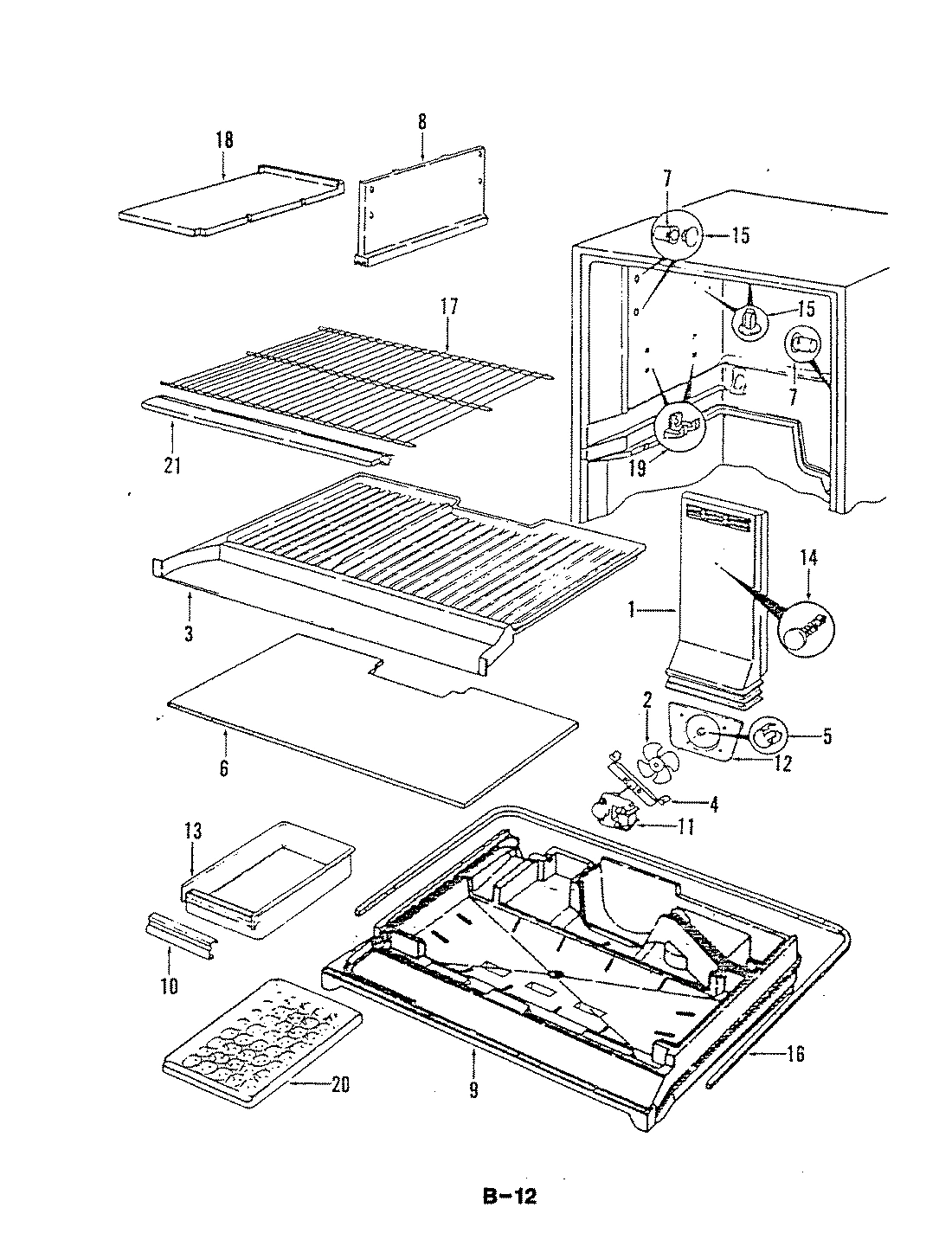

01 - FREEZER COMPARTMENT

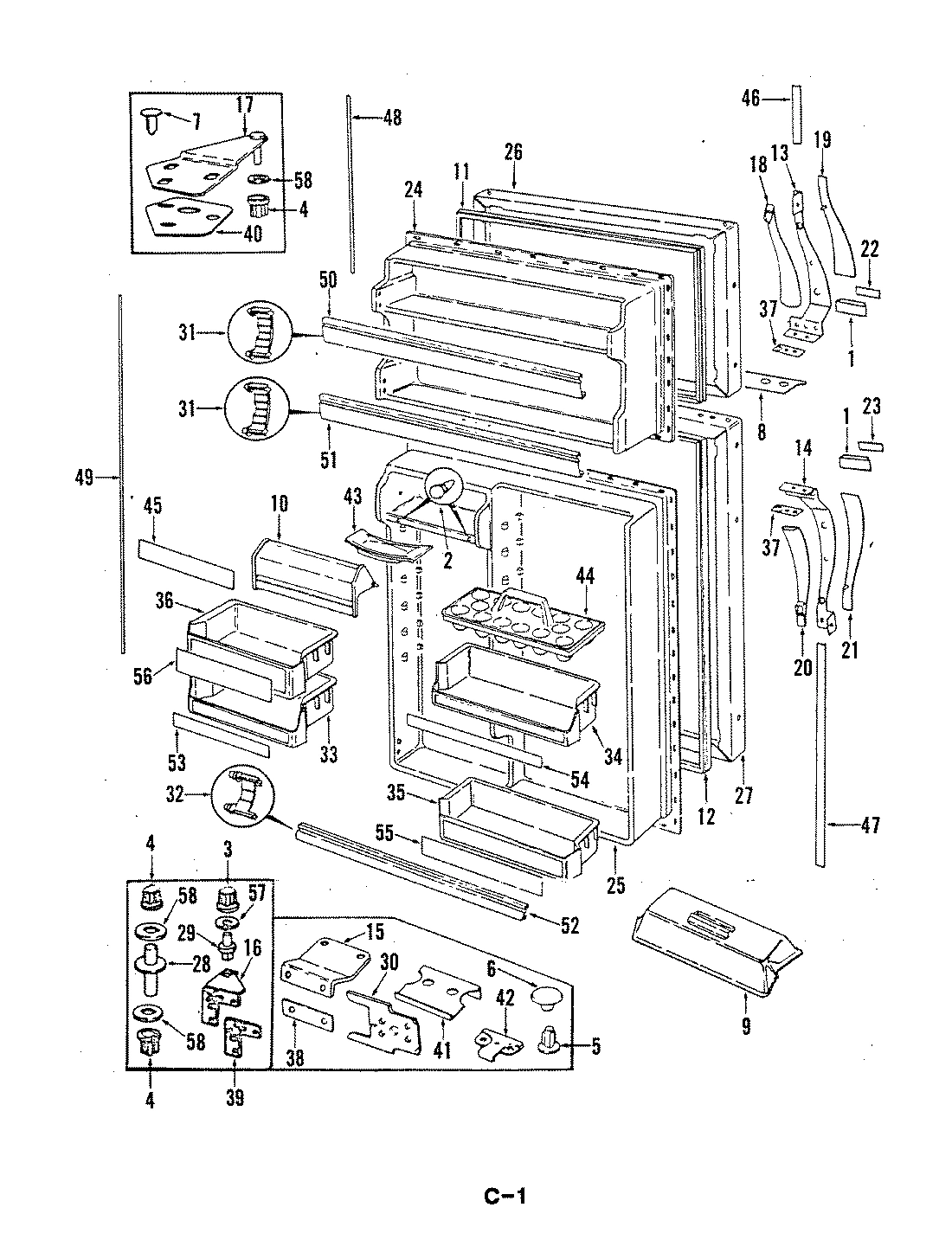

03 - FRESH FOOD DOOR

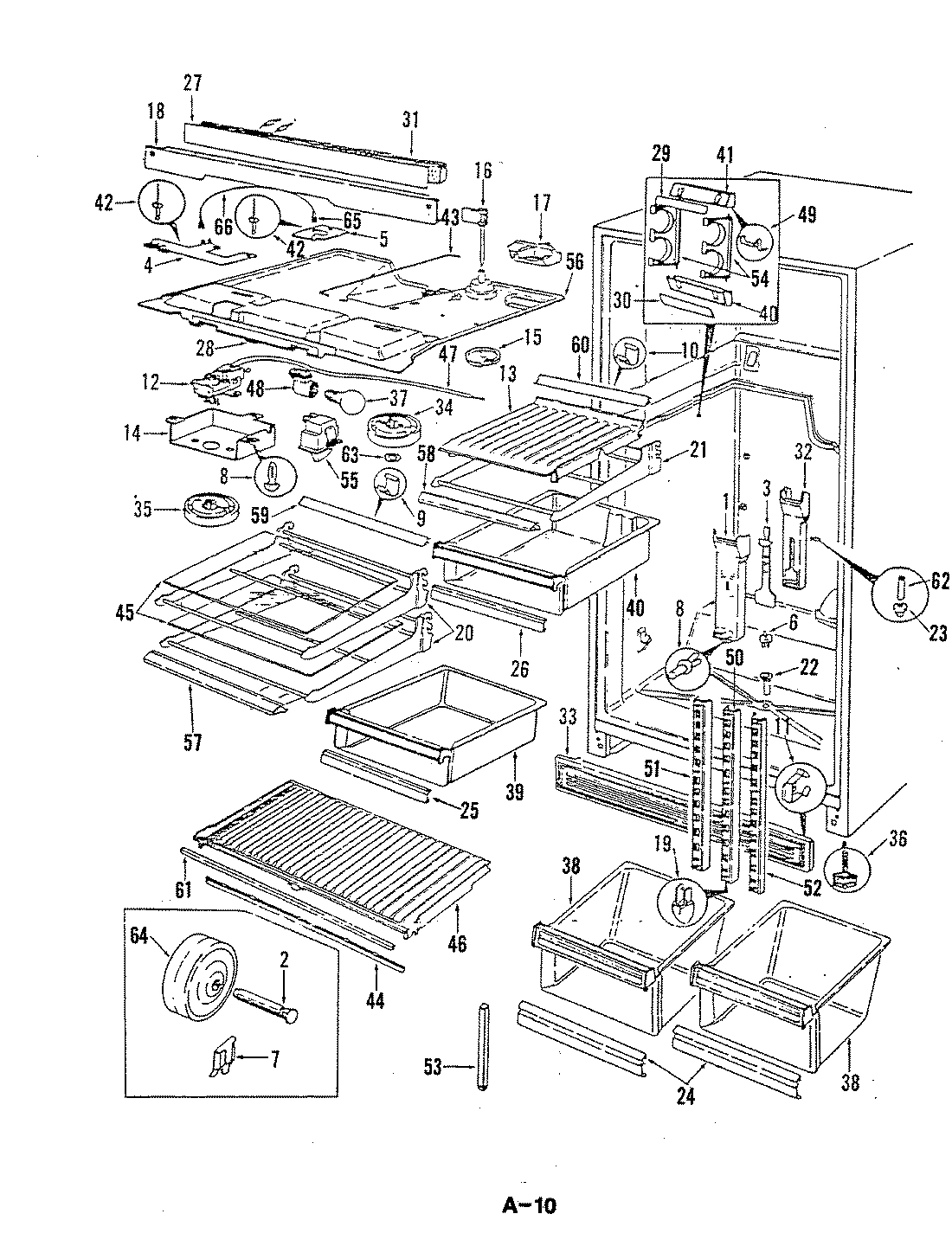

02 - FRESH FOOD COMPARTMENT

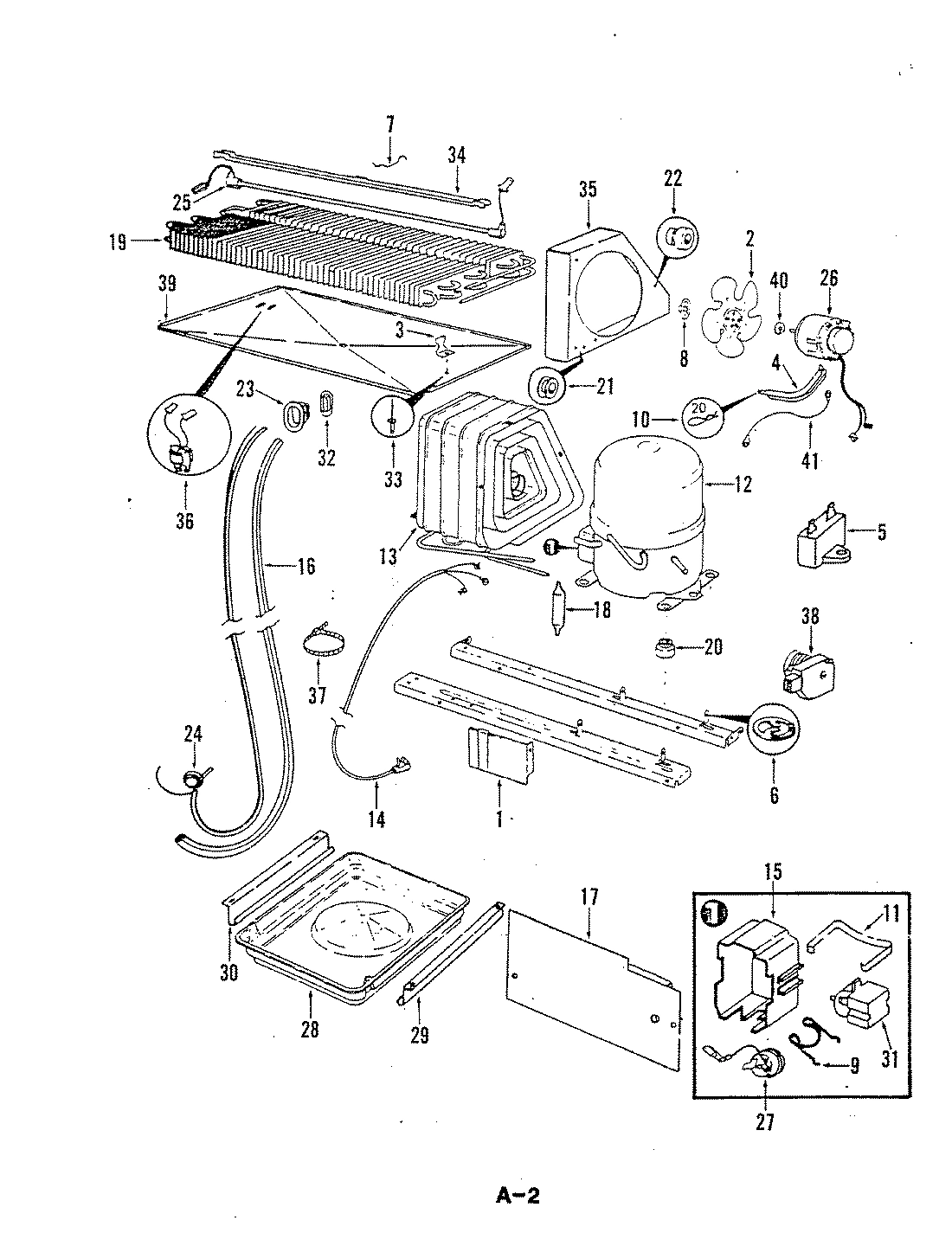

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB23EN-3A REFRIGERATOR
1
TUNNEL, AIR WPL 660444 Contact Us For Availability
1
BEZEL WPL 604871 Contact Us For Availability
1
TUNNEL WPL 6009412 Contact Us For Availability
1
AIR DIVIDER WPL 606393 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
3
BOTTOM, FRZ. WPL 6047413 Contact Us For Availability
3
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
4
BRACKET, CONTROL WPL 601471 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
5
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
5
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
5
CAPACITOR, RUN WPL 658892 Contact Us For Availability
6
COVER, EVAPORATOR WPL 605573 Contact Us For Availability
6
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
6
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
6
CLIP WPL 621651 Contact Us For Availability
7
CUP, SHELF WPL 603131 Contact Us For Availability
7
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
7
CLIP WPL 602161 Contact Us For Availability
7
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
8
DIVIDER WPL 601166 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
TRIM CAP WPL 604792 Contact Us For Availability
8
SPEEDNUT WPL 199141 Contact Us For Availability
9
TRAY, DIVIDER WPL 605764 Contact Us For Availability
9
COVER WPL 603822 Contact Us For Availability
9
CLIP WPL 653581 Contact Us For Availability
9
CLIP WPL 632951 Contact Us For Availability
10
HANDLE WPL 6013253 Contact Us For Availability
10
DOOR, DAIRY WPL 6040611 Contact Us For Availability
10
CLIP WPL 653582 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
11
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
11
GASKET, DOOR WPL 604627 Contact Us For Availability
11
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
11
CLIP WPL 632971 Contact Us For Availability
12
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
12
GASKET, DOOR WPL 604628 Contact Us For Availability
12
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
13
PAN, ICE WPL 606531 Contact Us For Availability
13
DOOR HANDLE WPL 604913 Contact Us For Availability
13
COVER, MEAT PAN WPL 600756 Contact Us For Availability
13
CONDENSER WPL RA438714 Contact Us For Availability
14
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
14
DOOR HANDLE WPL 604912 Contact Us For Availability
14
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
14
CORD, POWER WPL 528902 Contact Us For Availability
14
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
15
SCREW WPL 40001512 Contact Us For Availability
15
SCREW WPL 4060621 Contact Us For Availability
15
PLUG WPL 603211 Contact Us For Availability
15
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
15
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
15
COVER WPL 632962 Contact Us For Availability
16
SEAL WPL 655184 Contact Us For Availability
16
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
16
DAMPER WPL 600711 Contact Us For Availability
16
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
17
SHELF WPL 6032329 Contact Us For Availability
17
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
17
DEFLECTOR WPL 601202 Contact Us For Availability
17
COVER WPL 660322 Contact Us For Availability
18
SHELF WPL 606551 Contact Us For Availability
18
INSERT WPL 604901 Contact Us For Availability
18
DIVIDER, MULLION (ALM) WPL 657973AM Contact Us For Availability
18
DIVIDER, MULLION (WHT) WPL 657973WW Contact Us For Availability
19
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
19
INSERT WPL 604893 Contact Us For Availability
19
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
19
EVAPORATOR WPL RA4362042 Contact Us For Availability
20
ICE CUBE TRAY WPL 601121 Contact Us For Availability
20
INSERT WPL 604902 Contact Us For Availability
20
FRAME, SHELF WPL 605708 Contact Us For Availability
20
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
21
TRIM WPL 6041418 Contact Us For Availability
21
WIRE HARNESS WPL 605651 Contact Us For Availability
21
INSERT WPL 604894 Contact Us For Availability
21
FRAME, SHELF WPL 605703 Contact Us For Availability
21
FRAME, SHELF WPL 605704 Contact Us For Availability
21
FRAME, SHELF WPL 605709 Contact Us For Availability
21
FRAME, SHELF WPL 6057011 Contact Us For Availability
21
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
22
INSERT WPL 605335 Contact Us For Availability
22
GROMMET WPL 545318 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
23
INSERT WPL 605336 Contact Us For Availability
23
GROMMET WPL 555121 Contact Us For Availability
23
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
24
LINER, DOOR WPL 604054 Contact Us For Availability
24
HANDLE WPL 6013240 Contact Us For Availability
24
HANDLE WPL 6013252 Contact Us For Availability
24
HANDLE WPL 6013258 Contact Us For Availability
24
HANDLE WPL 6013259 Contact Us For Availability
24
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
25
INNER PANEL WPL 600476 Contact Us For Availability
25
HANDLE WPL 6013261 Contact Us For Availability
25
HEATER, DEFROST WPL 6010636 Contact Us For Availability
26
OUTER PANEL WPL 6003312WW Contact Us For Availability
26
HANDLE WPL 6013241 Contact Us For Availability
26
HANDLE WPL 6013255 Contact Us For Availability
26
FAN MOTOR WPL 2805613 Contact Us For Availability
26
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
27
OUTER PANEL WPL 6003258WW Contact Us For Availability
27
HEATER WIRE WPL 601057 Contact Us For Availability
27
HEATER WIRE WPL 601058 Contact Us For Availability
27
HEATER WIRE WPL 601059 Contact Us For Availability
27
OVERLOAD WPL 632942 Contact Us For Availability
28
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
28
INSERT WPL 6057127 Contact Us For Availability
28
INSERT WPL 605719 Contact Us For Availability
28
PAN, DRAIN WPL 298394 Contact Us For Availability
29
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
29
INSERT WPL 572061 Contact Us For Availability
29
INSERT WPL 657533 Contact Us For Availability
29
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
30
TAPPING PLATE WPL 606221 Contact Us For Availability
30
INSERT WPL 592999 Contact Us For Availability
30
INSERT WPL 657537 Contact Us For Availability
30
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
31
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
31
INSULATION WPL 601401 Contact Us For Availability
31
INSULATION WPL 601402 Contact Us For Availability
31
INSULATION WPL 601403 Contact Us For Availability
31
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
31
RELAY, START WPL 632932 Contact Us For Availability
32
SCREW WPL 40100512 Contact Us For Availability
32
SCREW WPL 4030625 Contact Us For Availability
32
RETAINER WPL 652461 Contact Us For Availability
32
SCREW WPL 9986107 Contact Us For Availability
32
SCREW WPL 9986108 Contact Us For Availability
32
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
32
SCREW WPL 9986122 Contact Us For Availability
32
SCREW WPL 998687 Contact Us For Availability
32
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
32
INSULATION WPL 600922 Contact Us For Availability
32
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
DOOR SHELF WPL 6003731 Contact Us For Availability
33
KICKPLATE WPL 6013818 Contact Us For Availability
33
KICKPLATE WPL 6013819 Contact Us For Availability
33
KICKPLATE WPL 6013825 Contact Us For Availability
33
KICKPLATE WPL 6013830 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
RIVET WPL 263979 Contact Us For Availability
33
SHIELD, HEATER WPL 400171 Contact Us For Availability
33
SCREW WPL 4030141 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
34
DOOR SHELF WPL 6003732 Contact Us For Availability
34
KNOB WPL 600613 Contact Us For Availability
34
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
35
DOOR SHELF WPL 6003730 Contact Us For Availability
35
KNOB WPL 600611 Contact Us For Availability
35
CONDENSER SHROUD WPL 600212 Contact Us For Availability
36
DOOR SHELF WPL 6003729 Contact Us For Availability
36
LEG, LEVELING WPL 60128 Contact Us For Availability
36
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
37
SHIM WPL 604881 Contact Us For Availability
37
NYLON NUT WPL 1953036 Contact Us For Availability
37
NUT WPL 658181 Contact Us For Availability
37
WIRE TIE WPL 575763 Contact Us For Availability
38
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
38
PAN, CRISPER WPL 60457222 Contact Us For Availability
38
PAN, CRISPER WPL 60457223 Contact Us For Availability
38
PAN, CRISPER WPL 60457224 Contact Us For Availability
38
TIMER, DEFROST WPL 653221 Contact Us For Availability
39
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
39
PAN, MEAT WPL 60466205 Contact Us For Availability
39
TRAY, DRIP WPL 601019 Contact Us For Availability
40
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
40
PAN, MEAT WPL 60466203 Contact Us For Availability
40
PAN, MEAT WPL 60466204 Contact Us For Availability
40
WASHER WPL 199134 Contact Us For Availability
40
WIRE HARNESS WPL 605667 Contact Us For Availability
41
DOOR STOP WPL 600301 Contact Us For Availability
41
RACK, WINE WPL 565194 Contact Us For Availability
41
GROUND WIRE WPL 296753 Contact Us For Availability
42
DOOR STOP WPL 604191 Contact Us For Availability
42
RIVET WPL 263972 Contact Us For Availability
43
TRAY, BUTTER WPL 299362 Contact Us For Availability
43
SCREW WPL 40003728 Contact Us For Availability
43
SCREW WPL 4020394 Contact Us For Availability
43
ROD WPL 600783 Contact Us For Availability
43
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
43
SCREW WPL 9986117 Contact Us For Availability
44
TRAY, EGG WPL 600665 Contact Us For Availability
44
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
44
SEAL, CRISPER SHELF WPL 601485 Contact Us For Availability
44
SEAL WPL 601486 Contact Us For Availability
45
INSERT WPL 6057332 Contact Us For Availability
45
GLASS SHELF WPL 6016217 Contact Us For Availability
45
GLASS SHELF WPL 6559811 Contact Us For Availability
45
GLASS SHELF WPL 6559812 Contact Us For Availability
45
GLASS SHELF WPL 655982 Contact Us For Availability
46
HANDLE EXT WPL 605542 Contact Us For Availability
46
SHELF, CRISPER WPL 600191 Contact Us For Availability
46
SHELF, CRISPER WPL 600197 Contact Us For Availability
46
SHELF, CRISPER WPL 600198 Contact Us For Availability
47
HANDLE EXT WPL 605541 Contact Us For Availability
47
PLASTIC TUBE WPL 400812 Contact Us For Availability
48
TRIM WPL 6577314 Contact Us For Availability
48
SOCKET, LIGHT WPL 605771 Contact Us For Availability
49
TRIM WPL 6577315 Contact Us For Availability
49
SPRING, WPL 580571 Contact Us For Availability
50
WPL 600966 WPL 600966 Contact Us For Availability
50
WPL 600969 WPL 600969 Contact Us For Availability
51
TRIM, DOOR SHELF WPL 65151177 Contact Us For Availability
51
WPL 600964 WPL 600964 Contact Us For Availability
51
WPL 600967 WPL 600967 Contact Us For Availability
52
TRIM WPL 6008032 Contact Us For Availability
52
WPL 600965 WPL 600965 Contact Us For Availability
52
WPL 600968 WPL 600968 Contact Us For Availability
53
INSERT WPL 6057239 Contact Us For Availability
53
WPL 601501 WPL 601501 Contact Us For Availability
53
WPL 658161 WPL 658161 Contact Us For Availability
53
WPL 661051 WPL 661051 Contact Us For Availability
54
INSERT WPL 6057242 Contact Us For Availability
54
WPL 572054 WPL 572054 Contact Us For Availability
54
WPL 656891 WPL 656891 Contact Us For Availability
55
INSERT WPL 6057241 Contact Us For Availability
55
WPL 557321 WPL 557321 Contact Us For Availability
55
WPL 557323 WPL 557323 Contact Us For Availability
56
INSERT WPL 6057237 Contact Us For Availability
56
WPL 6008534 WPL 6008534 Contact Us For Availability
56
WPL 6008535 WPL 6008535 Contact Us For Availability
56
WPL 6008537 WPL 6008537 Contact Us For Availability
56
WPL 6008542 WPL 6008542 Contact Us For Availability
57
WASHER WPL 542332 Contact Us For Availability
57
WPL 6052427 WPL 6052427 Contact Us For Availability
57
WPL 605245 WPL 605245 Contact Us For Availability
58
WASHER WPL 521851 Contact Us For Availability
58
WPL 604144 WPL 604144 Contact Us For Availability
58
WPL 604146 WPL 604146 Contact Us For Availability
59
WPL 652761 WPL 652761 Contact Us For Availability
60
WPL 652763 WPL 652763 Contact Us For Availability
60
WPL 652767 WPL 652767 Contact Us For Availability
61
WPL 604541 WPL 604541 Contact Us For Availability
61
WPL 604542 WPL 604542 Contact Us For Availability
61
WPL 604543 WPL 604543 Contact Us For Availability
62
WPL 555133 WPL 555133 Contact Us For Availability
63
WPL 420092900 WPL 420092900 Contact Us For Availability
64
WPL 298342 WPL 298342 Contact Us For Availability
65
WPL 2967528 WPL 2967528 Contact Us For Availability
66
WPL 2967522 WPL 2967522 Contact Us For Availability
66
WPL 605601 WPL 605601 Contact Us For Availability
66
WPL 605602 WPL 605602 Contact Us For Availability
66
WPL 652741 WPL 652741 Contact Us For Availability
× ![]()
Login and Registration Form
