Model Whirlpool RB23EA-3PL REFRIGERATOR – Common Parts & Diagrams

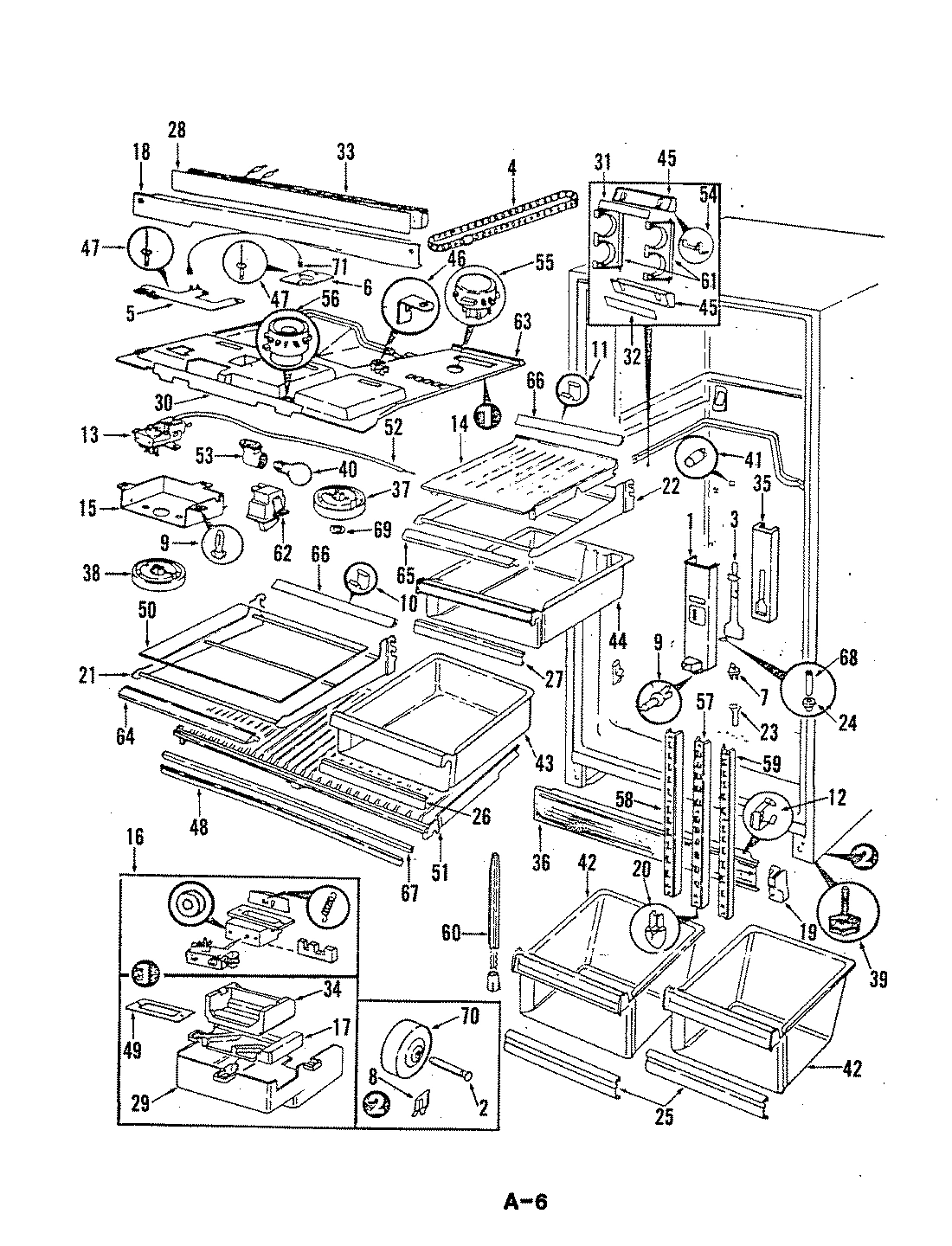

02 - FRESH FOOD COMPARTMENT

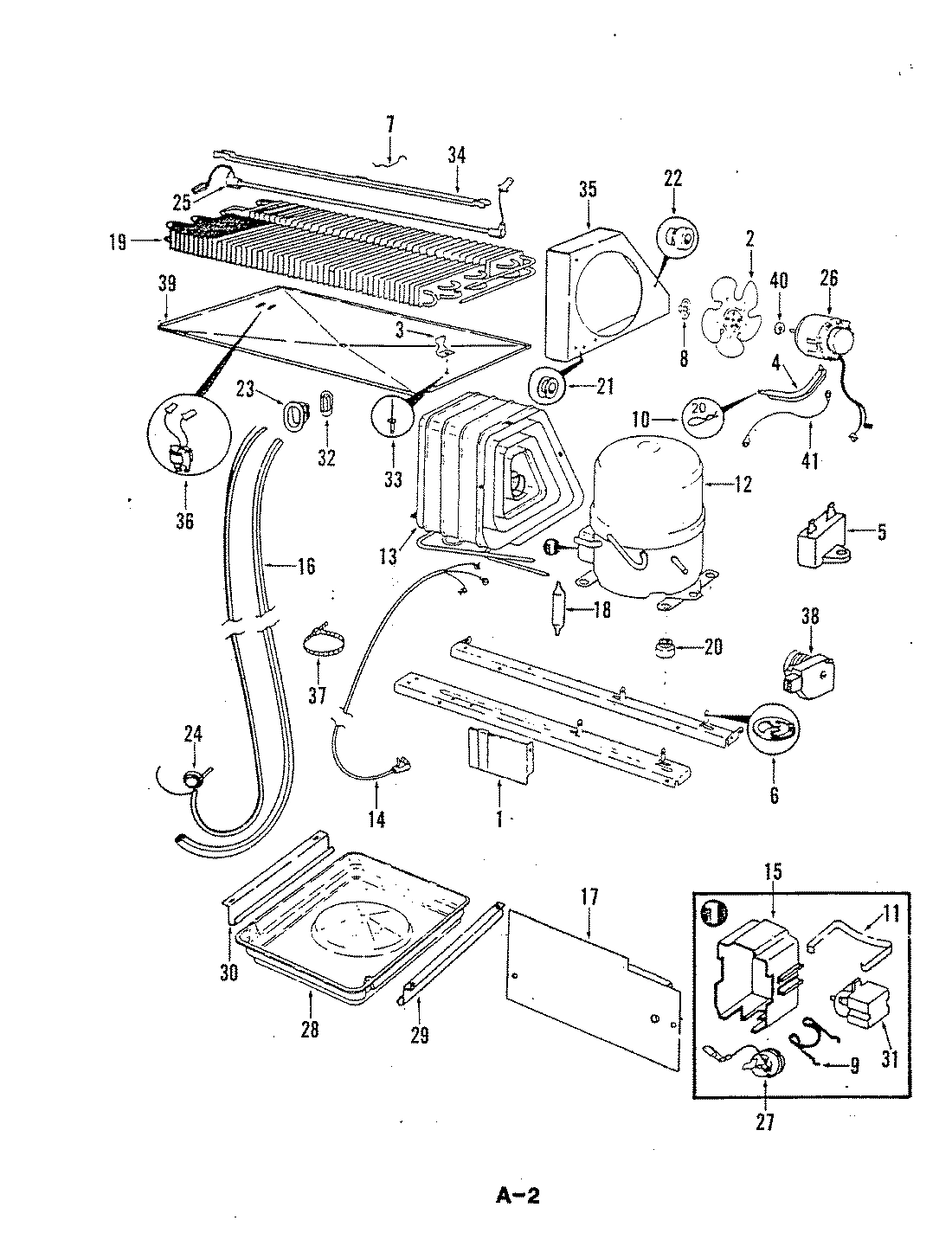

04 - UNIT COMPARTMENT & SYSTEM

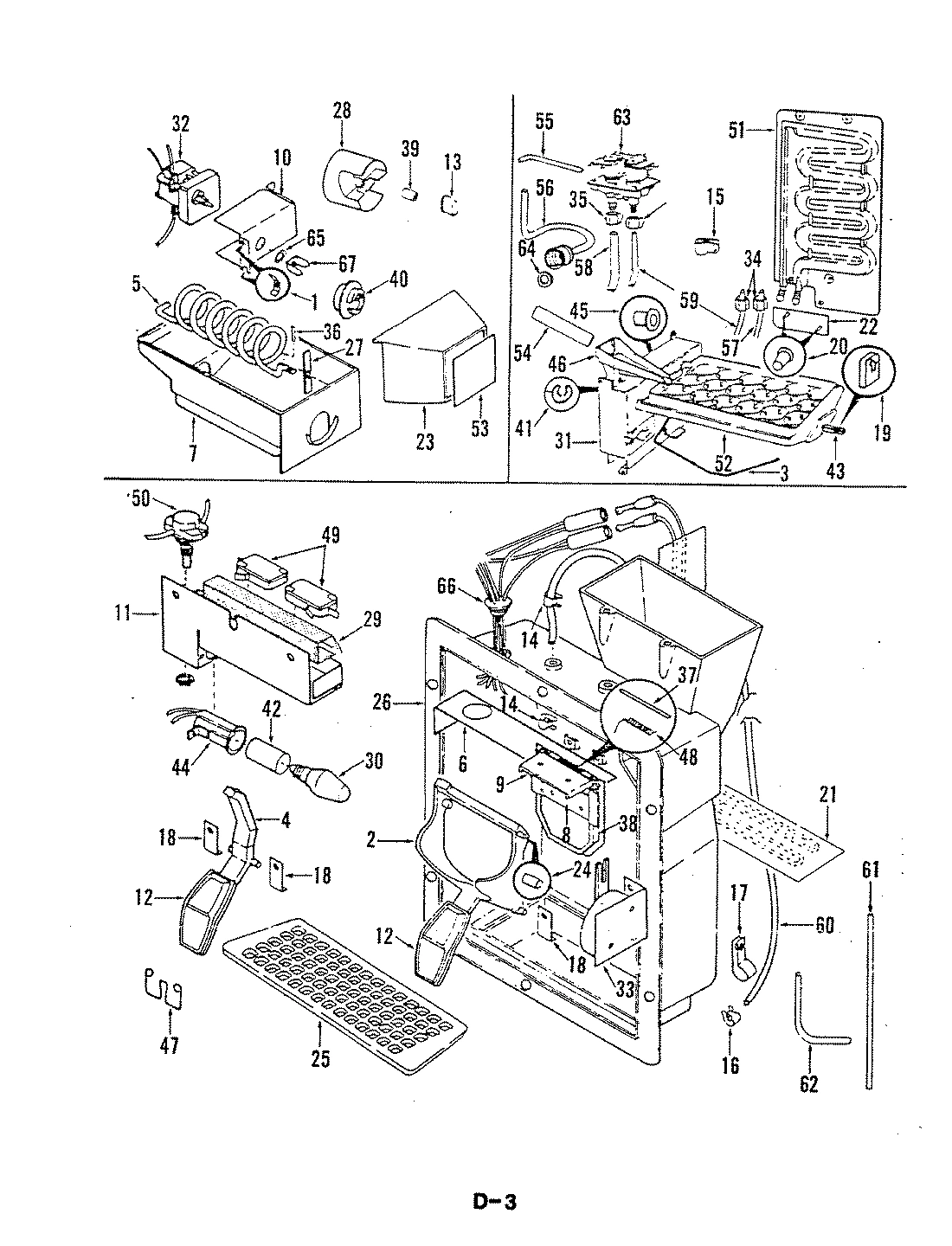

05 - WATER & ICE DISPENSER

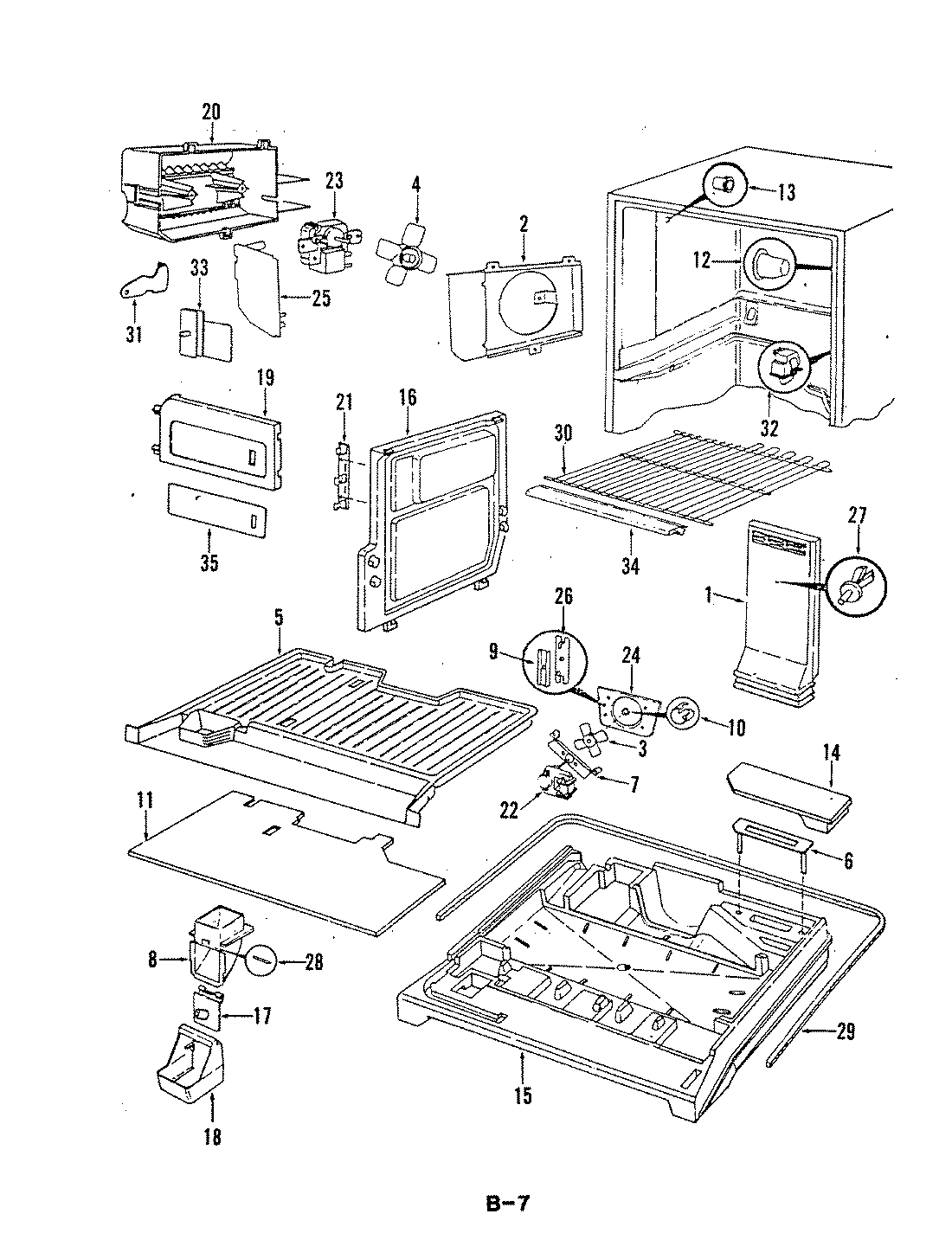

01 - FREEZER COMPARTMENT

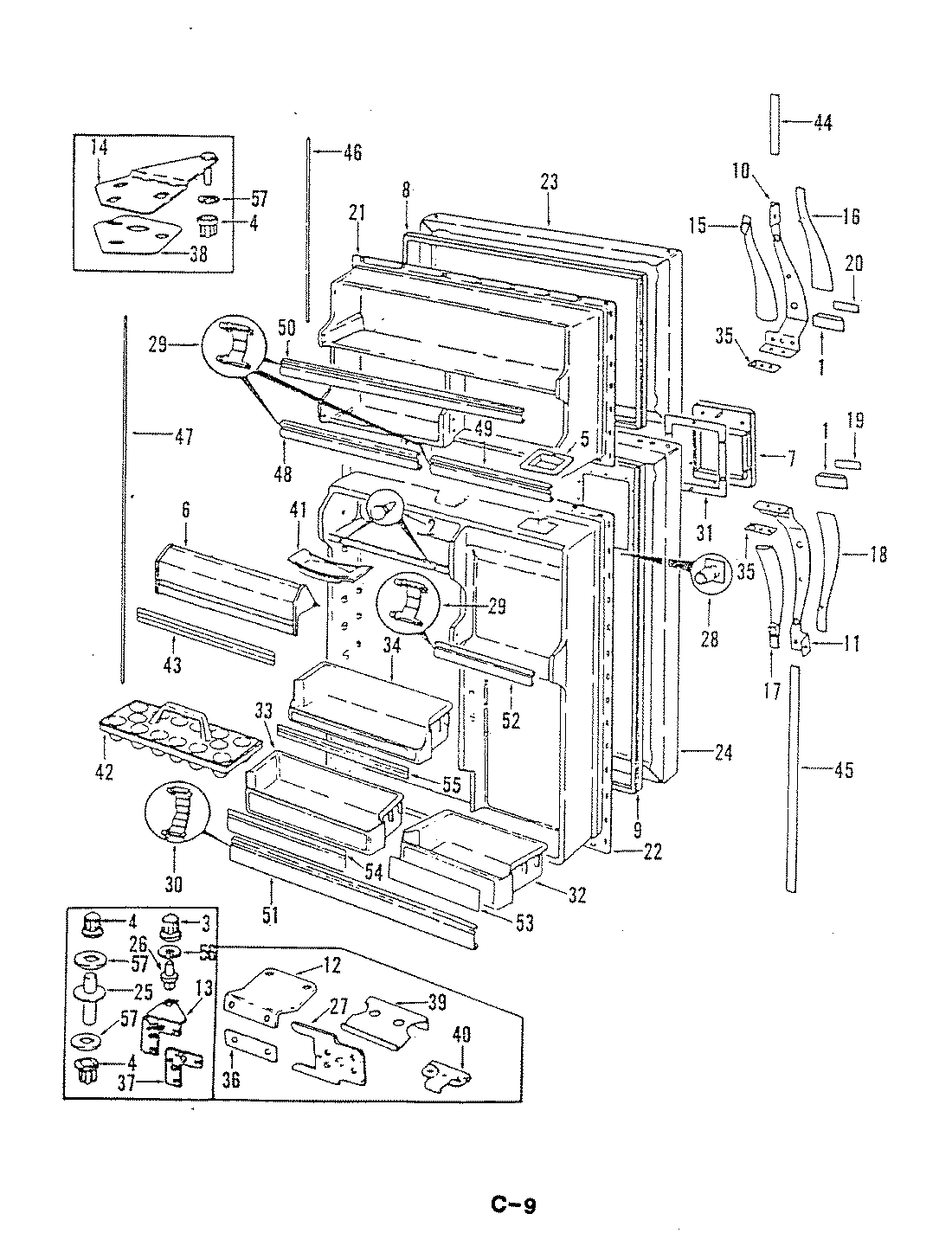

03 - FRESH FOOD DOOR
Common parts from model Whirlpool RB23EA-3PL REFRIGERATOR
1
MT KPR TUNNEL WPL 606622 Contact Us For Availability
1
AIR DIVIDER WPL 606393 Contact Us For Availability
1
ANCHOR WPL 643411 Contact Us For Availability
1
TUNNEL, AIR WPL 660444 Contact Us For Availability
1
BEZEL WPL 604871 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
2
ARM,ICE WPL 630073 Contact Us For Availability
2
PLENUM BACK WPL 656391 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
3
ARM, SENSOR WPL 523072 Contact Us For Availability
3
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
3
HINGE BUSHING WPL 660371 Contact Us For Availability
4
BELT WPL 606791 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
4
ARM, WATER WPL 630083 Contact Us For Availability
4
BLADE, FAN WPL 656882 Contact Us For Availability
4
PLUG BUTTON WPL 495036900 Contact Us For Availability
4
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
4
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
4
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
5
BRACKET, CONTROL WPL 601471 Contact Us For Availability
5
CAPACITOR, RUN WPL 658892 Contact Us For Availability
5
AUGER WPL 664351 Contact Us For Availability
5
BOTTOM, FRZ. WPL 6047414 Contact Us For Availability
5
COLLAR WPL 630202 Contact Us For Availability
6
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
6
CLIP WPL 621651 Contact Us For Availability
6
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
6
BRACKET, CONTROL MOUNTING WPL 606571 Contact Us For Availability
6
DOOR, DAIRY WPL 636091 Contact Us For Availability
7
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
7
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
7
BIN WPL 654611 Contact Us For Availability
7
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
7
ESCUTCHEON WPL 6048225 Contact Us For Availability
8
CLIP WPL 602161 Contact Us For Availability
8
CLIP WPL 199140 Contact Us For Availability
8
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
8
ICE CHUTE WPL 605041 Contact Us For Availability
8
CLIP WPL 654441 Contact Us For Availability
8
GASKET, DOOR WPL 604627 Contact Us For Availability
9
CLIP WPL 632951 Contact Us For Availability
9
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
9
CLAMP WPL 1095 Contact Us For Availability
9
GASKET, DOOR WPL 604628 Contact Us For Availability
10
CLIP WPL 653581 Contact Us For Availability
10
WASHER, SPRING WPL 420092900 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
BRACKET WPL 605131 Contact Us For Availability
10
DOOR HANDLE WPL 604911 Contact Us For Availability
11
CLIP WPL 653582 Contact Us For Availability
11
CLIP WPL 632971 Contact Us For Availability
11
BRACKET, SWITCH WPL 630132 Contact Us For Availability
11
COVER, EVAPORATOR WPL 605578 Contact Us For Availability
12
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
12
PAD, ARM WPL 630661 Contact Us For Availability
12
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
12
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
13
CONTROL, TEMPERATURE WPL 5288150 Contact Us For Availability
13
CONDENSER WPL RA438714 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
HINGE WPL 606304 Contact Us For Availability
14
COVER, MEAT PAN WPL 600756 Contact Us For Availability
14
CORD, POWER WPL 528902 Contact Us For Availability
14
COVER WPL 600673 Contact Us For Availability
14
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
14
CLAMP, SPRING WPL 603332 Contact Us For Availability
14
AIR DEFLECTOR WPL 606561 Contact Us For Availability
14
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
15
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
15
COVER WPL 632962 Contact Us For Availability
15
CLAMP WPL 535162 Contact Us For Availability
15
FOAM TRAY WPL 657661 Contact Us For Availability
15
INSERT WPL 604901 Contact Us For Availability
16
DAMPER CONTROL WPL 606811 Contact Us For Availability
16
INSULATION WPL 652141 Contact Us For Availability
16
CLAMP, SPRING WPL 603333 Contact Us For Availability
16
CLAMP, TUBING WPL 96029 Contact Us For Availability
16
DIVIDER WPL 656221 Contact Us For Availability
16
INSERT WPL 604893 Contact Us For Availability
17
INSULATION WPL 606591 Contact Us For Availability
17
COVER WPL 660322 Contact Us For Availability
17
CLAMP WPL 535169 Contact Us For Availability
17
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
17
INSERT WPL 604902 Contact Us For Availability
18
DIVIDER, MULLION (ALM) WPL 657973AM Contact Us For Availability
18
CLIP WPL 630352 Contact Us For Availability
18
FRONT WPL 605031 Contact Us For Availability
18
INSERT WPL 604894 Contact Us For Availability
19
END CAP WPL 603812 Contact Us For Availability
19
EVAPORATOR WPL RA4362042 Contact Us For Availability
19
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
19
IM ENCL FRONT WPL 656272 Contact Us For Availability
19
INSERT WPL 605336 Contact Us For Availability
20
FOIL SWITCH, REFLECTOR WPL 601316 Contact Us For Availability
20
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
20
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
20
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
20
UNION, TUBING (1/4``-1/4``) WPL 592051 Contact Us For Availability
20
PLENUM WPL 656211 Contact Us For Availability
20
INSERT WPL 605335 Contact Us For Availability
21
FRAME, SHELF WPL 605704 Contact Us For Availability
21
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
21
HEATER WPL 605081 Contact Us For Availability
21
LATCH WPL 661461 Contact Us For Availability
21
LINER, DOOR WPL 603805 Contact Us For Availability
22
FRAME, SHELF WPL 6057011 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
22
COVER WPL 654971 Contact Us For Availability
22
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
22
LINER, DOOR WPL 604045 Contact Us For Availability
23
GROMMET WPL 545318 Contact Us For Availability
23
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
23
ICE DISP FRONT WPL 662051 Contact Us For Availability
23
PARTY ICE MOTOR WPL 657541 Contact Us For Availability
23
OUTER PANEL WPL 6003340AM Contact Us For Availability
24
GROMMET WPL 555121 Contact Us For Availability
24
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
24
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
24
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
24
PANEL, OUTER DOOR WPL 606041AM Contact Us For Availability
25
HANDLE WPL 6013259 Contact Us For Availability
25
HEATER, DEFROST WPL 6010636 Contact Us For Availability
25
GRILL WPL 630251 Contact Us For Availability
25
CONTROL BOARD WPL 656381 Contact Us For Availability
25
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
26
HANDLE WPL 6013261 Contact Us For Availability
26
FAN MOTOR WPL 2805613 Contact Us For Availability
26
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
26
DISPENSER, WATER WPL 630003 Contact Us For Availability
26
PLATE, TEMPERATURE CONTROL WPL 120961 Contact Us For Availability
26
PIN WPL 654181 Contact Us For Availability
27
HANDLE WPL 6013255 Contact Us For Availability
27
OVERLOAD WPL 632942 Contact Us For Availability
27
HUB, REINFORCING WPL 630841 Contact Us For Availability
27
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
27
TAPPING PLATE WPL 606221 Contact Us For Availability
28
HEATER WIRE WPL 601059 Contact Us For Availability
28
SCREW WPL 4000161 Contact Us For Availability
28
SCREW WPL 4050121 Contact Us For Availability
28
PAN, DRAIN WPL 298394 Contact Us For Availability
28
IMPELLER WPL 630831 Contact Us For Availability
28
INSULATION WPL 630892 Contact Us For Availability
28
SCREW WPL 40001512 Contact Us For Availability
28
SCREW WPL 400018103 Contact Us For Availability
28
SCREW WPL 4060621 Contact Us For Availability
28
HINGE PIN WPL 605051 Contact Us For Availability
28
SCREW WPL 652753 Contact Us For Availability
28
RETAINER, ESCUTCHEON WPL 652112 Contact Us For Availability
29
DAMPER HOUSING WPL 606611 Contact Us For Availability
29
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
29
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
29
SEAL, MULLION DIVIDER WPL 605184 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
30
INSERT WPL 6057136 Contact Us For Availability
30
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
30
BULB, LIGHT WPL 631791 Contact Us For Availability
30
SHELF WPL 605141 Contact Us For Availability
30
SCREW WPL 40100512 Contact Us For Availability
30
SCREW WPL 4030625 Contact Us For Availability
30
RETAINER WPL 652461 Contact Us For Availability
30
SCREW WPL 9986107 Contact Us For Availability
30
SCREW WPL 9986108 Contact Us For Availability
30
SCREW WPL 9986112 Contact Us For Availability
30
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
30
SCREW WPL 9986122 Contact Us For Availability
30
SCREW WPL 998687 Contact Us For Availability
31
INSERT WPL 657533 Contact Us For Availability
31
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
31
RELAY, START WPL 632932 Contact Us For Availability
31
ICEMAKER MECH WPL RA4371410 Contact Us For Availability
31
PLENUM FRONT WPL 656311 Contact Us For Availability
31
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
32
INSERT WPL 657537 Contact Us For Availability
32
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
32
IM MOTOR WPL 641433 Contact Us For Availability
32
SWITCH WPL 557322 Contact Us For Availability
32
DOOR SHELF WPL 6003714 Contact Us For Availability
33
INSULATION WPL 601403 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
RIVET WPL 263979 Contact Us For Availability
33
SCREW WPL 4030141 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
33
MOTOR, INERTIA WPL 652121 Contact Us For Availability
33
NUT, AUGER WPL 660981 Contact Us For Availability
33
SWITCH PL ASY WPL 657351 Contact Us For Availability
33
SHELF WPL 6003727 Contact Us For Availability
34
INSULATION WPL 606581 Contact Us For Availability
34
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
34
TRIM WPL 6041410 Contact Us For Availability
34
SHELF WPL 6003728 Contact Us For Availability
35
INSULATION WPL 606601 Contact Us For Availability
35
CONDENSER SHROUD WPL 600212 Contact Us For Availability
35
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
35
GROUND WIRE WPL 2967530 Contact Us For Availability
35
WASHER WPL 420051900 Contact Us For Availability
35
WASHER WPL 420052900 Contact Us For Availability
35
WIRE HARNESS WPL 605651 Contact Us For Availability
35
WIRE HARNESS WPL 656761 Contact Us For Availability
35
INSERT WPL 657554 Contact Us For Availability
35
SHIM WPL 604881 Contact Us For Availability
36
KICKPLATE WPL 6013826 Contact Us For Availability
36
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
PIN, AUGER WPL 630711 Contact Us For Availability
36
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
37
KNOB WPL 600617 Contact Us For Availability
37
PIN, ICE DOOR WPL 630531 Contact Us For Availability
37
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
38
KNOB WPL 600618 Contact Us For Availability
38
TIMER, DEFROST WPL 653221 Contact Us For Availability
38
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
38
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
39
LEG, LEVELING WPL 60128 Contact Us For Availability
39
TRAY, DRIP WPL 601019 Contact Us For Availability
39
RETAINER WPL 630312 Contact Us For Availability
39
DOOR STOP WPL 600301 Contact Us For Availability
40
WASHER WPL 199134 Contact Us For Availability
40
WIRE HARNESS WPL 604813 Contact Us For Availability
40
RING, DRIVE WPL 630171 Contact Us For Availability
40
DOOR STOP WPL 604196 Contact Us For Availability
41
NYLON NUT WPL 1953036 Contact Us For Availability
41
GROUND WIRE WPL 296753 Contact Us For Availability
41
SCREW WPL 4000271 Contact Us For Availability
41
SCREW WPL 405009103 Contact Us For Availability
41
SCREW WPL 405022103 Contact Us For Availability
41
RING, RETAINER WPL 587061 Contact Us For Availability
41
TRAY, BUTTER WPL 299362 Contact Us For Availability
42
PAN, CRISPER WPL 60457224 Contact Us For Availability
42
SEAL WPL 630561 Contact Us For Availability
42
TRAY, EGG WPL 600665 Contact Us For Availability
43
PAN, MEAT WPL 60466205 Contact Us For Availability
43
SHAFT WPL 653192 Contact Us For Availability
43
INSERT WPL 6057333 Contact Us For Availability
44
PAN, MEAT WPL 60466204 Contact Us For Availability
44
SOCKET, LIGHT WPL 630391 Contact Us For Availability
44
HANDLE EXT WPL 605542 Contact Us For Availability
45
RACK, WINE WPL 565194 Contact Us For Availability
45
SPACER WPL 620284 Contact Us For Availability
45
SPACER WPL 653171 Contact Us For Availability
45
HANDLE EXT WPL 605541 Contact Us For Availability
46
BELT RETAINER WPL 606801 Contact Us For Availability
46
SPOUT, FILL WPL 537481 Contact Us For Availability
46
TRIM WPL 6577314 Contact Us For Availability
47
RIVET WPL 263972 Contact Us For Availability
47
SCREW WPL 4000371 Contact Us For Availability
47
SCREW WPL 4020394 Contact Us For Availability
47
SCREW WPL 402068103 Contact Us For Availability
47
SCREW WPL 4060131 Contact Us For Availability
47
SCREW WPL 9986117 Contact Us For Availability
47
SPRING WPL 633061 Contact Us For Availability
47
TRIM WPL 6577315 Contact Us For Availability
48
SEAL WPL 601486 Contact Us For Availability
48
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
48
TRIM, DOOR SHELF WPL 65151176 Contact Us For Availability
49
PERMAGUM WPL 628888 Contact Us For Availability
49
SEAL WPL 656201 Contact Us For Availability
49
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
49
TRIM, DOOR SHELF WPL 65151175 Contact Us For Availability
50
GLASS SHELF WPL 655984 Contact Us For Availability
50
SWITCH, LIGHT WPL 630401 Contact Us For Availability
50
TRIM, DOOR SHELF WPL 65151177 Contact Us For Availability
51
SHELF, CRISPER WPL 600198 Contact Us For Availability
51
WIRE TIE WPL 575763 Contact Us For Availability
51
TANK, WATER WPL 654571 Contact Us For Availability
51
TRIM WPL 6008030 Contact Us For Availability
52
PLASTIC TUBE WPL 400812 Contact Us For Availability
52
TRAY, ICE WPL 596881 Contact Us For Availability
52
TRIM, DOOR SHELF WPL 65151174 Contact Us For Availability
53
SOCKET, LIGHT WPL 605771 Contact Us For Availability
53
INSERT WPL 657073 Contact Us For Availability
53
INSERT WPL 6057237 Contact Us For Availability
54
SPRING, WINE RACK WPL 580571 Contact Us For Availability
54
TUBE, FILL WPL 584618 Contact Us For Availability
54
INSERT WPL 6057241 Contact Us For Availability
55
DAMPER SPROCKET WPL 606651 Contact Us For Availability
55
TUBE WPL 561252 Contact Us For Availability
55
INSERT WPL 6057242 Contact Us For Availability
56
KNOB SPROCKET WPL 606641 Contact Us For Availability
56
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
56
SPACER WPL 542334 Contact Us For Availability
57
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
57
TUBE WPL 5560226 Contact Us For Availability
57
WASHER WPL 521851 Contact Us For Availability
58
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
58
TUBING WPL 556038 Contact Us For Availability
59
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
59
TUBING 34`` WPL 5560224 Contact Us For Availability
60
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
60
TUBING WPL 556023 Contact Us For Availability
61
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
61
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
62
SWITCH WPL 557323 Contact Us For Availability
62
WATER LINE WPL 630381 Contact Us For Availability
62
WATER LINE WPL 630382 Contact Us For Availability
63
TOP, F.F. COMPARTMENT WPL 657651 Contact Us For Availability
63
VALVE, WATER WPL 565953 Contact Us For Availability
64
TRIM WPL 605245 Contact Us For Availability
64
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
65
TRIM WPL 604146 Contact Us For Availability
65
WASHER WPL 4200711 Contact Us For Availability
66
TRIM, REAR WPL 652767 Contact Us For Availability
66
WIRE HARNESS WPL 605231 Contact Us For Availability
66
WIRE HARNESS WPL 606231 Contact Us For Availability
66
WIRE HARNESS WPL 606241 Contact Us For Availability
67
TRIM WPL 604543 Contact Us For Availability
67
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
68
TUBE WPL 555133 Contact Us For Availability
70
WHEEL WPL 298342 Contact Us For Availability
71
GROUND WIRE WPL 2967522 Contact Us For Availability
71
GROUND WIRE WPL 2967528 Contact Us For Availability
71
WIRE HARNESS WPL 605603 Contact Us For Availability
× ![]()
Login and Registration Form
