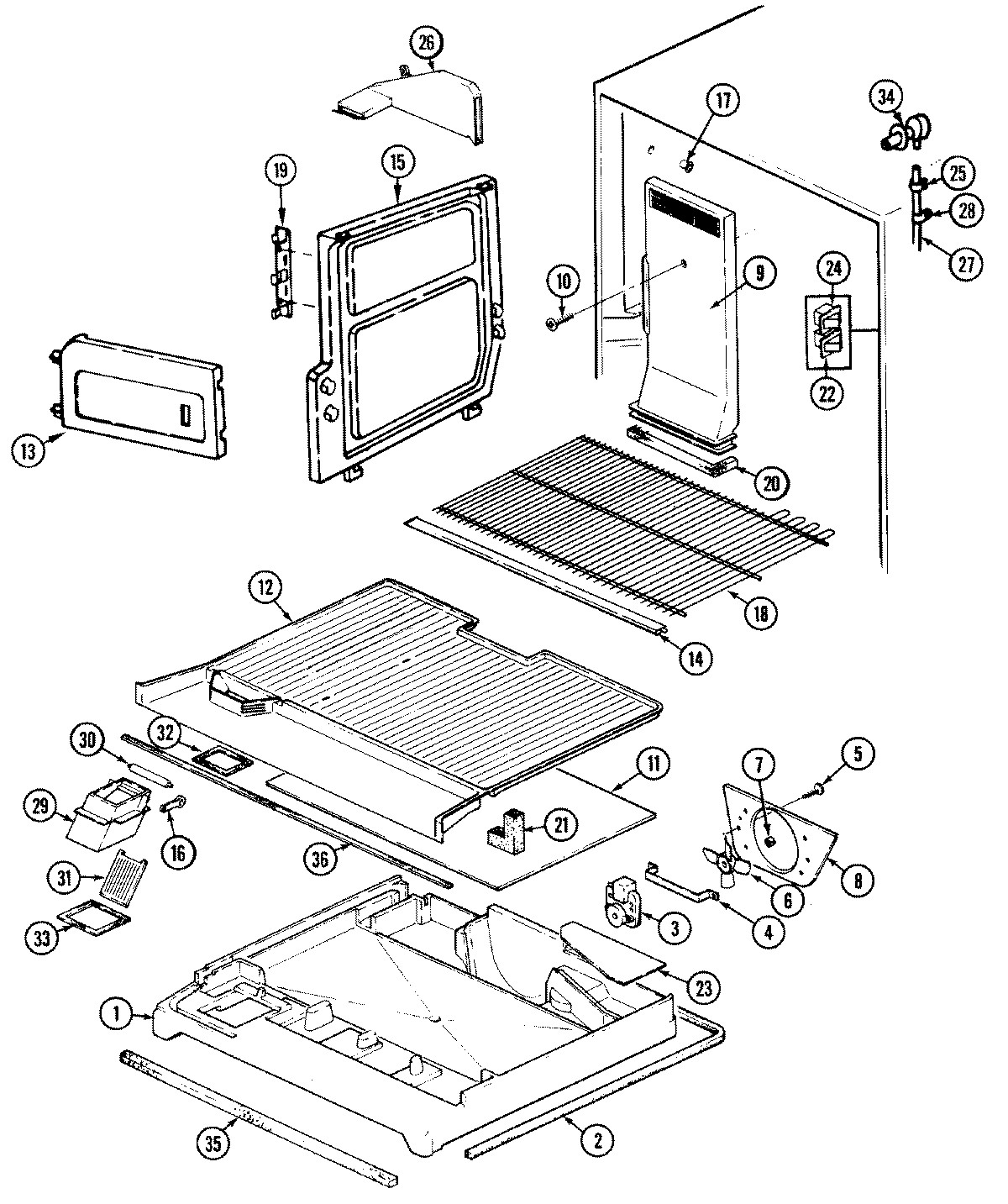

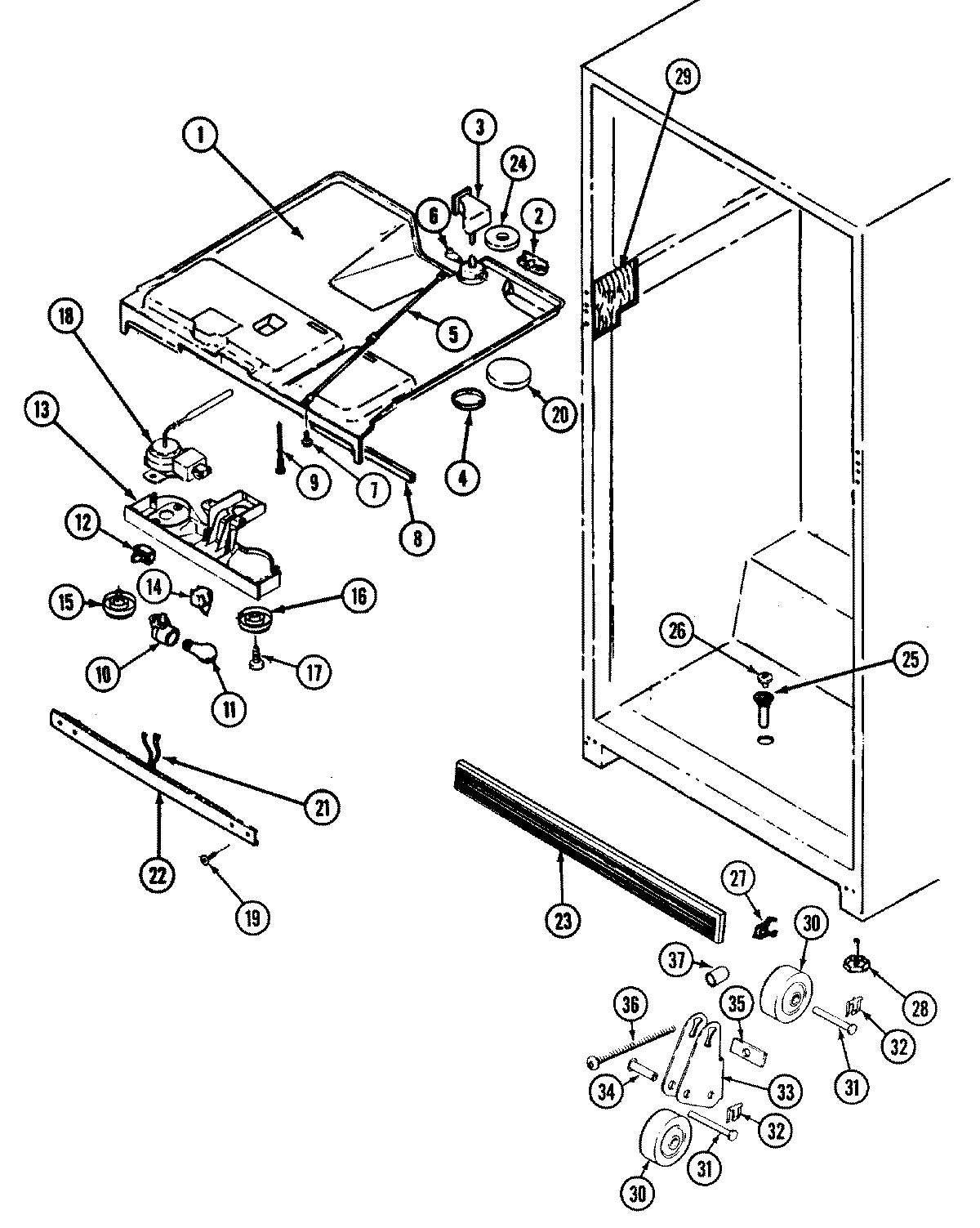

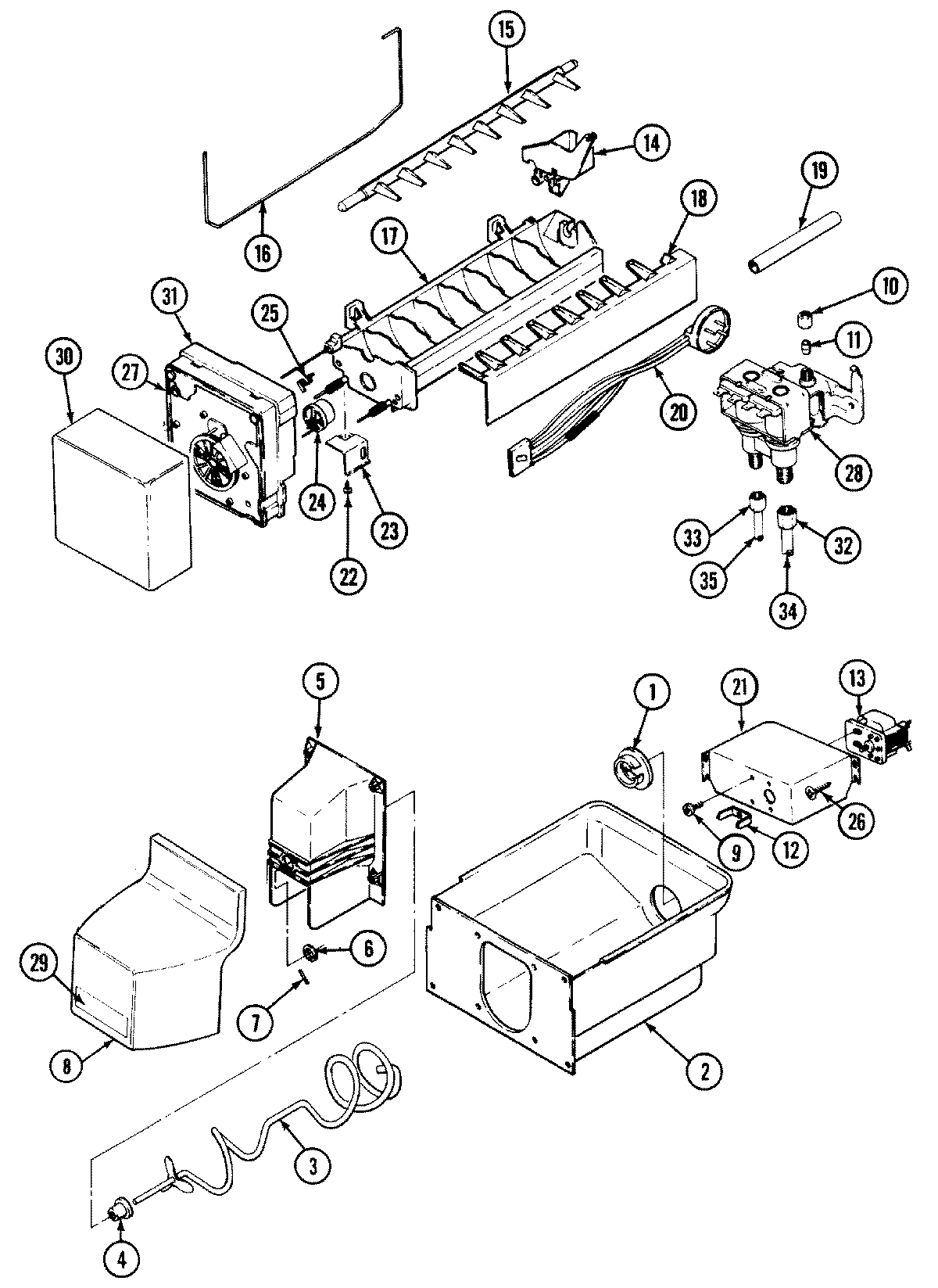

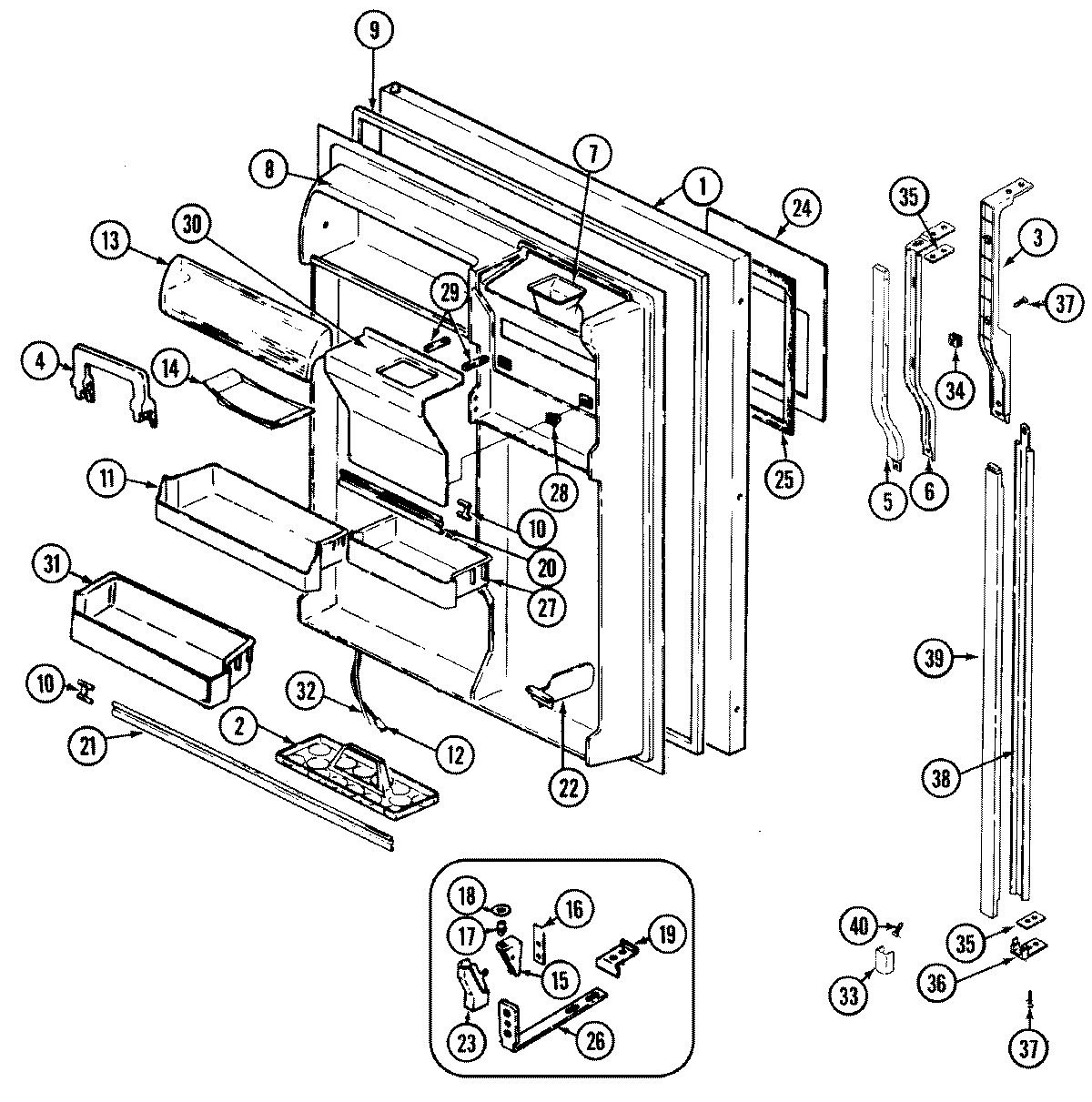

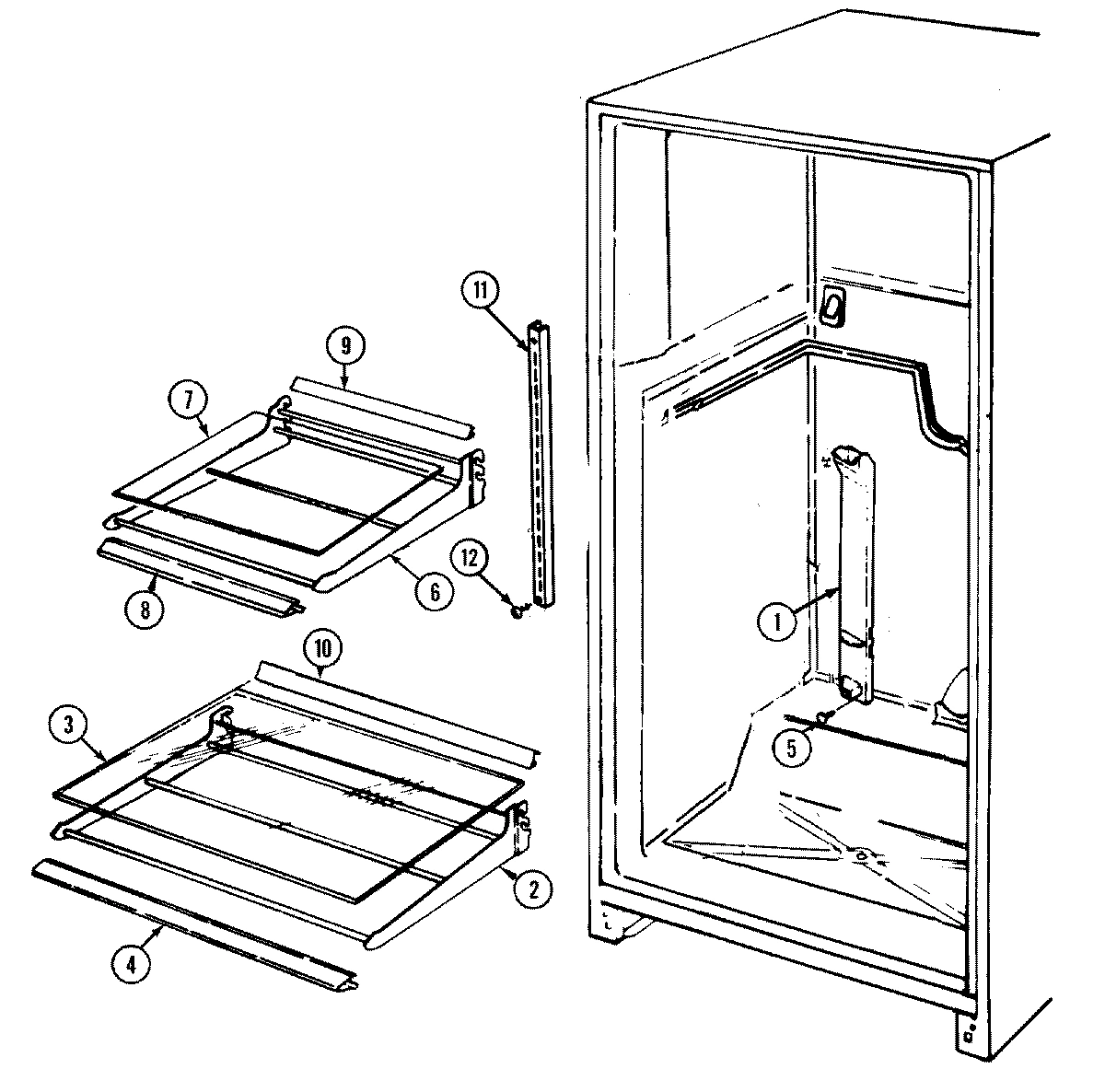

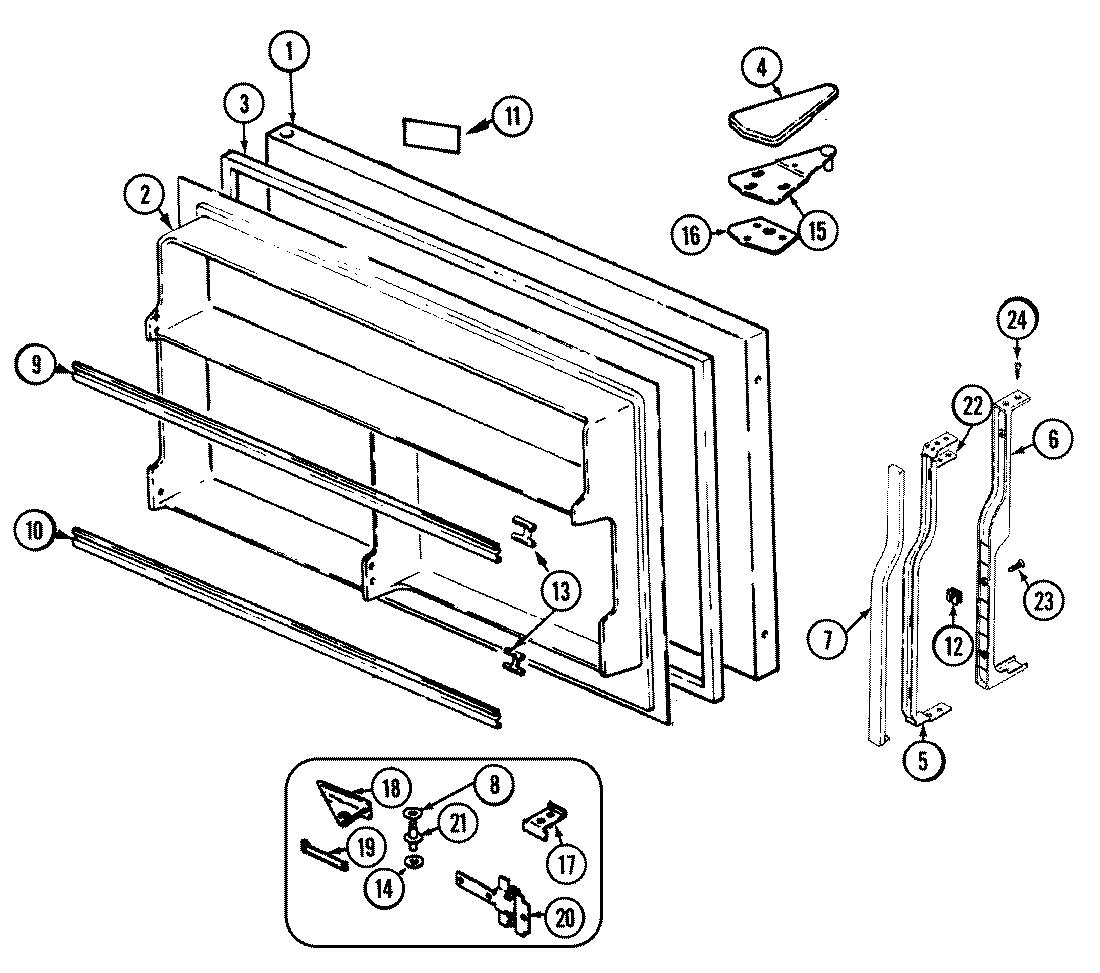

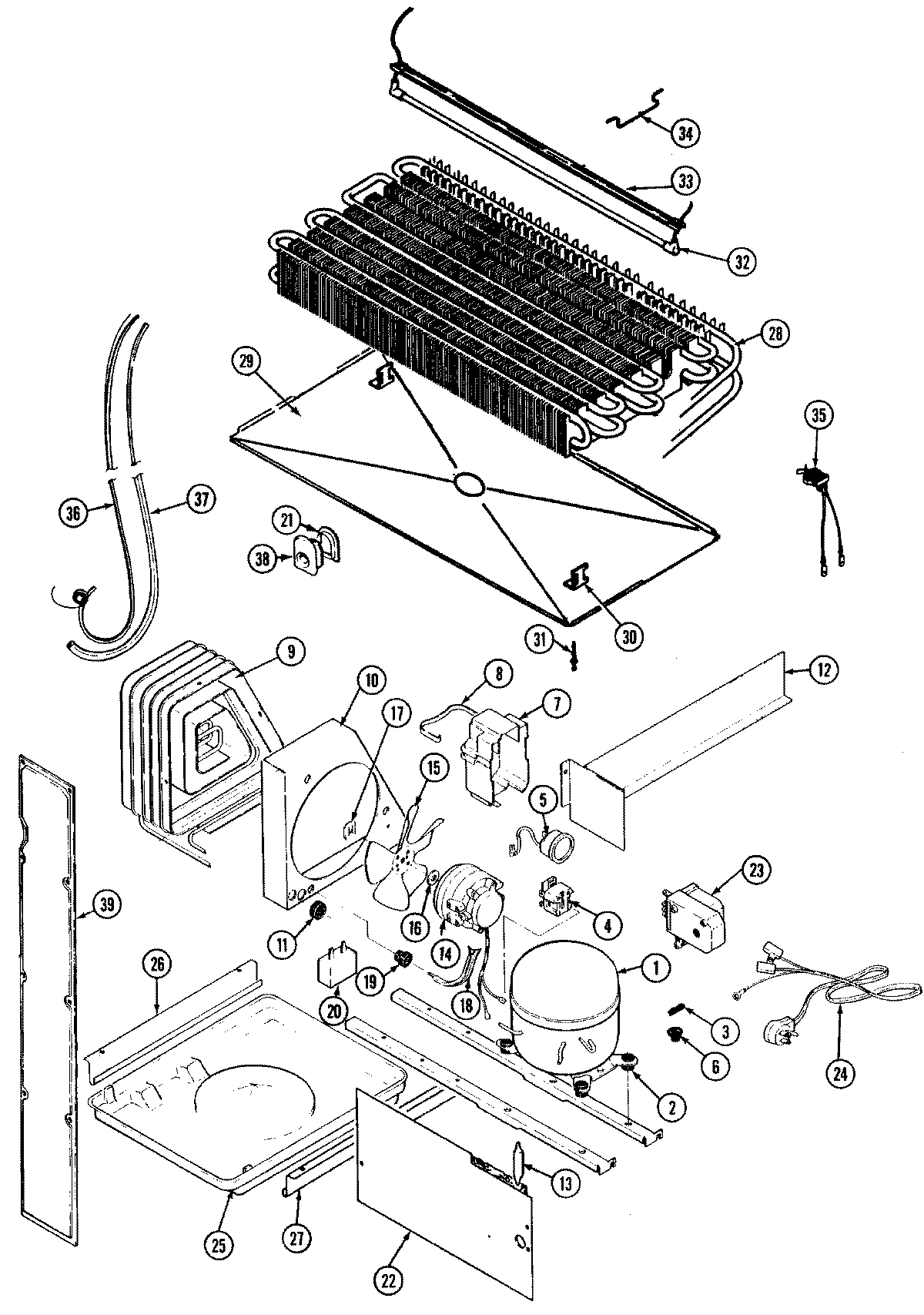

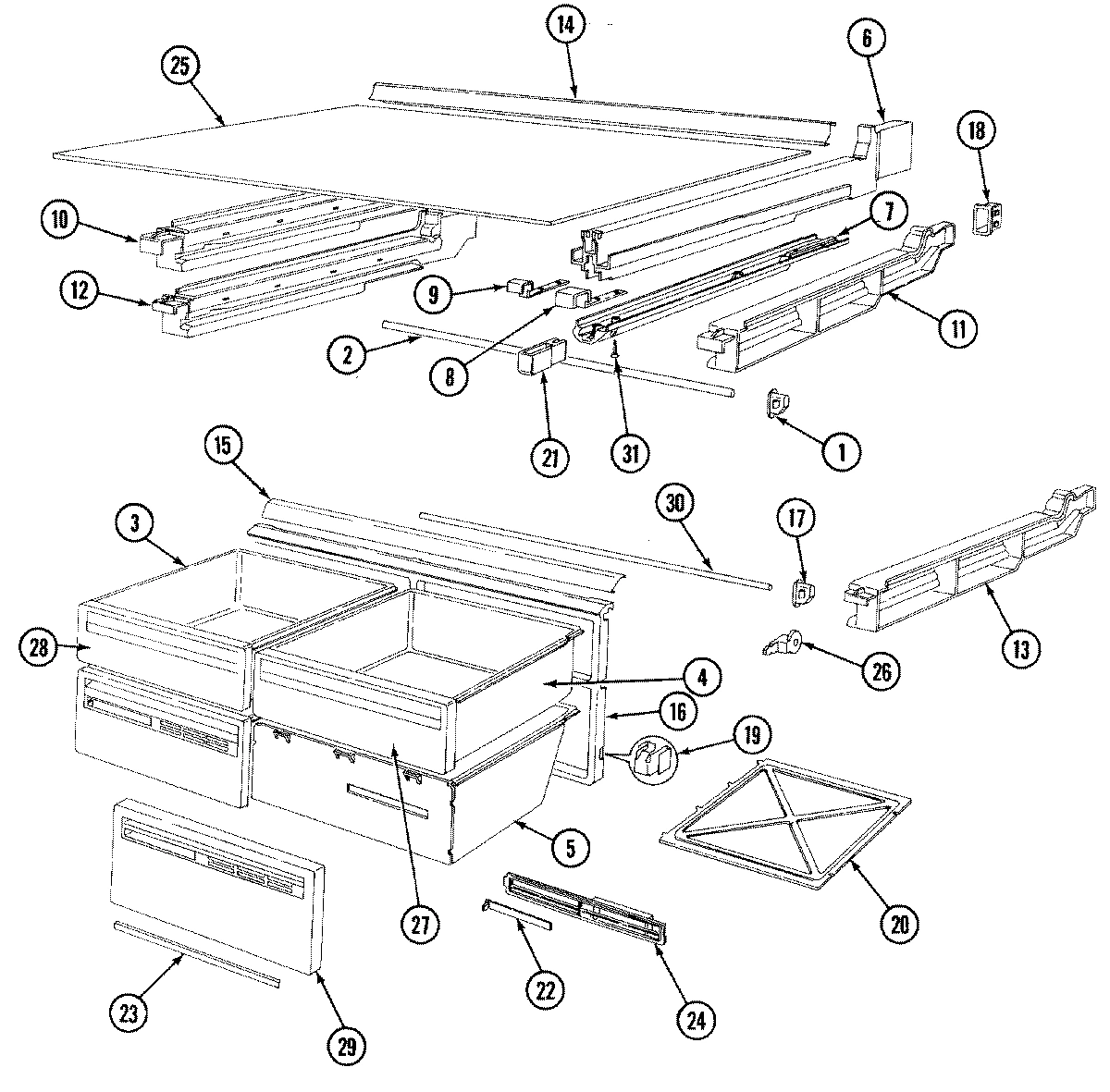

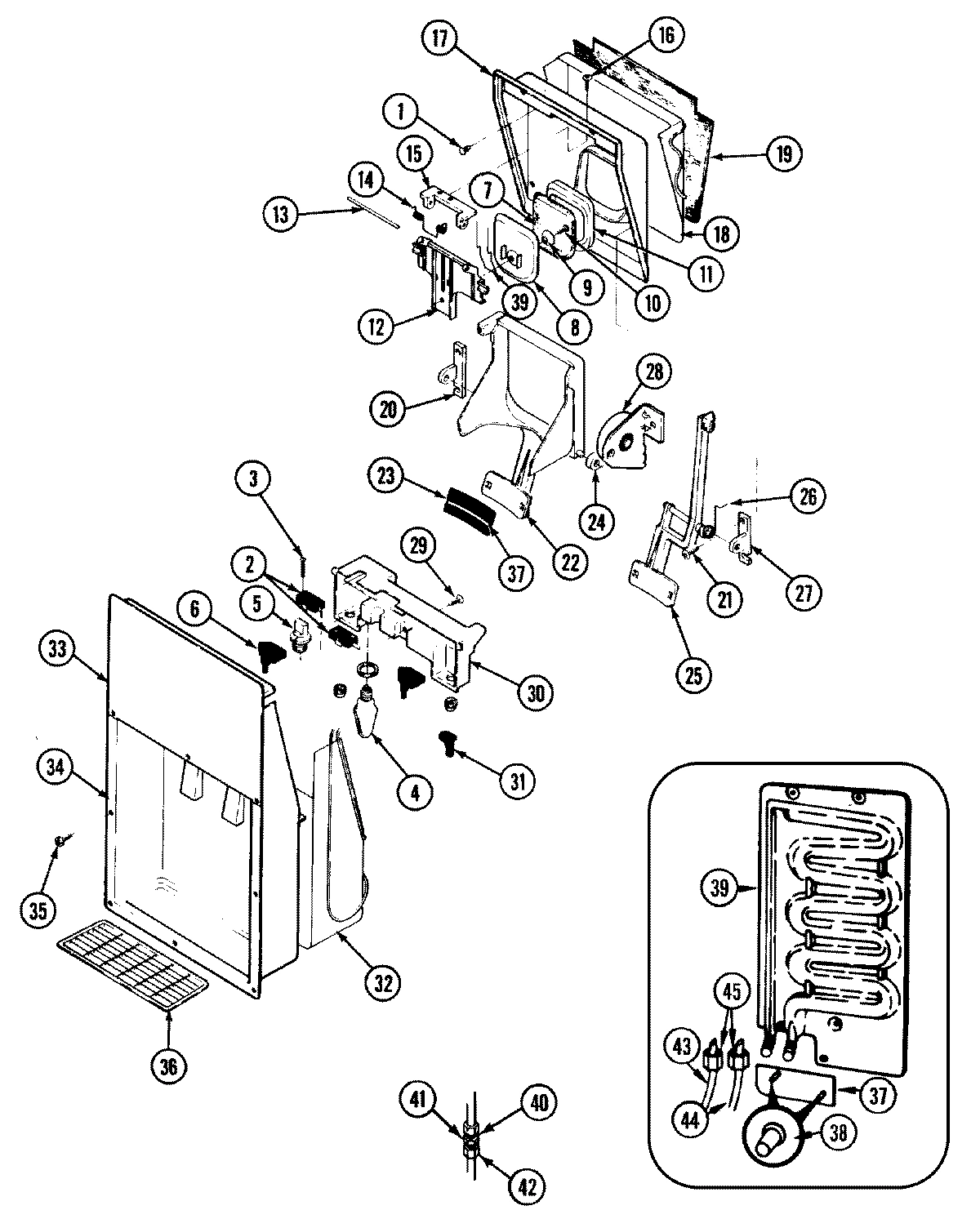

Model Whirlpool RB234TDA REFRIGERATOR – Common Parts &amp; Diagrams

1

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $301.93

1

TOP, F.F. COMPARTMENT WPL 694111 Contact Us For Availability

1

PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability

1

PANEL, F.F. DOOR (ALM) WPL 724491AM Contact Us For Availability

1

CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability

1

PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability

1

PANEL, FRZ. DOOR (ALM) WPL 72342104AM Contact Us For Availability

1

TUNNEL, AIR WPL 695782 Contact Us For Availability

1

RING, DRIVE WPL 700272 Contact Us For Availability

2

DEFLECTOR, AIR WPL 696231 Contact Us For Availability

2

SWITCH, ICE & WATER WPL 554402 Contact Us For Availability

2

TRAY, EGG WPL 600661 Contact Us For Availability

2

SCREW WPL 652755 Contact Us For Availability

2

SEAL, MULLION TRAY WPL 694144 Contact Us For Availability

2

CRISPER SHELF ROD WPL 687563 Contact Us For Availability

2

LINER, FRZ. DOOR WPL 694721 Contact Us For Availability

2

FRAME, FULL SHELF WPL 7010611 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

BIN WPL 678311 Contact Us For Availability

3

ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability

3

SCREW WPL 4050711 Contact Us For Availability

3

HANDLE, F.F. DOOR WPL 700512 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability

3

DRAWER, UTILITY WPL 685131 Contact Us For Availability

3

GASKET, DOOR WPL 700257 Contact Us For Availability

3

GLASS, FULL SHELF WPL 6813933 Contact Us For Availability

3

CLIP WPL 527782 Contact Us For Availability

3

AUGER WPL 678331 Contact Us For Availability

4

COVER, CRANK WPL 674931 Contact Us For Availability

4

BULB, LIGHT WPL 631791 Contact Us For Availability

4

RETAINER, BOTTLE WPL 701121 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

PAN, MEAT WPL 685134 Contact Us For Availability

4

COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability

4

TRIM, FULL SHELF (FRONT) WPL 7010724 Contact Us For Availability

4

RELAY, START WPL 665881 Contact Us For Availability

4

BEARING WPL 671722 Contact Us For Availability

5

ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability

5

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

5

INSERT, HANDLE (ALM)----NA WPL 7005317 Contact Us For Availability

5

SCREW WPL 40001536 Contact Us For Availability

5

PAN, CRISPER WPL 685141 Contact Us For Availability

5

FRAME, HANDLE WPL 700524 Contact Us For Availability

5

OVERLOAD WPL 691057 Contact Us For Availability

5

ICE DAM WPL 678321 Contact Us For Availability

6

CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability

6

NUT, WIRE WPL 271165 Contact Us For Availability

6

WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability

6

SWITCH, LIGHT WPL 698325 Contact Us For Availability

6

FRAME, HANDLE WPL 700521 Contact Us For Availability

6

SCREW, HANDLE WPL 6527537 Contact Us For Availability

6

BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability

6

UPPER RAIL WPL 685153 Contact Us For Availability

6

HANDLE, FRZ. DOOR (CHR) WPL 700501 Contact Us For Availability

6

FRAME, SPLIT SHELF WPL 701069 Contact Us For Availability

6

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

6

WASHER, THRUST WPL 678342 Contact Us For Availability

7

WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability

7

SCREW WPL 6527513 Contact Us For Availability

7

INSULATION, ICE DOOR WPL 685571 Contact Us For Availability

7

CHUTE, ICE WPL 695411 Contact Us For Availability

7

WASHER, SPRING WPL 420092900 Contact Us For Availability

7

RAIL WPL 682681 Contact Us For Availability

7

INSERT, HANDLE (ALM) WPL 700539 Contact Us For Availability

7

GLASS CANTILEVER SHELF WPL 6813914 Contact Us For Availability

7

COVER, TERMINAL WPL 665892 Contact Us For Availability

7

PIN, COTTER WPL 492007703 Contact Us For Availability

8

SCREW WPL 40502335 Contact Us For Availability

8

SCREW WPL 41501335 Contact Us For Availability

8

LINER, F.F. DOOR WPL 694582 Contact Us For Availability

8

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

8

BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability

8

WASHER WPL 674836 Contact Us For Availability

8

TRIM, SPLIT SHELF (FRONT) WPL 7010719 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

8

FRONT, ICE BIN WPL 698756 Contact Us For Availability

9

SCREW WPL 6527578 Contact Us For Availability

9

RETAINER WPL 685661 Contact Us For Availability

9

GASKET, F.F. DOOR WPL 700258 Contact Us For Availability

9

TUNNEL, AIR WPL 702083 Contact Us For Availability

9

BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability

9

TRIM, SHELF (12``) WPL 70111114 Contact Us For Availability

9

TRIM, SPLIT SHELF (REAR) WPL 701103 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604082 Contact Us For Availability

9

CONDENSER WPL 604343 Contact Us For Availability

9

SCREW WPL 406026103 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

SCREW WPL 40511635 Contact Us For Availability

SCREW WPL 40001531 Contact Us For Availability

RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability

TRIM, SHELF (13 7/8``) WPL 70111118 Contact Us For Availability

TRIM, FULL SHELF (REAR) WPL 701108 Contact Us For Availability

SCREW WPL 4140011 Contact Us For Availability

SHROUD, CONDENSER WPL 662281 Contact Us For Availability

BULB, LIGHT WPL 681231 Contact Us For Availability

FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability

SEAL, ICE DOOR WPL 698671 Contact Us For Availability

SHELF, PICK-OFF WPL 6987210 Contact Us For Availability

COVER, EVAPORATOR WPL 664035 Contact Us For Availability

RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability

NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability

RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability

RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability

RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

SWITCH, HEATER WPL 692831 Contact Us For Availability

STRIKE, ICE DOOR WPL 685632 Contact Us For Availability

WIRE HARNESS, DOOR WPL 698657 Contact Us For Availability

GROMMET WPL 697431 Contact Us For Availability

BOTTOM, FRZ. WPL 693991 Contact Us For Availability

RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability

SCREW WPL 40003728 Contact Us For Availability

BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability

YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

SCREW WPL 40501635 Contact Us For Availability

COVER, CONTROL WPL 694211 Contact Us For Availability

DOOR, ICE WPL 689572 Contact Us For Availability

SHAFT WPL 685641 Contact Us For Availability

RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability

DOOR, DAIRY WPL 66184367 Contact Us For Availability

RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability

MOTOR, AUGER WPL 651861 Contact Us For Availability

WIRE HARNESS WPL 677011 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

SPRING WPL 687651 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

TRIM, SHELF WPL 701098 Contact Us For Availability

TRIM, SHELF (REAR) WPL 682714 Contact Us For Availability

WASHER WPL 542331 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 684453 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability

BRACKET, PIVOT WPL 689581 Contact Us For Availability

SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability

HINGE, LOWER (BLK) WPL 695161 Contact Us For Availability

DIVIDER WPL 656222 Contact Us For Availability

TRIM, SHELF (FRONT) WPL 702802 Contact Us For Availability

HINGE, UPPER WPL 5370920 Contact Us For Availability

SCREW WPL 6527552 Contact Us For Availability

BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability

SCREW WPL 40501335 Contact Us For Availability

SHIM, LOWER HINGE WPL 695101 Contact Us For Availability

ARM, ICE DOOR WPL 701831 Contact Us For Availability

FRONT, DRAWER WPL 682733 Contact Us For Availability

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

WASHER, FAN BLADE WPL 690631 Contact Us For Availability

ARM, SENSOR WPL 701421 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability

BACK, FOUNTAIN (ALM) WPL 685673 Contact Us For Availability

PIN, HINGE WPL 700601 Contact Us For Availability

SCREW WPL 6527548 Contact Us For Availability

STOP, DOOR WPL 692562 Contact Us For Availability

CUP, SHELF WPL 603131 Contact Us For Availability

SUPPORT ROD CUP WPL 687581 Contact Us For Availability

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

SCREW WPL 4060131 Contact Us For Availability

CONTROL, TEMPERATURE WPL 686013 Contact Us For Availability

FOIL WPL 5380837 Contact Us For Availability

HEATER, FOUNTAIN BACK WPL 689373 Contact Us For Availability

WASHER, DOOR SPACER WPL 674833 Contact Us For Availability

SHELF, FRZ. WPL 605143 Contact Us For Availability

CUP WPL 682753 Contact Us For Availability

SCREW WPL 6527562 Contact Us For Availability

HINGE, CENTER WPL 695142 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

STRIPPER, ICE WPL 951021 Contact Us For Availability

SCREW WPL 6527567 Contact Us For Availability

COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability

LATCH WPL 661461 Contact Us For Availability

CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability

SHIM, CENTER HINGE WPL 695151 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

TUBE, WATER ENTRY WPL 676662 Contact Us For Availability

DISC, CRANK COVER WPL 690371 Contact Us For Availability

PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability

TRIM, SHELF (10``) WPL 70111110 Contact Us For Availability

SEAL, AIR TUNNEL WPL 6632537 Contact Us For Availability

PAN COVER WPL 682781 Contact Us For Availability

SCREW WPL 6527561 Contact Us For Availability

TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability

CAPACITOR, RUN WPL 658892 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability

HEATER, DIVIDER CHANNEL WPL 696173 Contact Us For Availability

TRIM, SHELF (26 1/2``) WPL 70111135 Contact Us For Availability

SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability

GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability

PIN, CENTER HINGE WPL 695172 Contact Us For Availability

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

BOX, AUGER MOTOR WPL 673471 Contact Us For Availability

CHANNEL, MULLION DIVIDER (WHT) WPL 694203WW Contact Us For Availability

WIRE HARNESS, MULLION WPL 701173 Contact Us For Availability

PADDLE, ICE (ALM) WPL 691123 Contact Us For Availability

ORGANIZER WPL 697592 Contact Us For Availability

SHIM, HANDLE WPL 679341 Contact Us For Availability

SWITCH, INTERLOCK WPL 680581 Contact Us For Availability

CONTROL, CRISPER SLIDE WPL 685824 Contact Us For Availability

COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

KICKPLATE (BLK) WPL 689803 Contact Us For Availability

PAD, PADDLE (ALM) WPL 691743 Contact Us For Availability

SCREW, HINGE COVER (BLACK) WPL 6527547 Contact Us For Availability

COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability

SCREW WPL 4150331 Contact Us For Availability

COVER, PLENUM WPL 61664806 Contact Us For Availability

TRIM, HDLE INSERT (FRUIT/VEG.) WPL 702844 Contact Us For Availability

PAN, MEAT WPL 702845 Contact Us For Availability

PAN, CRISPER (UTILITY) WPL 702846 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682332 Contact Us For Availability

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

SEAL, TOP TOWER WPL 689891 Contact Us For Availability

PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability

ESCUTCHEON (ALM) WPL 685946 Contact Us For Availability

RETAINER, SLIDE CONTROL WPL 682884 Contact Us For Availability

SCREW WPL 6527580 Contact Us For Availability

CORD, POWER WPL 528903 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

TUBE, DRAIN WPL 545317 Contact Us For Availability

PADDLE, WATER (ALM) WPL 685583 Contact Us For Availability

TAPE, ESCUTCHEON WPL 951211 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

COVER, GLASS WPL 682921 Contact Us For Availability

PAN, DRAIN WPL 682361 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

CAP, DRAIN TUBE WPL 650391 Contact Us For Availability

SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability

SCREW WPL 4140121 Contact Us For Availability

SCREW (No.10 X 1/2``) WPL 6527566 Contact Us For Availability

TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability

DUCT, AIR WPL 670613 Contact Us For Availability

STUD, FRONT CLIP WPL 683391 Contact Us For Availability

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

SCREW WPL 40002636 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

CLIP, KICKPLATE WPL 601001 Contact Us For Availability

PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability

SHELF, PICK-OFF WPL 698727 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

LEG, LEVELING WPL 686641 Contact Us For Availability

BUMPER, DOOR WPL 282726 Contact Us For Availability

MOTOR, INTERIA----NA WPL 692751 Contact Us For Availability

LATCH WPL 651843 Contact Us For Availability

FRONT, MEAT PAN WPL 6863915 Contact Us For Availability

EVAPORATOR WPL 698228 Contact Us For Availability

SCREW WPL 4010181 Contact Us For Availability

VALVE, WATER (120V) WPL 61001021 Contact Us For Availability

SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability

SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability

SEAL WPL 5207726 Contact Us For Availability

TUNNEL, ICE WPL 696251 Contact Us For Availability

COVER, AIR INLET WPL 683911 Contact Us For Availability

SCREW, ANCHOR WPL 683981 Contact Us For Availability

FRUIT & VEG PAN FRONT WPL 686409 Contact Us For Availability

TRAY, EVAPORATOR WPL 691183 Contact Us For Availability

INSERT, ICE DOOR WPL 698742 Contact Us For Availability

WHEEL WPL 698121 Contact Us For Availability

BRACKET, SWITCH WPL 686262 Contact Us For Availability

NUT WPL 701761 Contact Us For Availability

INSULATION WPL 695341 Contact Us For Availability

INSULATION, FOUNTAIN PERIMETER WPL 695351 Contact Us For Availability

PANEL, ACCESS WPL 696262 Contact Us For Availability

WEIGHT, ICE DOOR WPL 701841 Contact Us For Availability

RAIL, SUPPORT WPL 687564 Contact Us For Availability

BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability

COVER, ICE MAKER WPL 683282 Contact Us For Availability

PIN, WHEEL WPL 298352 Contact Us For Availability

PLUNGER WPL 685682 Contact Us For Availability

SHELF, PICK-OFF WPL 6987211 Contact Us For Availability

DOOR, ICE TUNNEL WPL 676473 Contact Us For Availability

SCREW WPL 4050031 Contact Us For Availability

PIN, FRAME GUIDE WPL 683931 Contact Us For Availability

CUP, FRAME MOUNT WPL 683941 Contact Us For Availability

RIVET WPL 263979 Contact Us For Availability

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

SCREW WPL 951061 Contact Us For Availability

CLIP WPL 602161 Contact Us For Availability

GRILL WPL 686311 Contact Us For Availability

NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability

TUBING, FOUNTAIN TO COIL WPL 6718727 Contact Us For Availability

SEAL WPL 6632535 Contact Us For Availability

HEATER, DEFROST WPL 6010636 Contact Us For Availability

BRACKET, WHEEL WPL 675301 Contact Us For Availability

FRONT, FOUNTAIN WPL 689551 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

END CAP, HANDLE (ALM) WPL 61001128 Contact Us For Availability

SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability

SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

PIN, WHEEL WPL 649651 Contact Us For Availability

GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability

CLIP WPL 689351 Contact Us For Availability

TUBING, VALVE TO TANK (5/16``) WPL 6718713 Contact Us For Availability

TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability

SEAL, MULLION TRAY WPL 695623 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability

MAGNET WPL 694133 Contact Us For Availability

SCREW WPL 6527564 Contact Us For Availability

SPRING, ICE DOOR WPL 698681 Contact Us For Availability

END CAP WPL 700561 Contact Us For Availability

HEAT EXCHANGER WPL 650134 Contact Us For Availability

TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability

TRIM, PADDLE PAD WPL 687631 Contact Us For Availability

WIRE TIE WPL 662231 Contact Us For Availability

COVER, HEAT EXCHANGER WPL 681861 Contact Us For Availability

NYLON NUT WPL 1953036 Contact Us For Availability

SCREW WPL 40004828 Contact Us For Availability

TRIM, HANDLE EXT. WPL 700552 Contact Us For Availability

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

TANK, WATER WPL 690656 Contact Us For Availability

INSERT, EXT. (ALM) WPL 700545 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability

WIRE HARNESS, MAIN WPL 61001585 Contact Us For Availability

WIRE HARNESS, MAIN WPL 701631 Contact Us For Availability

40

MANUAL, USE & CARE WPL 1085682 Contact Us For Availability

40

GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability

41

UNION, REDUCING WPL 676121 Contact Us For Availability
