Model Whirlpool RB21KN-2A REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

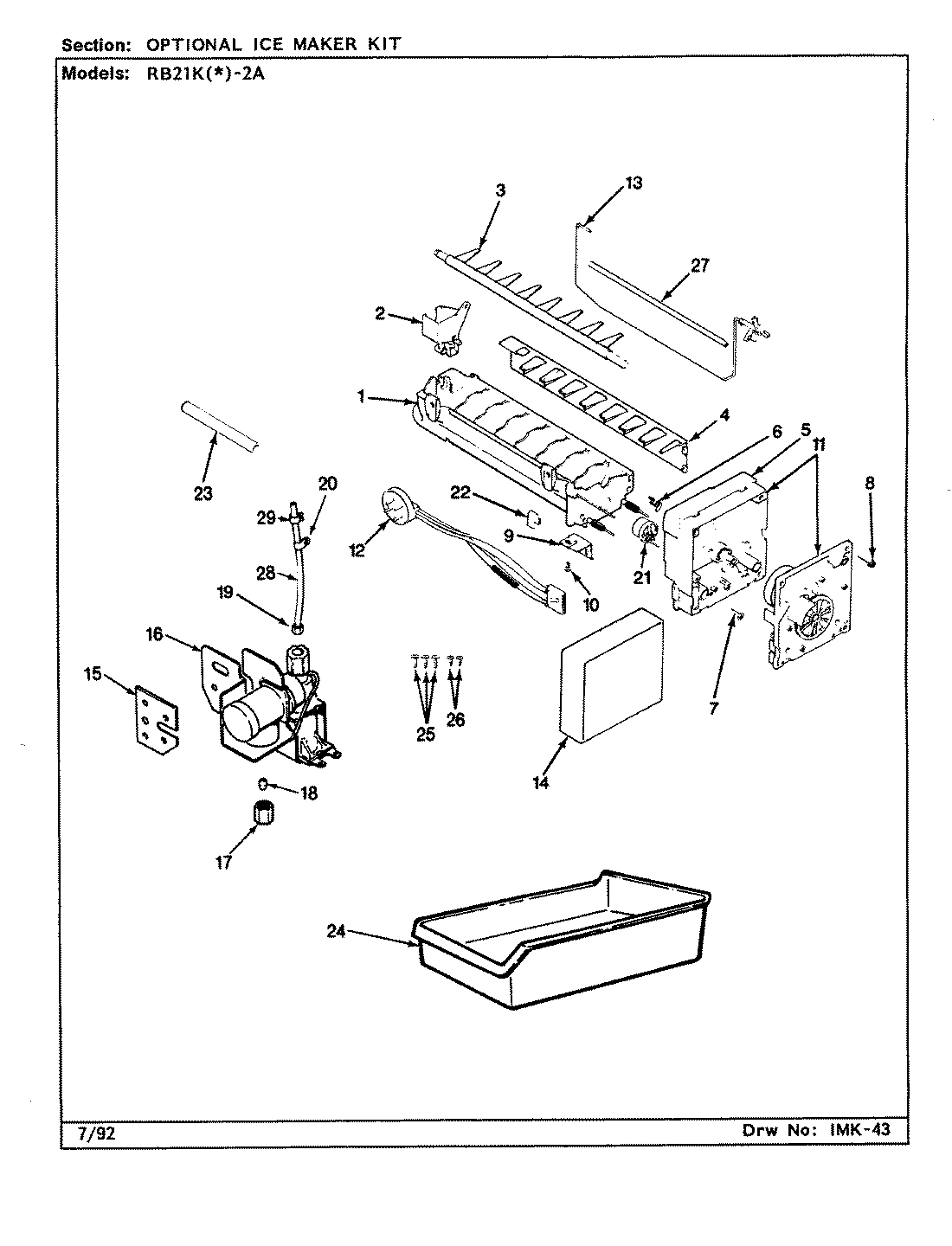

04 - OPTIONAL ICE MAKER KIT

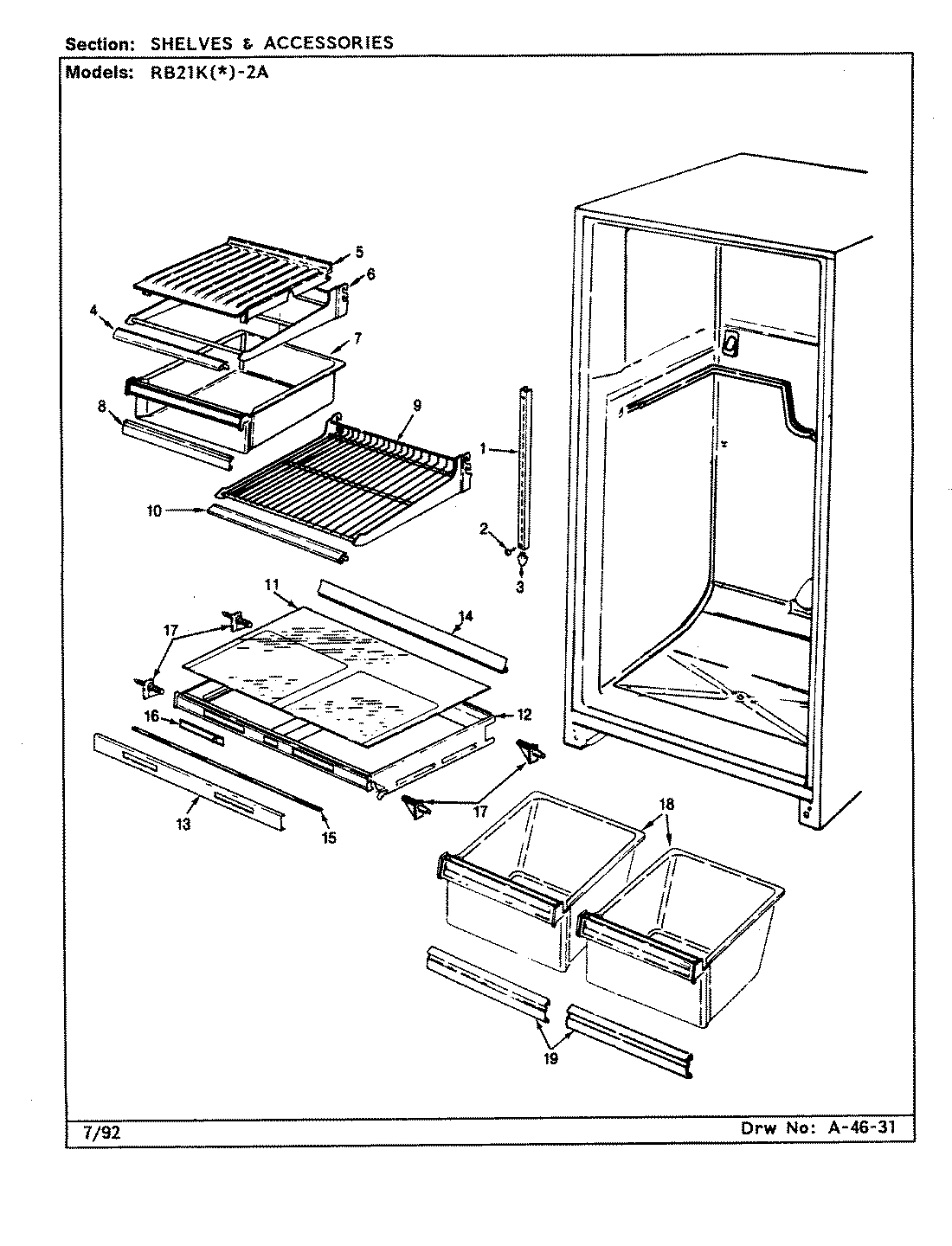

05 - SHELVES & ACCESSORIES

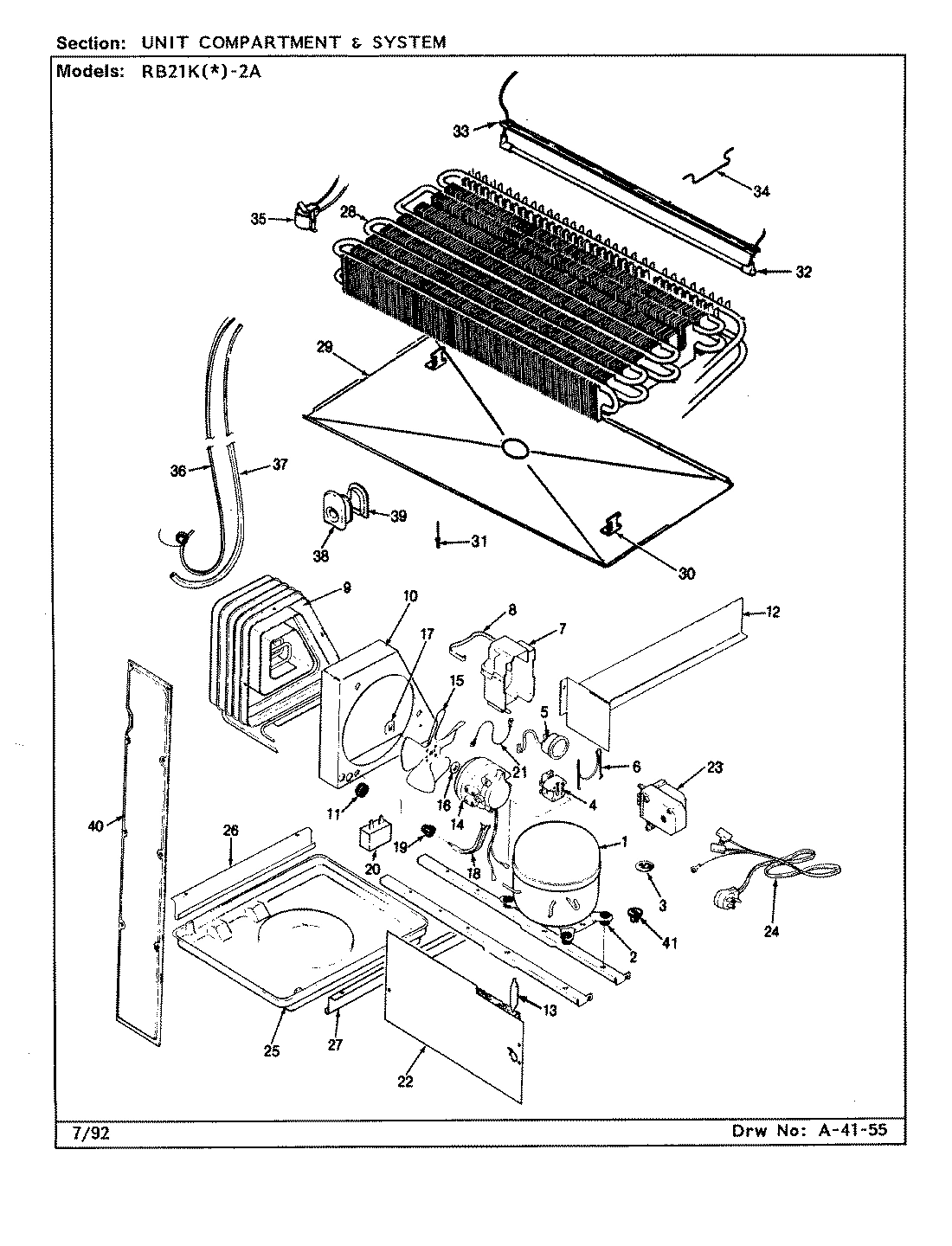

06 - UNIT COMPARTMENT & SYSTEM

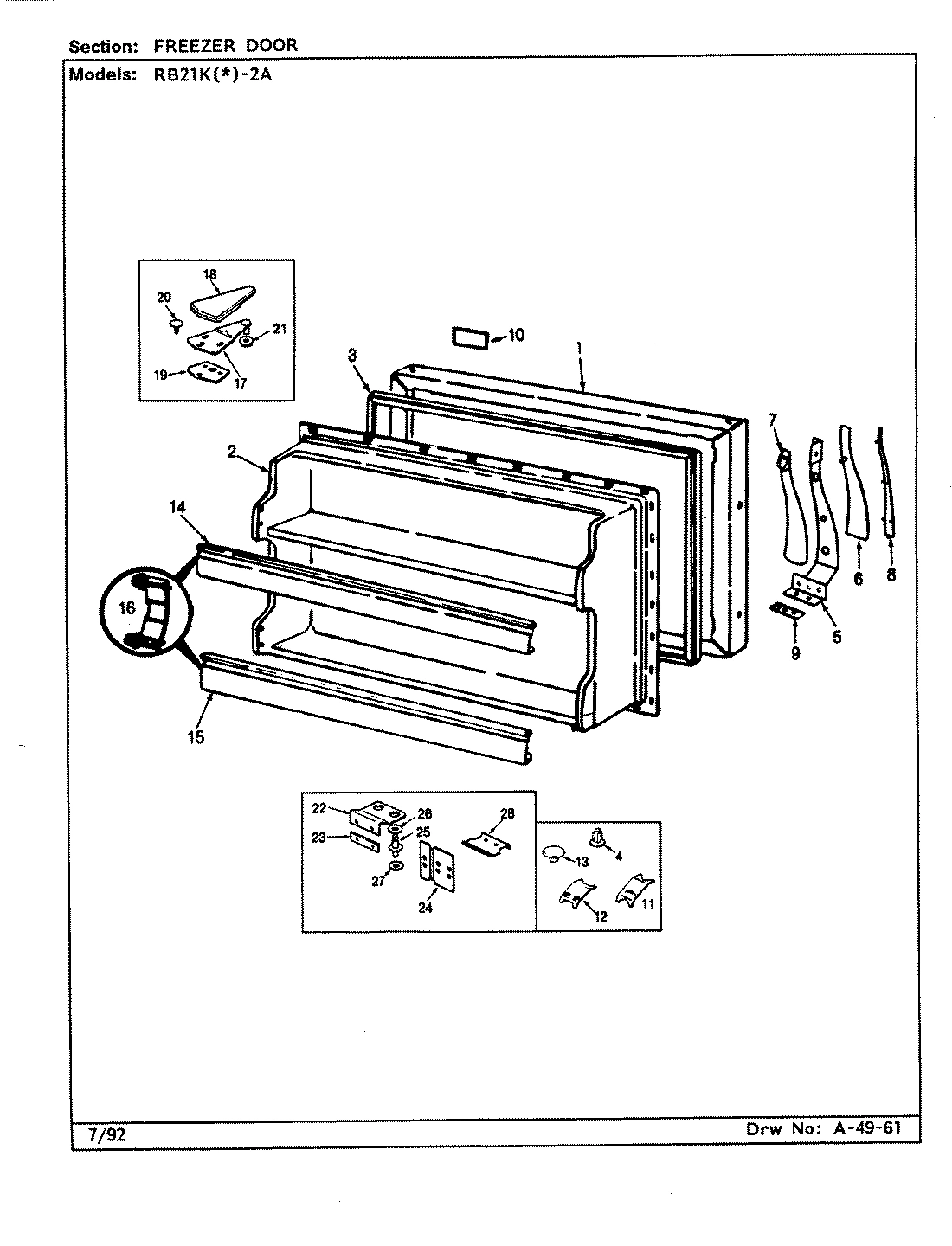

02 - FREEZER DOOR

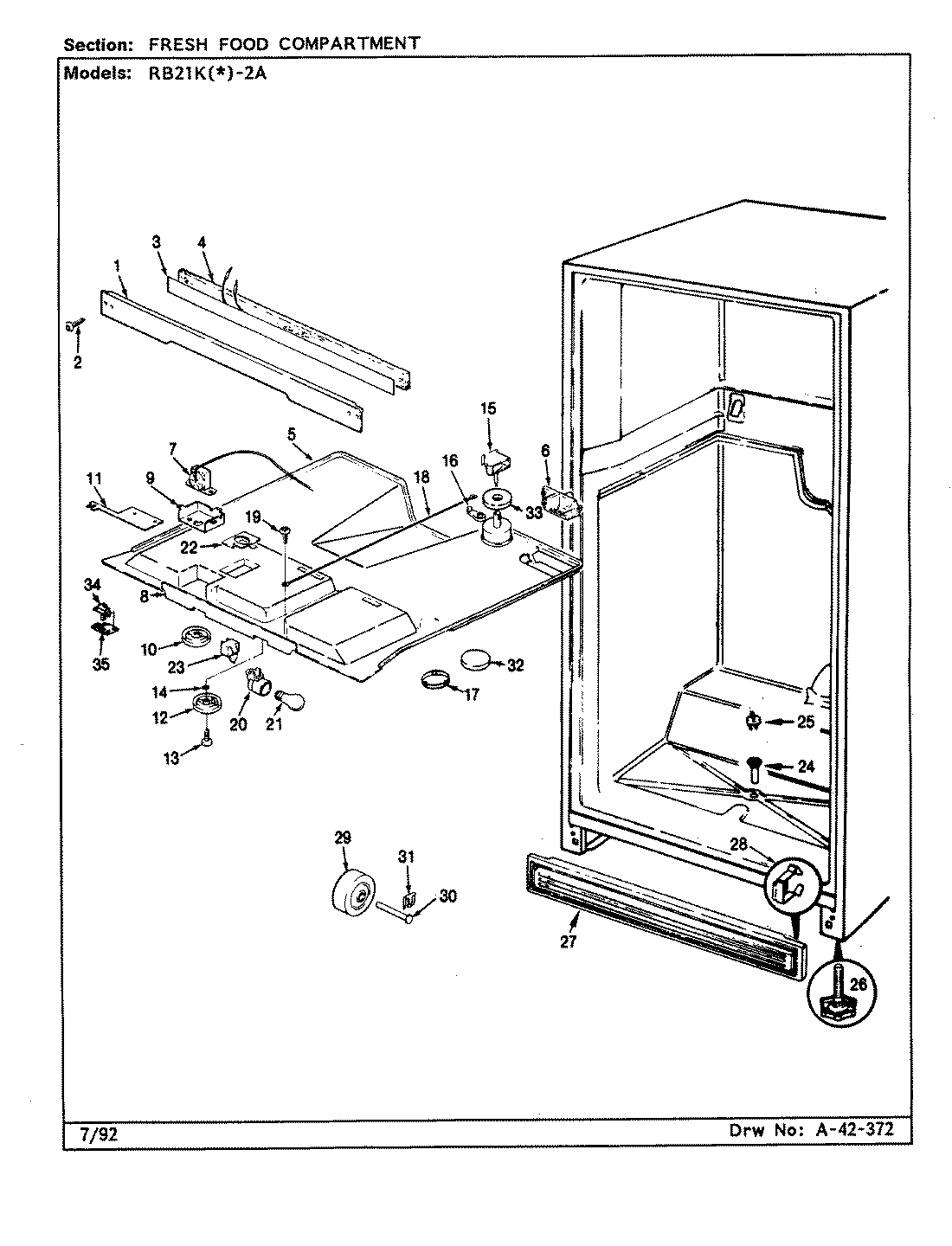

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB21KN-2A REFRIGERATOR
1
FOAM TRAY WPL 675202 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 684741WW Contact Us For Availability
1
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 684342WW Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL WPL 688663 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
2
SCREW WPL 6527554 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
3
HEATER WPL 688292 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
4
INSULATION WPL 601402 Contact Us For Availability
4
WIRE HARNESS MULLION WPL 691512 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
COVER, MEAT PAN WPL 600758 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
SCREW WPL 6527557 Contact Us For Availability
5
DOOR HANDLE WPL 662551 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 685322 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
FRAME, MEAT SHELF WPL 6041615 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT WPL 680361 Contact Us For Availability
6
DEFLECTOR WPL 601202 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
PAN, MEAT WPL 6652422 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
INSERT WPL 605803 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 665452 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
TRIM WPL 6623013 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 6527553 Contact Us For Availability
8
INSERT WPL 680481 Contact Us For Availability
8
INSERT, CONTROL WPL 6057164 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SHELF, SPLIT WPL 6041723 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
TRIM WPL 6041462 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
NAMEPLATE (BLK) WPL 6698214 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686008 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664781 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
CRISPER, GLASS WPL 6874314 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
SHELF WPL 6043833 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
12
SHELF, CRISPER WPL 690572 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
12
KNOB, CONTROL WPL 686007 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TRIM WPL 687444 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
TRIM, CRISPER SHELF (REAR) WPL 687981 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 65151286 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
15
SEAL WPL 687971 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM, DOOR SHELF WPL 65151285 Contact Us For Availability
15
DAMPER ASSY WPL 675585 Contact Us For Availability
16
HANDLE ICE CUBE PAN WPL 662309 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
SLIDE, CONTROL WPL 695421 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
HINGE, UPPER WPL 5370920 Contact Us For Availability
17
SCREW WPL 6527552 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
18
COVER, PLENUM WPL 664805 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
PAN, CRISPER WPL 68163540 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
18
ROD WPL 674994 Contact Us For Availability
19
PLUG BUTTON WPL 675571 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
TRIM WPL 6623014 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
20
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
21
CAP, CONNECTOR WPL 681871 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
WASHER WPL 542331 Contact Us For Availability
22
CAP, GROMMET WPL 683871 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
RIVET WPL 263979 Contact Us For Availability
22
SCREW WPL 6527555 Contact Us For Availability
22
HINGE, CENTER WPL 688112 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
27
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
WASHER WPL 542332 Contact Us For Availability
27
KICKPLATE WPL 689802 Contact Us For Availability
28
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
SCREW WPL 4000171 Contact Us For Availability
28
SCREW WPL 6527548 Contact Us For Availability
28
STOP, DOOR WPL 689881 Contact Us For Availability
28
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
29
CLAMP, SPRING WPL 603334 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
WHEEL WPL 298342 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
PIN, WHEEL WPL 298352 Contact Us For Availability
31
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
DISC, CRANK COVER WPL 690371 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
33
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
SCREW WPL 4020131 Contact Us For Availability
35
BRACKET, SWITCH WPL 605831 Contact Us For Availability
36
TUBING ASSY. WPL 650135 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 691612 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1070994 Contact Us For Availability
× ![]()
Login and Registration Form
