Model Whirlpool RB21KA-4A REFRIGERATOR – Common Parts & Diagrams
08 - UNIT COMPARTMENT & SYSTEM

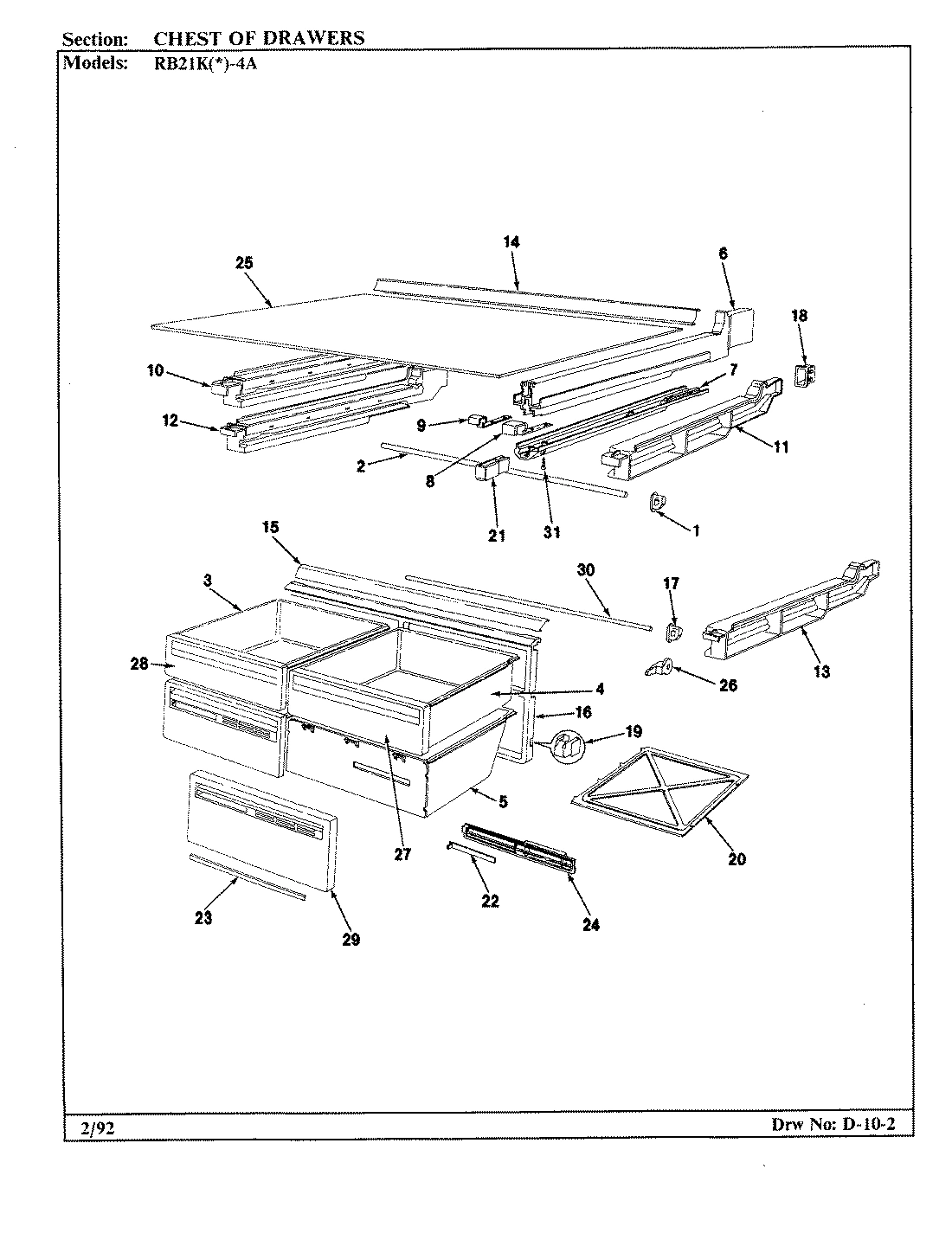

01 - CHEST OF DRAWERS

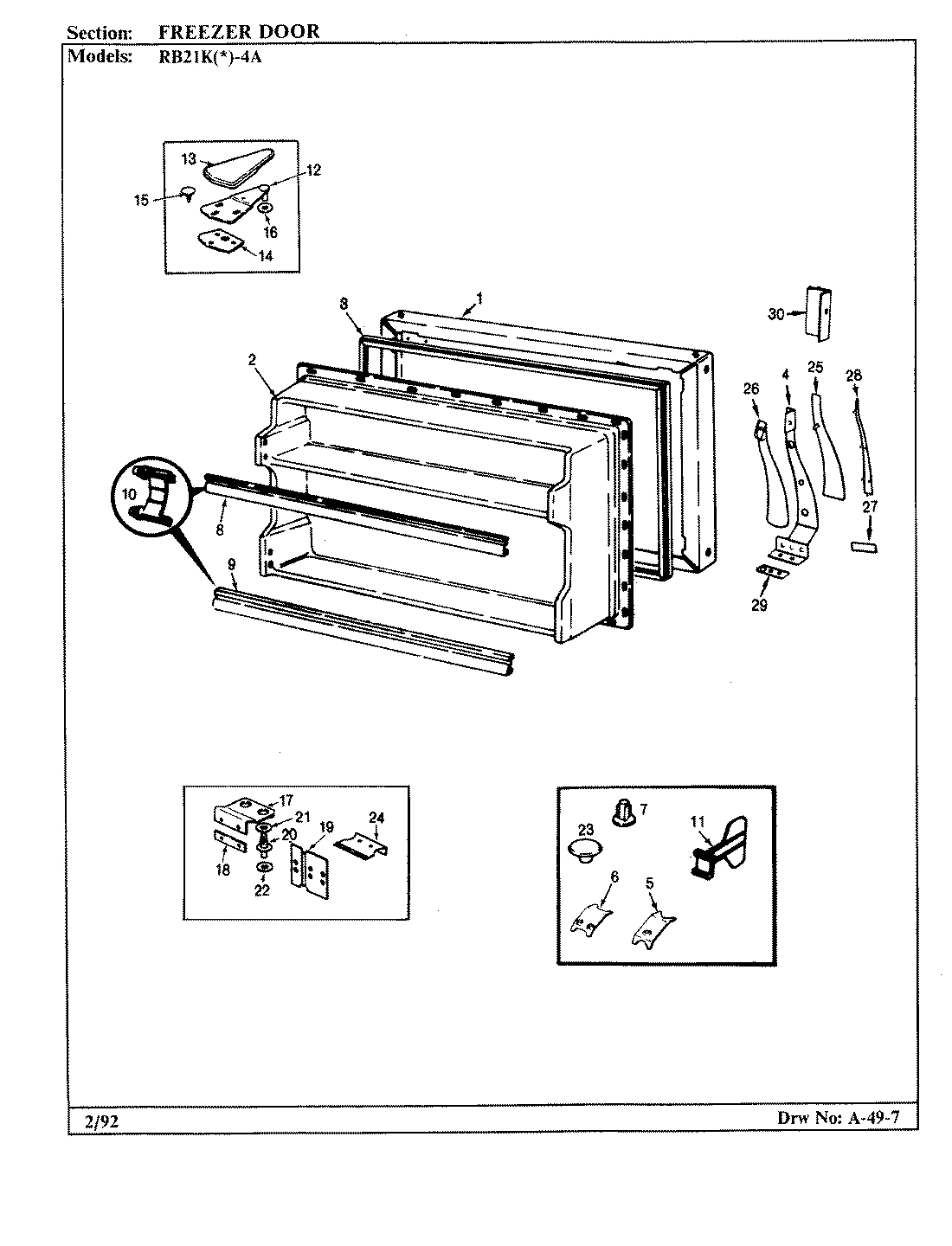

03 - FREEZER DOOR

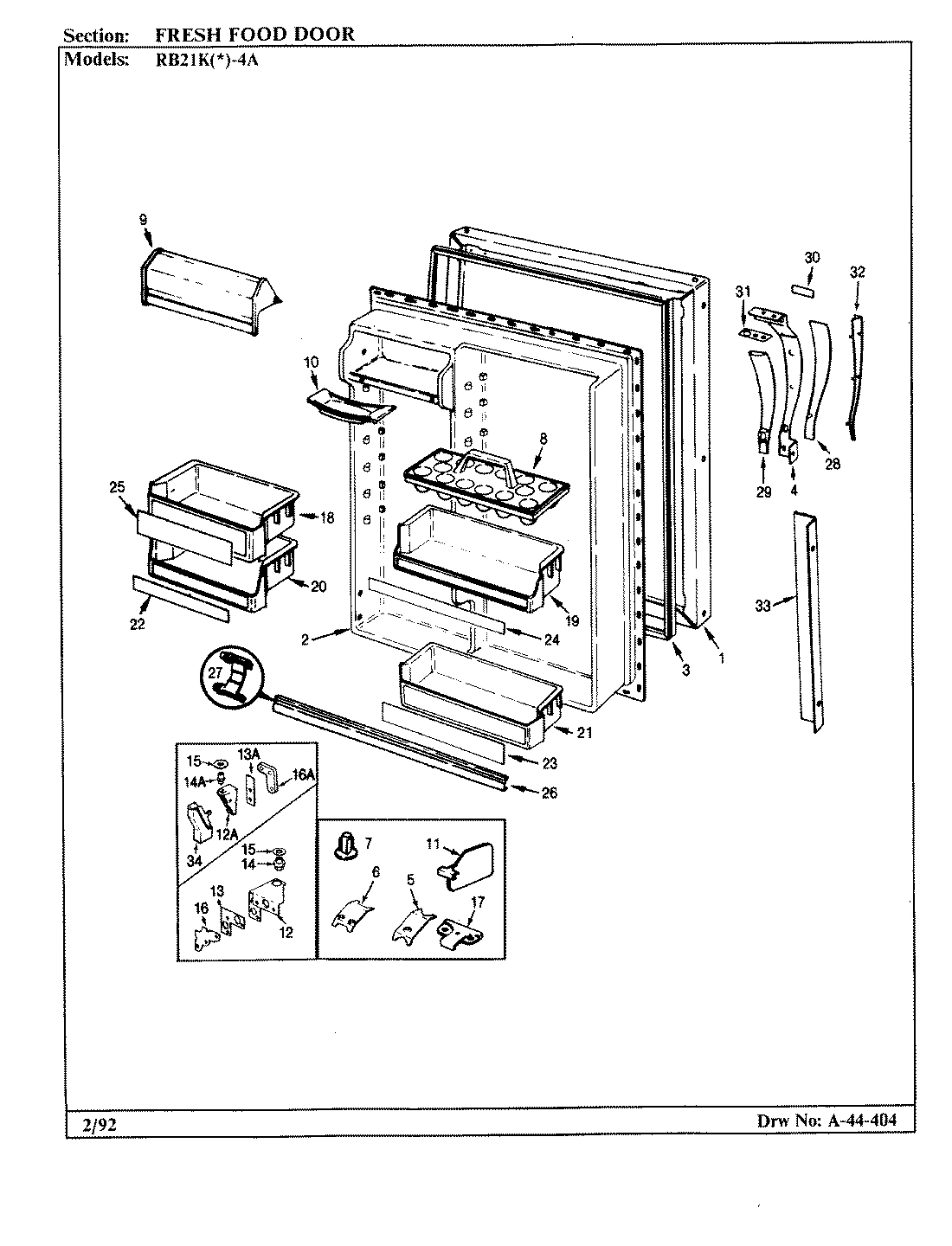

05 - FRESH FOOD DOOR

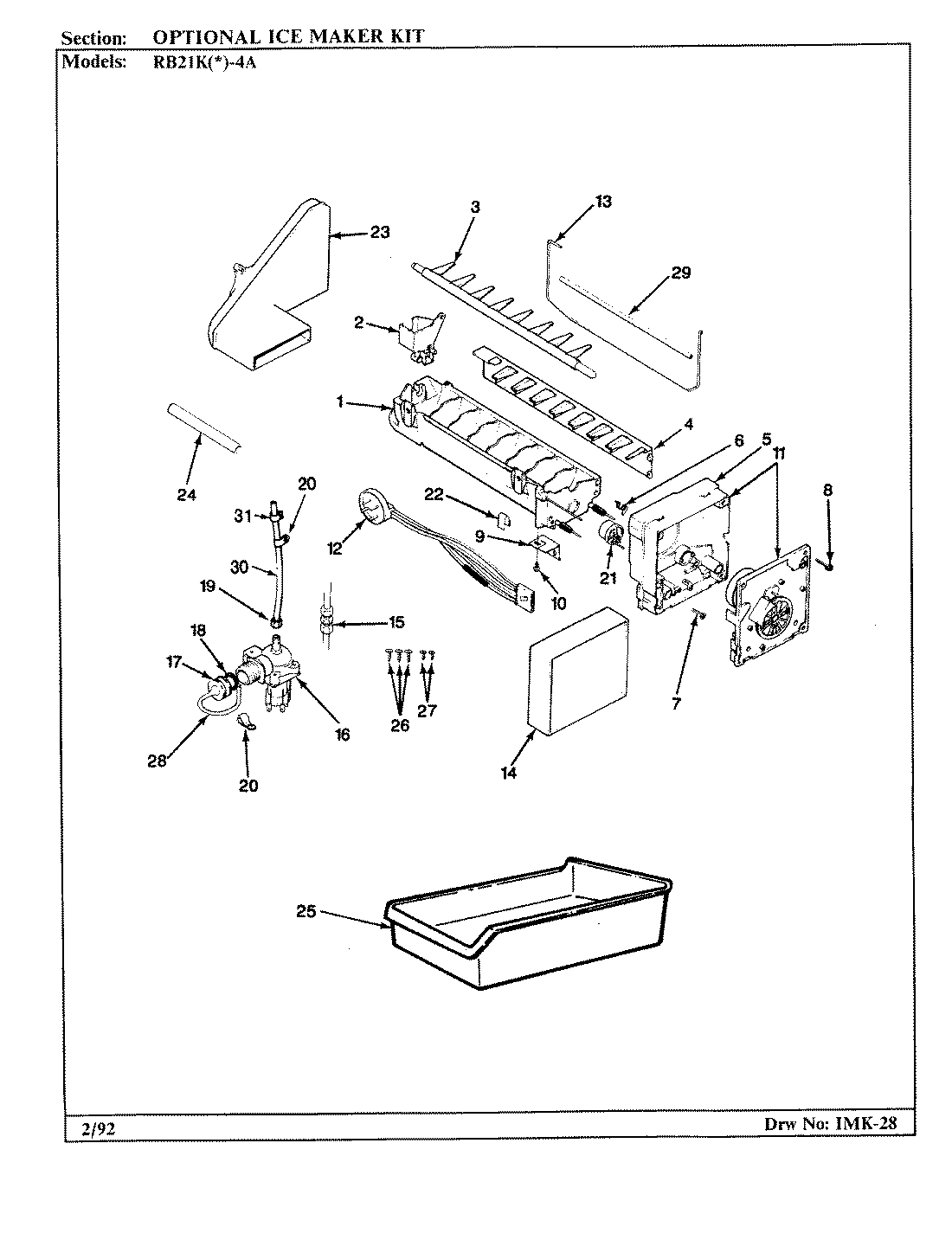

06 - OPTIONAL ICE MAKER KIT

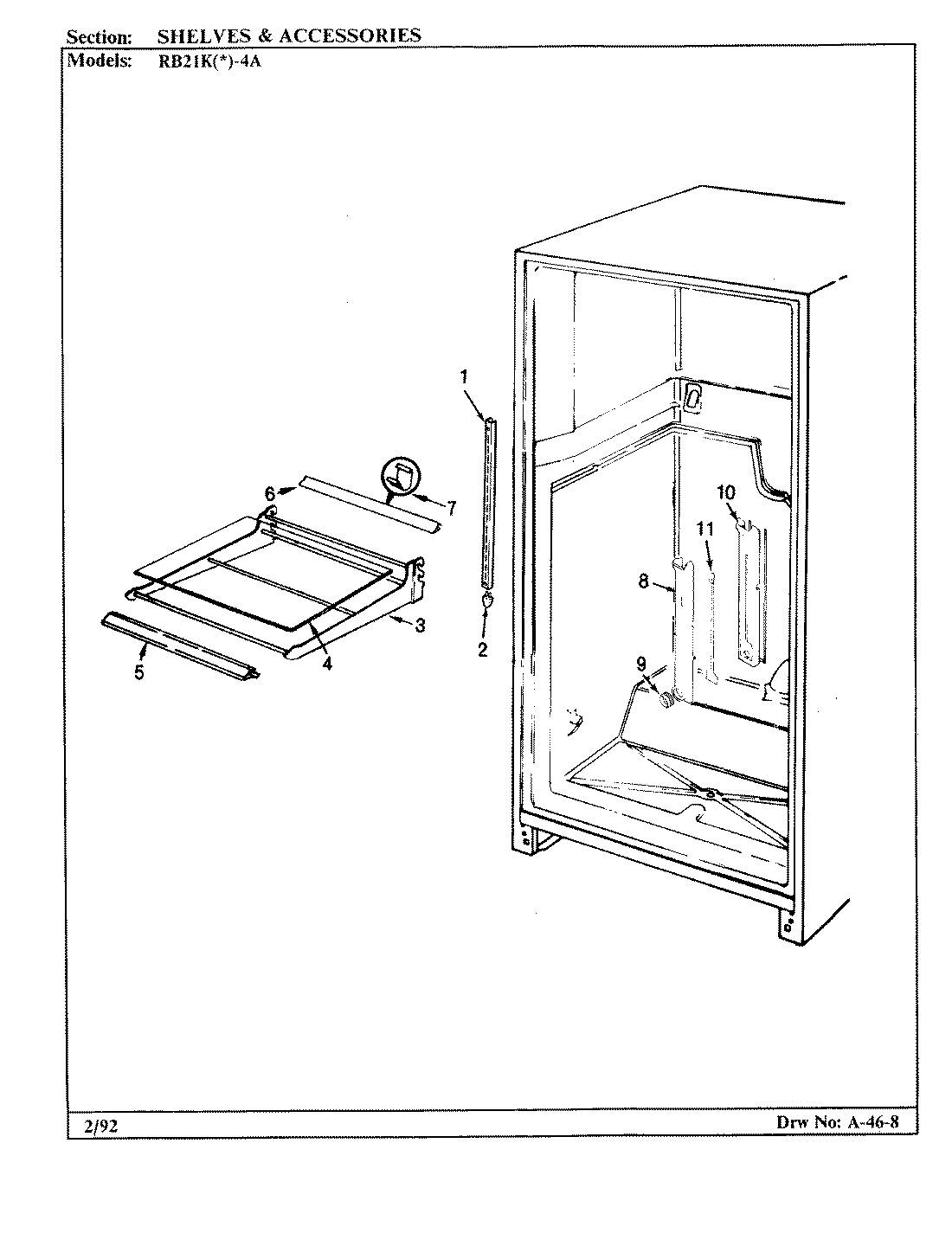

07 - SHELVES & ACCESSORIES

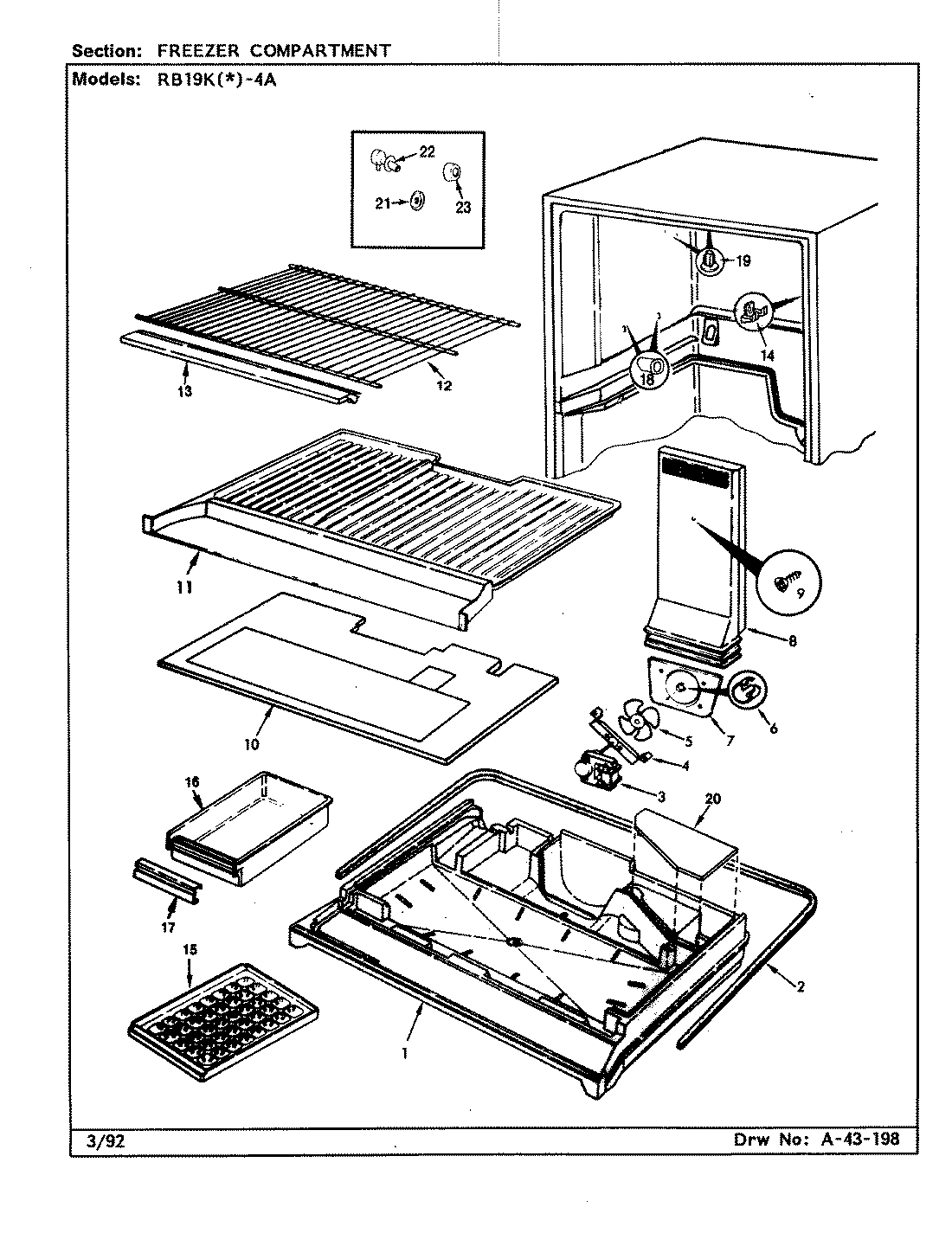

02 - FREEZER COMPARTMENT

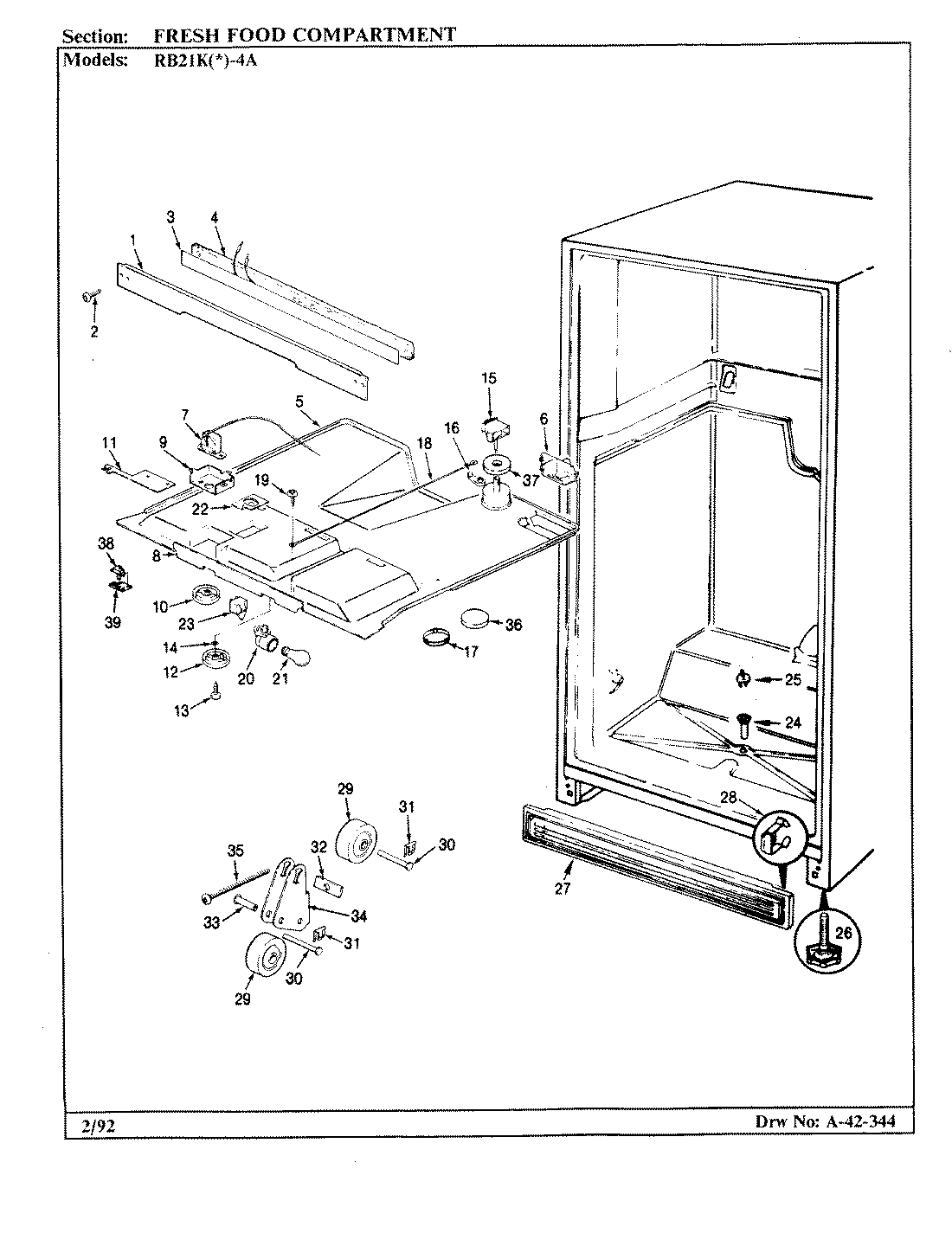

04 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB21KA-4A REFRIGERATOR
1
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684743AM Contact Us For Availability
1
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 684733AM Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
1
FOAM TRAY WPL 675202 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684342AM Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687561 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
2
INNER PANEL WPL 689051 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL WPL 688663 Contact Us For Availability
2
SCREW WPL 6527554 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
PAN, MEAT----NA WPL 685132 Contact Us For Availability
3
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
3
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
FRAME, SHELF----NA WPL 6057043 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
HEATER WPL 688292 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
PAN, MEAT WPL 685135 Contact Us For Availability
4
DOOR HANDLE WPL 662553 Contact Us For Availability
4
SCREW WPL 9986122 Contact Us For Availability
4
DOOR HANDLE WPL 662554 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
GLASS, SPLIT SHELF WPL 6813913 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
INSULATION WPL 601402 Contact Us For Availability
4
WIRE HARNESS MULLION WPL 691512 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
PAN, CRISPER WPL 685142 Contact Us For Availability
5
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
TRIM WPL 6813621 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 685322 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
UPPER RAIL WPL 685153 Contact Us For Availability
6
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
6
DEFLECTOR WPL 601202 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
7
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
CLIP WPL 663332 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 665452 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
TRIM, SHELF WPL 6837517 Contact Us For Availability
8
TRAY, EGG WPL 600661 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
COVER, AIR TUNNEL WPL 682856 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
INSERT TRIM WPL 6057179 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
TRIM, SHELF WPL 6837511 Contact Us For Availability
9
DOOR, DAIRY WPL 6040651 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
10
TRAY, BUTTER WPL 299362 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686005 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
11
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
11
ORGANIZER PACKAGE WPL 666456 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664781 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
12
HINGE, UPPER WPL 5370920 Contact Us For Availability
12
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
12
HINGE, LOWER WPL 689752 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
SHELF WPL 6043827 Contact Us For Availability
12
KNOB, FRZ. CONTROL WPL 686006 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
13
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
13
SHIM WPL 690311 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
14
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
14
PIN, HINGE WPL 689771 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM FRONT WPL 687876 Contact Us For Availability
15
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
15
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
DAMPER ASSY WPL 675585 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
FRONT, DRAWER UNIT WPL 682732 Contact Us For Availability
16
SCREW WPL 998687 Contact Us For Availability
16
SCREW WPL 6527559 Contact Us For Availability
16
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
HINGE, CENTER WPL 688112 Contact Us For Availability
17
SCREW WPL 6527548 Contact Us For Availability
17
STOP, DOOR WPL 689871 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
TRIM, HANDLE PAN WPL 60132100 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682752 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
18
DOOR SHELF WPL 6003735 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
COVER, PLENUM WPL 664805 Contact Us For Availability
18
ROD WPL 674994 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
SCREW WPL 6527524 Contact Us For Availability
19
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
19
SHELF, PICK-OFF WPL 6003736 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
TRIM, FRZ. SHELF WPL 6813623 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
COVER, PAN WPL 682782 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
20
SHELF, PICK-OFF WPL 6003737 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
PLUG BUTTON WPL 669202 Contact Us For Availability
20
PLUG BUTTON WPL 675571 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
21
SHELF, PICK-OFF WPL 6003738 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
WASHER WPL 542331 Contact Us For Availability
22
INSERT WPL 6813052 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
CAP, CONNECTOR WPL 681871 Contact Us For Availability
22
RIVET WPL 263972 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
TRIM, FRUIT/VEG. HANDLE WPL 685832 Contact Us For Availability
23
TRIM, MEAT HANDLE WPL 685834 Contact Us For Availability
23
TRIM, UTILITY HANDLE WPL 685836 Contact Us For Availability
23
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
23
INSERT WPL 6813054 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
23
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
23
CAP, GROMMET WPL 683871 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
RETAINER WPL 682882 Contact Us For Availability
24
STOP, DOOR WPL 689881 Contact Us For Availability
24
INSERT WPL 6813055 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
COVER, GLASS----NA WPL 682922 Contact Us For Availability
25
HANDLE INSERT, FRONT WPL 680165 Contact Us For Availability
25
INSERT, PICK-OFF SHELF WPL 6813064 Contact Us For Availability
25
PAN, ICE WPL 683271 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
TRIM, FRESH FOOD SHELF WPL 6837512 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
FRONT, MEAT PAN WPL 6863913 Contact Us For Availability
27
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
27
INSERT, NAMEPLATE WPL 6060318 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
27
KICKPLATE WPL 689802 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
SCREW WPL 4000171 Contact Us For Availability
28
FRONT, UTILITY PAN WPL 6863914 Contact Us For Availability
28
HANDLE INSERT, FRONT WPL 680166 Contact Us For Availability
28
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
28
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
FRONT, FRUIT & VEGETABLE PAN WPL 686408 Contact Us For Availability
29
INSERT, HANDLE (BACK) WPL 604454 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
WHEEL WPL 298342 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
30
HANDLE TRIM EXTENSION WPL 6045322 Contact Us For Availability
30
INSERT NAMEPLATE WPL 6060320 Contact Us For Availability
30
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
30
PIN, WHEEL WPL 298352 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
31
SCREW WPL 9986112 Contact Us For Availability
31
CLAMP, SPRING WPL 603334 Contact Us For Availability
31
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
INSERT, VINYL CLAD WPL 680173 Contact Us For Availability
32
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
33
HANDLE TRIM EXTENSION WPL 6045321 Contact Us For Availability
33
PIN, WHEEL WPL 649651 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
34
BRACKET, WHEEL WPL 675301 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
DISC, CRANK COVER WPL 690371 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 691612 Contact Us For Availability
39
SCREW WPL 4020131 Contact Us For Availability
39
BRACKET, SWITCH WPL 605831 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1069023 Contact Us For Availability
× ![]()
Login and Registration Form
