Model Whirlpool RB214RFV REFRIGERATOR – Common Parts & Diagrams

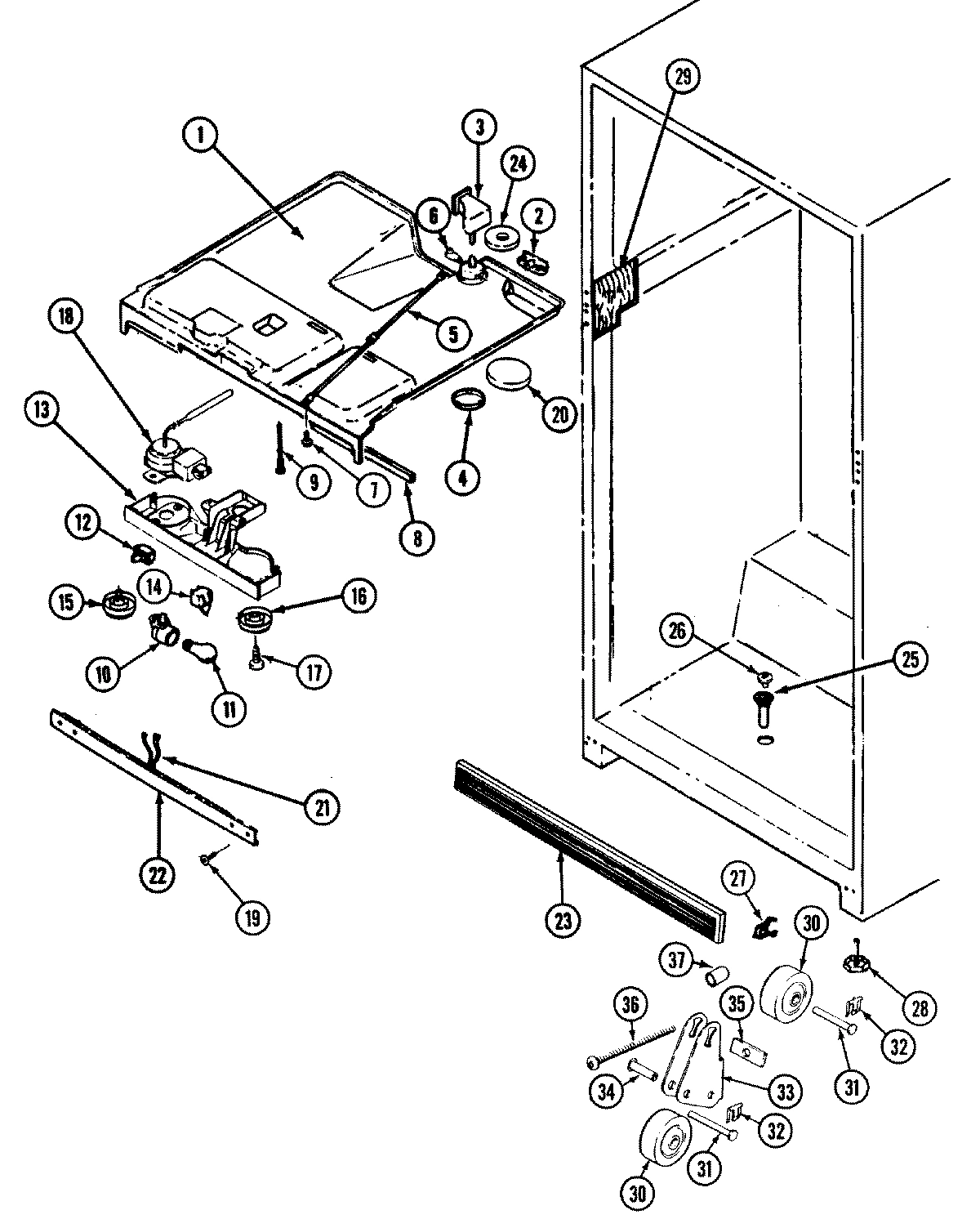

03 - FRESH FOOD COMPARTMENT

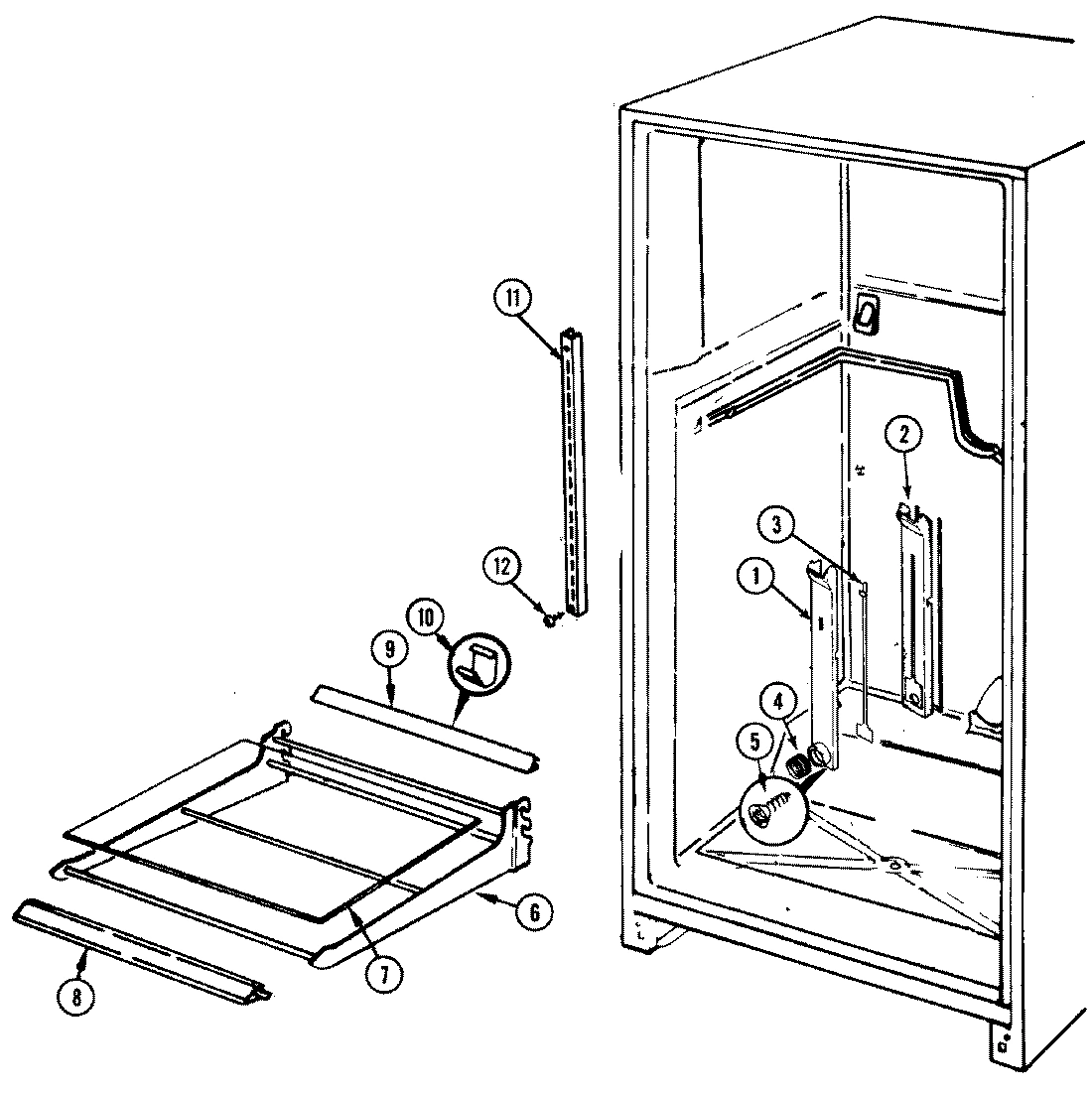

05 - SHELVES & ACCESSORIES

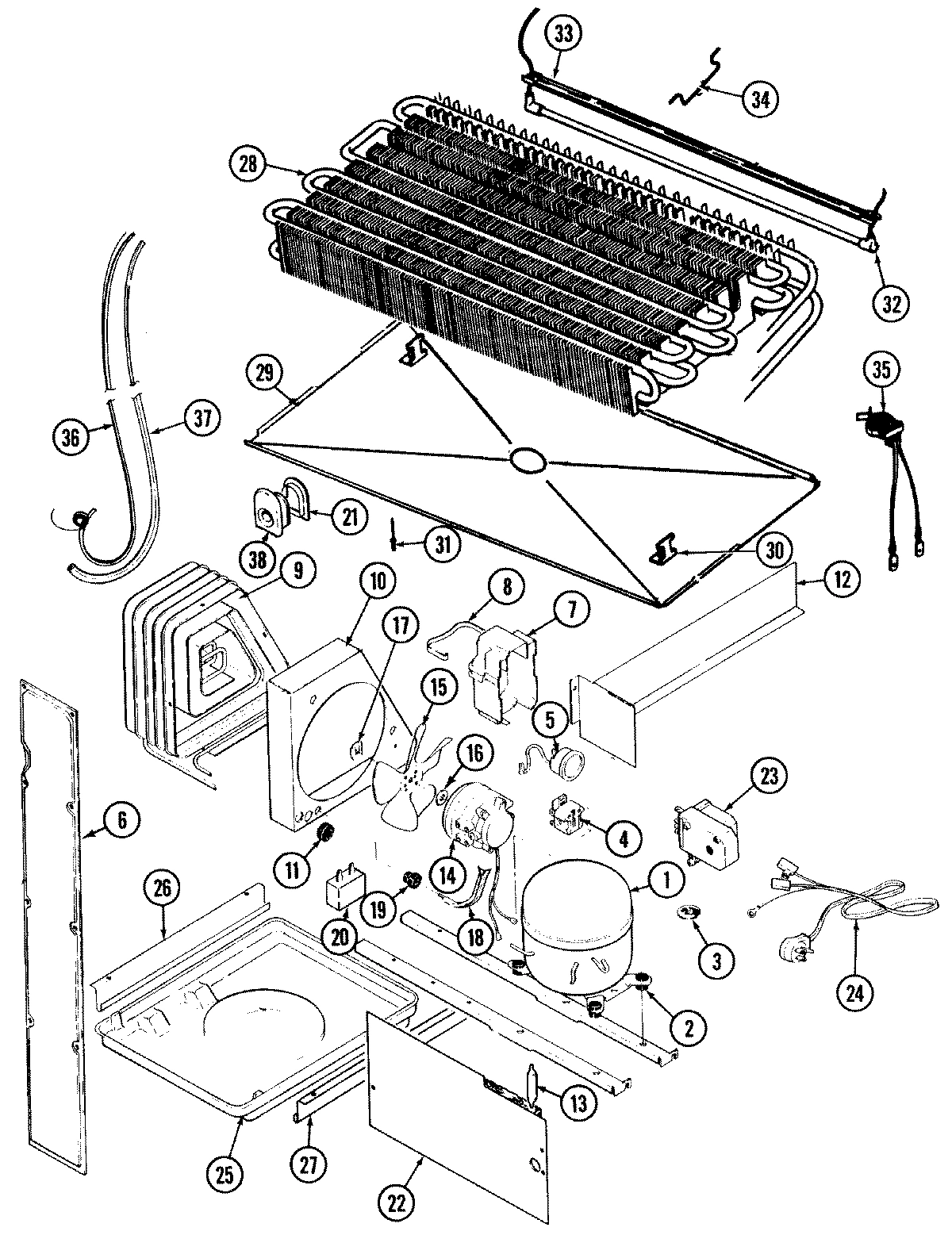

06 - UNIT COMPARTMENT & SYSTEM

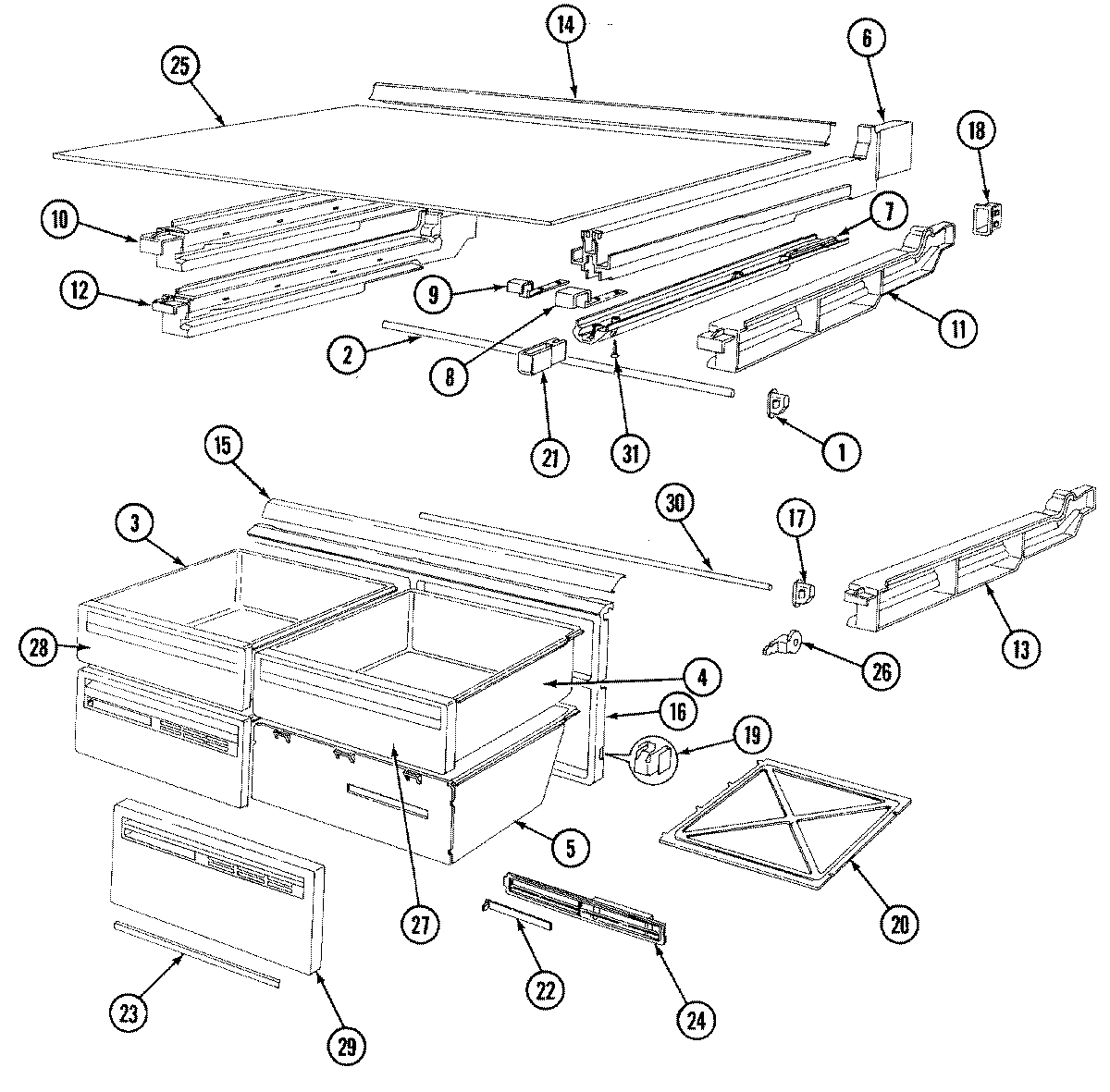

01 - CHEST OF DRAWERS

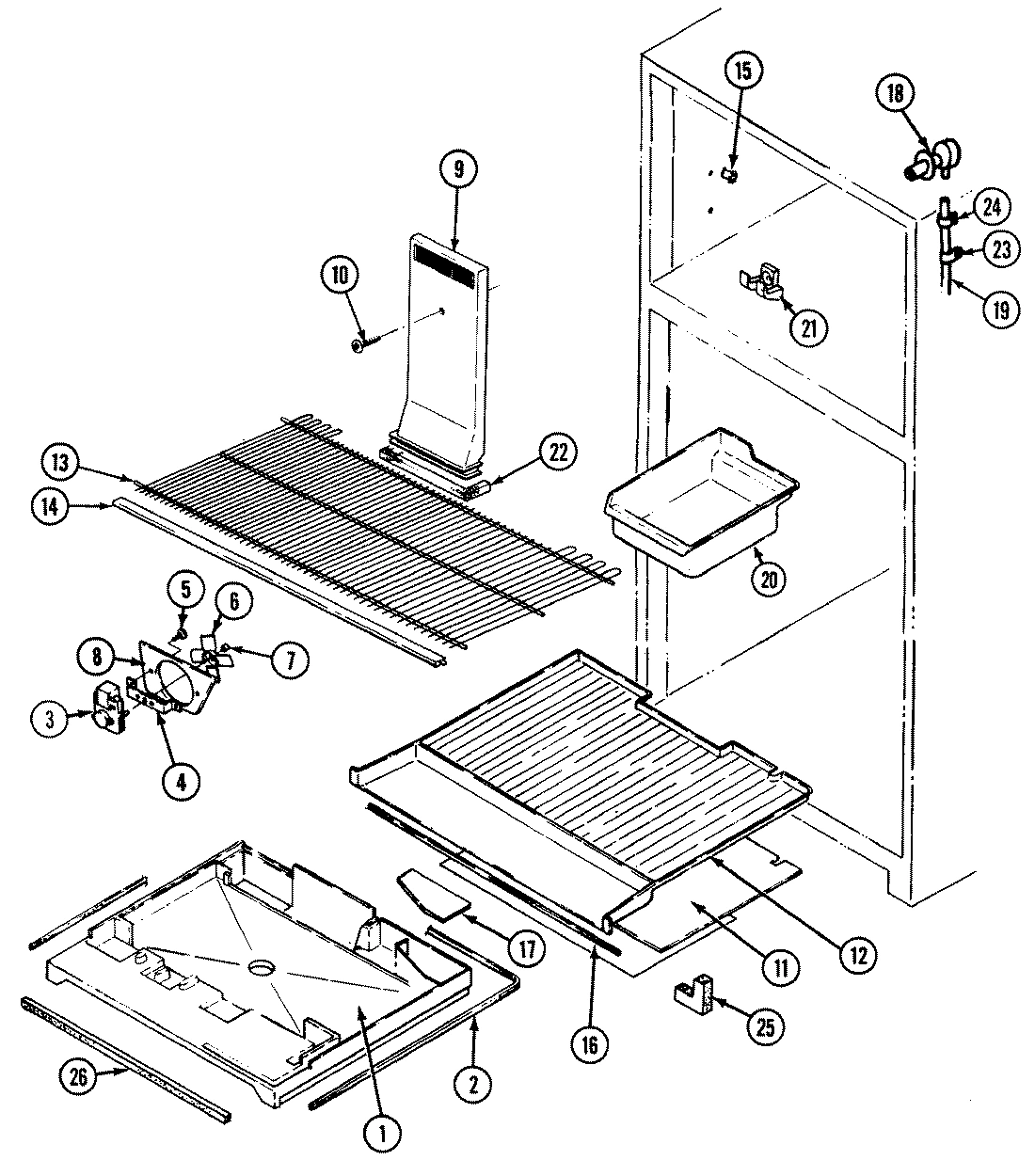

02 - FREEZER COMPARTMENT

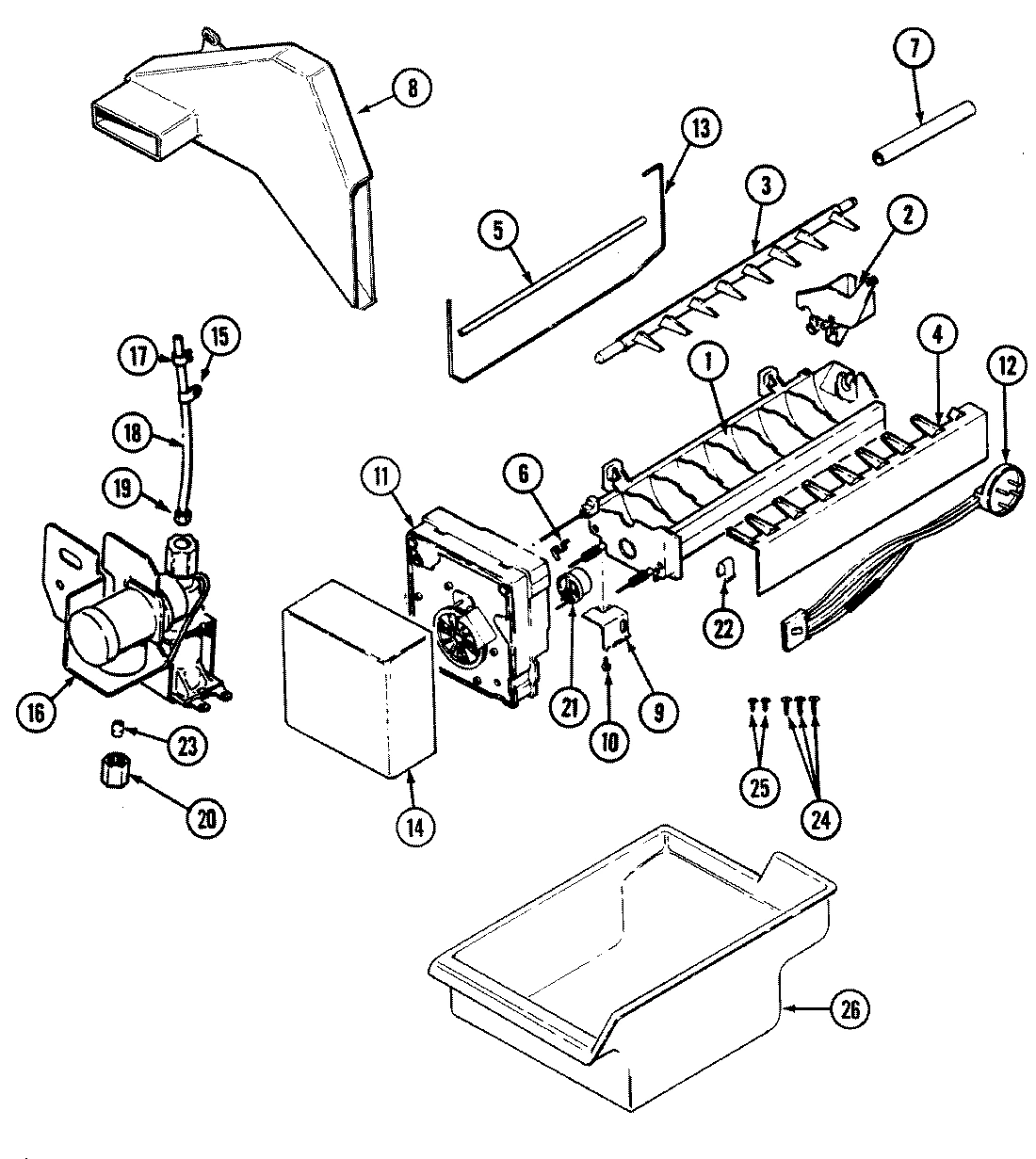

04 - ICE MAKER KIT (ICE)
Common parts from model Whirlpool RB214RFV REFRIGERATOR
1
COVER, AIR TUNNEL WPL 682856 Contact Us For Availability
1
SEAL, CLOSED CELL WPL 684181 Contact Us For Availability
1
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694041 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687561 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694143 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 679155 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
PAN, MEAT----NA WPL 685132 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
PAN, MEAT WPL 685135 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
PAN, CRISPER WPL 685142 Contact Us For Availability
5
SCREW WPL 40001512 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
FRAME, SHELF----NA WPL 6057043 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
UPPER RAIL WPL 685153 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
GLASS, SPLIT SHELF WPL 6813913 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
8
TRIM, MEAT SHELF (FRONT) WPL 605246 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
ORIFICE ASSY., DAMPER WPL 698112 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
TUNNEL, AIR WPL 702083 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
11
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
11
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
SCREW WPL 40003728 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693981 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMPERATURE CONTROL WPL 694212 Contact Us For Availability
13
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
13
SHELF WPL 6043827 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684453 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
14
TRIM,FREEZER SHELF WPL 6041438 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM, SHELF (FRONT) WPL 6878712 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
16
MAGNET WPL 694132 Contact Us For Availability
16
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
FRONT, FOUR DRAWER WPL 682734 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
COVER, PLENUM WPL 664805 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686016 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682752 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
COVER, PAN WPL 682782 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
SCREW WPL 4000191 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CONTROL, CRISPER SLIDE WPL 685824 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
KICKPLATE (WHT) WPL 698768 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858310 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858312 Contact Us For Availability
23
TRIM, HANDLE INSERT WPL 685838 Contact Us For Availability
23
CLAMP, TUBING WPL 535168 Contact Us For Availability
23
SCREW WPL 6527550 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
RETAINER, SLIDE CONTROL WPL 682884 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
COVER, GLASS----NA WPL 682922 Contact Us For Availability
25
SEAL WPL 689462 Contact Us For Availability
25
SCREW WPL 4010171 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
PAN, ICE WPL 683271 Contact Us For Availability
26
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
28
FRONT, MEAT PAN WPL 6863916 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
FRONT, CRISPER WPL 6864010 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
BRACKET, WHEEL WPL 675301 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
PIN, WHEEL WPL 649651 Contact Us For Availability
34
CLIP WPL 689351 Contact Us For Availability
35
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
SCREW WPL 6527564 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
37
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
SCREW WPL 4000171 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
38
WIRE HARNESS, MAIN WPL 692922 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1085681 Contact Us For Availability
× ![]()
Login and Registration Form
