Model Whirlpool RB214AV REFRIGERATOR – Common Parts & Diagrams
07 - FRESH FOOD OUTER DOOR

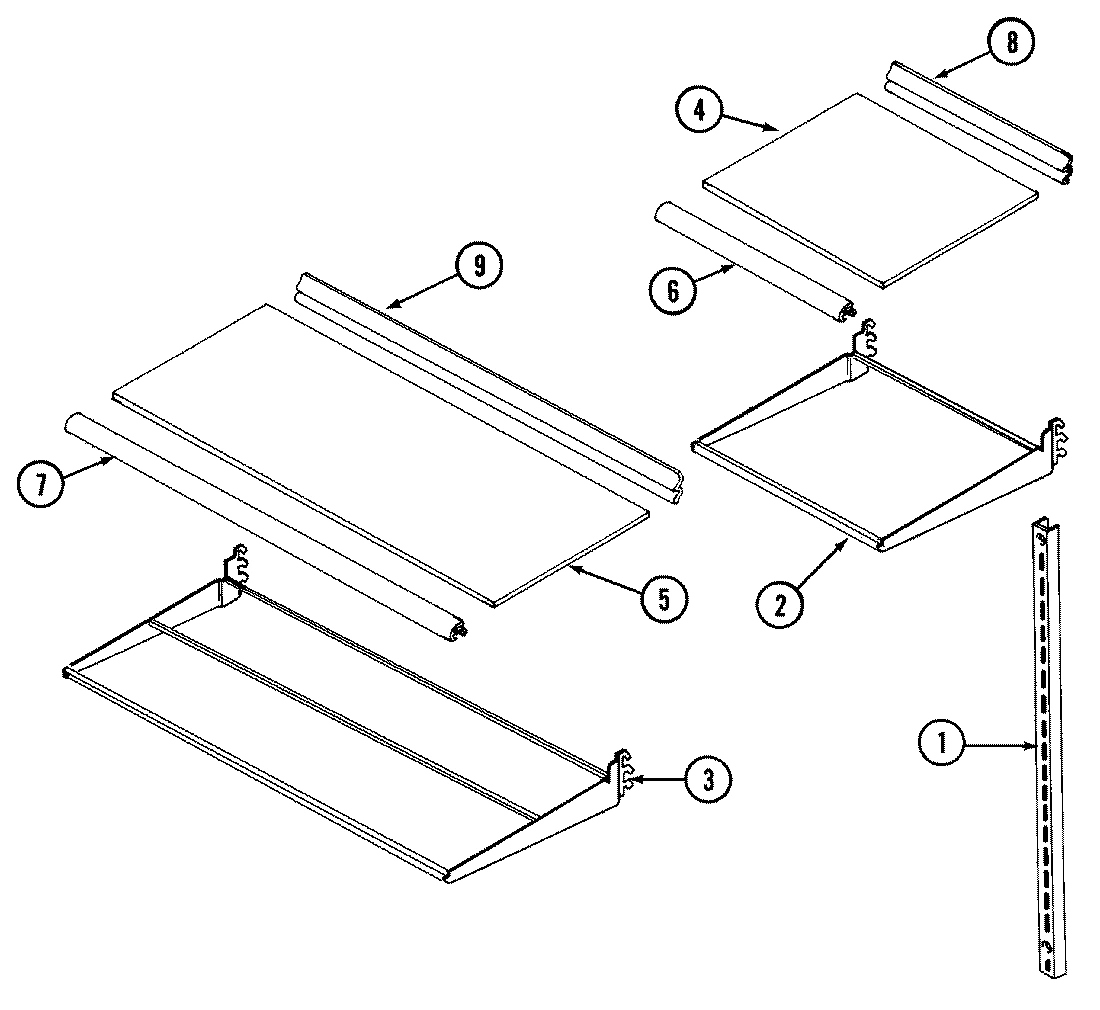

09 - SHELVES & ACCESSORIES

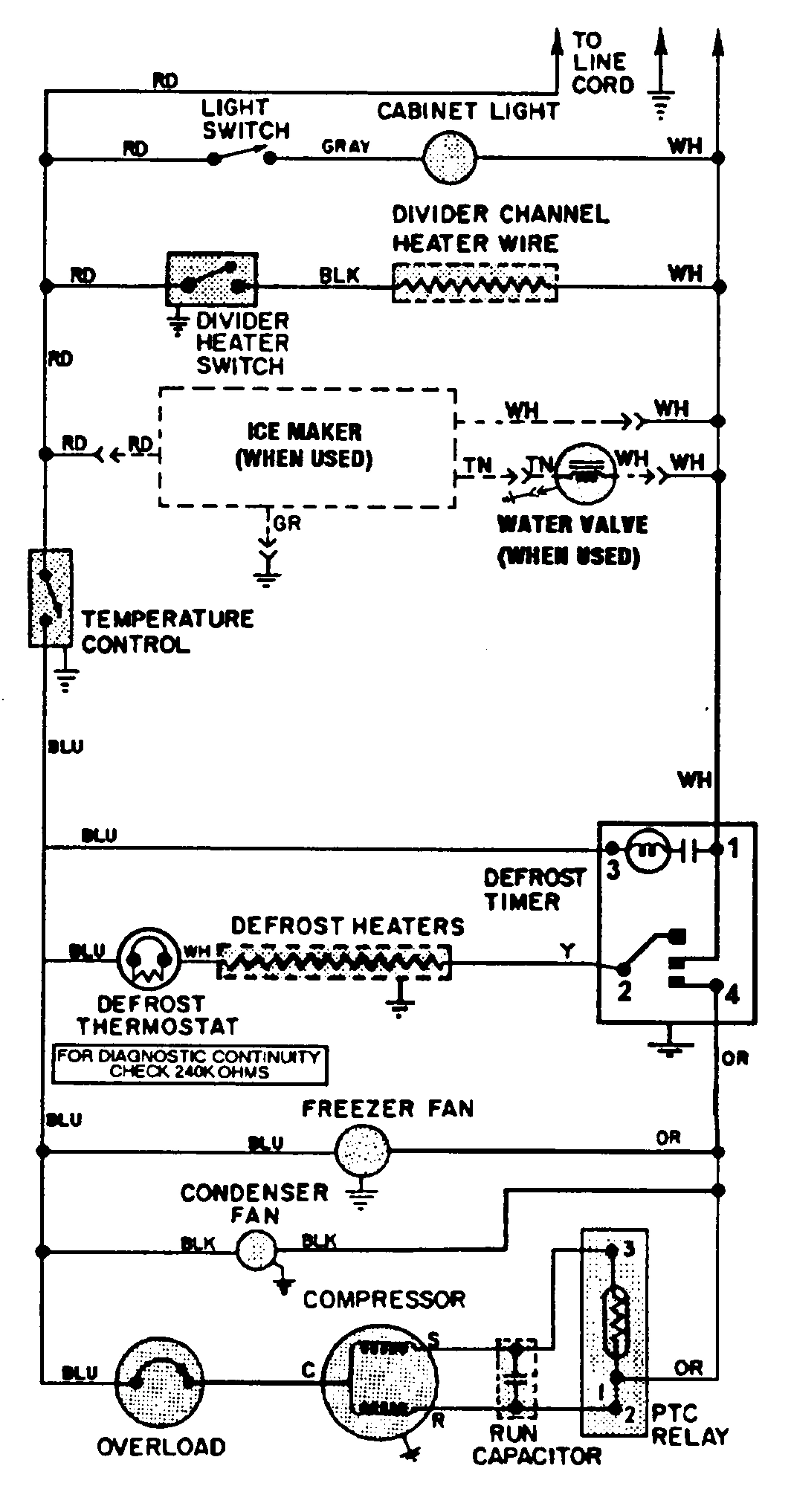

11 - WIRING INFORMATION

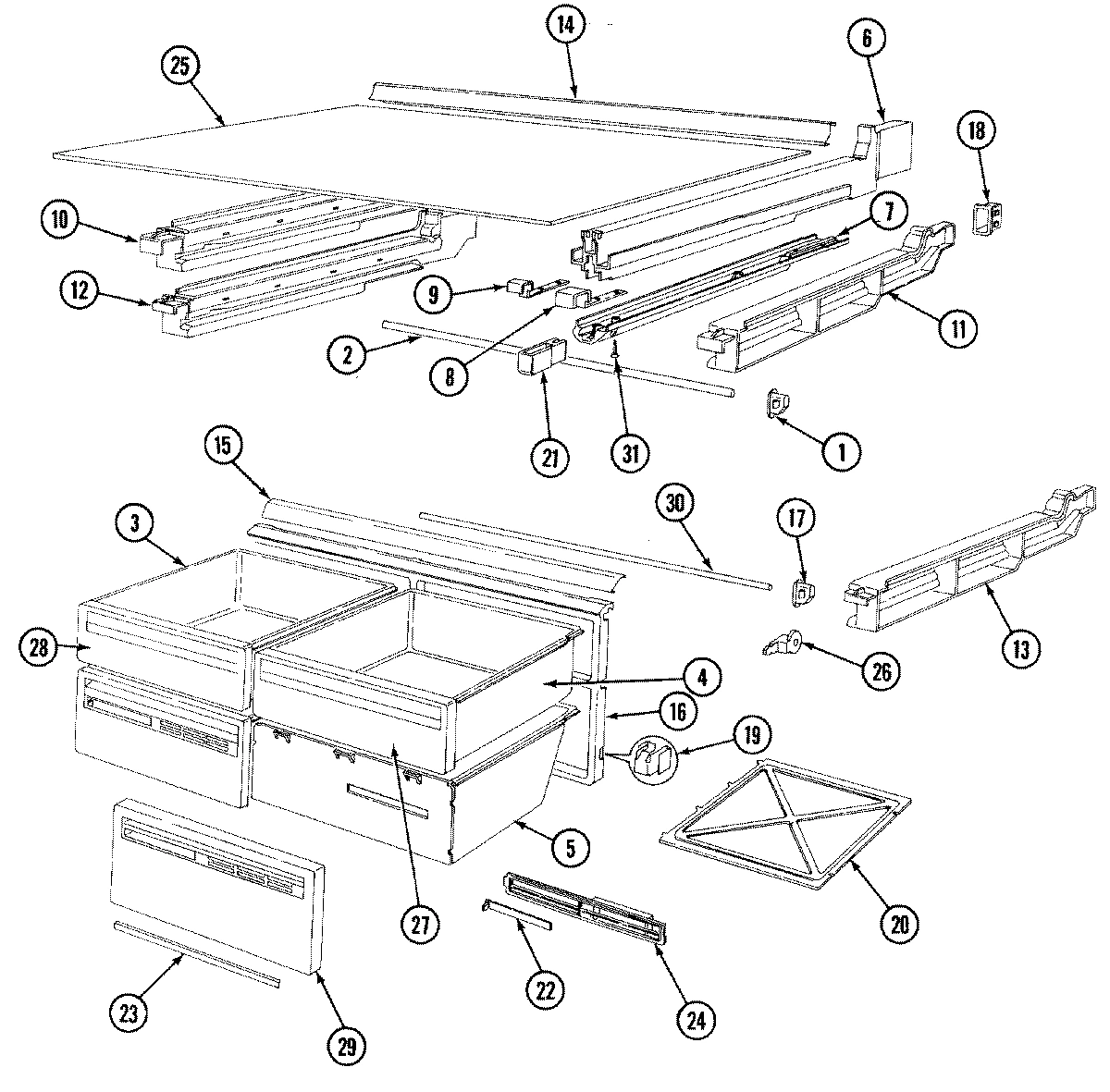

01 - CHEST OF DRAWERS

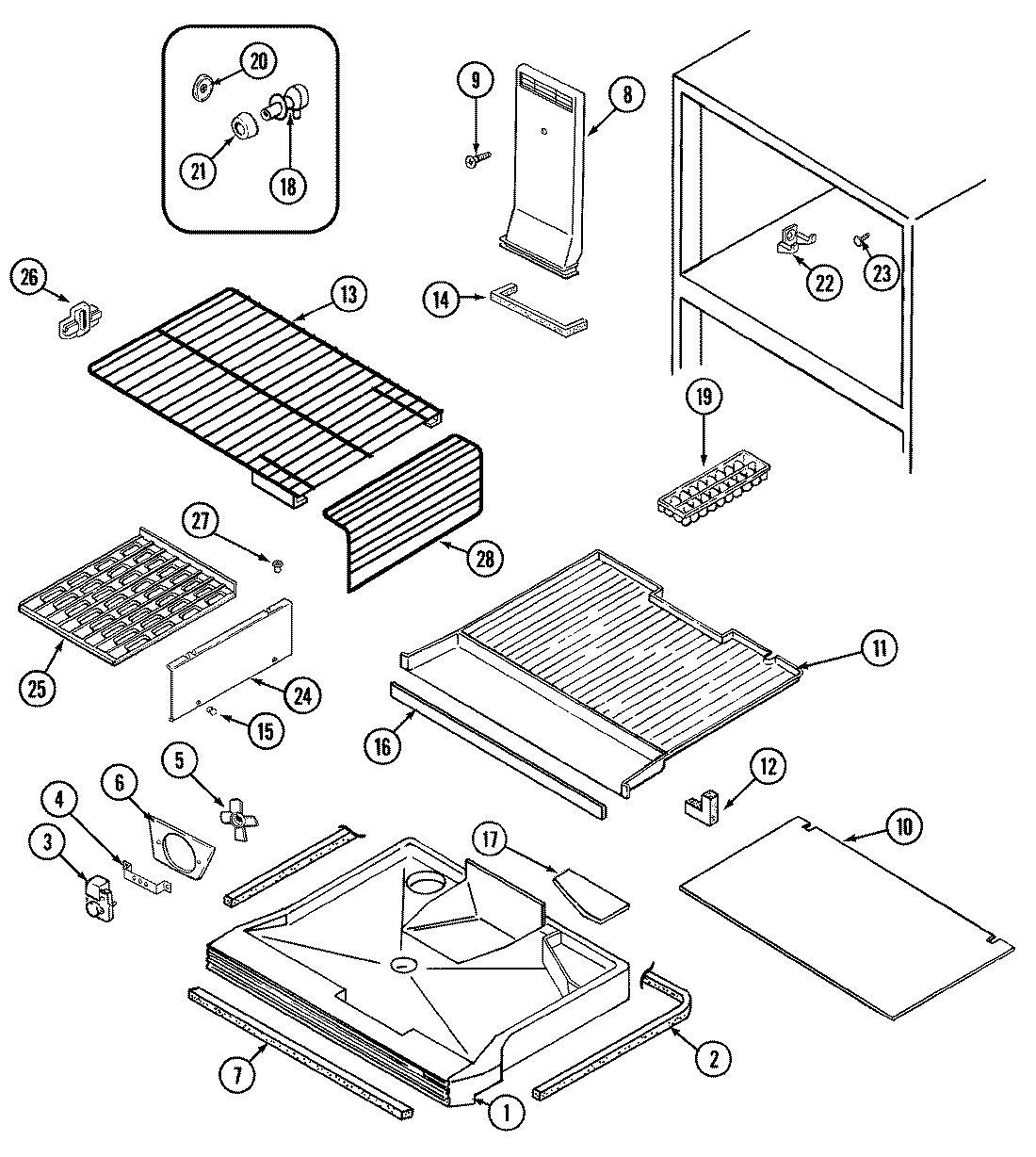

02 - FREEZER COMPARTMENT

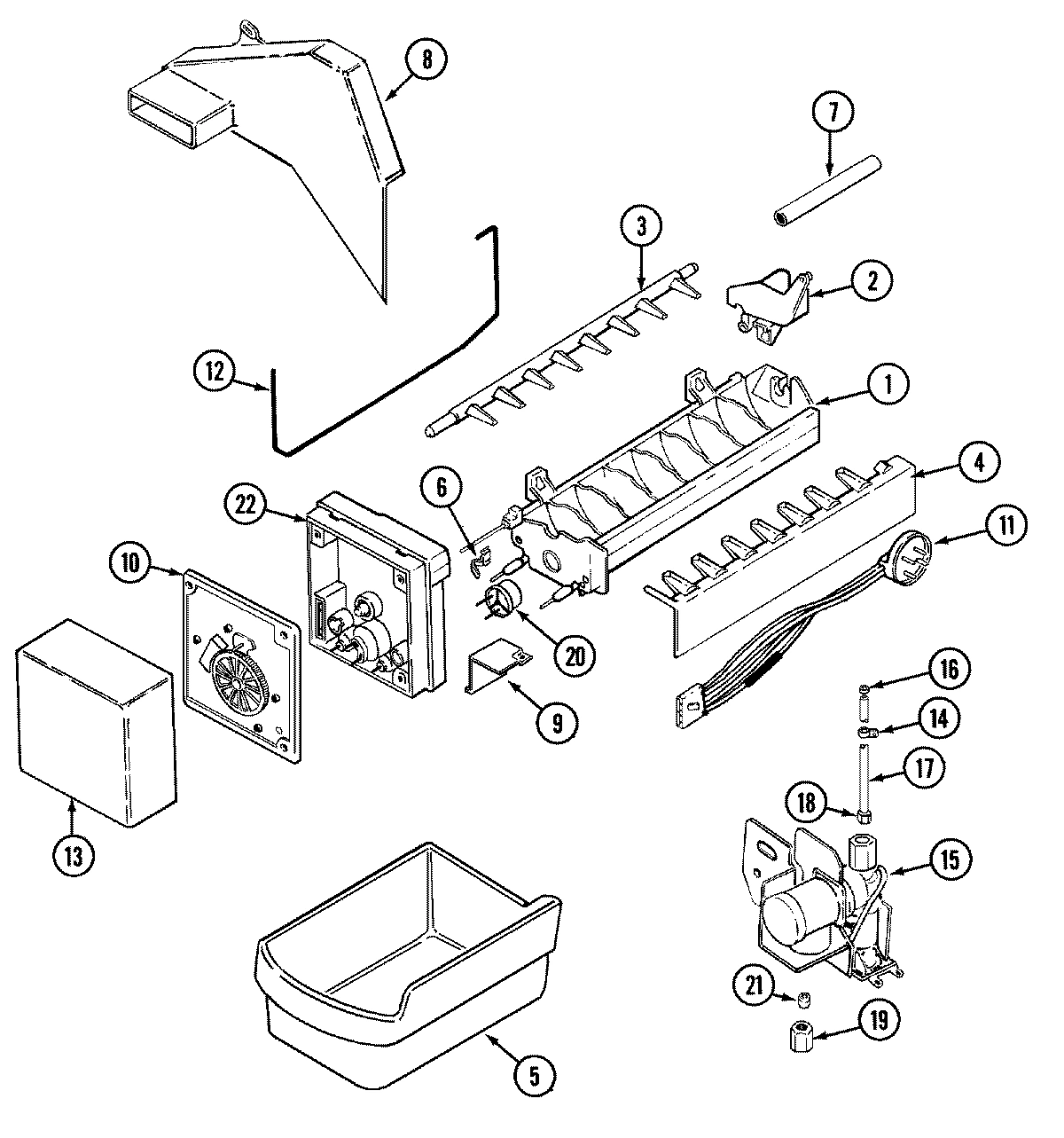

08 - OPTIONAL ICE MAKER KIT (ICE)

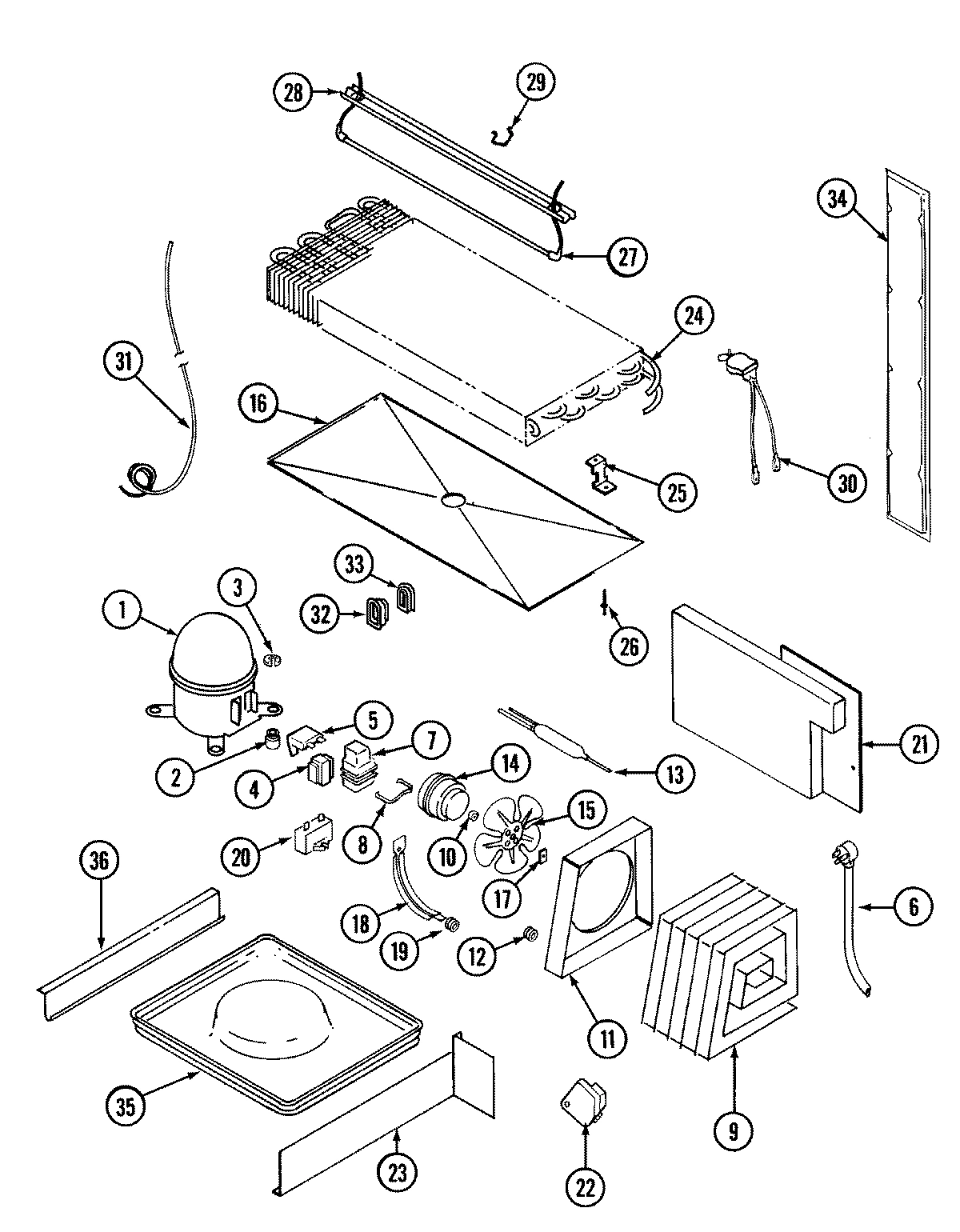

10 - UNIT COMPARTMENT & SYSTEM

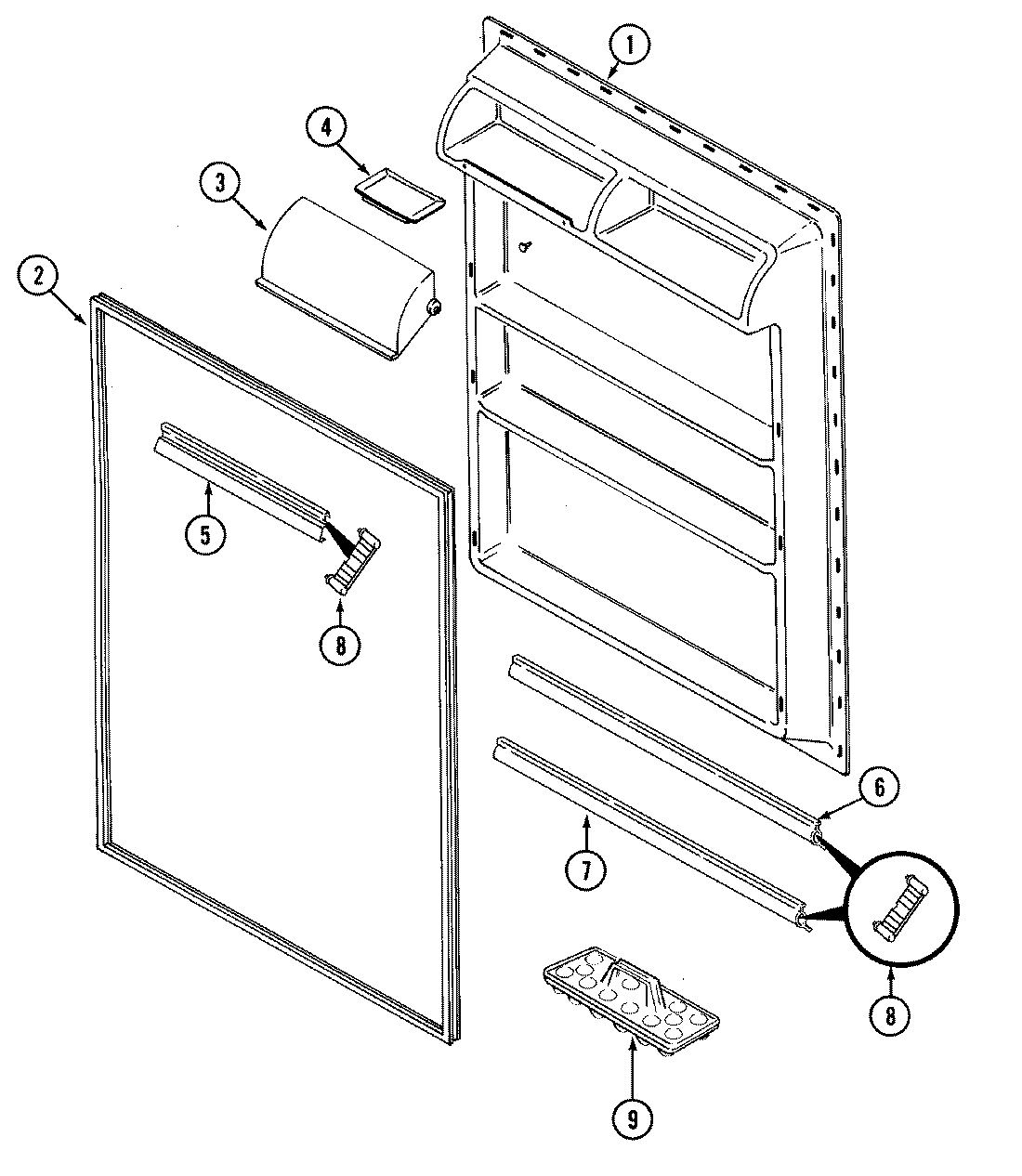

06 - FRESH FOOD INNER DOOR

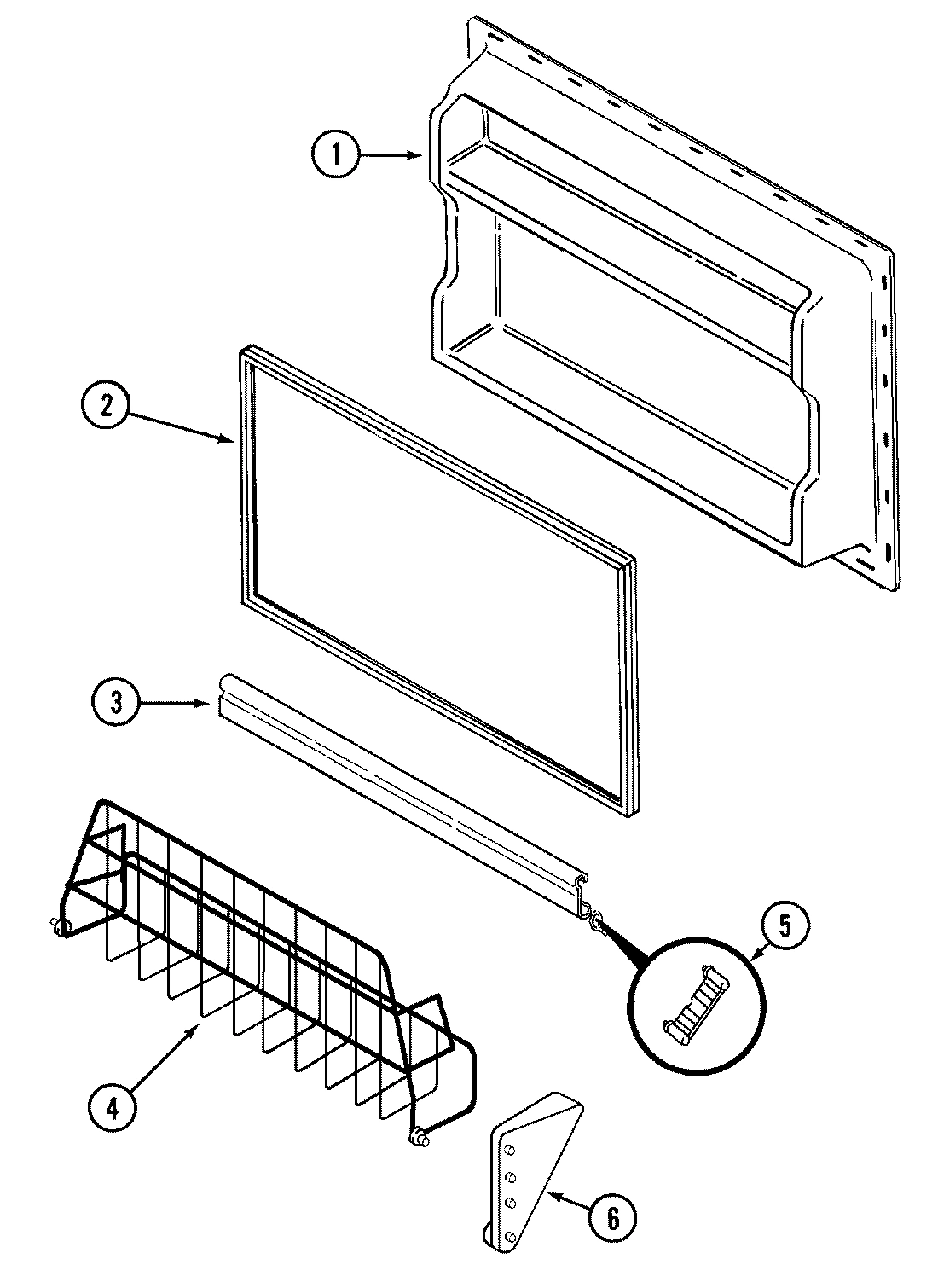

03 - FREEZER INNER DOOR

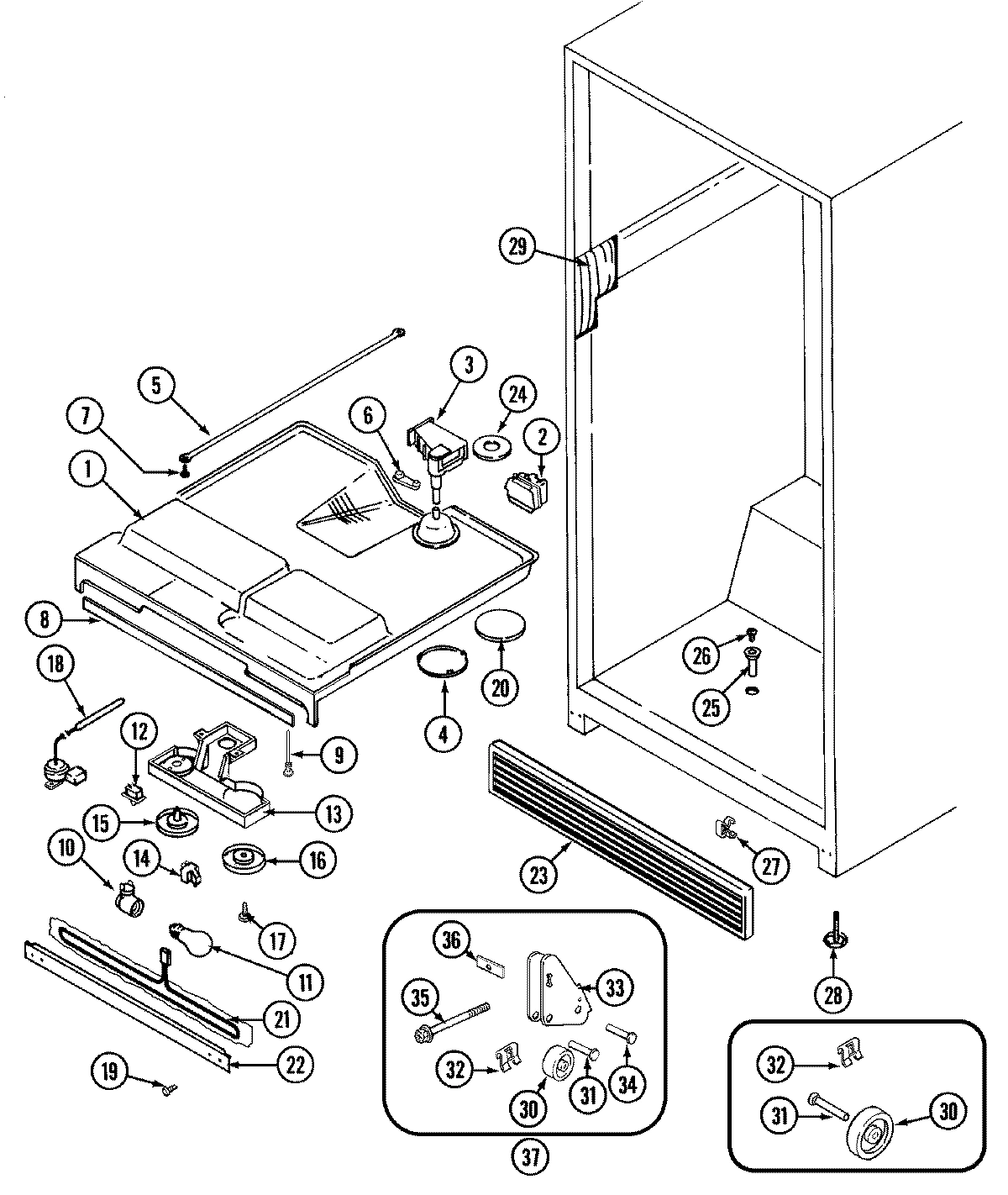

05 - FRESH FOOD COMPARTMENT

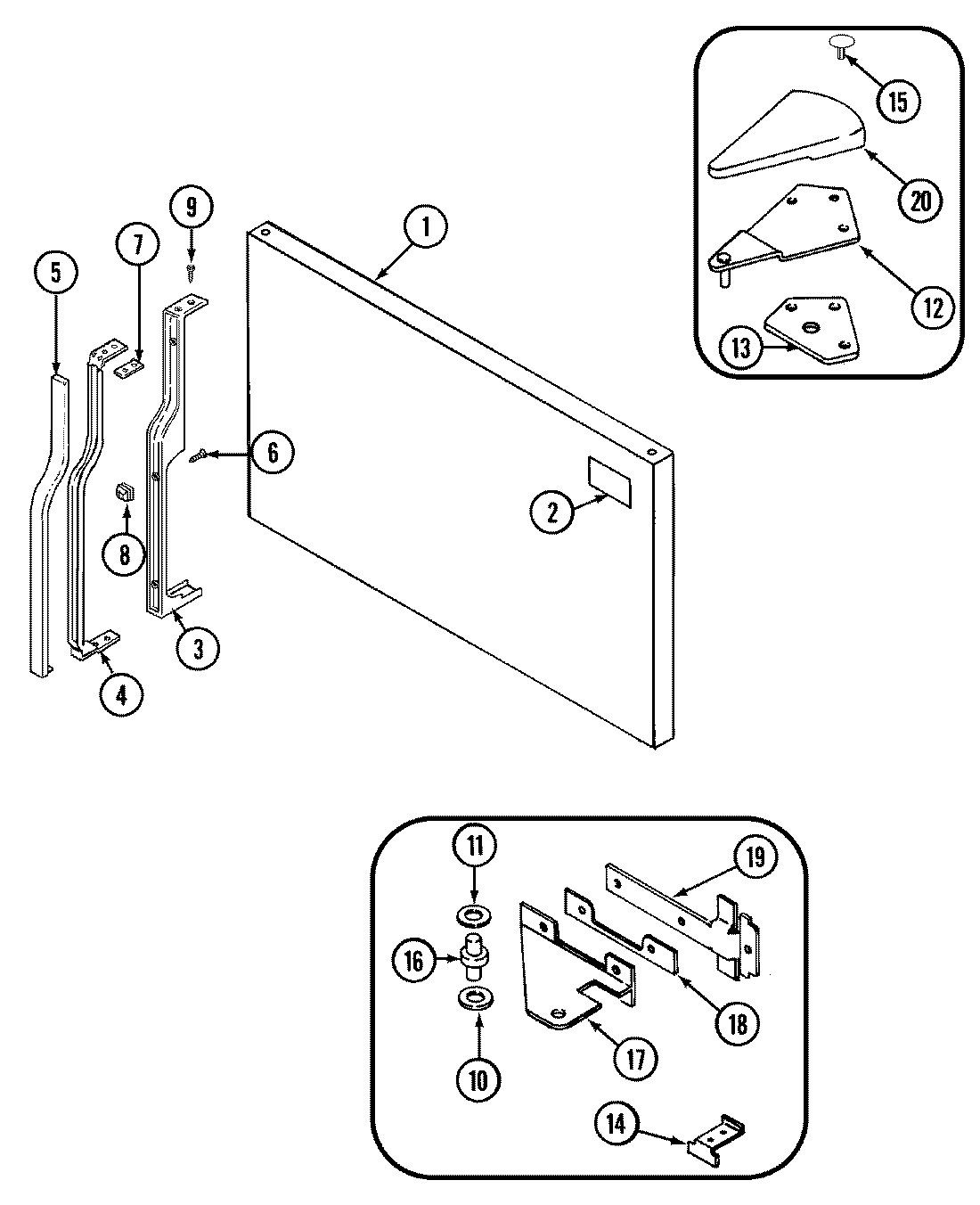

04 - FREEZER OUTER DOOR
Common parts from model Whirlpool RB214AV REFRIGERATOR
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
1
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694041 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
LINER, F.F. DOOR WPL 694541 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 694707 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 72342100WW Contact Us For Availability
2
HANDLE, F.F. DOOR WPL 700511 Contact Us For Availability
2
FRAME, MEAT SHELF WPL 701068 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687561 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694143 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
2
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
2
NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
FRAME, FULL SHELF WPL 7010610 Contact Us For Availability
3
PAN, MEAT----NA WPL 685132 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR, DAIRY WPL 6905823 Contact Us For Availability
3
TRIM, SHELF (24 1/2``) WPL 70111129 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698116 Contact Us For Availability
3
HANDLE, FRZ. DOOR (CHR) WPL 700501 Contact Us For Availability
4
INSERT, HANDLE (WHT) WPL 7005318 Contact Us For Availability
4
GLASS, SPLIT SHELF WPL 6813913 Contact Us For Availability
4
PAN, MEAT WPL 685135 Contact Us For Availability
4
SCREW WPL 40001536 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
TRAY, BUTTER WPL 299362 Contact Us For Availability
4
BASKET, TILT OUT WPL 703201 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
FRAME, HANDLE WPL 700524 Contact Us For Availability
5
SCREW WPL 4150331 Contact Us For Availability
5
GLASS, FULL SHELF WPL 6813932 Contact Us For Availability
5
PAN, CRISPER WPL 685142 Contact Us For Availability
5
WASHER, SPRING WPL 420092900 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
PAN, ICE WPL 683461 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
TRIM, SHELF (14 1/8``) WPL 70111119 Contact Us For Availability
5
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
5
INSERT, HANDLE (WHT) WPL 7005310 Contact Us For Availability
6
SCREW WPL 6527522 Contact Us For Availability
6
TRIM, SPLIT SHELF (FRONT) WPL 7010718 Contact Us For Availability
6
UPPER RAIL WPL 685153 Contact Us For Availability
6
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CORD, POWER WPL 528903 Contact Us For Availability
6
TRIM, SHELF (24 3/8``) WPL 70111128 Contact Us For Availability
6
STOP, BASKET (RT) WPL 703211 Contact Us For Availability
6
STOP, BASKET (LT) WPL 703212 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
7
SHIM, HANDLE WPL 679341 Contact Us For Availability
7
TRIM, FULL SHELF (FRONT) WPL 7010723 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
7
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
TRIM, SHELF (24 7/8``) WPL 70111131 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
8
GROMMET WPL 697431 Contact Us For Availability
8
END CAP, HANDLE (WHT) WPL 700582 Contact Us For Availability
8
PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability
8
TRIM, SPLIT SHELF (REAR) WPL 701102 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
TUNNEL, AIR WPL 702083 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
8
DUCT, AIR WPL 701981 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
DUCT, AIR WPL 701983 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
9
TRIM, FULL SHELF (REAR) WPL 701107 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
TRAY, EGG WPL 600661 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
SCREW WPL 6527565 Contact Us For Availability
10
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
10
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
WASHER WPL 542331 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693981 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001205 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
WASHER WPL 674836 Contact Us For Availability
12
SCREW WPL 6527559 Contact Us For Availability
12
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
12
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
HINGE, UPPER WPL 5370924 Contact Us For Availability
12
SCREW WPL 6527552 Contact Us For Availability
13
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
13
SHELF, FRZ. WPL 703222 Contact Us For Availability
13
COVER, ICE MAKER WPL 683282 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, CONTROL WPL 61001213 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
14
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
14
SCREW WPL 6527548 Contact Us For Availability
14
STOP, DOOR WPL 692562 Contact Us For Availability
14
TRIM, SHELF (REAR) WPL 682714 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
14
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684451 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
15
TRIM, SHELF (FRONT) WPL 702801 Contact Us For Availability
15
FASTENER, DIVIDER WPL 671501 Contact Us For Availability
15
SCREW WPL 4010171 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 61001114 Contact Us For Availability
15
PLUG, BUTTON (BLK) WPL 676345 Contact Us For Availability
16
COVER, LOWER HINGE (WHT) WPL 689784 Contact Us For Availability
16
FRONT, FOUR DRAWER WPL 682734 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
16
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
COVER, PLENUM WPL 61664805 Contact Us For Availability
17
SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability
17
SCREW WPL 6527555 Contact Us For Availability
17
HINGE WPL 695143 Contact Us For Availability
18
CUP WPL 682753 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
19
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
20
COVER, PAN WPL 682782 Contact Us For Availability
20
CAP, GROMMET WPL 683871 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
22
CONTROL, CRISPER SLIDE WPL 685824 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
SCREW WPL 4050071 Contact Us For Availability
22
TIMER, DEFROST WPL 682332 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
23
TRIM, INSERT(FRUIT & VEG.) WPL 702841 Contact Us For Availability
23
TRIM, HANDLE INSERT (MEAT) WPL 702842 Contact Us For Availability
23
TRIM, INSERT (UTILITY CRISPER) WPL 702843 Contact Us For Availability
23
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
23
SCREW WPL 4000171 Contact Us For Availability
23
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (WHT) WPL 701286 Contact Us For Availability
24
RETAINER, SLIDE CONTROL WPL 682884 Contact Us For Availability
24
DIVIDER, ICE SHELF WPL 671482 Contact Us For Availability
24
EVAPORATOR WPL 698227 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
25
COVER, GLASS----NA WPL 682922 Contact Us For Availability
25
SHELF, ICE TRAY WPL 671144 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
SUPPORT, ICE SHELF WPL 700411 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
27
HEATER, DEFROST WPL 6010635 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
FRONT, MEAT PAN WPL 6863916 Contact Us For Availability
28
LEG, SHELF WPL 703231 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
FRONT, CRISPER WPL 6864010 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
BRACKET, WHEEL WPL 675301 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 61001136 Contact Us For Availability
34
SCREW WPL 6527550 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 701622 Contact Us For Availability
34
PIN, WHEEL WPL 649651 Contact Us For Availability
35
PAN, DRAIN WPL 682361 Contact Us For Availability
35
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
35
SCREW WPL 6527564 Contact Us For Availability
36
MANUAL, USE & CARE WPL 1085682 Contact Us For Availability
36
SCREW WPL 4000141 Contact Us For Availability
36
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
36
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
36
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
37
WHEEL ASSY WPL 723192 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001471 Contact Us For Availability
× ![]()
Login and Registration Form
