Model Whirlpool RB2120TM REFRIGERATOR – Common Parts & Diagrams

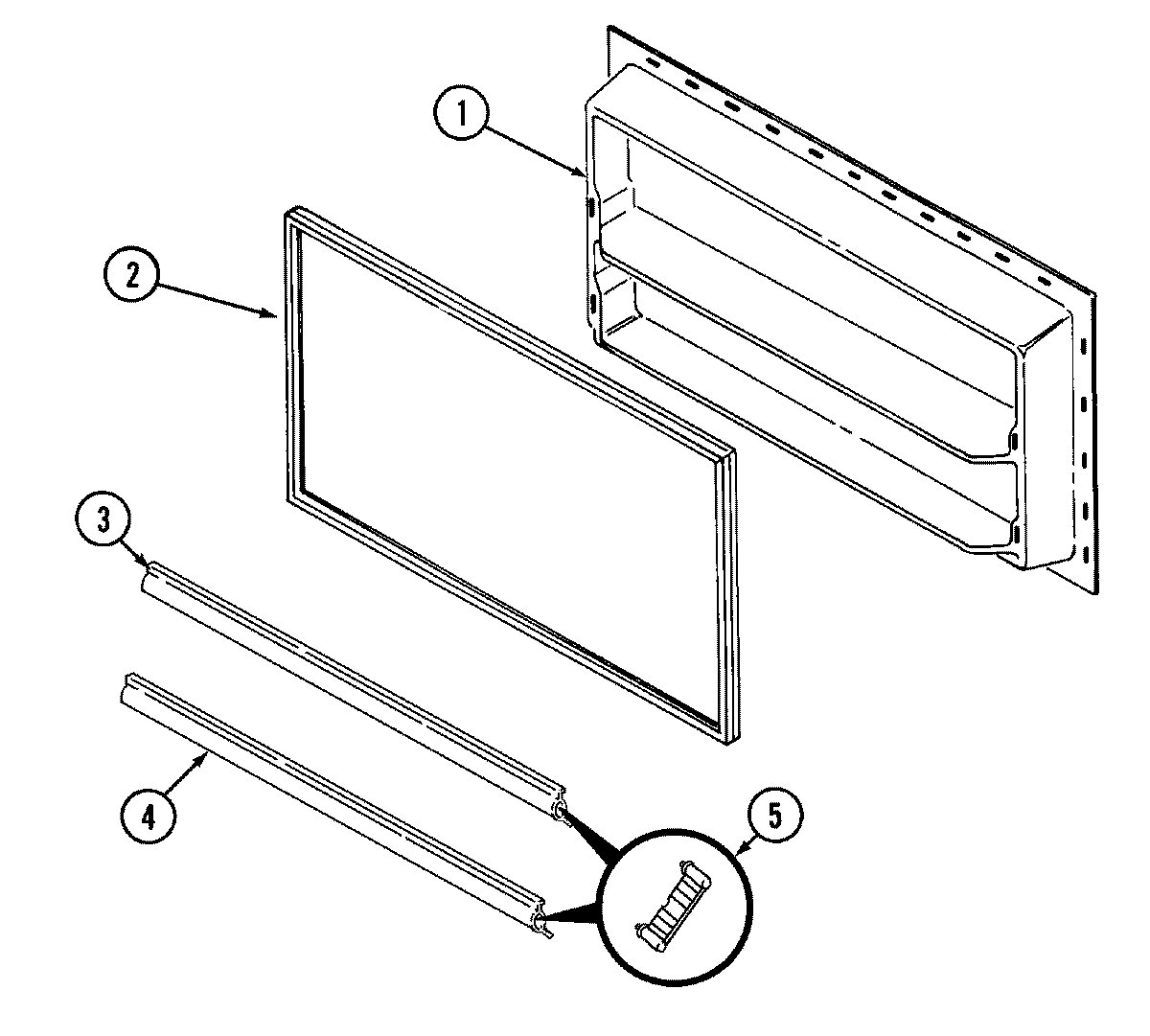

02 - FREEZER INNER DOOR

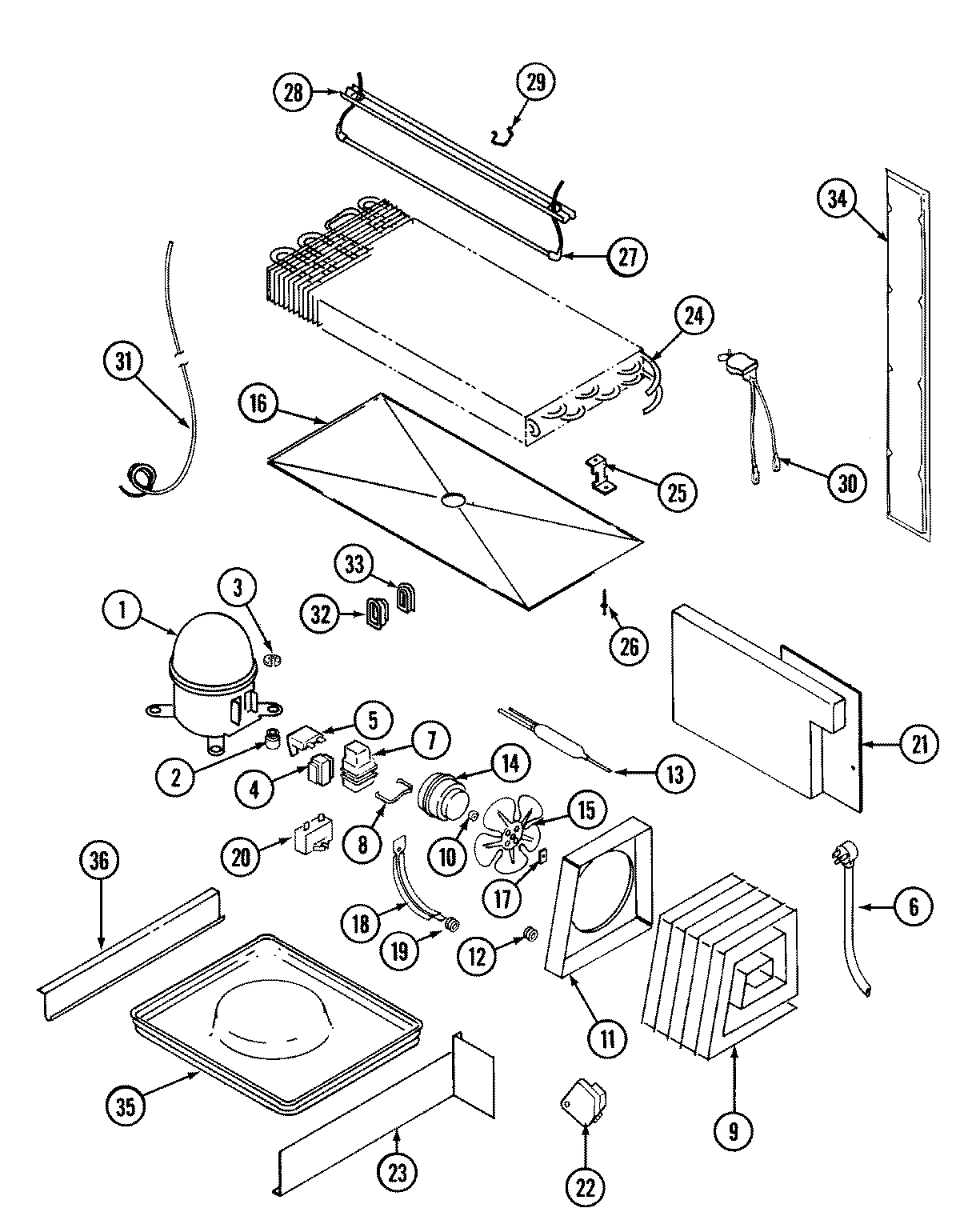

09 - UNIT COMPARTMENT & SYSTEM

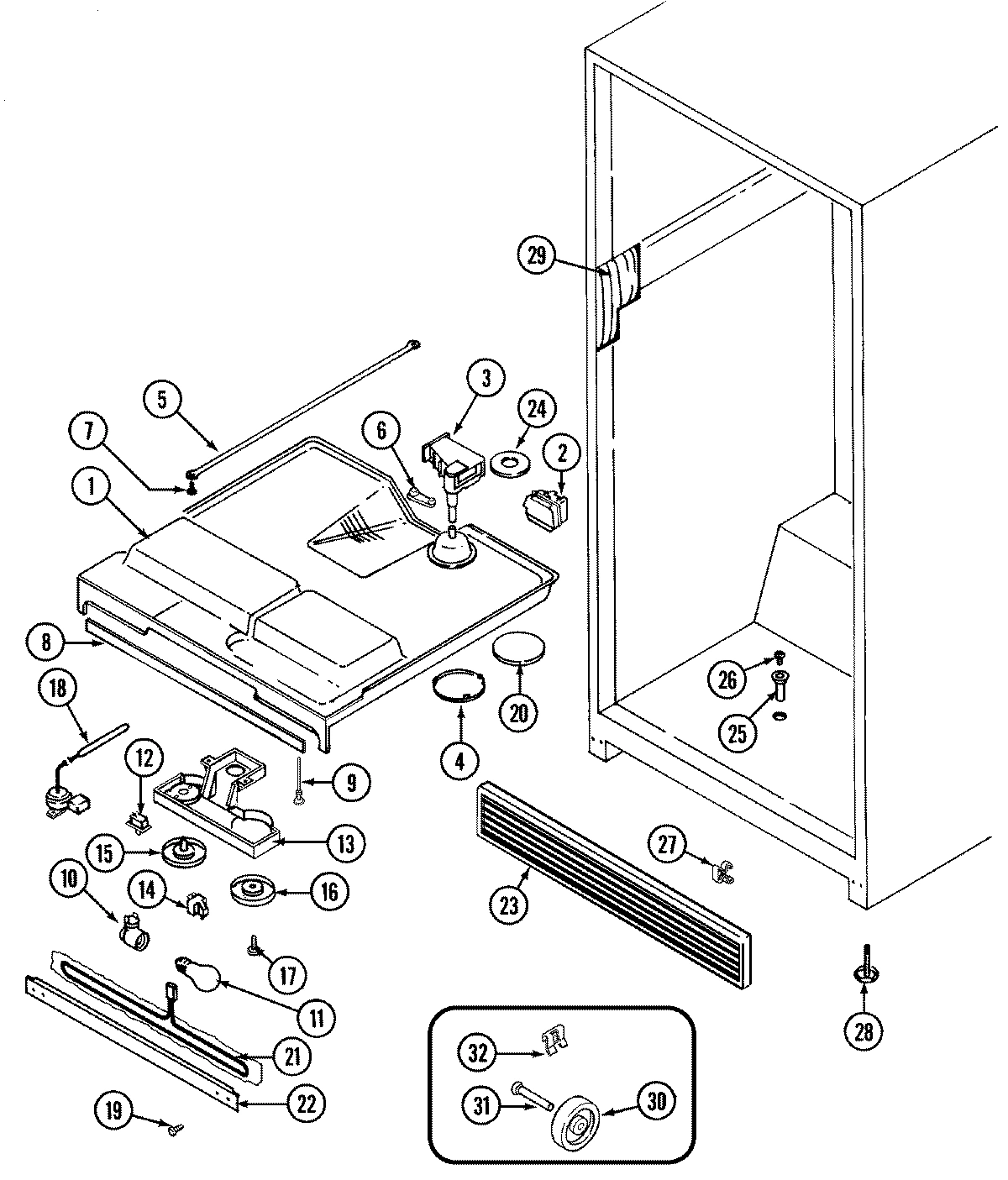

04 - FRESH FOOD COMPARTMENT

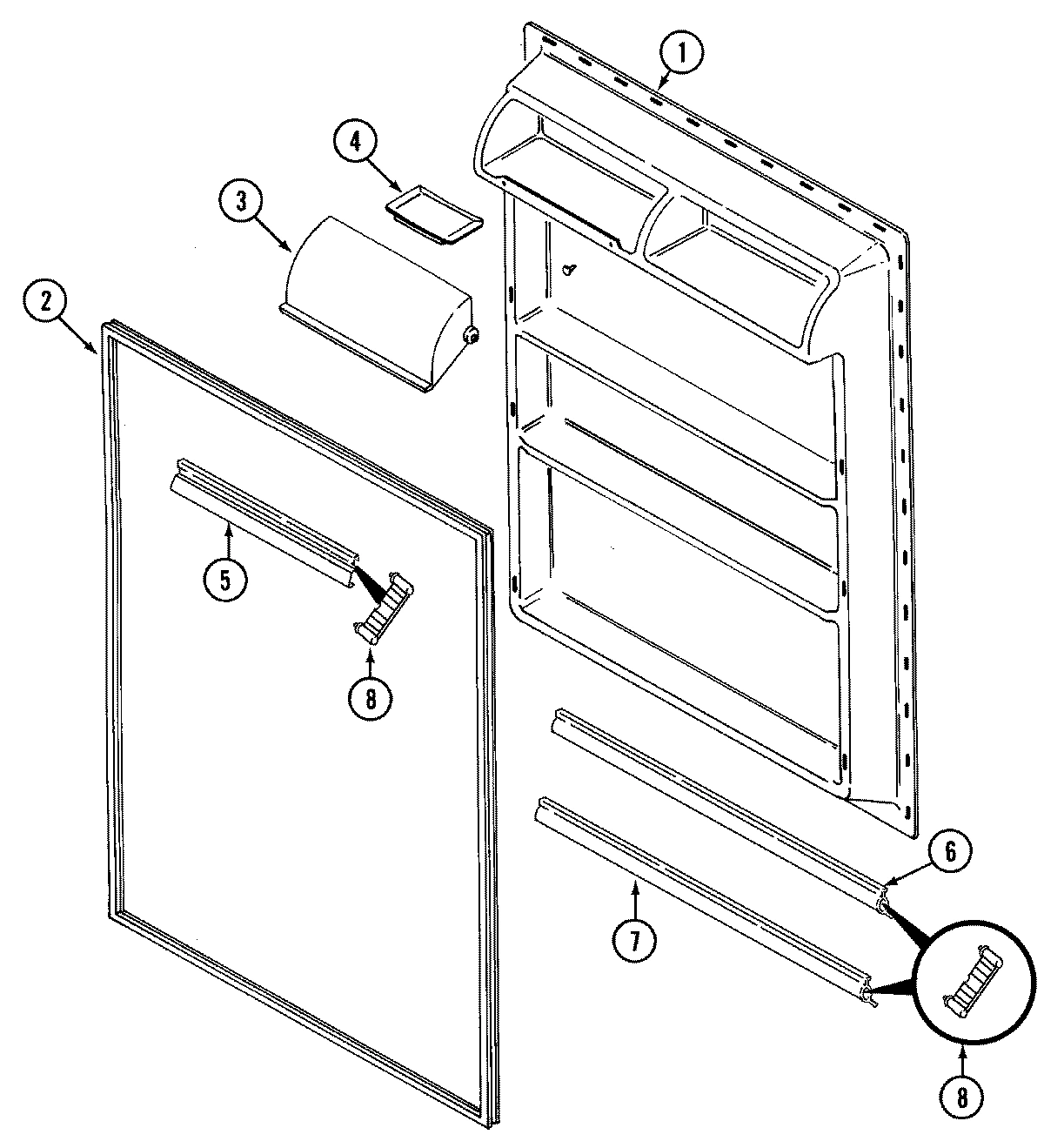

05 - FRESH FOOD INNER DOOR

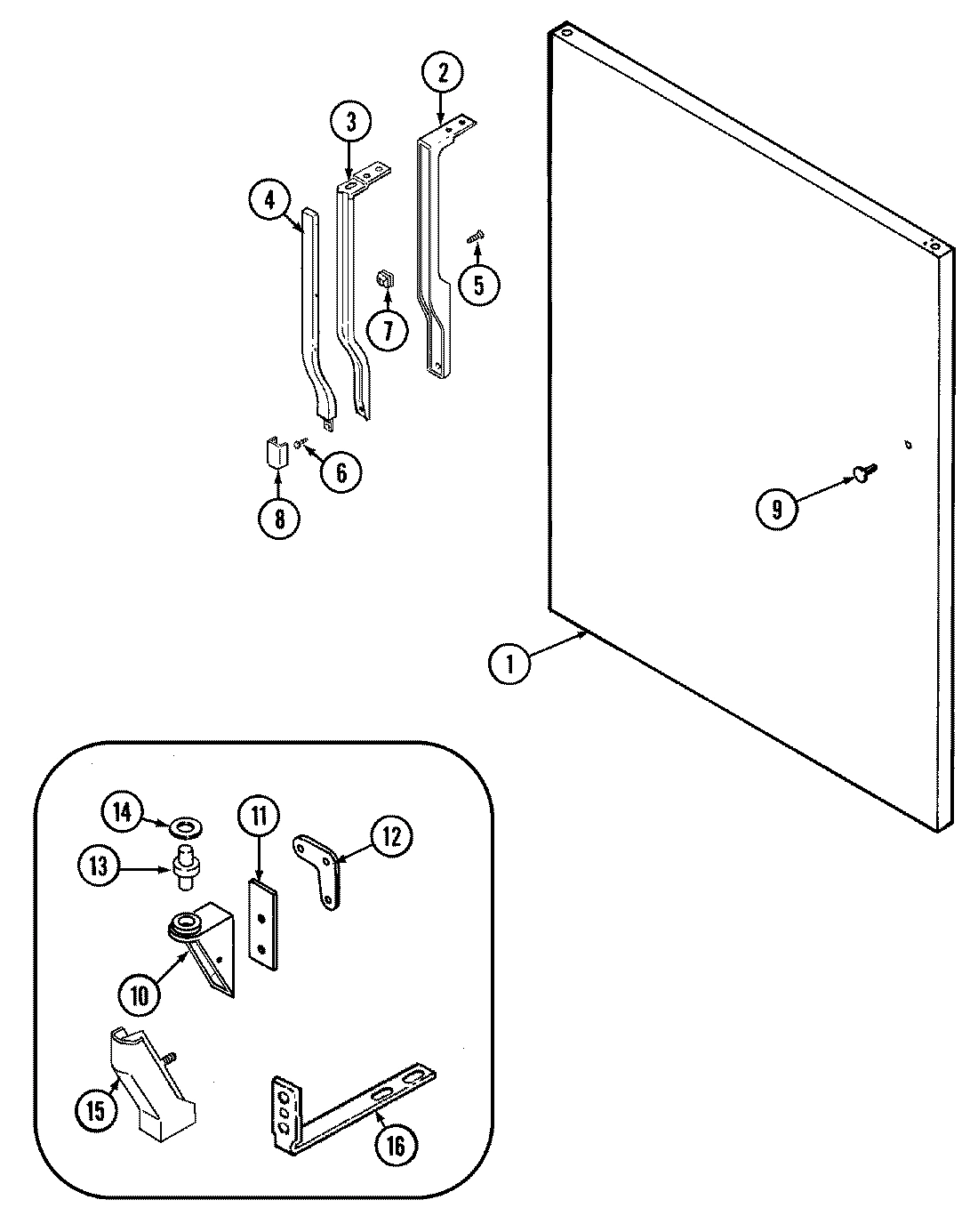

06 - FRESH FOOD OUTER DOOR

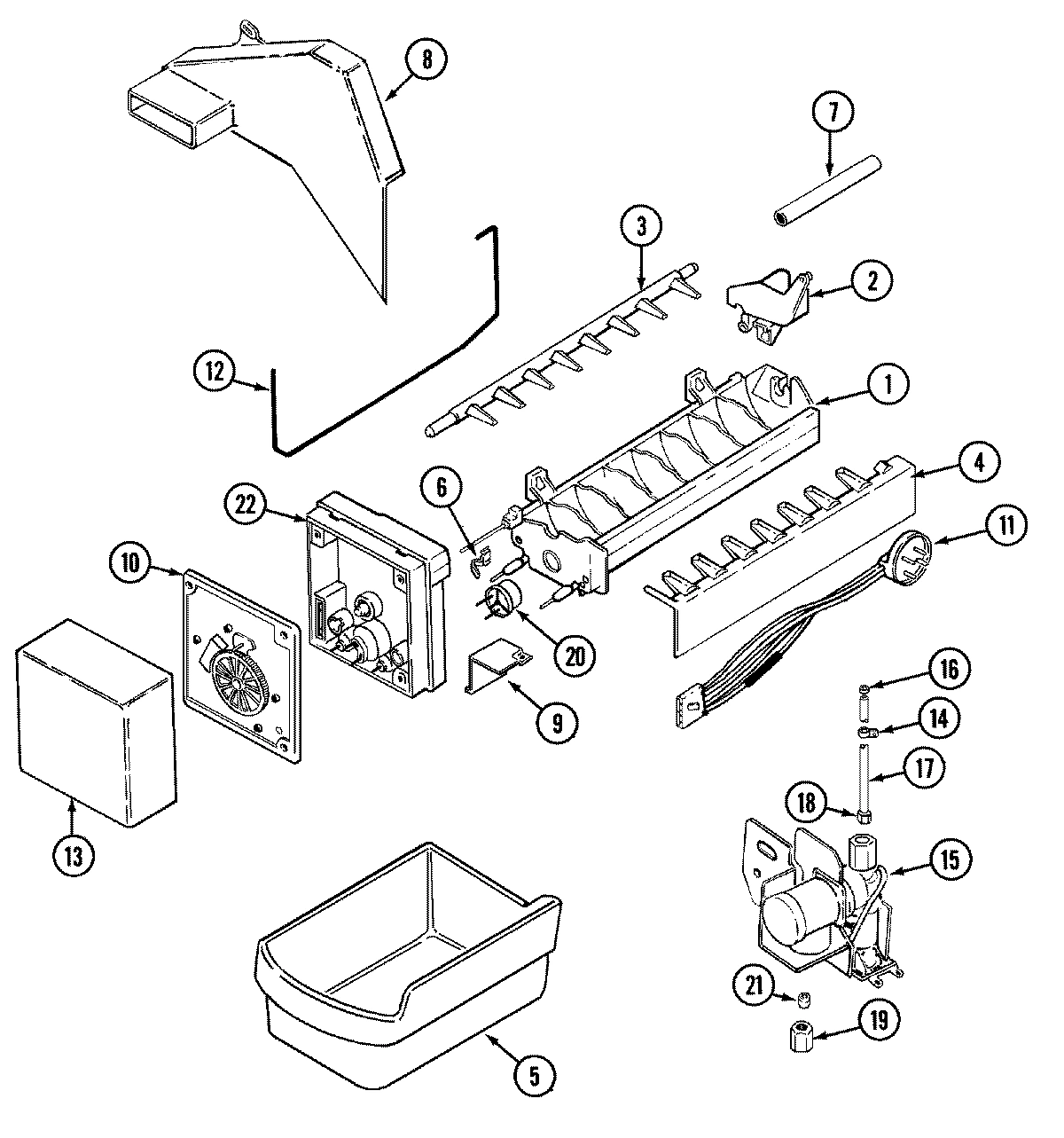

07 - OPTIONAL ICE MAKER KIT

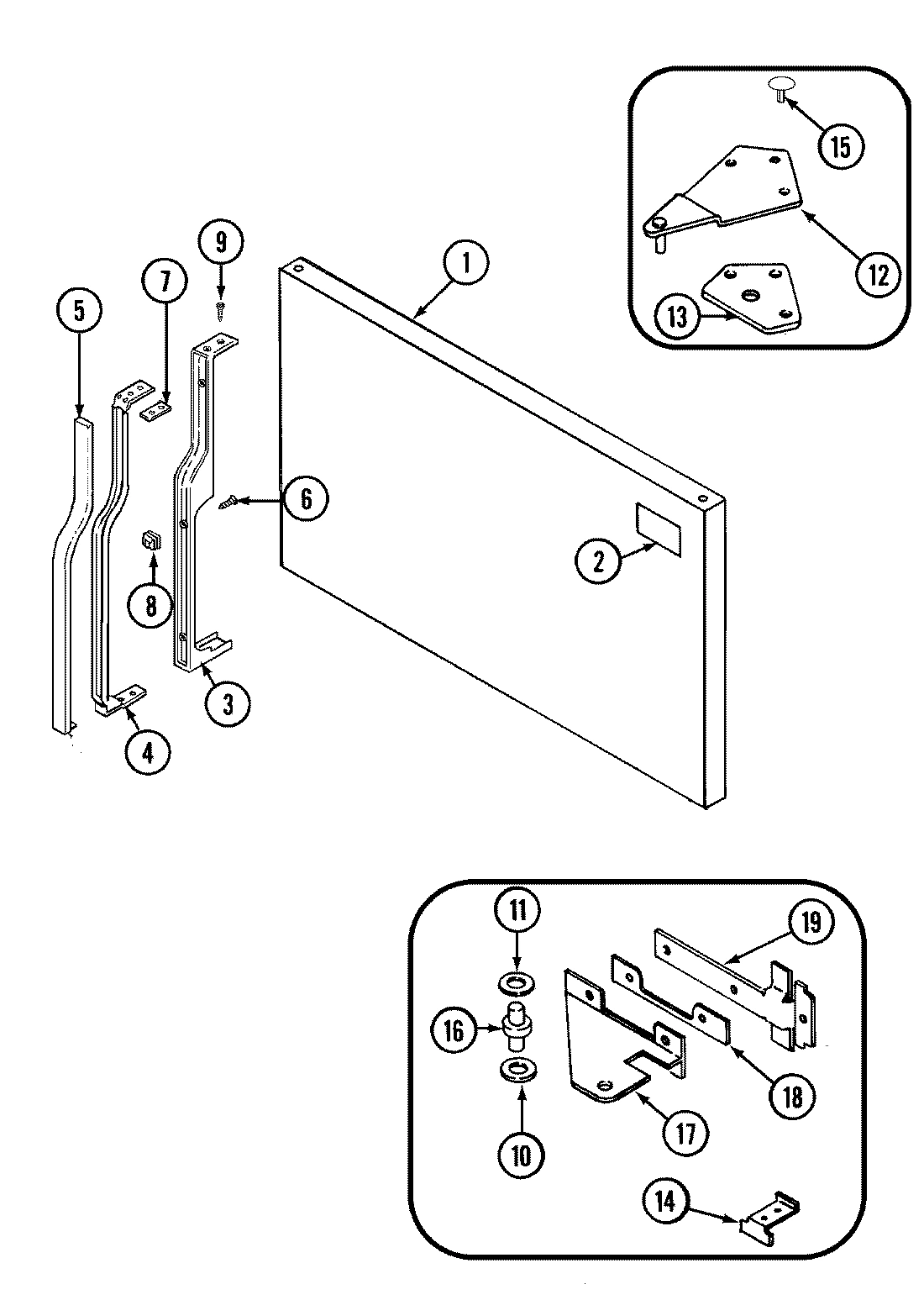

03 - FREEZER OUTER DOOR

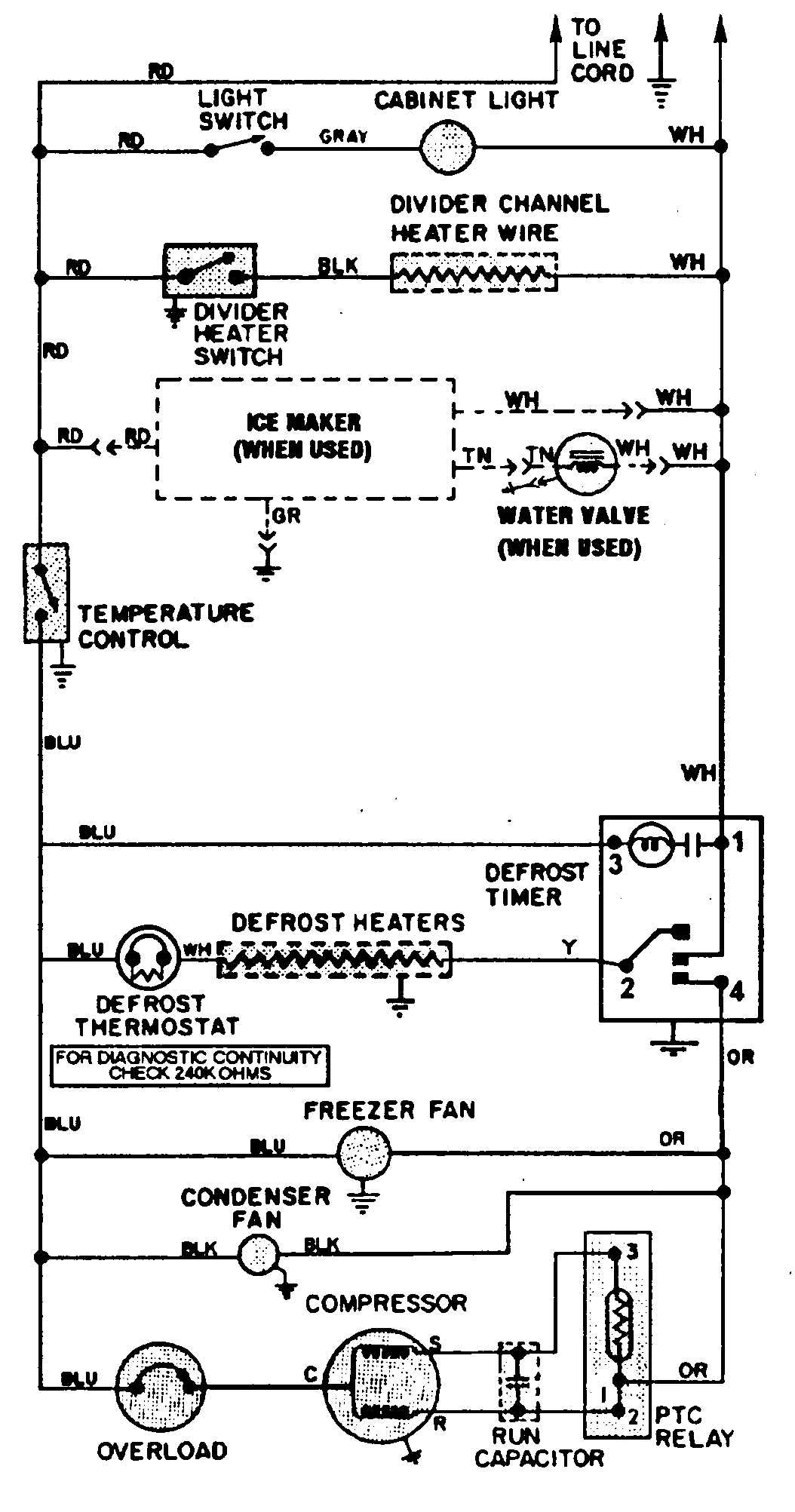

10 - WIRING INFORMATION

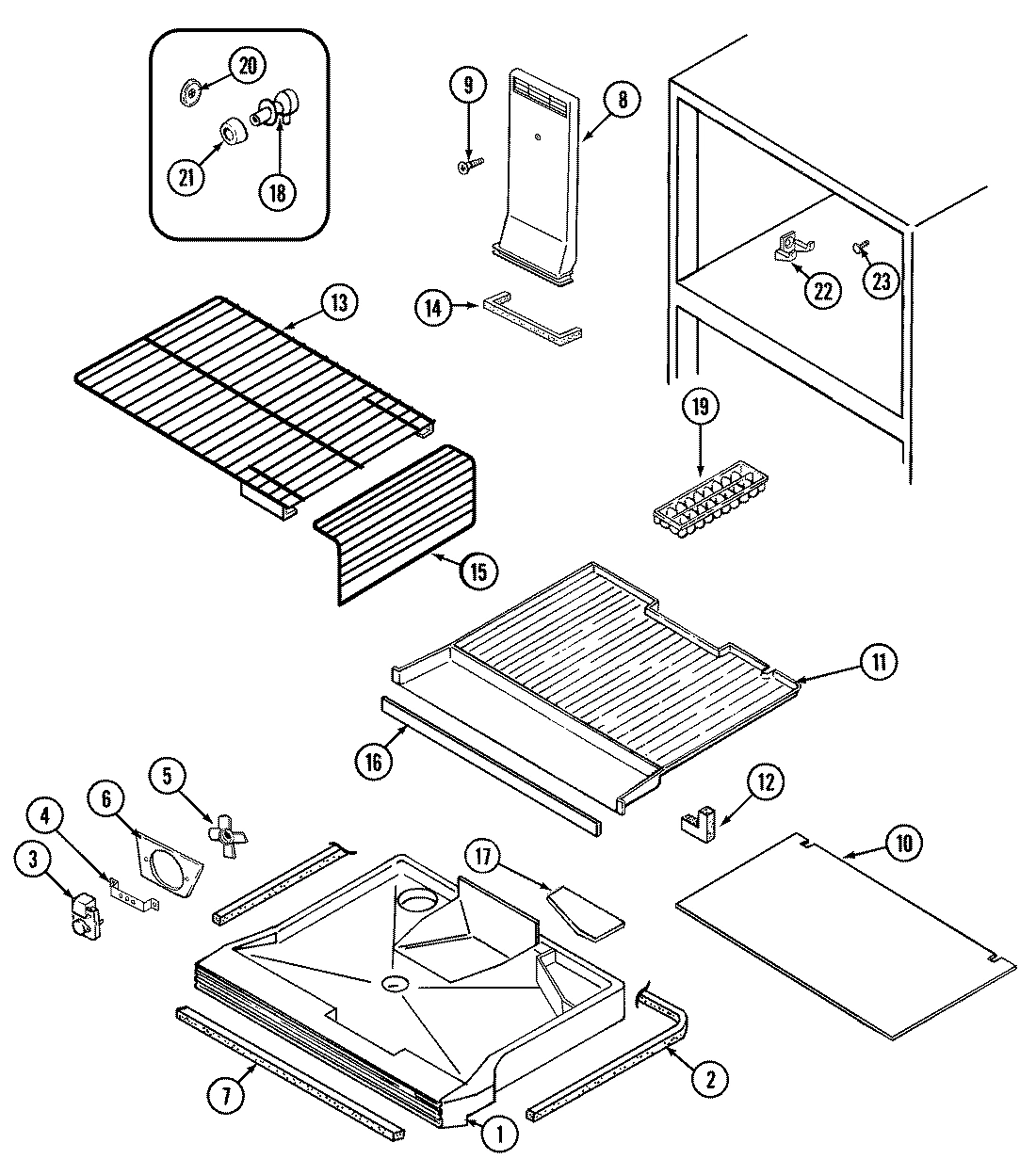

01 - FREEZER COMPARTMENT

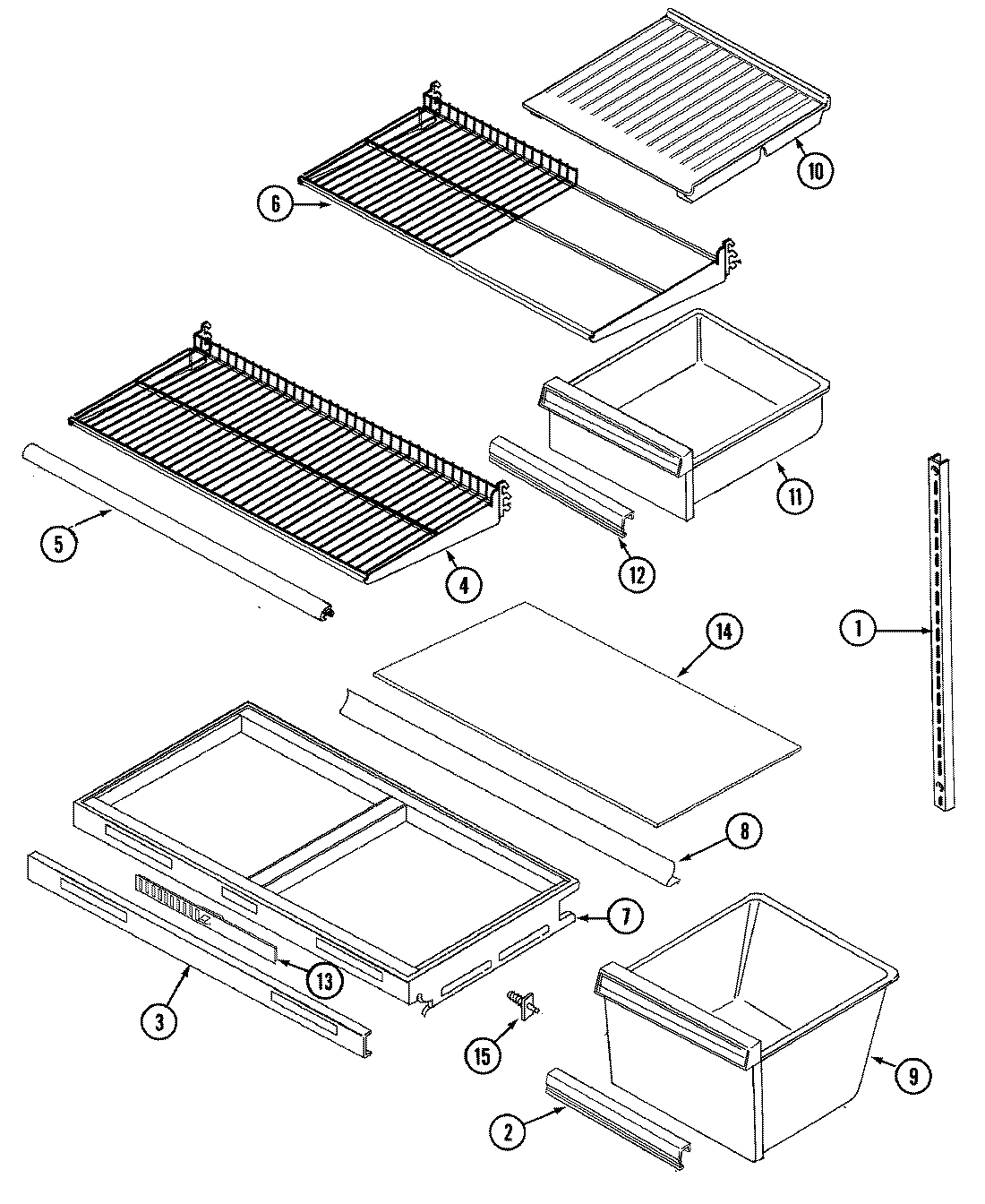

08 - SHELVES & ACCESSORIES
Common parts from model Whirlpool RB2120TM REFRIGERATOR
1
SCREW WPL 652755 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 694701 Contact Us For Availability
1
COMPRESSOR WPL RA10321 Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694101 Contact Us For Availability
1
LINER, F.F. DOOR WPL 694541 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723421AM Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72342100AM Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694041 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
2
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
2
HANDLE, F.F. DOOR (ALM) WPL 61001120 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694143 Contact Us For Availability
2
TRIM, CRISPER PAN WPL 61001220 Contact Us For Availability
3
TRIM, SHELF WPL 7011121 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698116 Contact Us For Availability
3
DOOR, DAIRY WPL 6905823 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
HANDLE, FRZ. DOOR (ALM) WPL 61001119 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
TRIM, CRISPER SHELF (FRONT) WPL 702821 Contact Us For Availability
4
TRIM, SHELF WPL 7011122 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
TRAY, BUTTER WPL 299362 Contact Us For Availability
4
INSERT, HANDLE (ALM)----NA WPL 7005317 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
FRAME, HANDLE WPL 700524 Contact Us For Availability
4
SCREW WPL 40001536 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
SHELF, FULL WPL 61001223 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
5
TRIM, SHELF (14 1/16``) WPL 7011111 Contact Us For Availability
5
SCREW WPL 4150331 Contact Us For Availability
5
PAN, ICE WPL 683461 Contact Us For Availability
5
INSERT, HANDLE (ALM) WPL 700539 Contact Us For Availability
5
WASHER, SPRING WPL 420092900 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
TRIM, SHELF WPL 61001224 Contact Us For Availability
6
CORD, POWER WPL 528903 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
6
TRIM, SHELF WPL 7011120 Contact Us For Availability
6
SCREW WPL 6527522 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
6
SHELF, WIRE WPL 7010513 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TRIM, SHELF WPL 7011123 Contact Us For Availability
7
SHIM, HANDLE WPL 679341 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
7
SHELF, CRISPER WPL 690572 Contact Us For Availability
8
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
GROMMET WPL 697431 Contact Us For Availability
8
END CAP, HANDLE (ALM) WPL 700585 Contact Us For Availability
8
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
8
SCREW WPL 40002636 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
TUNNEL, AIR WPL 702083 Contact Us For Availability
8
TRIM, CRISPER SHELF (REAR) WPL 687989 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
SCREW WPL 6527565 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
PAN, CRISPER WPL 68163131 Contact Us For Availability
10
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
10
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER WPL 542332 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
COVER, MEAT PAN WPL 600758 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001205 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
11
WASHER WPL 674836 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693981 Contact Us For Availability
11
PAN, MEAT WPL 6649013 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
SCREW WPL 6527559 Contact Us For Availability
12
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
HINGE, UPPER WPL 5370924 Contact Us For Availability
12
SCREW WPL 6527552 Contact Us For Availability
12
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
12
TRIM, MEAT PAN WPL 7031525 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMP. CONTROL WPL 704203 Contact Us For Availability
13
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
13
COVER, ICE MAKER WPL 683282 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability
13
SHELF, FRZ. WPL 703222 Contact Us For Availability
13
SLIDE, CONTROL WPL 695421 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684451 Contact Us For Availability
14
SCREW WPL 6527550 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
14
GLASS, CRISPER SHELF WPL 6874317 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
15
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
15
SCREW WPL 4010181 Contact Us For Availability
15
VALVE, WATER WPL 693641 Contact Us For Availability
15
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
15
LEG, SHELF WPL 703232 Contact Us For Availability
15
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
16
MAGNET WPL 694132 Contact Us For Availability
16
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
16
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
17
SCREW WPL 6527555 Contact Us For Availability
17
HINGE WPL 695143 Contact Us For Availability
17
COVER, PLENUM WPL 61664805 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686017 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527554 Contact Us For Availability
19
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
CAP, GROMMET WPL 683871 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
22
SCREW WPL 4050071 Contact Us For Availability
22
TIMER, DEFROST WPL 682332 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
23
SCREW WPL 4000171 Contact Us For Availability
23
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (ALM) WPL 701284 Contact Us For Availability
23
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
24
EVAPORATOR WPL 698227 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
HEATER, DEFROST WPL 6010635 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 61001136 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 61001561 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 701622 Contact Us For Availability
35
PAN, DRAIN WPL 682361 Contact Us For Availability
36
MANUAL, USE & CARE WPL 1083403 Contact Us For Availability
36
SCREW WPL 4000141 Contact Us For Availability
36
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
36
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001452 Contact Us For Availability
× ![]()
Login and Registration Form
