Model Whirlpool RB19KY-3AT REFRIGERATOR – Common Parts & Diagrams
03 - UNIT COMPARTMENT & SYSTEM

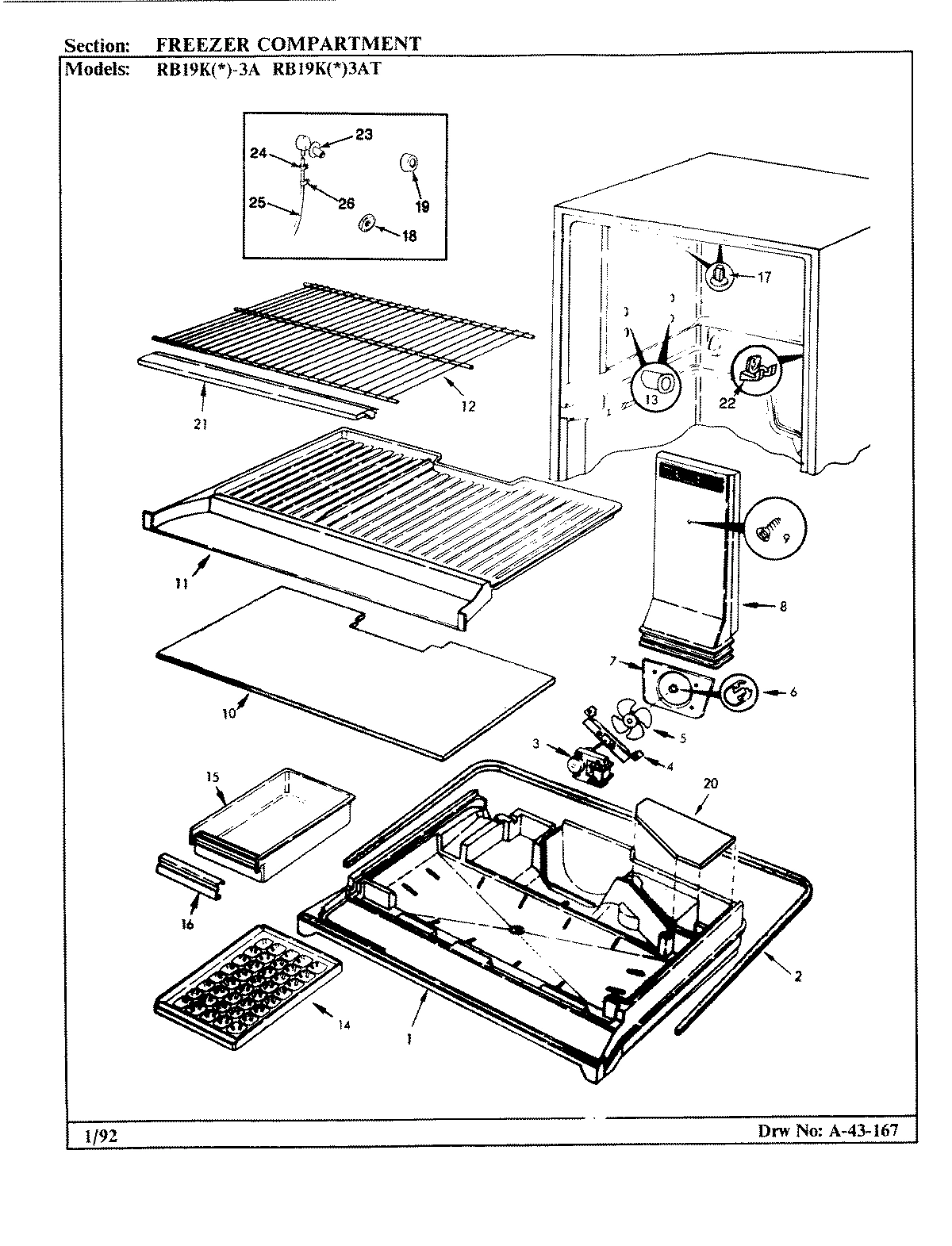

01 - FREEZER COMPARTMENT

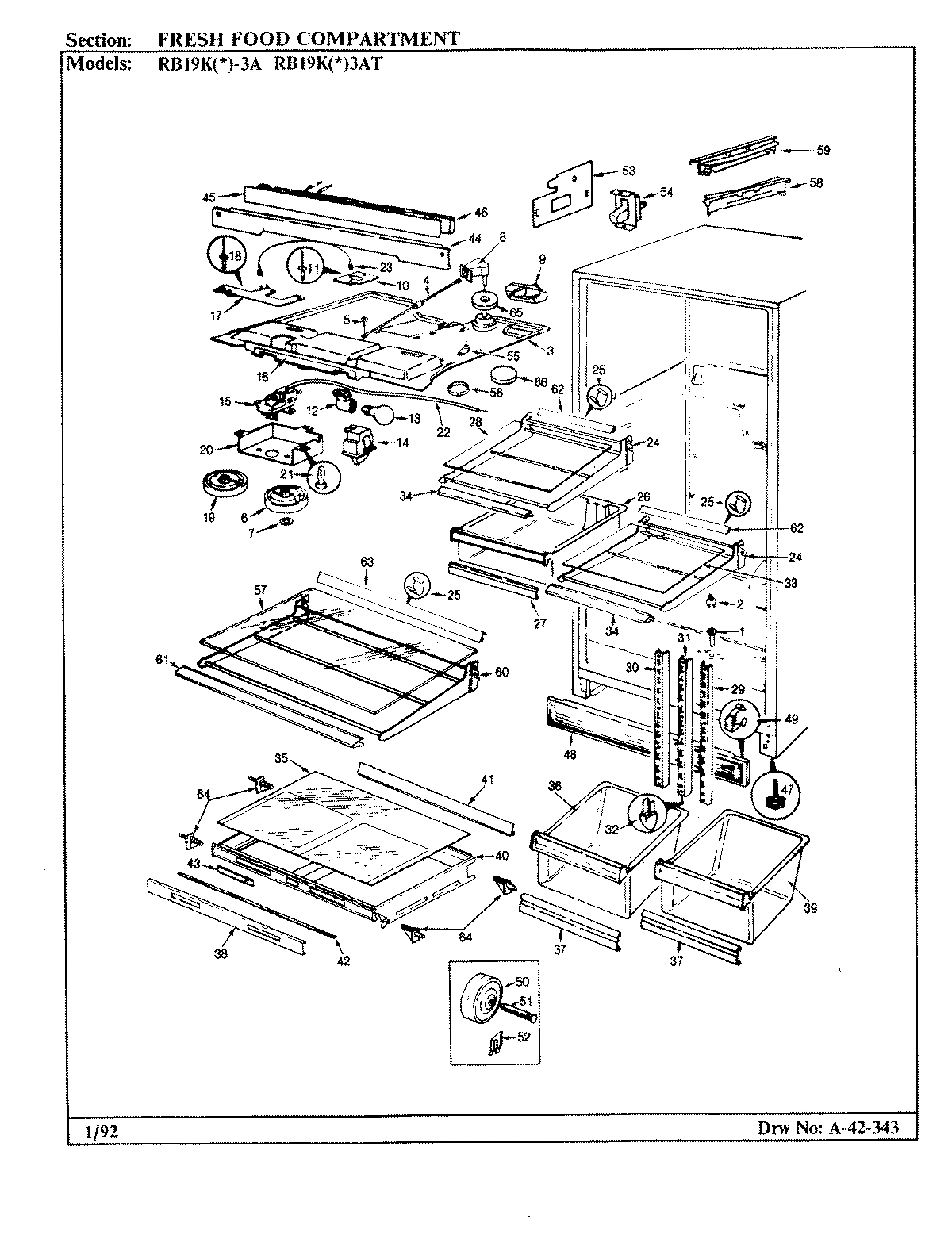

02 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB19KY-3AT REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 691241 Contact Us For Availability
1
TUBE, DRAIN WPL 545317 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688666 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 691312 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
5
SCREW WPL 6527513 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB, FRZ. CONTROL WPL 686006 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
ORIFICE ASSY WPL 679152 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
AIR DEFLECTOR WPL 601203 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
SHELF WPL 6043817 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
BULB, LIGHT WPL 681231 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
14
SWITCH, LIGHT WPL 557321 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
HANDLE WPL 6013267 Contact Us For Availability
16
INSERT WPL 6057165 Contact Us For Availability
17
PLUG BUTTON WPL 669202 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
RIVET WPL 263979 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
KNOB, TEMP. CONTROL WPL 686005 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
COVER, PLENUM WPL 664805 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM WPL 6813650 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
FRAME, SHELF WPL 6057036 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
26
PAN, MEAT WPL 665163 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
HANDLE WPL 6013268 Contact Us For Availability
28
EVAPORATOR WPL 691142 Contact Us For Availability
28
GLASS, MEAT SHELF WPL 6813921 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
29
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
31
SCREW WPL 40003728 Contact Us For Availability
31
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
GLASS, SPLIT SHELF WPL 6813915 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
34
TRIM WPL 6813642 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
35
GLASS, SHELF WPL 6874316 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
PAN, CRISPER (FRUIT) WPL 68222441 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
HANDLE WPL 60132108 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
TRIM WPL 6874410 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS WPL 688391 Contact Us For Availability
39
PAN, CRISPER (VEGETABLE) WPL 68222442 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
SHELF, CRISPER WPL 687351 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
41
TRIM WPL 687985 Contact Us For Availability
42
SEAL WPL 687971 Contact Us For Availability
43
SLIDE, CONTROL WPL 687423 Contact Us For Availability
44
SCREW WPL 6527554 Contact Us For Availability
44
DIVIDER, MULLION (HW) WPL 684342HW Contact Us For Availability
44
WIRE HARNESS WPL 689031 Contact Us For Availability
45
INSULATION WPL 685772 Contact Us For Availability
45
HEATER WIRE WPL 688311 Contact Us For Availability
46
INSULATION WPL 601402 Contact Us For Availability
47
LEG, LEVELING WPL 686641 Contact Us For Availability
48
KICKPLATE WPL 6023738 Contact Us For Availability
49
SCREW WPL 4000171 Contact Us For Availability
49
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
50
WHEEL WPL 298342 Contact Us For Availability
51
PIN, WHEEL WPL 298352 Contact Us For Availability
52
CLIP WPL 602161 Contact Us For Availability
53
SCREW WPL 4020131 Contact Us For Availability
53
BRACKET, SWITCH WPL 605831 Contact Us For Availability
54
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
55
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
56
COVER, CRANK WPL 674931 Contact Us For Availability
57
GLASS, FULL SHELF WPL 6813929 Contact Us For Availability
58
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
59
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
60
FRAME, SHELF WPL 6057045 Contact Us For Availability
61
TRIM, SHELF FRONT (FULL) WPL 6813656 Contact Us For Availability
62
TRIM WPL 652763 Contact Us For Availability
63
TRIM WPL 6527633 Contact Us For Availability
64
WPL 688361 WPL 688361 Contact Us For Availability
65
WPL 689891 WPL 689891 Contact Us For Availability
66
WPL 690371 WPL 690371 Contact Us For Availability
× ![]()
