Model Whirlpool RB19KN-2AD REFRIGERATOR – Common Parts & Diagrams

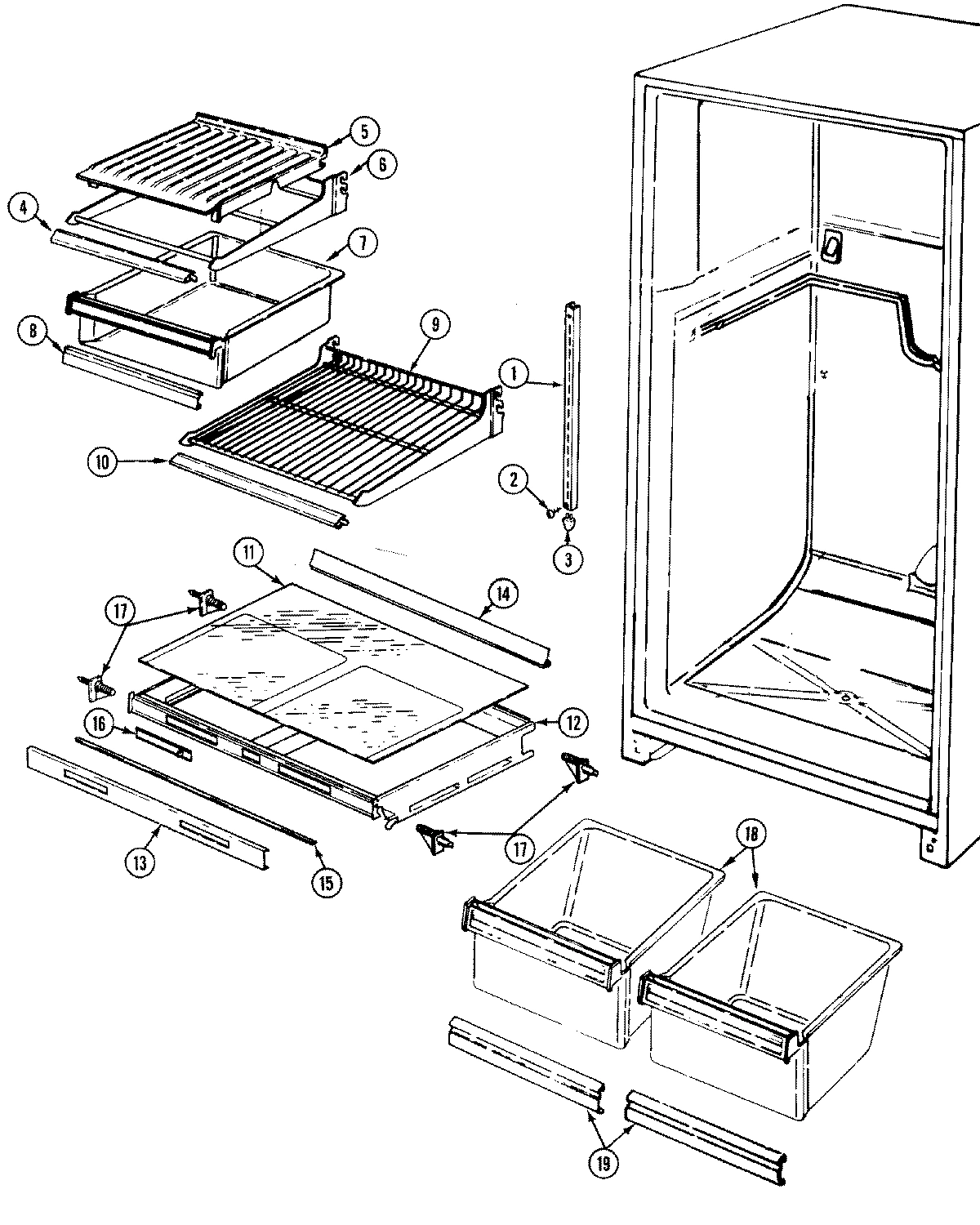

06 - SHELVES & ACCESSORIES

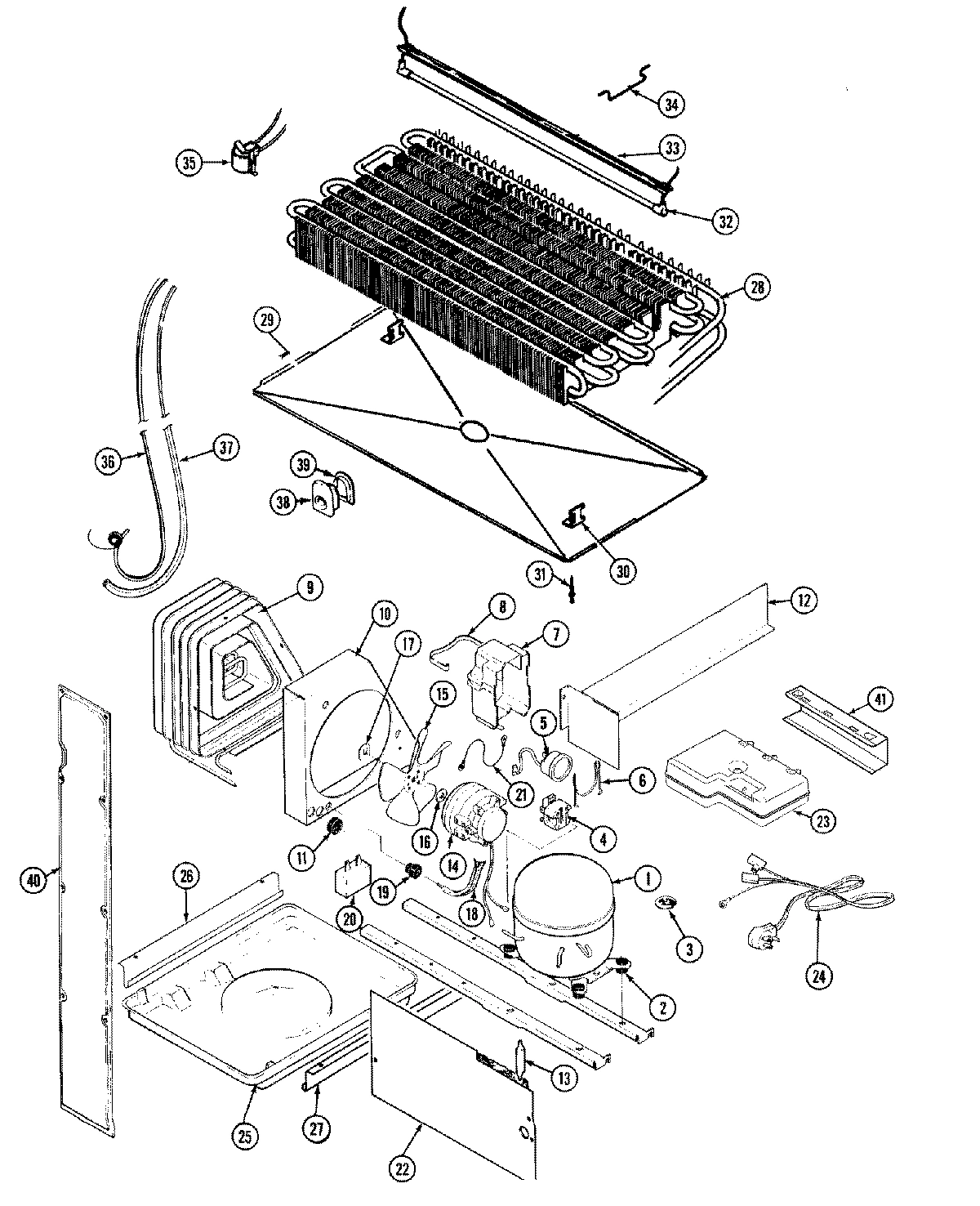

07 - UNIT COMPARTMENT & SYSTEM

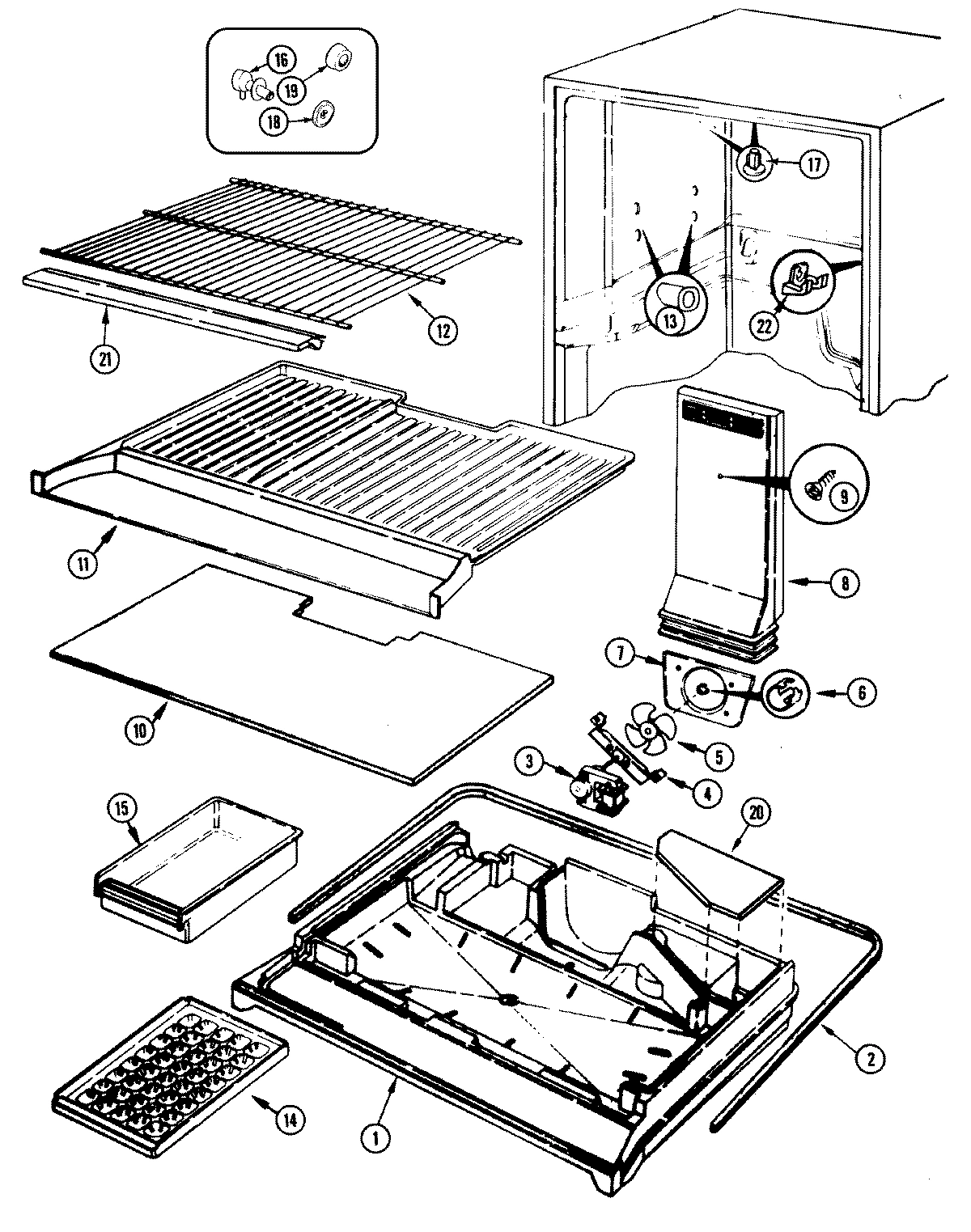

01 - FREEZER COMPARTMENT

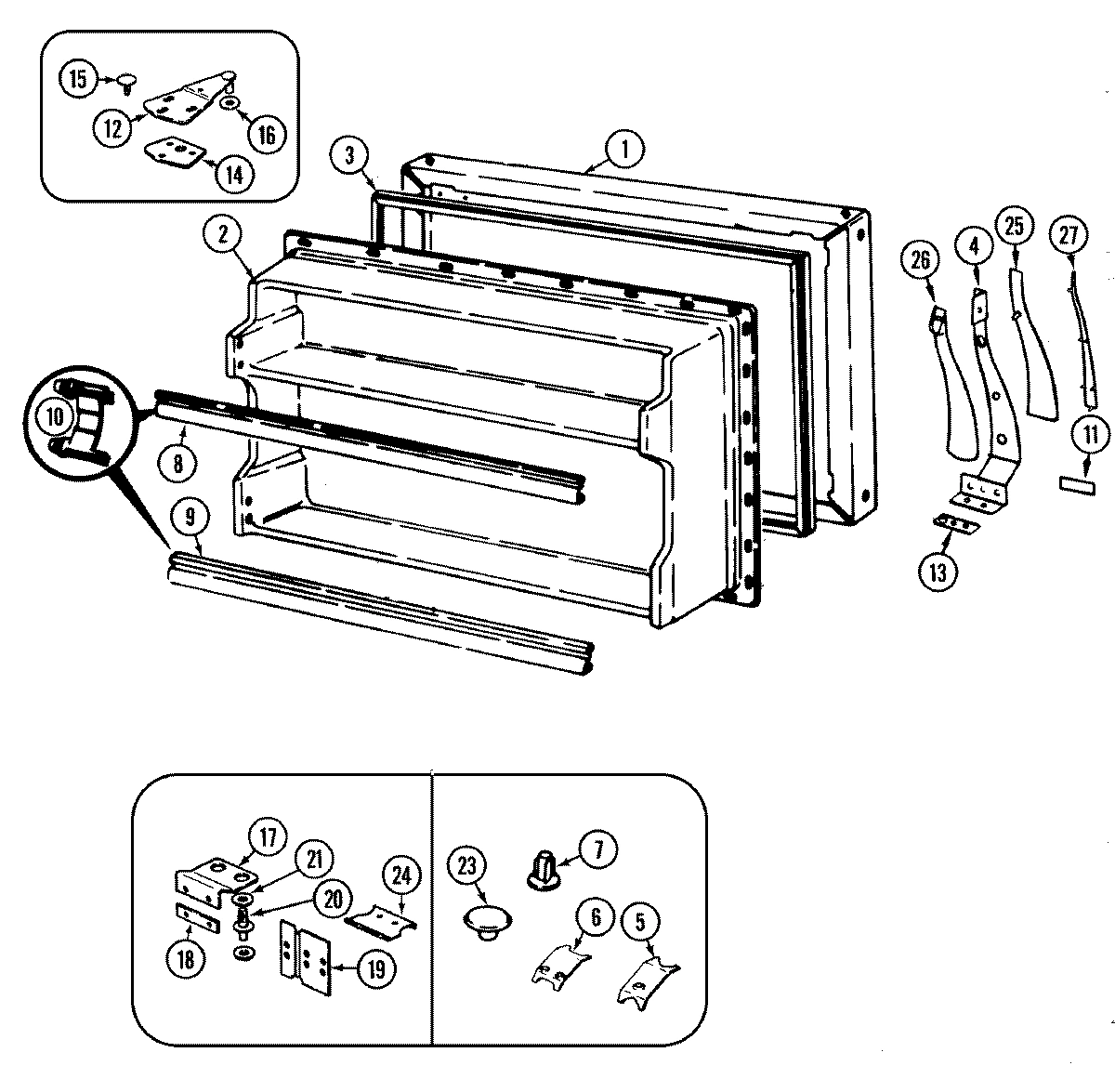

02 - FREEZER DOOR

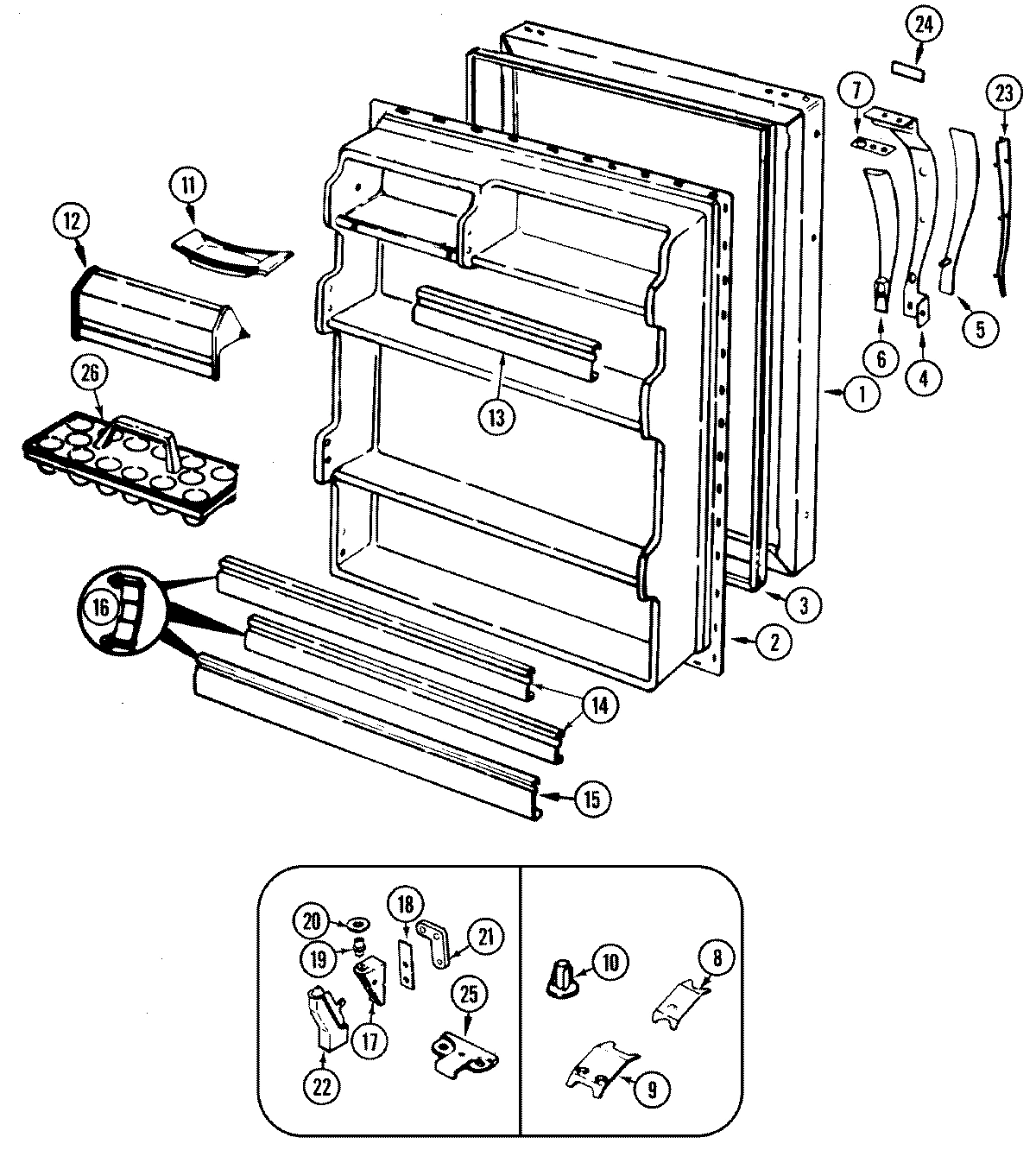

04 - FRESH FOOD DOOR

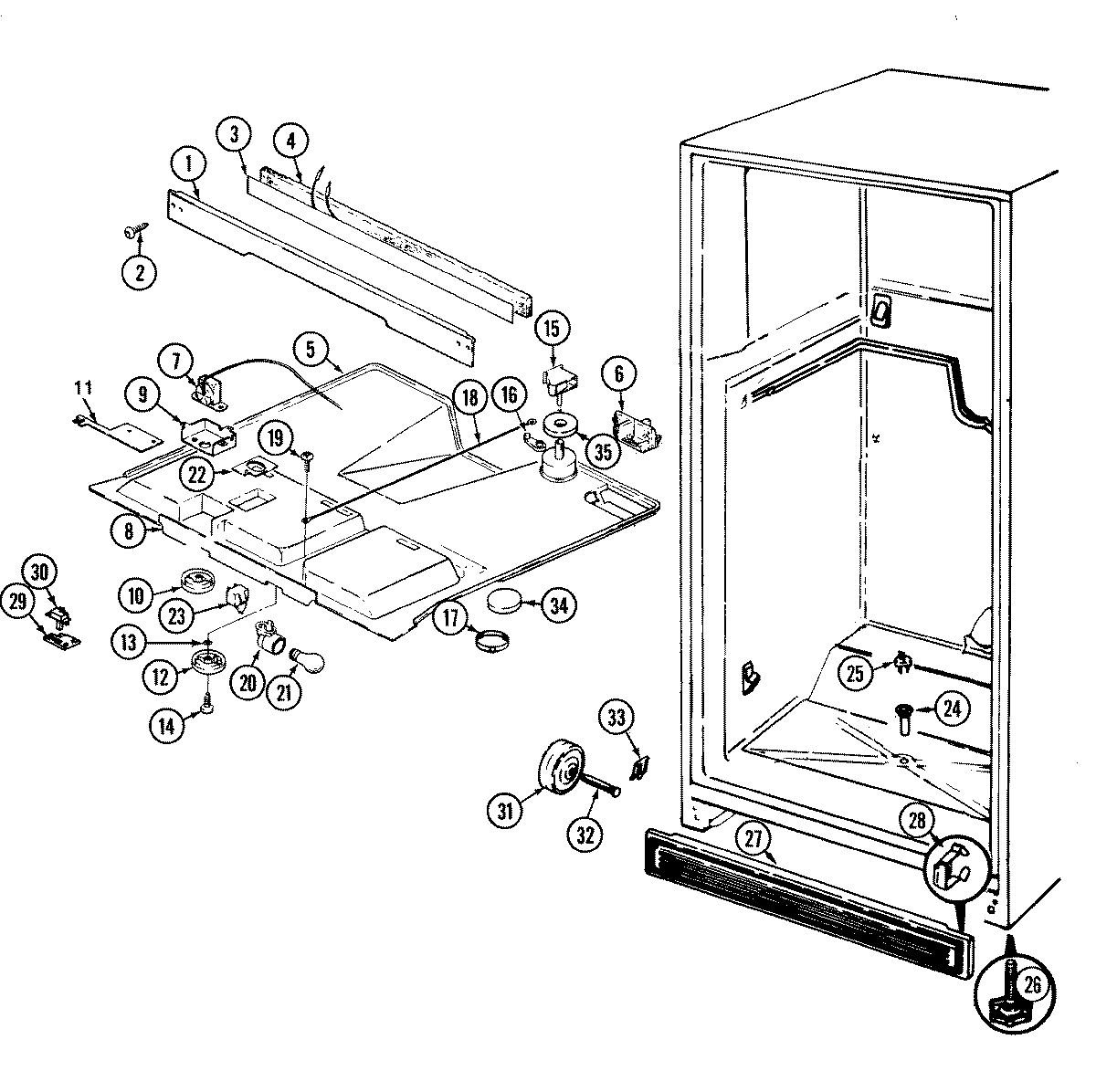

03 - FRESH FOOD COMPARTMENT

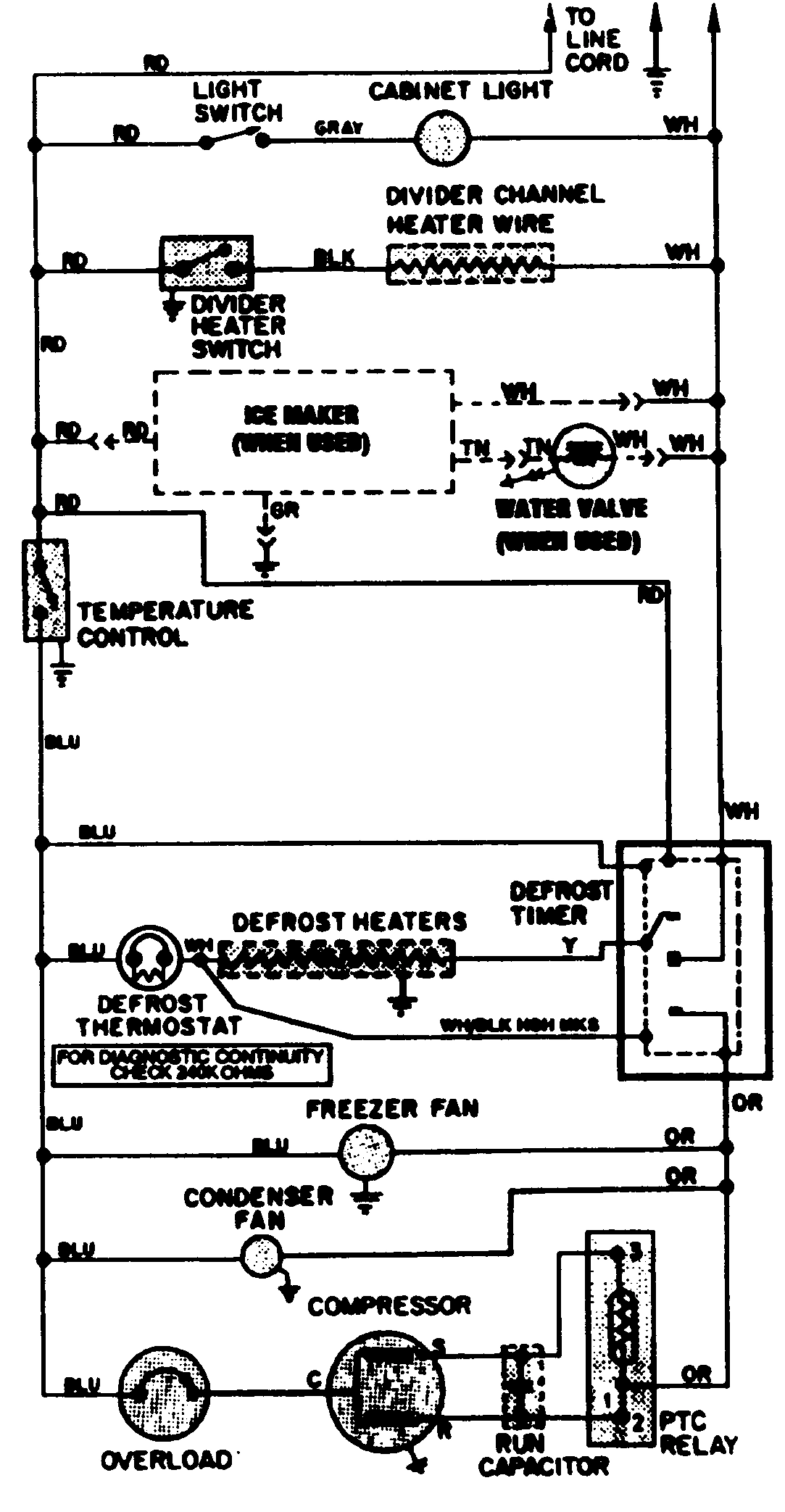

08 - WIRING INFORMATION

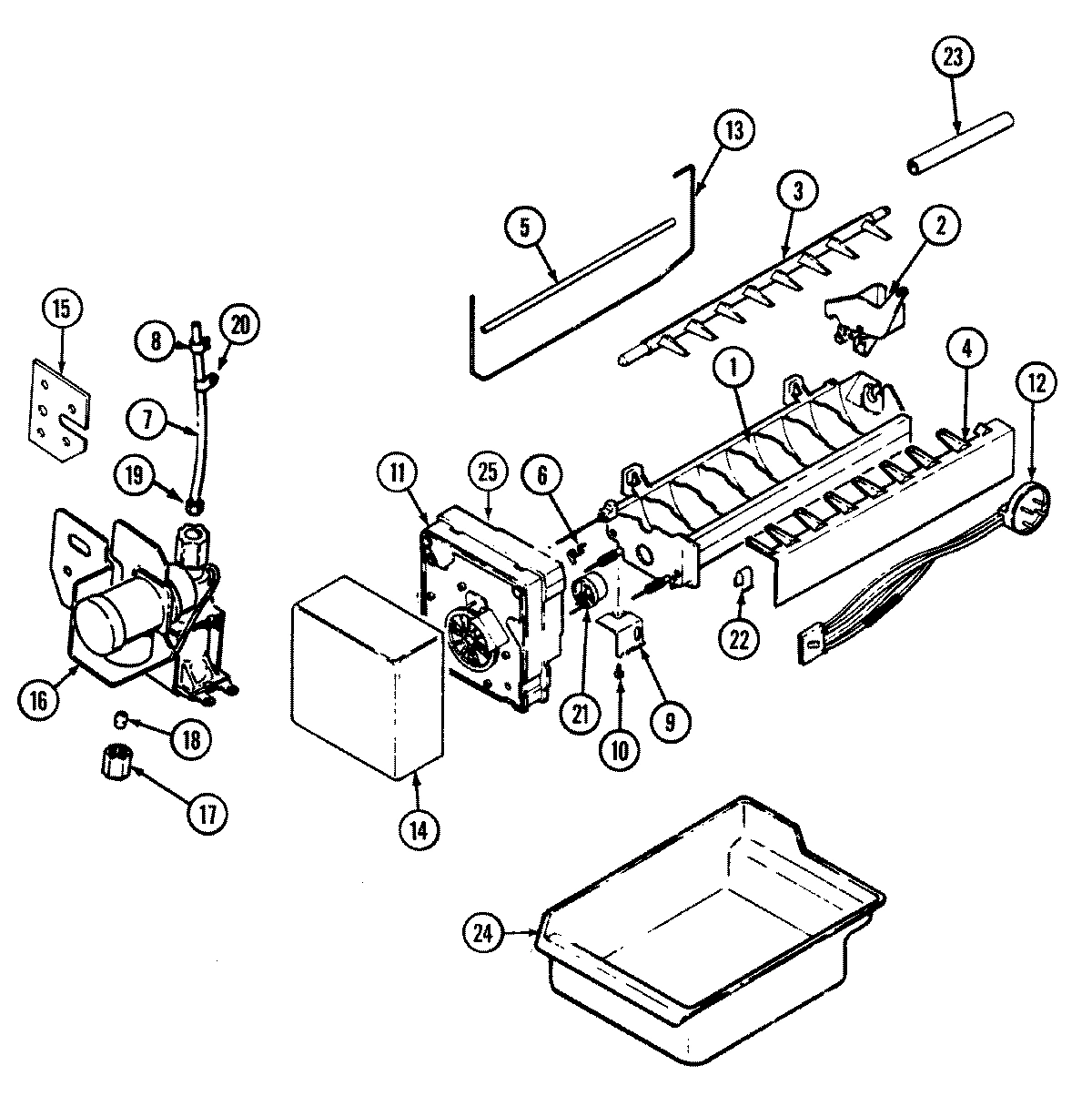

05 - OPTIONAL ICE MAKER KIT (IMKTM1)
Common parts from model Whirlpool RB19KN-2AD REFRIGERATOR
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
FOAM TRAY WPL 675193 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 684741WW Contact Us For Availability
1
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 684731WW Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 684342WW Contact Us For Availability
1
WIRE HARNESS MULLION WPL 691461 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688666 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
2
LINER, F.F. DOOR WPL 6888730 Contact Us For Availability
2
SCREW WPL 6527554 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
3
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
3
HEATER WPL 688292 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
SCREW WPL 40001536 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
SCREW WPL 6527557 Contact Us For Availability
4
DOOR HANDLE WPL 662553 Contact Us For Availability
4
DOOR HANDLE WPL 662554 Contact Us For Availability
4
INSULATION WPL 601402 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
COVER, MEAT PAN WPL 600757 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
6
SHELF, MEAT WPL 6041613 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT WPL 604451 Contact Us For Availability
6
SCREW WPL 6527553 Contact Us For Availability
6
AIR DEFLECTOR WPL 601203 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
PAN, MEAT WPL 665163 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 686012 Contact Us For Availability
7
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
8
HANDLE WPL 6013268 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
TRIM, DOOR SHELF WPL 65151121 Contact Us For Availability
8
INSERT WPL 6057165 Contact Us For Availability
8
CLAMP, SPRING WPL 603334 Contact Us For Availability
9
SHELF, SPLIT WPL 6041719 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
TRIM WPL 604144 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686005 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
GLASS, SHELF WPL 6874316 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
INSERT, HANDLE WPL 6060315 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
SCREW WPL 4000211 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
12
SHELF, CRISPER WPL 690571 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
SHELF WPL 6043828 Contact Us For Availability
12
HINGE, UPPER WPL 5370920 Contact Us For Availability
12
SCREW WPL 6527552 Contact Us For Availability
12
DOOR, DAIRY WPL 66184395 Contact Us For Availability
12
KNOB, FRZ. CONTROL WPL 686006 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
13
TRIM WPL 6874410 Contact Us For Availability
13
WASHER, SPRING WPL 420092900 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 6515156 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
TRIM WPL 687985 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 65151132 Contact Us For Availability
14
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
14
SCREW WPL 405016103 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
SEAL WPL 687971 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
15
TRIM, DOOR SHELF WPL 65151334 Contact Us For Availability
15
ORIFICE ASSY WPL 679152 Contact Us For Availability
15
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
16
SLIDE, CONTROL WPL 695423 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
16
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
16
WASHER WPL 542331 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
16
SCREW WPL 4010171 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
17
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
SCREW WPL 6527555 Contact Us For Availability
17
HINGE, CENTER WPL 688112 Contact Us For Availability
17
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
17
HINGE, LOWER WPL 689752 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
18
PAN, CRISPER (FRUIT) WPL 68222441 Contact Us For Availability
18
PAN, CRISPER (VEGETABLE) WPL 68222442 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
18
SHIM WPL 690313 Contact Us For Availability
18
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
19
HANDLE WPL 60132108 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
19
PIN, HINGE WPL 689771 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
COVER, PLENUM WPL 664805 Contact Us For Availability
20
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
20
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
20
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM WPL 6041432 Contact Us For Availability
21
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
21
SCREW WPL 6527559 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
21
BULB, LIGHT WPL 681231 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
RIVET WPL 263979 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
WASHER WPL 542332 Contact Us For Availability
22
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
23
INSERT, HANDLE WPL 680174 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
STOP, DOOR WPL 689881 Contact Us For Availability
24
INSERT, NAMEPLATE WPL 6060316 Contact Us For Availability
24
TUBE, DRAIN WPL 545317 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
SCREW WPL 6527548 Contact Us For Availability
25
INSERT, HANDLE WPL 680161 Contact Us For Availability
25
STOP, DOOR WPL 689871 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
25
SCREW WPL 951061 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
TRAY, EGG WPL 600661 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
KICKPLATE WPL 689802 Contact Us For Availability
28
SCREW WPL 4000171 Contact Us For Availability
28
EVAP COIL WPL 685172 Contact Us For Availability
28
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
SCREW WPL 4020131 Contact Us For Availability
29
BRACKET, SWITCH WPL 605831 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
31
WHEEL WPL 698121 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
PIN, WHEEL WPL 298352 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
CLIP WPL 602161 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
34
DISC, CRANK COVER WPL 690371 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
36
TUBING ASSY. WPL 650135 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 681861 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 61001113 Contact Us For Availability
40
SCREW WPL 6527550 Contact Us For Availability
41
SEE NOTE BRACKET, ADAPT. DEFROST ASSY. (PART WPL Y00000000 Contact Us For Availability
42
MANUAL, USE & CARE WPL 1070994 Contact Us For Availability
42
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001347 Contact Us For Availability
× ![]()
Login and Registration Form
