Model Whirlpool RB19KA-4A REFRIGERATOR – Common Parts & Diagrams
01 - CHEST OF DRAWERS

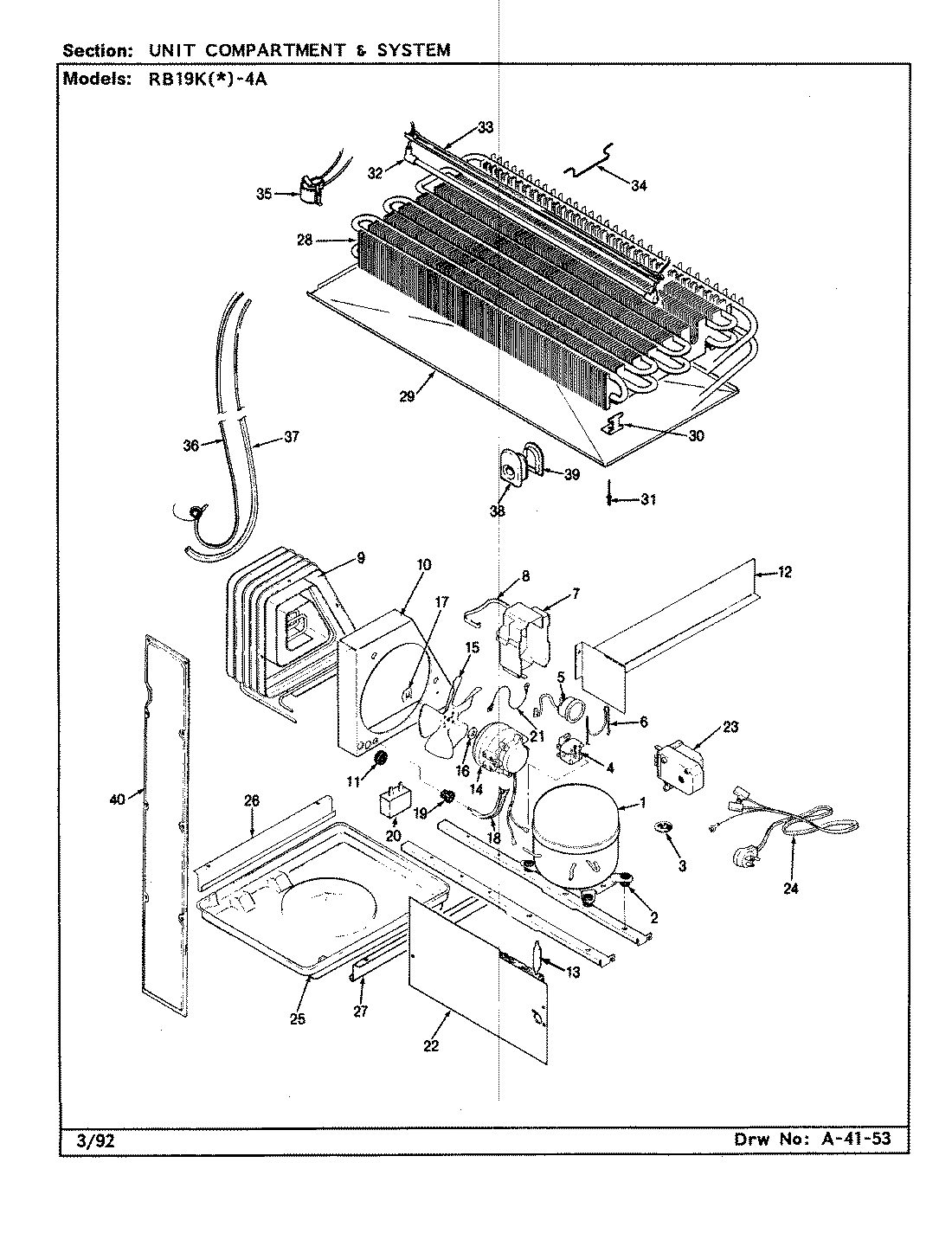

05 - UNIT COMPARTMENT & SYSTEM

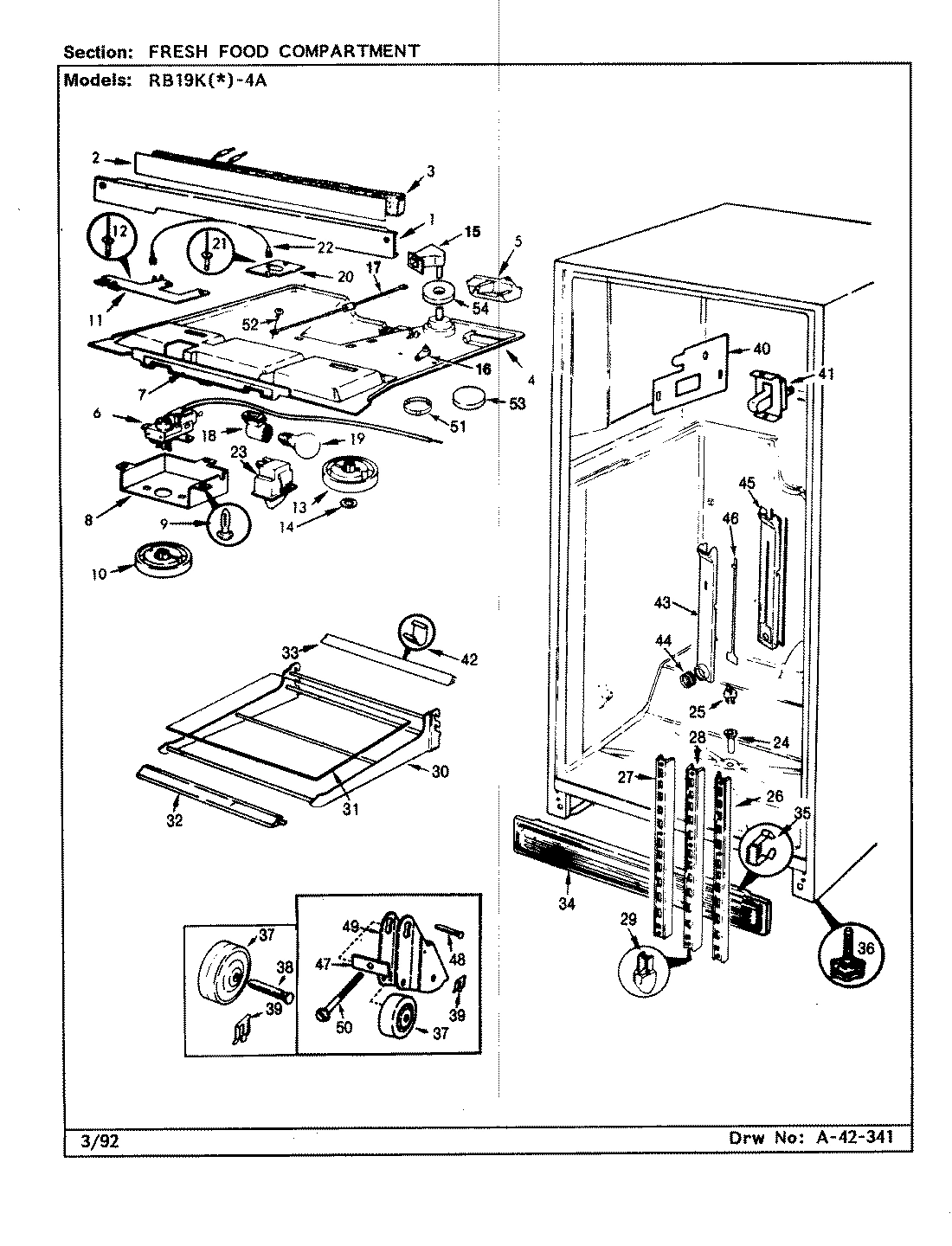

04 - FRESH FOOD COMPARTMENT

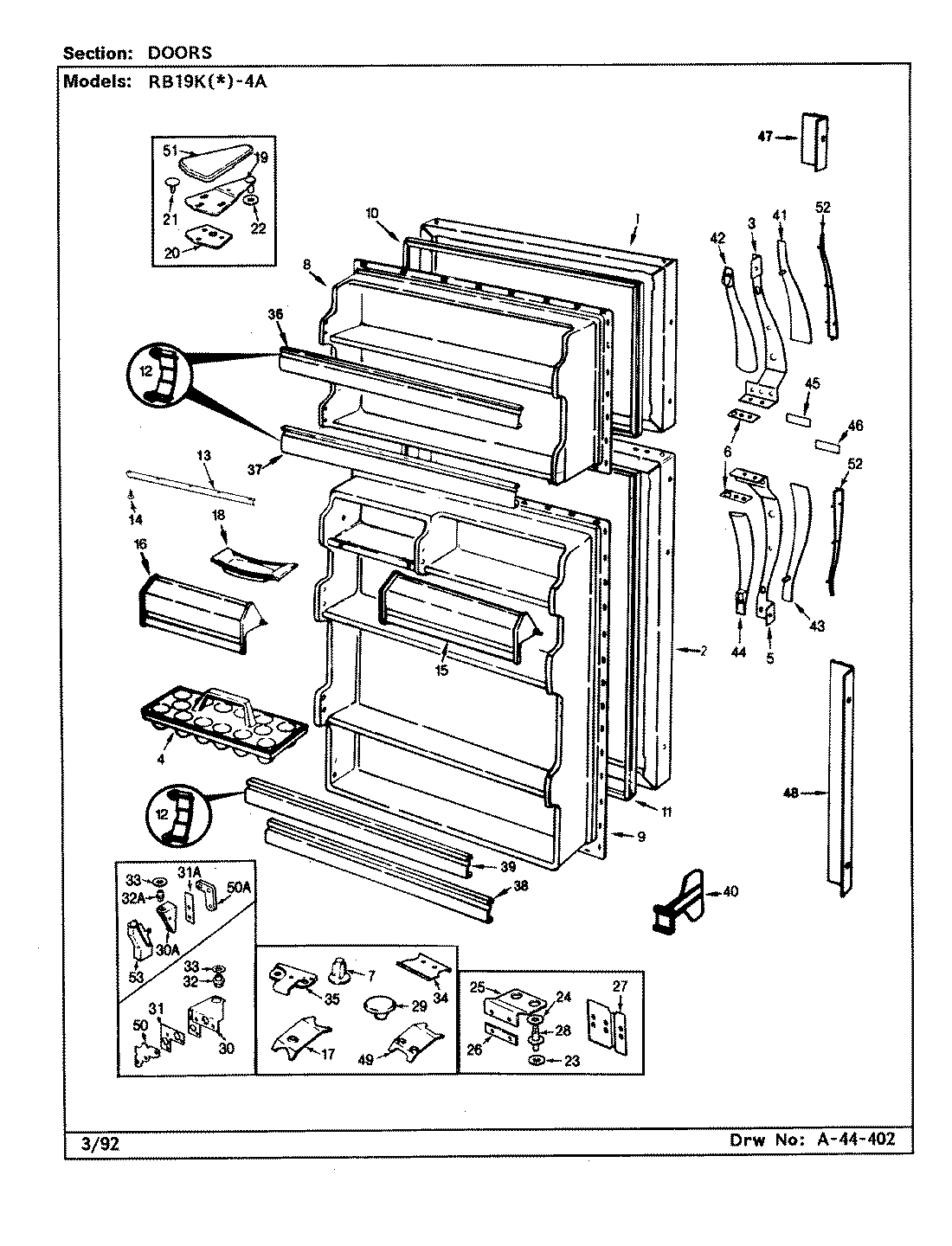

02 - DOORS

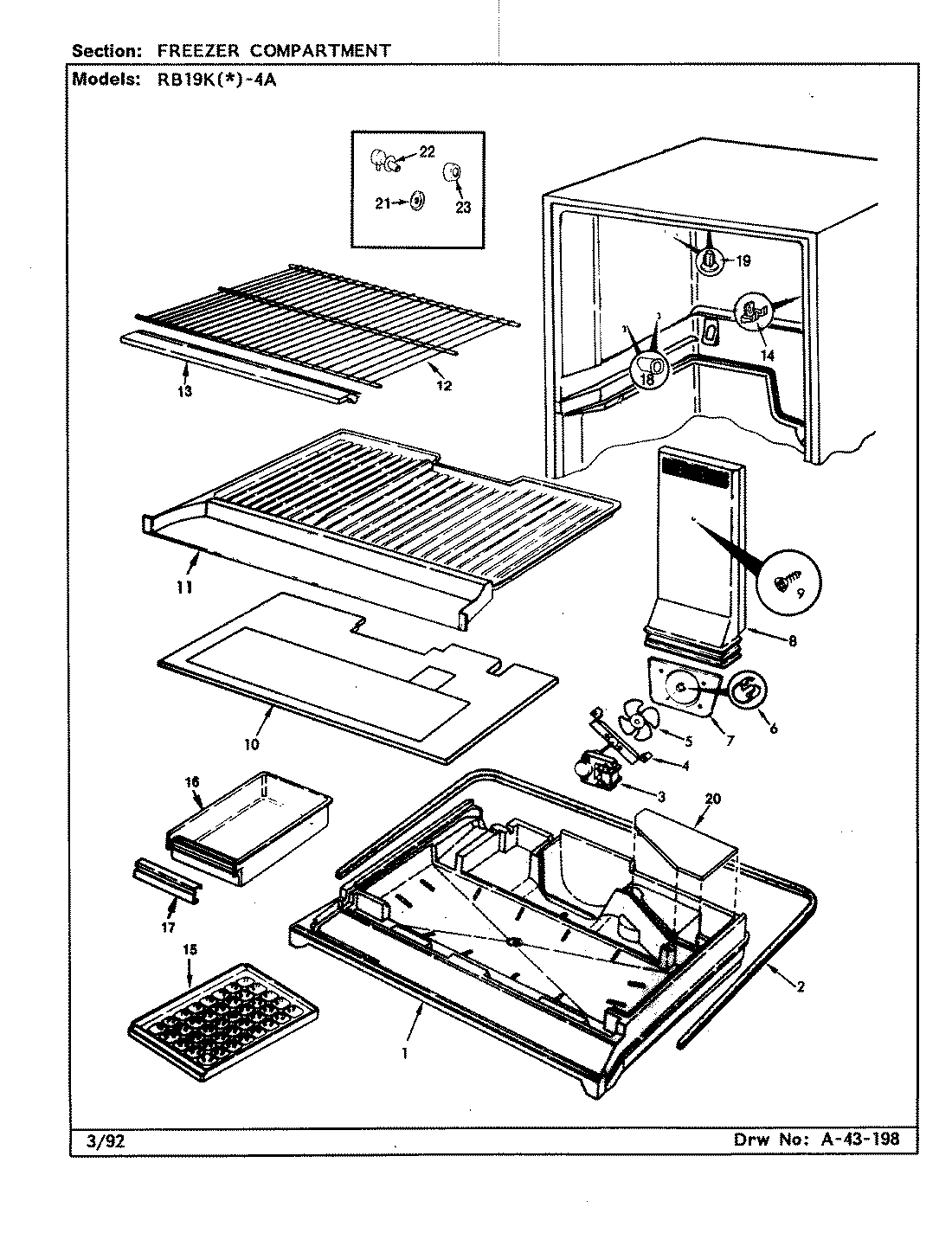

03 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB19KA-4A REFRIGERATOR
1
SCREW WPL 6527554 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 720453AM Contact Us For Availability
1
TRAY FOAM MULLION WPL 675191 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687561 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INSULATION WPL 685772 Contact Us For Availability
2
HEATER WIRE WPL 688311 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684733AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL----NA WPL 688662 Contact Us For Availability
3
PAN, CRISPER WPL 685133 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
PAN, MEAT WPL 685136 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
4
TRAY, EGG WPL 600661 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
PAN, CRISPER WPL 685144 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
SCREW WPL 6527557 Contact Us For Availability
5
DOOR HANDLE WPL 662554 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
RAIL UPPER CENTER WPL 685154 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
7
RAIL, BOTTOM CENTER WPL 682682 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
INSERT, TRIM ESCUTCHEON WPL 6057159 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
LINER, DOOR WPL 6592818 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
9
INNER PANEL WPL 666015 Contact Us For Availability
10
RAIL, SIDE WPL 685163 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686005 Contact Us For Availability
10
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
RAIL, SIDE WPL 685164 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
11
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
12
RAIL, SIDE WPL 685167 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
12
SHELF WPL 6043828 Contact Us For Availability
13
RAIL, SIDE WPL 685168 Contact Us For Availability
13
KNOB, FRZ. CONTROL WPL 686006 Contact Us For Availability
13
GASKET, SECONDARY WPL 685442 Contact Us For Availability
13
TRIM, FRZ. SHELF WPL 6813623 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
14
CLIP WPL 524474 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
15
GASKET WPL 675582 Contact Us For Availability
15
TRIM FRONT WPL 687876 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DOOR, DAIRY WPL 66184362 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
16
FRONT, DRAWER UNIT WPL 682732 Contact Us For Availability
16
WASHER WPL 604861 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
DOOR, DAIRY WPL 66184364 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
17
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
17
TRIM, HANDLE PAN WPL 60132100 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682752 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
TRAY, BUTTER WPL 299362 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
HINGE, UPPER WPL 5370920 Contact Us For Availability
19
SCREW WPL 6527552 Contact Us For Availability
19
PLUG BUTTON WPL 675571 Contact Us For Availability
20
COVER, PAN WPL 682783 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
20
COVER, PLENUM WPL 664805 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
CAP, CONNECTOR WPL 681871 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
WASHER WPL 542331 Contact Us For Availability
22
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
23
TRIM, FRUIT/VEG. HANDLE WPL 685832 Contact Us For Availability
23
TRIM, MEAT HANDLE WPL 685834 Contact Us For Availability
23
TRIM, UTILITY HANDLE WPL 685836 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
WASHER WPL 542332 Contact Us For Availability
23
CAP, GROMMET WPL 683871 Contact Us For Availability
24
RETAINER WPL 682882 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
25
COVER, GLASS WPL 682923 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
SCREW WPL 6527555 Contact Us For Availability
25
HINGE, CENTER WPL 688112 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
26
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
27
FRONT, MEAT PAN WPL 6863913 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
27
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
28
FRONT, UTILITY PAN WPL 6863914 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
SCREW WPL 40003728 Contact Us For Availability
28
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
28
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
FRONT, FRUIT & VEGETABLE PAN WPL 686408 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
29
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
30
SCREW WPL 4000161 Contact Us For Availability
30
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
FRAME, SHELF WPL 6057036 Contact Us For Availability
30
HINGE, LOWER WPL 677146 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
GLASS, SPLIT SHELF WPL 6813915 Contact Us For Availability
31
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
TRIM WPL 6813621 Contact Us For Availability
32
HINGE PIN WPL 687881 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
33
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
34
KICKPLATE WPL 601387 Contact Us For Availability
34
DOOR STOP WPL 600301 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
SCREW WPL 4000171 Contact Us For Availability
35
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
35
DOOR STOP WPL 6041910 Contact Us For Availability
35
SCREW WPL 9986108 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
LEG, LEVELING WPL 60128 Contact Us For Availability
36
TRIM, SHELF WPL 6837517 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
WHEEL WPL 298342 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
PIN, WHEEL WPL 298352 Contact Us For Availability
38
TRIM, FRESH FOOD SHELF WPL 6837512 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
CLIP WPL 602161 Contact Us For Availability
39
TRIM, SHELF WPL 6837511 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
SCREW WPL 4020131 Contact Us For Availability
40
BRACKET, SWITCH WPL 605831 Contact Us For Availability
40
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
41
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
41
HANDLE INSERT, FRONT WPL 680163 Contact Us For Availability
42
CLIP WPL 663332 Contact Us For Availability
43
COVER, AIR TUNNEL WPL 682856 Contact Us For Availability
43
INSERT WPL 680164 Contact Us For Availability
44
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
44
INSERT, HANDLE (BACK) WPL 604453 Contact Us For Availability
45
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
45
INSERT, NAMEPLATE WPL 6060317 Contact Us For Availability
46
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
46
INSERT, NAMEPLATE WPL 6060319 Contact Us For Availability
46
SCREW WPL 6527553 Contact Us For Availability
47
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
47
TRIM, HANDLE EXTENSION WPL 6045320 Contact Us For Availability
48
PIN, WHEEL WPL 649651 Contact Us For Availability
48
TRIM EXTENSION WPL 6045319 Contact Us For Availability
49
BRACKET, WHEEL WPL 675301 Contact Us For Availability
49
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
50
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
50
SCREW WPL 4031001 Contact Us For Availability
50
TAPPING PLATE WPL 657903 Contact Us For Availability
51
COVER, CRANK WPL 674931 Contact Us For Availability
51
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
52
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
52
SCREW WPL 6527513 Contact Us For Availability
52
INSERT, VINYL CLAD WPL 680173 Contact Us For Availability
53
DISC, CRANK COVER WPL 690371 Contact Us For Availability
54
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
× ![]()
Login and Registration Form
