Model Whirlpool RB19HN-1AF REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

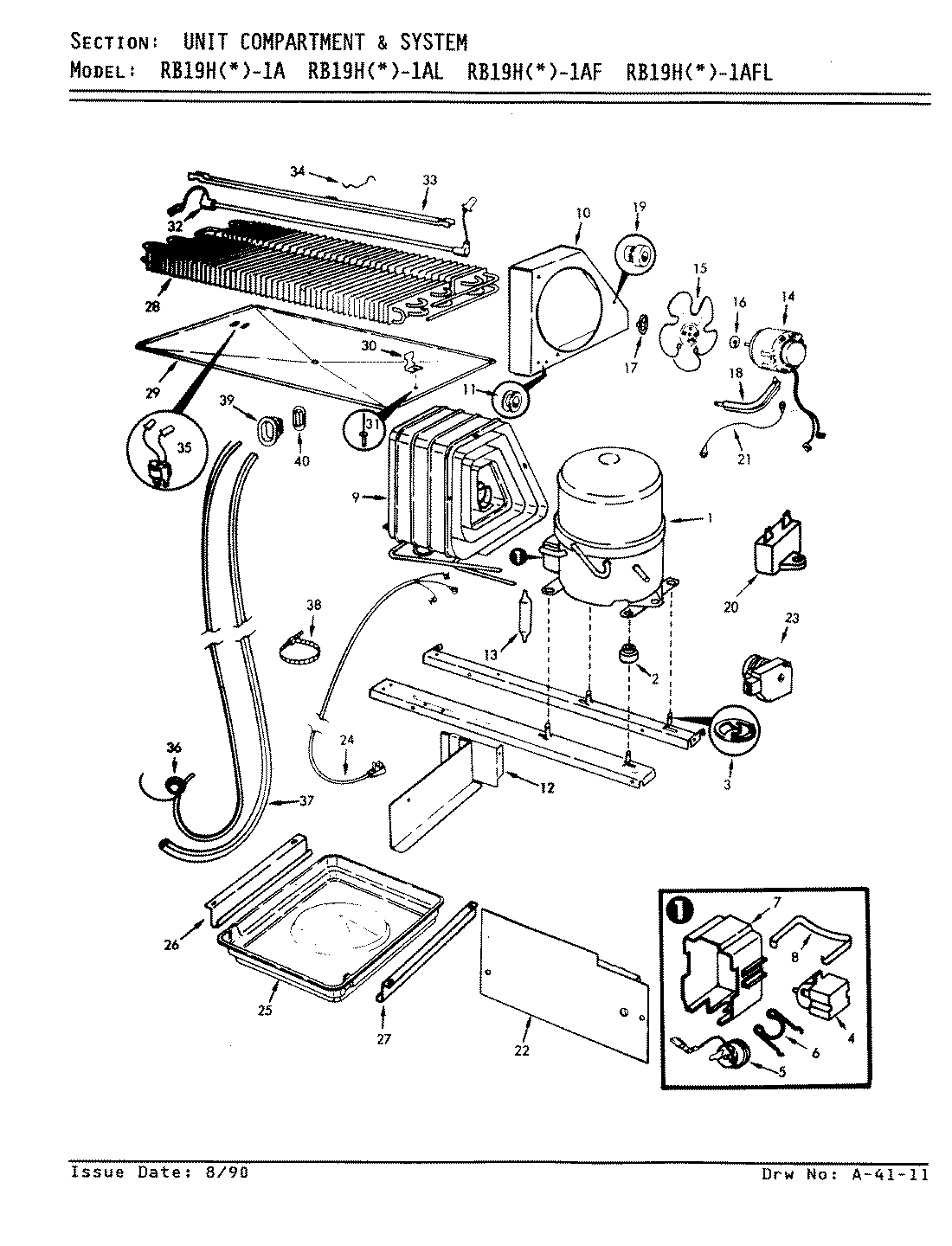

02 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB19HN-1AF REFRIGERATOR
1
STYROFOAM DIVIDER WPL 674581 Contact Us For Availability
1
COMPRESSOR WPL YRA1010 Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329416 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
14
FAN MOTOR WPL 2805616 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
18
COVER, PLENUM WPL 664801 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
19
CLAMP, TUBING WPL 535168 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
CLAMP, SPRING WPL 603334 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
21
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
CAP, GROMMET WPL 683871 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
24
SCREW WPL 652751 Contact Us For Availability
24
CAP, CONNECTOR WPL 681871 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
41
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
WIRE HARNESS WPL 668551 Contact Us For Availability
× ![]()
