Model Whirlpool RB19EY-2A REFRIGERATOR – Common Parts & Diagrams
03 - FRESH FOOD COMPARTMENT

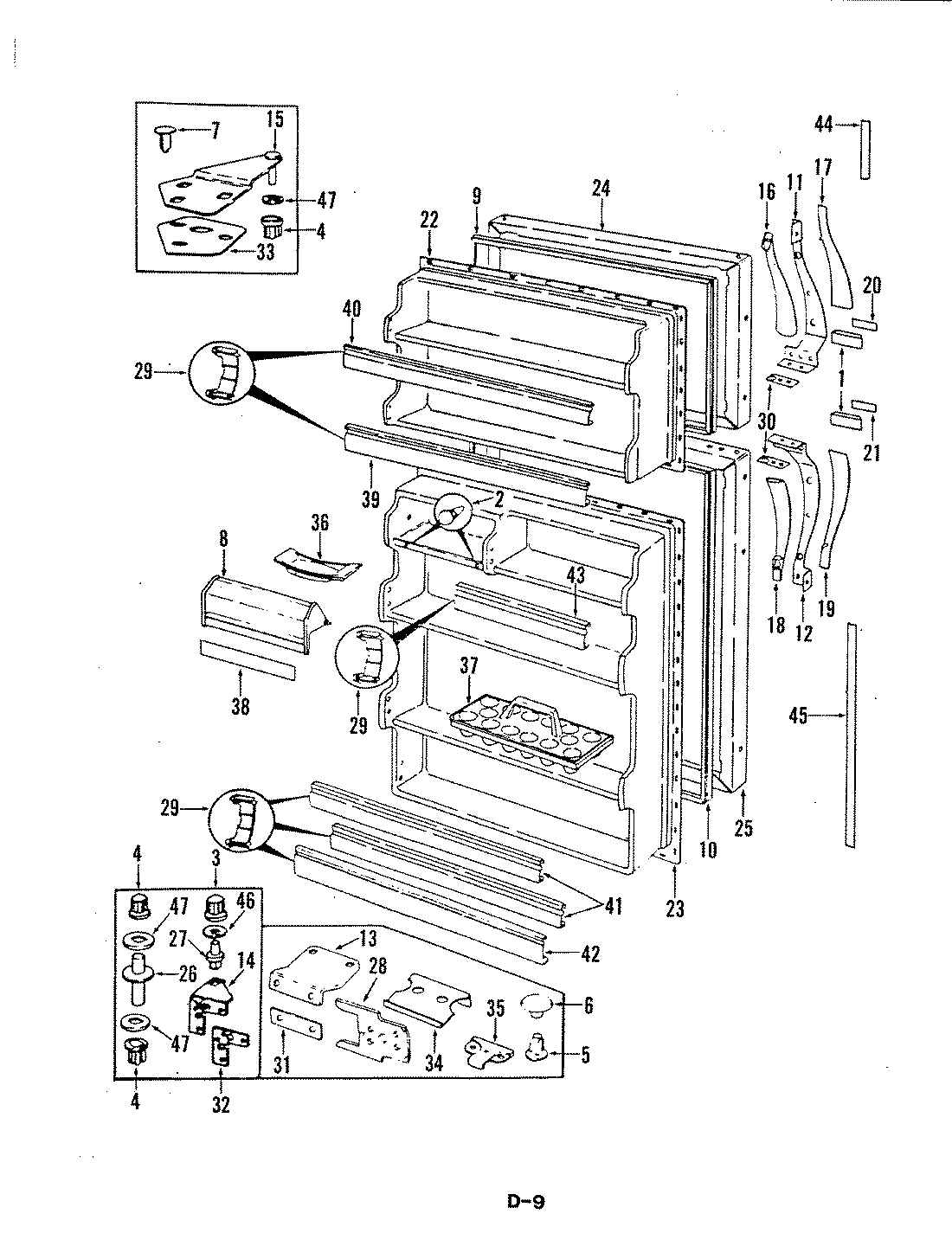

02 - FRESH FOOD & FREEZER DOOR

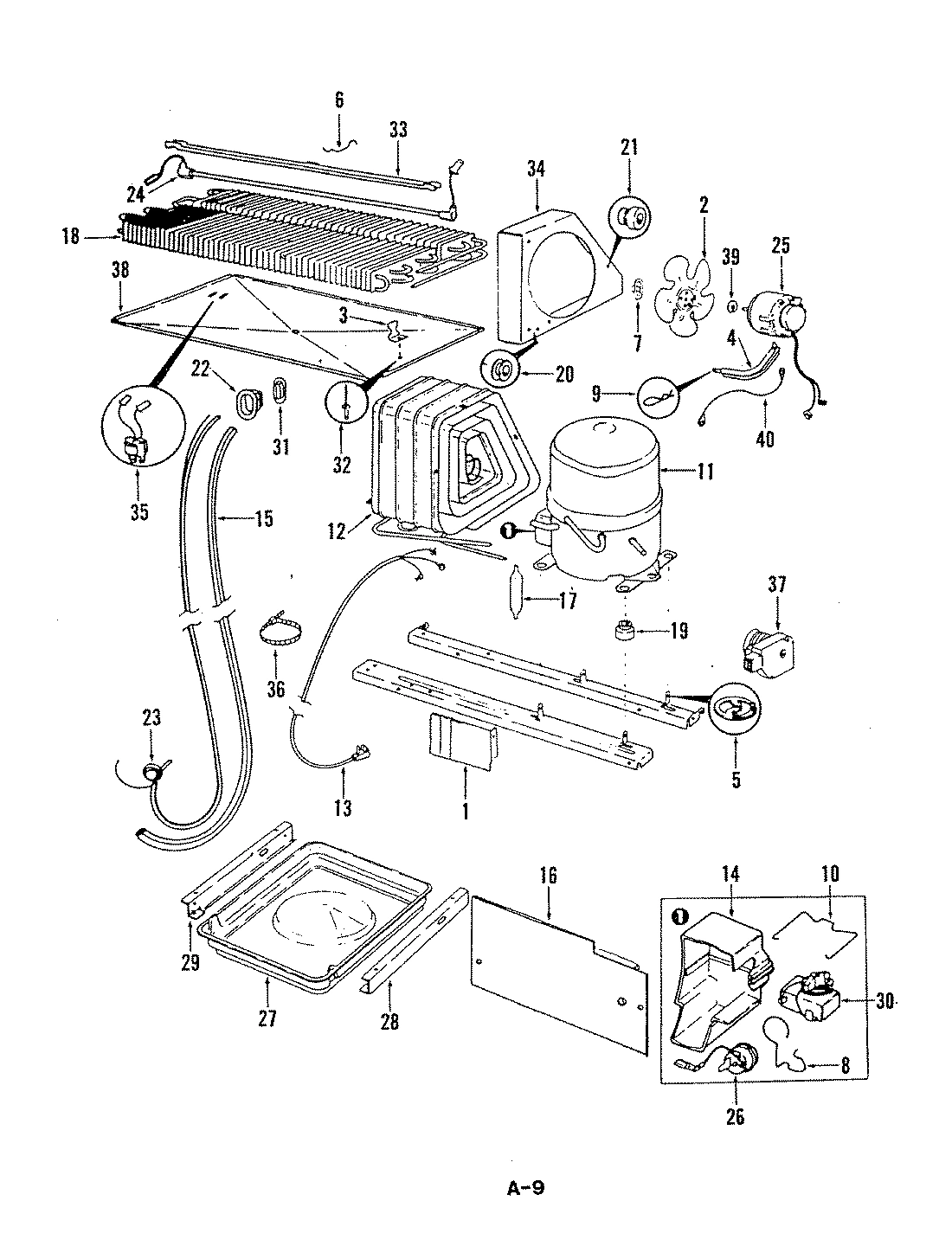

04 - UNIT COMPARTMENT & SYSTEM

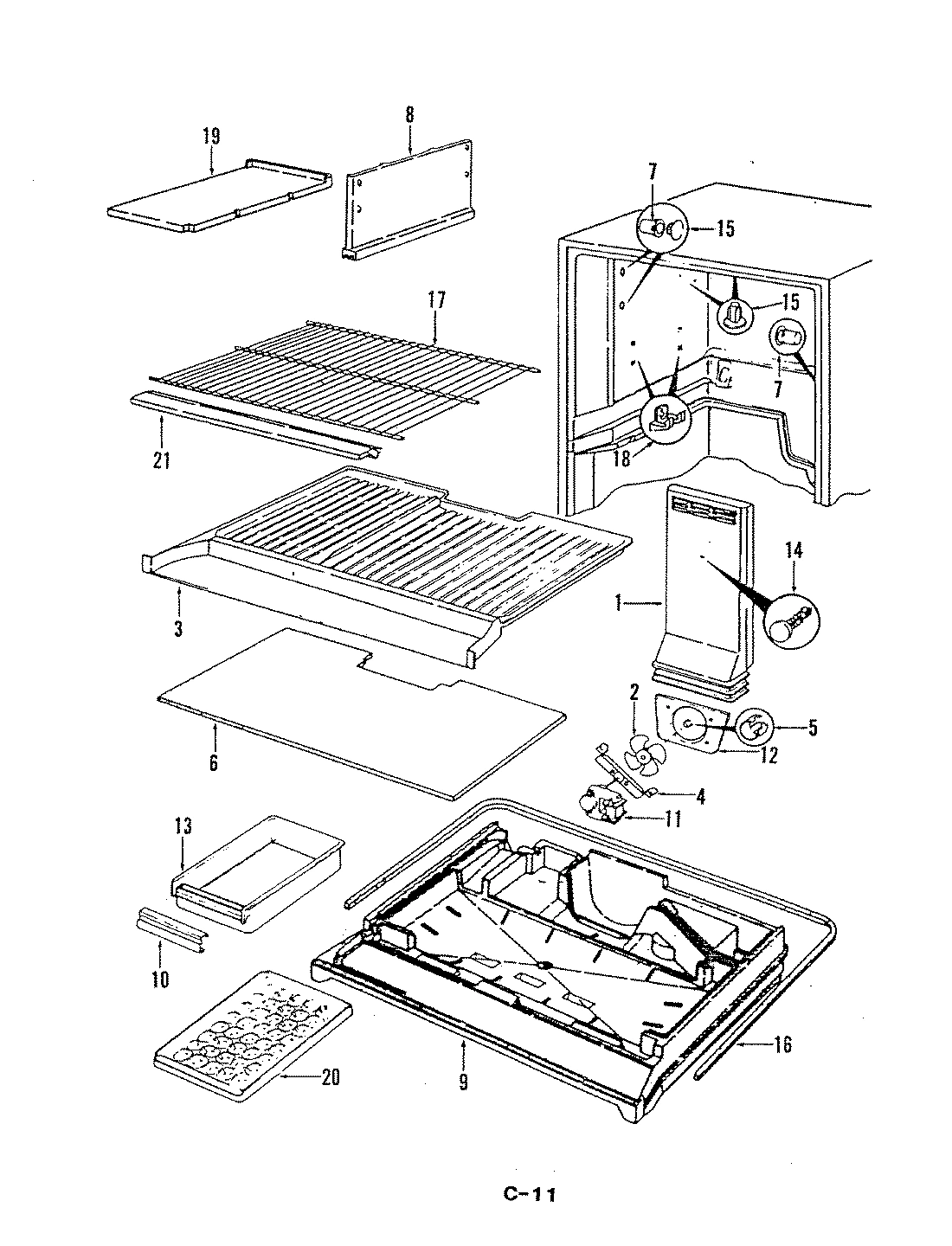

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB19EY-2A REFRIGERATOR
1
PIN, WHEEL WPL 298352 Contact Us For Availability
1
BEZEL WPL 604871 Contact Us For Availability
1
AIR DIVIDER WPL 606392 Contact Us For Availability
1
TUNNEL, AIR WPL 660443 Contact Us For Availability
2
BRACKET, CONTROL WPL 601471 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
3
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
3
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
4
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
4
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
CLIP WPL 602161 Contact Us For Availability
5
WASHER, SPRING WPL 420092900 Contact Us For Availability
5
PLUG BUTTON WPL 557829 Contact Us For Availability
5
CLIP WPL 621651 Contact Us For Availability
6
PLUG BUTTON WPL 561869 Contact Us For Availability
6
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
6
COVER, EVAPORATOR----NA WPL 605572 Contact Us For Availability
7
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
7
PLUG BUTTON WPL 5614412 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
7
SPEEDNUT WPL 199141 Contact Us For Availability
7
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
8
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
8
DOOR, DAIRY WPL 6040611 Contact Us For Availability
8
CLIP WPL 632951 Contact Us For Availability
8
DIVIDER WPL 601165 Contact Us For Availability
9
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
GASKET, DOOR WPL 604625 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
9
TRAY, DIVIDER WPL 605762 Contact Us For Availability
10
COVER WPL 6007510 Contact Us For Availability
10
GASKET, DOOR WPL 604626 Contact Us For Availability
10
CLIP WPL 632971 Contact Us For Availability
10
HANDLE WPL 6013254 Contact Us For Availability
11
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
11
DOOR HANDLE WPL 604911 Contact Us For Availability
11
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
12
DAMPER WPL 600711 Contact Us For Availability
12
DOOR HANDLE WPL 604912 Contact Us For Availability
12
CONDENSER WPL RA438714 Contact Us For Availability
12
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
13
DEFLECTOR WPL 601202 Contact Us For Availability
13
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
13
CORD, POWER WPL 528902 Contact Us For Availability
13
PAN, ICE WPL 606531 Contact Us For Availability
14
DIVIDER, MULLION (HW) WPL 657972HW Contact Us For Availability
14
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
14
COVER WPL 632962 Contact Us For Availability
14
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
15
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
15
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
15
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
15
SCREW WPL 40001512 Contact Us For Availability
15
SCREW WPL 4060621 Contact Us For Availability
15
PLUG WPL 603211 Contact Us For Availability
16
CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability
16
INSERT WPL 604901 Contact Us For Availability
16
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
16
COVER WPL 660321 Contact Us For Availability
16
SEAL WPL 655182 Contact Us For Availability
17
GROMMET WPL 545318 Contact Us For Availability
17
INSERT WPL 604893 Contact Us For Availability
17
SHELF WPL 6032325 Contact Us For Availability
18
HANDLE WPL 6013257 Contact Us For Availability
18
INSERT WPL 604902 Contact Us For Availability
18
EVAPORATOR WPL RA4362041 Contact Us For Availability
19
HANDLE WPL 6013256 Contact Us For Availability
19
INSERT WPL 604894 Contact Us For Availability
19
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
19
SHELF WPL 606551 Contact Us For Availability
20
HEATER WIRE WPL 601058 Contact Us For Availability
20
INSERT WPL 605335 Contact Us For Availability
20
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
20
ICE CUBE TRAY WPL 601121 Contact Us For Availability
21
INSERT WPL 6057127 Contact Us For Availability
21
INSERT WPL 605336 Contact Us For Availability
21
GROMMET, BRACKET WPL 569331 Contact Us For Availability
21
TRIM WPL 6041410 Contact Us For Availability
21
WIRE HARNESS WPL 605651 Contact Us For Availability
22
INSULATION WPL 601402 Contact Us For Availability
22
INNER PANEL WPL 6004227 Contact Us For Availability
22
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
23
KICKPLATE WPL 6013819 Contact Us For Availability
23
INNER PANEL WPL 6004930 Contact Us For Availability
23
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
24
KNOB WPL 600613 Contact Us For Availability
24
OUTER PANEL WPL 600336HW Contact Us For Availability
24
HEATER, DEFROST WPL 6010635 Contact Us For Availability
25
KNOB WPL 600611 Contact Us For Availability
25
OUTER PANEL WPL 6003253HW Contact Us For Availability
25
FAN MOTOR WPL 2805613 Contact Us For Availability
25
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
26
LEG, LEVELING WPL 60128 Contact Us For Availability
26
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
26
OVERLOAD WPL 632942 Contact Us For Availability
27
NUT WPL 658181 Contact Us For Availability
27
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
PAN, DRAIN WPL 298394 Contact Us For Availability
28
PAN, CRISPER WPL 60457216 Contact Us For Availability
28
TAPPING PLATE WPL 606221 Contact Us For Availability
28
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
29
PAN, MEAT WPL 60466206 Contact Us For Availability
29
SCREW WPL 40100512 Contact Us For Availability
29
SCREW WPL 4030625 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
SCREW WPL 9986107 Contact Us For Availability
29
SCREW WPL 9986108 Contact Us For Availability
29
SCREW WPL 9986112 Contact Us For Availability
29
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
29
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
30
RIVET WPL 263972 Contact Us For Availability
30
SHIM WPL 604881 Contact Us For Availability
30
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
30
RELAY, START WPL 632932 Contact Us For Availability
31
SCREW WPL 40003728 Contact Us For Availability
31
ROD WPL 600783 Contact Us For Availability
31
SCREW WPL 9986117 Contact Us For Availability
31
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
31
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
32
SHELF, CRISPER WPL 600196 Contact Us For Availability
32
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
32
RIVET WPL 263979 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
SCREW WPL 4080151 Contact Us For Availability
33
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
SHELF WPL 6041712 Contact Us For Availability
34
DOOR STOP WPL 600301 Contact Us For Availability
34
CONDENSER SHROUD WPL 600212 Contact Us For Availability
35
PLASTIC TUBE WPL 400812 Contact Us For Availability
35
DOOR STOP WPL 604191 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SOCKET, LIGHT WPL 605771 Contact Us For Availability
36
TRAY, BUTTER WPL 299362 Contact Us For Availability
36
WIRE TIE WPL 575763 Contact Us For Availability
37
SHELF SUPPORT WPL 658161 Contact Us For Availability
37
TRAY, EGG WPL 600665 Contact Us For Availability
37
TIMER, DEFROST WPL 653221 Contact Us For Availability
38
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
38
INSERT WPL 6057332 Contact Us For Availability
38
TRAY, DRIP WPL 601018 Contact Us For Availability
39
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
39
TRIM, DOOR SHELF WPL 65151121 Contact Us For Availability
39
WASHER WPL 199134 Contact Us For Availability
39
WIRE HARNESS WPL 605668 Contact Us For Availability
40
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
41
SWITCH, LIGHT WPL 557321 Contact Us For Availability
41
TRIM, DOOR SHELF WPL 65151132 Contact Us For Availability
42
TOP, F.F. COMPARTMENT WPL 6008536 Contact Us For Availability
42
TRIM, DOOR SHELF WPL 65151144 Contact Us For Availability
43
TRIM, DOOR SHELF WPL 6515156 Contact Us For Availability
45
TRIM WPL 604144 Contact Us For Availability
46
TRIM WPL 604542 Contact Us For Availability
46
WASHER WPL 542332 Contact Us For Availability
47
WASHER WPL 521851 Contact Us For Availability
48
WHEEL WPL 298342 Contact Us For Availability
48
WIRE HARNESS WPL 605601 Contact Us For Availability
49
GROUND WIRE WPL 2967528 Contact Us For Availability
× ![]()
