Model Whirlpool RB19EN-3A2 REFRIGERATOR – Common Parts & Diagrams

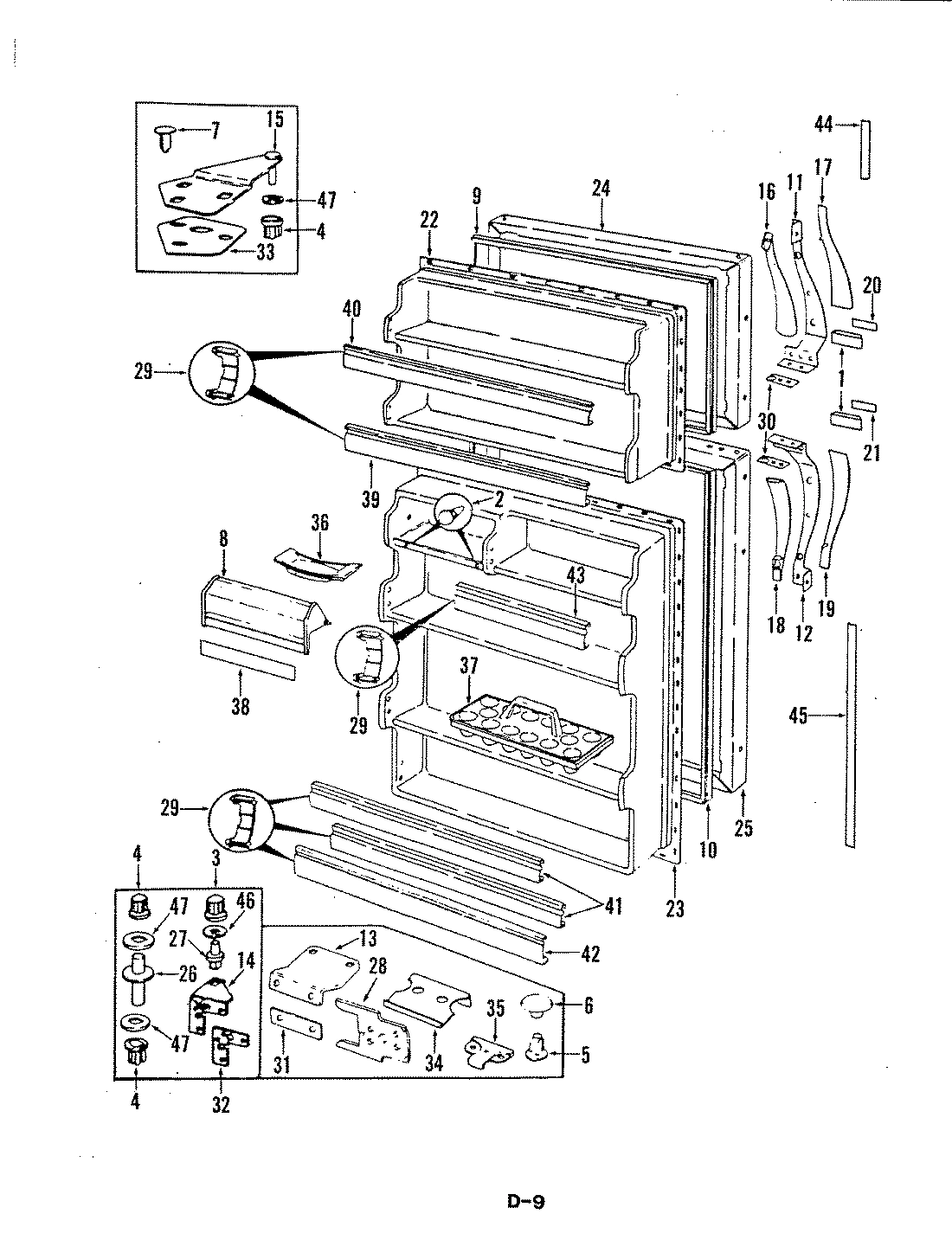

02 - FRESH FOOD & FREEZER DOOR

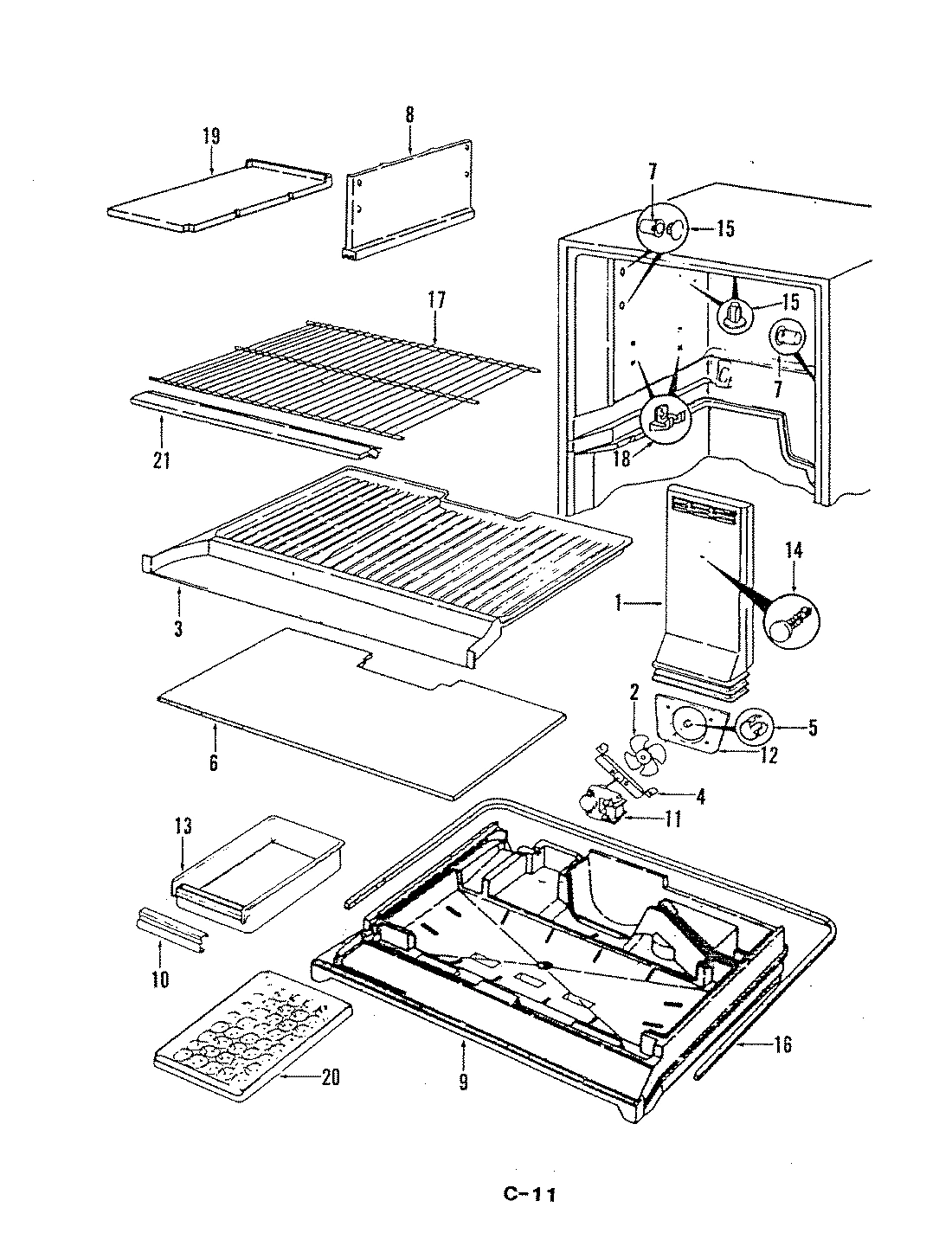

01 - FREEZER COMPARTMENT

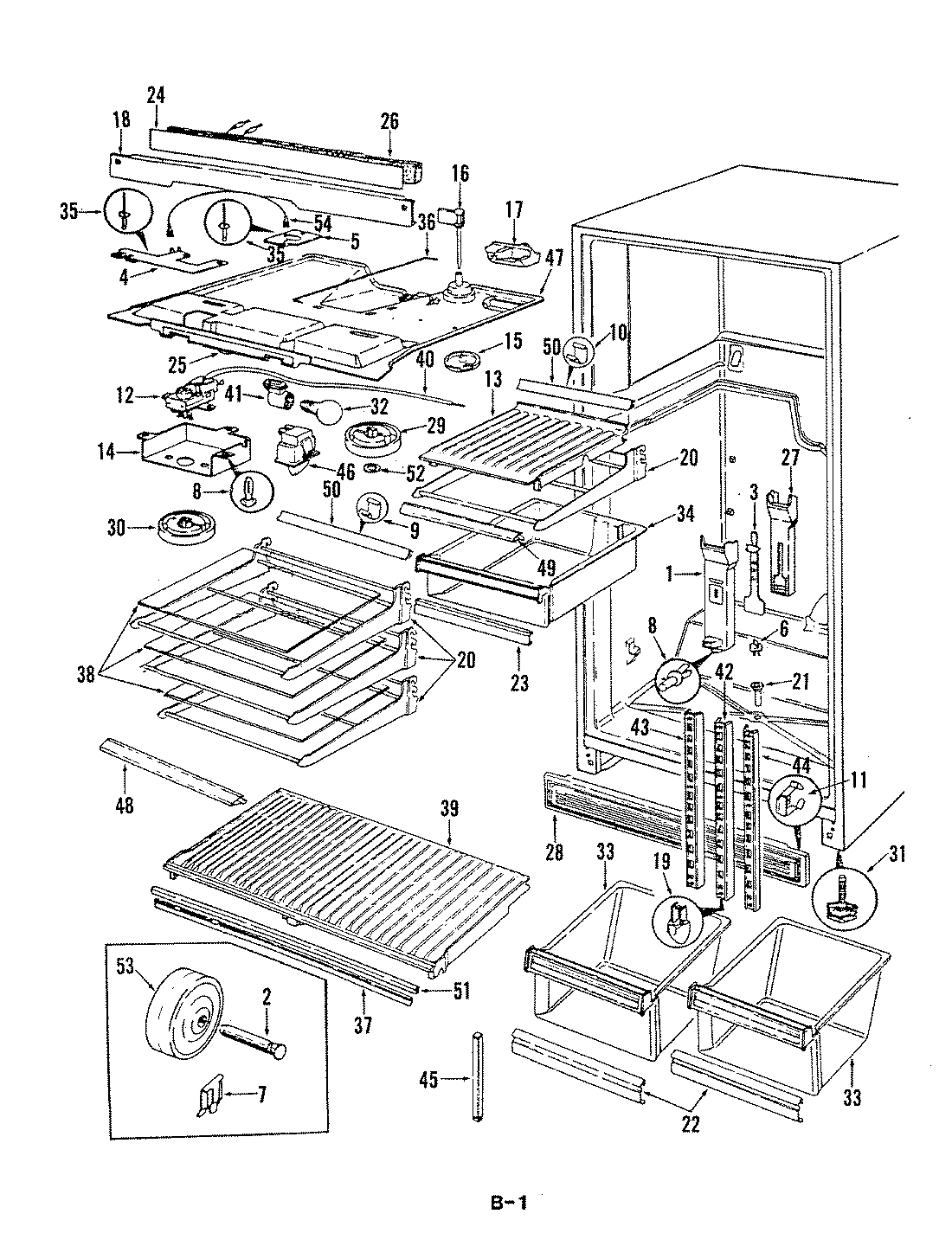

03 - FRESH FOOD COMPARTMENT

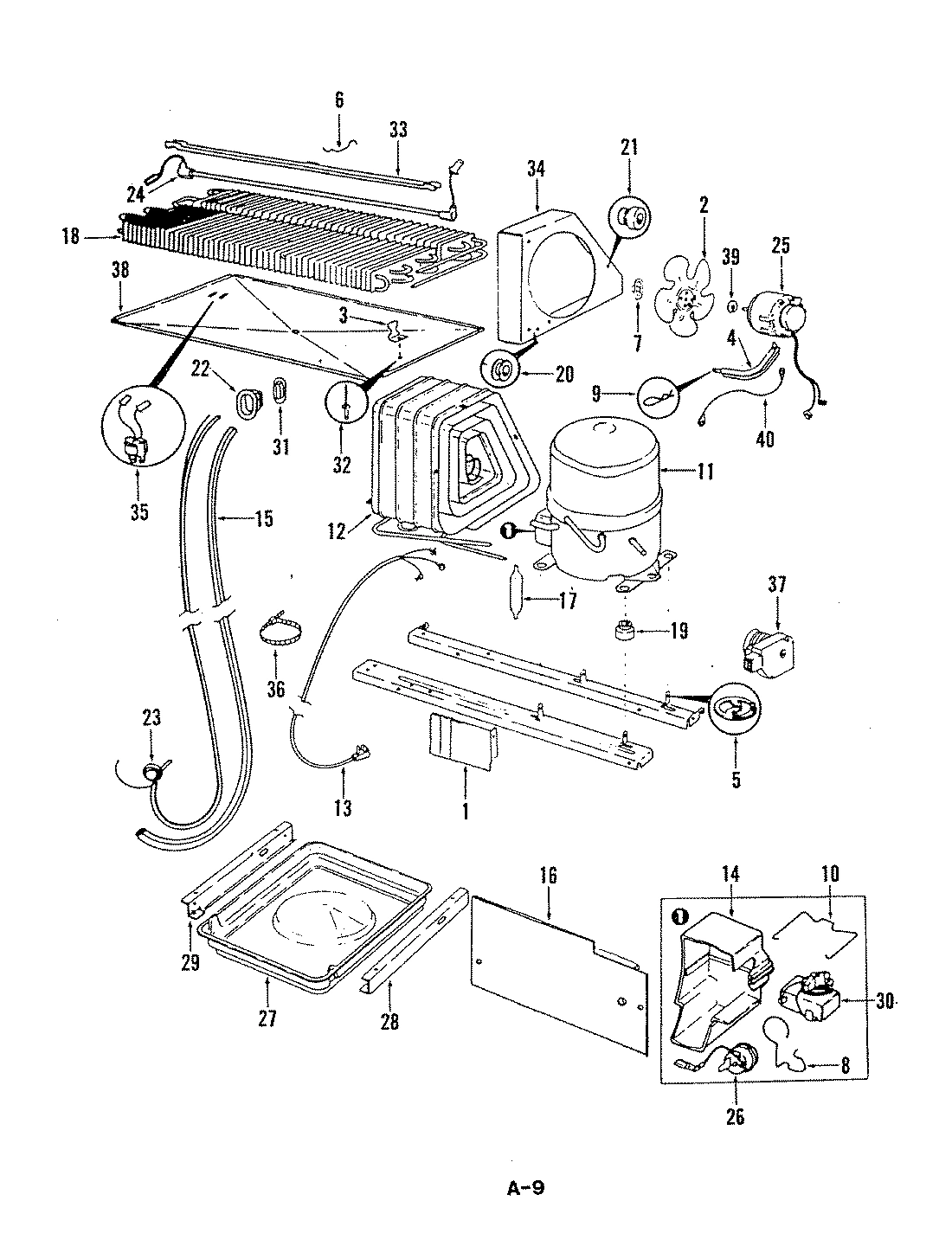

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB19EN-3A2 REFRIGERATOR
1
BEZEL WPL 604871 Contact Us For Availability
1
TUNNEL, AIR WPL 660443 Contact Us For Availability
1
TUNNEL WPL 6009412 Contact Us For Availability
1
AIR DIVIDER WPL 606392 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 537071 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
3
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
4
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BRACKET, CONTROL WPL 601471 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
5
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
5
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
5
CLIP WPL 621651 Contact Us For Availability
6
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
6
COVER, EVAPORATOR----NA WPL 605572 Contact Us For Availability
6
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
6
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
7
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
7
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
7
CLIP WPL 602161 Contact Us For Availability
7
CLIP WPL 199140 Contact Us For Availability
8
DOOR, DAIRY WPL 6040611 Contact Us For Availability
8
CLIP WPL 595971 Contact Us For Availability
9
GASKET, DOOR WPL 604625 Contact Us For Availability
9
TRAY, DIVIDER WPL 605762 Contact Us For Availability
9
CLIP WPL 653581 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
GASKET, DOOR WPL 604626 Contact Us For Availability
10
HANDLE WPL 6013253 Contact Us For Availability
10
CLIP WPL 653582 Contact Us For Availability
10
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
11
DOOR HANDLE WPL 604911 Contact Us For Availability
11
FAN MOTOR WPL 544827 Contact Us For Availability
11
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
11
COMPRESSOR WPL RA993 Contact Us For Availability
12
DOOR HANDLE WPL 604912 Contact Us For Availability
12
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
12
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
12
CONDENSER WPL RA438714 Contact Us For Availability
13
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
13
PAN, ICE WPL 606531 Contact Us For Availability
13
COVER, MEAT PAN WPL 600754 Contact Us For Availability
14
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
14
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
14
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
14
COVER WPL 594961 Contact Us For Availability
15
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
15
SCREW WPL 40001512 Contact Us For Availability
15
SCREW WPL 4060621 Contact Us For Availability
15
PLUG WPL 603211 Contact Us For Availability
15
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
15
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
16
INSERT WPL 604901 Contact Us For Availability
16
SEAL WPL 655182 Contact Us For Availability
16
DAMPER WPL 600711 Contact Us For Availability
16
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
16
COVER WPL 660322 Contact Us For Availability
17
INSERT WPL 604893 Contact Us For Availability
17
SHELF WPL 6032325 Contact Us For Availability
17
DEFLECTOR WPL 601202 Contact Us For Availability
18
INSERT WPL 604902 Contact Us For Availability
18
DIVIDER, MULLION (WHT) WPL 657973WW Contact Us For Availability
18
EVAPORATOR WPL RA4362041 Contact Us For Availability
19
INSERT WPL 604894 Contact Us For Availability
19
SHELF WPL 606551 Contact Us For Availability
19
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
19
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
20
INSERT WPL 605335 Contact Us For Availability
20
ICE CUBE TRAY WPL 601121 Contact Us For Availability
20
FRAME, SHELF WPL 605709 Contact Us For Availability
20
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
21
INSERT WPL 605336 Contact Us For Availability
21
TRIM WPL 6041410 Contact Us For Availability
21
WIRE HARNESS WPL 605651 Contact Us For Availability
21
GROMMET WPL 545318 Contact Us For Availability
21
GROMMET, BRACKET WPL 569331 Contact Us For Availability
22
INNER PANEL WPL 6004227 Contact Us For Availability
22
HANDLE WPL 6013258 Contact Us For Availability
22
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
23
INNER PANEL WPL 6004930 Contact Us For Availability
23
HANDLE WPL 6013255 Contact Us For Availability
23
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
24
OUTER PANEL WPL 6003316WW Contact Us For Availability
24
HEATER WIRE WPL 6010511 Contact Us For Availability
24
HEATER, DEFROST WPL 6010638 Contact Us For Availability
25
OUTER PANEL WPL 6003254WW Contact Us For Availability
25
INSERT WPL 6057127 Contact Us For Availability
25
FAN MOTOR WPL 2805611 Contact Us For Availability
25
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
26
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
26
INSULATION WPL 601402 Contact Us For Availability
26
OVERLOAD WPL 5306777 Contact Us For Availability
27
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
27
PAN, DRAIN WPL 298394 Contact Us For Availability
27
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
28
TAPPING PLATE WPL 606221 Contact Us For Availability
28
KICKPLATE WPL 6013819 Contact Us For Availability
28
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
29
SCREW WPL 40100512 Contact Us For Availability
29
SCREW WPL 4030625 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
SCREW WPL 9986107 Contact Us For Availability
29
SCREW WPL 9986108 Contact Us For Availability
29
SCREW WPL 9986112 Contact Us For Availability
29
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
29
SCREW WPL 9986122 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
29
KNOB WPL 600613 Contact Us For Availability
29
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
30
SHIM WPL 604881 Contact Us For Availability
30
KNOB WPL 600611 Contact Us For Availability
30
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
30
RELAY WPL 9286107 Contact Us For Availability
31
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
31
LEG, LEVELING WPL 60128 Contact Us For Availability
31
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
32
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
32
BULB, LIGHT (40W-230V) WPL 240821 Contact Us For Availability
32
NUT WPL 658181 Contact Us For Availability
32
RIVET WPL 263979 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
SCREW WPL 4080151 Contact Us For Availability
33
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
33
PAN, CRISPER WPL 60457216 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
DOOR STOP WPL 600301 Contact Us For Availability
34
PAN, MEAT WPL 60466203 Contact Us For Availability
34
CONDENSER SHROUD WPL 600212 Contact Us For Availability
35
DOOR STOP WPL 604191 Contact Us For Availability
35
RIVET WPL 263972 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208525 Contact Us For Availability
36
TRAY, BUTTER WPL 299362 Contact Us For Availability
36
ROD WPL 600783 Contact Us For Availability
36
SCREW WPL 9986117 Contact Us For Availability
36
WIRE TIE WPL 575763 Contact Us For Availability
37
TRAY, EGG WPL 600665 Contact Us For Availability
37
TIMER WPL 541135 Contact Us For Availability
38
INSERT WPL 6057332 Contact Us For Availability
38
GLASS SHELF WPL 6559811 Contact Us For Availability
38
TRAY, DRIP WPL 601018 Contact Us For Availability
39
TRIM, DOOR SHELF WPL 65151184 Contact Us For Availability
39
SHELF, CRISPER WPL 600196 Contact Us For Availability
39
WASHER WPL 199134 Contact Us For Availability
39
WIRE HARNESS WPL 6056610 Contact Us For Availability
40
PLASTIC TUBE WPL 400812 Contact Us For Availability
41
TRIM, DOOR SHELF WPL 65151185 Contact Us For Availability
41
SOCKET, LIGHT WPL 605771 Contact Us For Availability
42
TRIM, DOOR SHELF WPL 65151186 Contact Us For Availability
42
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
43
TRIM, DOOR SHELF WPL 65151183 Contact Us For Availability
43
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
44
HANDLE EXT WPL 605542 Contact Us For Availability
44
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
45
SHELF SUPPORT WPL 658161 Contact Us For Availability
46
WASHER WPL 542332 Contact Us For Availability
46
SWITCH, LIGHT WPL 557321 Contact Us For Availability
47
WASHER WPL 521851 Contact Us For Availability
47
TOP, F.F. COMPARTMENT WPL 6008536 Contact Us For Availability
48
TRIM WPL 605243 Contact Us For Availability
49
TRIM WPL 604144 Contact Us For Availability
50
TRIM WPL 652763 Contact Us For Availability
51
TRIM WPL 604542 Contact Us For Availability
52
WASHER, SPRING WPL 420092900 Contact Us For Availability
53
WHEEL WPL 298342 Contact Us For Availability
54
GROUND WIRE WPL 2967522 Contact Us For Availability
54
GROUND WIRE WPL 2967528 Contact Us For Availability
54
WIRE HARNESS WPL 605601 Contact Us For Availability
× ![]()
