Model Whirlpool RB19EA-2AL REFRIGERATOR – Common Parts & Diagrams
04 - UNIT COMPARTMENT & SYSTEM

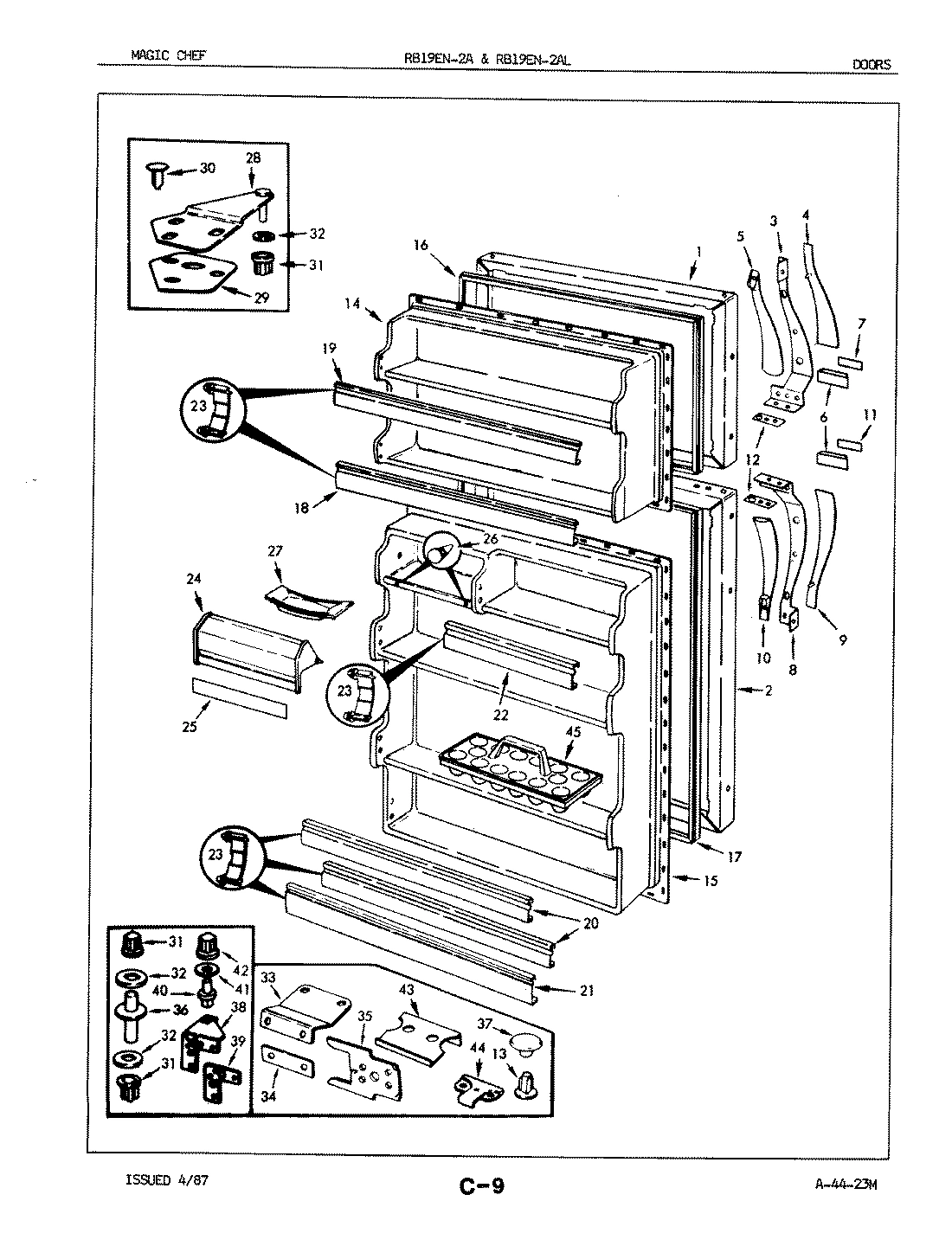

01 - DOORS

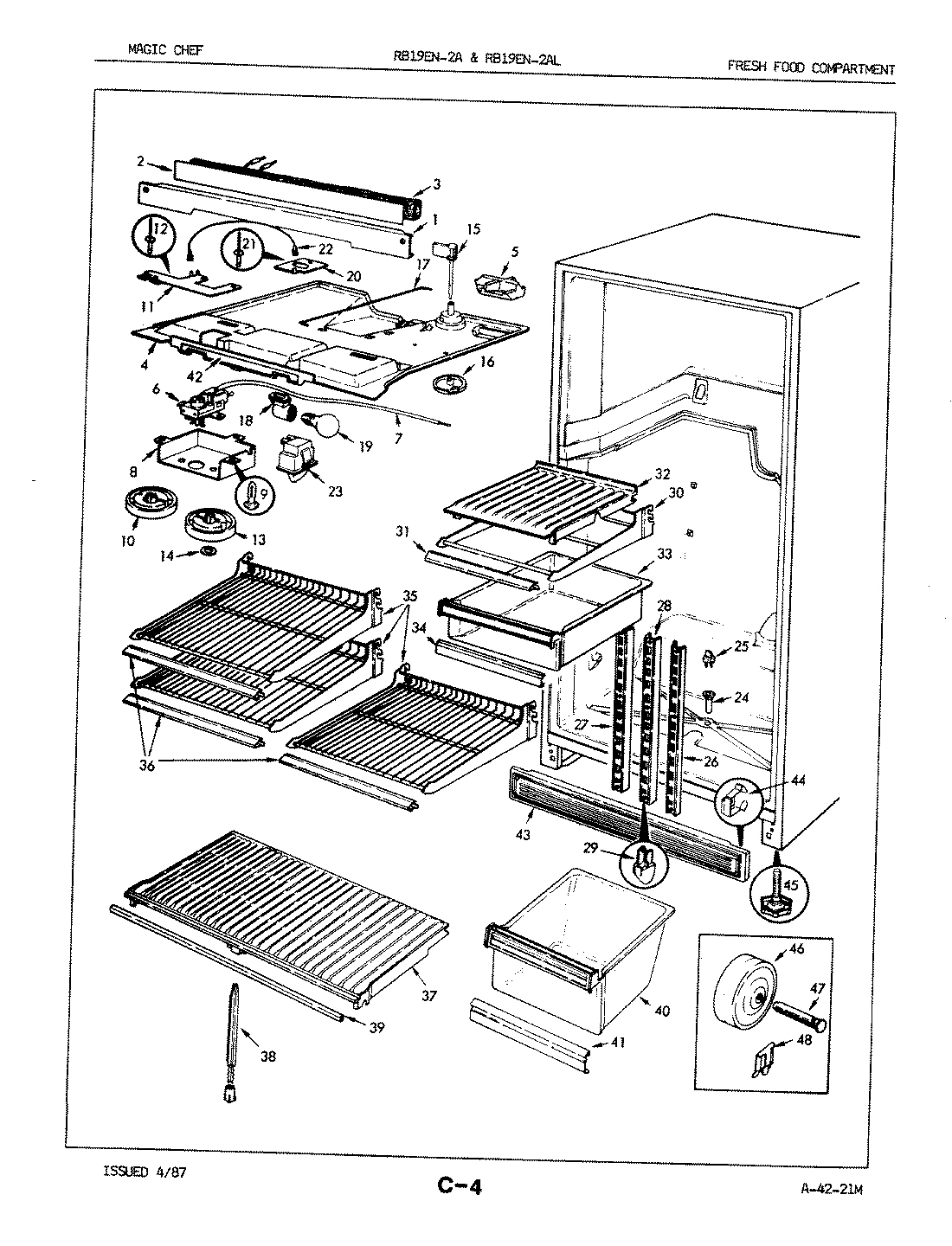

03 - FRESH FOOD COMPARTMENT

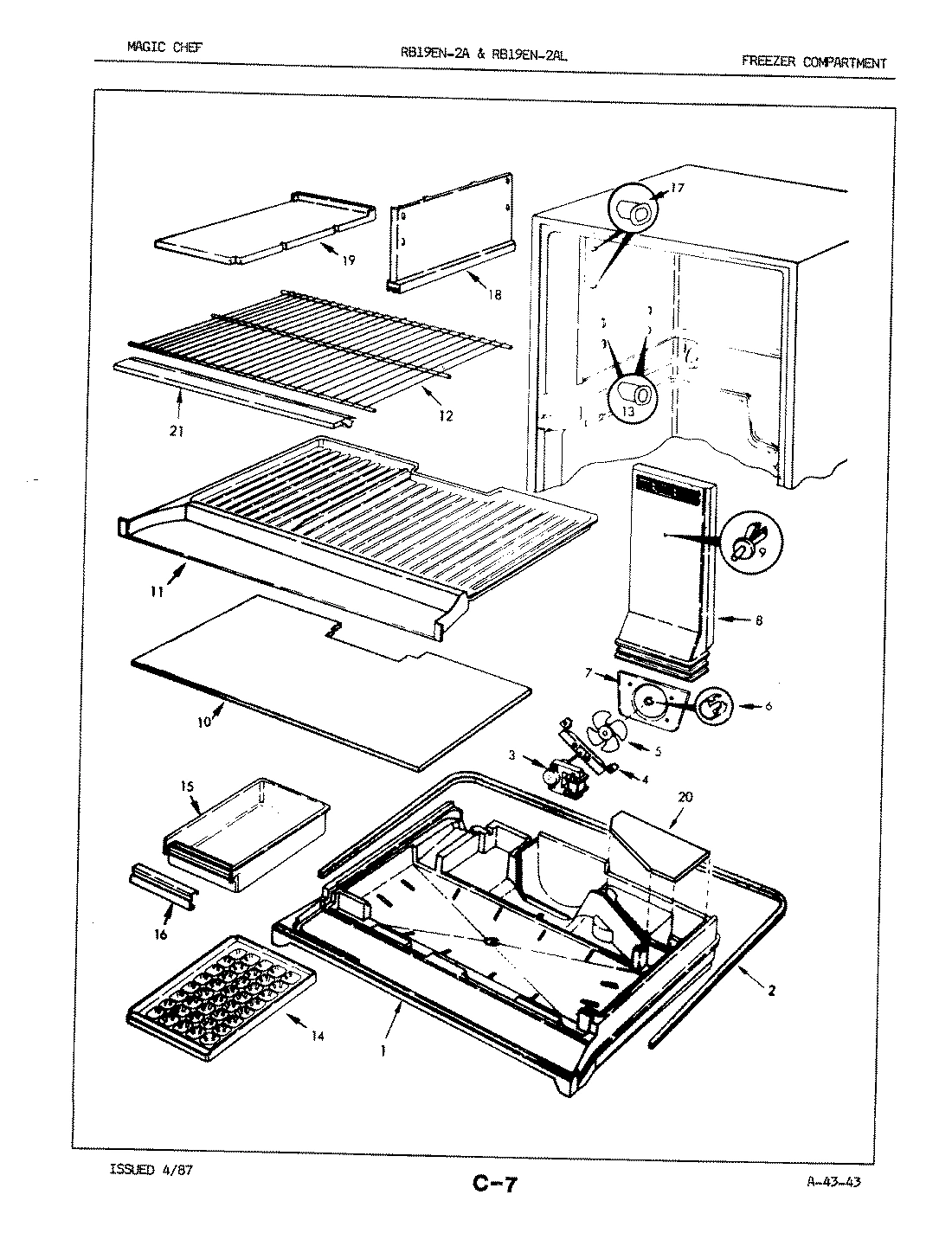

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB19EA-2AL REFRIGERATOR
1
COMPRESSOR WPL RA997 Contact Us For Availability
1
OUTER PANEL WPL 600336AM Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 657972AM Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666061 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
OUTER PANEL WPL 6003253AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR HANDLE WPL 604912 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
INSERT WPL 604893 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008536 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
INSERT WPL 604901 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 40100512 Contact Us For Availability
6
BEZEL WPL 604871 Contact Us For Availability
6
GROUND WIRE WPL 2967522 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
INSERT WPL 605335 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
DOOR HANDLE WPL 604911 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438714 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
INSERT WPL 604894 Contact Us For Availability
9
SCREW WPL 9986112 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
INSERT WPL 604902 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
INSERT WPL 605336 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
SHIM WPL 604881 Contact Us For Availability
12
SHELF WPL 6032325 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
13
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
LINER, DOOR WPL 659284 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
LINER, DOOR WPL 659338 Contact Us For Availability
15
DAMPER WPL 666091 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
HANDLE WPL 6013254 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 65151121 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
DIVIDER WPL 601165 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SHELF WPL 606551 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 65151132 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
COVER, PLENUM WPL 664802 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151144 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515156 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665561 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
DOOR, DAIRY WPL 6040611 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
25
INSERT WPL 6057332 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
BUMPER, DOOR WPL 282726 Contact Us For Availability
26
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
TRAY, BUTTER WPL 299362 Contact Us For Availability
27
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
28
EVAPORATOR WPL RA4362041 Contact Us For Availability
28
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
28
SCREW WPL 40003728 Contact Us For Availability
28
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
WASHER WPL 521851 Contact Us For Availability
32
SCREW WPL 998687 Contact Us For Availability
32
COVER, MEAT PAN WPL 600757 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
33
PAN, MEAT WPL 665241 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
34
HANDLE WPL 6013256 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
TAPPING PLATE WPL 606221 Contact Us For Availability
35
SCREW WPL 9986107 Contact Us For Availability
35
SHELF WPL 6041712 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
36
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
36
TRIM WPL 604144 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
37
SHELF, CRISPER WPL 600196 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
SCREW WPL 4030625 Contact Us For Availability
38
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
38
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
39
TRIM WPL 604542 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
40
PAN, CRISPER WPL 60457416 Contact Us For Availability
41
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
CLIP MOUNTING, TRIM AT REAR WPL 663311 Contact Us For Availability
41
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
41
HANDLE WPL 6013257 Contact Us For Availability
42
WASHER WPL 542332 Contact Us For Availability
42
INSERT WPL 6057127 Contact Us For Availability
43
DOOR STOP WPL 600301 Contact Us For Availability
43
KICKPLATE WPL 6013819 Contact Us For Availability
44
SCREW WPL 4000171 Contact Us For Availability
44
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
44
DOOR STOP WPL 604191 Contact Us For Availability
44
SCREW WPL 9986108 Contact Us For Availability
44
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
45
TRAY, EGG WPL 600665 Contact Us For Availability
45
LEG, LEVELING WPL 60128 Contact Us For Availability
46
WHEEL WPL 298342 Contact Us For Availability
47
PIN, WHEEL WPL 298352 Contact Us For Availability
48
CLIP WPL 602161 Contact Us For Availability
× ![]()
