Model Whirlpool RB18JA-4AL REFRIGERATOR – Common Parts & Diagrams

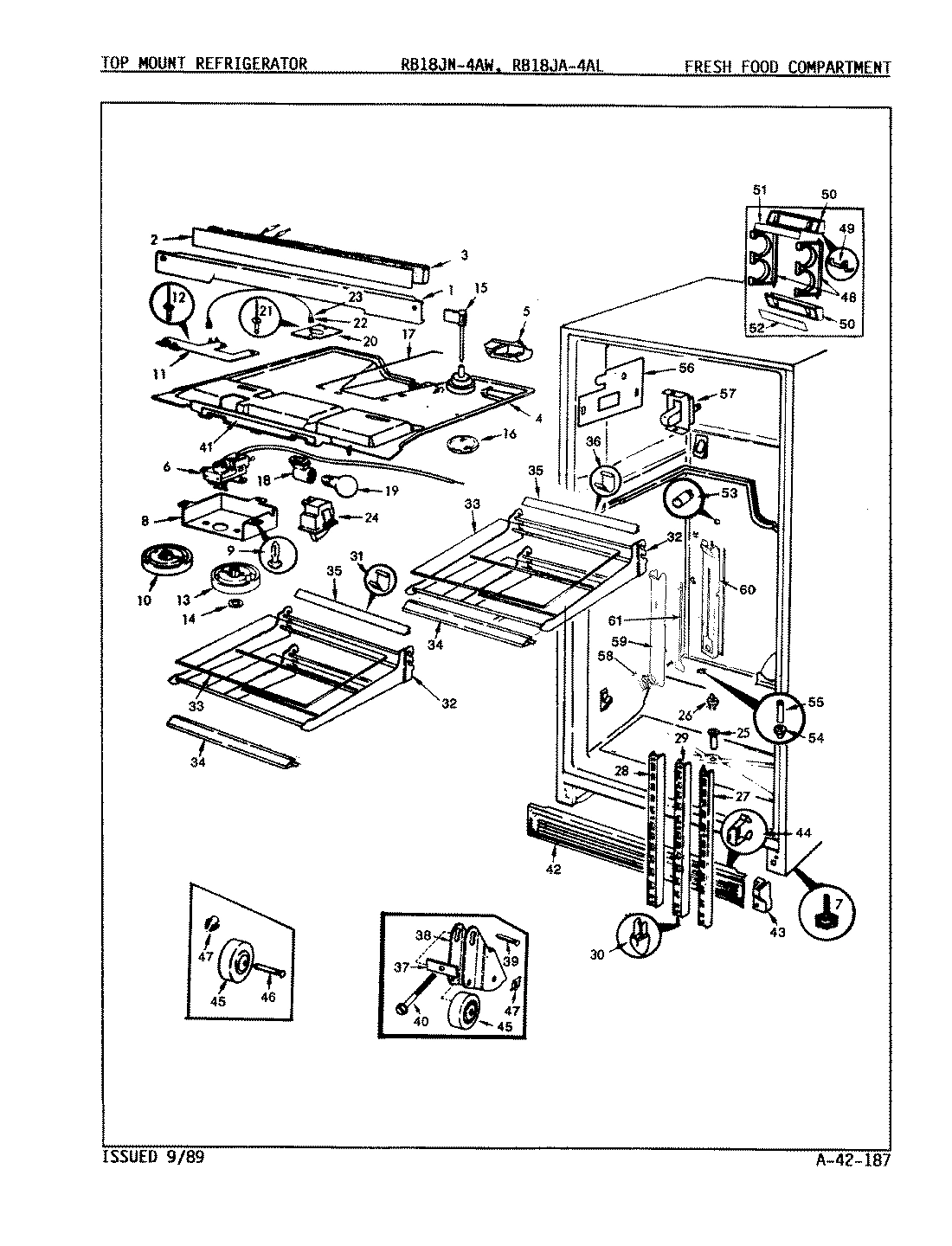

04 - FRESH FOOD COMPARTMENT

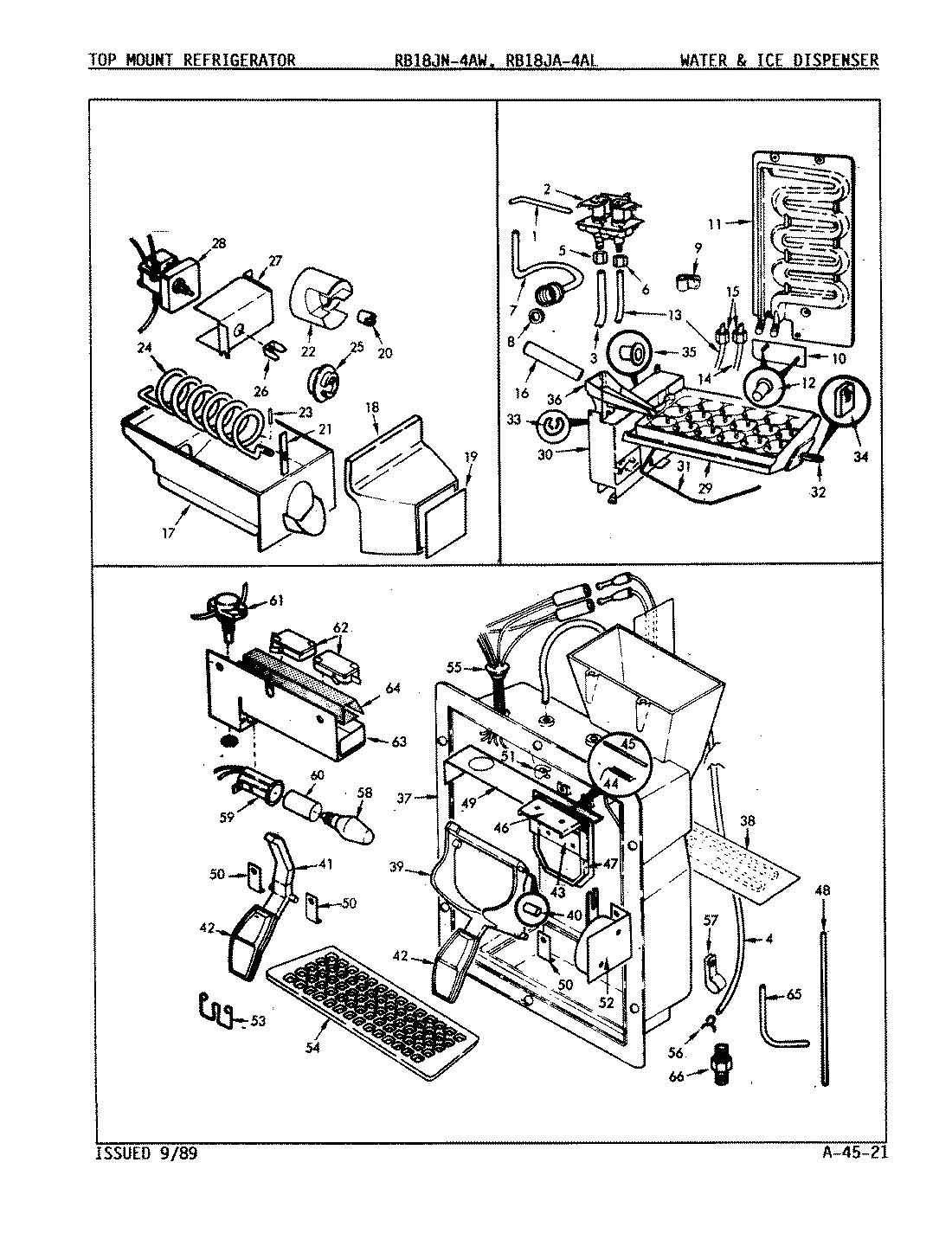

06 - WATER & ICE DISPENSER

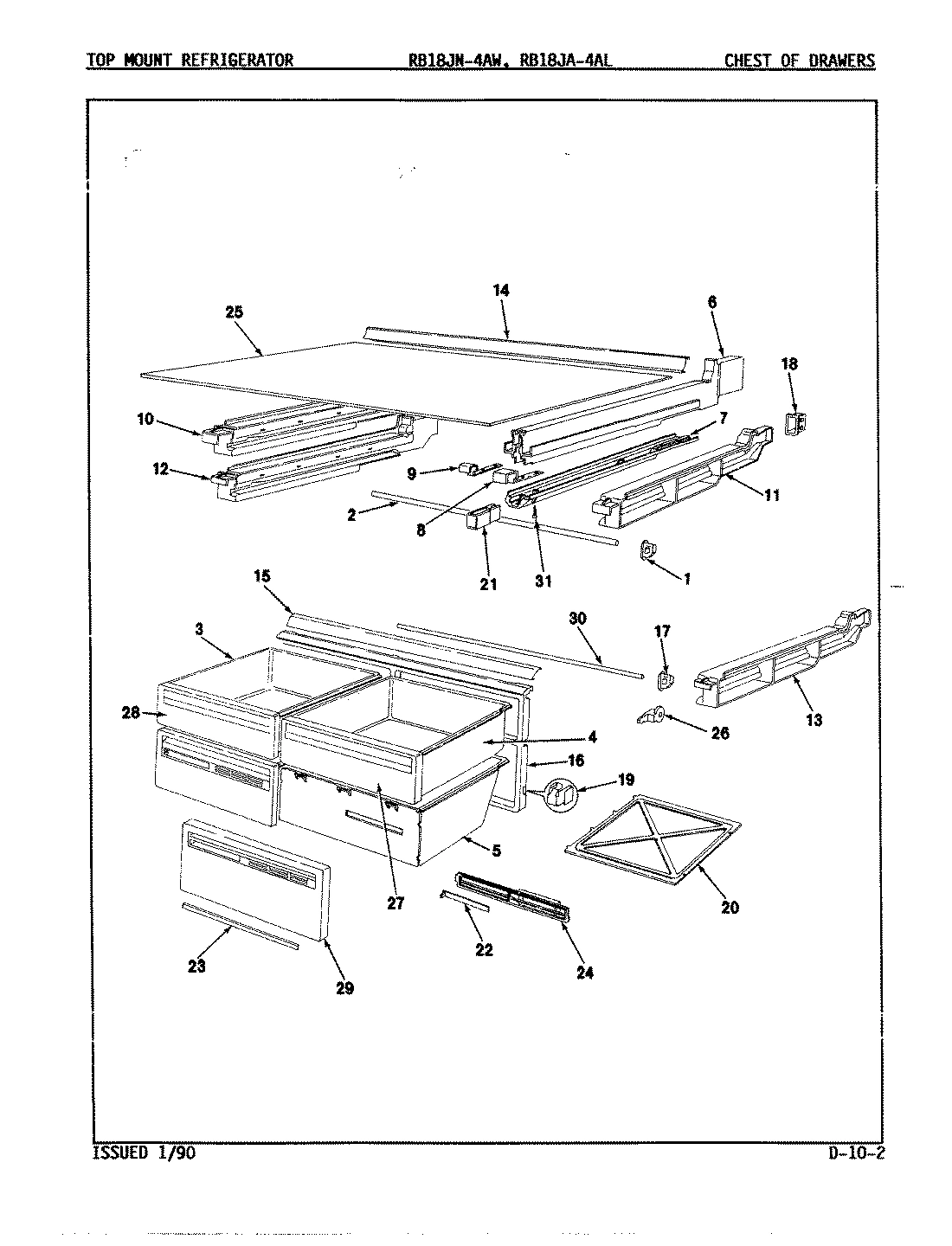

01 - CHEST OF DRAWERS

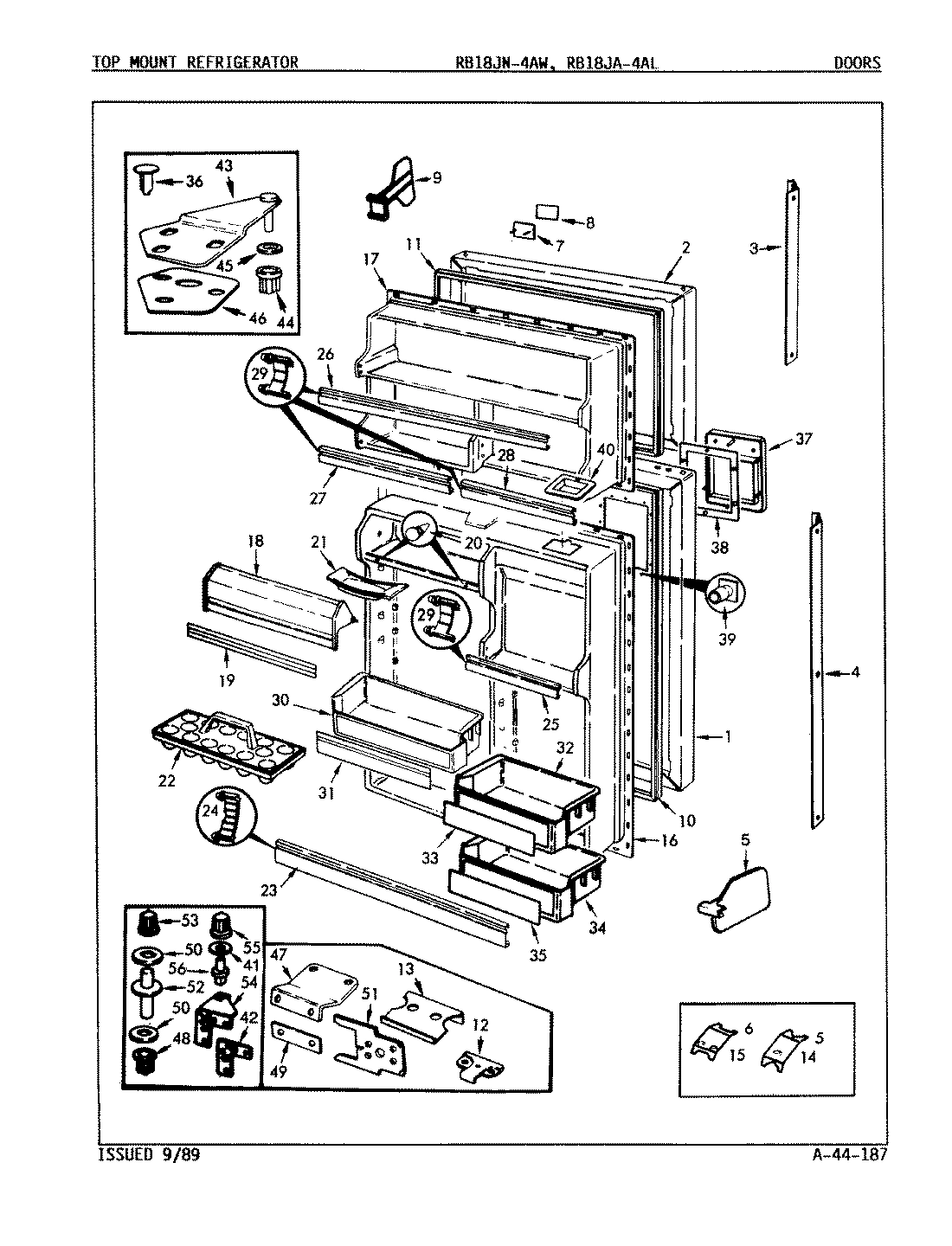

02 - DOORS

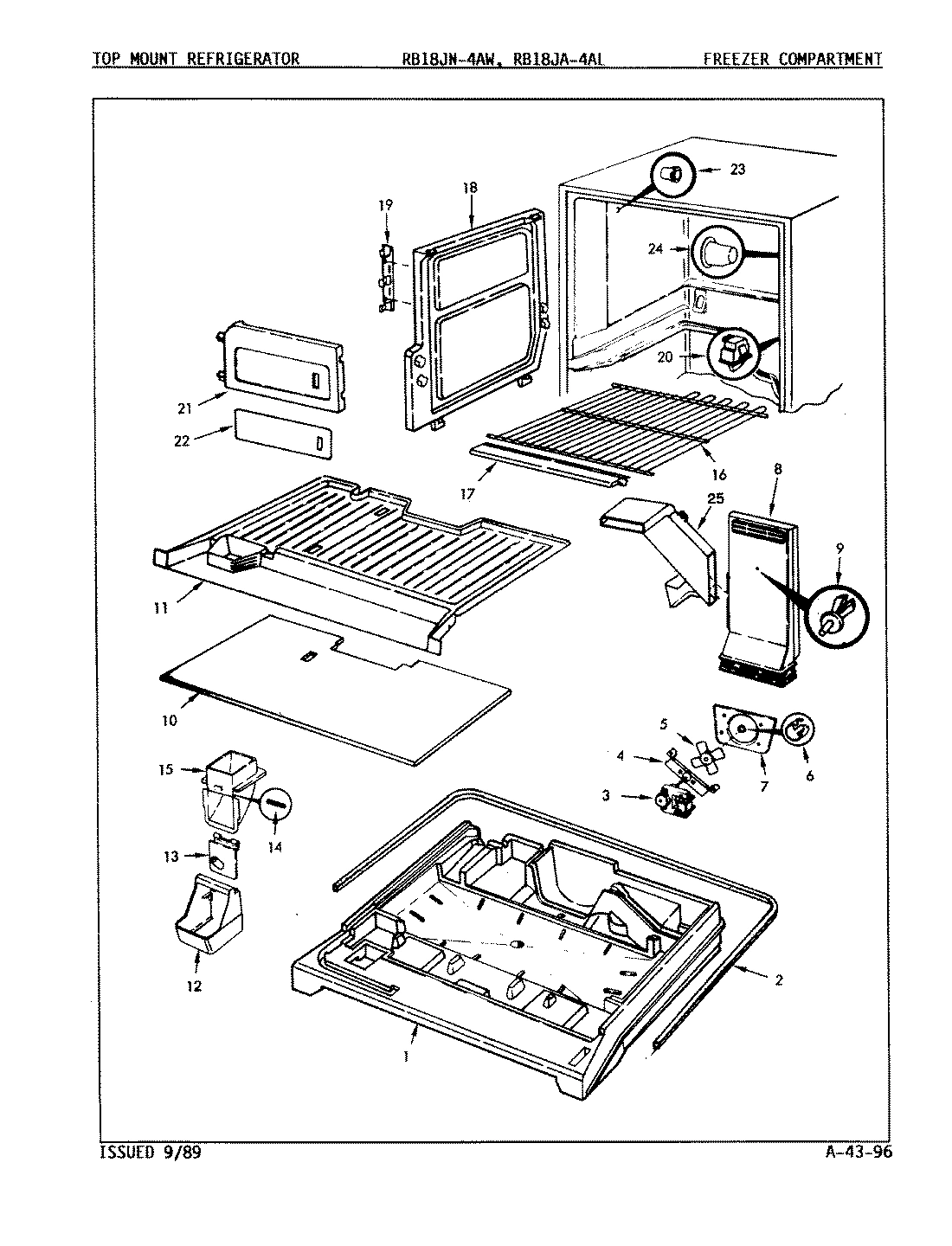

03 - FREEZER COMPARTMENT

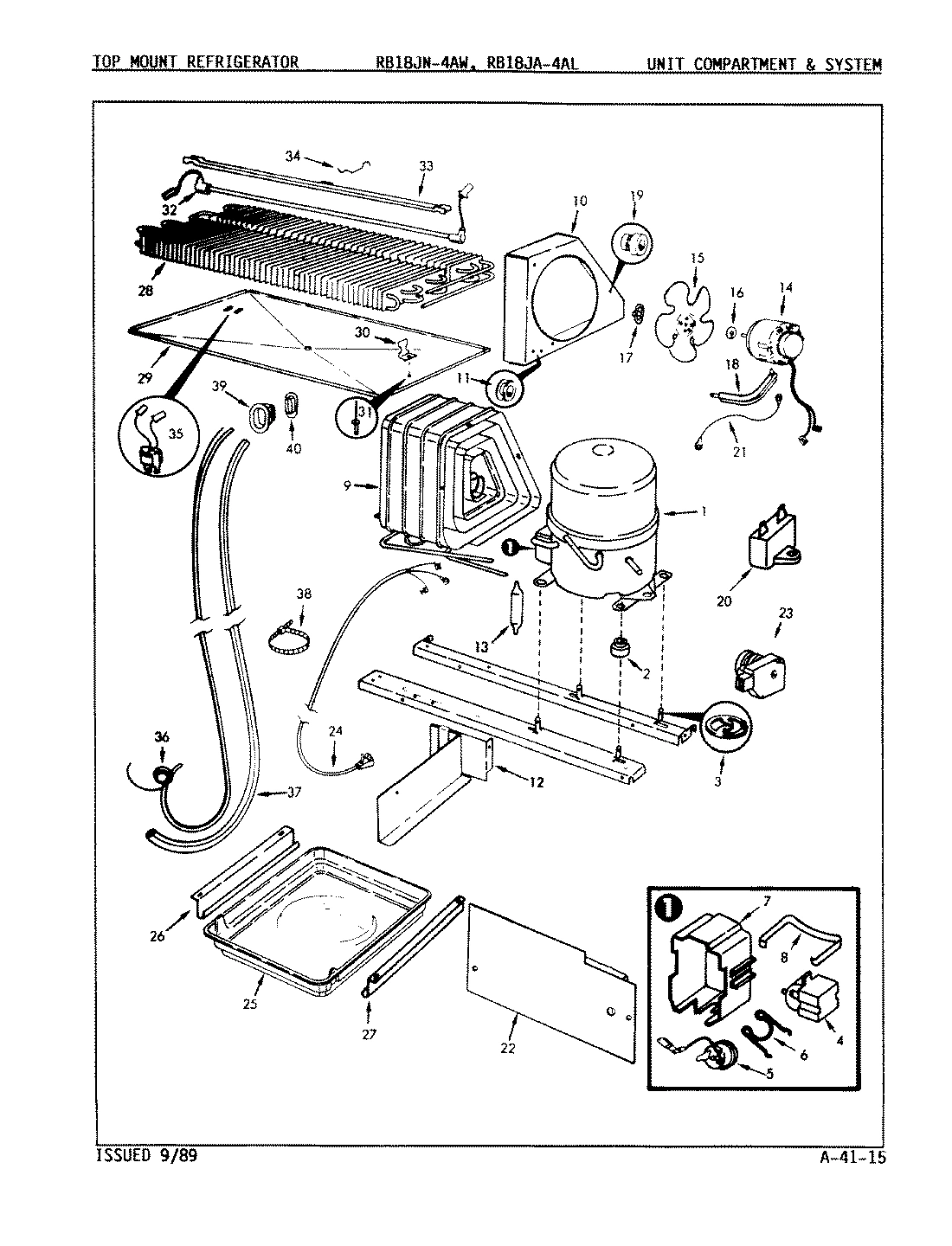

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB18JA-4AL REFRIGERATOR
1
CHANNEL WPL 664912WW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
TUBE WPL 667582 Contact Us For Availability
1
CUP SHELF SUPPORT WPL 672051 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 606045AM Contact Us For Availability
1
TRAY, STYROFOAM WPL 674582 Contact Us For Availability
1
COMPRESSOR WPL YRA1010 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
ROD, CRISPER SHELF WPL 677823 Contact Us For Availability
2
OUTER PANEL, (ALM) WPL 6003363AM Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 652741 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
3
PAN, MEAT KEEPER WPL 682623 Contact Us For Availability
3
SCREW WPL 652754 Contact Us For Availability
3
HANDLE, EXTRUDED WPL 684023 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008557 Contact Us For Availability
4
TUBING WPL 556023 Contact Us For Availability
4
PAN, MEAT KEEPER WPL 682626 Contact Us For Availability
4
HANDLE, F.F. DOOR WPL 684024 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
PAN, CRIPSER WPL 682633 Contact Us For Availability
5
ORGANIZER PACKAGE WPL 666456 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329416 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
RAIL, UPPER CENTER WPL 682672 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
LEG, LEVELING WPL 60128 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
7
RAIL, BOTTOM CENTER WPL 682682 Contact Us For Availability
7
INSERT, NAMEPLATE WPL 669814 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
NUT, INLET TUBING WPL 246851 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
INSERT, NAMEPLATE WPL 6698210 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
CLAMP WPL 535162 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
KNOB, CONTROL WPL 685205 Contact Us For Availability
10
COVER WPL 654971 Contact Us For Availability
10
RAIL, SIDE LH-UP WPL 682703 Contact Us For Availability
10
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664035 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
SCREW WPL 40004828 Contact Us For Availability
11
TANK, WATER WPL 654571 Contact Us For Availability
11
RAIL, SIDE RH-UP WPL 682704 Contact Us For Availability
11
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
11
BOTTOM, FRZ. WPL 665901 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
12
RAIL, SIDE LH-LOW WPL 682707 Contact Us For Availability
12
DOOR STOP, F.F. DOOR WPL 600305 Contact Us For Availability
12
SCREW WPL 9986108 Contact Us For Availability
12
FRONT WPL 605031 Contact Us For Availability
12
BAFFLE WPL 664933 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
13
KNOB, CONTROL WPL 685206 Contact Us For Availability
13
TUBING 34`` WPL 5560224 Contact Us For Availability
13
RAIL, SIDE RH-LOW WPL 682708 Contact Us For Availability
13
DOOR STOP WPL 600301 Contact Us For Availability
13
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
13
SCREW WPL 652753 Contact Us For Availability
14
TUBING, 1/4`` WPL 6757914 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
14
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
14
HINGE PIN WPL 605051 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
TRIM FRONT WPL 687876 Contact Us For Availability
15
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
15
ICE CHUTE WPL 605041 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
TUBE, FILL WPL 584613 Contact Us For Availability
16
FRONT, DRAWER UNIT WPL 682732 Contact Us For Availability
16
SCREW WPL 652755 Contact Us For Availability
16
LINER, DOOR WPL 6593911 Contact Us For Availability
16
SHELF, WIRE FRZ. WPL 605992 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
17
BIN, STORAGE WPL 664461 Contact Us For Availability
17
CUP, SUPPORT ROD WPL 682741 Contact Us For Availability
17
LINER, DOOR WPL 659405 Contact Us For Availability
17
TRIM WPL 6813622 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
SCREW WPL 405022103 Contact Us For Availability
18
ICE DISP FRONT WPL 662051 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682751 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
DOOR, DAIRY WPL 604065 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
18
DIVIDER WPL 606511 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
SCREW WPL 4000161 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
INSERT WPL 6812812 Contact Us For Availability
19
LATCH WPL 661461 Contact Us For Availability
19
SHIM, LATCH WPL 669003 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
NUT, AUGER WPL 660981 Contact Us For Availability
20
COVER, PAN WPL 682783 Contact Us For Availability
20
BUMPER, DOOR WPL 282726 Contact Us For Availability
20
SWITCH WPL 557322 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
HUB, REINFORCING WPL 630841 Contact Us For Availability
21
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
TRAY, BUTTER WPL 299362 Contact Us For Availability
21
IM ENCL FRONT WPL 656271 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
GROUND WIRE WPL 2967522 Contact Us For Availability
22
TRIM, FR DISPENSER WPL 6813116 Contact Us For Availability
22
IMPELLER, AUGER WPL 664481 Contact Us For Availability
22
CONTROL, SLIDE WPL 682832 Contact Us For Availability
22
TRAY, EGG WPL 600661 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
23
PIN, AUGER WPL 630711 Contact Us For Availability
23
TRIM, FRUIT/VEG. HANDLE WPL 685832 Contact Us For Availability
23
TRIM, MEAT HANDLE WPL 685834 Contact Us For Availability
23
TRIM, UTILITY HANDLE WPL 685836 Contact Us For Availability
23
TRIM, SHELF WPL 6837519 Contact Us For Availability
23
CUP, SHELF WPL 603131 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
24
LEAD WPL 5465330 Contact Us For Availability
24
SWITCH WPL 557323 Contact Us For Availability
24
AUGER WPL 664361 Contact Us For Availability
24
RETAINER WPL 682882 Contact Us For Availability
24
RETAINER WPL 652461 Contact Us For Availability
24
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
RING, DRIVE WPL 630171 Contact Us For Availability
25
SCREW WPL 400018103 Contact Us For Availability
25
COVER, GLASS WPL 682923 Contact Us For Availability
25
TRIM, SHELF WPL 6837613 Contact Us For Availability
25
IM DUCT WPL 657596 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
TRIM, SHELF WPL 6837517 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
27
LEAD WPL 5465331 Contact Us For Availability
27
MOTOR MTG BRKT WPL 653682 Contact Us For Availability
27
FRONT ASSY. WPL 683732 Contact Us For Availability
27
TRIM, SHELF WPL 6837510 Contact Us For Availability
27
ANCHOR WPL 603193 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
28
IM MOTOR WPL 641433 Contact Us For Availability
28
FRONT ASSY. WPL 683736 Contact Us For Availability
28
TRIM WPL 683759 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
29
TRAY, ICE WPL 596881 Contact Us For Availability
29
CRISPER PAN ASSY. WPL 683742 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
SCREW WPL 40003728 Contact Us For Availability
30
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
30
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
30
ROD, FRONT SUPPORT WPL 686031 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
SENSOR ARM WPL 604671 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
INSERT WPL 6813053 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
FRAME, SHELF WPL 6057013 Contact Us For Availability
32
SHAFT, DRIVE WPL 653191 Contact Us For Availability
32
SHELF, PICK-OFF WPL 6003736 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
GLASS, SPLIT SHELF WPL 6813915 Contact Us For Availability
33
RING, RETAINER WPL 587061 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
TRIM WPL 6813621 Contact Us For Availability
34
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
34
DOOR SHELF WPL 6003735 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
35
SPACER WPL 653171 Contact Us For Availability
35
INSERT WPL 6813052 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
36
SCREW WPL 405009103 Contact Us For Availability
36
SPOUT, FILL WPL 537481 Contact Us For Availability
36
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
37
DISPENSER, WATER WPL 630005 Contact Us For Availability
37
INSULATION KIT WPL RA950591 Contact Us For Availability
37
ESCUTCHEON WPL 6048260 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
PIN, WHEEL WPL 649651 Contact Us For Availability
38
HEATER WPL 605081 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
39
BRACKET, WHEEL WPL 675301 Contact Us For Availability
39
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
39
RETAINER, ESCUTCHEON WPL 652112 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
SCREW WPL 4020381 Contact Us For Availability
40
COLLAR WPL 667756 Contact Us For Availability
40
COVER WPL 600673 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 606232 Contact Us For Availability
41
INSERT WPL 6057146 Contact Us For Availability
41
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
41
SPACER WPL 542334 Contact Us For Availability
42
KICKPLATE WPL 6023749 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
42
COVER WPL 666161 Contact Us For Availability
42
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
42
SCREW WPL 9986122 Contact Us For Availability
43
SCREW WPL 4020394 Contact Us For Availability
43
END CAP WPL 603812 Contact Us For Availability
43
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
43
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
43
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
43
SCREW WPL 998687 Contact Us For Availability
44
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
44
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
45
WHEEL WPL 298342 Contact Us For Availability
45
PIN, ICE DOOR WPL 630531 Contact Us For Availability
46
PIN, WHEEL WPL 298352 Contact Us For Availability
46
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
46
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
47
CLIP WPL 602161 Contact Us For Availability
47
INSULATION WPL 630891 Contact Us For Availability
47
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
47
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
47
SCREW WPL 9986107 Contact Us For Availability
48
RACK, WINE WPL 565194 Contact Us For Availability
48
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
48
BRACKET WPL 600361 Contact Us For Availability
49
SPRING, WINE RACK WPL 580571 Contact Us For Availability
49
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
49
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
50
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
50
CLIP WPL 630351 Contact Us For Availability
50
WASHER WPL 521851 Contact Us For Availability
51
INSERT WPL 6575325 Contact Us For Availability
51
CLAMP, SPRING WPL 603331 Contact Us For Availability
51
TAPPING PLATE WPL 606221 Contact Us For Availability
52
INSERT WPL 6575326 Contact Us For Availability
52
MOTOR, INERTIA WPL 652121 Contact Us For Availability
52
CLIP WPL 655171 Contact Us For Availability
52
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
53
NYLON NUT WPL 1953036 Contact Us For Availability
53
SPRING WPL 633061 Contact Us For Availability
53
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
54
GROMMET WPL 555121 Contact Us For Availability
54
CLAMP, SPRING WPL 603332 Contact Us For Availability
54
WIRE HARNESS WPL 605231 Contact Us For Availability
54
SPACER WPL 620284 Contact Us For Availability
54
GRILLE WPL 630253 Contact Us For Availability
54
WIRE HARNESS WPL 652923 Contact Us For Availability
54
SCREW WPL 4030625 Contact Us For Availability
54
HINGE WPL 606304 Contact Us For Availability
55
TUBE WPL 555131 Contact Us For Availability
55
WIRE HARNESS WPL 606241 Contact Us For Availability
55
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
56
BRACKET, SWITCH WPL 605831 Contact Us For Availability
56
CLAMP, TUBING WPL 96029 Contact Us For Availability
56
PIN WPL 654181 Contact Us For Availability
57
GROUND WIRE WPL 2967532 Contact Us For Availability
57
SCREW WPL 4020131 Contact Us For Availability
57
LEAD WPL 5465332 Contact Us For Availability
57
LEAD WPL 5465333 Contact Us For Availability
57
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
57
CLAMP WPL 535169 Contact Us For Availability
58
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
58
BULB, LIGHT WPL 631791 Contact Us For Availability
59
COVER, AIR TUNNEL WPL 682851 Contact Us For Availability
59
SCREW WPL 4010111 Contact Us For Availability
59
SOCKET, LIGHT WPL 630391 Contact Us For Availability
60
INSULATION, AIR TUNNEL WPL 682894 Contact Us For Availability
60
SEAL WPL 630561 Contact Us For Availability
61
SCREW WPL 40001531 Contact Us For Availability
61
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
61
SWITCH, WPL 630401 Contact Us For Availability
62
WPL 4050711 WPL 4050711 Contact Us For Availability
62
WPL 554402 WPL 554402 Contact Us For Availability
63
WPL 4000221 WPL 4000221 Contact Us For Availability
63
WPL 630132 WPL 630132 Contact Us For Availability
63
WPL 634592 WPL 634592 Contact Us For Availability
64
WPL 653331 WPL 653331 Contact Us For Availability
65
WPL 630382 WPL 630382 Contact Us For Availability
66
WPL 4050221 WPL 4050221 Contact Us For Availability
66
WPL 406026103 WPL 406026103 Contact Us For Availability
66
WPL 592051 WPL 592051 Contact Us For Availability
66
WPL 643291 WPL 643291 Contact Us For Availability
× ![]()
Login and Registration Form
