Model Whirlpool RB184RDA REFRIGERATOR – Common Parts & Diagrams

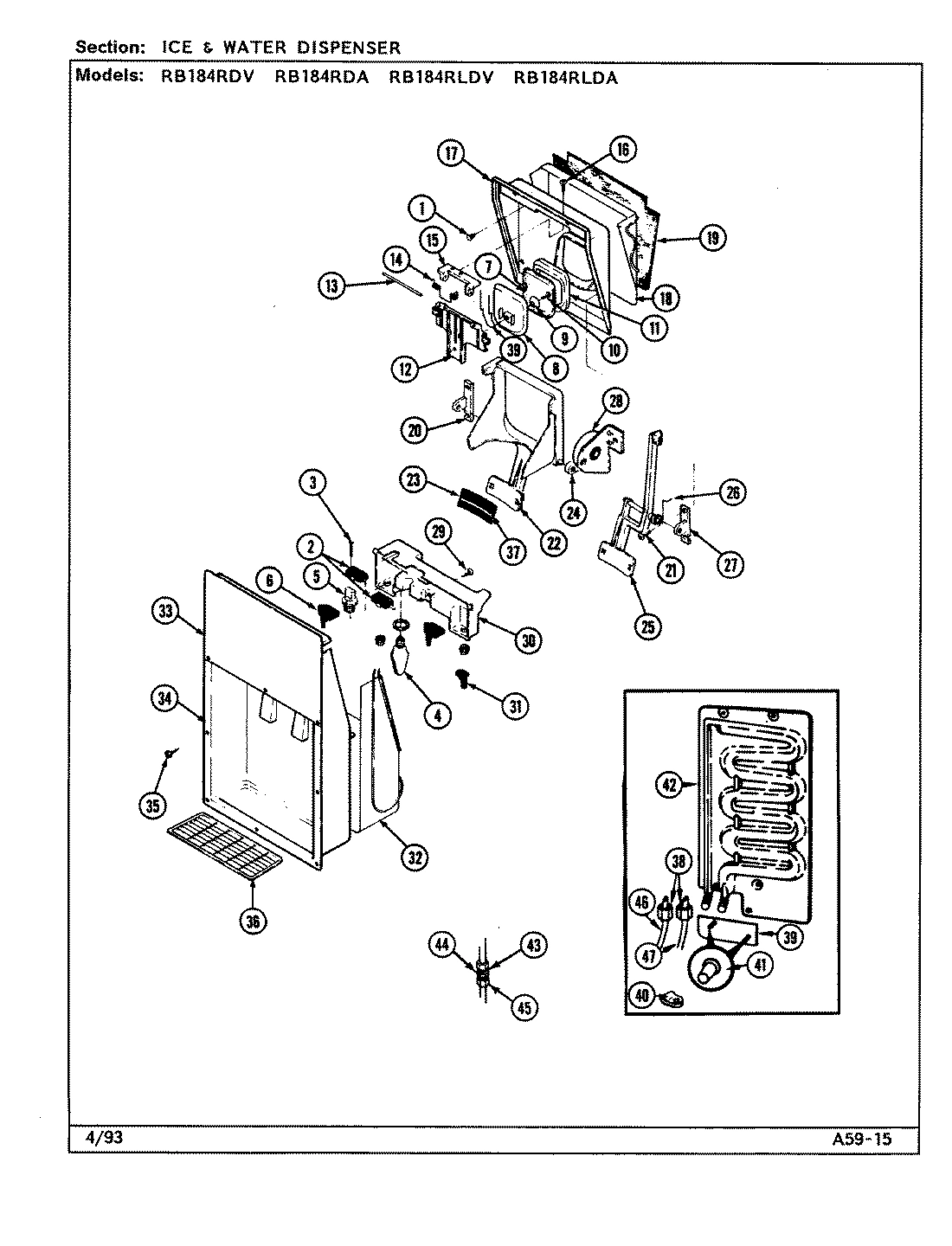

01 - ICE & WATER DISPENSER
Common parts from model Whirlpool RB184RDA REFRIGERATOR
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, LIGHT (W/NUT) WPL 698322 Contact Us For Availability
6
WIRE HARNESS, DOOR WPL 698651 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689371 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
29
SCREW WPL 405025103 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
32
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
35
SCREW WPL 415013103 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
39
CLAMP, TANK TUBING WPL 591351 Contact Us For Availability
39
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
41
NYLON NUT WPL 1953036 Contact Us For Availability
41
SCREW WPL 40004828 Contact Us For Availability
42
GROMMET WPL 555121 Contact Us For Availability
42
TANK, WATER WPL 690655 Contact Us For Availability
43
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
44
UNION, REDUCING WPL 676121 Contact Us For Availability
45
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
46
TUBING, TANK TO VALVE WPL 6757924 Contact Us For Availability
47
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
47
TUBING, VALVE TO TANK (5/16``) WPL 6718713 Contact Us For Availability
47
TUBING, 1/4`` WPL 6757914 Contact Us For Availability
× ![]()
