Model Whirlpool RB184PDV REFRIGERATOR – Common Parts & Diagrams

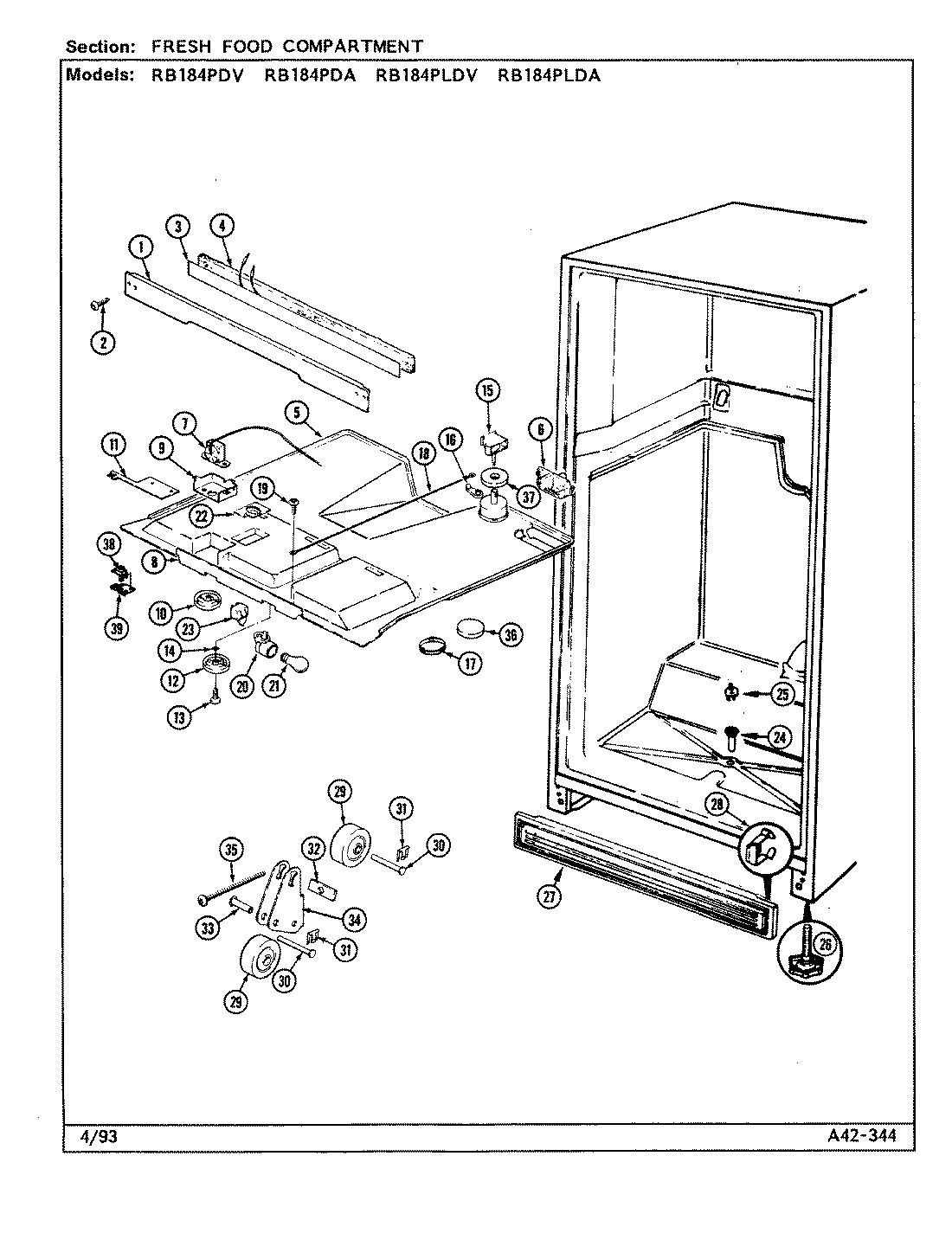

03 - FRESH FOOD COMPARTMENT

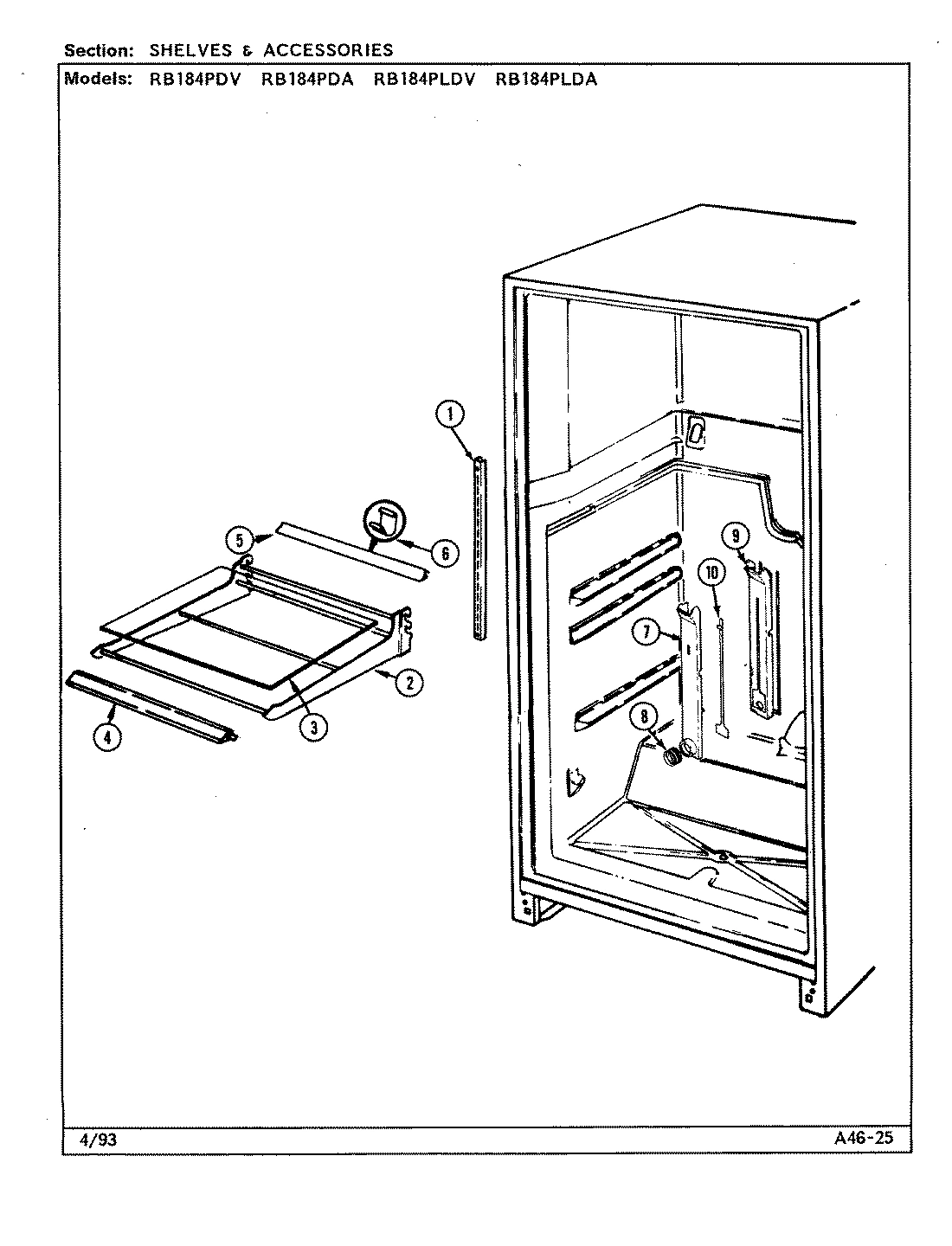

06 - SHELVES & ACCESSORIES

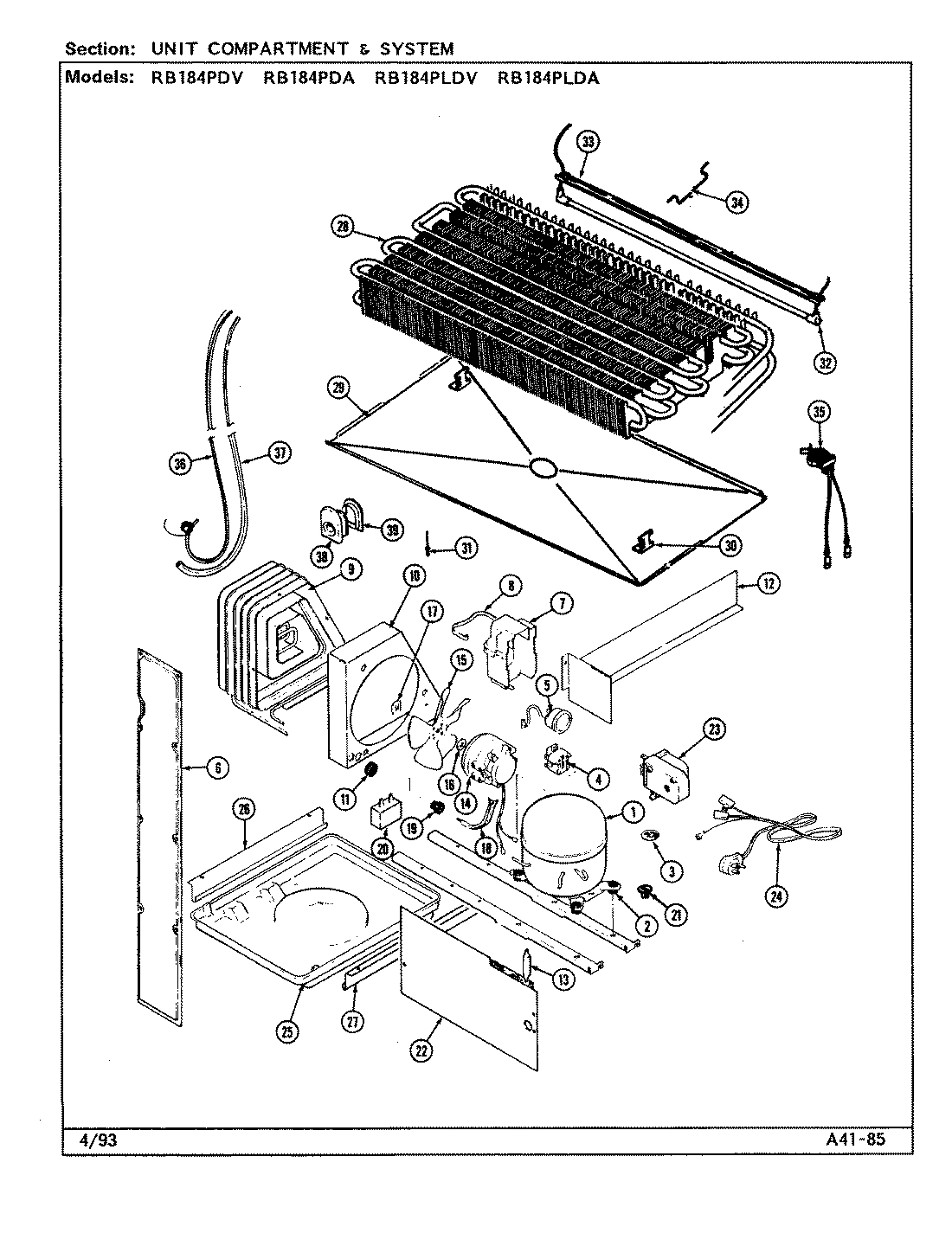

07 - UNIT COMPARTMENT & SYSTEM

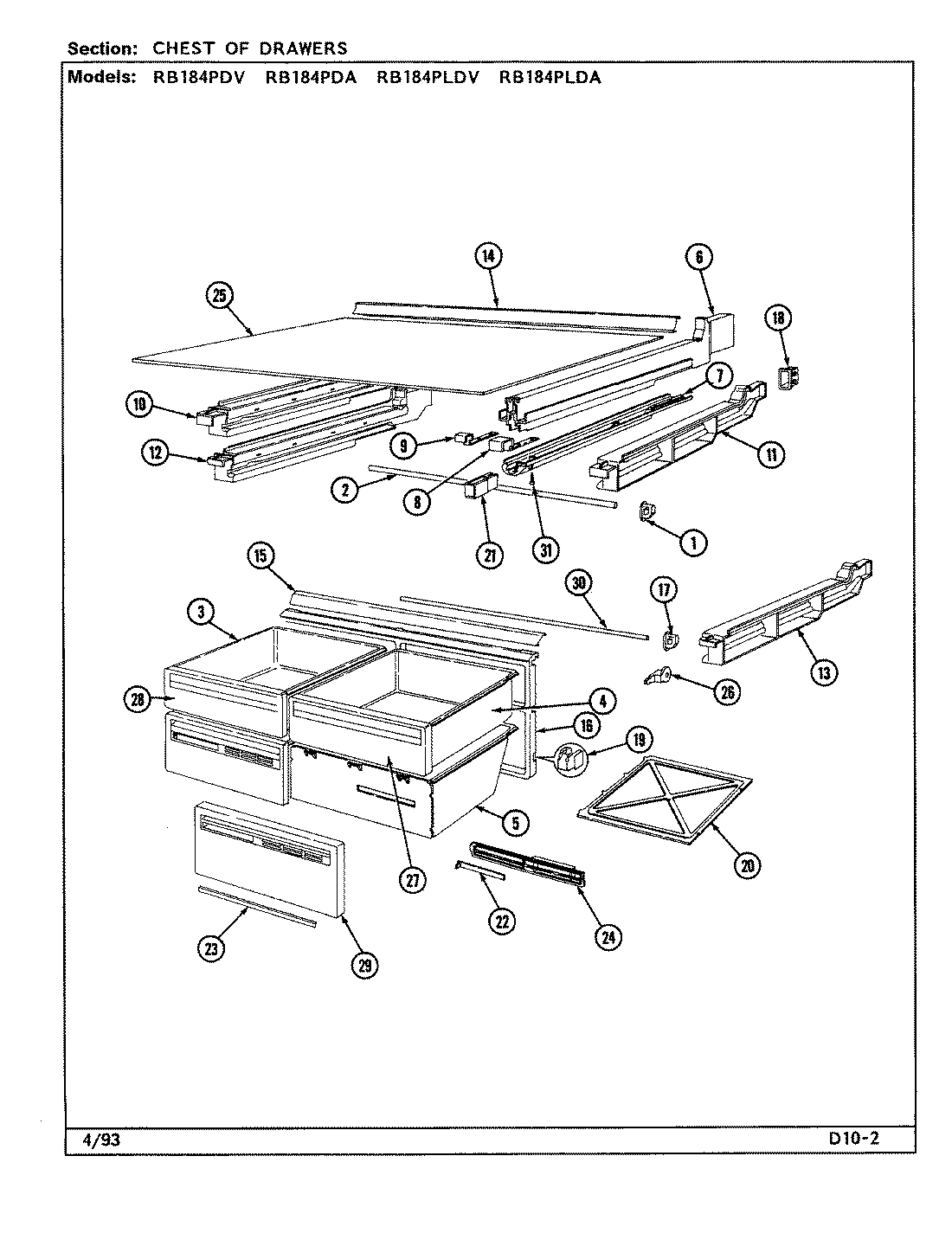

01 - CHEST OF DRAWERS

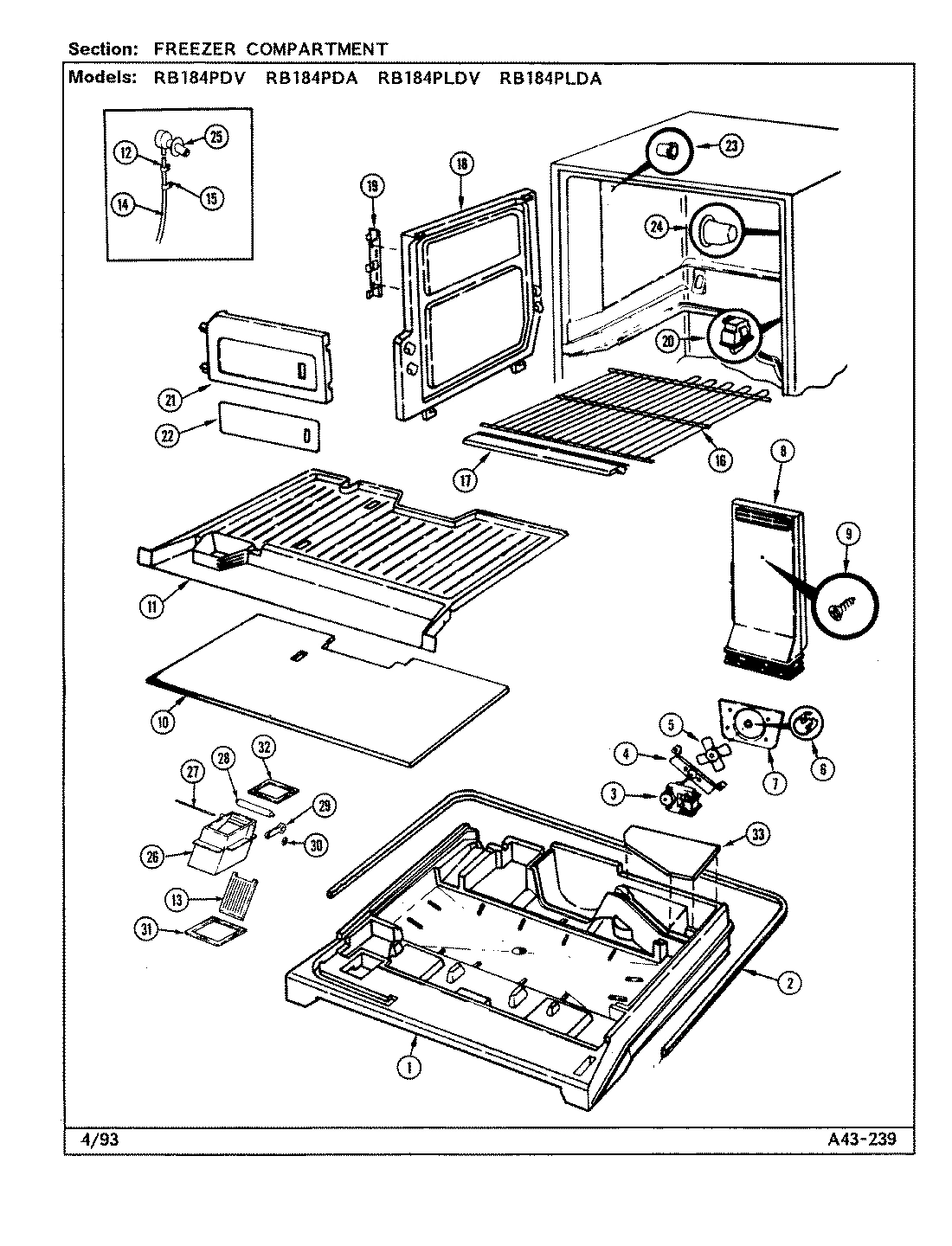

02 - FREEZER COMPARTMENT

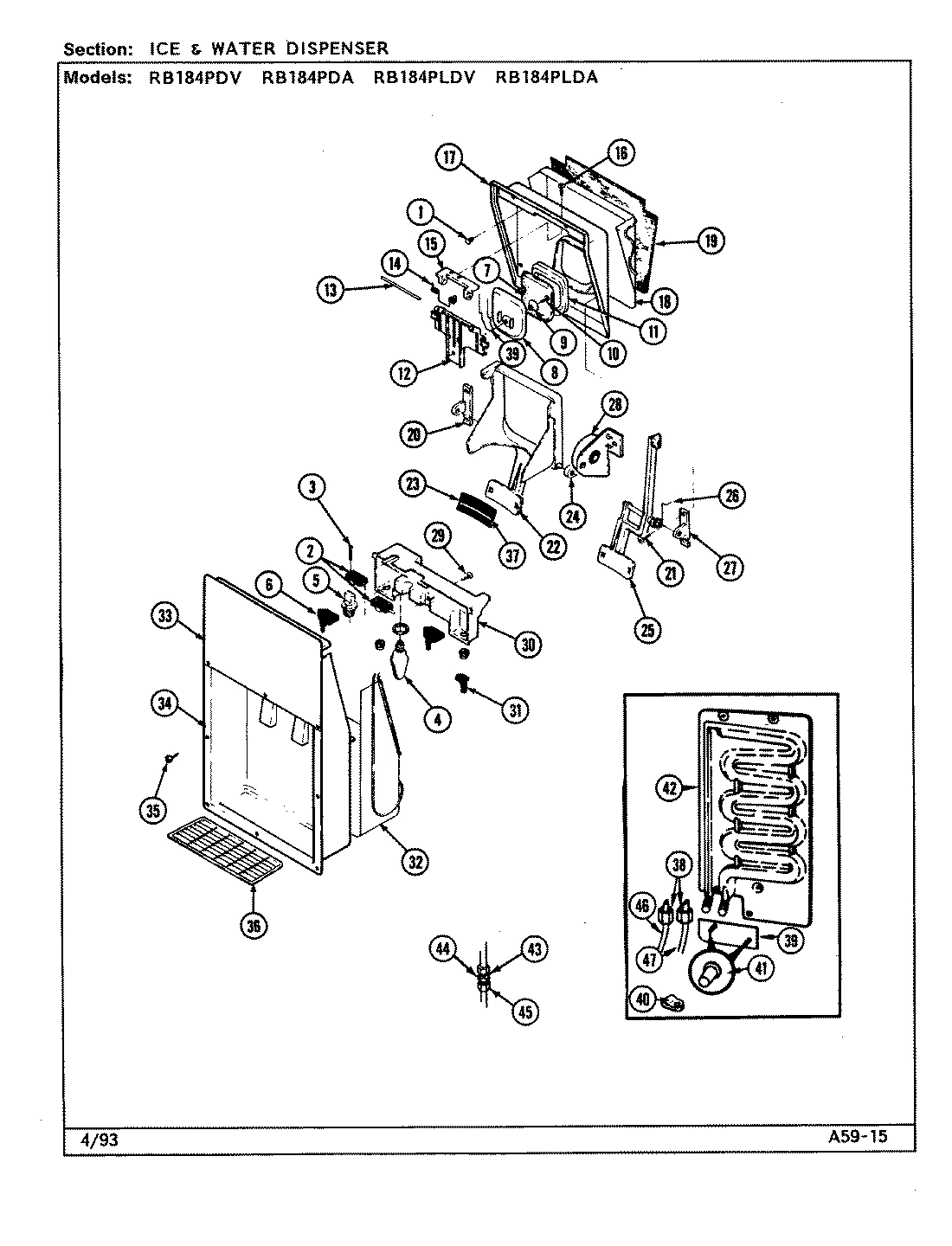

04 - ICE & WATER DISPENSER

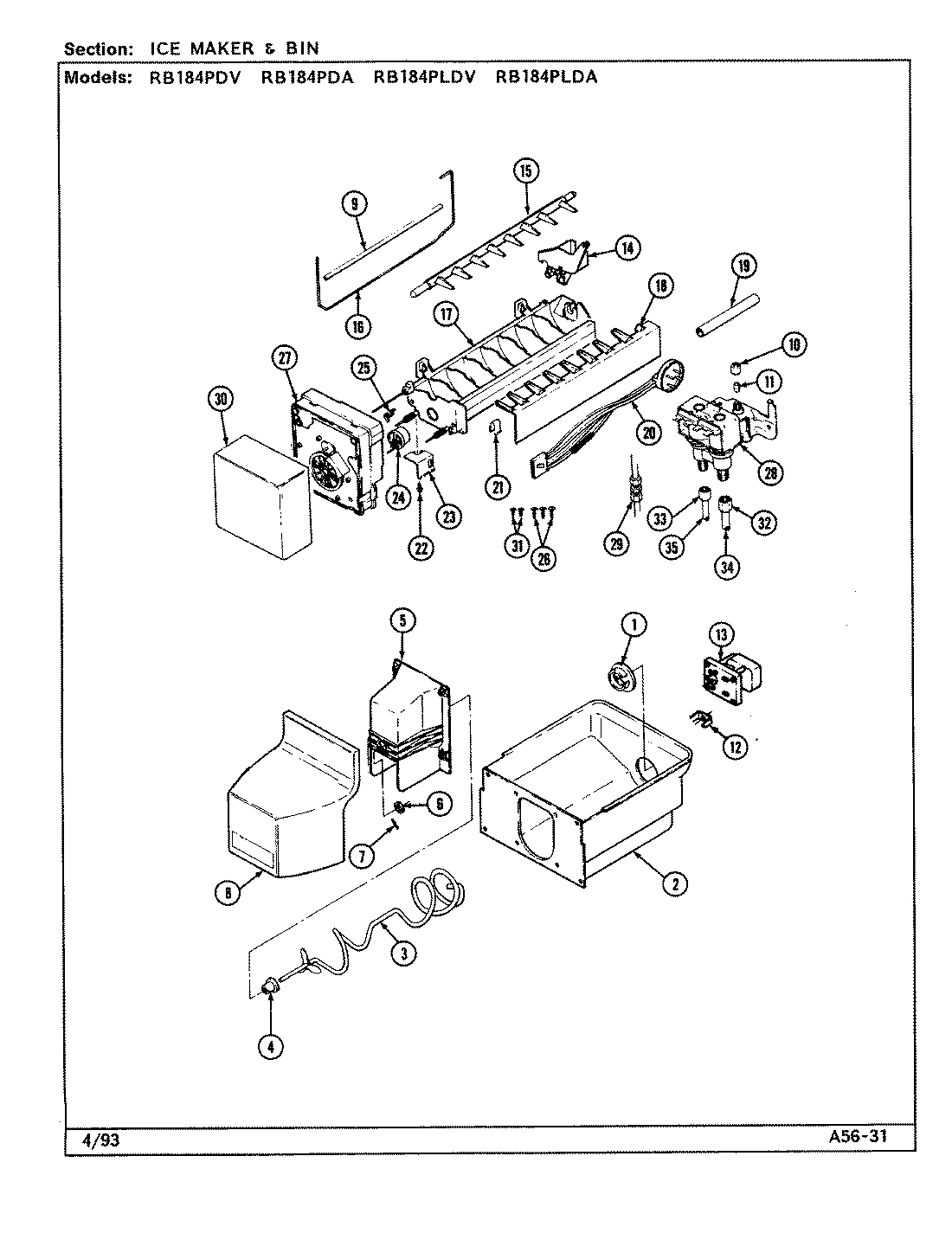

05 - ICE MAKER & BIN
Common parts from model Whirlpool RB184PDV REFRIGERATOR
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
1
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
1
COMPRESSOR WPL RA10321 Contact Us For Availability
1
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694021 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
RING, DRIVE WPL 630171 Contact Us For Availability
2
SCREW WPL 6527554 Contact Us For Availability
2
FRAME, SHELF WPL 6057036 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687561 Contact Us For Availability
2
SCREW WPL 6527578 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
BIN WPL 685801 Contact Us For Availability
3
INSULATION WPL 685772 Contact Us For Availability
3
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
3
GLASS, SPLIT SHELF WPL 6813915 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
PAN, CRISPER WPL 685133 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
4
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
4
INSULATION WPL 701231 Contact Us For Availability
4
SHELF TRIM WPL 6813645 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
PAN, MEAT WPL 685136 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 694081 Contact Us For Availability
5
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
PAN, CRISPER WPL 685144 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
5
ICE DAM WPL 678321 Contact Us For Availability
6
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP WPL 663332 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
RAIL UPPER CENTER WPL 685154 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, LIGHT (W/NUT) WPL 698322 Contact Us For Availability
6
WIRE HARNESS, DOOR WPL 698651 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 686017 Contact Us For Availability
7
COVER, AIR TUNNEL WPL 682856 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
RAIL, BOTTOM CENTER WPL 682682 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
8
INSERT, TRIM ESCUTCHEON WPL 6057159 Contact Us For Availability
8
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
8
SCREW WPL 405022103 Contact Us For Availability
8
INSERT, ICE DOOR WPL 698743 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMP. CONT. WPL 694214 Contact Us For Availability
9
INSULATION, AIR TUNNEL WPL 682894 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
10
KNOB, CONTROL WPL 694175 Contact Us For Availability
10
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
RAIL, SIDE WPL 685163 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664035 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
RAIL, SIDE WPL 685164 Contact Us For Availability
11
SEAL, FOAM TRY WPL 6632512 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693961 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
12
KNOB, CONTROL WPL 694176 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
RAIL, SIDE WPL 685167 Contact Us For Availability
12
CLAMP, SPRING WPL 603334 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
12
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
RAIL, SIDE WPL 685168 Contact Us For Availability
13
SCREW WPL 4000161 Contact Us For Availability
13
DOOR, ICE TUNNEL WPL 676471 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
13
SCREW WPL 406026103 Contact Us For Availability
13
MOTOR, AUGER WPL 651861 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
14
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
15
ORIFICE ASSY., DAMPER WPL 698113 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM FRONT WPL 687876 Contact Us For Availability
15
CLAMP, TUBING WPL 535168 Contact Us For Availability
15
SCREW WPL 652751 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
WASHER WPL 604861 Contact Us For Availability
16
FRONT, DRAWER UNIT WPL 682732 Contact Us For Availability
16
SHELF, FRZ. WPL 605143 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
TRIM, FRZ. SHELF WPL 6813651 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
18
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
CUP WPL 682753 Contact Us For Availability
18
SCREW WPL 4000211 Contact Us For Availability
18
DIVIDER WPL 656222 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689371 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
LATCH WPL 661461 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
19
TUBE, FILL WPL 676668 Contact Us For Availability
20
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
COVER, PAN WPL 682783 Contact Us For Availability
20
SPACER WPL 655121 Contact Us For Availability
20
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
21
BULB, LIGHT WPL 681231 Contact Us For Availability
21
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
21
IM ENCL FRONT WPL 656271 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CONTROL, CRISPER SLIDE WPL 685824 Contact Us For Availability
22
TRIM, ICE DISP. FRONT WPL 688353 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
TRIM, FRUIT/VEG. HANDLE WPL 685832 Contact Us For Availability
23
TRIM, MEAT HANDLE WPL 685834 Contact Us For Availability
23
TRIM, UTILITY HANDLE WPL 685836 Contact Us For Availability
23
CUP, SHELF WPL 603131 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
RETAINER, SLIDE CONTROL WPL 682884 Contact Us For Availability
24
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
COVER, GLASS WPL 682923 Contact Us For Availability
25
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
TUNNEL, ICE WPL 696251 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
26
SCREW WPL 4000221 Contact Us For Availability
27
KICKPLATE (WHT) WPL 698768 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
FRONT, MEAT PAN WPL 6863913 Contact Us For Availability
27
SHAFT ICE DOOR WPL 672892 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
28
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
EVAPORATOR WPL 6982210 Contact Us For Availability
28
FRONT, UTILITY PAN WPL 6863914 Contact Us For Availability
28
WEIGHT DAMPER DOOR WPL 671741 Contact Us For Availability
28
E RING WPL 672821 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
28
VALVE, WATER WPL 698251 Contact Us For Availability
29
WHEEL WPL 698121 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
FRONT, FRUIT & VEGETABLE PAN WPL 686408 Contact Us For Availability
29
ARM DAMPER DOOR WPL 671841 Contact Us For Availability
29
SCREW WPL 405025103 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
30
PIN, WHEEL WPL 298352 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
30
NUT, PUSH ON WPL 431015511 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
30
COVER, ICE MAKER WPL 683282 Contact Us For Availability
30
SCREW WPL 951051 Contact Us For Availability
30
SCREW WPL 951061 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
CLIP WPL 602161 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
31
SCREW WPL 4010181 Contact Us For Availability
32
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
SEAL WPL 6632535 Contact Us For Availability
32
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
32
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
33
PIN, WHEEL WPL 649651 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
COVER, PLENUM WPL 664805 Contact Us For Availability
33
PLUG BUTTON WPL 675571 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
33
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
34
BRACKET, WHEEL WPL 675301 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TUBING WPL 6718710 Contact Us For Availability
35
FUNNEL-KIT WPL 675792 Contact Us For Availability
35
SCREW WPL 6527564 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
35
SCREW WPL 415013103 Contact Us For Availability
35
WIRE HARNESS WPL 677011 Contact Us For Availability
36
DISC, CRANK COVER WPL 690371 Contact Us For Availability
36
HEAT EXCHANGER WPL 650134 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
37
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
38
SWITCH, HEATER WPL 692831 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
SCREW WPL 4020131 Contact Us For Availability
39
BRACKET, SWITCH WPL 605831 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 692902 Contact Us For Availability
39
CLAMP, TANK TUBING WPL 591351 Contact Us For Availability
39
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
40
MANUAL, USE & CARE WPL 1085681 Contact Us For Availability
41
NYLON NUT WPL 1953036 Contact Us For Availability
41
SCREW WPL 40004828 Contact Us For Availability
42
GROMMET WPL 555121 Contact Us For Availability
42
TANK, WATER WPL 690655 Contact Us For Availability
44
UNION, REDUCING WPL 676121 Contact Us For Availability
46
TUBING, TANK TO VALVE WPL 6757924 Contact Us For Availability
47
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
47
TUBING, VALVE TO TANK (5/16``) WPL 6718713 Contact Us For Availability
47
TUBING, 1/4`` WPL 6757914 Contact Us For Availability
× ![]()
Login and Registration Form
