Model Whirlpool RB17KA-3A REFRIGERATOR – Common Parts & Diagrams

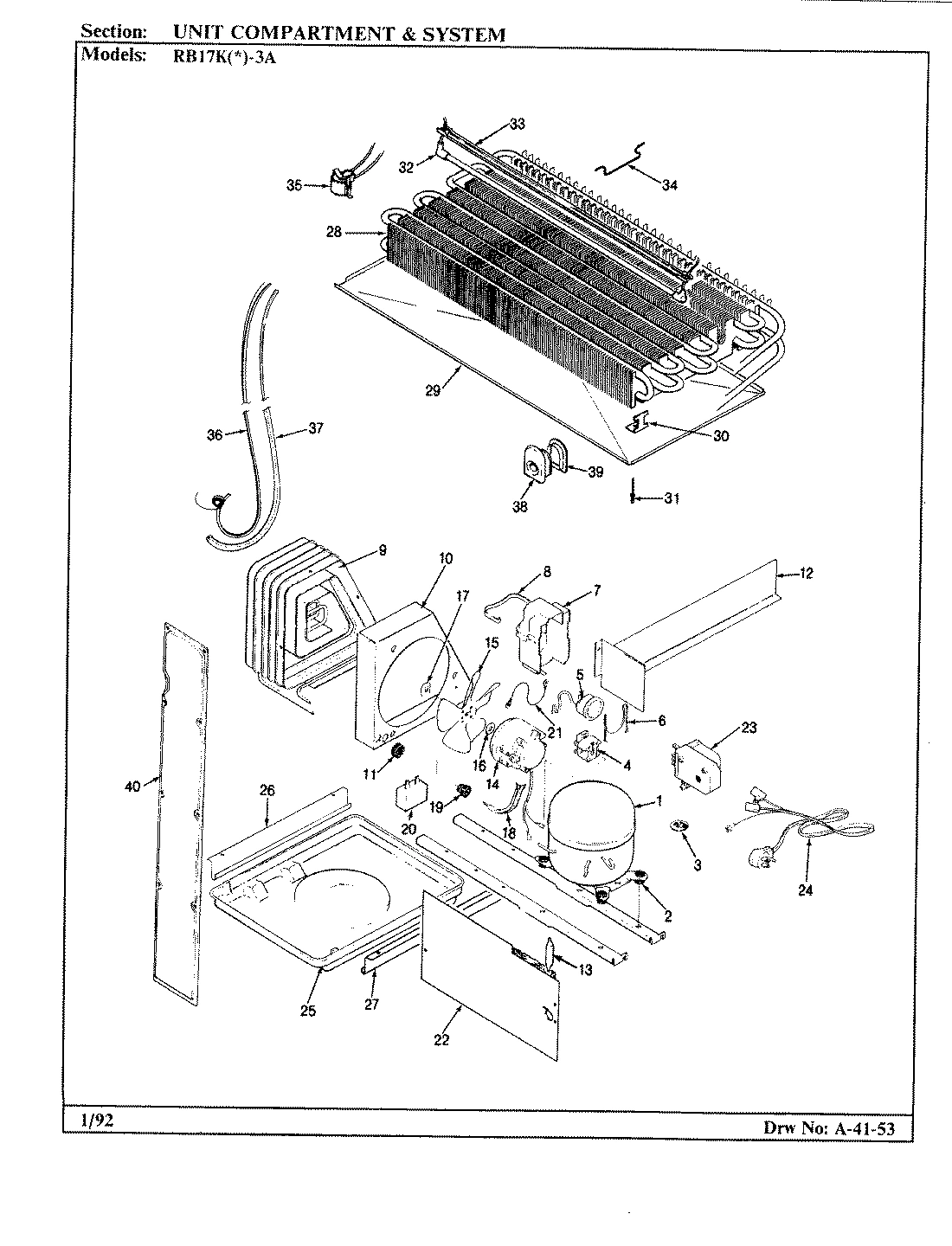

04 - UNIT COMPARTMENT & SYSTEM

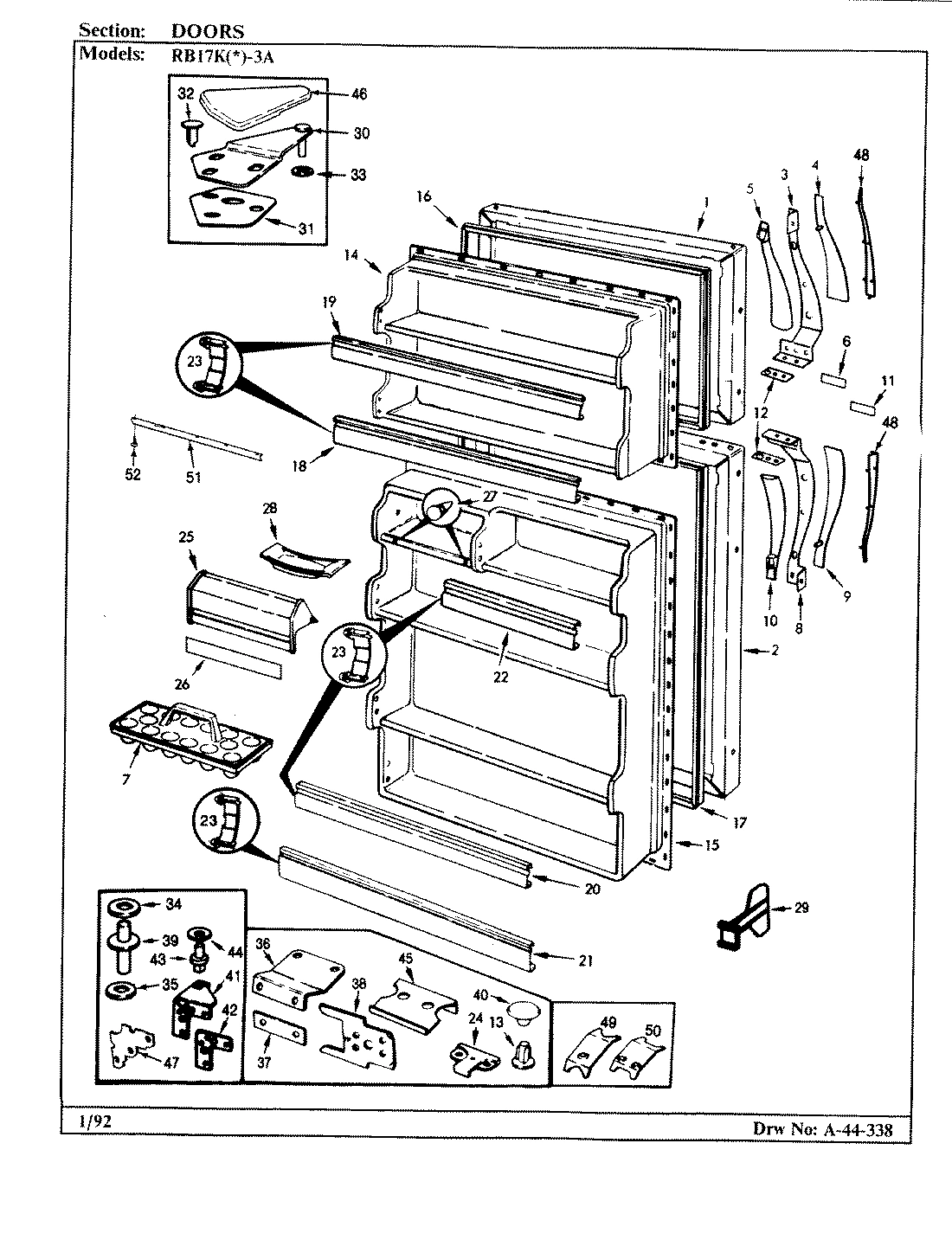

01 - DOORS

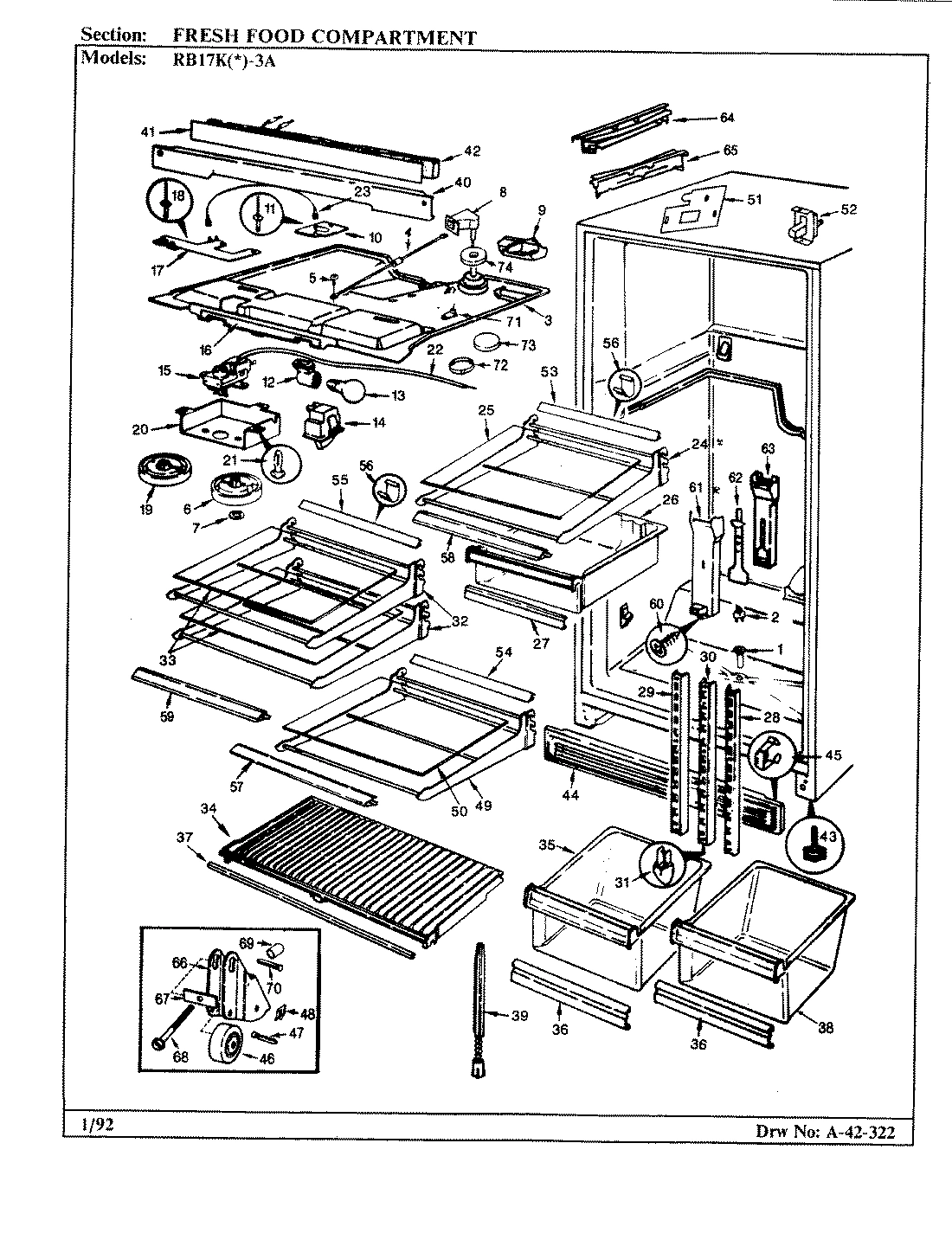

03 - FRESH FOOD COMPARTMENT

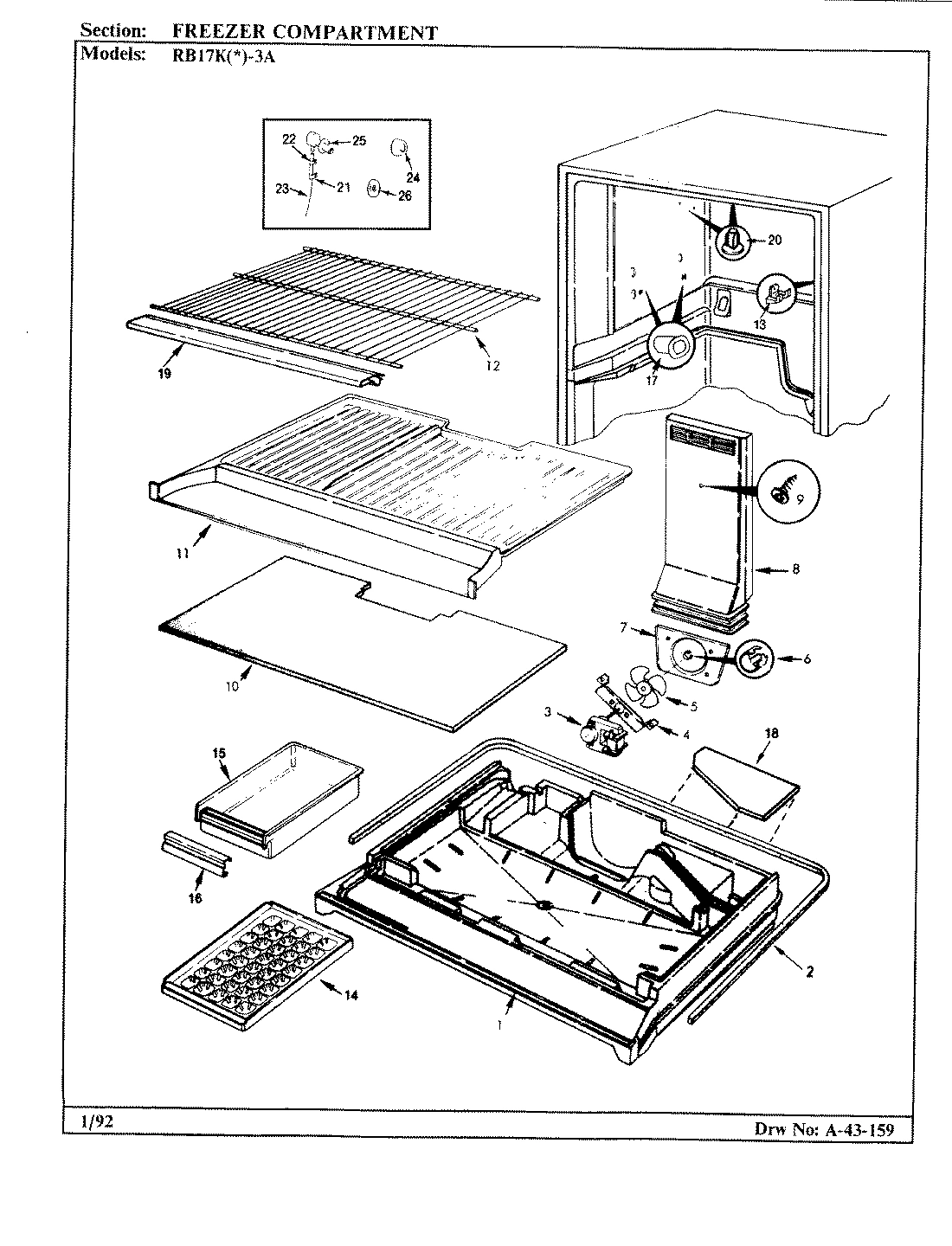

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool RB17KA-3A REFRIGERATOR
1
PANEL, FRZ. DOOR (ALM) WPL 684721AM Contact Us For Availability
1
TUBE, DRAIN WPL 545317 Contact Us For Availability
1
MULLION DIVIDER TRAY WPL 675182 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684711AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL 72`` WPL 688665 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
INSERT, HANDLE WPL 680161 Contact Us For Availability
4
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
5
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
5
SCREW WPL 6527513 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT, HANDLE WPL 6060315 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB, FRZ. CONTROL WPL 686006 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
DOOR HANDLE WPL 662554 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
ORIFICE, DAMPER ASSY WPL 679156 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685922 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
9
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
9
AIR DEFLECTOR WPL 601203 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
INSERT WPL 604451 Contact Us For Availability
10
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
INSERT, NAMEPLATE WPL 6060316 Contact Us For Availability
11
SCREW WPL 9986112 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
12
SHELF WPL 6043829 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
PLUG BUTTON WPL 557829 Contact Us For Availability
13
BULB, LIGHT WPL 681231 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
14
LINER, DOOR WPL 6592913 Contact Us For Availability
14
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
14
SWITCH, LIGHT WPL 557321 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
LINER, F.F. DOOR WPL 6593414 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
GASKET, DOOR WPL 661993 Contact Us For Availability
16
INSERT WPL 6057165 Contact Us For Availability
16
HANDLE WPL 6013269 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
GASKET, DOOR WPL 661994 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
RIVET WPL 263979 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 65151181 Contact Us For Availability
18
COVER, PLENUM WPL 664804 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
KNOB, TEMP. CONTROL WPL 686005 Contact Us For Availability
19
TRIM, SHELF WPL 6813644 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 65151180 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
20
PLUG BUTTON WPL 669202 Contact Us For Availability
20
PLUG BUTTON WPL 675571 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151182 Contact Us For Availability
21
CLAMP, TUBING WPL 535168 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 65151179 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
22
CLAMP, SPRING WPL 603334 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661281 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
DOOR STOP WPL 6041910 Contact Us For Availability
24
CAP, GROMMET WPL 683871 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
DOOR, DAIRY WPL 66184395 Contact Us For Availability
25
GLASS, MEAT SHELF WPL 6813921 Contact Us For Availability
25
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
INSERT WPL 681286 Contact Us For Availability
26
PAN, MEAT WPL 665174 Contact Us For Availability
26
CAP, CONNECTOR WPL 681871 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
BUMPER, DOOR WPL 282726 Contact Us For Availability
27
HANDLE WPL 6013274 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
TRAY, BUTTER WPL 299362 Contact Us For Availability
28
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
29
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
HINGE, UPPER WPL 5370920 Contact Us For Availability
30
SCREW WPL 6527552 Contact Us For Availability
30
SCREW WPL 40003728 Contact Us For Availability
30
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
31
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
31
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
32
FRAME, SHELF WPL 6057049 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
WASHER WPL 542331 Contact Us For Availability
33
GLASS, SPLIT SHELF WPL 6813920 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
34
SHELF, CRISPER WPL 666442 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
WASHER WPL 542332 Contact Us For Availability
35
PAN, CRISPER (FRUIT) WPL 68221425 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
SCREW WPL 6527555 Contact Us For Availability
36
HINGE, CENTER WPL 688112 Contact Us For Availability
36
HANDLE WPL 6013271 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
37
TRIM WPL 604541 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
38
PAN, CRISPER WPL 68221421 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
39
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
40
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 688391 Contact Us For Availability
40
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
40
SCREW WPL 6527554 Contact Us For Availability
40
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
40
WIRE HARNESS WPL 689031 Contact Us For Availability
41
HINGE, LOWER WPL 677146 Contact Us For Availability
41
HEATER WIRE WPL 688301 Contact Us For Availability
42
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
42
INSULATION WPL 601401 Contact Us For Availability
43
HINGE PIN WPL 687881 Contact Us For Availability
43
LEG, LEVELING WPL 686641 Contact Us For Availability
44
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
44
KICKPLATE WPL 6023737 Contact Us For Availability
45
SCREW WPL 4000171 Contact Us For Availability
45
DOOR STOP WPL 600304 Contact Us For Availability
45
SCREW WPL 6527548 Contact Us For Availability
45
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
46
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
46
WHEEL WPL 298342 Contact Us For Availability
47
SCREW WPL 4031001 Contact Us For Availability
47
TAPPING PLATE WPL 657903 Contact Us For Availability
47
PIN, WHEEL WPL 298352 Contact Us For Availability
48
INSERT, HANDLE WPL 680174 Contact Us For Availability
48
CLIP WPL 602161 Contact Us For Availability
49
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
49
FRAME, SHELF WPL 6057036 Contact Us For Availability
50
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
50
GLASS, SPLIT SHELF WPL 6813915 Contact Us For Availability
51
SEAL, SECONDARY WPL 689301 Contact Us For Availability
51
SCREW WPL 4020131 Contact Us For Availability
51
BRACKET, SWITCH WPL 605831 Contact Us For Availability
52
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
52
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
54
TRIM WPL 652763 Contact Us For Availability
55
TRIM WPL 652761 Contact Us For Availability
56
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
58
TRIM WPL 6813642 Contact Us For Availability
59
TRIM WPL 6813643 Contact Us For Availability
61
TUNNEL WPL 6009412 Contact Us For Availability
62
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
63
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
64
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
65
RAIL, MEAT PAN WPL 668141 Contact Us For Availability
66
WPL 591001 WPL 591001 Contact Us For Availability
67
WPL 591011 WPL 591011 Contact Us For Availability
68
WPL 4060831 WPL 4060831 Contact Us For Availability
69
WPL 245804 WPL 245804 Contact Us For Availability
70
WPL 649651 WPL 649651 Contact Us For Availability
71
WPL 676361 WPL 676361 Contact Us For Availability
72
WPL 674931 WPL 674931 Contact Us For Availability
73
WPL 690371 WPL 690371 Contact Us For Availability
74
WPL 689891 WPL 689891 Contact Us For Availability
× ![]()
Login and Registration Form
