Model Whirlpool RB17FN-2AF REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER COMPARTMENT

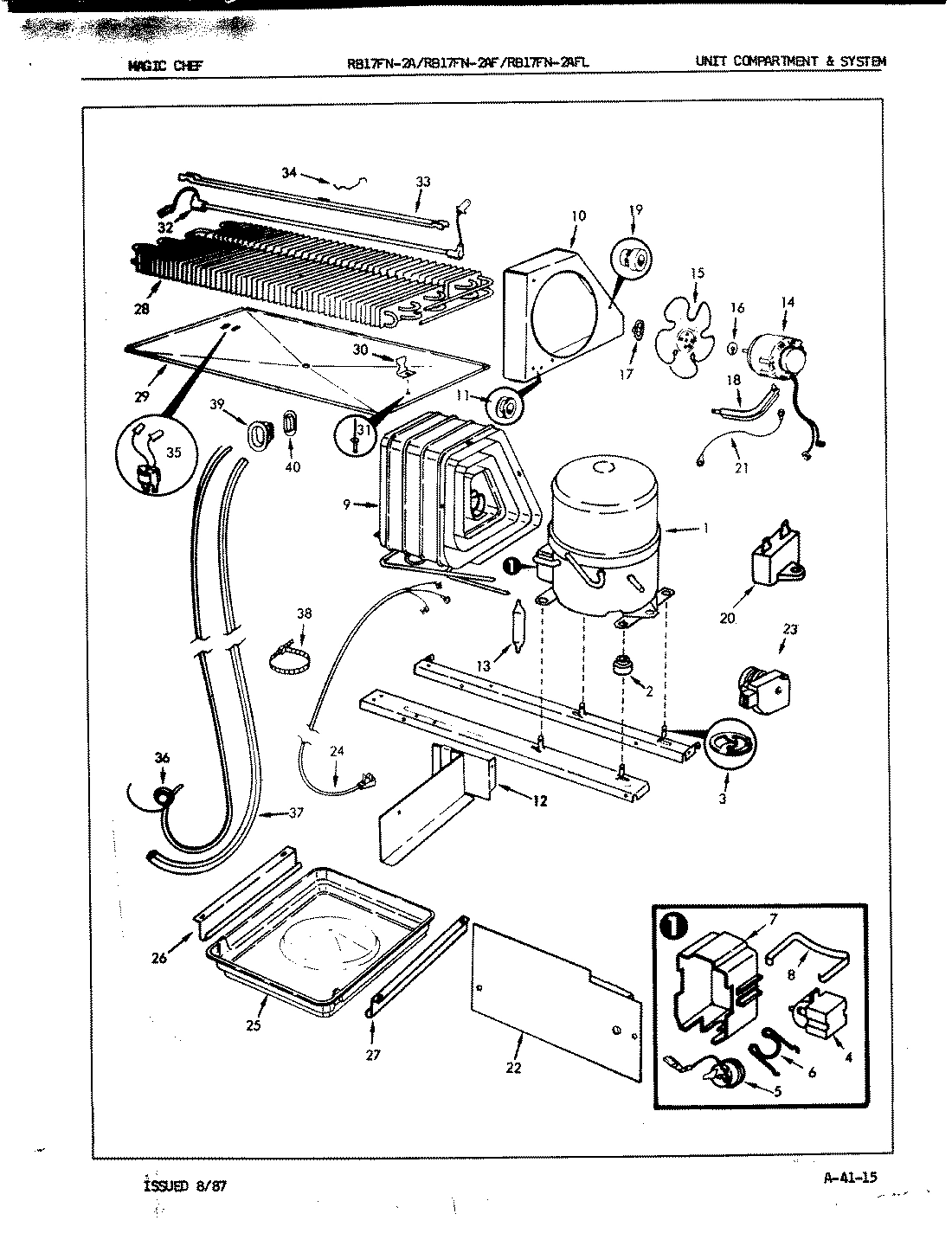

04 - UNIT COMPARTMENT & SYSTEM

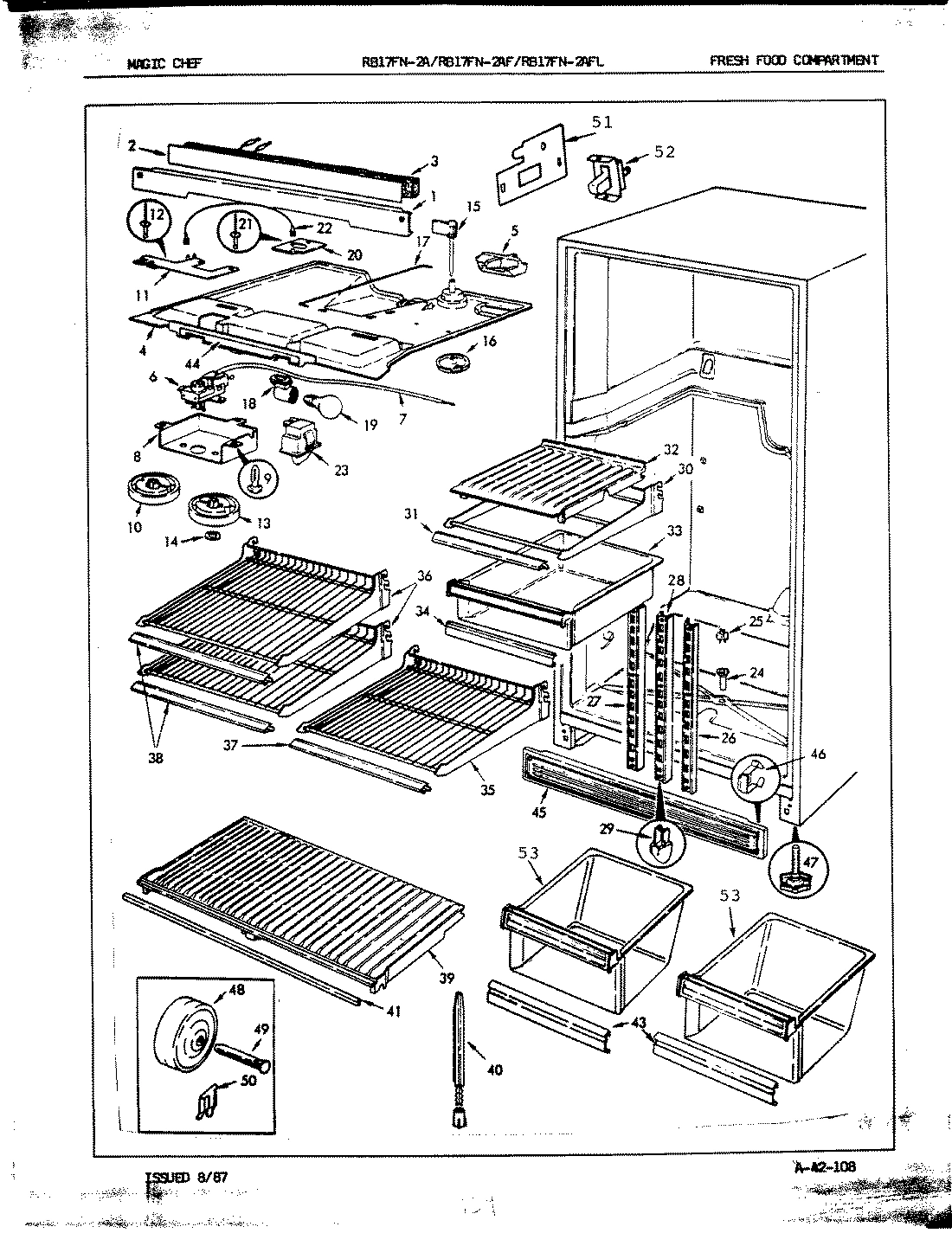

03 - FRESH FOOD COMPARTMENT

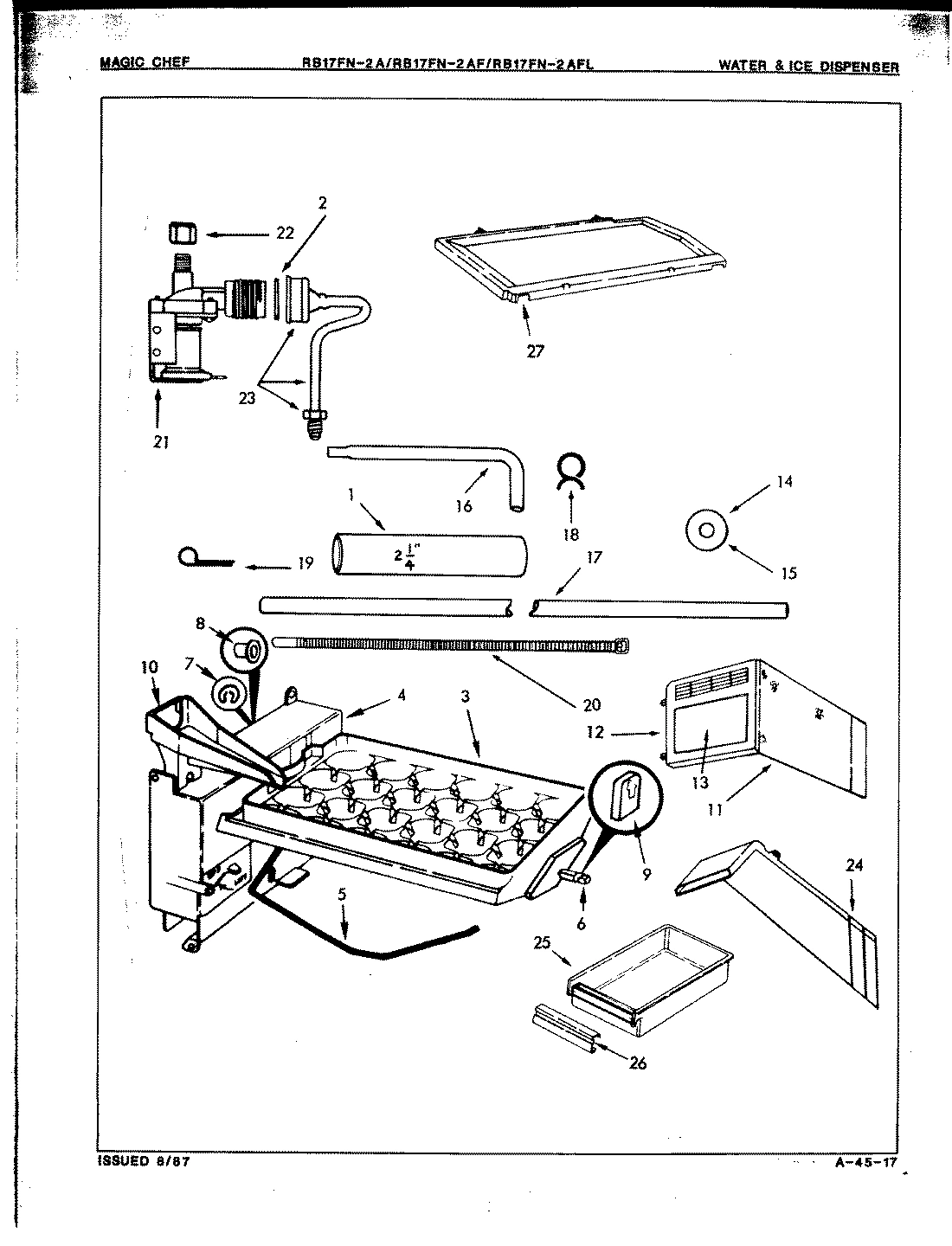

05 - WATER & ICE DISPENSER

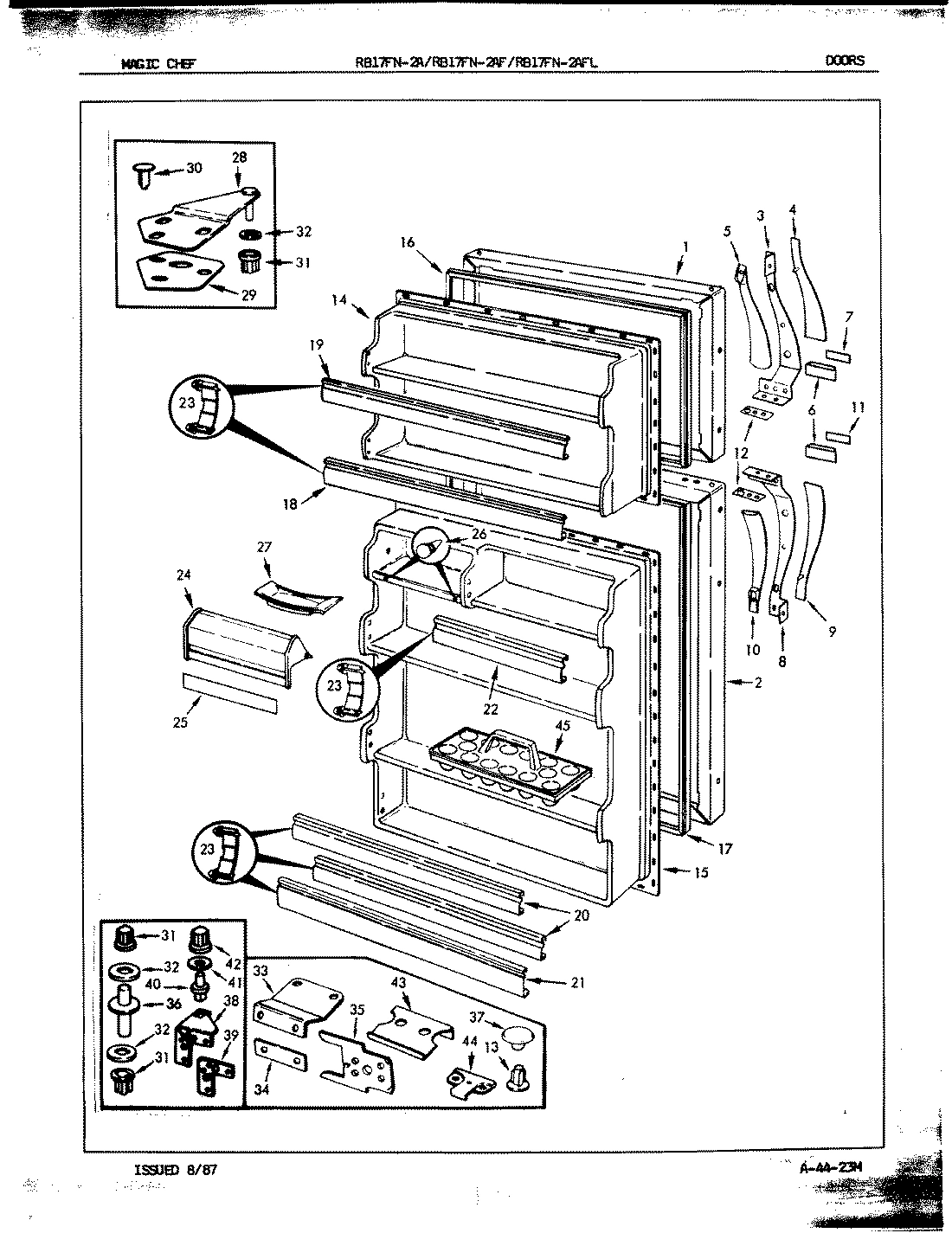

01 - DOORS
Common parts from model Whirlpool RB17FN-2AF REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 666051 Contact Us For Availability
1
COMPRESSOR WPL RA1005 Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 657971WW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
SCREW WPL 4000221 Contact Us For Availability
1
TUBE, FILL WPL 584613 Contact Us For Availability
1
OUTER PANEL WPL 600335WW Contact Us For Availability
2
SEAL WPL 663255 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HEATER WIRE WPL 601057 Contact Us For Availability
2
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
2
OUTER PANEL WPL 6003250WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
3
TRAY, ICE WPL 596881 Contact Us For Availability
3
DOOR HANDLE WPL 604911 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008551 Contact Us For Availability
4
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
4
INSERT WPL 604893 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
SENSOR ARM WPL 606192 Contact Us For Availability
5
INSERT WPL 604901 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
6
SHAFT, DRIVE WPL 653191 Contact Us For Availability
6
SCREW WPL 40100512 Contact Us For Availability
6
BEZEL WPL 604871 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
RING, RETAINER WPL 587061 Contact Us For Availability
7
INSERT WPL 605339 Contact Us For Availability
8
TUNNEL, AIR WPL 660442 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
SPACER WPL 653171 Contact Us For Availability
8
DOOR HANDLE WPL 604912 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA439914 Contact Us For Availability
9
GROUND WIRE WPL 2967522 Contact Us For Availability
9
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
INSERT WPL 604894 Contact Us For Availability
9
SCREW WPL 9986112 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
SCREW WPL 405009103 Contact Us For Availability
10
SPOUT, FILL WPL 537481 Contact Us For Availability
10
INSERT WPL 604902 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
SIDE, ICE MAKER ENCLOSURE WPL 604261 Contact Us For Availability
11
INSERT WPL 6053310 Contact Us For Availability
12
SHELF WPL 6032319 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
FRONT, ICE MAKER ENCLOSURE WPL 650701 Contact Us For Availability
12
SHIM WPL 604882 Contact Us For Availability
13
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
13
SCREW WPL 400018103 Contact Us For Availability
13
SCREW WPL 402019103 Contact Us For Availability
13
TRIM WPL 6042121 Contact Us For Availability
13
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
WASHER WPL 420051900 Contact Us For Availability
14
LINER, FRZ. DOOR WPL 659295 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DAMPER WPL 666091 Contact Us For Availability
15
WASHER WPL 420052900 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
LINER, F.F. DOOR WPL 659345 Contact Us For Availability
16
HANDLE WPL 6013267 Contact Us For Availability
16
PLUG WPL 603211 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
FEEDER TUBE WPL 667592 Contact Us For Availability
16
GASKET, DOOR WPL 661993 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
17
TUBING 62`` WPL 5560222 Contact Us For Availability
17
GASKET, DOOR WPL 661994 Contact Us For Availability
18
DIVIDER WPL 601167 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
CLAMP, SPRING WPL 603331 Contact Us For Availability
19
SHELF WPL 606557 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 4000161 Contact Us For Availability
19
CLAMP, TUBING WPL 535168 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151102 Contact Us For Availability
20
COVER, PLENUM WPL 664801 Contact Us For Availability
20
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
WIRE TIE WPL 662231 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability
21
TRIM WPL 604149 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
VALVE, WATER WPL 601841 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515128 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665561 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
INSTRUCTIONS WPL 1034061 Contact Us For Availability
23
NUT, INLET TUBING WPL 246851 Contact Us For Availability
23
SCREW WPL 4010181 Contact Us For Availability
23
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
23
TUBING WPL 650018 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
IM DUCT WPL 657595 Contact Us For Availability
24
DOOR, DAIRY WPL 6040612 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
PAN, STORAGE WPL 605881 Contact Us For Availability
25
INSERT WPL 6057332 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
26
INSERT WPL 606144 Contact Us For Availability
26
BUMPER, DOOR WPL 282726 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
27
ICE DIRECTOR WPL 606151 Contact Us For Availability
27
TRAY, BUTTER WPL 299362 Contact Us For Availability
28
EVAPORATOR WPL RA4362040 Contact Us For Availability
28
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
28
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
29
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability
30
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
COVER WPL 6007510 Contact Us For Availability
32
WASHER WPL 521851 Contact Us For Availability
32
SCREW WPL 998687 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
PAN, MEAT WPL 665161 Contact Us For Availability
33
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
HANDLE WPL 6013268 Contact Us For Availability
34
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
SHELF WPL 6041712 Contact Us For Availability
35
TAPPING PLATE WPL 591451 Contact Us For Availability
35
SCREW WPL 9986107 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364543 Contact Us For Availability
36
CANTILEVER SHELF (SPLIT) WPL 6041713 Contact Us For Availability
36
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
TRIM WPL 604144 Contact Us For Availability
37
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
38
TRIM WPL 6041436 Contact Us For Availability
38
SCREW WPL 4030625 Contact Us For Availability
38
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
SHELF, CRISPER WPL 668341 Contact Us For Availability
39
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
40
COVER WPL 600672 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 666551 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 666801 Contact Us For Availability
40
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
40
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
41
TRIM WPL 604541 Contact Us For Availability
41
WASHER WPL 542332 Contact Us For Availability
42
PAN, CRISPER WPL 60457469 Contact Us For Availability
42
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
43
HANDLE WPL 6013266 Contact Us For Availability
43
DOOR STOP WPL 604191 Contact Us For Availability
44
INSERT WPL 6057143 Contact Us For Availability
44
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
44
DOOR STOP WPL 600301 Contact Us For Availability
44
SCREW WPL 9986108 Contact Us For Availability
45
KICKPLATE WPL 6013818 Contact Us For Availability
45
TRAY, EGG WPL 600661 Contact Us For Availability
46
SCREW WPL 4000171 Contact Us For Availability
46
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
47
LEG, LEVELING WPL 60128 Contact Us For Availability
48
WHEEL WPL 298342 Contact Us For Availability
49
PIN, WHEEL WPL 298352 Contact Us For Availability
50
CLIP WPL 602161 Contact Us For Availability
51
BRACKET, SWITCH WPL 605831 Contact Us For Availability
52
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
53
PAN, CRISPER WPL 60457465 Contact Us For Availability
× ![]()
Login and Registration Form
