Model Whirlpool RB17EY-1A2 REFRIGERATOR – Common Parts & Diagrams
03 - FRESH FOOD COMPARTMENT

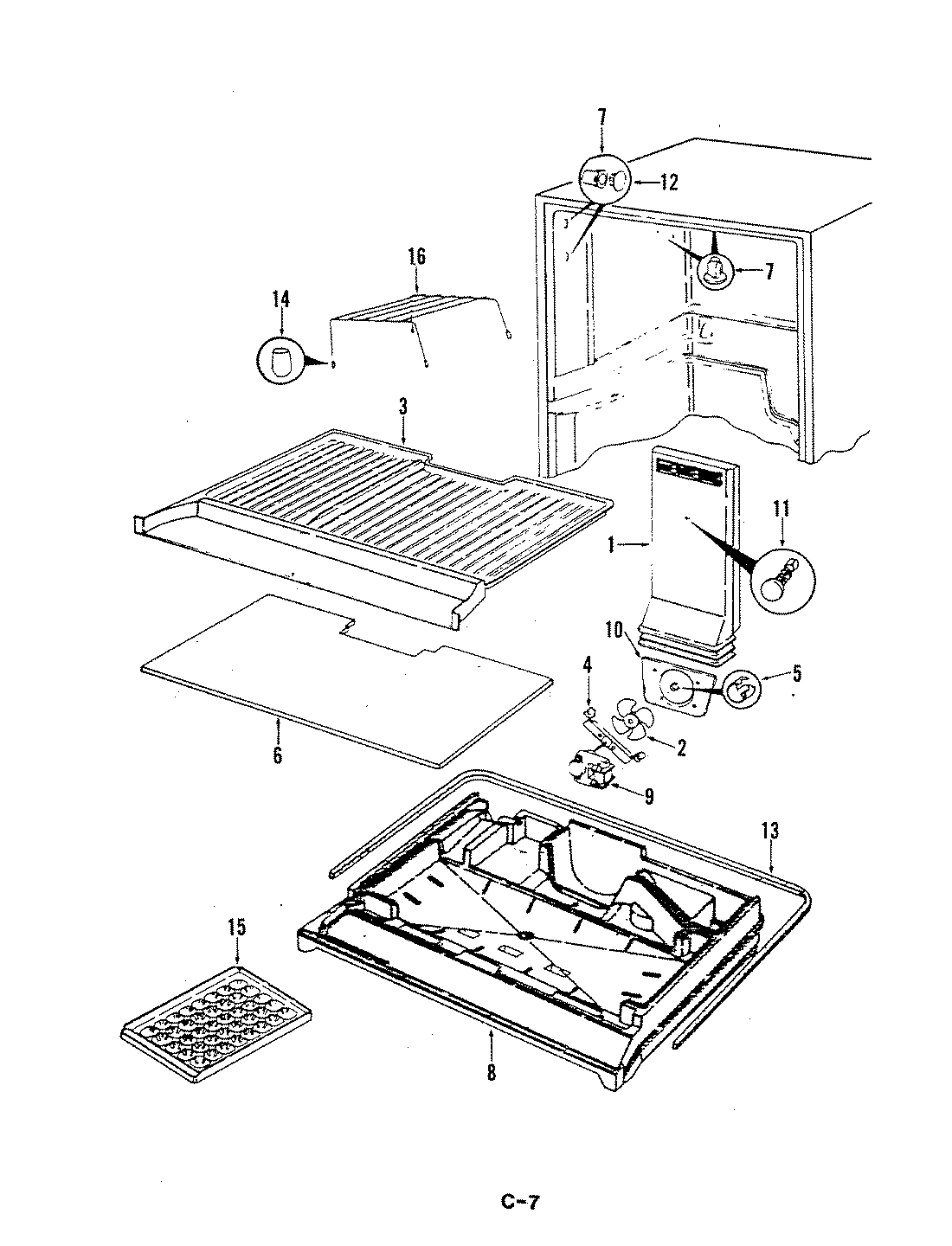

01 - FREEZER COMPARTMENT

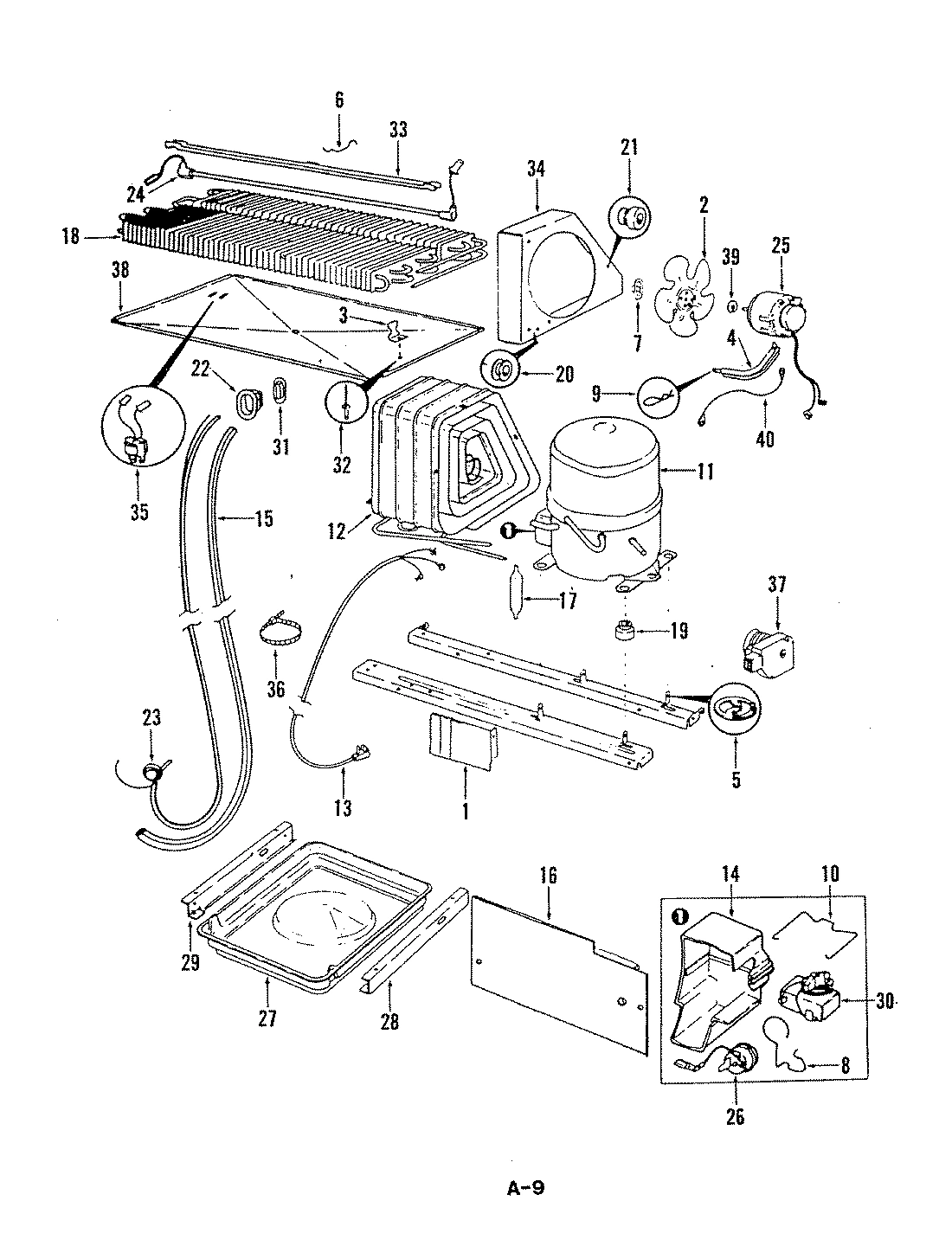

04 - UNIT COMPARTMENT & SYSTEM

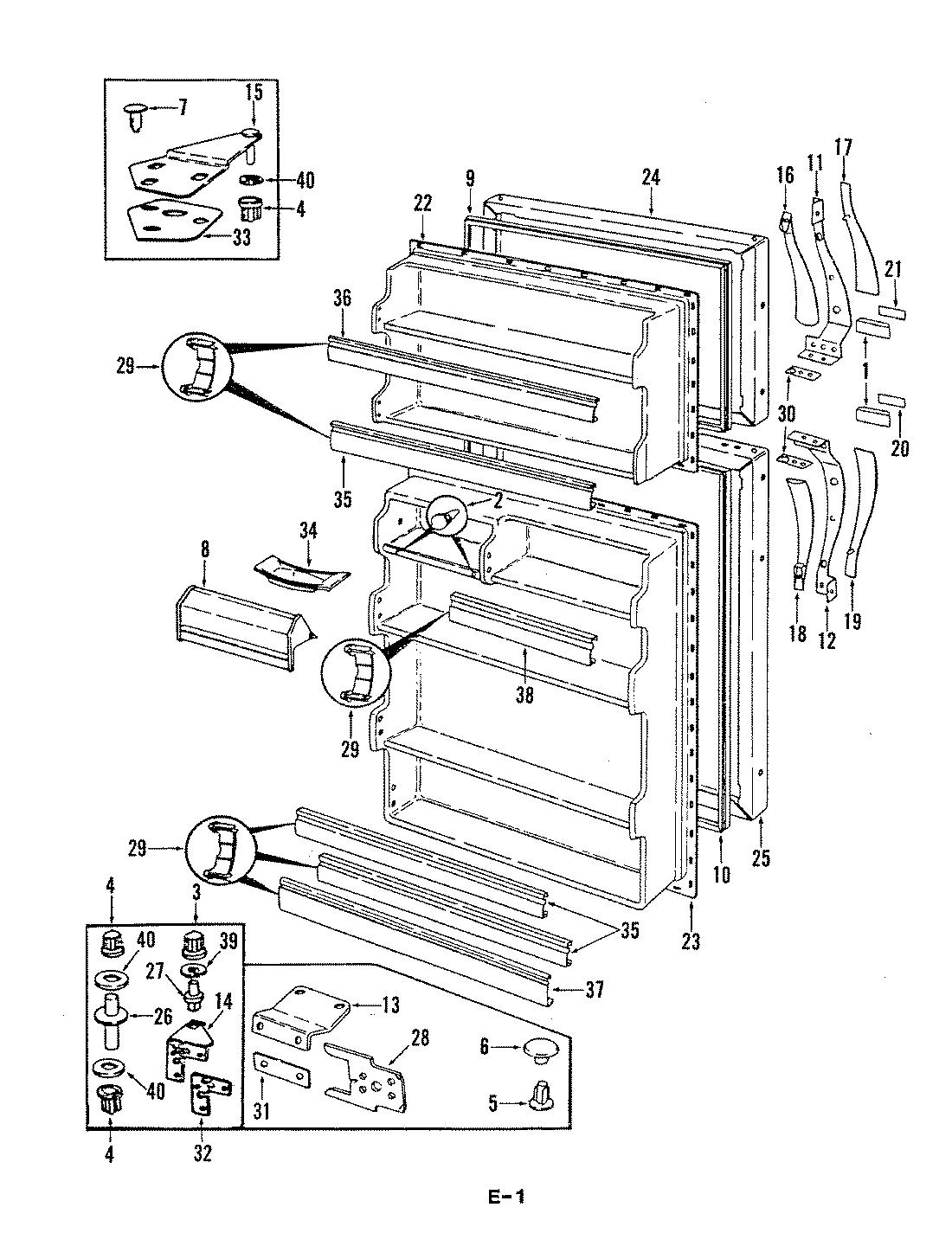

02 - FRESH FOOD & FREEZER DOOR
Common parts from model Whirlpool RB17EY-1A2 REFRIGERATOR
1
BRACKET, CONTROL WPL 601471 Contact Us For Availability
1
TUNNEL, AIR WPL 660442 Contact Us For Availability
1
AIR DIVIDER WPL 606391 Contact Us For Availability
1
BEZEL WPL 604871 Contact Us For Availability
2
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
3
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
3
CUP WPL 554241 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
4
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
5
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
5
WASHER, SPRING WPL 420092900 Contact Us For Availability
5
CLIP WPL 621651 Contact Us For Availability
5
PLUG BUTTON WPL 557829 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
6
COVER, EVAPORATOR WPL 605571 Contact Us For Availability
6
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
6
PLUG BUTTON WPL 561869 Contact Us For Availability
7
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
7
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
7
CLIP WPL 199140 Contact Us For Availability
7
PLUG BUTTON WPL 5614412 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
8
TRAY, DIVIDER WPL 605761 Contact Us For Availability
8
CLIP WPL 595971 Contact Us For Availability
8
DOOR, DAIRY WPL 6040629 Contact Us For Availability
9
DAMPER WPL 600711 Contact Us For Availability
9
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
9
GASKET, DOOR WPL 604623 Contact Us For Availability
10
DEFLECTOR WPL 601202 Contact Us For Availability
10
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
10
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
10
GASKET, DOOR WPL 604624 Contact Us For Availability
11
DIVIDER, MULLION (HW) WPL 657971HW Contact Us For Availability
11
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
11
COMPRESSOR WPL RA993 Contact Us For Availability
11
DOOR HANDLE WPL 604911 Contact Us For Availability
12
GROMMET WPL 545318 Contact Us For Availability
12
SCREW WPL 40001512 Contact Us For Availability
12
SCREW WPL 4060621 Contact Us For Availability
12
PLUG WPL 603211 Contact Us For Availability
12
CONDENSER WPL RA438714 Contact Us For Availability
12
DOOR HANDLE WPL 604912 Contact Us For Availability
13
HEATER WIRE WPL 6010510 Contact Us For Availability
13
SEAL WPL 655181 Contact Us For Availability
13
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
14
INSULATION WPL 601401 Contact Us For Availability
14
TIP WPL 245803 Contact Us For Availability
14
COVER WPL 594961 Contact Us For Availability
14
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
15
KICKPLATE WPL 601386 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
15
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
16
KNOB WPL 600613 Contact Us For Availability
16
TRIVET WPL 583867 Contact Us For Availability
16
WIRE HARNESS WPL 605651 Contact Us For Availability
16
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
16
COVER WPL 660321 Contact Us For Availability
16
INSERT WPL 604901 Contact Us For Availability
17
KNOB WPL 600611 Contact Us For Availability
17
INSERT WPL 604893 Contact Us For Availability
18
LEG, LEVELING WPL 60128 Contact Us For Availability
18
EVAPORATOR WPL RA4362040 Contact Us For Availability
18
INSERT WPL 604902 Contact Us For Availability
19
BULB, LIGHT (40W-230V) WPL 240821 Contact Us For Availability
19
NUT WPL 658181 Contact Us For Availability
19
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
19
INSERT WPL 604894 Contact Us For Availability
20
PAN, CRISPER WPL 60457152 Contact Us For Availability
20
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
20
INSERT WPL 605336 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROMMET, BRACKET WPL 569331 Contact Us For Availability
21
INSERT WPL 605335 Contact Us For Availability
22
ROD WPL 600783 Contact Us For Availability
22
SCREW WPL 9986117 Contact Us For Availability
22
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
22
INNER PANEL WPL 600438 Contact Us For Availability
23
SHELF, CRISPER WPL 600191 Contact Us For Availability
23
HEAT EXCHANGER WPL RA4364543 Contact Us For Availability
23
INNER PANEL WPL 600509 Contact Us For Availability
24
SHELF WPL 602236 Contact Us For Availability
24
HEATER, DEFROST WPL 6010637 Contact Us For Availability
24
OUTER PANEL WPL 600335HW Contact Us For Availability
25
PLASTIC TUBE WPL 400812 Contact Us For Availability
25
FAN MOTOR WPL 2805611 Contact Us For Availability
25
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
25
OUTER PANEL WPL 6003250HW Contact Us For Availability
26
SOCKET, LIGHT WPL 605771 Contact Us For Availability
26
OVERLOAD WPL 5306777 Contact Us For Availability
26
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
27
SHELF SUPPORT WPL 658161 Contact Us For Availability
27
PAN, DRAIN WPL 298394 Contact Us For Availability
27
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
27
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
28
SWITCH, LIGHT WPL 557321 Contact Us For Availability
28
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
TAPPING PLATE WPL 606221 Contact Us For Availability
29
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
29
SCREW WPL 40100512 Contact Us For Availability
29
SCREW WPL 4030625 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
SCREW WPL 9986107 Contact Us For Availability
29
SCREW WPL 9986112 Contact Us For Availability
29
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
29
SCREW WPL 9986122 Contact Us For Availability
29
SCREW, HINGE-UPPER WPL 999687 Contact Us For Availability
30
TOP, F.F. COMPARTMENT WPL 6008535 Contact Us For Availability
30
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
30
RELAY WPL 9286107 Contact Us For Availability
30
SHIM WPL 604881 Contact Us For Availability
31
TRIM WPL 604541 Contact Us For Availability
31
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
31
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
32
TRIM WPL 6041416 Contact Us For Availability
32
RIVET WPL 263979 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
SCREW WPL 4080151 Contact Us For Availability
32
SCREW WPL 4140011 Contact Us For Availability
32
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
33
WIRE HARNESS WPL 605601 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
34
GROUND WIRE WPL 2967528 Contact Us For Availability
34
CONDENSER SHROUD WPL 600212 Contact Us For Availability
34
TRAY, BUTTER WPL 299362 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208525 Contact Us For Availability
35
TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability
36
WIRE TIE WPL 575763 Contact Us For Availability
36
TRIM, DOOR SHELF WPL 65151102 Contact Us For Availability
37
TIMER WPL 541135 Contact Us For Availability
37
TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability
38
TRAY, DRIP WPL 601017 Contact Us For Availability
38
TRIM, DOOR SHELF WPL 6515128 Contact Us For Availability
39
WASHER WPL 199134 Contact Us For Availability
39
WIRE HARNESS WPL 6056610 Contact Us For Availability
39
WASHER WPL 542332 Contact Us For Availability
40
WASHER WPL 521851 Contact Us For Availability
× ![]()
