Model Whirlpool RB172PLW REFRIGERATOR – Common Parts & Diagrams

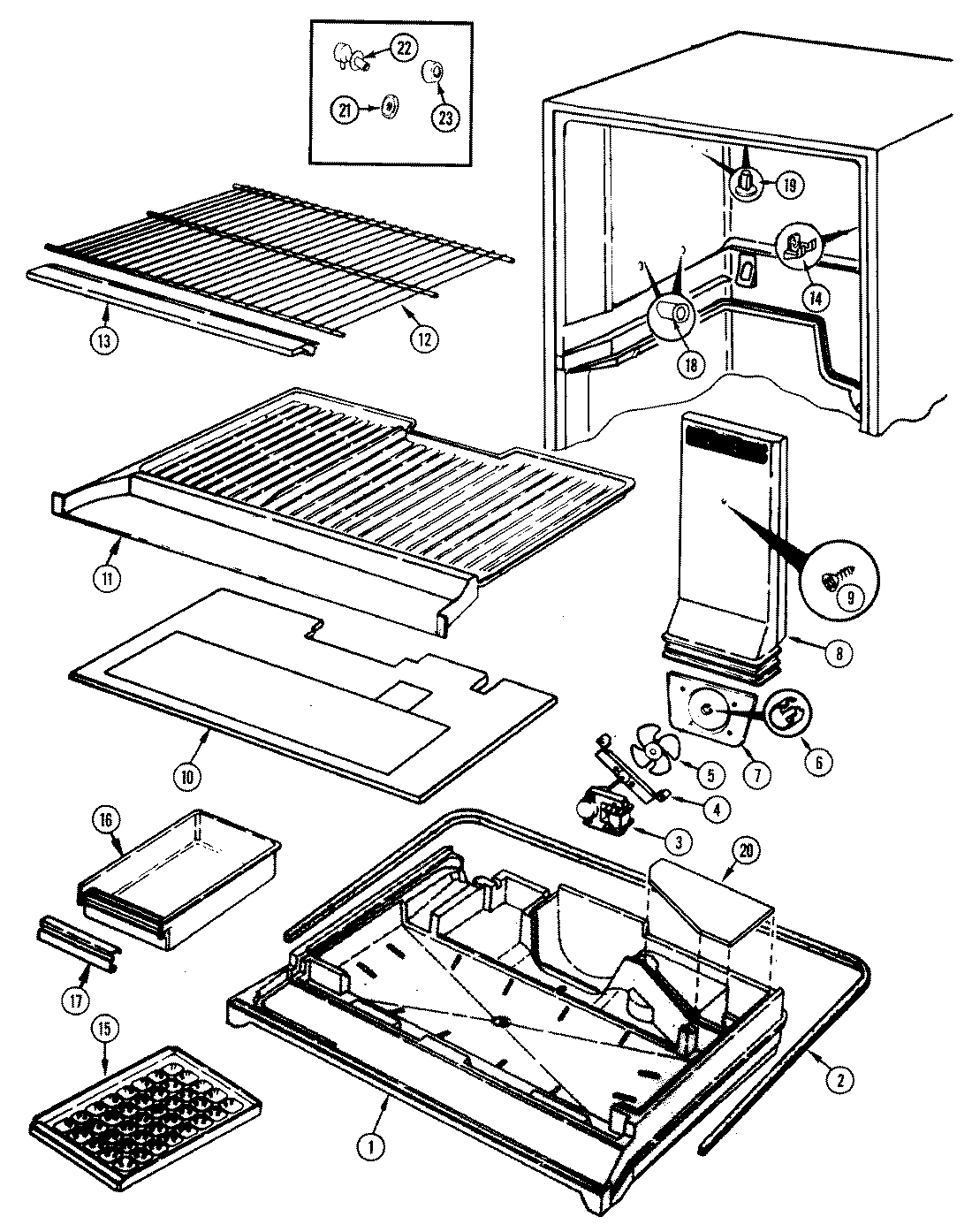

01 - FREEZER COMPARTMENT

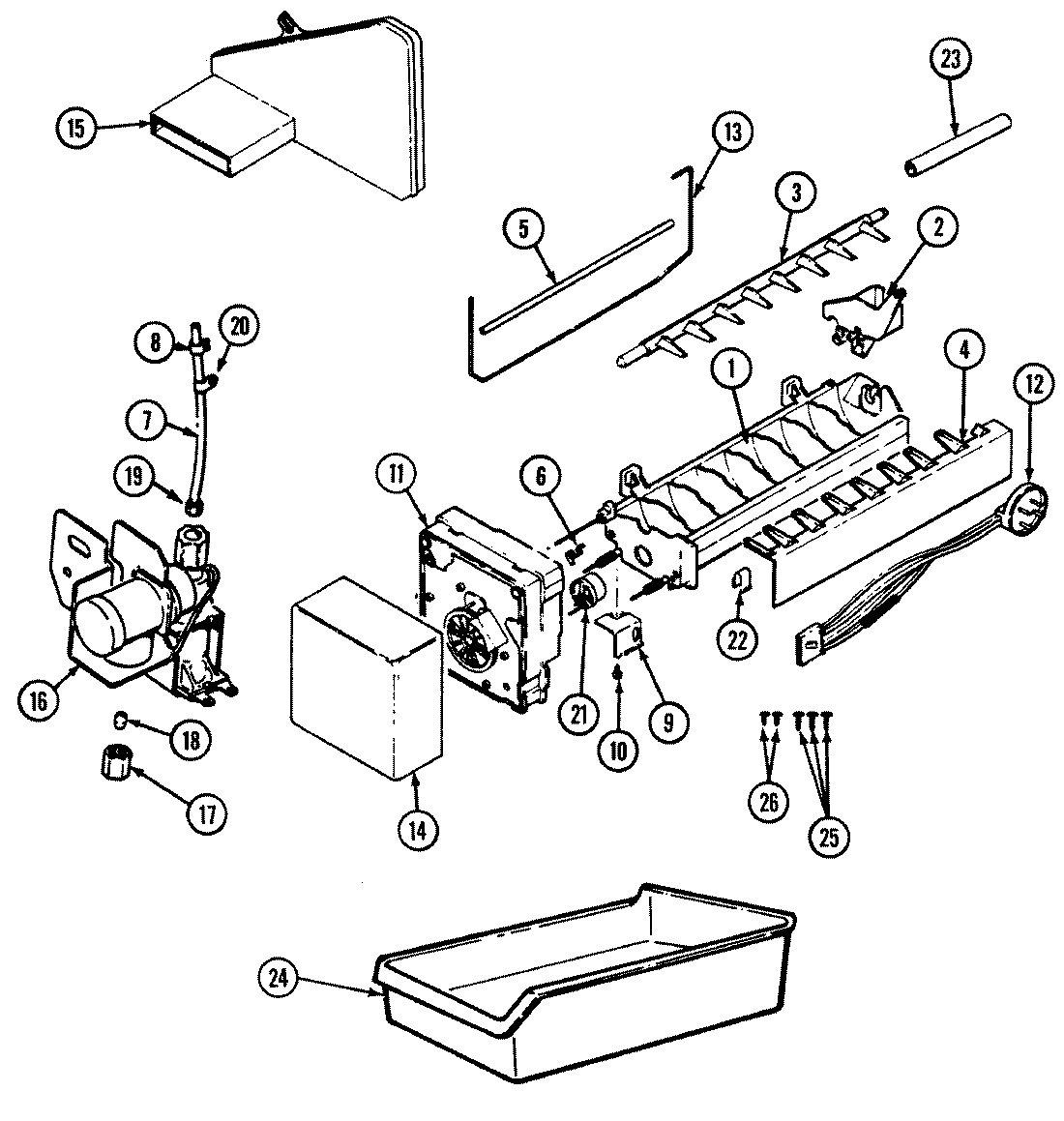

03 - OPTIONAL ICE MAKER KIT

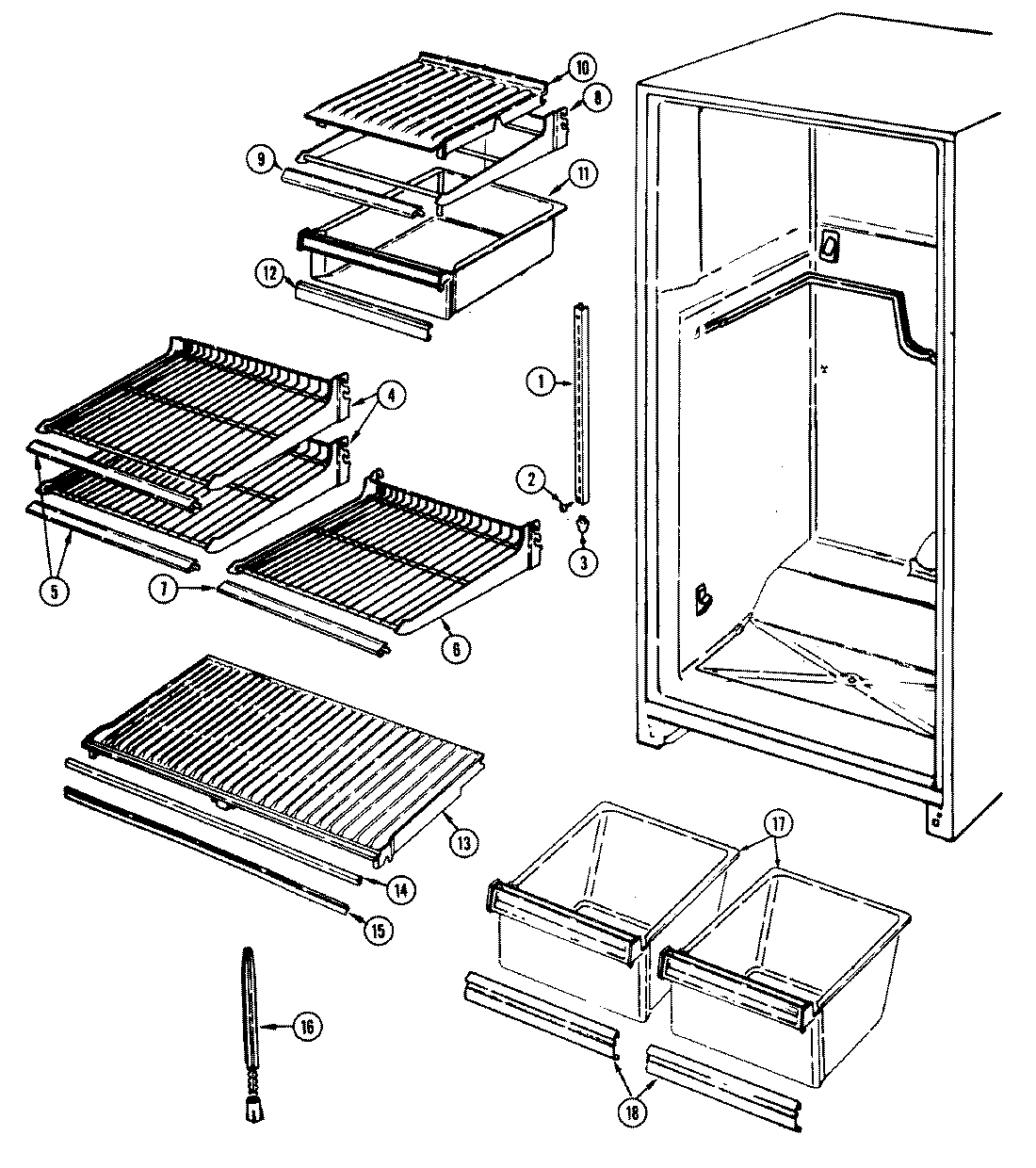

04 - SHELVES & ACCESSORIES

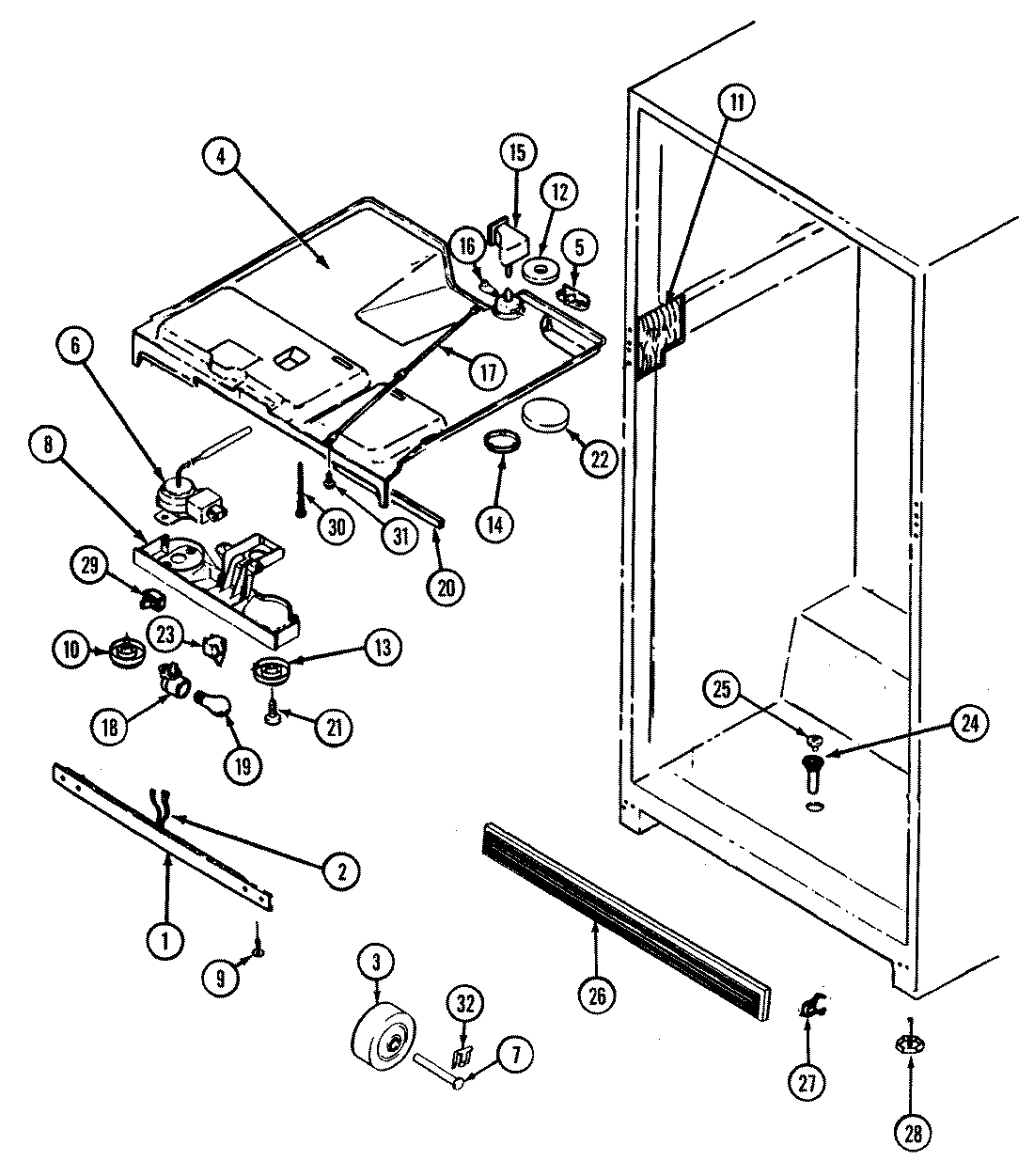

02 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB172PLW REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 694011 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
WHEEL WPL 298342 Contact Us For Availability
3
WIRE HARNESS, MULLION WPL 692871 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SHELF, SPLIT WPL 6041720 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
5
TRIM WPL 6041439 Contact Us For Availability
5
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
SHELF, SPLIT WPL 6041719 Contact Us For Availability
6
SCREW WPL 40002636 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 686014 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
7
PIN, WHEEL WPL 298352 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685922 Contact Us For Availability
8
CLAMP, SPRING WPL 603334 Contact Us For Availability
8
SHELF, MEAT WPL 6041613 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMP. CONT. WPL 694214 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
TRIM WPL 6041462 Contact Us For Availability
9
SCREW WPL 6527554 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
COVER, MEAT PAN WPL 600757 Contact Us For Availability
10
KNOB, CONTROL WPL 694175 Contact Us For Availability
11
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
PAN, MEAT WPL 665166 Contact Us For Availability
11
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
11
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
12
SHELF WPL 6043829 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
TRIM, CRISPER WPL 60132121 Contact Us For Availability
12
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
13
TRIM WPL 6041461 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SHELF, CRISPER WPL 668341 Contact Us For Availability
13
KNOB, CONTROL WPL 694176 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
14
COVER, CRANK WPL 674931 Contact Us For Availability
15
TRAY, ICE WPL 592812 Contact Us For Availability
15
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
15
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
15
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
15
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
15
ORIFICE ASSY., DAMPER WPL 698114 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
17
HANDLE, ICE CUBE PAN WPL 60132101 Contact Us For Availability
17
PAN, CRISPER (FRUIT) WPL 68221533 Contact Us For Availability
17
PAN, CRISPER (VEGETABLE) WPL 68221535 Contact Us For Availability
17
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
TRIM, CRISPER WPL 60132120 Contact Us For Availability
18
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
19
PLUG BUTTON WPL 669202 Contact Us For Availability
19
PLUG BUTTON WPL 675571 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
COVER, PLENUM WPL 664804 Contact Us For Availability
20
MAGNET WPL 694132 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
21
CAP, CONNECTOR WPL 681871 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
SCREW WPL 405016103 Contact Us For Availability
22
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
DISC, CRANK COVER WPL 690371 Contact Us For Availability
23
CAP, GROMMET WPL 683871 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
KICKPLATE WPL 698761 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
SWITCH, HEATER WPL 692831 Contact Us For Availability
30
SCREW WPL 6527578 Contact Us For Availability
31
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
31
SCREW WPL 6527513 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
× ![]()
