Model Whirlpool RB171AFV REFRIGERATOR – Common Parts & Diagrams
10 - WIRING INFORMATION

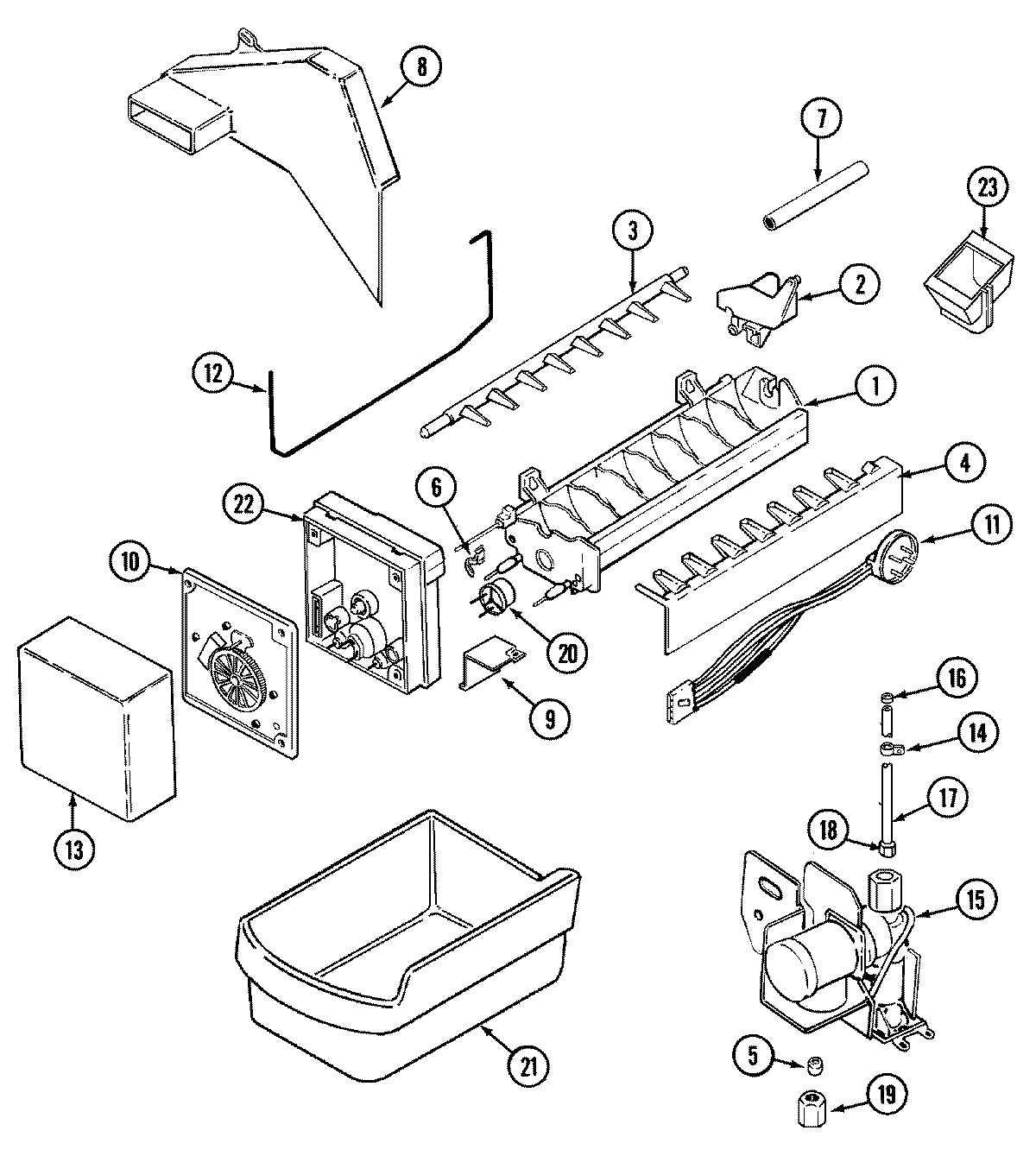

07 - ICE MAKER

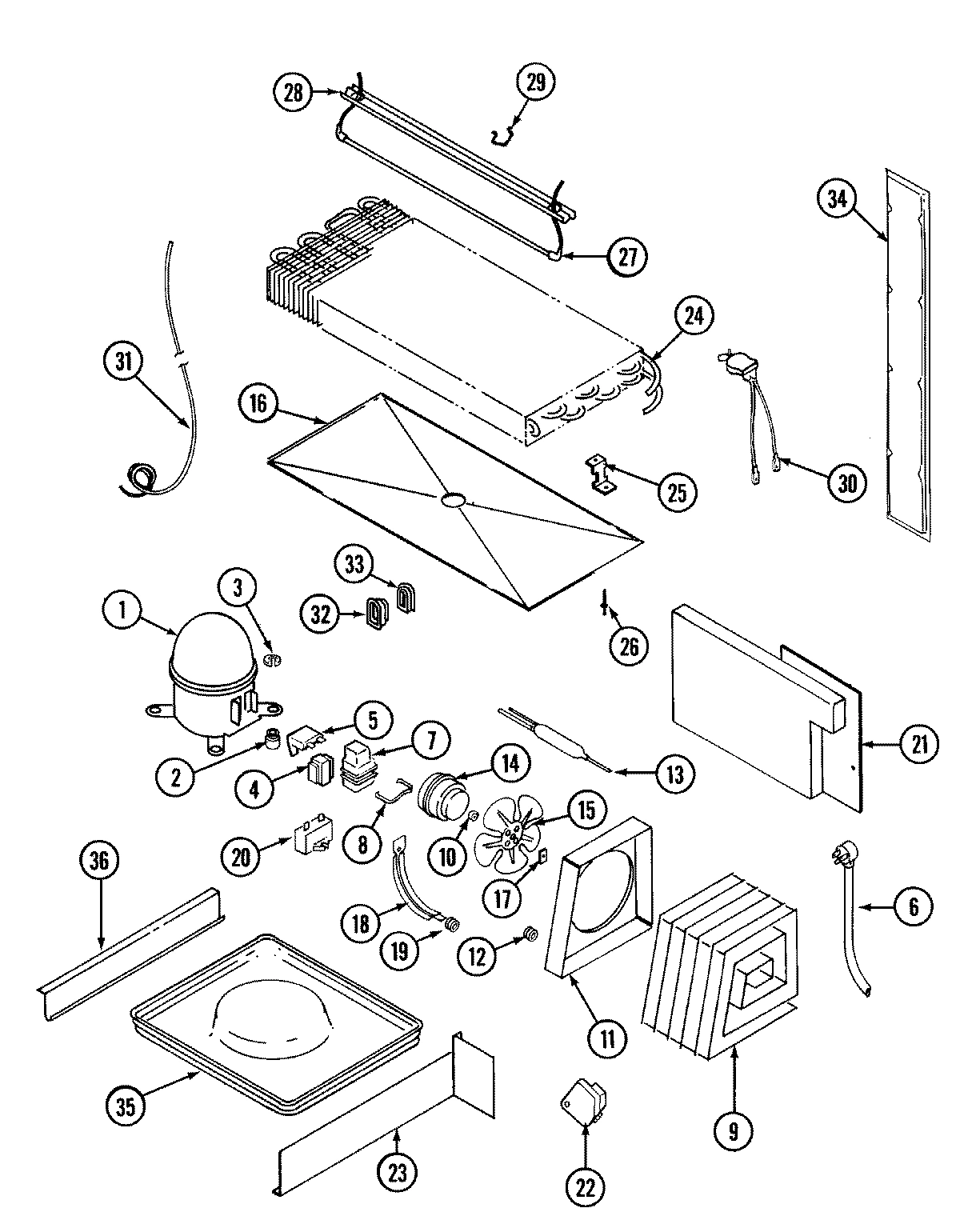

09 - UNIT COMPARTMENT & SYSTEM

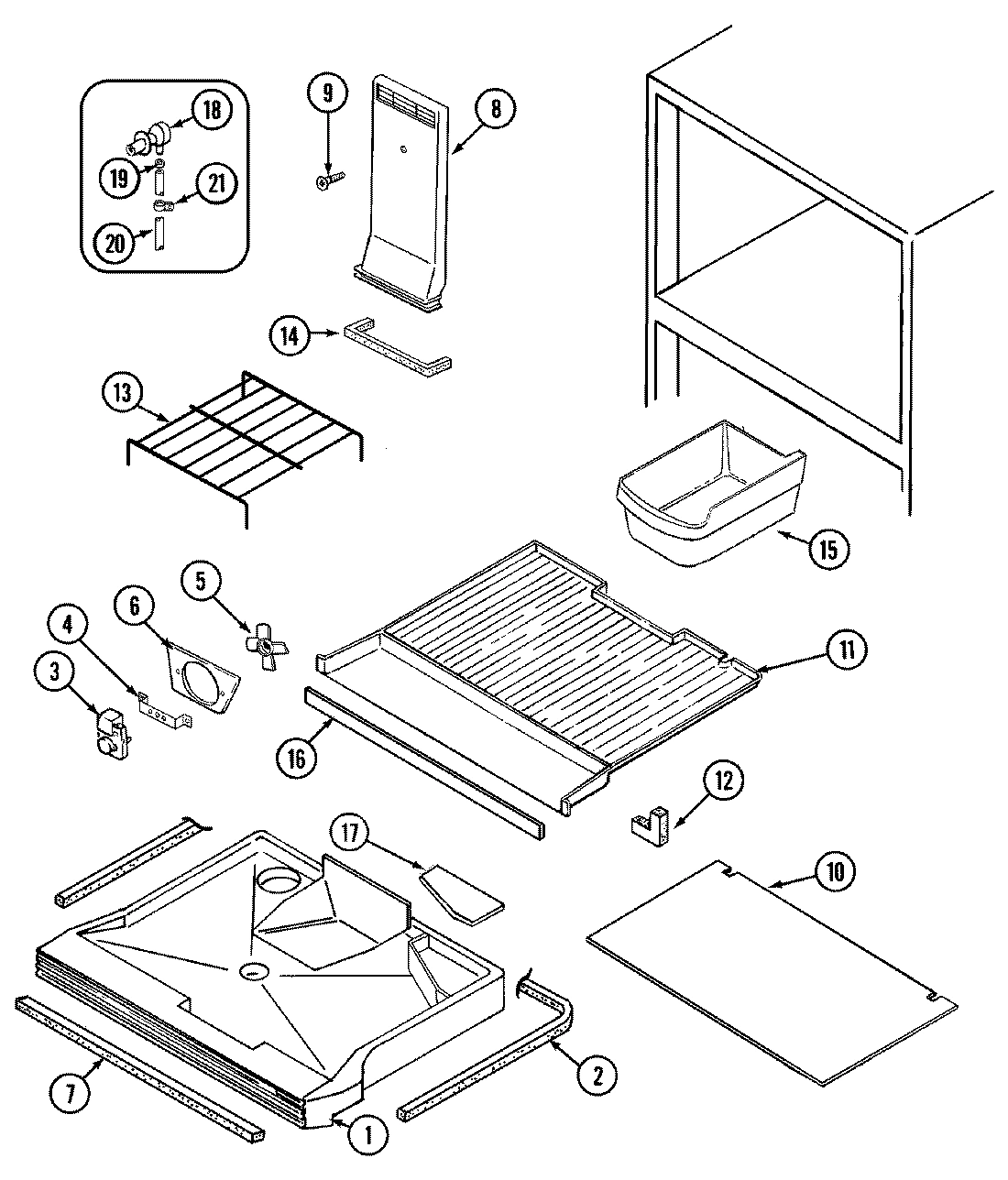

01 - FREEZER COMPARTMENT

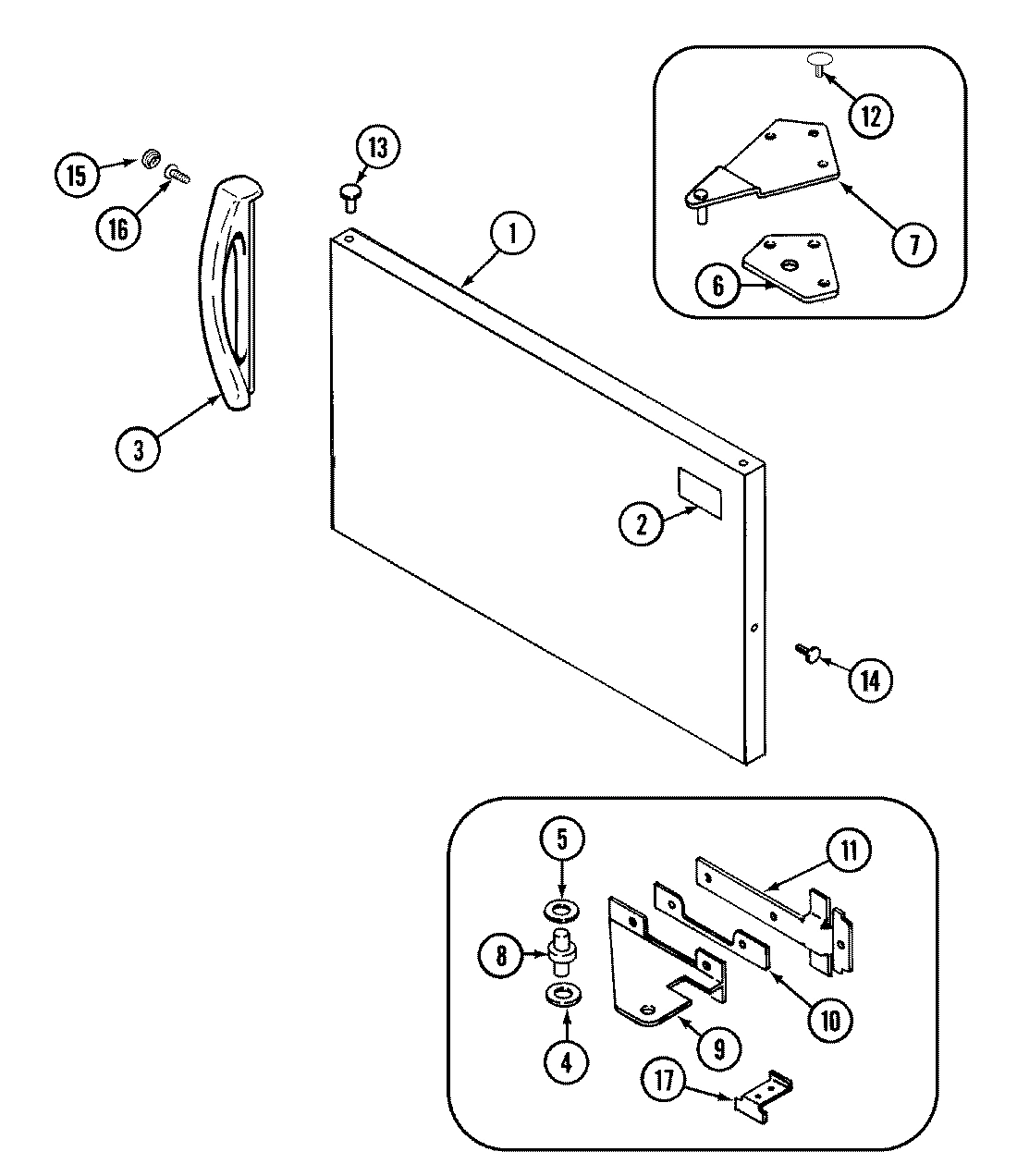

03 - FREEZER OUTER DOOR

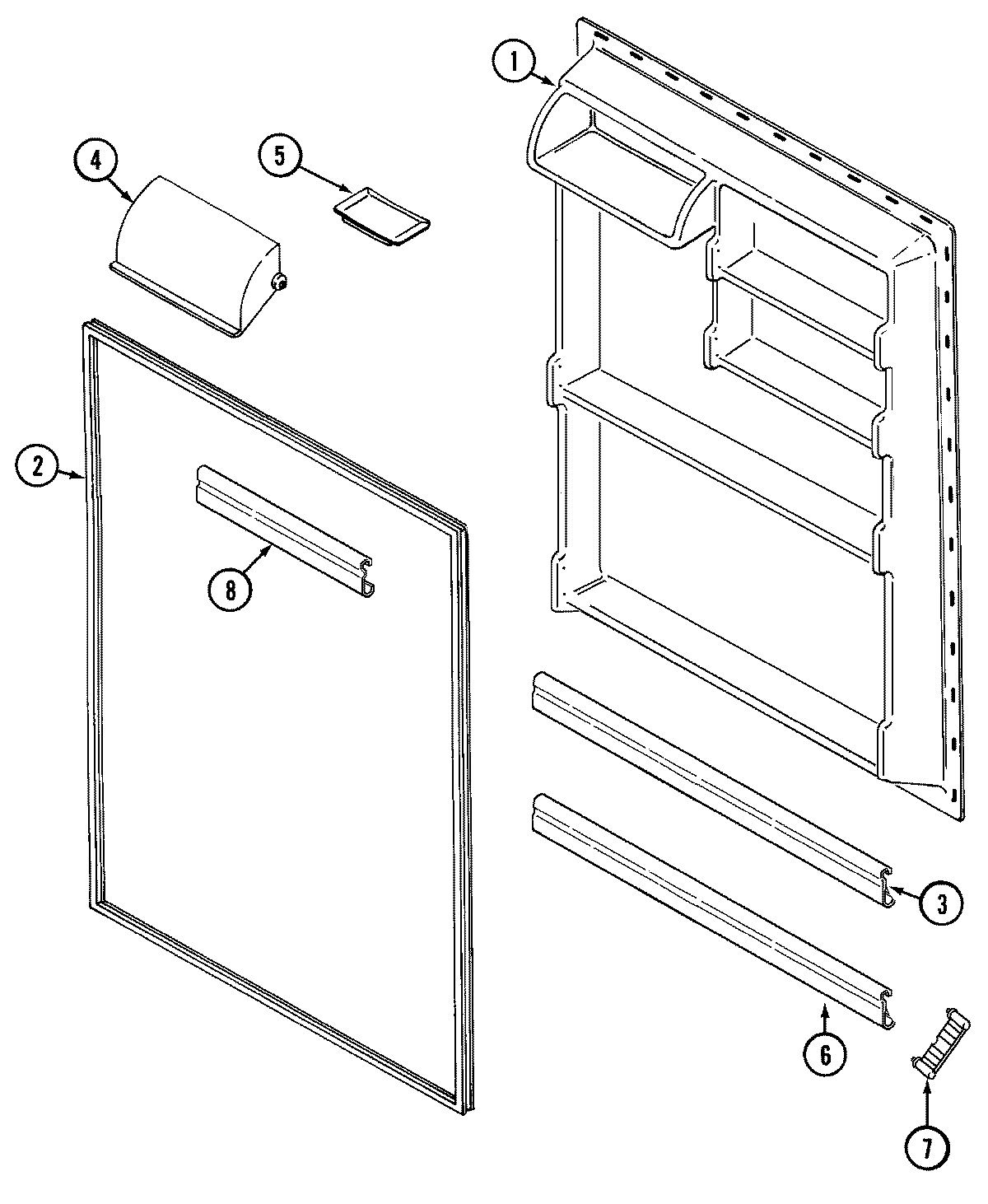

05 - FRESH FOOD INNER DOOR

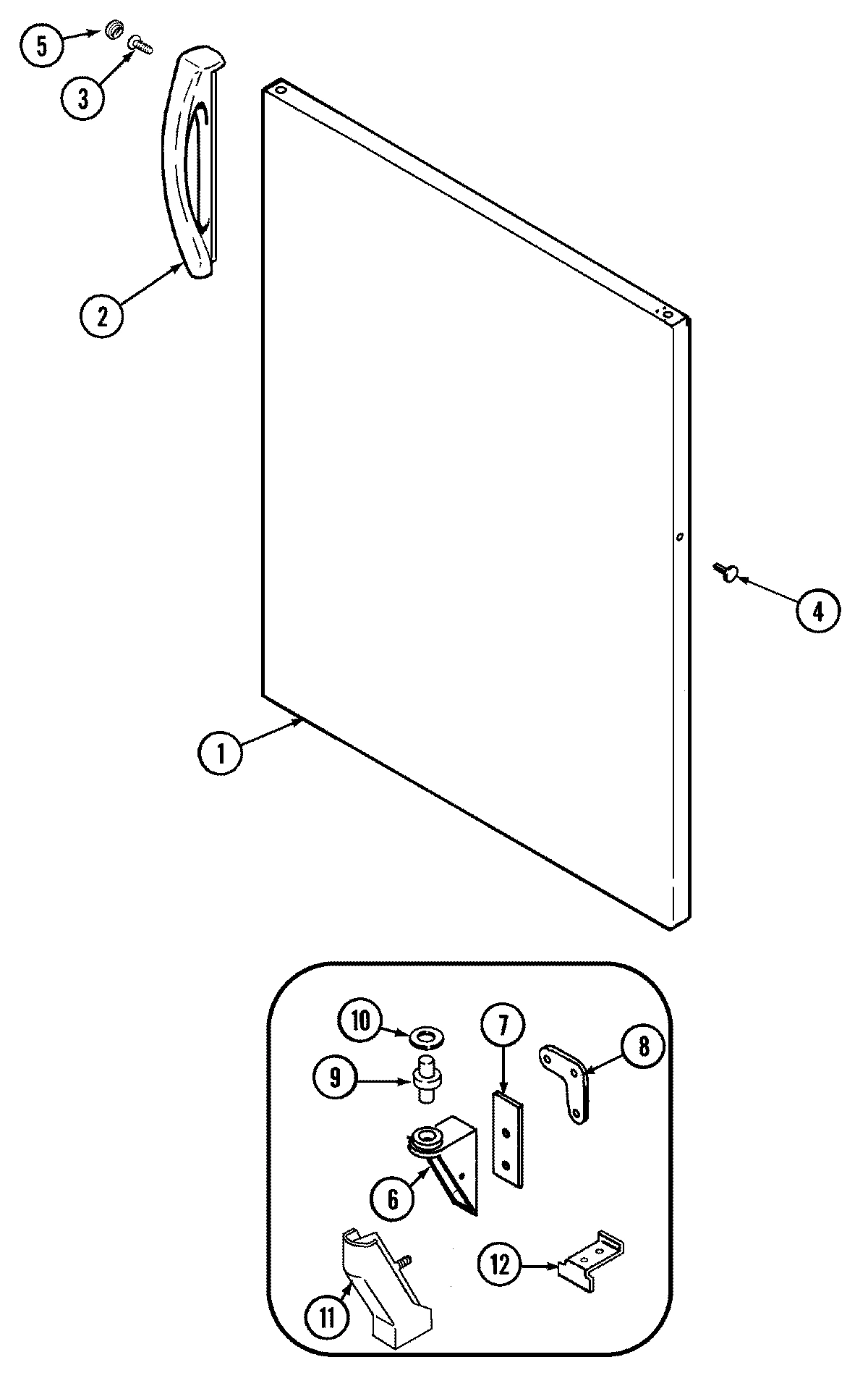

06 - FRESH FOOD OUTER DOOR

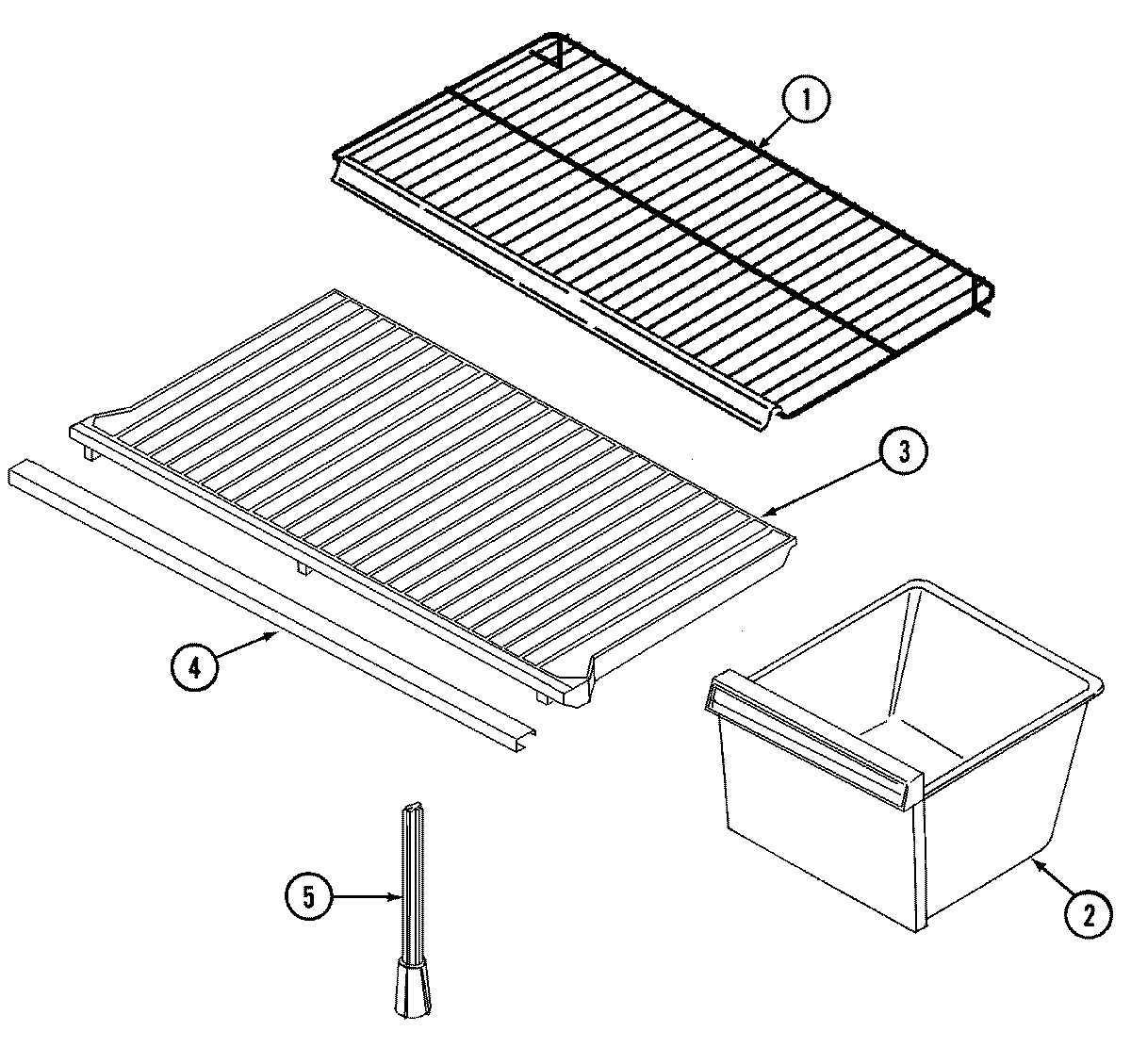

08 - SHELVES & ACCESSORIES

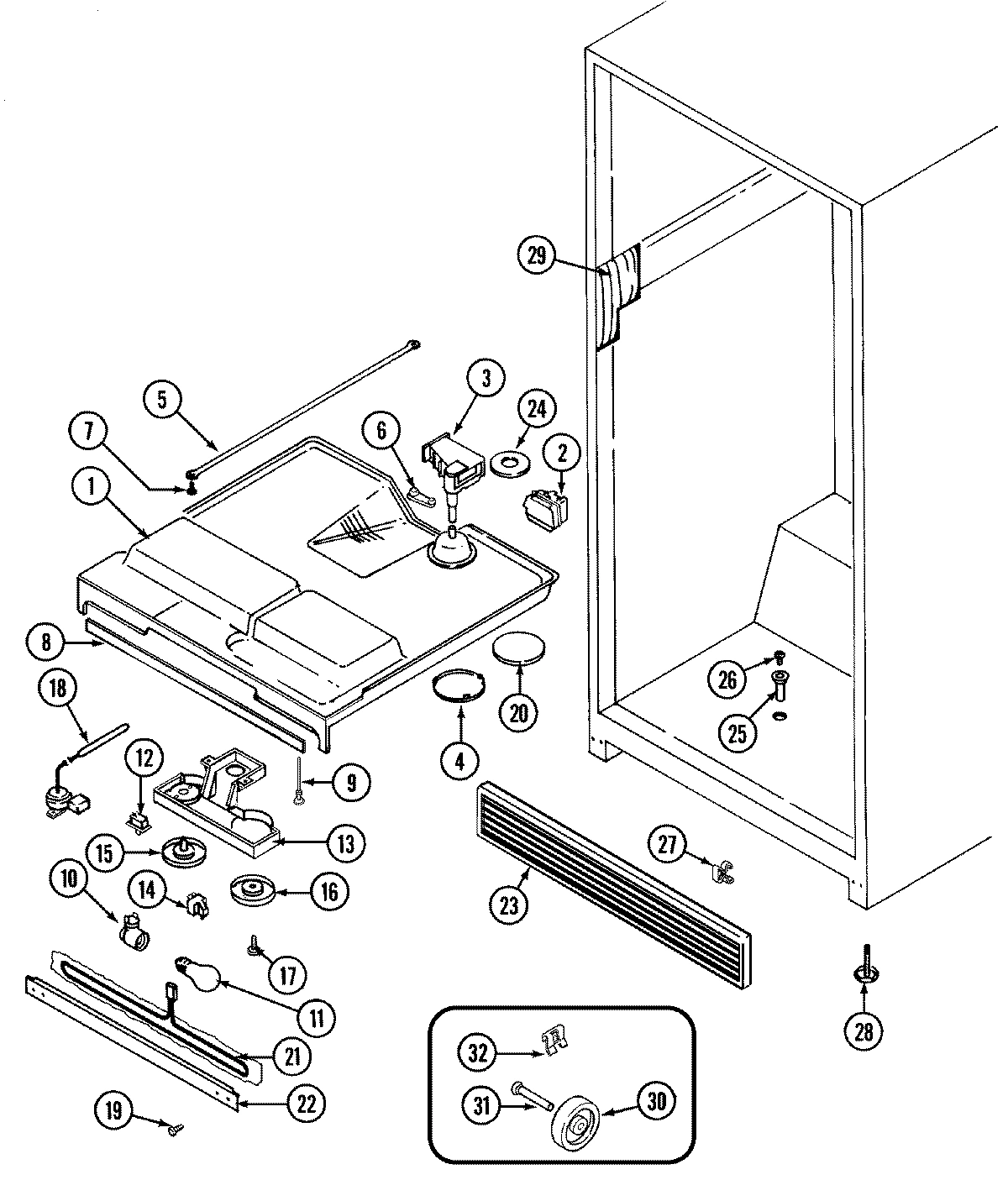

04 - FRESH FOOD COMPARTMENT

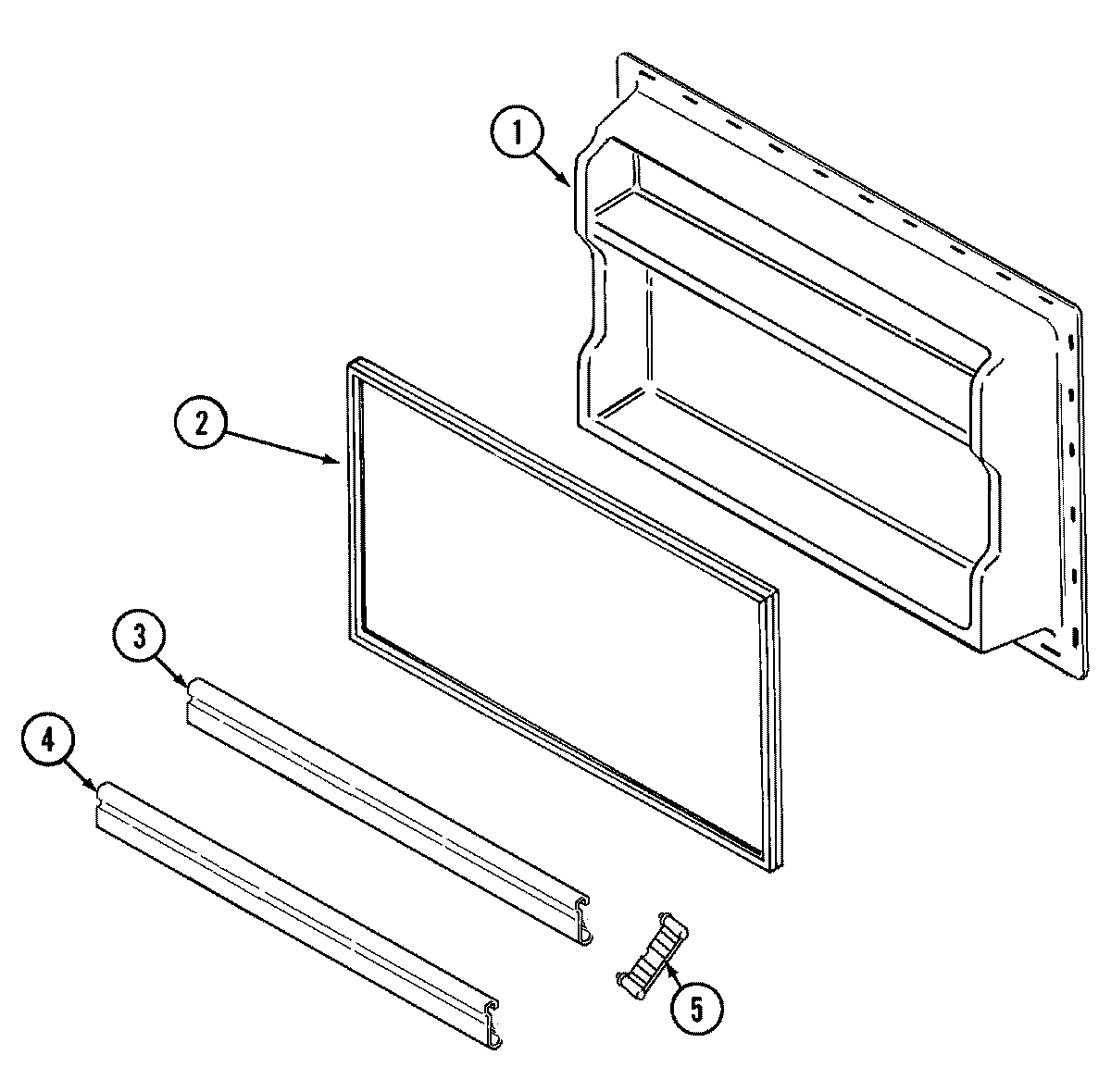

02 - FREEZER INNER DOOR
Common parts from model Whirlpool RB171AFV REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
COMPRESSOR WPL RA10111 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694011 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 61001744 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61001493 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 61001742 Contact Us For Availability
1
SHELF, SLIDE-OUT----NA WPL 700955 Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
1
LINER WPL 694661 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
2
GASKET WPL 700254 Contact Us For Availability
2
HANDLE, DOOR (WHT) WPL 61001717 Contact Us For Availability
2
PAN, CRISPER WPL 68221148 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
GASKET WPL 700253 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
HANDLE, DOOR (WHT) WPL 61001716 Contact Us For Availability
3
SCREW WPL 6527570 Contact Us For Availability
3
TRIM, SHELF WPL 7011115 Contact Us For Availability
3
SHELF, CRISPER (W/TRIM) WPL 61001583 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
SCREW WPL 40001536 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
WASHER WPL 542331 Contact Us For Availability
4
PLUG BUTTON, HANDLE HOLE (WHT) WPL 694802 Contact Us For Availability
4
DOOR, DAIRY WPL 6905823 Contact Us For Availability
4
TRIM, CRISPER SHELF WPL 61001522 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
TRIM, SHELF WPL 7011116 Contact Us For Availability
5
SLEEVE, BRASS WPL 694311 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
WASHER WPL 674836 Contact Us For Availability
5
PLUG BUTTON, HANDLE (WHT) WPL 699221 Contact Us For Availability
5
TRAY, BUTTER WPL 299362 Contact Us For Availability
5
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
5
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CORD, POWER WPL 528903 Contact Us For Availability
6
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
6
TRIM, SHELF WPL 7011118 Contact Us For Availability
6
HINGE, LOWER WPL 61001587 Contact Us For Availability
6
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
7
CLAMP, FILL TUBE WPL 61001169 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
CLIP, FILL TUBE WPL 678771 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
7
HINGE, UPPER WPL 5370924 Contact Us For Availability
7
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
8
SCREW WPL 40002636 Contact Us For Availability
8
DUCT, AIR WPL 701981 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TUNNEL, AIR WPL 702082 Contact Us For Availability
8
MAGNET WPL 694131 Contact Us For Availability
8
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
8
TRIM, SHELF WPL 701114 Contact Us For Availability
8
SCREW WPL 6527559 Contact Us For Availability
8
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SCREW WPL 6527562 Contact Us For Availability
9
HINGE WPL 695143 Contact Us For Availability
9
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
10
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001205 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
11
SCREW WPL 6527561 Contact Us For Availability
11
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
11
COVER, LOWER HINGE (WHT) WPL 61001611 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
12
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614414 Contact Us For Availability
12
SCREW WPL 6527548 Contact Us For Availability
12
STOP, DOOR WPL 692562 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
TRIVET WPL 682598 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMP. CONTROL WPL 704205 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
SEAL, AIR TUNNEL WPL 6632537 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
15
SCREW WPL 4010181 Contact Us For Availability
15
PAN, ICE WPL 683461 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 61001114 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 61001666 Contact Us For Availability
17
COVER, PLENUM WPL 61664804 Contact Us For Availability
17
SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
20
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
21
CLAMP, TUBING WPL 535168 Contact Us For Availability
21
SCREW WPL 6527550 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663383 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
SCREW WPL 4050071 Contact Us For Availability
22
TIMER, DEFROST WPL 682331 Contact Us For Availability
22
WIRE HARNESS, MULLION WPL 61001487 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
23
TROUGH, WATER INLET WPL 61001305 Contact Us For Availability
23
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (WHT) WPL 701285 Contact Us For Availability
24
EVAPORATOR WPL 698221 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
HEATER, DEFROST WPL 6010634 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501326 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 61001136 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 61001560 Contact Us For Availability
35
PAN, DRAIN WPL 682361 Contact Us For Availability
36
SCREW WPL 4000171 Contact Us For Availability
36
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
36
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
37
MANUAL, USE & CARE WPL 61001720 Contact Us For Availability
38
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001838 Contact Us For Availability
× ![]()
Login and Registration Form
