Model Whirlpool RB15KN-1AF REFRIGERATOR – Common Parts &amp; Diagrams

1

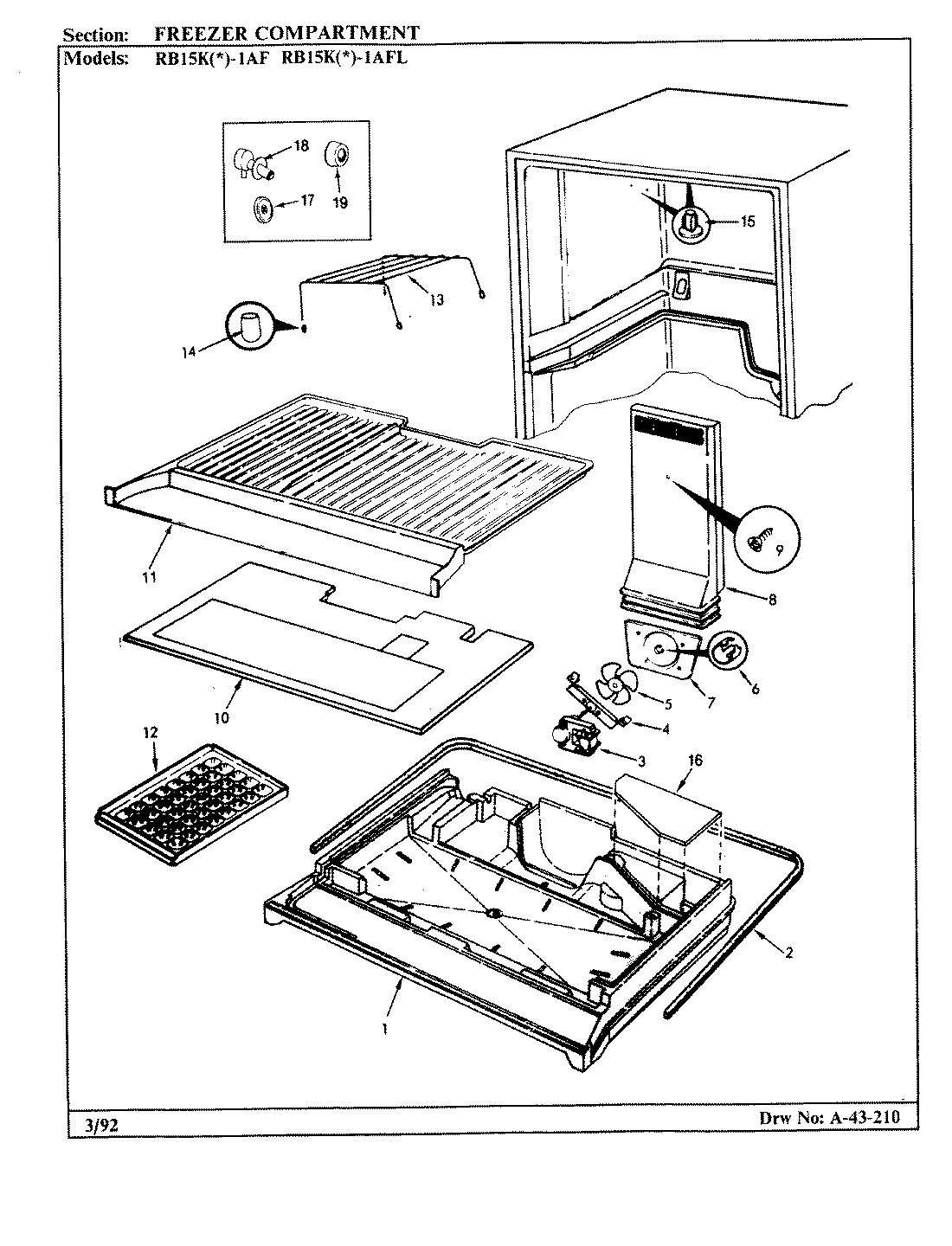

MULLION DIVIDER TRAY WPL 675182 Contact Us For Availability

1

SEAL, FRONT CORNER WPL 677301 Contact Us For Availability

1

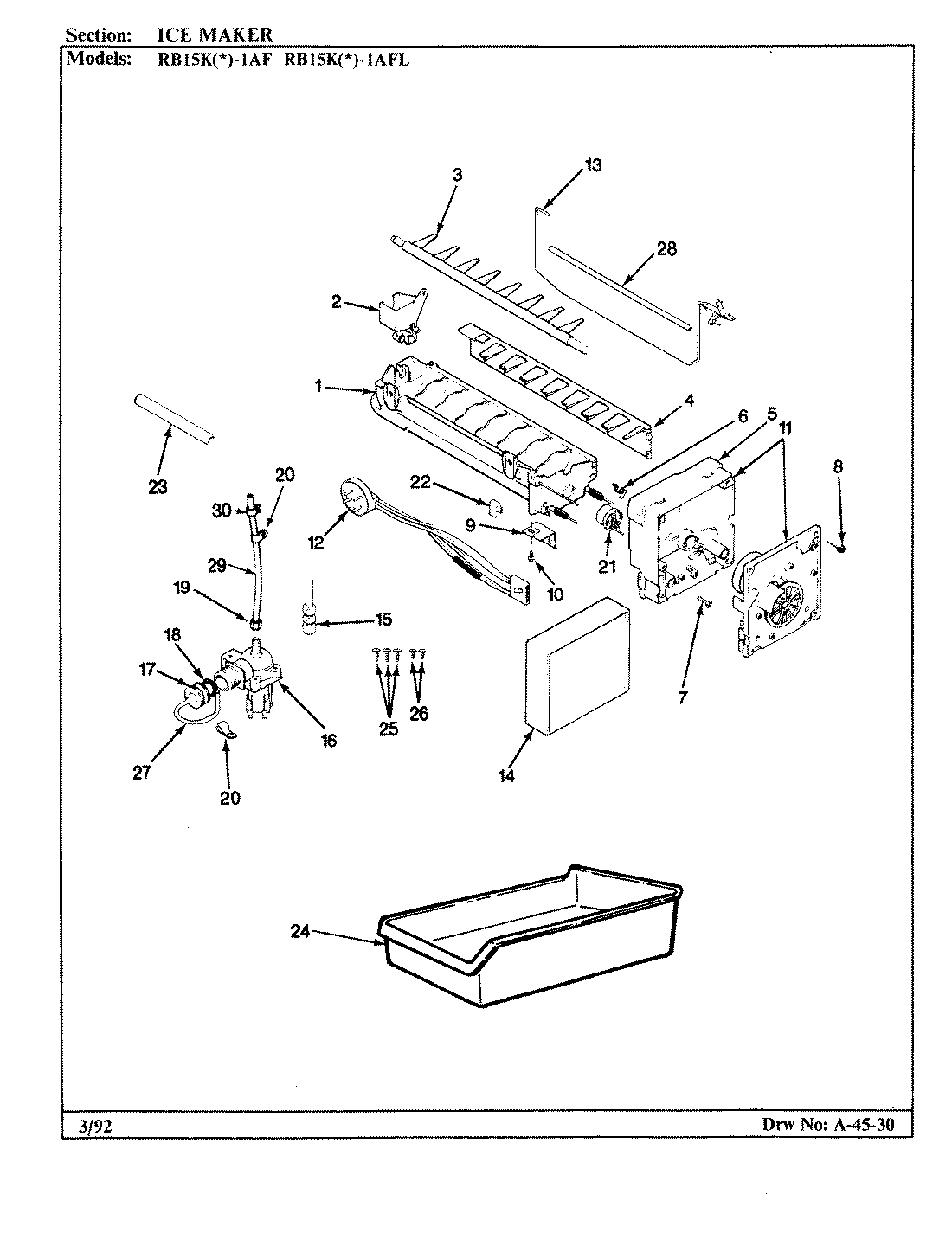

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

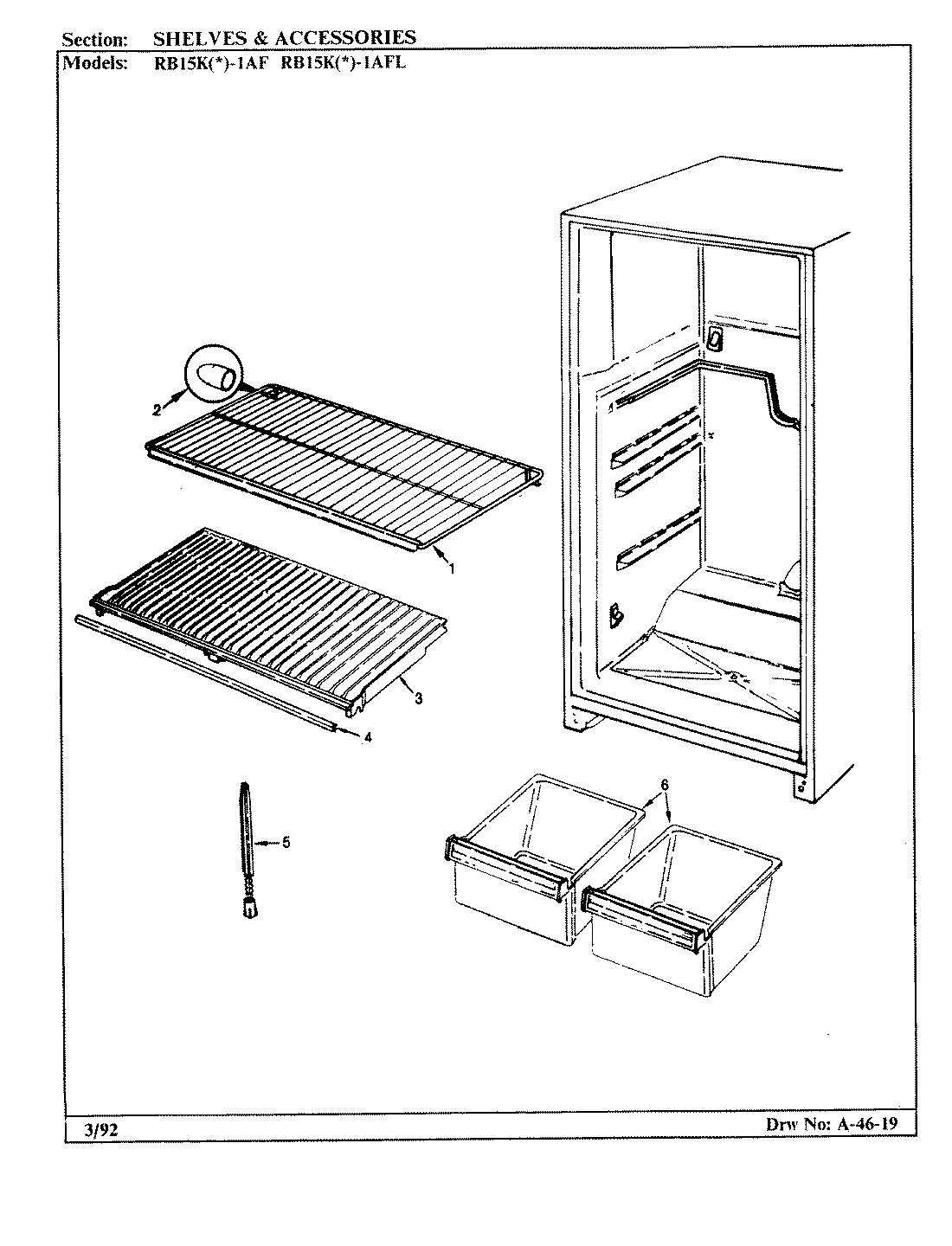

SHELF WPL 606541 Contact Us For Availability

2

SEAL 72`` WPL 688665 Contact Us For Availability

2

TIP WPL 245803 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

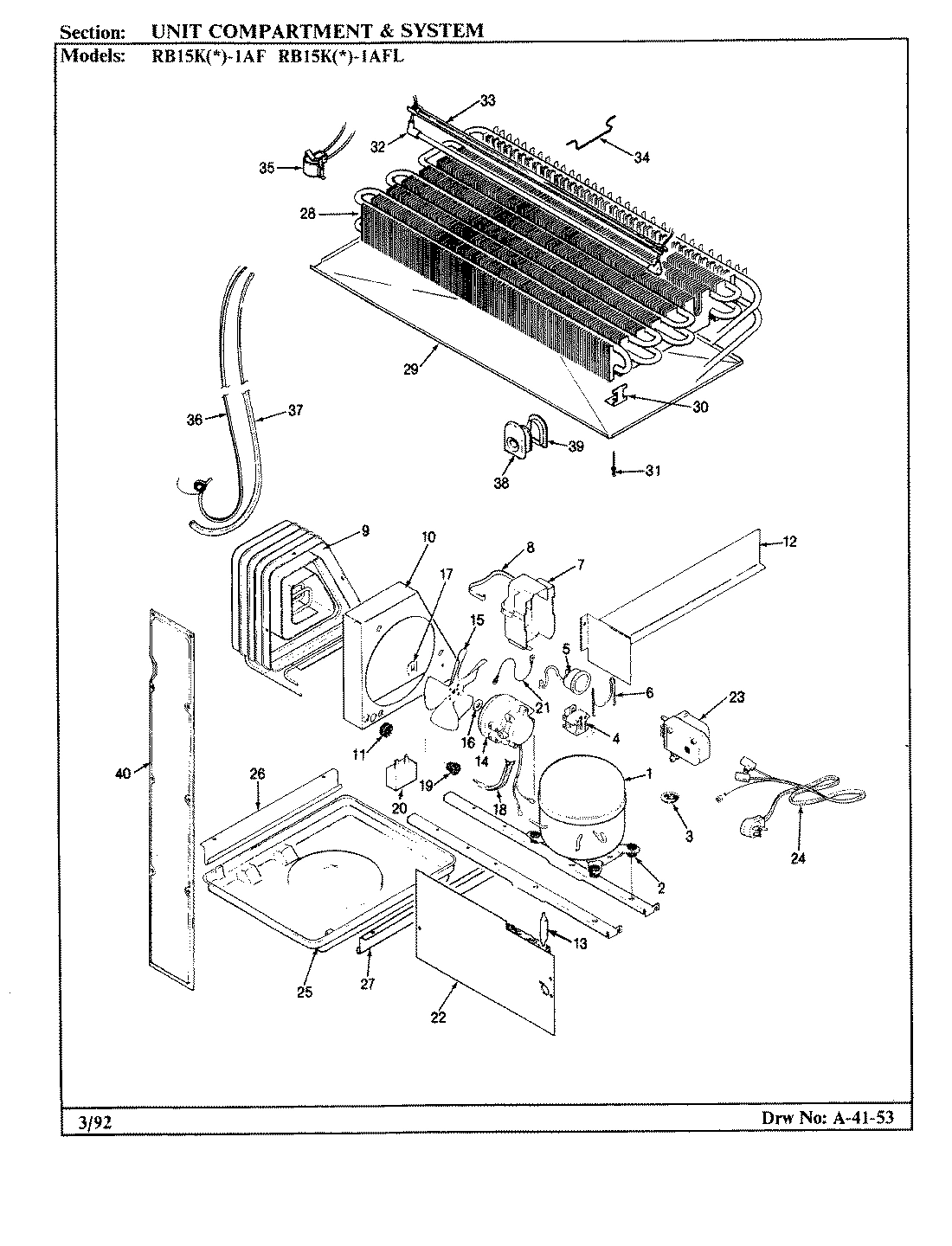

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SHELF, CRISPER WPL 668341 Contact Us For Availability

3

SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability

3

CLIP WPL 621651 Contact Us For Availability

4

SCREW WPL 40001512 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

TRIM WPL 604541 Contact Us For Availability

4

RELAY, START WPL 665881 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability

5

OVERLOAD WPL 6329412 Contact Us For Availability

6

WASHER, SPRING WPL 420092900 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

PAN, CRISPER WPL 68221124 Contact Us For Availability

6

CLIP, OVERLOAD WPL 658871 Contact Us For Availability

7

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

7

SCREW WPL 951051 Contact Us For Availability

7

COVER, TERMINAL WPL 665891 Contact Us For Availability

8

SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability

8

TUNNEL, AIR WPL 685921 Contact Us For Availability

8

SCREW WPL 951061 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

9

SCREW WPL 40001531 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604082 Contact Us For Availability

9

CONDENSER WPL RA438711 Contact Us For Availability

10

COVER, EVAPORATOR WPL 664031 Contact Us For Availability

10

SCREW, BRACKET WPL 951081 Contact Us For Availability

10

SHROUD, CONDENSER WPL 662281 Contact Us For Availability

BOTTOM, FRZ. WPL 664601 Contact Us For Availability

SEAL WPL 689461 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

12

ICE CUBE TRAY WPL 601121 Contact Us For Availability

12

WIRE HARNESS WPL 679101 Contact Us For Availability

12

BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability

13

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

13

TRIVET WPL 682591 Contact Us For Availability

13

ARM, SENSOR WPL 681121 Contact Us For Availability

14

COVER, ICE MAKER WPL 683282 Contact Us For Availability

14

SCREW WPL 6527533 Contact Us For Availability

14

MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability

PLUG BUTTON WPL 669202 Contact Us For Availability

PLUG BUTTON WPL 675571 Contact Us For Availability

UNION, COMPRESSION WPL 542671 Contact Us For Availability

BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability

16

COVER, PLENUM WPL 664804 Contact Us For Availability

16

VALVE, WATER WPL 601843 Contact Us For Availability

16

WASHER WPL 199134 Contact Us For Availability

17

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

17

CAP, CONNECTOR WPL 681871 Contact Us For Availability

17

NUT, INLET TUBING WPL 246851 Contact Us For Availability

18

GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability

18

WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability

18

BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability

19

CAP, GROMMET WPL 683871 Contact Us For Availability

19

NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability

19

GROMMET, BRACKET WPL 569331 Contact Us For Availability

20

SCREW WPL 4000161 Contact Us For Availability

20

CLAMP, TUBING WPL 535168 Contact Us For Availability

20

CAPACITOR, RUN WPL 658891 Contact Us For Availability

21

THERMOSTAT WPL 950921 Contact Us For Availability

21

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

21

GROUND WIRE WPL 296753 Contact Us For Availability

22

CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability

22

COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability

22

SCREW WPL 998645 Contact Us For Availability

23

TUBE, WATER ENTRY WPL 676665 Contact Us For Availability

23

SCREW WPL 4050071 Contact Us For Availability

23

TIMER, DEFROST WPL 657021 Contact Us For Availability

24

PAN, ICE WPL 683271 Contact Us For Availability

24

CORD, POWER WPL 528902 Contact Us For Availability

25

SCREW WPL 4000211 Contact Us For Availability

25

PAN, DRAIN WPL 682361 Contact Us For Availability

26

SCREW WPL 4010181 Contact Us For Availability

26

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

27

INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability

27

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

28

SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability

28

EVAPORATOR WPL RA4362010 Contact Us For Availability

29

TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability

29

TRAY, DRIP WPL 601017 Contact Us For Availability

30

CLAMP, SPRING WPL 603334 Contact Us For Availability

30

BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability

31

RIVET WPL 263979 Contact Us For Availability

32

HEATER, DEFROST WPL 6010634 Contact Us For Availability

33

SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability

34

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

35

THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability

36

HEAT EXCHANGER WPL RA4364513 Contact Us For Availability

37

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

37

WIRE TIE WPL 662231 Contact Us For Availability

38

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

39

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

39

RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability

39

WIRE HARNESS, MAIN WPL 691611 Contact Us For Availability

40

SCREW WPL 4000171 Contact Us For Availability

40

WIRE COVER WPL 601101 Contact Us For Availability

41

MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
