Model Whirlpool RB15KA1AF REFRIGERATOR – Common Parts & Diagrams

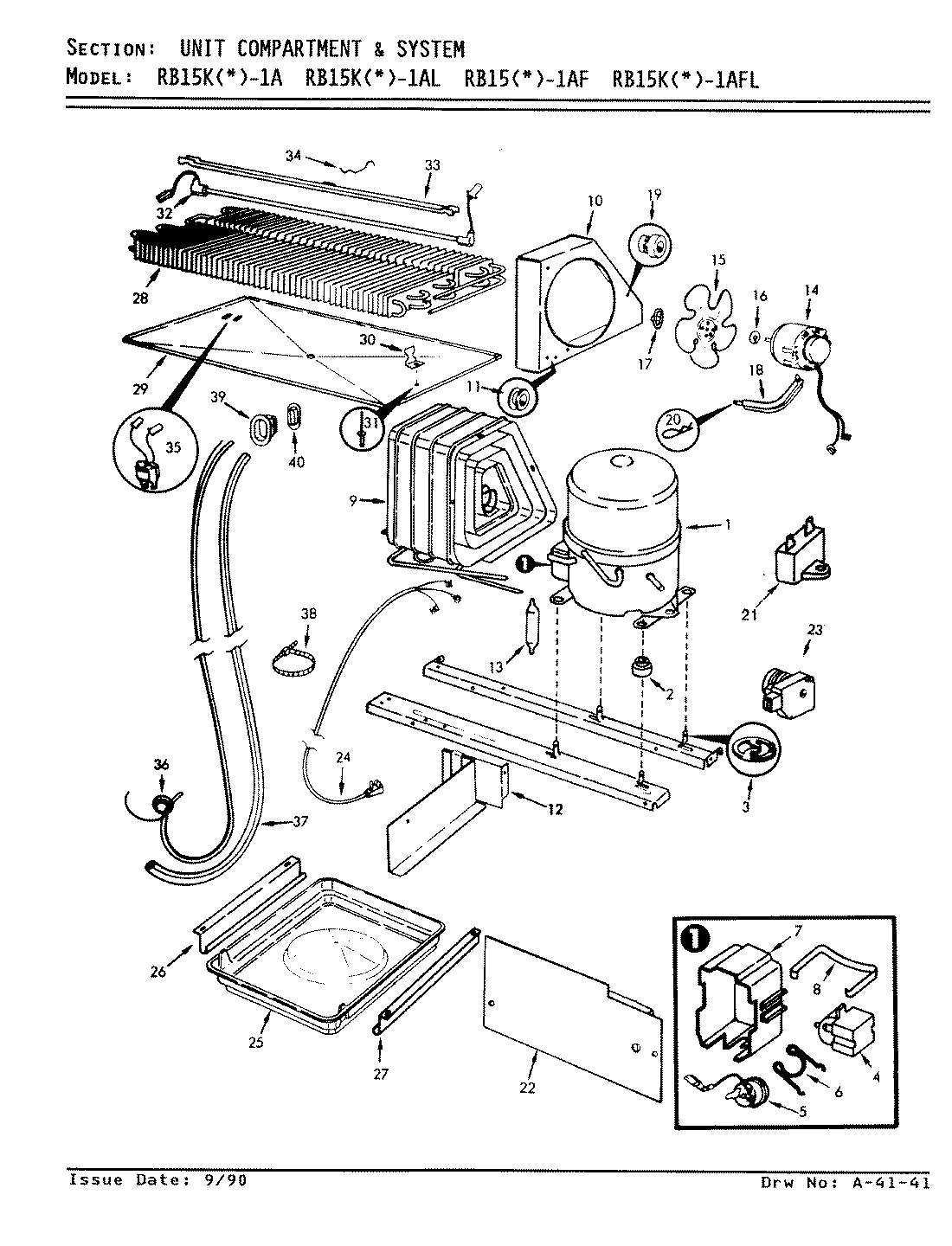

05 - UNIT COMPARTMENT & SYSTEM

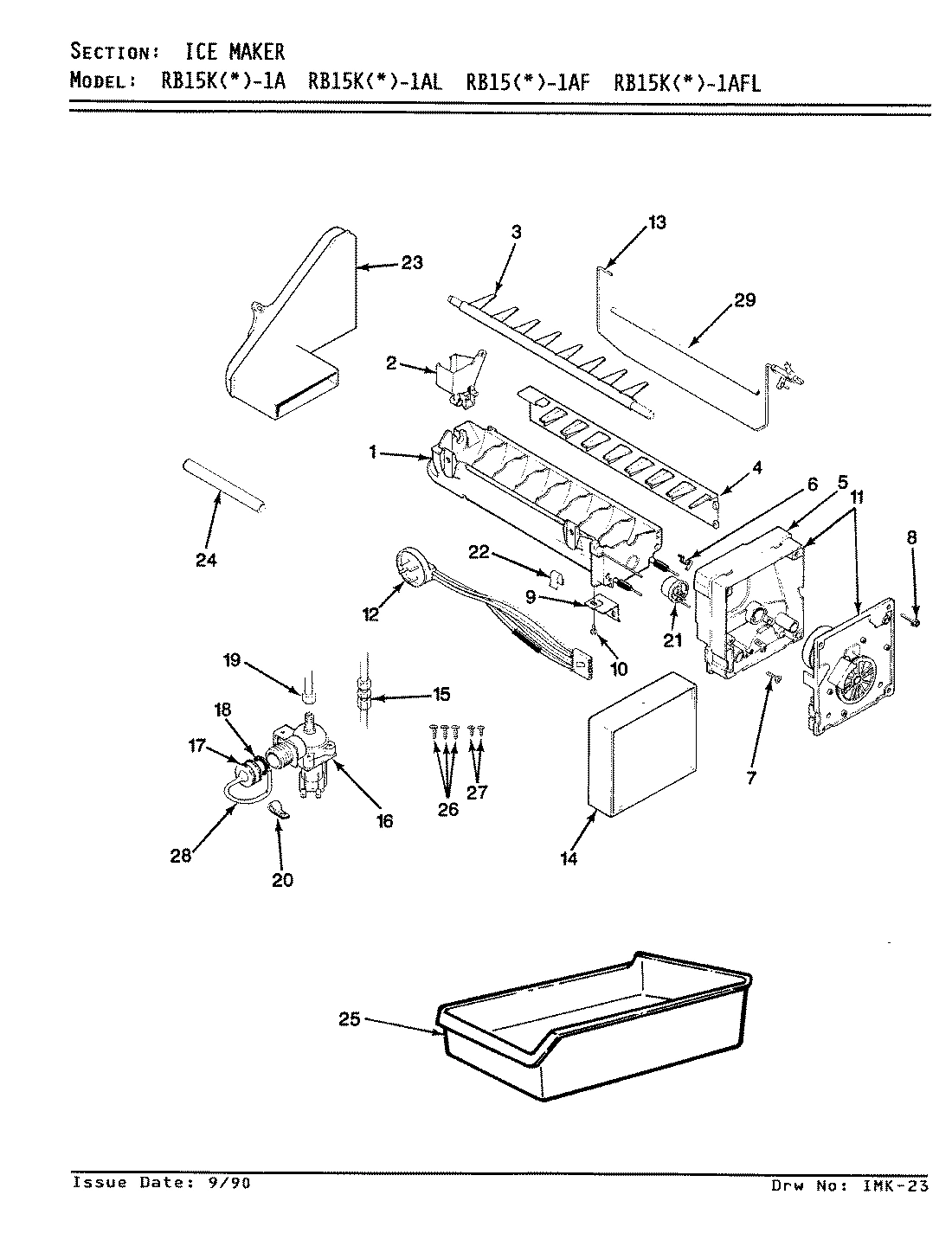

04 - ICE MAKER

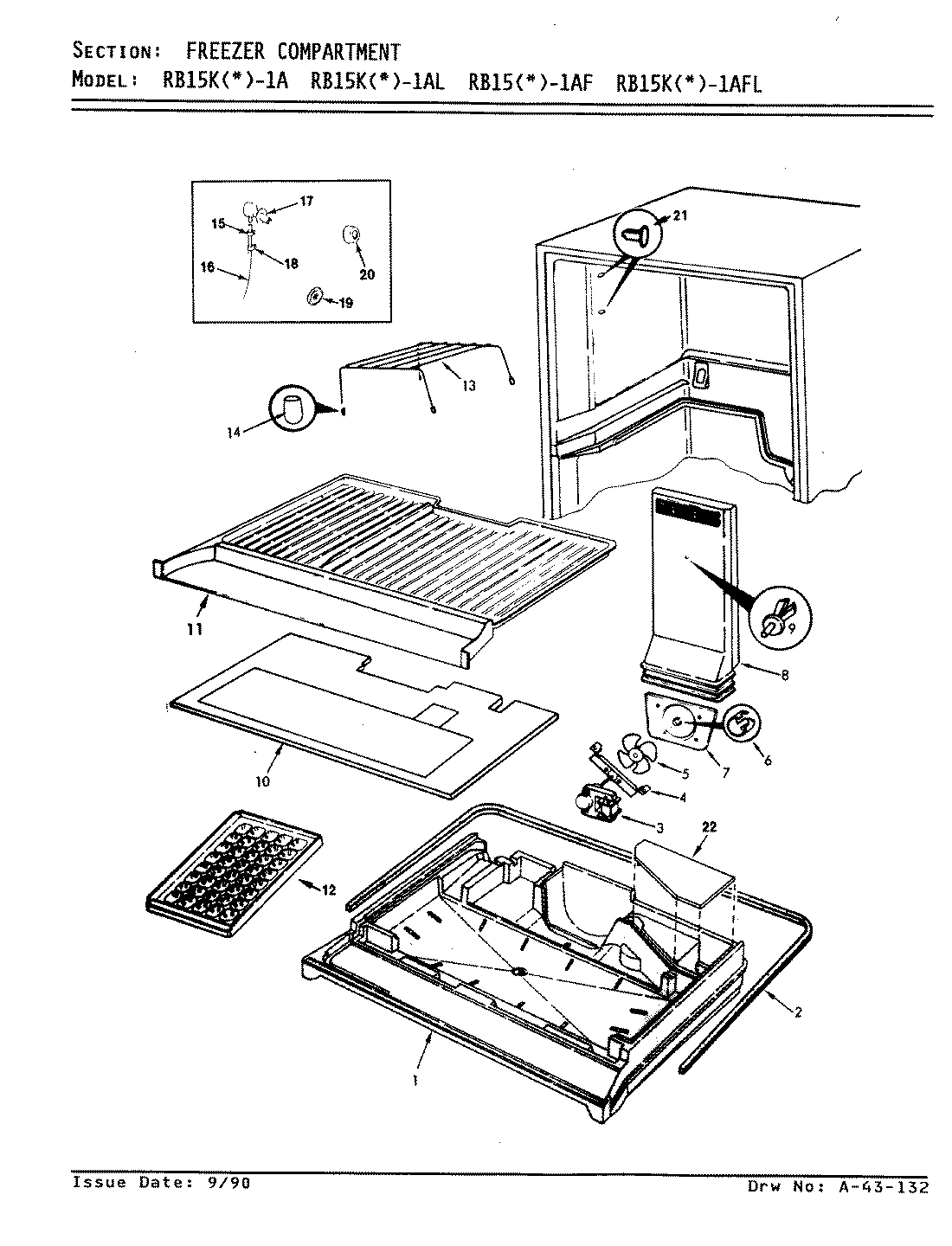

02 - FREEZER COMPARTMENT

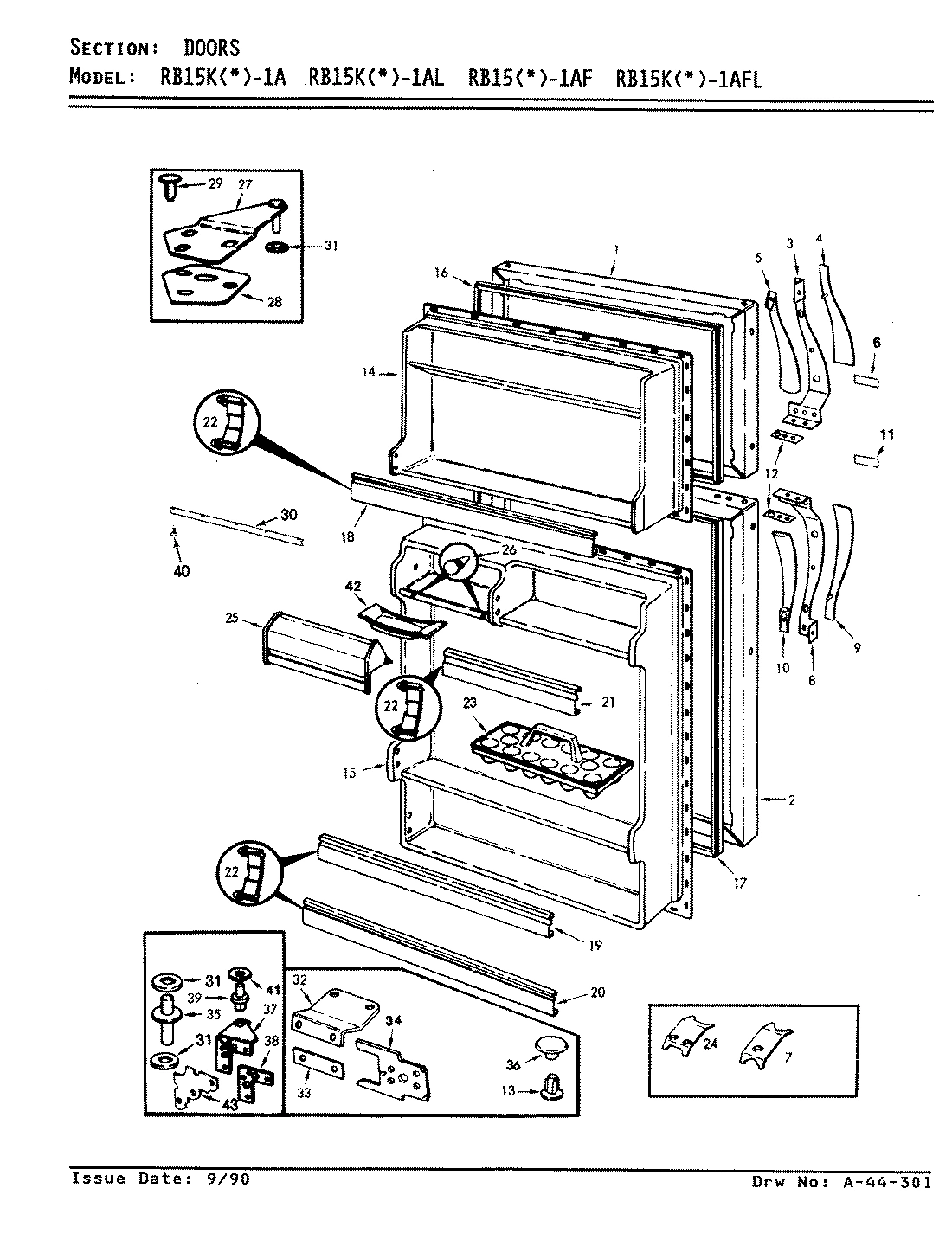

01 - DOORS

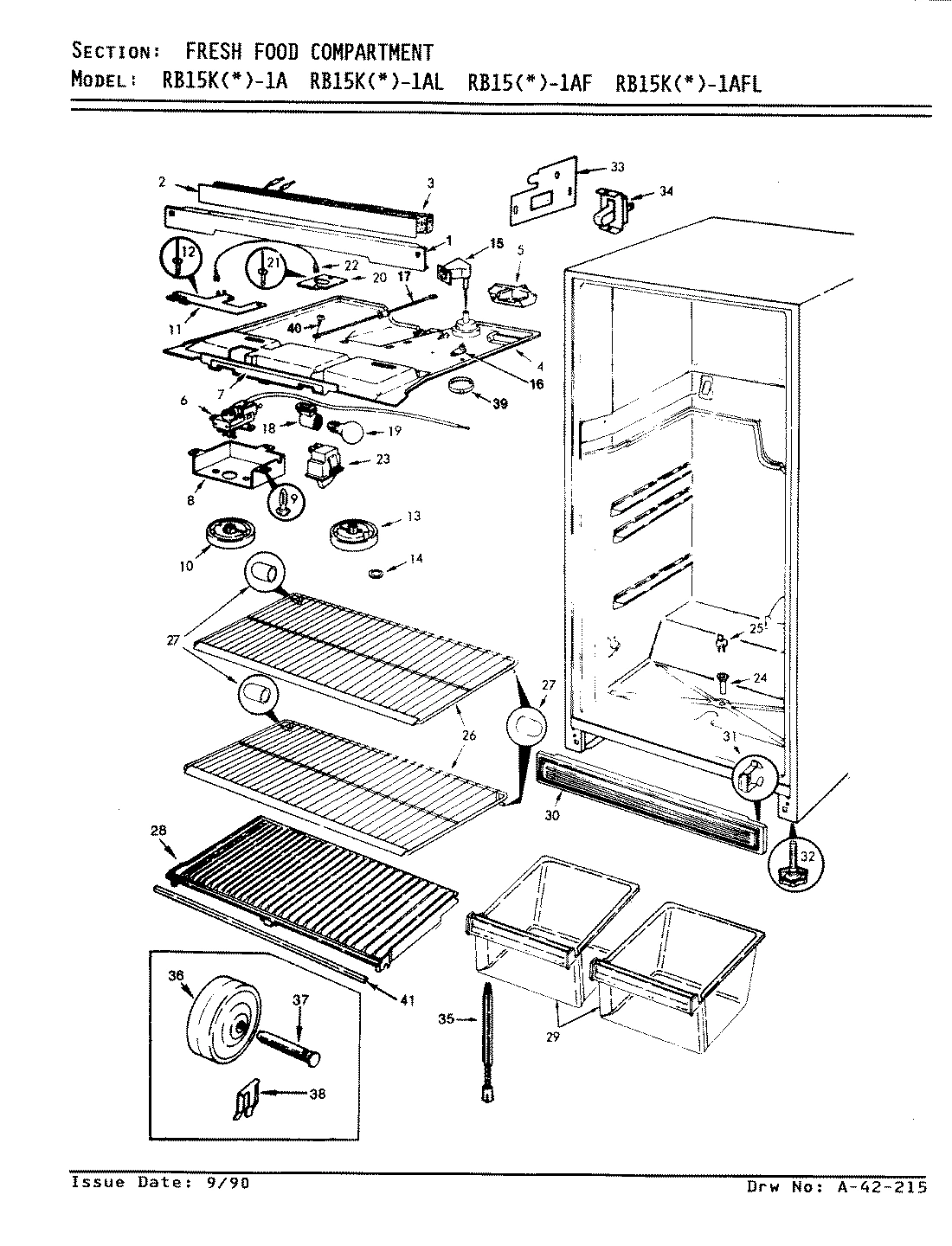

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RB15KA1AF REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 675181 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684701AM Contact Us For Availability
1
SCREW WPL 6527523 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684691AM Contact Us For Availability
2
HEATER WIRE WPL 688301 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
INSULATION WPL 685771 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
INSERT, HANDLE WPL 680161 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
INSERT, HANDLE WPL 6060315 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
INSERT WPL 6057144 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685921 Contact Us For Availability
8
DOOR HANDLE WPL 662554 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SCREW, CONTROL COVER WPL 4950121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
INSERT WPL 604451 Contact Us For Availability
10
INSERT, HANDLE WPL 680174 Contact Us For Availability
10
SCREW WPL 9986112 Contact Us For Availability
10
KNOB, CONTROL WPL 686001 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
INSERT, NAMEPLATE WPL 6060316 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TRIVET WPL 682591 Contact Us For Availability
13
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
KNOB, FRZ. WPL 686002 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
TIP WPL 245803 Contact Us For Availability
14
LINER, DOOR WPL 6593015 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
CLAMP, SPRING WPL 603334 Contact Us For Availability
15
LINER, DOOR WPL 659352 Contact Us For Availability
15
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
15
ORIFICE, DAMPER WPL 675581 Contact Us For Availability
16
TUBING WPL 675798 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
GASKET, DOOR WPL 661991 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
17
GASKET, DOOR WPL 661992 Contact Us For Availability
17
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
CLAMP, TUBING WPL 535168 Contact Us For Availability
18
SCREW WPL 652751 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
21
CAPACITOR, RUN WPL 658891 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 6515124 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
COVER, PLENUM WPL 664804 Contact Us For Availability
22
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 657021 Contact Us For Availability
23
SCREW WPL 400018103 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
23
TRAY, EGG WPL 606216 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
PAN, ICE WPL 683271 Contact Us For Availability
25
DOOR, DAIRY WPL 6040629 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
26
BUMPER, DOOR WPL 282726 Contact Us For Availability
26
SHELF, WIRE WPL 602209 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
27
HINGE, UPPER WPL 5370920 Contact Us For Availability
27
TIPS WPL 248503 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
28
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
SHELF, CRISPER WPL 668341 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
29
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
29
PAN, CRISPER WPL 68221105 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
SCREW WPL 4000171 Contact Us For Availability
30
KICKPLATE WPL 601386 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
WASHER WPL 542331 Contact Us For Availability
31
WASHER WPL 542332 Contact Us For Availability
31
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
31
SCREW WPL 998687 Contact Us For Availability
31
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
HINGE, CENTER WPL 688112 Contact Us For Availability
32
LEG, LEVELING WPL 60128 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
33
BRACKET, SWITCH WPL 605831 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
SCREW WPL 6527524 Contact Us For Availability
34
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
34
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
35
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
36
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
36
WHEEL WPL 298342 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
SCREW WPL 4030625 Contact Us For Availability
37
HINGE, LOWER WPL 677146 Contact Us For Availability
37
PIN, WHEEL WPL 298352 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
38
CLIP WPL 602161 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
HINGE PIN WPL 687881 Contact Us For Availability
39
COVER, CRANK WPL 674931 Contact Us For Availability
40
COVER WPL 600671 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 687111 Contact Us For Availability
40
CLIP WPL 524474 Contact Us For Availability
40
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
40
SCREW WPL 6527513 Contact Us For Availability
41
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
41
TRIM WPL 604541 Contact Us For Availability
42
TRAY, BUTTER WPL 299362 Contact Us For Availability
43
TAPPING PLATE WPL 657903 Contact Us For Availability
× ![]()
Login and Registration Form
