Model Whirlpool RB15GA-1P REFRIGERATOR – Common Parts & Diagrams
01 - DOORS

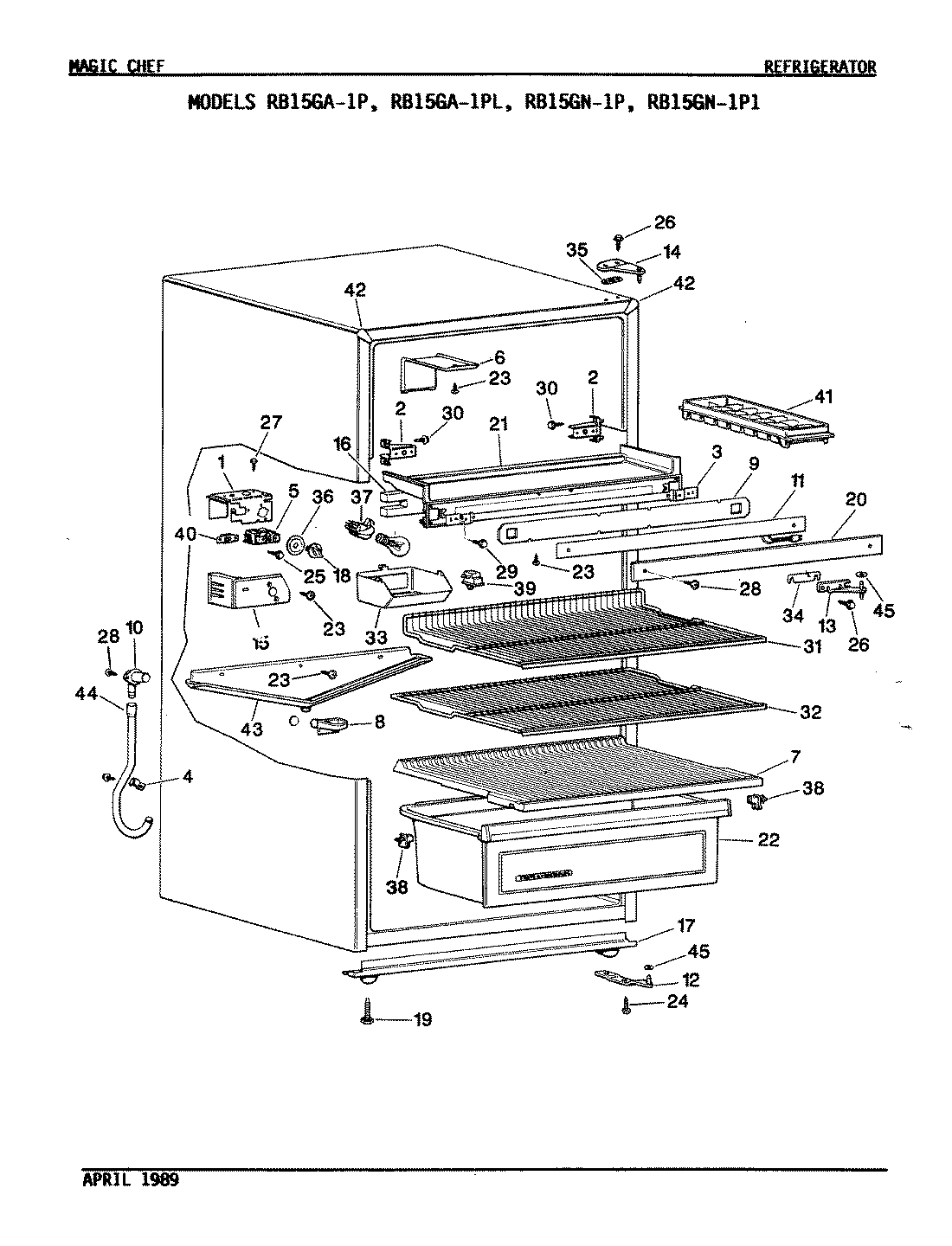

02 - FRESH FOOD COMPARTMENT

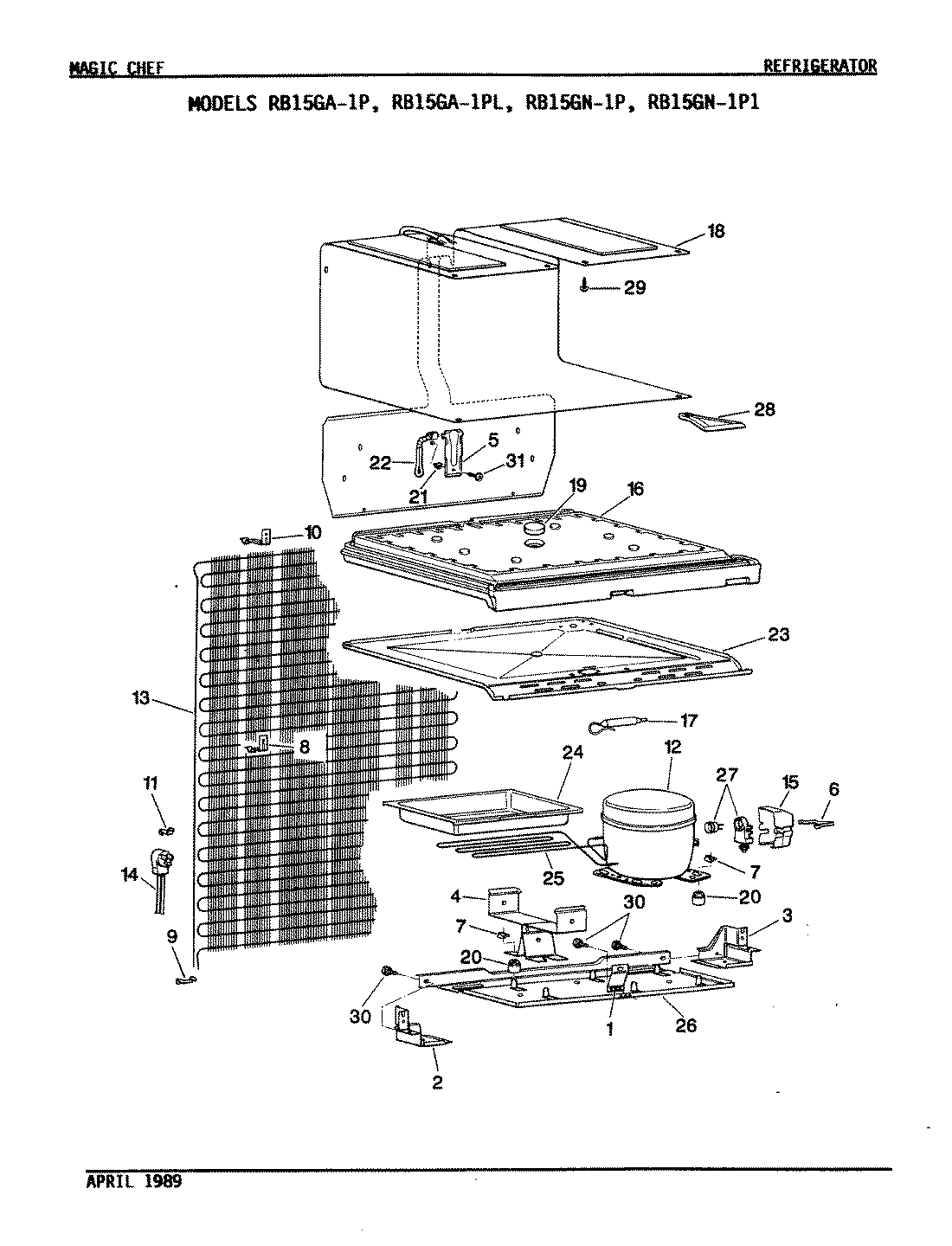

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB15GA-1P REFRIGERATOR
1
BRACKET WPL 70300004 Contact Us For Availability
1
BRACKET, CONTROL WPL 70500059 Contact Us For Availability
1
BRACKET WPL 70100023 Contact Us For Availability
2
BRACKET WPL 70300003 Contact Us For Availability
2
SCREW WPL 70200026 Contact Us For Availability
2
BRACKET, MULLION WPL 70500032 Contact Us For Availability
3
DOOR, DAIRY WPL 70300053 Contact Us For Availability
3
BRACKET, TENSION WPL 70500037 Contact Us For Availability
3
BRACKET WPL 70100025 Contact Us For Availability
4
GASKET, DOOR FRZ WPL 70300051 Contact Us For Availability
4
CLAMP WPL 70200044 Contact Us For Availability
4
BRACKET WPL 70100022 Contact Us For Availability
5
GASKET, DOOR WPL 70300025 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 70500066 Contact Us For Availability
5
CLAMP WPL 70200012 Contact Us For Availability
6
HANDLE WPL 70300002 Contact Us For Availability
6
COVER, EVAPORATOR WPL 70500057 Contact Us For Availability
7
INSERT, DOOR HANDLE WPL 70300043 Contact Us For Availability
7
COVER, VEGETABLE PAN WPL 70500069 Contact Us For Availability
7
CLIP WPL 70200009 Contact Us For Availability
8
DOOR INNER FREEZER (AD) WPL 70300050 Contact Us For Availability
8
CUP, DRAIN WPL 70500055 Contact Us For Availability
8
CLIP WPL 70200006 Contact Us For Availability
9
DOOR INNER WPL 70300052 Contact Us For Availability
9
GASKET, MULLION WPL 70500034 Contact Us For Availability
9
CLIP WPL 70200018 Contact Us For Availability
10
NAMEPLATE WPL 70300041 Contact Us For Availability
10
GROMMET WPL 70200045 Contact Us For Availability
10
CLIP WPL 70200005 Contact Us For Availability
11
FREEZER O DOOR RH (ADJ) WPL 70300057 Contact Us For Availability
11
HEATER, MULLION WPL 70500041 Contact Us For Availability
12
PANEL, OUTER DOOR WPL 70300034 Contact Us For Availability
12
HINGE, BOTTOM & PIN ASSY WPL 70500062 Contact Us For Availability
12
COMPRESSOR WPL 70100013 Contact Us For Availability
13
RETAINER, GASKET WPL 70300023 Contact Us For Availability
13
CONDENSER WPL 70100018 Contact Us For Availability
14
RETAINER WPL 70300007 Contact Us For Availability
14
TOP HINGE ASSY. WPL 70500014 Contact Us For Availability
14
POWER CORD WPL 70100001 Contact Us For Availability
15
RETAINER, GASKET WPL 70300028 Contact Us For Availability
15
HOUSING, CONTROL WPL 70500053 Contact Us For Availability
16
SCREW WPL 70200021 Contact Us For Availability
16
INSULATION WPL 70500038 Contact Us For Availability
16
STYRAFOAM DIVIDER WPL 70100044 Contact Us For Availability
17
SCREW WPL 70200022 Contact Us For Availability
17
KICKPLATE WPL 70500015 Contact Us For Availability
17
DRIER WPL 70100011 Contact Us For Availability
18
SCREW WPL 70200023 Contact Us For Availability
18
KNOB, CONTROL WPL 70500051 Contact Us For Availability
18
EVAPORATOR WPL 70100017 Contact Us For Availability
19
SCREW WPL 70200024 Contact Us For Availability
19
LEG, LEVELING WPL 70500016 Contact Us For Availability
19
FILTER WPL 70100015 Contact Us For Availability
20
SCREW WPL 70200025 Contact Us For Availability
20
MULLION WPL 70500031 Contact Us For Availability
20
GROMMET WPL 70200016 Contact Us For Availability
21
HINGE, CENTER WPL 70500048 Contact Us For Availability
21
MULLION (INNER) WPL 70500036 Contact Us For Availability
22
TRIM SPACER WPL 70300018 Contact Us For Availability
22
PAN, VEGETABLE WPL 70500067 Contact Us For Availability
22
HTR EVAP ASM WPL 70100043 Contact Us For Availability
23
CAP SHELF FRONT WPL 70300056 Contact Us For Availability
23
LINER TOP FF WPL 70100045 Contact Us For Availability
24
TRAY, BUTTER WPL 70300013 Contact Us For Availability
24
SCREW WPL 70200030 Contact Us For Availability
24
DRAIN PAN WPL 70100029 Contact Us For Availability
25
HANDLE TRIM WPL 70300017 Contact Us For Availability
25
SCREW WPL 70200046 Contact Us For Availability
25
AUX COND & DRAIN PAN WPL 70100048 Contact Us For Availability
26
HANDLE ENDCAP WPL 70300016 Contact Us For Availability
26
SCREW WPL 70200033 Contact Us For Availability
26
COMPR MTG PLATE WPL 70100024 Contact Us For Availability
27
HANDLE ENDCAP WPL 70300015 Contact Us For Availability
27
SCREW WPL 70200048 Contact Us For Availability
27
RELAY WPL 70100047 Contact Us For Availability
28
SHELF TRIM WPL 70300019 Contact Us For Availability
28
SCREW WPL 70200049 Contact Us For Availability
28
SCRAPER WPL 70100005 Contact Us For Availability
29
SHELF TRIM WPL 70300021 Contact Us For Availability
29
SCREW, 8-18 AB RNDW 5/8 SS WPL 70500065 Contact Us For Availability
29
SCREW WPL 70200050 Contact Us For Availability
30
SHELF TRIM WPL 70300027 Contact Us For Availability
30
SCREW WPL 70200051 Contact Us For Availability
30
SCREW WPL 70200011 Contact Us For Availability
31
DR SHELF ENDCAP WPL 70300020 Contact Us For Availability
31
SHELF, WIRE WPL 70500042 Contact Us For Availability
31
SCREW WPL 70200014 Contact Us For Availability
32
SHELF, WIRE WPL 70500043 Contact Us For Availability
33
SHIELD, LIGHT WPL 70500040 Contact Us For Availability
35
SHIM, HINGE (TOP) WPL 70500025 Contact Us For Availability
36
SKIRT, KNOB WPL 70500052 Contact Us For Availability
37
SOCKET, LIGHT WPL 70500024 Contact Us For Availability
38
SUPPORT WPL 70500046 Contact Us For Availability
39
SWITCH, LIGHT WPL 70500058 Contact Us For Availability
40
SWITCH, POWERSAVER WPL 70500047 Contact Us For Availability
41
TRAY, ICE WPL 70500039 Contact Us For Availability
42
CAP, CORNER WPL 70500030 Contact Us For Availability
43
TROUGH, DRAIN WPL 70500054 Contact Us For Availability
44
TUBE, DRAIN WPL 70500056 Contact Us For Availability
45
WASHER WPL 70200043 Contact Us For Availability
× ![]()
