Model Whirlpool RB15FA-2AL REFRIGERATOR – Common Parts & Diagrams
01 - DOORS

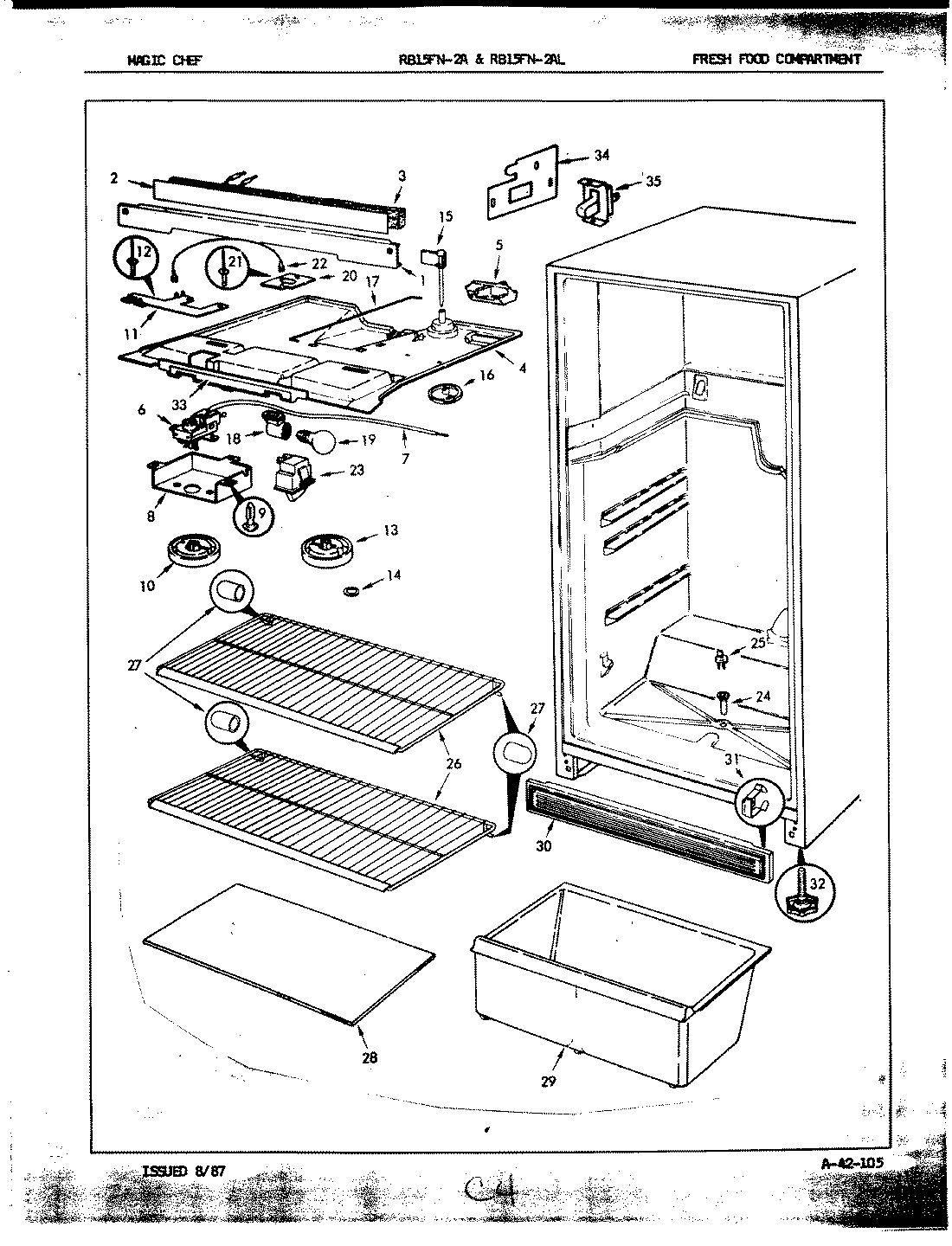

03 - FRESH FOOD COMPARTMENT

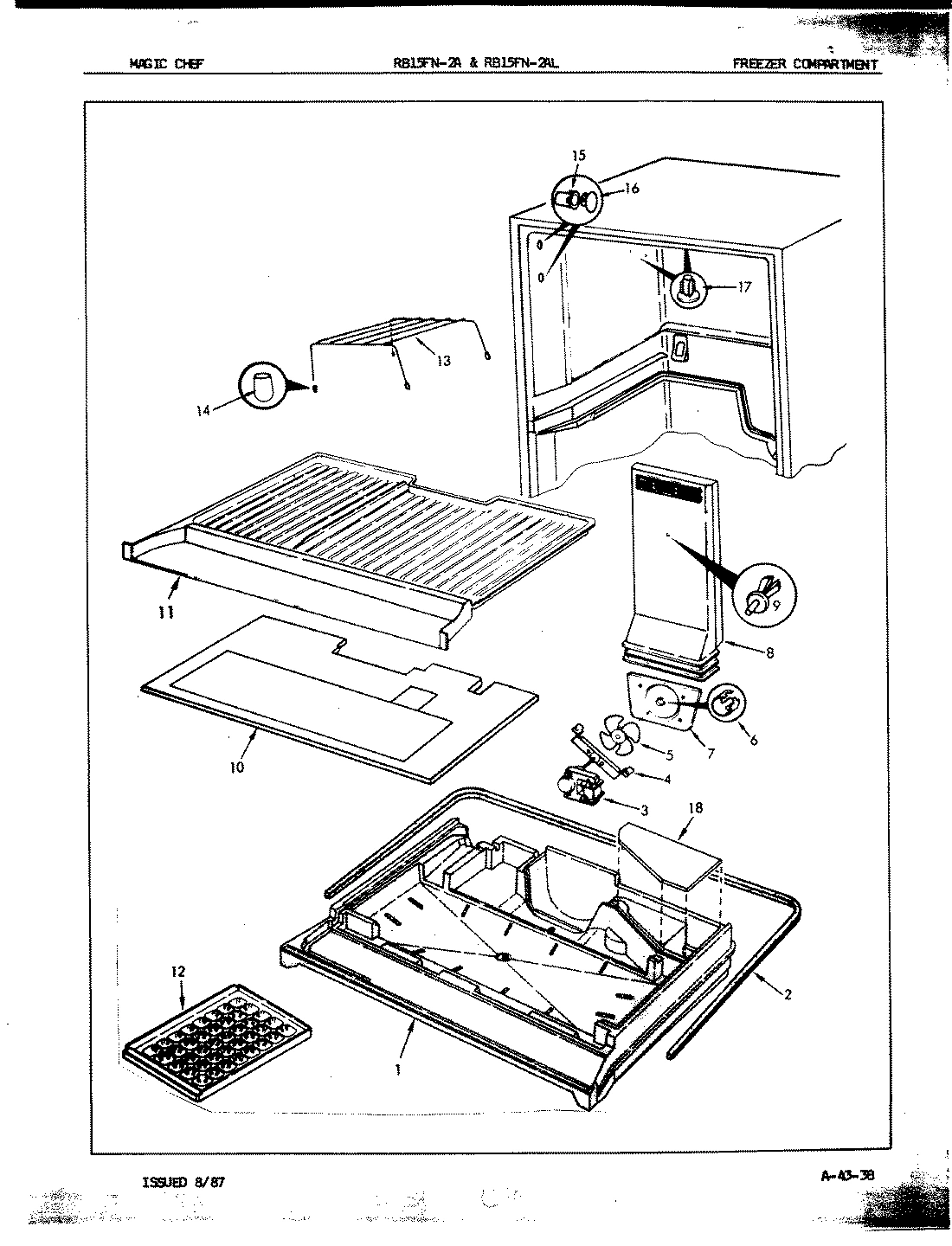

02 - FREEZER COMPARTMENT

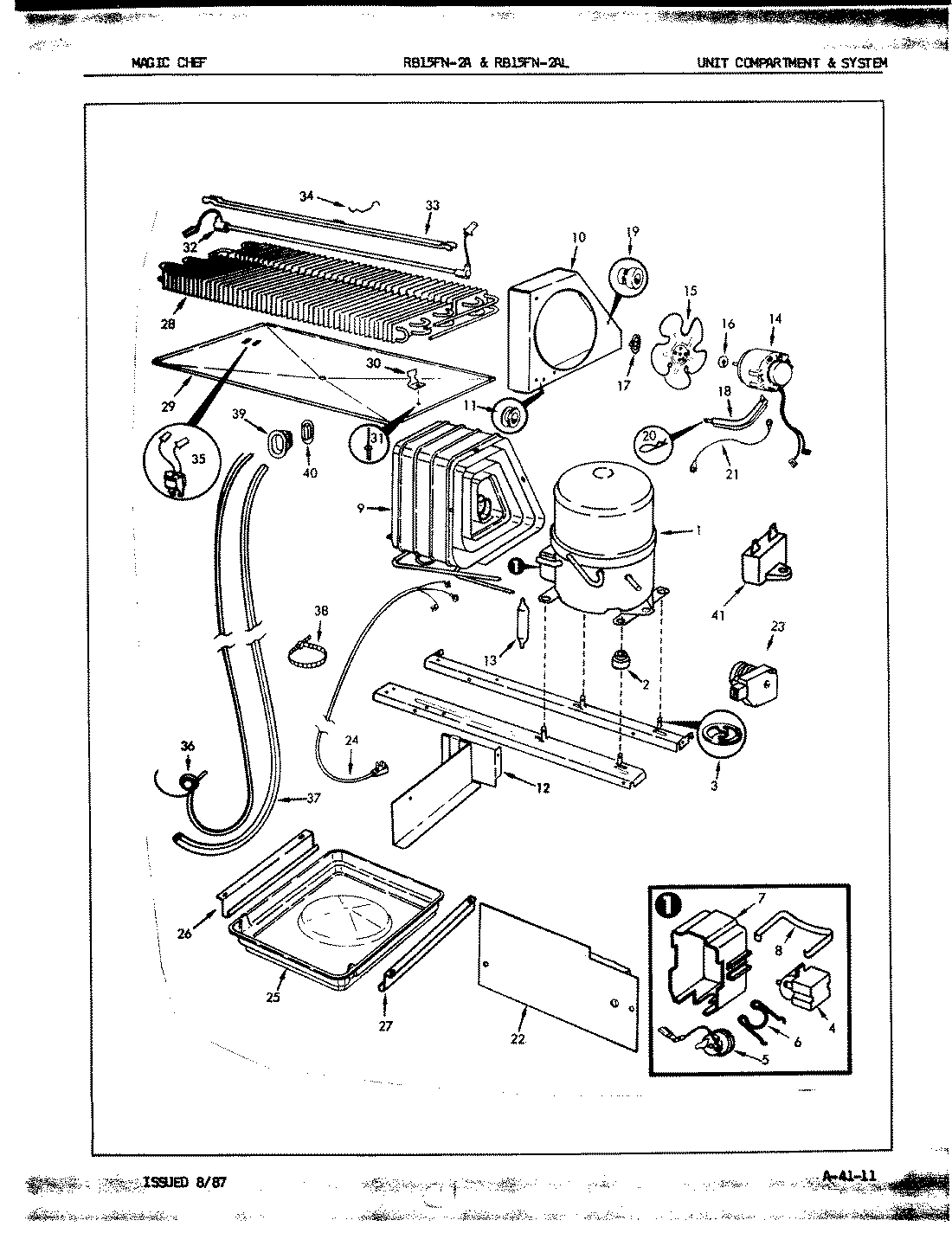

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB15FA-2AL REFRIGERATOR
1
OUTER PANEL WPL 600334AM Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 657971AM Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
TRAY, DIVIDER WPL 605761 Contact Us For Availability
1
COMPRESSOR WPL RA1005 Contact Us For Availability
2
OUTER PANEL WPL 6003251AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WIRE WPL 601057 Contact Us For Availability
2
SEAL WPL 663251 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
DOOR HANDLE WPL 604911 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
INSERT WPL 604893 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008551 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
INSERT WPL 604901 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
6
SCREW WPL 40100512 Contact Us For Availability
6
BEZEL WPL 604871 Contact Us For Availability
6
GROUND WIRE WPL 2967522 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
INSERT WPL 605339 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
DOOR HANDLE WPL 604912 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
TUNNEL, AIR WPL 660441 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
INSERT WPL 604894 Contact Us For Availability
9
SCREW WPL 9986112 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438714 Contact Us For Availability
10
INSERT WPL 604902 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
INSERT WPL 6053310 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SHIM WPL 604881 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
13
TRIVET WPL 583865 Contact Us For Availability
14
LINER, DOOR WPL 659305 Contact Us For Availability
14
TIP WPL 245803 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
LINER, DOOR WPL 659352 Contact Us For Availability
15
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
GASKET, DOOR WPL 661991 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
GASKET, DOOR WPL 661992 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
COVER, PLENUM WPL 664801 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 6515122 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
DOOR, DAIRY WPL 6040635 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 657021 Contact Us For Availability
24
BUMPER, DOOR WPL 282726 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
TRAY, BUTTER WPL 299362 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
26
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
26
SHELF, WIRE WPL 602209 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
28
SHELF, CRISPER WPL 654243 Contact Us For Availability
28
EVAPORATOR WPL RA4362040 Contact Us For Availability
29
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
29
PAN, CRISPER WPL 6014533 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
WASHER WPL 521851 Contact Us For Availability
30
SCREW WPL 998687 Contact Us For Availability
30
KICKPLATE WPL 601386 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
31
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
32
LEG, LEVELING WPL 60128 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
TAPPING PLATE WPL 606221 Contact Us For Availability
33
SCREW WPL 9986107 Contact Us For Availability
33
INSERT WPL 6057143 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
34
BRACKET, SWITCH WPL 605831 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
35
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SCREW WPL 4030625 Contact Us For Availability
36
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364543 Contact Us For Availability
37
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
WASHER WPL 542332 Contact Us For Availability
40
DOOR SUPPORT WPL 638763 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
41
WIRE COVER WPL 601101 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
CAPACITOR, RUN WPL 658891 Contact Us For Availability
41
WIRE HARNESS WPL 666551 Contact Us For Availability
× ![]()
